RRKWMPND04802.11a/b/g/n Mini-PCI Card

Alpha Networks Proprietary and Confidential Information 1 User’s Manual 無線網路卡 Mini-PCI Card Model Number: WMP-ND04 Revision: draft 0.1 This document contains confidential proprietary information and is the property of Alpha Networks Corporation. The contents of this document may not be disclosed to unauthorized persons without the written consent of Alpha Networks Corporation. Company Confidential Alpha Networks Proprietary and Confidential Information 2 1.0 Scope 1.1 Document This document is to specify the product requirements for Mini-PCI Card. This mPCI is based on Broadcom BCM4322 chipset that complied with complied with IEEE 802.11n Draft 2.0, and it is also backward complied with IEEE 802.11a standard from 5.150~5.850GHz wideband and IEEE 802.11b/g standard from 2.412~2.462GHz. It can be used to provide up to 54Mbps for IEEE 802.11a and IEEE 802.11g , 11Mbps for IEEE 802.11b and 300Mbps for IEEE 802.11n to connect your wireless LAN. There are several BAT files for the Broadcom testing. Init_DUT.bat, Cz_24g.bat, continu_tx.bat, BCM24g.bat, BCM24gHT20.bat, BCM24gHT40.bat, BCM5g.bat, BCM5gHT20.bat, BCM5gHT40.bat 11b mode: 1. plug MiniPCI 2. executeInit_DUT.bat 3. executeCz_24g.bat channel datarate power antenna. Ex. Cz_24g.bat 1 11 18 0channel 1 datarate=11Mbps, power setting=18, antenna 0 4. continu_tx.bat 11g mode: 1. plug MiniPCI 2. executeBCM24g.bat channel datarate power Ex. BCM24g.bat 7 54 16channel 7 datarate=54Mbps, power setting=16, 11g HT20 mode: 1. plug MiniPCI 2executeBCM24gHT20.bat channel datarate power Ex. BCM24gHT20.bat 11 8 16channel 11 datarate=MCS 8, power setting=16, 11g HT40 mode: 1. plug MiniPCI 2executeBCM24gHT40.bat channel datarate power Ex. BCM24gHT40.bat 3 15 12channel 3 datarate=MCS 15, power setting=12, ********************************************************************************************** ******************************************** 11a mode: 1. plug MiniPCI 2. executeBCM5g.bat channel datarate power Ex. BCM5g.bat 100 54 16channel 100 datarate=54Mbps, power setting=16, 11a HT20 mode: 1. plug MiniPCI 2executeBCM5gHT20.bat channel datarate power Ex. BCM5gHT20.bat 36 8 16channel 36 datarate=MCS 8, power setting=16, 11a HT40 mode: 1. plug MiniPCI 2executeBCM5gHT40.bat channel datarate power Ex. BCM5gHT40.bat 165 15 12channel 165 datarate=MCS 15, power setting=12, Company Confidential Alpha Networks Proprietary and Confidential Information 3 1.2 Product Features ü Compatible with IEEE 802.11a high rate standard to provide wireless 54Mbps data rate ü Compatible with IEEE 802.11g high rate standard to provide wireless 54Mbps data rate ü Compatible with IEEE 802.11b high rate standard to provide wireless 11Mbps data rate ü Compatible with IEEE 802.11 draft n standard to provide wireless 300Mbps data rate ü Maximum reliability, throughput and connectivity with automatic data rate switching ü Supports infrastructure networks via Access Point and ad-hoc network via peer-to-peer communication 2.0 Requirements The following sections identify the detailed requirements of the 802.11a/b/g/n Mini-PCI Card. 2.1 Functional Block Diagram M i n i c a r d I / F MAC/BB + Transceiver BCM4322L Front end Module SE2547A Front end Module SE2547A TxA0 TxG0 RxA0 RxG0 TxA1 TxG1 RxA1 RxG1 IPEX ANT 0 Ant 0 IPEX ANT 2 IPEX ANT 1 Ant 1 SPDT Ant 0 Ant 1 AS-225 20MHz Serial EEPROM AT93C66A 2.2 General Requirements 2.2.1 IEEE 802.11a Section # Feature Detailed Description 2.2.1.1 Standard ü IEEE 802.11a 2.2.1.2 Radio and Modulation Type ü BPSK, QPSK, 16QAM, 64QAM with OFDM 2.2.1.3 Operating Frequency ü 5.15 ~ 525GHz. , 5.725 ~ 5.850GHz for US ü 5.15 ~ 535GHz. , 5470 ~ 5.725GHz , 5.725 ~ 5.850GHz for Canada ü 5.25 ~5.35GHz, 5470 ~ 5.725GHz , 5.725 ~ 5.850GHz for Taiwan ü 5.15 ~ 5.25GHz for Japan ü 5.15 ~ 5.35GHz and 5.47 ~ 5.725GHz for Europe 2.2.1.4 Data Rate ü 54, 48, 36, 24, 18, 12, 9 and 6Mbps Company Confidential Alpha Networks Proprietary and Confidential Information 4 # Feature Detailed Description 2.2.1.5 Media Access Protocol ü CSMA/CA with ACK 2.2.1.6 Maximum Transmitter Output Power at Antenna Connector ü For 5GHz (525~535GHz) 802.11a: 13.8 dBm ü For 5GHz (5.470~5.725GHz) 802.11a: 19.1 dBm ü For 5GHz (5.725~5.850GHz 802.11a: 26.00 dBm 2.2.1.7 Receiver Sensitivity at Antenna Connector ü Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 10% and at room Temp. 25degree C ü –dBm at 54Mbps ü –dBm at 48Mbps ü –dBm at 36Mbps ü –dBm at 24Mbps ü –dBm at 18Mbps ü –dBm at 12Mbps ü –dBm at 9Mbps ü –dBm at 6Mbps (TBC) 2.2.2 IEEE 802.11b Section # Feature Detailed Description 2.2.2.1 Standard ü IEEE 802.11b 2.2.2.2 Radio and Modulation Schemes ü DQPSK, DBPSK, DSSS, and CCK 2.2.2.3 Operating Frequency ü 2400 ~ 2483.5MHz ISM band 2.2.2.4 Channel Numbers ü 11 channels for United States/ Canda/ Taiwan 13 channels for Europe Countries 14 channels for Japan 2.2.2.5 Data Rate ü 11, 5.5, 2, and 1Mbps 2.2.2.6 Media Access Protocol ü CSMA/CA with ACK 2.2.2.7 Transmitter Output Power at Antenna Connector ü For 2.4GHz 802.11b: 22.8 dBm 2.2.2.8 Receiver Sensitivity at Antenna Connector ü Typical Sensitivity at Which Frame (1000-byte PDUs) Error Rate = 8% and at room Temp. 25degree C ü –dBm at 11Mbps ü –dBm at 5.5Mbps ü –dBm at 2Mbps ü –dBm at 1Mbps (TBC) 2.2.3 IEEE 802.11g Section # Feature Detailed Description 2.2.3.1 Standard ü IEEE 802.11g 2.2.3.2 Radio and Modulation Type ü BPSK, QPSK, 16QAM, 64QAM with OFDM 2.2.3.3 Operating Frequency ü 2400 ~ 2483.5MHz ISM band 2.2.3.4 Channel Numbers ü 11 channels for United States/ Canda/ Taiwan 13 channels for Europe Countries 14 channels for Japan 2.2.3.5 Data Rate ü 6,9,12,18,24,36,48,54Mbps Company Confidential Alpha Networks Proprietary and Confidential Information 5 # Feature Detailed Description 2.2.3.6 Media Access Protocol ü CSMA/CA with ACK 2.2.3.7 Transmitter Output Power at Antenna Connector ü For 2.4GHz 802.11g: 27.7 dBm . 2.2.3.8 Receiver Sensitivity at Antenna Connector ü Typical Sensitivity at Which Frame (1000-byte PDUs) Error Ra…

Text truncated - open the document above for the full version.

General Declaration We, Alpha Networks Inc. declares that device does not have “Ad Hoc on non-US frequencies” while applying for the follow product. FCC ID: RRKWMPND04 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2009/12/2

Federal Communications Commission Authorization and Evaluation Division Declaration Letter To whom it may concern: We, the undersigned Alpha Networks Inc. hereby to declare our software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. FCC ID: RRKWMPND04 Model name: WMP-ND04 Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2009/12/2

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: RRKWMPND04 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2009/12/2

Power of Attorney To whom it may concern: We, the undersigned Alpha Networks Inc. hereby authorize BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C and E approval and any communication needed with the national authority. Any and all acts carried out by BV CPS (H.K.) Ltd., Taoyuan Branch of Taiwan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------ Kelly Tsai / Senior Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] 2009/12/2

Power of Attorney To whom it may concern: I, the undersigned, Leeming, hereby authorize the person listed in below to act in behalf of me to sign all related documents for Alpha’s FCC application. Kelly Tsai / Senior Manager TEL: 886-3-5636666 FAX: 886- 3-5665091 E-mail: [email protected] Company Name: Alpha Networks Inc. Company Address: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. Authorization period: Nov 1 st , 2008 ~ Dec 21 st , 2015 If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, _________________________________ Leeming / Manager Alpha Networks Inc. TEL: 886-3-5636666 FAX: 886- 3-5781861 E-mail: [email protected] 2009/11/19

FCC ID: RRKWMPND04 Report No. : RF980903H06 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Dec. 30, 2009 Dear Application Examiner, Alpha Networks Inc.’s 802.11a/b/g/n Mini-PCI Card, FCC ID: RRKWMPND04, would like to have your authorization as a modular approval. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip BCM4342. 3. “The modular transmitter must have its own power supply regulation.” The modular transmitter has its own power supply regulation built in BCM4342. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RRKWMPND04 Report No. : RF980903H06 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, May Chen Deputy Manager of Hsinchu Certification Service Div. Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

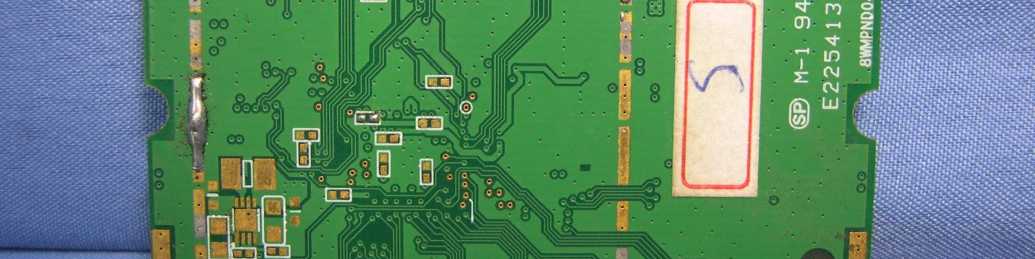

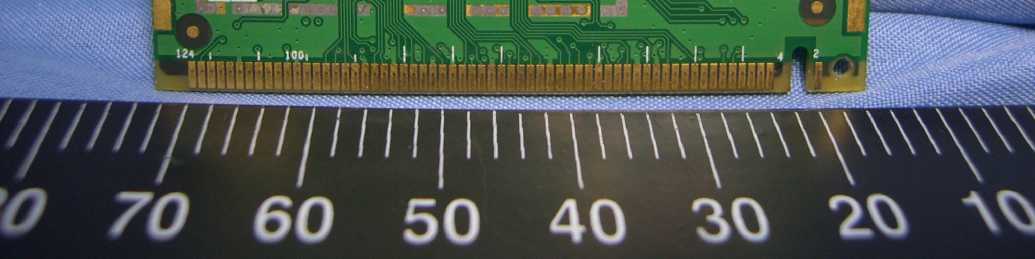

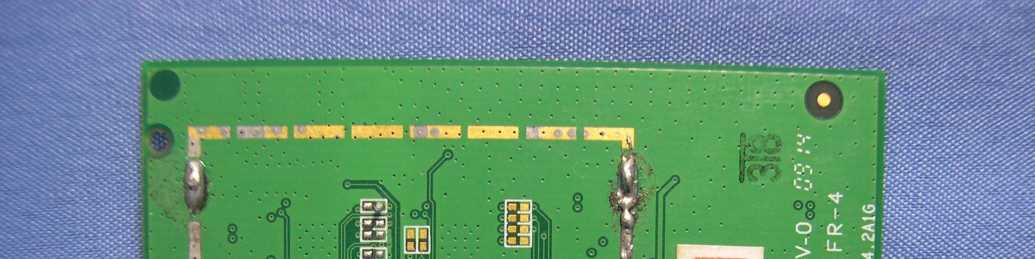

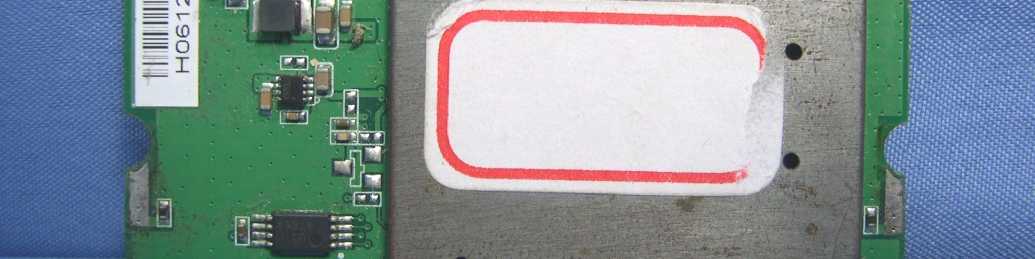

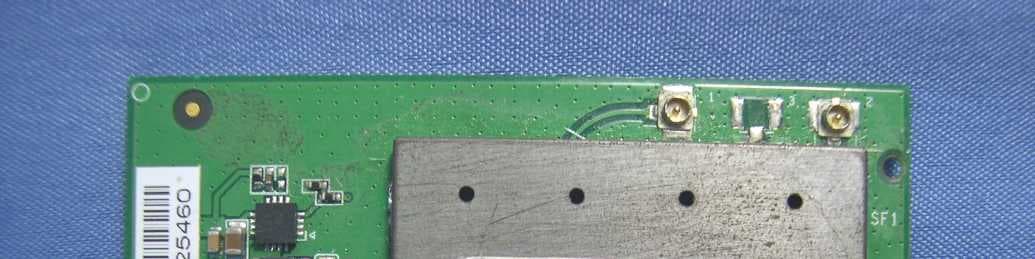

Page 1 CONSTRUCTION PHOTOS OF EUT

Company Confidential

FCC ID： RRKWMPND04 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Company Confidential

Page 2 Page 3 Page 4 Page 5 Antenna Model No.: C037-510987-A (SSR-91251) Antenna Model No.: C037-510988-A (SSR-91252)

FCC ID: RRKWMPND04 Report No. : RF980903H06 Technical Description This device is a 802.11a/b/g/n Mini-PCI Card operates in both the 5GHz and 2.4GHz Bands with DSSS and OFDM technique. The transmitter rate could be 11Mbps for 11b; 54Mbps for 11a/g; 144.44Mbps for 802.11n (20MHz); 300Mbps for 802.11n (40MHz). The transmitter of EUT is powered by host equipment. NOTE: 1. There are four antennas provided to this EUT, please refer to the following table: For 2.4GHz Chain Manufacture Model name Antenna Gain (dBi) Cable loss (dB) Net Gain (dBi) Antenna Type Connector Chain (0) Antenna (1) WHA YU GROUP C037-510987-A (SSR-91251) 4 0.6 3.4 Dipole SMA Straight Plug Reverse Chain (1) Antenna (2) WHA YU GROUP C037-510987-A (SSR-91251) 4 0.6 3.4 Dipole SMA Straight Plug Reverse For 5GHz Chain Manufacture Model name Antenna Gain (dBi) Cable loss (dB) Net Gain (dBi) Antenna Type Connector Chain (0) Antenna (1) WHA YU GROUP C037-510988-A (SSR-91252) Band1: 7.128 Band2: 7.128 Band3: 7.841 Band4: 7.841 1.1 Band1: 6.028 Band2: 6.028 Band3: 6.741 Band4: 6.741 Dipole SMA Straight Plug Reverse Chain (1) Antenna (2) WHA YU GROUP C037-510988-A (SSR-91252) Band1: 7.128 Band2: 7.128 Band3: 7.841 Band4: 7.841 1.1 Band1: 6.028 Band2: 6.028 Band3: 6.741 Band4: 6.741 Dipole SMA Straight Plug Reverse 2. The EUT incorporates a MIMO function with 802.11n. Physically, the EUT provides two completed transmitters and two completed receivers. 3. The EUT is 2 * 2 spatial MIMO (2Tx & 2Rx) without beam forming function. The antenna configurations are two transmitter antennas and two receiver antennas, as there are 2 Dipole antennas. Spatial multiplexing modes for simultaneous transmission using 2 antennas, and for simultaneous receiver using 2 antennas. 4. The EUT complies with 802.11n standards and backwards compatible with 802. 11a, 802.11b, 802.11g products. 5. The above EUT information was declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications or user's manual. FCC ID: RRKWMPND04 Report No. : RF980903H06 FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of hoe this requirement is met. Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA980903H06 Report Format Version 3.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA980903H06 MODEL NO.: WMP-ND04 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan. Report No.: SA980903H06 Report Format Version 3.0.0 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in our lab, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Report No.: SA980903H06 Report Format Version 3.0.0 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device Report No.: SA980903H06 Report Format Version 3.0.0 4 6. TEST RESULTS 6.1 Antenna Gain There are four antennas provided to this EUT, please refer to the following table: For 2.4GHz Chain Manufacture Model name Antenna Gain (dBi) Cable loss (dB) Net Gain (dBi) Antenna Type Connector Chain (0) Antenna (1) WHA YU GROUP C037-510987-A (SSR-91251) 4 0.6 3.4 Dipole SMA Straight Plug Reverse Chain (1) Antenna (2) WHA YU GROUP C037-510987-A (SSR-91251) 4 0.6 3.4 Dipole SMA Straight Plug Reverse For 5GHz Chain Manufacture Model name Antenna Gain (dBi) Cable loss (dB) Net Gain (dBi) Antenna Type Connector Chain (0) Antenna (1) WHA YU GROUP C037-510988-A (SSR-91252) Band1: 7.128 Band2: 7.128 Band3: 7.841 Band4: 7.841 1.1 Band1: 6.028 Band2: 6.028 Band3: 6.741 Band4: 6.741 Dipole SMA Straight Plug Reverse Chain (1) Antenna (2) WHA YU GROUP C037-510988-A (SSR-91252) Band1: 7.128 Band2: 7.128 Band3: 7.841 Band4: 7.841 1.1 Band1: 6.028 Band2: 6.028 Band3: 6.741 Band4: 6.741 Dipole SMA Straight Plug Reverse Report No.: SA980903H06 Report Format Version 3.0.0 5 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For 15.247(2.4GHz): 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 162.2 0.071 1.0 6 2437 190.5 0.083 1.0 11 2462 109.6 0.048 1.0 802.11g: 13.1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 409.3 0.178 1.0 6 2437 583.5 0.254 1.0 11 2462 399.2 0.174 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 390.4 0.170 1.0 6 2437 625.6 0.272 1.0 11 2462 289.2 0.126 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2422 313.6 0.136 1.0 4 2437 515.3 0.224 1.0 7 2452 246.3 0.107 1.0 Report No.: SA980903H06 Report Format Version 3.0.0 6 For 15.247(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 404.6 0.380 1.0 157 5785 395.9 0.372 1.0 165 5825 403.4 0.379 1.0 802.11n (20MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 149 5745 412.6 0.388 1.0 157 5785 408.9 0.384 1.0 165 5825 403.7 0.379 1.0 802.11n (40MHz): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 151 5755 390.0 0.366 1.0 159 5795 385.5 0.362 1.0 Report No.: SA980903H06 Report Format Version 3.0.0 7 For 15.407(5GHz): 802.11a: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 36 5180 27.7 0.022 1.0 40 5200 27.3 0.022 1.0 48 5240 28.5 0.023 1.0 802.11n (20MHz): Channel Channel Frequ…

Text truncated - open the document above for the full version.

Report No.: RF980903H06 1 Report Format Version 3.0.0 FCC TEST REPORT (15.247) REPORT NO.: RF980903H06 MODEL NO.: WMP-ND04 RECEIVED: Sep. 03, 2009 TESTED: Sep. 22 to Nov. 19, 2009 ISSUED: Nov. 27, 2009 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 122 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980903H06 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION..............................................................................................5 2. SUMMARY OF TEST RESULTS.....................................................................6 2.1 MEASUREMENT UNCERTAINTY..................................................................8 3. GENERAL INFORMATION..............................................................................9 3.1 GENERAL DESCRIPTION OF EUT................................................................9 3.2 DESCRIPTION OF TEST MODES................................................................12 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL..............13 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..............................16 3.4 DESCRIPTION OF SUPPORT UNITS..........................................................17 3.5 CONFIGURATION OF SYSTEM UNDER TEST..........................................17 4. TEST TYPES AND RESULTS (802.11b & g, 2400 ~ 2483.5MHz Band).....18 4.1 CONDUCTED EMISSION MEASUREMENT...............................................18 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................18 4.1.2 TEST INSTRUMENTS...................................................................................18 4.1.3 TEST PROCEDURES....................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD.........................................................19 4.1.5 TEST SETUP.................................................................................................20 4.1.6 EUT OPERATING CONDITIONS..................................................................20 4.1.7 TEST RESULTS.............................................................................................21 4.2 RADIATED EMISSION MEASUREMENT.....................................................23 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..................................23 4.2.2 TEST INSTRUMENTS...................................................................................24 4.2.3 TEST PROCEDURES....................................................................................25 4.2.4 DEVIATION FROM TEST STANDARD.........................................................25 4.2.5 TEST SETUP.................................................................................................26 4.2.6 EUT OPERATING CONDITIONS..................................................................26 4.2.7 TEST RESULTS.............................................................................................27 4.3 6dB BANDWIDTH MEASUREMENT............................................................56 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.........................................56 4.3.2 TEST INSTRUMENTS...................................................................................56 4.3.3 TEST PROCEDURE......................................................................................57 4.3.4 DEVIATION FROM TEST STANDARD.........................................................57 4.3.5 TEST SETUP.................................................................................................57 4.3.6 EUT OPERATING CONDITIONS..................................................................57 4.3.7 TEST RESULTS.............................................................................................58 4.4 MAXIMUM PEAK OUTPUT POWER............................................................62 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT...........62 Report No.: RF980903H06 3 Report Format Version 3.0.0 4.4.2 INSTRUMENTS.............................................................................................62 4.4.3 TEST PROCEDURES....................................................................................62 4.4.4 DEVIATION FROM TEST STANDARD.........................................................62 4.4.5 TEST SETUP.................................................................................................62 4.4.6 EUT OPERATING CONDITIONS..................................................................63 4.4.7 TEST RESULTS.............................................................................................64 4.5 POWER SPECTRAL DENSITY MEASUREMENT.......................................66 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT....................66 4.5.2 TEST INSTRUMENTS...................................................................................66 4.5.3 TEST PROCEDURE......................................................................................67 4.5.4 DEVIATION FROM TEST STANDARD.........................................................67 4.5.5 TEST SETUP.................................................................................................67 4.5.6 EUT OPERATING CONDITION....................................................................67 4.5.7 TEST RESULTS................................................…

Text truncated - open the document above for the full version.

Report No.: RF980903H06-1 1 Report Format Version 3.0.0 FCC TEST REPORT (15.407) REPORT NO.: RF980903H06-1 MODEL NO.: WMP-ND04 RECEIVED: Sep. 03, 2009 TESTED: Sep. 22 to Nov. 19, 2009 ISSUED: Nov. 27, 2009 APPLICANT: Alpha Networks Inc. ADDRESS: No.8 Li-shing 7th Rd., Science-based Industrial Park, Hsinchu, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980903H06-1 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION................................................................................................4 2. SUMMARY OF TEST RESULTS.........................................................................5 2.1 MEASUREMENT UNCERTAINTY.......................................................................6 3. GENERAL INFORMATION..................................................................................7 3.1 GENERAL DESCRIPTION OF EUT....................................................................7 3.2 DESCRIPTION OF TEST MODES....................................................................10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:......................11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.....................................14 3.4 DESCRIPTION OF SUPPORT UNITS...............................................................15 3.5 CONFIGURATION OF SYSTEM UNDER TEST.................................................15 4. TEST TYPES AND RESULTS...........................................................................16 4.1 CONDUCTED EMISSION MEASUREMENT......................................................16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................16 4.1.2 TEST INSTRUMENTS......................................................................................16 4.1.3 TEST PROCEDURES.......................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD..............................................................17 4.1.5 TEST SETUP...................................................................................................18 4.1.6 E…
