TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 10 von 10 Page 10 of 10 1.6 User Manual

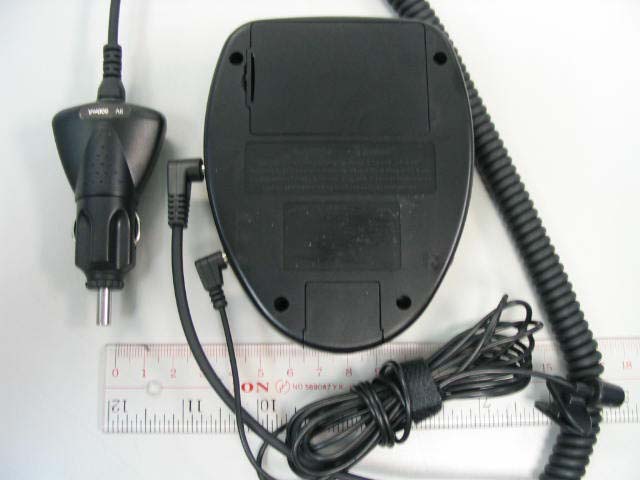

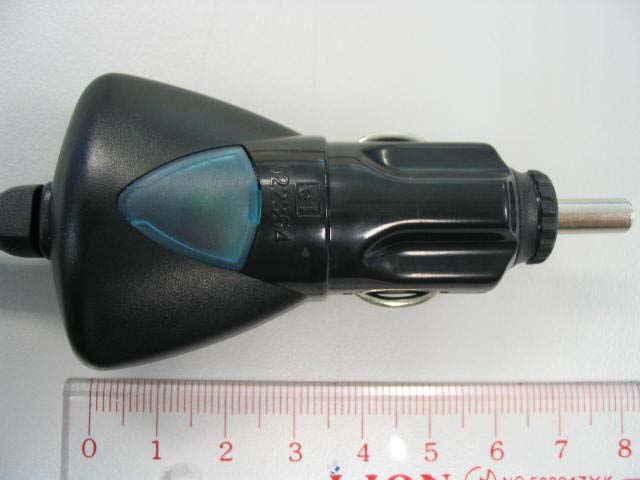

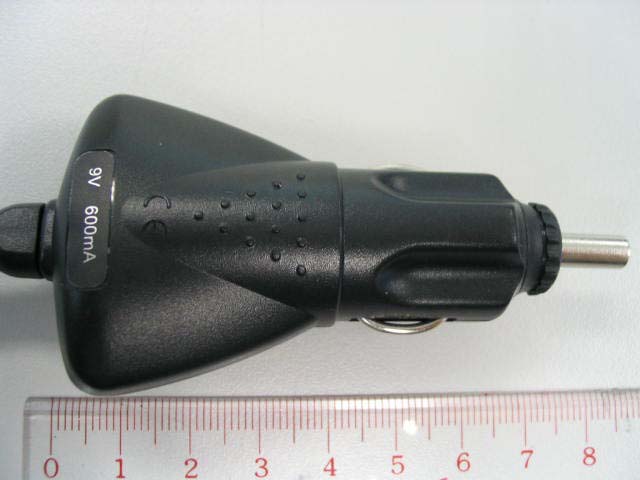

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 1 von 8 Page 1 of 8 1.1 External view 1.1.1 Front view 1 1.1.2 Back view 1 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 2 von 8 Page 2 of 8 1.1.3 Back view 2 1.1.4 Back view 3 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 3 von 8 Page 3 of 8 1.1.5 Side view 1 1.1.6 Side view 2 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 4 von 8 Page 4 of 8 1.1.7 Side view 3 1.1.8 Side view 4 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 5 von 8 Page 5 of 8 1.1.9 Component front view 1 1.1.10 Component back view 2

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 1 von 10 Page 1 of 10 1.1 FCCID Label Artwork The yellow oval shows the location of the Label.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 6 von 8 Page 6 of 8 1.2 Internal view 1.2.1 Front side 1 1.2.2 Back side 1 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 7 von 8 Page 7 of 8 1.2.3 Back side 2 1.2.4 Component front side 1 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 3 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 8 von 8 Page 8 of 8 1.2.5 Bluetooth module front side 1 The yellow circle indicates the location of the antenna. 1.2.6 Bluetooth module back side 1

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 4 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 2 von 10 Page 2 of 10 1.2 Description of Circuit Function 1.2.1 General Description Bluetooth operates in the unlicensed ISM band at 2.4 GHz. A frequency hop transceiver is applied to combat interference and fading. A shaped, binary FM modulation is applied to minimize transceiver complexity. The symbol rate is 1 Ms/s. A slotted channel is applied with a nominal slot length of 625 μs. For full duplex transmission, a Time-Division Duplex (TDD) scheme is used. On the channel, information is exchanged through packets. Each packet is transmitted on a different hop frequency. A packet nominally covers a single slot, but can be extended to cover up to five slots. The Bluetooth protocol uses a combination of circuit and packet switching. Slots can be reserved for synchronous packets. Bluetooth can support an asynchronous data channel, up to three simultaneous synchronous voice channels, or a channel which simultaneously supports asynchronous data and synchronous voice. Each voice channel supports a 64 kb/s synchronous (voice) channel in each direction. The asynchronous channel can support maximal 723.2 kb/s asymmetric (and still up to 57.6 kb/s in the return direction), or 433.9 kb/s symmetric. The Bluetooth system consists of a radio unit, a link control unit, and a support unit for link management and host terminal interface functions.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 2 von 19 Page 2 of 19 1 Test Summary 7.1.1 ANTENNA CONNECTOR SUBCLAUSE 15.203 7.1.2 A NTENNA TYPE SUBCLAUSE 15.204 7.1.3 DISTURBANCE VOLTAGE ON AC MAINS SUBCLAUSE 15.207(A) RESULT: Pass Limit Subclause 15.207(a) 7.1.4 C ARRIER FREQUENCY SEPERATION SUBCLAUSE 15.247(A)(1) RESULT: Pass Limit Subclause 15.247(a)(1) 7.1.5 DWELL TIME SUBCLAUSE 15.247(A)(1)(III) RESULT: Pass Limit Subclause 15.247(a)(1)(iii) 7.1.6 20dB BANDWIDTH SUBCLAUSE 15.247(A)(1) 7.1.7 HOPPING SEQUENCE SUBCLAUSE 15.247(A)(1) 7.1.8 R ECEIVER INPUT BANDWIDTH SUBCLAUSE 15.247(A)(1) 7.1.9 PEAK OUTPUT POWER SUBCLAUSE 15.247(B)(1) RESULT: Pass Limit Subclause 15.247(b)(1) 7.1.10 BAND EDGE COMPLIANCE SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.11 SPURIOUS CONDUCTED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) 7.1.12 SPURIOUS RADIATED EMISSIONS SUBCLAUSE 15.247(C) RESULT: Pass Limit Subclause 15.247(c) TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 3 von 19 Page 3 of 19 2 Contents 1 TEST SUMMARY..................................................................................................................2 2 C ONTENTS...........................................................................................................................3 3 GENERAL REMARKS...........................................................................................................4 3.1 COMPLEMENTARY MATERIALS..........................................................................................4 4 TEST SITES..........................................................................................................................4 4.1 TEST FACILITIES.................................................................................................................4 4.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS............................................................5 5 GENERAL PRODUCT INFORMATION...................................................................................6 5.1 PRODUCT FUNCTION AND INTENDED USE..........................................................................6 5.2 R ATINGS AND SYSTEM DETAILS.........................................................................................6 5.3 INDEPENDENT OPERATION MODES....................................................................................6 5.4 SUBMITTED DOCUMENTS....................................................................................................7 6 T EST SET-UP AND OPERATION MODE................................................................................7 6.1 P RINCIPLE OF CONFIGURATION SELECTION.....................................................................7 6.2 T EST OPERATION AND TEST SOFTWARE............................................................................7 6.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................7 7 T EST RESULTS.....................................................................................................................8 7.1.1 Antenna connector Subclause 15.203 ........................................................................................................ 8 7.1.2 Antenna type Subclause 15.204.................................................................................................................. 8 7.1.3 Disturbance voltage on AC mains Subclause 15.207(a) ............................................................................9 7.1.4 Carrier frequency separation Subclause 15.247(a)(1) ............................................................................10 7.1.5 Dwell time Subclause 15.247(a)(1)(iii) .................................................................................................... 11 7.1.6 20dB bandwidth Subclause 15.247(a)(1) ................................................................................................. 12 7.1.7 Hopping sequence Subclause 15.247(a)(1).............................................................................................. 13 7.1.8 Receiver input bandwidth Subclause 15.247(a)(1) .................................................................................. 14 7.1.9 Peak output power Subclause 15.247(b)(1) ............................................................................................. 15 7.1.10 Band edge compliance Subclause 15.247(c) .......................................................................................16 7.1.11 Spurious conducted emissions Subclause 15.247(c) ........................................................................... 17 7.1.12 Spurious radiated emissions Subclause 15.247(c) .............................................................................. 18 TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 4 von 19 Page 4 of 19 3 General Remarks 3.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test Results Appendix 2: Test Setup Appendix 3: EUT Photos Appendix 4: FCCID Label, Block Diagram, Schematics and User Manual 4 Test Sites 4.1 Test Facilities Hong Kong Productivity Council HKPC Building 78 Tat Chee Avenue Kowloon Hong Kong TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 5 von 19 Page 5 of 19 4.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESHS30 847115/005 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/4 Test Recei…

Text truncated - open the document above for the full version.

TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 2 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 1 von 2 Page 1 of 2 1.1 Test set-up 1.1.1 Spurious Radiated Emissions TÜV Rheinland Product Safety GmbH Am Grauen Stein D - 51105 Köln Appendix 2 Prüfbericht - Nr.: Test Report No. 14005243 001 Seite 2 von 2 Page 2 of 2
