RSL-TQ3600Wireless access point with PoE powered device function

Installation and User’s GuidesThis document contains an abbreviated vers ion of the installation instructions for the AT-TQ3600 Wireless Access Point. For complete installation and management instructions, refer to the AT-TQ3600 installation Guide and AT-TQ Wireless Access Point Series User’s Guide on the Allied Telesis web site at www.alliedtelesis.com/support . Safety and Electromagnetic Emissions Certificates Installation Options Table or desktop  Wall or ceiling This quick installation guide explains how to install the device on a table or desktop. For instructions on how to install the device on a wall of ceiling, refer to the AT-TQ3600 Wireless Access Point installation Guide. Note:The non-US model of this product has a country code setting that must be set during the initial management session of the unit. The setting ensures that the unit operates in compliance with the laws and regula tions of your country or region. The country code for the US model is preset and cannot be changed. Per FCC regulations, the country code setting for all WiFi products marketed in the US must be fixed to US operational channels only.Physical DescriptionThe AT-TQ3600 Wireless Access Point is shown in this figure.The LEDs on the top panel of the acce ss point are described in this table. You may turn off the LEDs with the management software. These two figures identify the components of the access point.The components on the access point are described in this table.You should review the safety precautions in the AT-TQ3600 Wireless Access Point Installation Guide before installing the product.The cable specifications for the LAN port ar e detailed in the AT-TQ3600 Wireless Access Point Installation Guide. Standard Compliance RoHs compliantEuropean Union RoHS (Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.) Certificates CE EAC FCC/IC KC RCM SRMC Wi-Fi CERTIFIED Electromagnetic Compatibility (EMC) EN 301 489-1 EN 301 489-17 EN 55022 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-11 AS/NZS CISPR 22FCC 47 CFR Part 15, Subpart BICES-003 Medical (EMC) EN 60601-1-2 Radio Equipment EN 300 328 EN 301 893 AS/NZS 4268 RSS210 RSS-Gen RSS-102 FCC 47 CFR Part 15, FCC 47 CFR Part 15, Subpart C Subpart E FCC part 2 Safety EN 60950-1 IEC 60950-1 TUV-T UL 60950-1 UL 2043 (For AT-TQ3600-01 only) Suitable for use in environmental air space in accordance with Section 300-22(C) of the National Electrical Code, and Sections 2-128, 12-010(3), and 12-100 of the Canadian Electrical Code Part 1, CSA C22.1. Quick Installation GuideAT-TQ3600Wireless Access Point *613-001862 Rev B* 613-001862 Rev. C Table 1. LEDs LED State Description PWR Solid Green The unit is receiving DC power that is within the normal operating range. Off The power supply is not receiving power from either the AC/DC power adapter or a PoE Ethernet switch. SYS Amber The access point is loading its firmware. Off The unit is operating normally. 10M and 100M 10M: On100M: Off The Ethernet port is operating at 10 Mbps. 10M: Off100M: On The Ethernet port is operating at 100 Mbps. 10M: On100M: On The Ethernet port is operating at 1000 Mbps. 2.4GHz Green The 2.4GHz radio is sending and receiving radio waves. 5GHz Green The 5GHz radio is sending and receiving radio waves. PWR SYS 10M 100M 2.4GHz 5GHz AT-TQ3600 3122 Table 2. Access Point Components Component Description 1 Holes for anti- theft devices Refer to “Installing Anti-theft Devices”. 2 Console Port The Console Port is for manufacturing purposes only. 3 Reset Button The Reset button returns the parameter settings on the access point to their default settings. 4 LAN Port The 10/100/1000Base-T LAN port connects the access point to your wired network. It supports PoE. If you connect the port to an Ethernet switch that supports PoE, you do not have to use the power adapter to power the device. 5 DC Power Connector This connector is for the AT-T Q0091 AC/DC Power Adapter. You may power the access point with PoE on the LAN port or the power adapter. The power adapte r must be ordered separately. CONSOLE RESET 3101 23 1 3121 4 5 1 2 3 Review Draft - January 24, 2014 Package Contents of the AT-TQ3600 Wireless Access PointThe following items should be in the shipping container: One AT-TQ3600 Wireless Access Point  This AT-TQ3600 Quick Install Guide Package Contents of the AT-TQ0091 AC/DC Power AdapterIf you are not planing to use the PoE feature of the access poi nt to power the device, you must separately order the AT-TQ0091 AC/DC Power Adapter. The adapter comes with four regional power connectors. (The adapter comes with one connector already installed.)If any item is missing or damaged, contact y our Allied Telesis sales representative for assistance. You should retain the original shipping material in case you need to return the unit to Allied Telesis. Installing the Wireless Access Point on a Table or DeskFor instructions on how to install the device on a wall or ceiling, refer to the AT-TQ3600 Wireless Access Point Installation Guide.To install the access point on a table or desktop, perform the following procedure:1. Place the access point upside down on t he table or desk selected for the device. 2. Install the four rubber feet included with the wireless access point to the bottom panel. 3. Route a network cable through the notch in the cover and under the bottom panel, and connect it to the LAN port on the access point. 4. Connect the other end of the network cabl e to a port on an Ethernet switch. 5. Do one of the following:  If you are not using the PoE feature on the Ethernet LAN Port to power the unit, continue with this procedure to attach the AT-TQ0091 AC/DC Power Adapter.  If you are using the PoE feature on the LAN Port to power the access point, turn the access point right side up. The installation …

Text truncated - open the document above for the full version.

613-001863 Rev. A AT-TQ3600 Enterprise-class Wireless Access Point with IEEE802.11a/b/g/n Dual Radio Installation Guide Review Draft - January 24, 2014 Copyright  2014 Allied Telesis, Inc. All rights reserved. This product includes software licensed under the BSD License. As such, the following language applies for those portions of the software licensed under the BSD License: Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: * Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. * Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. * Neither the name of Allied Telesis, Inc. nor the names of the respective companies above may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Copyright (c) [dates as appropriate to package] by The Regents of the University of California - All rights reserved. Copyright (c) 2000-2003 by Intel Corporation - All rights reserved. Copyright (c) 1997-2003, 2004 by Thomas E. Dickey <[email protected]> - All rights reserved. Copyright (c) 2001-2009 by Brandon Long (ClearSilver is now licensed under the New BSD License.) Copyright (c) 1984-2000 by Carnegie Mellon University - All rights reserved. Copyright (c) 2002,2003 by Matt Johnston - All rights reserved. Copyright (c) 1995 by Tatu Ylonen <[email protected]> - All rights reserved. Copyright 1997-2003 by Simon Tatham. Portions copyright by Robert de Bath, Joris van Rantwijk, Delian Delchev, Andreas Schultz, Jeroen Massar, Wez Furlong, Nicolas Barry, Justin Bradford, and CORE SDI S.A. Copyright (c) 1989, 1991 by Free Software Foundation, Inc. (GNU General Public License, Version 2, June 1991). Copyright (c) 2002-2005 by Jouni Malinen <[email protected]> and contributors. Copyright (c) 1991, 1999 by Free Software Foundation, Inc. (GNU Lesser General Public License, Version 2.1, February 1999). Copyright (c) 1998-2002 by Daniel Veillard - All rights reserved. Copyright (c) 1998-2004 by The OpenSSL Project - All rights reserved. Copyright (c) 1995-1998 by Eric Young ([email protected]) - All rights reserved. This product also includes software licensed under the GNU General Public License available from: http://www.gnu.org/licenses/gpl2.html Allied Telesis is committed to meeting the requirements of the open source licenses including the GNU General Public License (GPL) and will make all required source code available. If you would like a copy of the GPL source code contained in this product, please send us a request by registered mail including a check for US$15 to cover production and shipping costs, and a CD with the GPL code will be mailed to you. GPL Code Request Allied Telesis Labs (Ltd) PO Box 8011 Christchurch, New Zealand No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc. Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners. Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the possibility of such damages. Review Draft - January 24, 2014 3 Electrical Safety and Emissions Standards This product meets the following standards. Federal Communications Commission Interference Statement Declaration of Conformity Manufacturer Name: Allied Telesis, Inc. Declares that the product: Wireless access point with PoE powered device function Model Numbers: AT-TQ3600; AT-TQ3600-01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be det…

Text truncated - open the document above for the full version.

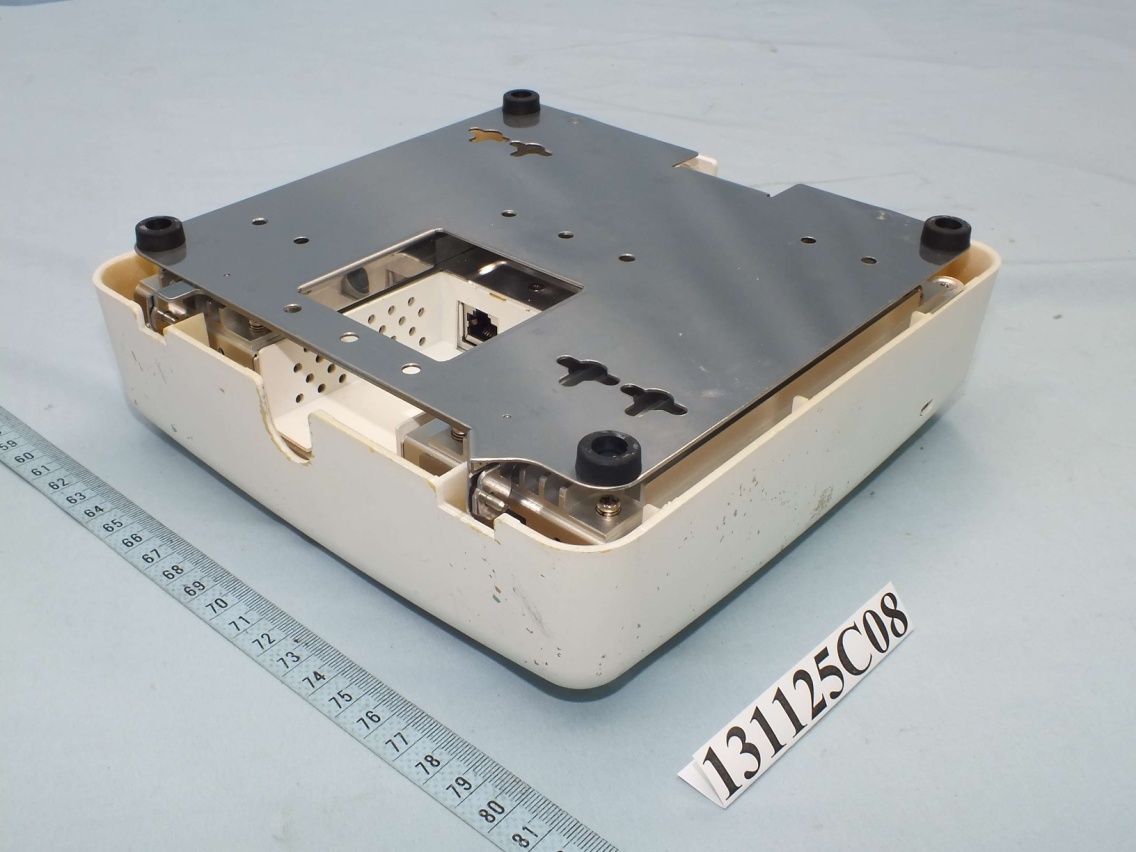

Page 1 CONSTRUCTION PHOTOS OF EUT Model: AT-TQ3600-01 Page 2 Page 3 Model: AT-TQ3600 Page 4 Page 5 Page 6 Page 7

7R78 / I.T.E. E183341 ATE/CN 705-008955 rev. A Allied Telesis, Inc.3041 Orchard ParkwaySan Jose, CA 95134 USAalliedtelesis.com MADE IN CHINA MODEL : AT- TQ3600-01 POWER : 12VDC , 2A (Adapter) or 48VDC , 0.4A (PoE) FCC ID : RSL-TQ3600 THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFULINTERFERENCE. (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. CAN ICES-3(B)/NMB-3(B)IC : 3336D-TQ3600Complies with Canada RSS-210

Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15

FCC ID: RSL-TQ3600 Report No.: RF131125C08 Operational Description January 21, 2014 This device is an Wireless access point with PoE powered device function, which operates in both of 2.4GHz and 5GHz bands; the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by the 12Vdc from AC adapter or 48Vdc from POE. The antenna is PIFA antenna with I-PEX (MHF) antenna connector. The other instruction, please have a look at the user’s manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” FCC ID: RSL-TQ3600 Report No.: RF131125C08 Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted. Best Regards, Robert Huang Senior Engineer Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

Report No.: SA131125C08A 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131125C08A MODEL NO.: AT-TQ3600, AT-TQ3600-01 FCC ID: RSL-TQ3600 RECEIVED: Nov. 25, 2013 TESTED: Dec. 02 ~ Dec. 05, 2013 ISSUED: Dec. 13, 2013 APPLICANT: Allied Telesis R&D Center K.K. ADDRESS: 2nd. TOC Bldg. 7-21-11 Nishi-Gotanda, Shinagawa-ku, Tokyo Japan, 141-0031 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. Report No.: SA131125C08A 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................ 3 1. CERTIFICATION ............................................................................................................ 4 2. RF EXPOSURE .............................................................................................................. 5 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................ 5 2.2 MPE CALCULATION FORMULA ................................................................................... 5 2.3 CLASSIFICATION .......................................................................................................... 5 2.4 CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ................................. 6 Report No.: SA131125C08A 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131125C08A Original release Dec. 13, 2013 Report No.: SA131125C08A 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Wireless access point with PoE powered device function MODEL NO.: AT-TQ3600, AT-TQ3600-01 BRAND: APPLICANT: Allied Telesis R&D Center K.K. TESTED: Dec. 02 ~ Dec. 05, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (model: AT-TQ3600) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY :, DATE :Dec. 13, 2013 Celine Chou / Specialist APPROVED BY : , DATE :Dec. 13, 2013 Ken Liu / Senior Manager Report No.: SA131125C08A 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE 2.1 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 21cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131125C08A 6 of 6 Report Format Version 5.0.0 2.4 Calculation result of maximum conducted power FREQUENCY BAND (MHz) MODULATION MODE AVG POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 802.11b 17.12 4.75 21 0.028 10 802.11g 21.65 9.15 21 0.217 10 802.11n (20MHz) 21.68 4.38 21 0.073 10 802.11n (40MHz) 20.60 4.38 21 0.057 10 5180-5240 802.11a 11.22 11.14 21 0.031 10 802.11n (20MHz) 14.84 6.41 21 0.024 10 802.11n (40MHz) 15.44 6.41 21 0.028 10 5260-5320 802.11a 18.12 11.14 21 0.152 10 802.11n (20MHz) 19.41 6.41 21 0.069 10 802.11n (40MHz) 19.54 6.41 21 0.071 10 5500-5700 802.11a 18.16 11.14 21 0.154 10 802.11n (20MHz) 19.38 6.41 21 0.068 10 802.11n (40MHz) 19.62 6.41 21 0.072 10 5745-5825 802.11a 19.16 11.14 21 0.193 10 802.11n (20MHz) 19.22 6.41 21 0.066 10 802.11n (40MHz) 19.34 6.41 21 0.068 10 NOTE: 2.4GHz 1. 802.11b: Antenna gain = 4.75dBi 2. 802.11g: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ]= 9.15dBi 3. 802.11n: Directional gain = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 ) /N ANT ]= 4.38dBi 5GHz 1. 802.11a: Directional gain = 10 log[(10 G1 /20 + 10 G2 /20 + ... + 10 GN /20 ) 2 /N ANT ]= 11.14dBi 2. 802.11n: Directional gain = 10 log[(10 G1 /10 + 10 G2 /10 + ... + 10 GN /10 ) /N ANT ]=…
