RSL-TQ6602802.11ax 4x4+4x4 dual-radio 2.4G/5G wireless AP

613-002891 Rev. A TQ6602 Enterprise-class 802.11ax Indoor Wireless Access Point with 2.4GHz and 5GHz Radios Installation Guide Review Draft - August 12, 2020 Copyright © 2020 Allied Telesis, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesis, Inc. Allied Telesis and the Allied Telesis logo are trademarks of Allied Telesis, Incorporated. All other product names, company names, logos or other designations mentioned herein are trademarks or registered trademarks of their respective owners. Allied Telesis, Inc. reserves the right to make changes in specifications and other information contained in this document without prior written notice. The information provided herein is subject to change without notice. In no event shall Allied Telesis, Inc. be liable for any incidental, special, indirect, or consequential damages whatsoever, including but not limited to lost profits, arising out of or related to this manual or the information contained herein, even if Allied Telesis, Inc. has been advised of, known, or should have known, the possibility of such damages. Review Draft - August 12, 2020 TQ6602 Wireless Access Point Installation Guide 3 Electrical Safety and Emissions Standards This product meets the following standards: “Federal Communications Commission Interference Statement” “European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment” on page 4 “Safety and Electromagnetic Emissions” on page 4 “Translated Safety Statements” on page 8 Federal Communications Commission Interference Statement Declaration of Conformity Manufacturer Name: Allied Telesis Declares that the product: 802.11a/b/g/n/ac/ax wave2 dual radio 2.4G (4x4) and 5G (4x4) wireless access point Model Number: TQ6602 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Review Draft - August 12, 2020 4 Caution FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.  E80 Avertissement Avertissement de la FCC: Les changements ou modifications non expressément approuvés par la partie responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement.  E80 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment This Allied Telesis RoHS-compliant product conforms to the European Union Restriction of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations of Conformity, monitoring incoming materials, and maintaining manufacturing process controls. Note For additional regulatory statements, refer to Appendix B, ”Regulatory Statements” on page 75. Safety and Electromagnetic Emissions Standard Compliance • RoHs compliant • European Union RoHS (Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.) Review Draft - August 12, 2020 TQ6602 Wireless Access Point Installation Guide 5 Wire Communication • IEEE 802.1 • IEEE 802.3 • IEEE 802.3u • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3bz • IEEE 802.3x • IEEE 802.3at • ITU-T G.993.1 Wireless LAN Communication • IEEE 802.11 DSSS • IEEE 802.11a OFDM • IEEE 802.11b DSSS/FHSS • IEEE 802.11g OFDM • IEEE 802.11n OFDM • IEEE 802.11ac OFDM • IEEE 802.11ax OFDMA Safety CB/UL • IEC 62368-1: 2014 and EN62368-1: 2014 • UL 62368-1: 2nd Edition, 2014-12-01 • CSA C22.2 No. 62368-1-14, 2nd Edition, 2014-12-01 TUV • EN62368-1 (Co-license) AEL • Class I, US FDA/CDRH • EN(IEC) 60825-1:1994+a11, • EN(IEC) 60825-2:1994 • EN(IEC) 60950: 1992+A1+A2+A3 UL2043 Review Draft - August 12, 2020 6 Electro Magnetic Interference (EMI) • FCC part15 Subpart B/ Class B • EN55032 Class B • VCCI-CISPR 32 / Class B • AS/NZS CISPR 32 Electro Magnetic Susceptibility (EMS) - EN55024 and EN55035 • IEC 61000-4-2 • IEC 61000-4-3 • IEC 61000-4-4 • IEC 61000-4-5 • IEC 61000-4-6 • (IEC 61000-4-8 • IEC 61000-4-11 • IEC 61000-3-2 • IEC 61000-3-3 FCC • 47 CFR Part15, subpart C • 47 CFR Part15, subpart E • DFS CE • RED Directive 2014/53/EU • EN55032 • EN 55024 • EN 301489-1 …

Text truncated - open the document above for the full version.

Page 1 of 44 AT-TQ6602 Antenna Test Report Page 2 of 44 1 Antenna Introduction Page 3 of 44 2.1 S11 test results 2.1.1 2G1 2.1.2 2G2 Page 4 of 44 2.1.3 2G3 2.1.4 2G4 Page 5 of 44 2.1.5 5G1 2.1.6 5G2 Page 6 of 44 2.1.7 5G3 2.1.8 5G4 Page 7 of 44 2.2 Isolation test results 2.2.1 2G1 & 2G2 2.2.2 2G1 & 2G3 Page 8 of 44 2.2.3 2G1 & 2G4 2.2.4 2G1 & 5G1 Page 9 of 44 2.2.5 2G1 & 5G2 2.2.6 2G1 & 5G3 Page 10 of 44 2.2.7 2G1 & 5G4 2.2.8 2G2 & 2G3 Page 11 of 44 2.2.9 2G2 & 2G4 2.2.10 2G2 & 5G1 Page 12 of 44 2.2.11 2G2 & 5G2 2.2.12 2G2 & 5G3 Page 13 of 44 2.2.13 2G2 & 5G4 2.2.14 2G3 & 2G4 Page 14 of 44 2.2.15 2G3 & 5G1 2.2.16 2G3 & 5G2 Page 15 of 44 2.2.17 2G3 & 5G3 2.2.18 2G3 & 5G4 Page 16 of 44 2.2.19 2G4 & 5G1 2.2.20 2G4 & 5G2 Page 17 of 44 2.2.21 2G4 & 5G3 2.2.22 2G4 & 5G4 Page 18 of 44 2.2.23 5G1 & 5G2 2.2.24 5G1 & 5G3 Page 19 of 44 2.2.25 5G1 & 5G4 2.2.26 5G2 & 5G3 Page 20 of 44 2.2.27 5G2 & 5G4 2.2.28 5G3 & 5G4 Page 21 of 44 3.Gain & Patterns test results 3.1 Lab information  Lab name：Satimo  Address ：No.326 Sec.2, Kung Tao 5 Road, HsinChu City, Taiwan  Certification：none (Satimo system certification: CTIA, 3GPP, Wi-Fi alliance and WiMAX Forum)  Size (LxWxH)：5m x 5m x 5m  Isolation level：>100dB  Normal applications：Antenna radiation pattern measurement, OTA performance testing.  Frequency measurement range：0.4 to 6 GHz  EUT scanning method：conical cut method  Measurement distance：1.6m  Measurement Antenna specification (for θ and Φ polarization each)：dual polarization Antenna for 0.4 to 6.0 GHz frequency range  Equipment list： Page 22 of 44 4.Gain & Patterns test results 4.1 Measurement setting AUT Up(+Z) Right (+X) Left Down X Y Z Front Back(+ Page 23 of 44 XY YZ XZ 0° Right Up Up 90° Back Back Right 180° Left Down Down 270° Front Front Left . θ φ To t a l a n g l e 175 ̊ 360 ̊ How many angle scan one point 5 ̊ 5 ̊ Total scan point 36 73 Page 24 of 44 4.2 2D patterns 4.2.1 2G1 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 25 of 44 X-Y Plane (E-total) Y X Page 26 of 44 4.2.2 2G2 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 27 of 44 X-Y Plane (E-total) Y X Page 28 of 44 4.2.3 2G3 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 29 of 44 X-Y Plane (E-total) Y X Page 30 of 44 4.2.4 2G4 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 31 of 44 X-Y Plane (E-total) Y X Page 32 of 44 4.2.5 5G1 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 33 of 44 X-Y Plane (E-total) Y X Page 34 of 44 4.2.6 5G2 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 35 of 44 X-Y Plane (E-total) Y X Page 36 of 44 4.2.7 5G3 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 37 of 44 X-Y Plane (E-total) Y X Page 38 of 44 4.2.8 5G4 X-Z Plane (E-total) Y-Z Plane (E-total) X Z Y Z Page 39 of 44 X-Y Plane (E-total) Y X Page 40 of 44 5.Summary 5.1 Return Loss Frequency 2G1 (dB) 2G2 (dB) 2G3 (dB) 2G4 (dB) 2400 MHz 14 20 16 11 2450 MHz 14 15 15 13 2500 MHz 14 12 12 12 Frequency 5G1 (dB) 5G2 (dB) 5G3 (dB) 5G4 (dB) 5150 MHz 14 14 33 20 5350 MHz 22 31 13 29 5725 MHz 13 14 15 16 5850 MHz 15 21 21 15 Page 41 of 44 5.2 Isolation Frequency 2G1 & 2G2 (dB) 2G1 & 2G3 (dB) 2G1 & 2G4 (dB) 2G1 & 5G1 (dB) 2G1 & 5G2 (dB) 2G1 & 5G3 (dB) 2400 MHz 30 25 22 24 33 33 2450 MHz 25 24 23 24 32 33 2500 MHz 22 23 23 25 34 32 5150 MHz 31 48 37 22 29 40 5350 MHz 27 38 38 21 35 37 5725 MHz 26 35 34 21 28 37 5850 MHz 25 33 42 21 29 35 Frequency 2G1 & 5G4 (dB) 2G2 & 2G3 (dB) 2G2 & 2G4 (dB) 2G2 & 5G1 (dB) 2G2 & 5G2 (dB) 2G2 & 5G3 (dB) 2400 MHz 26 19 37 26 30 35 2450 MHz 26 19 26 25 31 43 2500 MHz 27 19 28 25 30 41 5150 MHz 34 41 42 25 31 38 5350 MHz 30 38 37 25 26 39 5725 MHz 28 43 33 23 26 36 5850 MHz 27 34 32 22 23 36 Frequency 2G2 & 5G4 (dB) 2G3 & 2G4 (dB) 2G3 & 5G1 (dB) 2G3 & 5G2 (dB) 2G3 & 5G3 (dB) 2G3 & 5G4 (dB) 2400 MHz 39 20 34 26 23 31 2450 MHz 37 21 32 26 24 32 2500 MHz 35 21 33 27 24 37 5150 MHz 27 33 30 20 32 37 5350 MHz 28 33 29 19 27 31 5725 MHz 25 41 33 18 25 33 5850 MHz 25 41 31 20 24 32 Page 42 of 44 Frequency 2G4 & 5G1 (dB) 2G4 & 5G2 (dB) 2G4 & 5G3 (dB) 2G4 & 5G4 (dB) 5G1 & 5G2 (dB) 5G1 & 5G3 (dB) 2400 MHz 35 38 26 26 44 43 2450 MHz 35 34 27 25 46 42 2500 MHz 33 35 26 23 46 40 5150 MHz 33 38 65 28 23 25 5350 MHz 30 31 36 29 21 30 5725 MHz 28 29 35 29 24 26 5850 MHz 29 29 35 31 23 30 Frequency 5G1 & 5G4 (dB) 5G2 & 5G3 (dB) 5G2 & 5G4 (dB) 5G3 & 5G4 (dB) 2400 MHz 44 44 38 38 2450 MHz 41 49 38 36 2500 MHz 38 50 38 37 5150 MHz 27 26 26 23 5350 MHz 28 26 24 23 5725 MHz 25 28 28 25 5850 MHz 26 30 25 23 Page 43 of 44 5.3.3D total Peak Gain & Efficiency Frequency 2G1 2G2 Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400 MHz 3.54 64 3.27 61 2450 MHz 3.14 61 3.41 62 2500 MHz 3.24 63 3.20 61 Frequency 2G3 2G4 Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 2400 MHz 3.67 62 3.45 65 2450 MHz 3.62 62 3.40 61 2500 MHz 3.43 65 3.35 64 Frequency 5G1 5G2 Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 5150 MHz 4.26 62 4.20 62 5200 MHz 4.77 65 4.64 63 5250 MHz 4.68 64 4.21 64 5300 MHz 4.28 61 4.35 68 5350 MHz 4.36 67 4.40 60 5470 MHz 4.40 62 4.73 63 5500 MHz 4.35 63 4.74 61 5725 MHz 4.63 62 4.64 62 5750 MHz 4.78 61 4.63 64 5850 MHz 4.67 62 4.25 63 Page 44 of 44 Frequency 5G3 5G4 Peak Gain (dBi) Efficiency (%) Peak Gain (dBi) Efficiency (%) 5150 MHz 4.66 62 4.33 64 5200 MHz 4.53 61 4.35 63 5250 MHz 4.24 63 4.58 62 5300 MHz 4.20 64 4.48 63 5350 MHz 4.39 62 4.55 63 5470 MHz 4.17 62 4.60 61 5500 MHz 4.64 61 4.66 64 5725 MHz 4.13 63 4.86 63 5750 MHz 4.18 61 4.29 62 5850 MHz 4.63 63 4.75 63

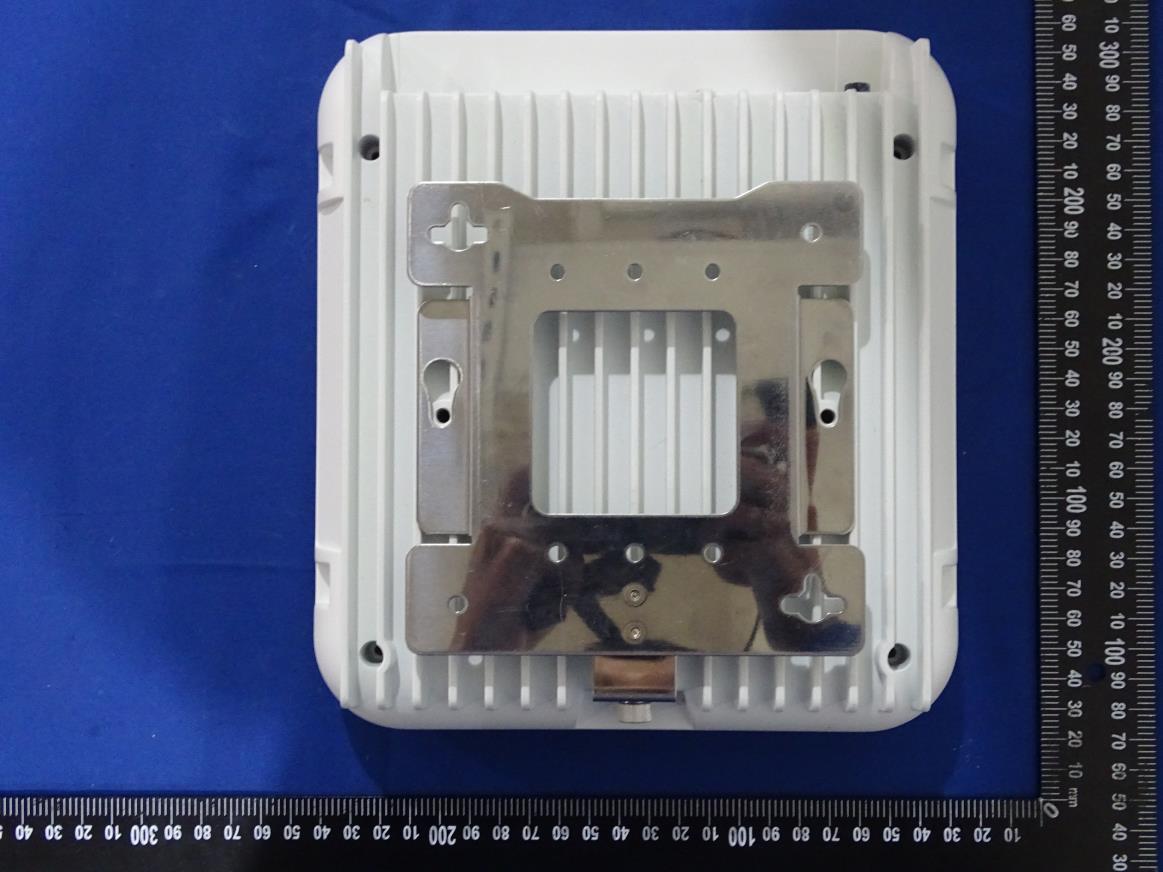

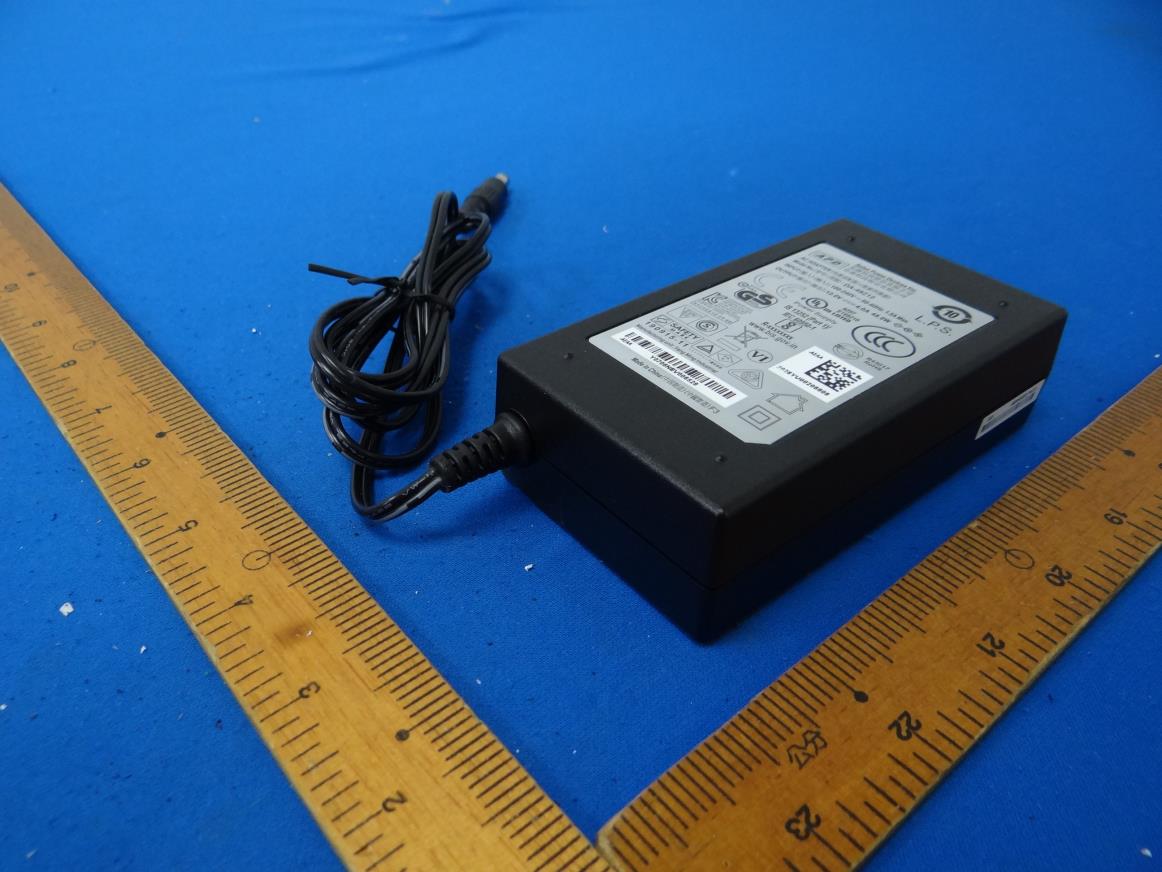

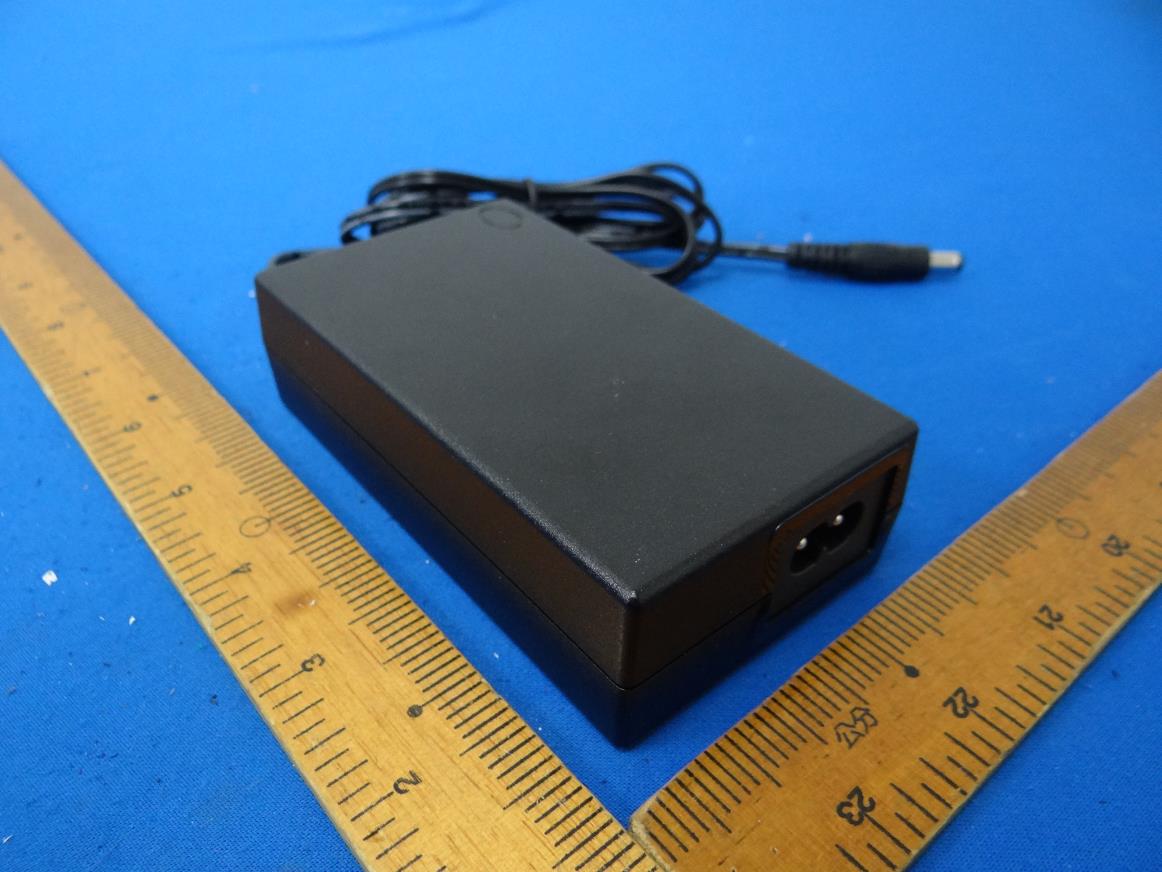

CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 1 of 7 Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 2 of 7 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 3 of 7 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 4 of 7 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 5 of 7 Adapter Brand: Asian Power Devices Inc., Model No: DA-48Z12 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 6 of 7 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 7 of 7

RevisionDescriptionDrawn / DateChecked / DateSection AECO# CXXXXXX, Initial release.H.Ichijo Jul,21/20 I.Yagishita Jul,21/20 UD SCALESHEET SIZEDWG NO.REV TITLE DNS1 of 1 705-010761A 1. MATERIAL: METALLIC SILVER POLYESTER 0.002[0.051] OR 0.001[0.025] THICK WITH PERMANENT ACRYLIC ADHESIVE BACKED. OVERLAMINATE: COMPUTER PRINTABLE POLYESTER KNEADED MATTE LAMINATION 0.002[0.051] OR 0.001[0.025] THICK. MUST COMPLY WITH EU ROHS DIRECTIVE. 2. ALL TEXTS AND GRAPHICS ARE BLACK. 3. MUST CONFORM TO UL MARKING & LABELING SYSTEM PGDQ2. 4. MUST CONFORM TO CSA ACCEPTED ADHESIVE TYPE NAME PLATE OR UL MARKING & LABELING SYSTEM PGDQ8. 5. ALL DIMENSIONS ARE IN MM. 140.69mm 21.0mm WARNING HOT SURFACE DO NOT TOUCH alliedtelesis.com 12Vº–, 4A(Adapter) ; 48Vº–, 0.67A(PoE) MADE IN TAIWAN T 802.11ax 设备型号 AT-TQ6602 705-010761 Rev.A Manufacturer: Allied Telesis, Inc. 3041 Orchard Parkway San Jose, CA 95134 USA Importer: Allied Telesis International BV Incheonweg 7, 1437 EK Rozenburg Netherlands FCC ID:RSL-TQ6602 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. I.T.E. 4G17 E183341 IC:3336D-TQ6602 CAN ICES-3(B)/NMB-3(B)

RevisionDescriptionDrawn / DateChecked / DateSection AECO# C0XXXXX, Initial release.H.Ichijo Jul,21/20 I.Yagishita Jul,21/20 UD SCALESHEET SIZEDWG NO.REV TITLE DNS1 of 1 705-010762A 1. MATERIAL: METALLIC SILVER POLYESTER 0.002[0.051] OR 0.001[0.025] THICK WITH PERMANENT ACRYLIC ADHESIVE BACKED. OVERLAMINATE: COMPUTER PRINTABLE POLYESTER KNEADED MATTE LAMINATION 0.002[0.051] OR 0.001[0.025] THICK. MUST COMPLY WITH EU ROHS DIRECTIVE. 2. ALL TEXTS AND GRAPHICS ARE BLACK. 3. MUST CONFORM TO UL MARKING & LABELING SYSTEM PGDQ2. 4. MUST CONFORM TO CSA ACCEPTED ADHESIVE TYPE NAME PLATE OR UL MARKING & LABELING SYSTEM PGDQ8. 5. ALL DIMENSIONS ARE IN MM. 109.36mm 19.4mm xxxxxxxxxx EN 62368-1 705-010762 Rev.A D74355 RoHS CCXXxxYYyyyZzW XXX-XXXXXX R T XXX-XXXXXXX No user serviceable components inside. Do not open. Use only power adapters listed in instruction.

CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 1 of 10 Photographs of EUT Wifi 2.4G ANT E Wifi 2.4G ANT F Wifi 2.4G ANT G Wifi 2.4G ANT H Wifi 5G ANT A Wifi 5G ANT B Wifi 5G ANT C Wifi 5G ANT D CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 2 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 3 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 4 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 5 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 6 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 7 of 10 RF Chip (Wifi 2.4G) CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 8 of 10 RF Chip (Wifi 5G) CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 9 of 10 CERPASS TECHNOLOGY CORP. Report No.: 2007311 Cerpass Technology Corp. Issued Date : Oct. 14, 2020 Page No. : 10 of 10

CERPASS TECHNOLOGY CORP. Report No.: TEFI2007311 Cerpass Technology Corp. Issued date : Nov. 30, 2020 T-FD-508-0 Ver 1.4 Page No. : 161 of 163 FCC ID : RSL-TQ6602 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Single antenna Multiple antennas Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 21.64dBm (145.928mW) at 2437MHz (with 3.67dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: TEFI2007311 Cerpass Technology Corp. Issued date : Nov. 30, 2020 T-FD-508-0 Ver 1.4 Page No. : 162 of 163 FCC ID : RSL-TQ6602 12.3 Test Results No non-compliance noted. 12.4 Calculation Given d GP E   30 & 3770 2 E S Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S   Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields   2 2 0796.0 100/3770 1000/30 d GP d GP S      Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 CERPASS TECHNOLOGY CORP. Report No.: TEFI2007311 Cerpass Technology Corp. Issued date : Nov. 30, 2020 T-FD-508-0 Ver 1.4 Page No. : 163 of 163 FCC ID : RSL-TQ6602 12.5 Maximum Permissible Exposure Non-Beamforming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 21.64 22.64 3.67 20 0.085 1 Beamforming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412-2462 15.48 16.48 9.69 20 0.082 1 Maximum Permissible Exposure (Co-location) Non-Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 11b 2412-2462 21.64 22.64 3.67 20 0.085 1.000 0.085 11ax HE20 5150-5250 22.26 23.26 4.77 20 0.126 1.000 0.126 Co-location Total 0.211 ∑MPE ratios Limit 1 Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) MPE Ratio 11ac VHT20 2412-2462 15.48 16.48 9.69 20 0.082 1.000 0.082 11ax HE20 5150-5250 16.24 17.24 10.79 20 0.126 1.000 0.126 Co-location Total 0.209 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: TEFU2007311 Cerpass Technology Corp. Issued Date : Nov. 30, 2020 T-FD-503-0 Ver 1.4 Page No. : 1 of 31 FCC ID. : RSL-TQ6602 FCC RADIO TEST REPORT Applicant : Allied Telesis K.K. Address : 2nd. TOC Bldg. 721-11 Nishi-Gotanda, Shinagawa-ku, Tokyo Japan, 141-0031 Equipment : 802.11ax 4x4+4x4 dual-radio 2.4G/5G wireless AP Model No. : AT-TQ6602 Trade Name : Allied Telesis FCC ID. : RSL-TQ6602 I HEREBY CERTIFY THAT : The sample was received on Aug. 03, 2020 and the testing was completed on Nov. 25, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFU2007311 Cerpass Technology Corp. Issued Date : Nov. 30, 2020 T-FD-503-0 Ver 1.4 Page No. : 2 of 31 FCC ID. : RSL-TQ6602 Contents 1. Summary of Test Procedure and Test Results ................................................................................. 4 1.1 Applicable Standards ................................................................................................................. 4 2. Test Configuration of Equipment under Test ................................................................................... 5 2.1 Feature of Equipment under Test ............................................................................................... 5 2.2 Test Mode and Test Software ..................................................................................................... 6 2.3 Description of Test System ......................................................................................................... 7 2.4 General Information of Test ........................................................................................................ 8 2.5 Measurement Uncertainty .......................................................................................................... 9 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 10 4. Test of AC Power Line Conducted Emission ................................................................................. 11 4.1 Test Result and Data ................................................................................................................ 11 4.2 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 13 5. Test of Spurious Emission (Radiated) ............................................................................................ 14 5.1 Test Limit .................................................................................................................................. 14 5.2 Test Procedures ....................................................................................................................... 15 5.3 Typical Test Setup .................................................................................................................... 15 5.4 Test Result and Data (9kHz ~ 30MHz) ..................................................................................... 17 5.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 17 5.6 Test Result and Data (1GHz ~ 40GHz) .................................................................................... 21 5.7 Restricted Bands of Operation ................................................................................................. 25 5.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 26 5.9 Test Photographs (1GHz ~ 40GHz) ......................................................................................... 28 CERPASS TECHNOLOGY CORP. Report No.: TEFU2007311 Cerpass Technology Corp. Issued Date : Nov. 30, 2020 T-FD-503-0 Ver 1.4 Page No. : 3 of 31 FCC ID. : RSL-TQ6602 History of this test report Report No. Issue Date Description TEFU2007311 Nov. 30, 2020 Original CERPASS TECHNOLOGY CORP. Report No.: TEFU2007311 Cerpass Technology Corp. Issued Date : Nov. 30, 2020 T-FD-503-0 Ver 1.4 Page No. : 4 of 31 FCC ID. : RSL-TQ6602 1. Summary of Test Procedure and Test Results 1.1 Applicable Standards ANSI C63.10:2013 . Description of Test Result . CO-LOCATION PASS *The lab has reduced the uncertainty risk factor from test equipment, environment and staff technicians which according to the standard on contract. Therefore, the test result will only be determined by standard requirement. *This EUT has been also tested and compiled with the requirement of FCC Part 15, Subpart B, recorded in a separate test report(TEFD2007311). CERPASS TECHNOLOGY CORP. Report No.: TEFU2007311 Cerpass Technology Corp. Issued Date : Nov. 30, 2020 T-FD-503-0 Ver 1.4 Page No. : 5 of 31 FCC ID. : RSL-TQ6602 2. Test Configuration of Equipment under Test 2.1 Feature of Equipment under Test Frequency Range 802.11b/g/n/ax: 2412-2462MHz 802.11a/n/ac/ax: 5180-5240MHz, 5745-5825MHz Modulation Type WLAN: 2.4GHz: 802.11b: CCK, DQPSK, DBPSK 802.11g/n: BPSK, QPSK, 16QAM, 64QAM, 256QAM(TurboQAM) 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM 5GHz: 802.11n/a: BPSK, QPSK, 16QAM, 64QAM 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM 802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM Modulation Technology DSSS, OFDM, OFDMA Data Rate WLAN: 2.4GHz: 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 – MCS31, HT20/40 MCS0 – MCS9, VHT20/40(TurboQAM) 802.11ax: MCS0 – MCS11,HE20/40 5GHz: 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: MCS0 – MCS31, HT20/40 802.11ac: MCS0 – MCS9, VHT20/40/80/80+80 802.11ax: MCS0 – MCS11,HE20/40/80/80+80 Antenna Type PIFA Antenna Antenna Gain 2412-2462MHz: ANT E…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI2007311 Cerpass Technology Corp. Issued date : Nov. 30, 2020 T-FD-508-0 Ver 1.4 Page No. : 1 of 163 FCC ID : RSL-TQ6602 FCC RADIO TEST REPORT Applicant : Allied Telesis K.K. Address : 2nd. TOC Bldg. 721-11 Nishi-Gotanda, Shinagawa-ku, Tokyo Japan, 141-0031 Equipment : 802.11ax 4x4+4x4 dual-radio 2.4G/5G wireless AP Model No. : AT-TQ6602 Trade Name : Allied Telesis FCC ID. : RSL-TQ6602 I HEREBY CERTIFY THAT : The sample was received on Aug. 03, 2020 and the testing was completed on Nov. 21, 2020 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: TEFI2007311 Cerpass Technology Corp. Issued date : Nov. 30, 2020 T-FD-508-0 Ver 1.4 Page No. : 2 of 163 FCC ID : RSL-TQ6602 Contents 1. Summary of Test Procedure and Test Results ................................................................................. 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 7 2.3 Test Mode and Test Software ..................................................................................................... 8 2.4 Description of Test System ....................................................................................................... 11 2.5 General Information of Test ...................................................................................................... 12 2.6 Measurement Uncertainty ........................................................................................................ 12 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 13 4. Antenna Requirements ..................................................................................................................... 15 4.1 Standard Applicable ................................................................................................................. 15 4.2 Antenna Construction and Directional Gain ............................................................................. 15 5. Test of AC Power Line Conducted Emission ................................................................................. 16 5.1 Test Limit .................................................................................................................................. 16 5.2 Test Procedures ....................................................................................................................... 16 5.3 Typical Test Setup .................................................................................................................... 17 5.4 Test Result and Data ................................................................................................................ 18 5.5 Test Photographs ..................................................................................................................... 20 6. Test of Radiated Spurious Emission ............................................................................................... 21 6.1 Test Limit .................................................................................................................................. 21 6.2 Test Procedures ....................................................................................................................... 22 6.3 Typical Test Setup .................................................................................................................... 23 6.4 Test Result and Data (9KHz ~ 30MHz) .................................................................................... 24 6.5 Test Result and Data (30MHz ~ 1GHz) .................................................................................... 24 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 26 6.7 Rest…

Text truncated - open the document above for the full version.
