Cellphone-Mate Inc. CM2100 62 dB Manual SureCall TM CM2100 62dB AWS Band Building Repeater User Manual Model: C2100 62dB FCC ID: RSNAWS-75UNDER Canada IC: 7784A-AWS75 Cellphone-Mate Inc. CM2100 62dB Manual 2 CONTENTS OF THE PACKAGE fdgbsddg 1. CM2100 AWS Amplifier with connectors: N female type 2. Mounting Kit 3. 110V AC Power Adaptor 4. User Manual (this document) The following items need to be purchased separately before installation: 1. Dome antenna or other type of indoor antenna. 2. Yagi antenna or omni directional antenna for outdoor use. 3. CM400 cable that connects indoor antenna with the amplifier, length depends on actual situation. 4. CM400 cable that connects outdoor antenna with the amplifier. For further help, please consult the Cellphone-Mate website (www.Cellphone-Mate.com) or call toll free at 888-365-MATE. SAFETY NOTES fdgbsddg The human body should always be separated from the indoor antenna of the Amplifier by at least 10 inches (25cm). Don't expose this product to extreme high or low temperatures. For example, putting the Amplifier under direct sunlight for too long may cause it to overheat and damage the electronic components inside. There are no consumer serviceable or modifiable parts inside this Amplifier product. Alteration or abuse of the Amplifier or other components will void this product’s warranty, and could be dangerous to the user. INSTALLATION INSTRUCTIONSgbsddg Warning: Never power on the units before completion of the installation. The signal is received by the outside antenna from the cell tower, then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then AMPLIFIED and transmitted to the cell tower through the outside antenna. You can always refer to the picture on the next page which is there to help you through each step of the installation. STEP 1. Check to make sure the Power Switch on the amplifier is turned off. STEP 2. Install the CM2100 62dB amplifier on the wall with the mounting kits supplied. STEP 3. Connect the Inside Antenna to the side that shows “Indoor Ant.” using CM400 cable. STEP 4. Connect the Outside Antenna: Select an outside mounting location. For best performance, try to keep the antenna on top of the roof. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. Use CM400 cable to connect to the amplifier. Cellphone-Mate Inc. CM2100 62dB Manual 3 NOTE: Keep the separation distance between the inside and outside antennas to at least 75 ft apart to avoid RF oscillation. If not, then the amplification gain must be reduced with gain control switches on both sides of the unit for uplink and downlink. STEP 5. Connect the Power Cord. STEP 6. Turn the Power Switch on Warning: To prevent damage to the Amplifier, before you plug in the Amplifier to an AC power outlet, please make sure that both sides are already connected with the cables from both the outdoor and indoor antennas. WARNING: after the power is turned ON, and before making any cellular phone calls, if the warning light is ON, oscillation is happening. POWER OFF immediately, then reduce both the uplink gain and downlink gain via the gain control switches on the side panel, or further increase separation distance between the two antennas, or do both until the power warning light is not ON when you are not making cellular phone calls. Note: 1. Power lights will always be on after you power up. STEP 7. After solving all oscillation problems, users can make cell phone calls to test how the repeater system works, adjusting the gain as needed. Power Switch Power Cord Uplink Gain Control Switches N Connector for Indoor Power Light Warning Light Downlink Gain Control Switches Cellphone-Mate Inc. CM2100 62dB Manual 4 Safety Warning: 1. The input voltage for the Amplifier is 6V. DO NOT use this Amplifier with a regular 12V power supply. If a 12-volt power supply is connected directly to this Amplifier, it will be damaged. 2. Never plug in the power supply to the amplifier without attaching the outdoor antenna and indoor antenna to the amplifier. 3. Ensure that the distance between inside and outside antennas is a minimum of 75 feet from the amplifier. 4. If the Power Warning Light is on when you are not making cellular phone calls, DO NOT use the amplifier, turn it off immediately, since it may cause damage to the amplifier. AMPLIFIER GAIN CONTROL Each Attenuation Gain Switches control a certain level of gain. Each button has a certain dB gain, which is on the side of the amplifier. Those values are 16, 8, 4, 2, and 1 for the five switches respectively. TROUBLESHOOTING GUIDE During operation, if the Amplifier interferes with your radio or other electronic receivers, move the Amplifier further away from those devices. For a list of Frequently Asked Questions and a complete and up-to-date Troubleshooting Guide, please visit our website at: www.Cellphone-Mate.com You can also consult a Cellphone-Mate technical specialist directly by sending e-mail to us at: [email protected] Or write to: Cellphone-Mate, Inc. 48820 Kato Rd. Suite 300B Fremont, CA, 94538 U.S.A. WARRANTY 1. Cellphone-Mate, Inc. warrants to the Buyer that each of its products when shipped will be free from defects in material and workmanship and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at Cellphone-Mate, Inc.’s option, to repair or replace any product or part thereof which shall within TWO YEARS of purchase as determined by examination by Cellphone-Mate, Inc., proves to be defective in material and/or workmanship. Cellphone-Mate Inc must first authorize warranty returns in writing. Disassembly of any Cellphone-Mate, Inc. product by anyone other than an authorized representative of Cellphone-Mate, Inc. voids this warranty in its entirety. Cellphone-Mate, Inc. reserves the right to make changes…

Text truncated - open the document above for the full version.

FCC Confidential Authorization March 8, 2011 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNAWS-75UNDER In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone- Mate Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Parts List (BOM) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Hongtao Zhan CEO Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Tel: 1 888 365 MATE (6283) Fax: 510 996 7250 http://www.cellphone-mate.com

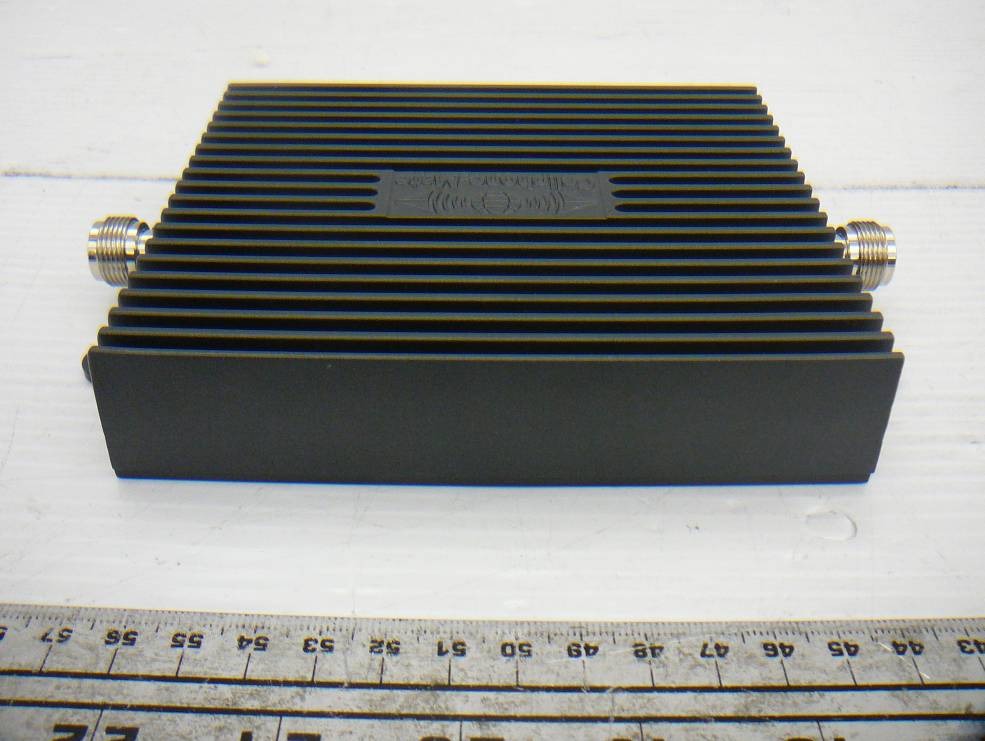

Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 69 of 73 FCC Part 27/IC RSS-131 Test Report 16 Exhibit C- EUT Photos 16.1 EUT Top View 16.2 EUT Bottom View Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 70 of 73 FCC Part 27/IC RSS-131 Test Report 16.3 EUT Front View 16.4 EUT Rear View Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 71 of 73 FCC Part 27/IC RSS-131 Test Report 16.5 EUT Side 1 View 16.6 EUT Side 2 View

SureCall TM AWS Band In‐Building Amplifier Model#: CM2100 62dB Frequency Band: Uplink 1710‐1755 MHz Downlink: 2110‐2155 MHz Gain: 62dB Maximum Output Power: 2W EIRP FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75 www.Cellphone‐Mate.com 1‐888‐365‐MATE (6283) Made In China SureCall TM CM2100 62dB AWS Band In‐Building Amplifier Gain: 62dB FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75 SureCall TM AWS Band In‐Building Amplifier Model#: CM2100 62dB Frequency Band: Uplink 1710‐1755 MHz Downlink: 2110‐2155 MHz Gain: 62dB Maximum Output Power: 2W EIRP FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75 www.Cellphone‐Mate.com 1‐888‐365‐MATE (6283) Made In China SureCall TM CM2100 62dB AWS Band In‐Building Amplifier Gain: 62dB FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75 SureCall TM AWS Band In‐Building Amplifier Model#: CM2100 62dB Frequency Band: Uplink 1710‐1755 MHz Downlink: 2110‐2155 MHz Gain: 62dB Maximum Output Power: 2W EIRP FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75 www.Cellphone‐Mate.com 1‐888‐365‐MATE (6283) Made In China SureCall TM CM2100 62dB AWS Band In‐Building Amplifier Gain: 62dB FCC ID: RSNAWS‐75UNDER IC: 7784A‐AWS75

Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 72 of 73 FCC Part 27/IC RSS-131 Test Report 16.7 EUT Case Open and PCB Top View 16.8 EUT PCB Top View Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 73 of 73 FCC Part 27/IC RSS-131 Test Report 16.9 EUT PCB Rear View 16.10 EUT AC/DC Adapter ***** END OF REPORT *****

Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 63 of 73 FCC Part 27/IC RSS-131 Test Report 13 FCC §27.52, §2.1091 & IC RSS-102 - RF Exposure Information 13.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density Before equipment certification is granted, the procedure of RSS-102 must be followed concerning the exposure of humans to RF fields. According to RSS-102 Issue 2 section 4.1, RF limits used for general public will be applied to the EUT. Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m 2 ) Time Averaging (min) 0.003 - 1 280 2.19 - 6 1-10 280 / f 2.19 / f - 6 10-30 28 2.19 / f - 6 30-300 28 0.073 2* 6 300-1500 1.585 f 0.5 0.0042 f 0.5 f / 150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000 / f 1.2 150000-300000 0.158 f 0.5 4.21 x 10 -4 f 0.5 6.67 x 10 -5 f 616000 / f 1.2 Note: ƒ is frequency in MHz * Power density limit is applicable at frequencies greater than 100 MHz Cellphone-Mate, Inc. FCC ID: RSNAWSL-75UNDER, IC: 7784A-AWS75 Report Number: R1102234-27 Page 64 of 73 FCC Part 27/IC RSS-131 Test Report 13.2 MPE Prediction Predication of MPE limit at a given distance, equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm):24.33 Maximum peak output power at antenna input terminal (mW):271.02 Prediction distance (cm):25 Prediction frequency (MHz):2132.4 Antenna Gain, typical (dBi):14 Maximum Antenna Gain (numeric):25.11 Power density at predication frequency and distance (mW/cm 2 ):0.866 Power density at predication frequency and distance (W/m 2 ):8.66 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1 MPE limit for uncontrolled exposure at predication frequency (W/m 2 ):10 Test Result For Downlink, the highest power density level at 25 cm is 0.866 mW/cm² (8.66 W/ m²), which is below the uncontrolled exposure limit.
