RSNCM-EHPROCellular Repeater

® User Manual Home Pro-5 (ModelEHPRO-5) Part of Enhance Series of SureCall products Package Contents: ▪ 65dB Five-Band signal booster ▪ 110V AC power charger ▪ Mounting kit ▪ User manual(this document) Safety Information The Federal Communications Commission (FCC) has tested this product and found it to comply with their RF Exposure Requirements, pursuant to FCC Part 22 and 24. To comply with the FCC RF exposure requirements, keep the human user’s body at least 8” (20cm) from the indoor antenna of the booster. Don't expose this product to extreme low or high temperature (-4°F or -20°C and 150°F or 70°C). There are no consumer serviceable or modifiable parts inside this booster product. Alteration or abuse of the booster or other components will void this product’s warranty, and could be dangerous to the user. Five Band Residential Booster Upl i nk Fre q. Ra nge (MHz) Downl i nk Fre q. Ra nge Supporte d s ta nda rds I nput/Output i mpe da nce Ave ra ge ga i n Noi s e figure VSWR AC Power Transformer Ma x output powe r Ca bl e RF conne ctors Powe r cons umption Di me ns i ons We i ght FCC I D (USA) Ca na da I C 13LB Input AC110V, 60Hz; Output: DC 9V 26dbm with lineanty CM400 or LMR400 N Femal e (both e nds ) 11”x 9”x 2.3” EHPRO-5 Booster Specifi cati ons 50Ω 65dB <9dB ≤2.0 4. Products sold by Cellphone-Mate, Inc. shall not be considered defective or non-conforming to the Buyers’ order if they satisfactorily fulfill the performance requirements that were published in the product specification literature, or in accordance with samples provided by Cellphone-Mate, Inc. This warranty shall not apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. Cellphone-Mate, Inc. makes no warranty whatsoever in respect to accessories or parts not supplied by it. 5. EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITION GUARANTEES OR REPRESENTATIONS AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTIES, CONDITIONS, GUARANTEES OR REPRESENTATIONS, WHETHER EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING. CELLPHONE-MATE, INC.’S AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT SHALL CELLPHONE-MATE, INC. BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED. 6. All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California and any controversy that cannot be settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association, and judgment upon the award rendered may be entered in any court having jurisdiction thereof. 7. If one or more provisions provided herein are held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without affecting in any way the remaining provisions hereof. Cellphone-Mate, Inc. EHPRO-5 (2012 V1.0) 888.365.MATE (6283) phone - (510)996-7250 fax www.surecall.com www.cellphone-mate.com 48820 Kato Rd, Suite 300B Fremont, CA 94538 (USA) <25W 698-716/776-787/824-849/1710-1755/1850-1910 728-746/746-757/869-894/1930-1990/2110-2155 CDMA, GSM, UMTS, WCDMA, HSPA(+), EVDO, LTE RSNCM-EHPRO 7784A-EHPRO This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment : CAN ICES-3 (B)/NMB-3(B) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The Home Pro-5 Booster by Cellphone-Mate, Inc. provides significantly increased cellular signal strength and quality. You will see the difference in the number ofbars on your display and hear the difference during your conversations. Complete Kit Option: Complete kit includes outdoor and indoor antennas as well as two pieces of CM400 cable as required for full operation. Please consult the Cellphone-Mate website (www.surecall.com) or call toll free at 888-365-MATE. 1. Home Pro-5 Booster with Power Supply 2. CM001-30: 30ft CM400 Cabl…

Text truncated - open the document above for the full version.

FCC Authorization 9-5-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We Cellphone-mate, the undersigned, Hereby authorizes Bay Area Compliance Laboratory Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Sincerely Yours, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

FCC Confidential Authorization 9-18-12 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNCM-EHPRO In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Parts List/Tune up Procedure As well as short-term confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set-up Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

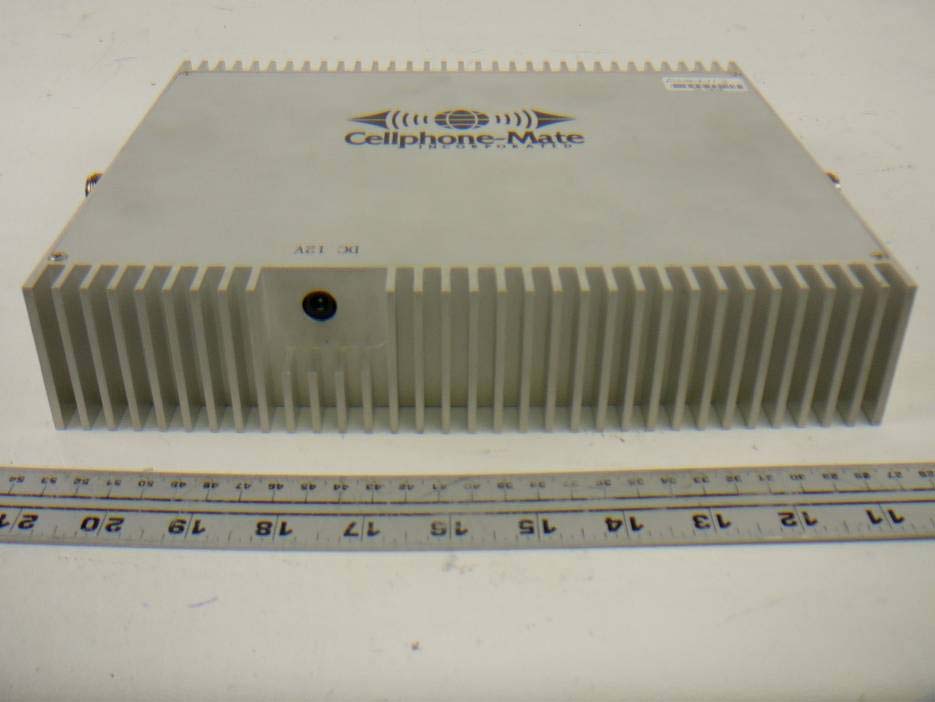

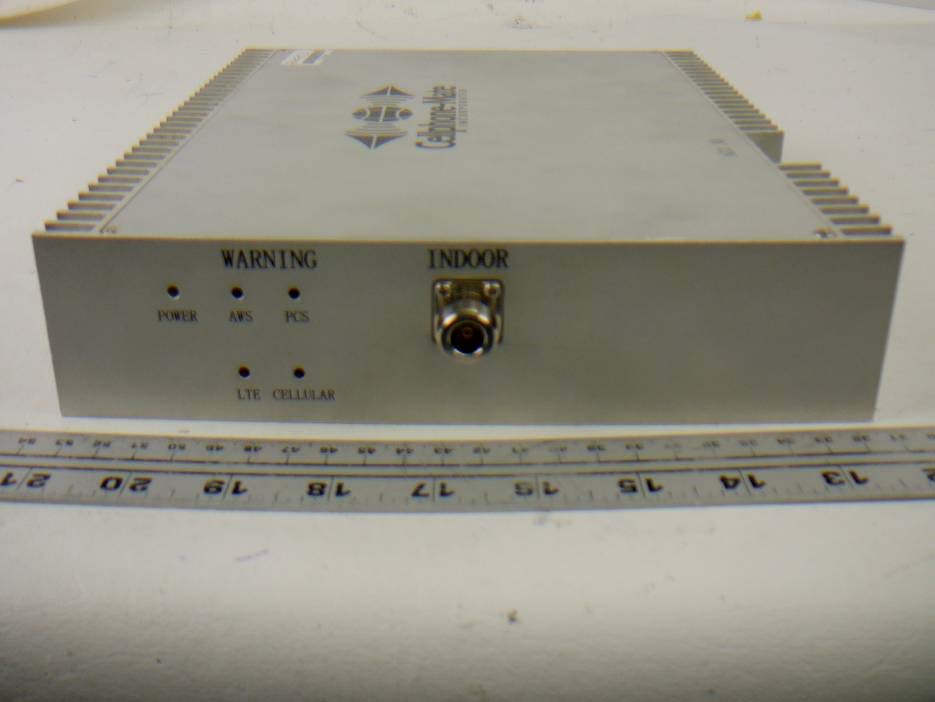

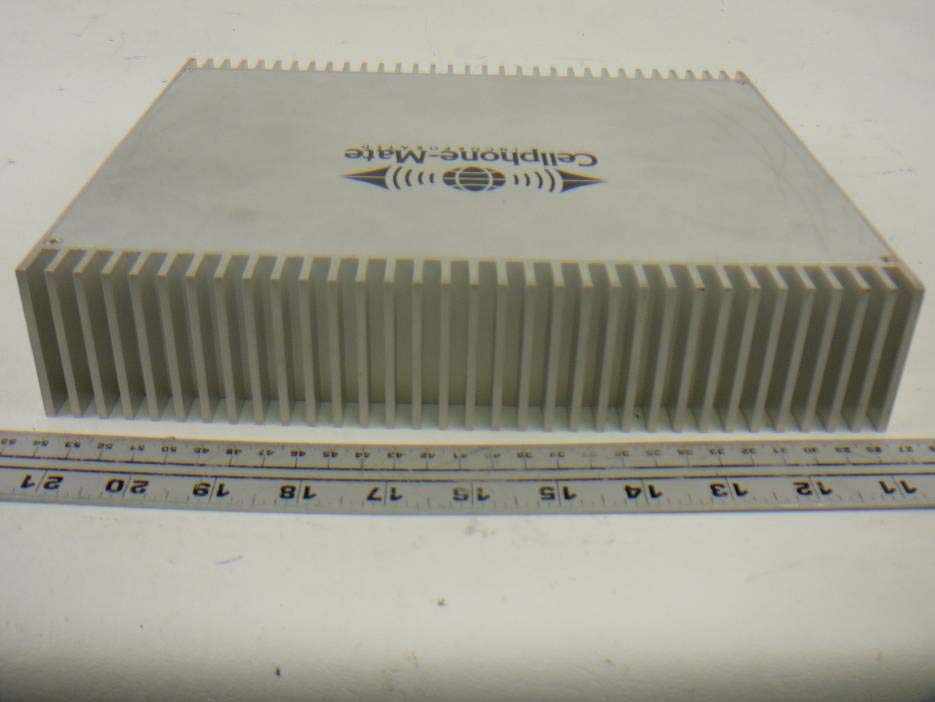

Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 141 of 145 FCC Part 22H/24E/27 Test Report 12 Exhibit C- EUT Photographs 12.1 EUT Top View 12.2 EUT - Bottom View Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 142 of 145 FCC Part 22H/24E/27 Test Report 12.3 EUT - Port View (1) 12.4 EUT - Port View (2) Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 143 of 145 FCC Part 22H/24E/27 Test Report 12.5 EUT – Side View (1) 12.6 EUT – Side View (2)

Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 138 of 145 FCC Part 22H/24E/27 Test Report 10 Exhibit A - FCC ID Labeling Requirements 10.1 FCC ID Label Requirement FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 10.2 FCC ID Label Contents and Location FCC ID: XXX-XXXXXX

Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 144 of 145 FCC Part 22H/24E/27 Test Report 12.7 EUT – PCB Top View 12.8 EUT – PCB Bottom View Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 145 of 145 FCC Part 22H/24E/27 Test Report 12.9 EUT – AC/DC Adapter View --- END OF REPORT ---

Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 134 of 145 FCC Part 22H/24E/27 Test Report 9 FCC §1.1307(B)(1) & §2.1091 - RF Exposure 9.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 9.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 9.3 Test Result Cellular Band UL: Maximum peak output power at antenna input terminal (dBm): 26.06 Maximum peak output power at antenna input terminal (mW): 403.65 Prediction distance (cm): 20 Prediction frequency (MHz): 836.6 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.4214 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5577 Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 135 of 145 FCC Part 22H/24E/27 Test Report Cellular Band DL: Maximum peak output power at antenna input terminal (dBm): 23.57 Maximum peak output power at antenna input terminal (mW): 227.51 Prediction distance (cm): 20 Prediction frequency (MHz): 869.2 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.2375 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5795 PCS Band UL: Maximum peak output power at antenna input terminal (dBm): 26.86 Maximum peak output power at antenna input terminal (mW): 485.29 Prediction distance (cm): 20 Prediction frequency (MHz): 1880 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 3 Maximum Antenna Gain+ Cable Loss (numeric): 3.9811 Power density at predication frequency and distance (mW/cm 2 ): 0.3844 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 PCS Band DL: Maximum peak output power at antenna input terminal (dBm): 22.83 Maximum peak output power at antenna input terminal (mW): 191.87 Prediction distance (cm): 20 Prediction frequency (MHz): 1960 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 3 Maximum Antenna Gain+ Cable Loss (numeric): 3.9811 Power density at predication frequency and distance (mW/cm 2 ): 0.1520 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Note: To meet 33 dBm (2 watts) EIRP limit in PCS band, the gain of antenna used with this booster must be offset by coaxial cable loss such that the antenna gain less cable loss does not exceed 6 dBi. Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 136 of 145 FCC Part 22H/24E/27 Test Report Lower LTE Band UL: Maximum peak output power at antenna input terminal (dBm): 23.05 Maximum peak output power at antenna input terminal (mW): 201.84 Prediction distance (cm): 20 Prediction frequency (MHz): 709 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.2107 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.4727 Lower LTE Band DL: Maximum peak output power at antenna input terminal (dBm): 20.23 Maximum peak output power at antenna input terminal (mW): 105.44 Prediction distance (cm): 20 Prediction frequency (MHz): 743 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.1101 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.4953 Upper LTE Band UL: Maximum peak output power at antenna input terminal (dBm): 23.91 Maximum peak output power at antenna input terminal (mW): 246.04 Prediction distance (cm): 20 Prediction frequency (MHz): 779 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.2569 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5193 Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 137 of 145 FCC Part 22H/24E/27 Test Report Upper LTE Band DL: Maximum peak output power at antenna input terminal (dBm): 19.90 Maximum peak output power at antenna input terminal (mW): 97.72 Prediction distance (cm): 20 Prediction frequency (MHz): 754 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 1.8 Maximum Antenna Gain+ Cable Loss (numeric): 5.2481 Power density at predication frequency and distance (mW/cm 2 ): 0.1020 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5027 AWS Band UL: Maximum peak output power at antenna input terminal (dBm): 23.40 Maximum peak output power at antenna input terminal (mW): 218.78 Prediction distance (cm): 20 Prediction frequency (MHz): 1732.4 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 4 Maximum Antenna Gain+ Cable Loss (numeric): 3.1623 Power density at predication frequency and distance (mW/cm 2 ): 0.1376 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 AWS Band DL: Maximum peak output power at antenna input terminal (dBm): 22.02 Maximum peak output power at antenna input terminal (mW): 159.22 Prediction distance (cm): 20 Prediction frequency (MHz): 2112.4 Antenna Gain, typical (dBi): 9 Cable Loss (dB) 4 Ma…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E, & 27 TEST AND MEASUREMENT REPORT For Cellphone-Mate, Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538, USA FCC ID: RSNCM-EHPRO Report Type: Original Report Product Type: Cellular Amplifier Prepared By: Jeffrey Wu Report Number: R1206113-222427 Report Date: 2012-09-24 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 2 of 145 FCC Part 22H/24E/27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 EUT INTERNAL CONFIGURATION...................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 7 2.6 POWER SUPPLY AND LINE FILTERS.................................................................................................................... 7 2.7 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913, §24.232 & §27.50 – RF OUTPUT POWER................................................................... 9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 9 4.4 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1049, §22.917, §24.238 & §27.53 - OCCUPIED BANDWIDTH......................................................... 17 5.1 APPLICABLE STANDARD.................................................................................................................................. 17 5.2 TEST PROCEDURE............................................................................................................................................ 17 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 17 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 17 5.5 TEST RESULTS................................................................................................................................................. 18 6 FCC §2.1053, §22.917, §24.238 & §27.53 - SPURIOUS RADIATED EMISSIONS ....................................... 54 6.1 APPLICABLE STANDARD.................................................................................................................................. 54 6.2 TEST PROCEDURE............................................................................................................................................ 54 6.3 TEST EQUIPMENT LIST AND DETAILS.........................…

Text truncated - open the document above for the full version.

Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 139 of 145 FCC Part 22H/24E/27 Test Report 11 Exhibit B - Test Setup Photographs 11.1 Radiated Emissions - Front View 11.2 Radiated Emissions - Rear View (Below 1 GHz) Cellphone-Mate, Inc. FCC ID: RSNCM-EHPRO Report Number: R1206113-222427 Page 140 of 145 FCC Part 22H/24E/27 Test Report 11.3 Radiated Emissions - Rear View (Above 1 GHz)
