RSNCMFLEX-TCellular Repeater

® User Manual Enhance Tri-Flex™ (Model No: CM-Triflex-V, A, and T) Package Contents*: ▪ 65dB booster (Auto Shutdown) ▪ 110V AC power supply ▪ Velcro and screw mounting kit ▪ User manual (this document) Enhance Tri-Band Wireless Adjustable Cellular Booster 5. EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITION GUARANTEES OR REPRESENTATIONS AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTIES, CONDITIONS, GUARANTEES OR REPRESENTATIONS, WHETHER EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING. CELLPHONE-MATE, INC.’S AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT SHALL CELLPHONE-MATE, INC. BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED. 6. All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California and any controversy that cannot be settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association, and judgment upon the award rendered may be entered in any court having jurisdiction thereof. 7. If one or more provisions provided herein are held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without affecting in any way the remaining provisions hereof. Cellphone-Mate, Inc. CM-Tri-Flex (2013 V1.1) 888.365.MATE (6283) phone - (510)996-7250 fax www.surecall.com www.cellphone-mate.com 48346 Milmont Drive Fremont, CA 94538 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment : CAN ICES-3 (B)/NMB-3(B) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. The Manufacturer's rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. *Outdoor and indoor antennas and cables are required for installation (purchased separately) Upl i nk Fre q. Ra nge (MHz) Downl i nk Fre q. Ra nge Supporte d s ta nda rds I nput/Output i mpe da nce Ave ra ge ga i n Noi s e figure VSWR AC Power Transformer Ma x output powe r Ca bl e RF conne ctors Powe r cons umption Di me ns i ons We i ght FCC I D (USA) Ca na da I C 3 LB Input AC110V, 60Hz; Output: DC 9-20V 1 Watts EIRP CM400 or LMR400 N Femal e (both e nds ) 8.5” x 6.25” x 1.5” 50Ω 65dB <7 dB ≤2.0 <30 W 698-716/824-849/1710-1755 869-894/1930-1990/2110-2155 CDMA, GSM, UMTS, WCDMA, HSPA(+), EVDO, LTE RSNCMFLEX-V 7784A-FLEX3 728-746/869-894/1930-1990 Triflex-V Triflex-A Triflex-T 746-757/869-894/1930-1990 824-849/1710-1755/1850-1910 776-787/824-849/1710-1755 Tri-Flex 65db Booster Specifications Safety Information The Federal Communications Commission (FCC) has approved this product and found it to comply with their RF Exposure Requirements, pursuant to FCC Part 22 and 24. To comply with the FCC RF exposure requirements, keep the human user’s body at least 8” (20cm) from the indoor antenna of the booster. Don't expose this product to extreme low or high temperature (-4°F or -20°C and 150°F or 70°C). There are no consumer serviceable or modifiable parts inside this booster product. Alteration or abuse of the booster or other components will void this product’s warranty, and could be dangerous to the user. ** * Note: The LTE band used on the TriFlex-V cellular booster is not available in Canada ** Note: The LTE band used on the TriFlex-A cellular booster is not available in Canada * RSNCMFLEX-ARSNCMFLEX -T N/AN/A Mounting & Connecting the Booster Overview: The signal is received by the outside antenna from the cell tower, then amplified and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then amplified and transmitted to the cell tower through the outside antenna. Step 1. Connect the Outside Antenna. The fiberglass antenna is for outdoor use only. Select an outside mounting location. For best performance, try to keep the antenna on top of the house. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements.…

Text truncated - open the document above for the full version.

48346 Milmont Drive Fremont, CA 94538 Phone: 510‐770‐0469 Fax: 510‐996‐7250 www.cellphone‐mate.com FCC Authorization 16 th January 2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate , the undersigned, hereby authorize Bay Area Compliance Laboratory Corporation to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone‐Mate Inc. 1888 365 6283 ext. 301 48346 Milmont Drive Fremont, CA 94538 Phone: 510‐770‐0469 Fax: 510‐996‐7250 www.cellphone‐mate.com

48346 Milmont Drive Fremont, CA 94538 Phone: 510‐770‐0469 Fax: 510‐996‐7250 www.cellphone‐mate.com FCC Confidential Authorization 16 th January, 2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNCMFLEX‐T In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone‐mate hereby requests long‐ term confidential treatment of information accompanying th is application as outlined below: • Block Diagram • Schematics • Operation Description • Parts list & Tune up Procedure As well as shor t‐term confidential treatment of information accompanying this application as outlined below: • Internal Photos • User’s Manual • External Photos • Test Set‐up Photos The above materials contain proprietary and co nfidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone‐Mate Inc. 1888 365 6283 ext. 301

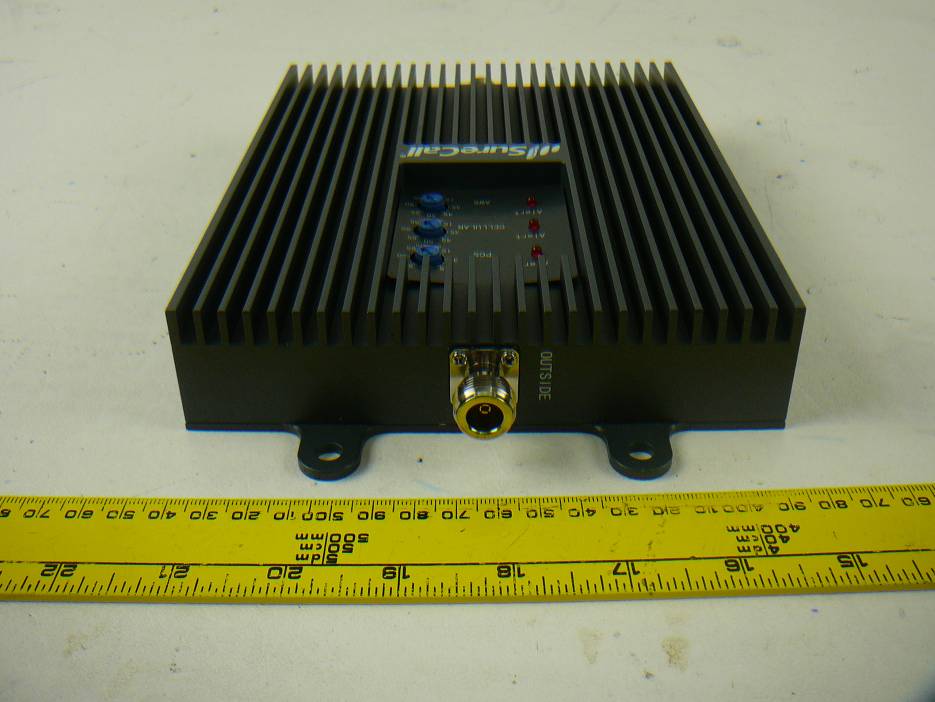

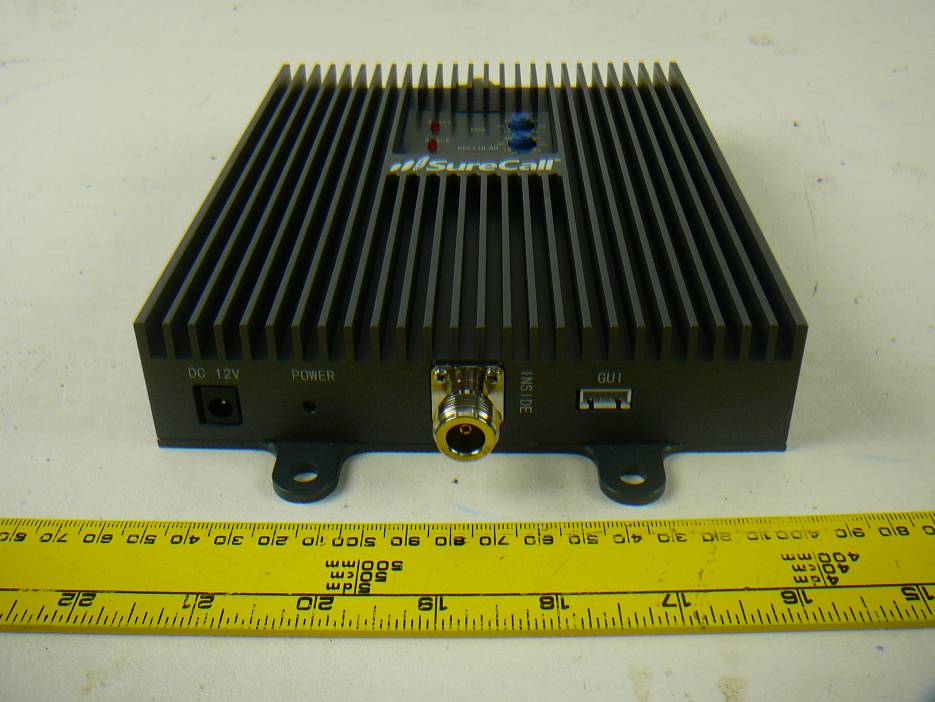

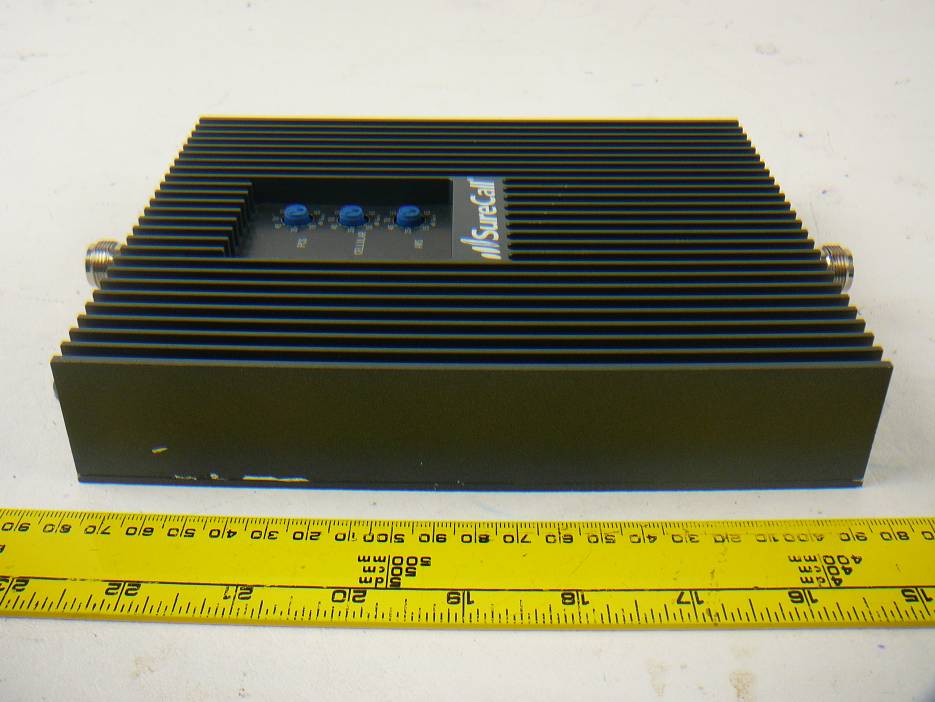

Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 106 of 110 FCC Part 22H/24E/27 Test Report 12 Exhibit C- EUT Photographs 12.1 EUT Top View 12.2 EUT - Bottom View Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 107 of 110 FCC Part 22H/24E/27 Test Report 12.3 EUT - Port View (1) 12.4 EUT - Port View (2) Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 108 of 110 FCC Part 22H/24E/27 Test Report 12.5 EUT – Side View (1) 12.6 EUT – Side View (2)

Label Contents and Location

Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 109 of 110 FCC Part 22H/24E/27 Test Report 12.7 EUT – Cover off View 12.8 EUT – PCB Top View Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 110 of 110 FCC Part 22H/24E/27 Test Report 12.9 EUT – PCB Bottom View 12.10 EUT – AC/DC Adapter View --- END OF REPORT ---

Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 100 of 110 FCC Part 22H/24E/27 Test Report 9 FCC §2.1091 - RF Exposure 9.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 9.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 9.3 Test Results Cellular Band UL: Maximum peak output power at antenna input terminal (dBm): 27.59 Maximum peak output power at antenna input terminal (mW): 574.12 Prediction distance (cm): 20 Prediction frequency (MHz): 836.6 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 2 Maximum Antenna Gain+ Cable Loss (numeric): 3.16 Power density at predication frequency and distance (mW/cm 2 ): 0.361 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5577 Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 101 of 110 FCC Part 22H/24E/27 Test Report Cellular Band DL: Maximum peak output power at antenna input terminal (dBm): 25.48 Maximum peak output power at antenna input terminal (mW): 353.18 Prediction distance (cm): 20 Prediction frequency (MHz): 869.2 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 2 Maximum Antenna Gain+ Cable Loss (numeric): 3.16 Power density at predication frequency and distance (mW/cm 2 ): 0.222 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5795 PCS Band UL: Maximum peak output power at antenna input terminal (dBm): 23.57 Maximum peak output power at antenna input terminal (mW): 227.51 Prediction distance (cm): 20 Prediction frequency (MHz): 1880 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 4 Maximum Antenna Gain+ Cable Loss (numeric): 2 Power density at predication frequency and distance (mW/cm 2 ): 0.091 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 PCS Band DL: Maximum peak output power at antenna input terminal (dBm): 24.41 Maximum peak output power at antenna input terminal (mW): 276.06 Prediction distance (cm): 20 Prediction frequency (MHz): 1989.8 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 4 Maximum Antenna Gain+ Cable Loss (numeric): 2 Power density at predication frequency and distance (mW/cm 2 ): 0.110 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Note: To meet 33 dBm (2 watts) EIRP limit in PCS band, the gain of antenna used with this booster must be offset by coaxial cable loss such that the antenna gain less cable loss does not exceed 6 dBi. Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 102 of 110 FCC Part 22H/24E/27 Test Report AWS Band UL: Maximum peak output power at antenna input terminal (dBm): 23.93 Maximum peak output power at antenna input terminal (mW): 247.17 Prediction distance (cm): 20 Prediction frequency (MHz): 1750 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 4 Maximum Antenna Gain+ Cable Loss (numeric): 2 Power density at predication frequency and distance (mW/cm 2 ): 0.098 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 AWS Band DL: Maximum peak output power at antenna input terminal (dBm): 23.30 Maximum peak output power at antenna input terminal (mW): 213.80 Prediction distance (cm): 20 Prediction frequency (MHz): 2112.4 Antenna Gain, typical (dBi): 7 Cable Loss (dB) 4 Maximum Antenna Gain+ Cable Loss (numeric): 2 Power density at predication frequency and distance (mW/cm 2 ): 0.085 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 Note: To meet 30 dBm (1watts) EIRP limit in AWS band, the gain of antenna used with this booster must be offset by coaxial cable loss such that the antenna gain less cable loss does not exceed 5 dBi. Results For uplink and downlink, the highest power density levels at 20 cm are below the MPE uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.3) FCC PART 22H, 24E & 27 TEST AND MEASUREMENT REPORT For Cellphone-Mate, Inc. 48346 Milmont Drive, Fremont, CA 94538, USA FCC ID: RSNCMFLEX-T Report Type: Original Report Product Type: Cellular Amplifier Prepared By: Lionel Lara Report Number: R12102614-222427 Report Date: 2013-02-04 Reviewed By: Quinn Jiang Test Engineer Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 2 of 110 FCC Part 22H/24E/27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 EUT INTERNAL CONFIGURATION...................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 7 2.6 POWER SUPPLY AND LINE FILTERS.................................................................................................................... 7 2.7 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913, §24.232 & §27.50 – RF OUTPUT POWER................................................................... 9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 9 4.4 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1049, §22.917, §24.238 & §27.53 - OCCUPIED BANDWIDTH......................................................... 15 5.1 APPLICABLE STANDARD.................................................................................................................................. 15 5.2 TEST PROCEDURE............................................................................................................................................ 15 5.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 15 5.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 15 5.5 TEST RESULTS................................................................................................................................................. 16 6 FCC §2.1053, §22.917, §24.238 & §27.53 - SPURIOUS RADIATED EMISSIONS ....................................... 39 6.1 APPLICABLE STANDARD.................................................................................................................................. 39 6.2 TEST PROCEDURE............................................................................................................................................ 39 6.3 TEST EQUIPMENT LIST AND DETAILS.....................................…

Text truncated - open the document above for the full version.

Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 104 of 110 FCC Part 22H/24E/27 Test Report 11 Exhibit B - Test Setup Photographs 11.1 Radiated Emissions - Front View 11.2 Radiated Emissions - Rear View (Below 1 GHz) Cellphone-Mate, Inc. FCC ID: RSNCMFLEX-T Report Number: R12102614-222427 Page 105 of 110 FCC Part 22H/24E/27 Test Report 11.3 Radiated Emissions - Rear View (Above 1 GHz)
