Cellphone-Mate Inc. CM2020 68 dB Manual SureCall TM CM2020 68dB Universal Building Repeater User Manual Model: CM2020 68 dB FCC ID: RSNDUAL-75UNDER Cellphone-Mate Inc. CM2020 68dB Manual 2 CONTENTS OF THE PACKAGE fdgbsddg 1. CM2020 68 dB Amplifier with connectors: N female type 2. Mounting Kit 3. 110V AC Power Adaptor 4. User Manual (this document) The following items need to be purchased separately before installation: 1. Dome antenna or other type of indoor antenna. 2. Yagi antenna or omni-directional antenna for outdoor use. 3. Low loss RF cable that connects indoor antenna with the repeater, length depends on actual situation. 4. Low loss RF cable that connects outdoor antenna with the repeater, length depends on actual situation. For further help, please consult the Cellphone-Mate website (www.Cellphone-Mate.com ) or call toll free at 888-365-MATE. SAFETY NOTES fdgbsddg The human body should always be separated from the indoor antenna of the Amplifier by at least 25cm (10”). Don't expose this product to extreme high or low temperature. For example, putting the Amplifier under direct sunshine for too long may cause it to overheat, thereby damaging the electronic components inside. There are no consumer serviceable or modifiable parts inside this Amplifier product. Alteration or abuse of the Amplifier or other components will void this product’s warranty, and could be dangerous to the user. NOTE: The wireless amplified can also be used for boat and other applications, but not recommended for small vehicles since there is no enough separation between inside and outside antenna. INSTALLATION INSTRUCTIONgbsddg Warning: Never power on the units before completion of the installation. The signal is received by the outside antenna from the cell tower, then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then AMPLIFIED and transmitted to the cell tower through the outside antenna. STEP 1. Install the CM2020 68 dB on the wall with the mounting kits supplied. STEP 2. Connect the Inside Antenna to the side that shows “Indoor Ant.”. STEP 3. Connect the Outside Antenna: Select an outside mounting location. For best performance, try to keep the antenna on top of the roof. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. Cellphone-Mate Inc. CM2020 68dB Manual 3 NOTE: Keep the separation distance between the inside and outside antennas to at least 80 ft apart to avoid RF oscillation. If not, then the amplification gain must be reduced with gain control switches on both side of the unit for uplink and downlink. STEP 4. Connect the Power Cord. Warning: To prevent damage to the Amplifier, before you plug in the Amplifier to an AC power outlet, please make sure that both sides are already connected with the cables from both the outdoor and indoor antennas. WARNING: after power is on, and before making any cellular phone calls, if either 800MHz or 1900MHz UPLINK lights marked “full” is on, that means that the oscillation is about to or already happen and ALC, automatic level control circuits, start working. You should then POWER OFF immediately, then reduce both the uplink gain and downlink gain via the gain control switches, or further increase separation distance, or do both until neither of the uplink light are on when you are not making cellular phone calls. Note: 1. Power lights for both uplink and down link will always be on after you power up. 2. During Cellular phone Conversations, it’s normal to see uplink full light turn on and off. STEP 5. After solving all oscillation problems, users can make cellular phone calls to test how the repeater system works, further adjust gain as needed. Safety Warning: 1. The input voltage for the Amplifier is 9V. DO NOT use this Amplifier with a regular 12V power supply. If a 12-volt power supply is connected directly to this Amplifier, it will be damaged. 2. Never plug in the power supply to the amplifier without the outdoor antenna and indoor antenna cables having been attached to the amplifier. 3. Ensure that the distance between inside and outside antennas is a minimum of 80 feet for the amplifier. 4. If the Uplink Full light is on when you are not making cellular phone calls, DO NOT use the amplifier, turn it off immediately, since it may cause damage to the amplifier. Amplifier Gain Control Each Attenuation Gain Switches control a certain level of gain. Each button has a certain dB gain, which is on the top of the amplifier. Those values are 16, 8, 4, 2, and 1 for the five switches respectively. TROUBLESHOOTING GUIDE Cellphone-Mate Inc. CM2020 68dB Manual 4 During operation, if the Amplifier interferes with your radio or other electronic receivers, move the Amplifier further away from those devices. For a list of Frequently Asked Questions and a complete and up-to-date Troubleshooting Guide, please visit our website at: www.Cellphone-Mate.com/FAQ.htm You can also consult a Cellphone-Mate technical specialist directly by sending e-mail to us at: [email protected] Or write to: Cellphone-Mate, Inc. 48820 Kato Road Suite 300B Fremont, CA 94539, U.S.A. WARRANTY 1. Cellphone-Mate, Inc. warrants to the Buyer that each of its products when shipped will be free from defects in material and workmanship and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at Cellphone-Mate, Inc.’s option, to repair or replace any product or part thereof which shall within ONE YEAR of purchase as determined by examination by Cellphone-Mate, Inc., as proving defective in material and/or workmanship. Cellphone-Mate Inc must first authorize warranty returns in writing. Disassembly of any Cellphone-Mate, Inc. product by anyone other than an authorized representative of Cellphone-Mate, Inc. voids this warranty in its entirety. Cellphone-Mate, Inc. reserves…

Text truncated - open the document above for the full version.

FCC Confidential Authorization January 7 th , 2010 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of RSNDUAL-75UNDER In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone- Mate Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Tune-Up Procedure • Circuit Description • Parts List (licensed products) The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Hongtao Zhan CEO Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Tel: 1 888 365 MATE (6283) Fax: 510 996 7250 http://www.cellphone-mate.com

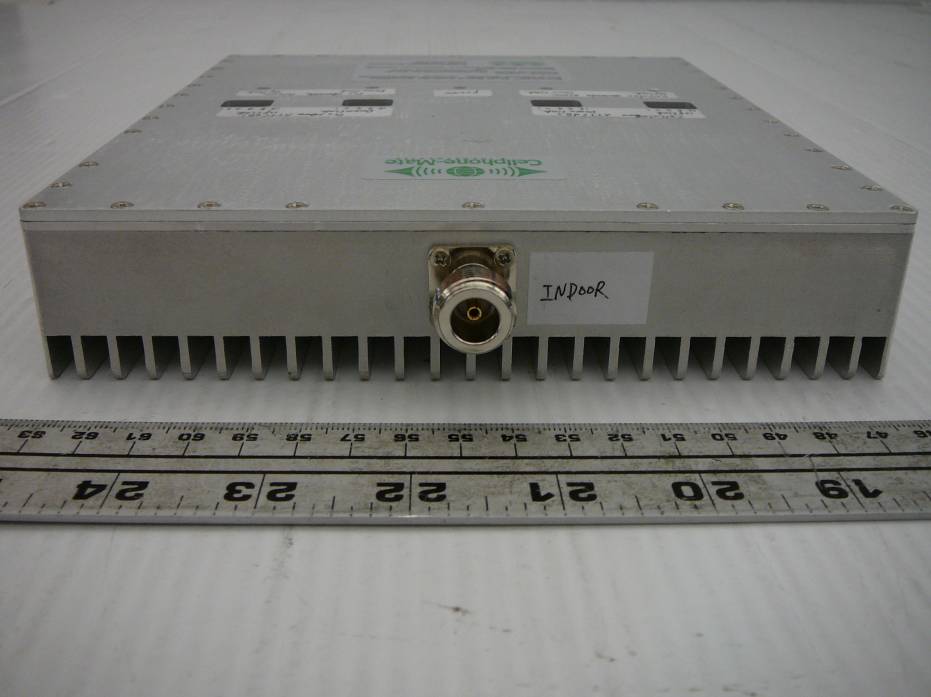

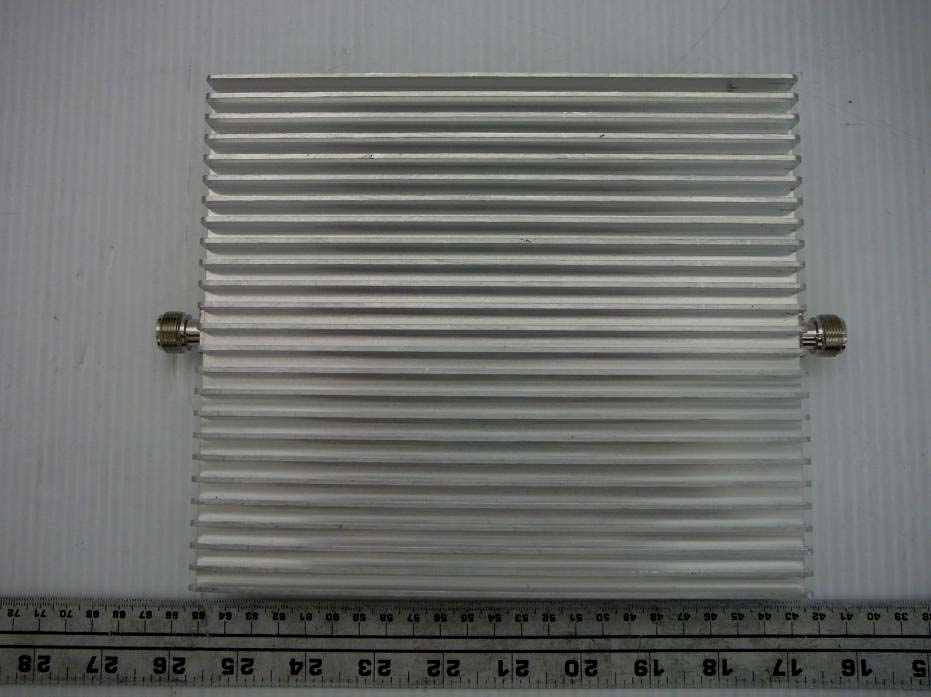

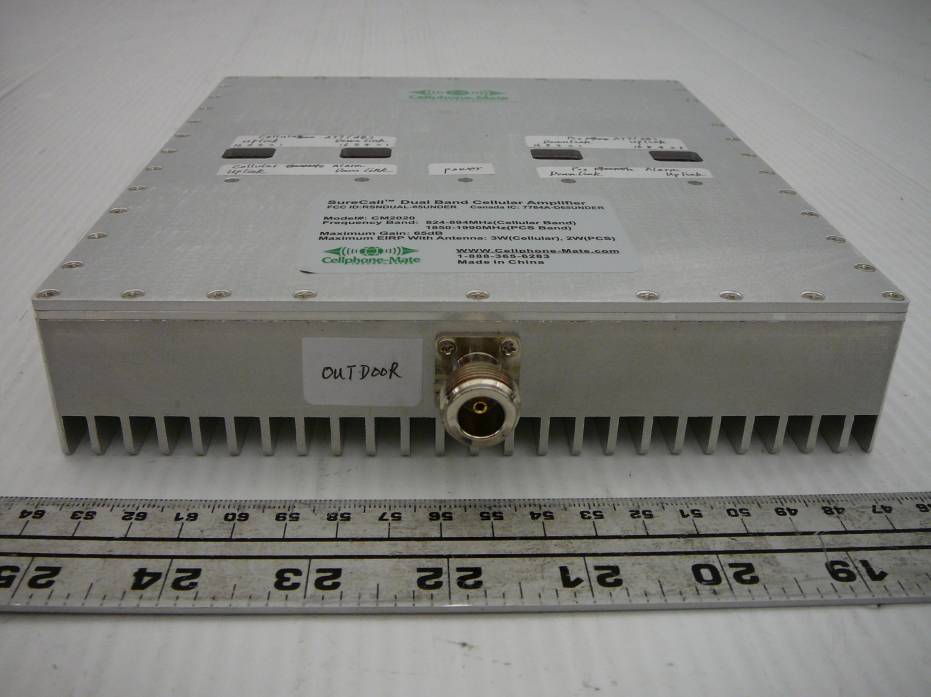

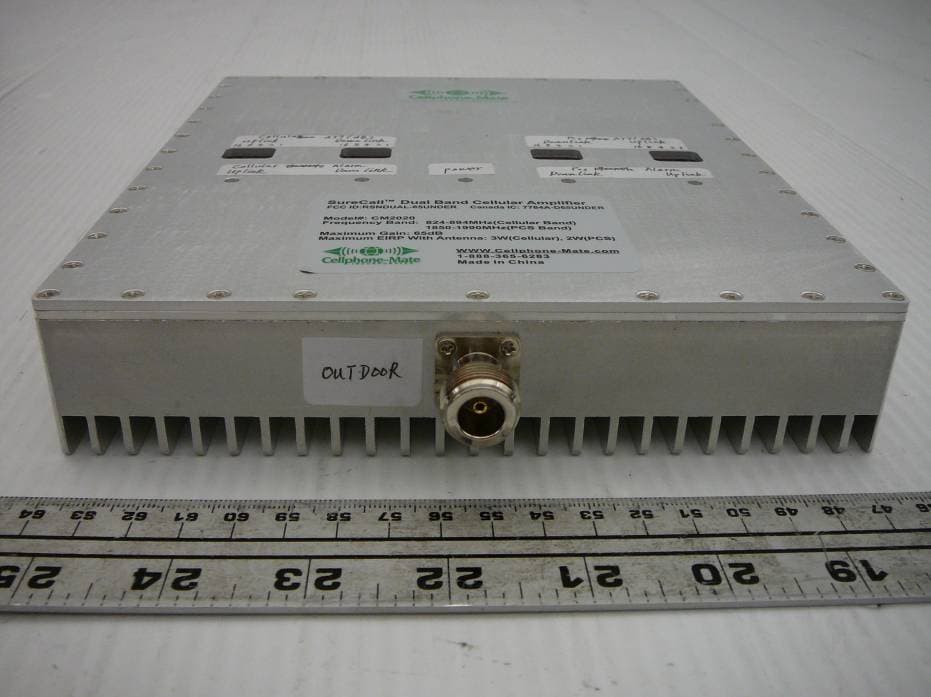

Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 100 of 104 FCC Part 22H/24E Test Report 14 EXHIBIT C – EUT PHOTOGRAPHS 14.1 EUT - Top View 14.2 EUT - Bottom View Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 101 of 104 FCC Part 22H/24E Test Report 14.3 EUT - Side View (1) 14.4 EUT - Port View (1) Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 102 of 104 FCC Part 22H/24E Test Report 14.5 EUT – Port View (2) 14.6 EUT – AC/DC Adapter View

FCC ID Label Information Label here

Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 103 of 104 FCC Part 22H/24E Test Report 14.7 EUT – Top Side without Cover View (1) 14.8 EUT – Top Side without Cover View (2) Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 104 of 104 FCC Part 22H/24E Test Report 14.9 EUT – RF Amplifier Board Assembly Top View 14.10 EUT – RF Amplifier Board Assembly Bottom View ***** END OF REPORT *****

Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 94 of 104 FCC Part 22H/24E Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 850 MHz Cellular Band Uplink: Maximum peak output power at antenna input terminal (dBm):19.14 Maximum peak output power at antenna input terminal (mW):82.04 Prediction distance (cm):25 Prediction frequency (MHz):836.6 Antenna Gain, typical (dBi):14 Maximum Antenna Gain (numeric):25.12 Power density at predication frequency and distance (mW/cm 2 ):0.2624 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):0.558 Cellphone-Mate Inc. FCC ID: RSNDUAL-75UNDER Report Number: R1001151-2224 Page 95 of 104 FCC Part 22H/24E Test Report 850 MHz Cellular Band Downlink: Maximum peak output power at antenna input terminal (dBm):19.41 Maximum peak output power at antenna input terminal (mW):87.30 Prediction distance (cm):25 Prediction frequency (MHz):881.6 Antenna Gain, typical (dBi):14 Maximum Antenna Gain (numeric):25.12 Power density at predication frequency and distance (mW/cm 2 ):0.2792 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):0.588 1900 MHz PCS Band Uplink: Maximum peak output power at antenna input terminal (dBm):23.76 Maximum peak output power at antenna input terminal (mW):237.68 Prediction distance (cm):25 Prediction frequency (MHz):1880 Antenna Gain, typical (dBi):14 Maximum Antenna Gain (numeric):25.12 Power density at predication frequency and distance (mW/cm 2 ):0.7299 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 PCS 1900 MHz Band Downlink: Maximum peak output power at antenna input terminal (dBm):20.73 Maximum peak output power at antenna input terminal (mW):118.30 Prediction distance (cm):25 Prediction frequency (MHz):1960 Antenna Gain, typical (dBi):14 Maximum Antenna Gain (numeric):25.12 Power density at predication frequency and distance (mW/cm 2 ):0.3784 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 Test Result For Uplink, the highest power density level at 25 cm is 0.7299 mW/cm², which is below the uncontrolled exposure limit of 1 mW/cm² at 1880 MHz. For Downlink, the highest power density level at 25 cm is 0.3784 mW/cm², which is below the uncontrolled exposure limit of 1mW/cm² at 1960 MHz. So the indoor antenna prediction distance should be greater then 25 cm, and outdoor antenna prediction distance should be greater then 25 cm. Note: Professional installer can set the conducted output power base on the antenna type so that the EIRP limit is not exceeded.
