RSNDUAL-85UNDERDual Band in Building Amplifier

Cellphone-Mate Inc. CM2020 80 dB Manual SureCall TM CM2020 80dB Universal Building Repeater User Manual Model: CM2020 80 dB FCC ID: RSNDUAL-85UNDER Canada IC: 7784A-D85UNDER Cellphone-Mate Inc. CM2020 80dB Manual 2 CONTENTS OF THE PACKAGE 1. CM2020 80 dB Amplifier with connectors: N female type 2. Mounting Kit 3. 110V AC Power Adaptor 4. User Manual (this document) The following items need to be purchased separately before installation: 1. Dome antenna or other type of indoor antenna. 2. Yagi antenna or omni-directional antenna for outdoor use. 3. Low loss RF cable that connects indoor antenna with the repeater. Length depends on actual situation. 4. Low loss RF cable that connects outdoor antenna with the repeater. Length depends on actual situation. For further help, please consult the Cellphone-Mate website (www.Cellphone-Mate.com ) or call toll free at 888-365-MATE. AFETY NOTES The human body should always be separated from the indoor antenna of the Amplifier by at least 25 cm (10”). To meet 2 watts EIRP limit in PCS Band, the gain of antenna used with the amplifier must be offset by the coaxial cable loss. Don't expose this product to extreme high or low temperature. For example, putting the Amplifier under direct sunlight for too long may cause it to overheat, thereby damaging the electronic components inside. Cellphone-Mate Inc. CM2020 80dB Manual 3 There are no consumer serviceable or modifiable parts inside this Amplifier product. Alteration or abuse of the Amplifier or other components will void this product’s warranty, and could be dangerous to the user. NOTE: The wireless amplifier can also be used for boat and other applications, but is not recommended for small vehicles since there is no enough separation between inside and outside antenna. INSTALLATION INSTRUCTION Warning: Never power on the units before completion of the installation. The signal is received by the outside antenna from the cell tower, then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then AMPLIFIED and transmitted to the cell tower through the outside antenna. STEP 1. Install the CM2020 80 dB on the wall with the mounting kits supplied. STEP 2. Connect the Inside Antenna to the side that shows “Indoor Ant.”. STEP 3. Connect the Outside Antenna: Select an outside mounting location. For best performance, try to keep the antenna on top of the roof. The outside antenna should be located in an area with at least a 12” radius clear of obstructions, and other radiating elements. NOTE: Keep the separation distance between the inside and outside antennas at least 80 ft apart to avoid RF oscillation. If this separate is not achievable, then the amplification gain must be reduced with gain control switches on both sides of the unit for uplink and downlink. STEP 4. Connect the Power Cord. Warning: To prevent damage to the Amplifier, before you plug the Amplifier into an AC power outlet, please make sure that both sides are already connected with the cables from the outdoor and indoor antennas. WARNING: After power is on, and before making any cellular phone calls, if either 800 MHz or 1900 MHz UPLINK lights marked “full” is on, that means that oscillation is about to happen or alread y has happened and ALC, automatic level control circuits, are starting to work. You should POWER OFF immediately, then reduce both the uplink gain and downlink gain via the gain control switches, or further increase separation distance, or do both until neither of the uplink lights are on when you are not making cellular phone calls. Note: 1. Power lights for both uplink and down link will always be on after you power up. 2. During Cellular phone Conversations, it’s normal to see uplink full light turn on and off. STEP 5. After solving all oscillation problems, users can make cellular phone calls to test how the repeater system works, further adjusting the gain as needed. Cellphone-Mate Inc. CM2020 80dB Manual 4 Safety Warning: 1. The input voltage for the Amplifier is 9V. DO NOT use this Amplifier with a regular 12V power supply. If a 12-volt power supply is connected directly to this Amplifier, it will be damaged. 2. Never plug in the power supply to the amplifier without the outdoor antenna and indoor antenna cables having been attached to the amplifier. 3. Ensure that the distance between inside and outside antennas is a minimum of 80 feet for the amplifier. 4. If the Uplink Full light is on when you are not making cellular phone calls, DO NOT use the amplifier, turn it off immediately, since it may cause damage to the amplifier. Amplifier Gain Control Each Attenuation Gain Switches control a certain level of gain. Each button has a certain dB gain, which is on the top of the amplifier. Those values are 16, 8, 4, 2, and 1 for the five switches respectively. ROUBLESHOOTING GUIDE During operation, if the Amplifier interferes with your radio or other electronic receivers, move the Amplifier further away from those devices. For a list of Frequently Asked Questions and a complete and up-to-date Troubleshooting Guide, please visit our website at: www.Cellphone-Mate.com/FAQ.htm You can also consult a Cellphone-Mate technical specialist directly by e-mailing us at: [email protected] Or write to: Cellphone-Mate, Inc. 48820 Kato Road Suite 300B Fremont, CA 94538, U.S.A. WARRANTY 1. Cellphone-Mate, Inc. warrants to the Buyer that each of its products when shipped will be free from defects in material and workmanship and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at Cellphone-Mate, Inc.’s option, to repair or replace any product or part thereof which shall within TWO YEARS of purchase as determined by examination by Cellphone-Mate, Inc., as proving defective in material and/or workmanship. Cellphone-Mate Inc must first authorize warranty returns in writing. Disassembly of any Cell…

Text truncated - open the document above for the full version.

FCC Confidential Authorization August 8 th , 2011 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNDUAL-85UNDER In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone- Mate Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Hongtao Zhan CEO Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Tel: 1 888 365 MATE (6283) Fax: 510 996 7250 http://www.cellphone-mate.com

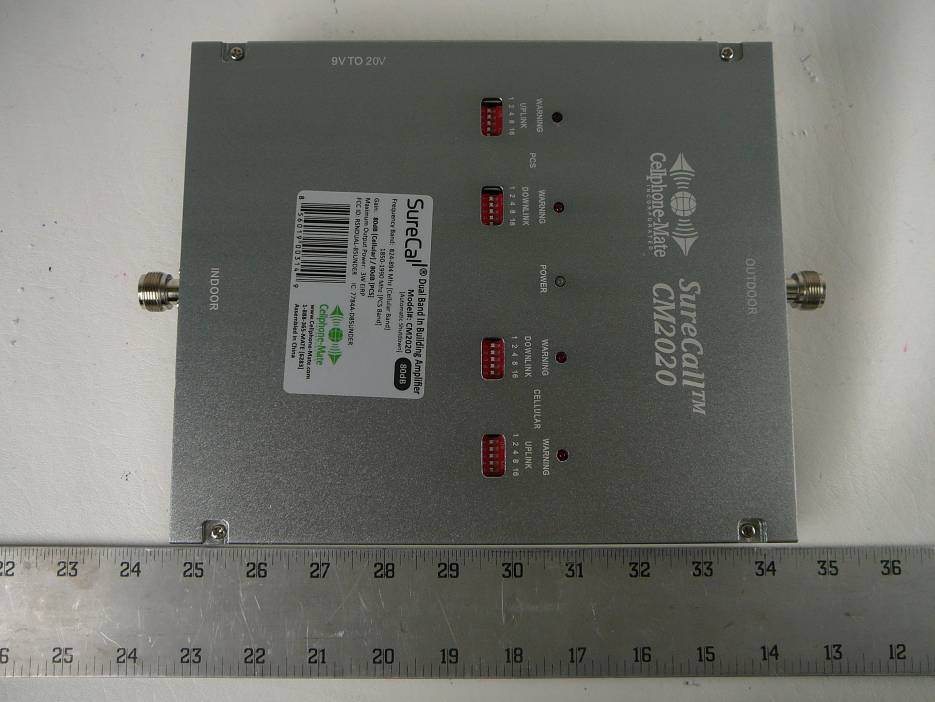

Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 99 of 103 FCC Part 22H/24E Test Report 14 EXHIBIT C – EUT PHOTOGRAPHS 14.1 EUT - Top View 14.2 EUT - Bottom View Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 100 of 103 FCC Part 22H/24E Test Report 14.3 EUT - Side View (1) 14.4 EUT - Side View (2) Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 101 of 103 FCC Part 22H/24E Test Report 14.5 EUT - Port View (1) 14.6 EUT – Port View (2)

Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 95 of 103 FCC Part 22H/24E Test Report 12 EXHIBIT A - FCC ID LABELING REQUIREMENTS 12.1 FCC ID Label Requirements FCC §2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code. 12.2 FCC ID Label Contents FCC ID: XXX-XXXXXX Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 96 of 103 FCC Part 22H/24E Test Report 12.3 FCC Label Location on EUT

Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 102 of 103 FCC Part 22H/24E Test Report 14.7 EUT – Cover off View 14.8 EUT – PCB Board Assembly Top View Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 103 of 103 FCC Part 22H/24E Test Report 14.9 EUT – PCB Board Assembly Bottom View 14.10 EUT – AC/DC Adapter View --- END OF REPORT ---

No. Part No. Part Name Value Unit Quantity 1 Package box CM-2020-WL-V1.0 pcs 1\12 2 EPE Foam bolster CM-2020-DB-V1.0 pcs 2\12 3 EPE Foam upper cover CM-2020-SG-V1.0 pcs 2\12 456789 101112131415 BZ_CM2020-WL-80 BOM No. Part No. Part Name Value Unit Quantity 1 AMP1 LNA SPF5043 pcs 1 2 AMP14, AMP16, AMP19 Gain block SKY65016 pcs 3 3 AMP17 Gain block SKY65017 pcs 1 4 AMP18 PA AH322 pcs 1 5 C17 SMT Capacitor 220uF/20V pcs 1 6 C18, C135, C167, C183, C190, C1 9 SMT Capacitor 1n pcs 20 7 C43, C54, C55, C121, C164, C166, SMT Capacitor 100p pcs 23 8 C50, C168, C189, C202, C220, C2 3 SMT Capacitor 2.2u pcs 7 9 C51 SMT Capacitor 1uF pcs 1 10 C69 SMT Capacitor 100uF/16V pcs 1 11 C165, C170, C171, C198 SMT Capacitor 10n pcs 4 12 C210 SMT Capacitor 3.3p pcs 1 13 C221, C229 SMT Capacitor 10p pcs 2 14 C223 SMT Capacitor 8.2nH pcs 1 15 C226 SMT Capacitor 8.2p pcs 1 16 C227 SMT Capacitor 22p pcs 1 17 C235 SMT Capacitor 10uF/20V pcs 1 18 C236 SMT Capacitor 18p pcs 1 19 C239 SMT Capacitor 0.1u pcs 1 20 D14, D15 IC SMP1307-004LF pcs 2 21 D16 IC SMS7630-006LF pcs 1 22 D17 SMT Capacitor LED RED pcs 1 23 F15, F16, F18, F20, F21 SAW Filter B9022 pcs 5 24 F17 SMT Capacitor 100p pcs 1 25 F19, F35 SAW Filter HDF881E-S6 pcs 2 RF_CM2020-WL-80-800-DNLINK 26 J4 SWITCH SW-5 pcs 1 27 L10, L16, L24, L25, L26, L28, L30, L SMT Inductor 33nH pcs 8 28 L31 SMT Inductor 18nH pcs 1 29 R61 SMT Resistance 30R pcs 1 30 R87, R92, R206 SMT Resistance 39R pcs 3 31 R89 SMT Resistance 10R pcs 1 32 R100, R102 SMT Resistance 560R pcs 2 33 R101, R103, R104 SMT Resistance 1k pcs 3 34 R107 SMT Resistance 180R pcs 1 35 R109, R110, R111, R112, R113, R 2 SMT Resistance 100R pcs 7 36 R114, R118, R238 SMT Resistance 10k pcs 3 37 R115, R116, R119, R121, R191 SMT Resistance 0R 1% pcs 5 38 R120, R127 SMT Resistance 100R 1% pcs 2 39 R122, R190 SMT Resistance 2.2k 1% pcs 2 40 R123, R126, R128, R192, R232 SMT Resistance 1k 1% pcs 5 41 R124 SMT Resistance 56k pcs 1 42 R125 SMT Resistance 3.24k pcs 1 43 R129, R130, R131, R132, R133 SMT Resistance 6.2k pcs 5 44 R134 SMT Resistance 75R 1% pcs 1 45 R135 SMT Resistance 430R 1% pcs 1 46 R136, R137 SMT Resistance 51R pcs 2 47 R138, R139 SMT Resistance 120R pcs 2 48 R140 SMT Resistance 24R pcs 1 49 R142 SMT Resistance 75R pcs 1 50 R193 SMT Resistance 820R 1% pcs 1 51 R244 SMT Resistance 68R pcs 1 52 U10 IC SKY12323-303LF pcs 1 53 U11, U12 IC LM2904 pcs 2 No. Part No. Part Name Value Unit Quantity 1 C93,C157,C244,C273,C2 58,C283,C325,C326,C32 7,C328 SMT Capacitor 0.1uF pcs 10 2 C323,C324 SMT Capacitor 22p pcs 2 3 C158 SMT Inductor 330p pcs 1 4 R7 SMT Resistance 100k pcs 1 5 R88 SMT Resistance 20k pcs 1 6 R97,R108,R184,R233,R2 34,R235 SMT Resistance 10k pcs 6 7 R105,R209,R230, SMT Resistance 1k pcs 3 8 LED3 LED dichromatic LED pcs 1 9 D10,D12 Diode 1N4148 pcs 2 10 S2 Switch DIP Switch pcs 1 11 U7 IC SP706SEN pcs 1 12 U 18 IC LPC1111 pcs 1 13 U 19 IC M AX3232 pcs 1 14 U16 IC FM24C16 pcs 1 15 Ss1 k ey Reset key pcs 1 16 J 6,J7 contact pin pcs 2 CONTORL_CM2020-WL-80 No. Part No. Part Name Value Unit Quantity 1 external shell pcs 1 2 upper cover pcs 1 3 N connect pcs 2 4 M2.5*8 roundhead screw roundhead/ stainless steel pcs 35 5 M2.5*6 FHCS butch haircut/ stainless steel pcs 52 6 M3*7 roundhead screw roundhead /stainless steel pcs 8 7 PCB CM2020-WL-80 pcs 1 89 101112131415 JG_CM2020-WL-80 BOM No. Part No. Part Name Value Unit Quantity 1 C35,C59,C131,C182,C199,C 218,C298, SMT Capacitor 0.1u pcs 7 2 C60,C154, C159, C160,C161,C181,C185,C186, C188,C192,C211,C213 SMT Capacitor 10uF/20V pcs 12 3 L6,L21,L46, SMT Inductor 15uH pcs 3 4 D23,D25 Diode 1N4148 pcs 2 5 R90,R91,R106 SMT Resistance 2k pcs 3 6 R42,R93,R141 SMT Resistance 4.7k pcs 3 7 R9,R221,R231 SMT Resistance 1k pcs 3 8 C162, C187,C216,C194 Capacitor 220uF/20V pcs 4 9 R6,R85 SMT Resistance 649R pcs 2 10 C163 SMT Capacitor 100p pcs 1 11 C301 SMT Capacitor 1nF pcs 1 12 C289 SMT Capacitor 1uF pcs 1 13 D13,D24,D26 Diode MBRA340T3G pcs 3 14 U8,U9,U20 Power Supply Module SP7656 pcs 3 15 J3 P ower socket pcs 1 PW_CM2020-WL-80 No. Part No. Part Name Value Unit Quantity 1 AMP2 , AMP3 , AMP4 , AMP26 SMT Capacitor SKY65016 pcs 4 2 AMP5 SMT Resistance SKY65017 pcs 1 3 AMP6 PA AH322 pcs 1 4 AMP15 LNA SPF5043 pcs 1 5 C1, C6, C7, C33 SMT Capacitor 10n pcs 4 6 C2, C5, C8, C9, C10, C11, C12, C13, C20, C23, C27, C34, C38, C39, C42, C46, C47, C49, C52, C67, C271, C288, C321, C336, C337 SMT Capacitor 100p pcs 25 7 C3, C19, C21, C25, C26, C28, C30, C31, C32, C36, C40, C41, C44, C63, C65, C68, C72, C75, C256, C300, C335 SMT Capacitor 1n pcs 21 8 C4, C22, C24, C66, C73, C74, C129, C333 SMT Capacitor 2.2u pcs 8 9 C14, C15, C16, C29 SMT Capacitor 0.5p pcs 4 10 C45, C53, C61 SMT Capacitor 3.3p pcs 3 11 C48, C64 SMT Capacitor 10p pcs 2 12 C56 SMT Capacitor 1p pcs 1 13 C57 SMT Capacitor 1uF pcs 1 14 C62 SMT Capacitor 22p pcs 1 15 C70 SMT Capacitor 10uF/20V pcs 1 16 C71 SMT Capacitor 18p pcs 1 17 C153 SMT Capacitor 100uF/16V pcs 1 18 C322 SMT Capacitor 2.2p pcs 1 19 C334 SMT Capacitor 220uF/20V pcs 1 20 C341 SMT Capacitor 5pF pcs 1 21 D1, D2 IC SMP1307-004LF pcs 2 22 D3 IC SMS7630-006LF pcs 1 23 D4 LED LED RED pcs 1 24 F1 SMT Capacitor 100p pcs 1 RF_CM2020-WL-80-1900-DNLINK 25 F2, F3, F4, F5, F6, F7, F44, F45 SAW Filter B9007 pcs 8 26 F32, F46 SAW Filter HDF1960E-S6 pcs 2 27 J1 Switch SW-5 pcs 1 28 L1, L2, L3, L4, L5, L7, L9, L33, L44 SMT Inductor 33nH pcs 9 29 L8 SMT Inductor 18nH pcs 1 30 L29, L43, L45, L47, L48, L49 SMT Inductor 3.3nH pcs 6 31 R1, R3 SMT Resistance 560R pcs 2 32 R2, R4, R5 SMT Resistance 1K pcs 3 33 R8 SMT Resistance 180R pcs 1 34 R10, R11, R12, R13, R14 SMT Resistance 100R pcs 5 35 R15, R19, R242 SMT Resistance 10k pcs 3 36 R16, R17, R20, R22, R203 SMT Resistance 0R 1% pcs 5 37 R21, R28 SMT Resistance 100R 1% pcs 2 38 R23, R202 SMT Resistance 2.2k 1% pcs 2 39 R24 SMT Resistance 820R 1% pcs 1 40 R25 SMT Resistance 56k pcs 1 41 R26 SMT Resistance 3.24k pcs 1 42 R27, R29, R36, R189, R204, R239 SMT Resistance 1k 1% pcs 6 43 R30, R31, R32, R33, R34 SMT Resistance 6.2k pcs 5 44 R…

Text truncated - open the document above for the full version.

Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 93 of 103 FCC Part 22H/24E Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE INFORMATION 11.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Cellular Band Uplink: Maximum peak output power at antenna input terminal (dBm):21.49 Maximum peak output power at antenna input terminal (mW):140.93 Prediction distance (cm):25 Prediction frequency (MHz):836.4 Antenna Gain, typical (dBi):14 Cable Loss (dB):3.6 Power density at predication frequency and distance (mW/cm 2 ):0.197 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):0.558 Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 94 of 103 FCC Part 22H/24E Test Report Cellular Band Downlink: Maximum peak output power at antenna input terminal (dBm):23.22 Maximum peak output power at antenna input terminal (mW):209.89 Prediction distance (cm):25 Prediction frequency (MHz):893.8 Antenna Gain, typical (dBi):14 Cable Loss (dB):3.6 Power density at predication frequency and distance (mW/cm 2 ):0.293 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):0.596 PCS Band Uplink: Maximum peak output power at antenna input terminal (dBm):24.39 Maximum peak output power at antenna input terminal (mW):274.79 Prediction distance (cm):25 Prediction frequency (MHz):1880 Antenna Gain, typical (dBi):14 Cable Loss (dB):5.0 Power density at predication frequency and distance (mW/cm 2 ):0.278 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 PCS Band Downlink: Maximum peak output power at antenna input terminal (dBm):23.65 Maximum peak output power at antenna input terminal (mW):231.74 Prediction distance (cm):25 Prediction frequency (MHz):1960 Antenna Gain, typical (dBi):14 Cable Loss (dB):5.0 Power density at predication frequency and distance (mW/cm 2 ):0.234 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 Note: To meet 33 dBm (2 watts) EIRP limit in PCS band, the gain of antenna used with this booster must be offset by coaxial cable loss such that the antenna gain less cable loss does not exceed 9 dBi. Results For Uplink, the highest power density level at 25 cm is below the uncontrolled exposure limit. For Downlink; the highest power density level at 25 cm is below the uncontrolled exposure limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E TEST AND MEASUREMENT REPORT For Cellphone-Mate, Inc. 48820 Kato Road, Suite 300B, Fremont, CA 94539, USA FCC ID: RSNDUAL-85UNDER Report Type: Original Report Product Type: Universal Building Repeater Test Engineer: Lionel Lara Report Number: R1108101-2224 Report Date: 2011-09-27 Reviewed By: Victor Zhang Test Engineer, Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave., Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 2 of 103 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 POWER SUPPLY AND LINE FILTERS.................................................................................................................... 7 2.5 INTERNAL CONFIGURATION...............................................................................................................................7 2.6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 7 2.7 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913(A) & §24.232 – RF OUTPUT POWER .......................................................................... 9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.4 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 9 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049, §22.917 & §24.238 - OCCUPIED BANDWIDTH...................................................................... 13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 6.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 6.5 TEST RESULTS.................................................................................................................................................…

Text truncated - open the document above for the full version.

Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 97 of 103 FCC Part 22H/24E Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions - Front View 13.2 Radiated Emissions - Rear View (Below 1 GHz) Cellphone-Mate Inc. FCC ID: RSNDUAL-85UNDER Report Number: R1108101-2224 Page 98 of 103 FCC Part 22H/24E Test Report 13.3 Radiated Emissions - Rear View (Above 1 GHz) 13.4 Conducted Measurement View
