RSNEZBOOSTDual Band Signal Booster

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information EZboost Component Prod No. Description Gain/Loss Notes 800MHz 1900MHz Outdoor Antenna* CM303 5 dBi 8 dBi Indoor Antenna* CM302W 3 dBi 5 dBi Indoor Cable* CM240-50NN 50Feet 4.83 dB 8 dB 50 Feet or longer *All equivalent antennas and cables are suitable for use with the EZboost booster. 2 Note1：Dual Indoor Antenna Kit Component Prod No. Description Quantity Notes Outdoor Antenna* CM303 1pcs Indoor Antenna* CM302W 2pcs Indoor Cable* CM240-50NN 50Feet 1pcs 50 Feet or longer Coupler* CM-C-10 1pcs Cable connected to the coupling end of coupler * CM240-10NN 10Feet 1pcs 10 Feet or longer Cable connected to the output end of coupler * CM240-50NN 50Feet 1pcs 50 Feet or longer *All equivalent antennas and cables are suitable for use with the EZboost booster. Note2：Multiple Indoor antenna kit is also an option.

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Authorization 24 th , November 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Compliance Testing, LLC on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 24 th November, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNEZBOOST In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

Tune up procedure: There is no need for tune up for this product when in production.

Label & Label Location IC: RSNEZBOOST Model: EZBOOST Label & Label Location IC: RSNEZBOOST Model: EZBOOST Label & Label Location IC: RSNEZBOOST Model: EZBOOST

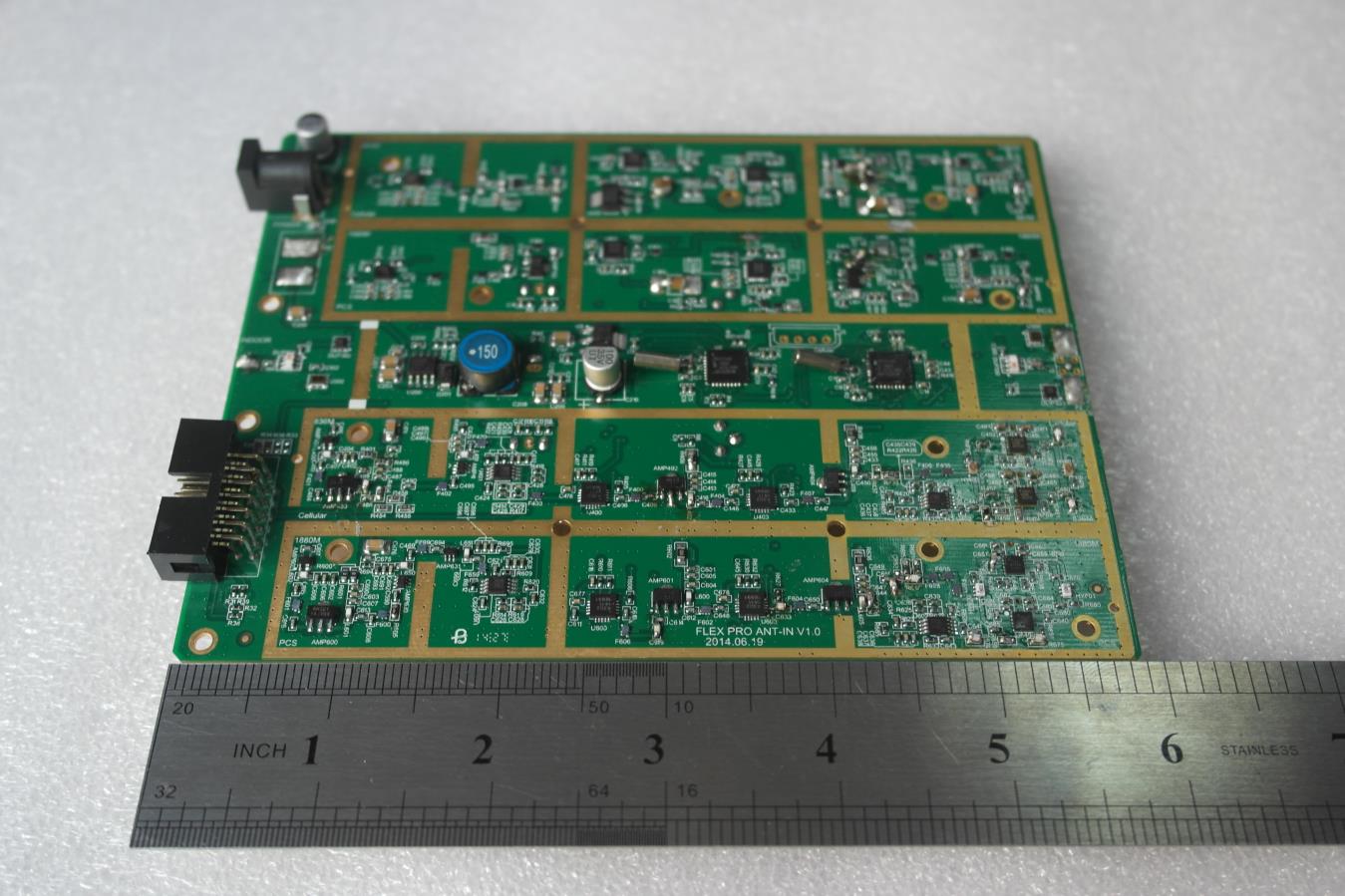

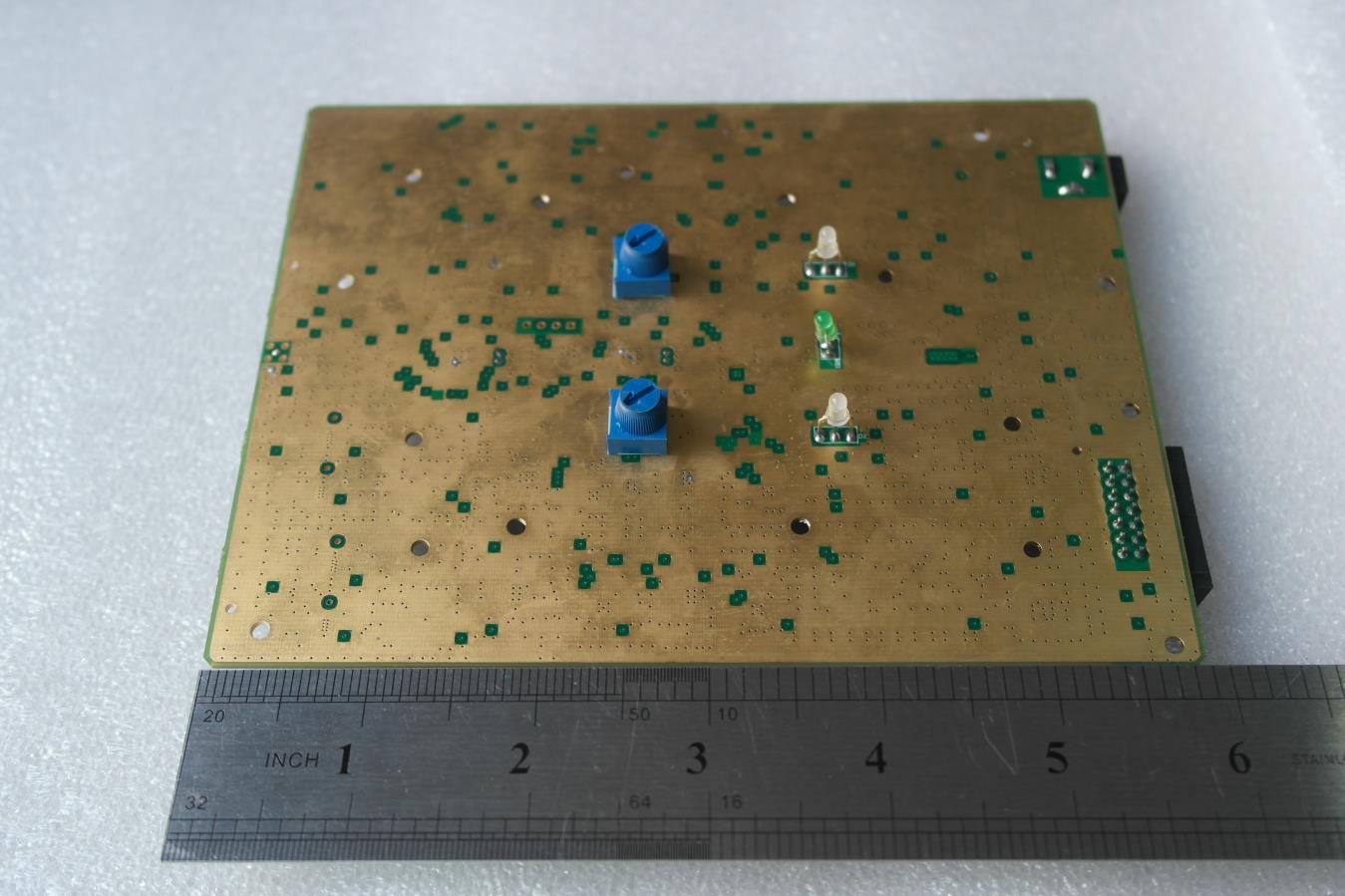

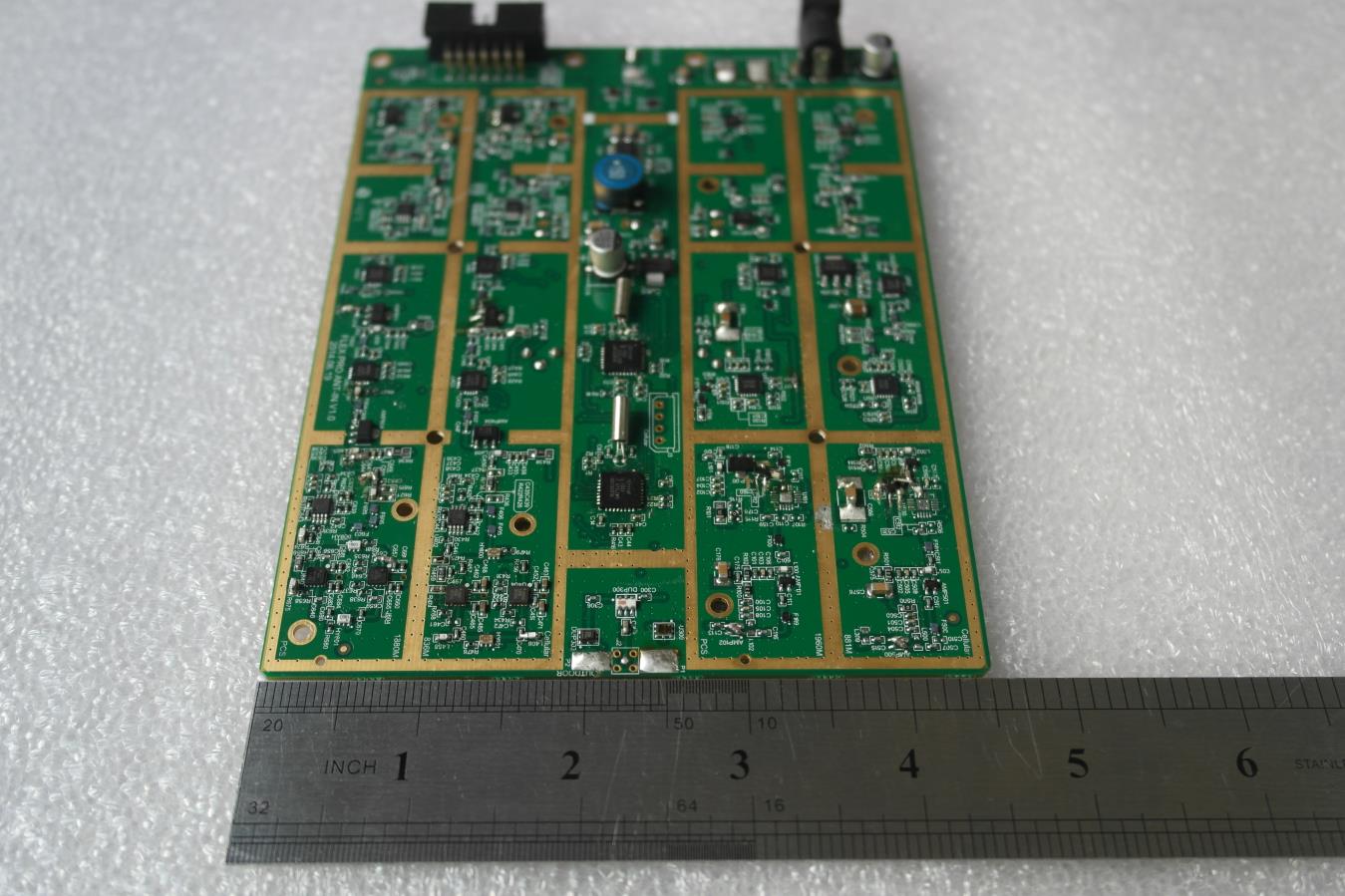

Internal Photos Cellphone Mate, LLC FCC ID: RSNEZBOOST Model: EZBOOST Page 1 of 5 Internal Photos Cellphone Mate, LLC FCC ID: RSNEZBOOST Model: EZBOOST Page 2 of 5 Internal Photos Cellphone Mate, LLC FCC ID: RSNEZBOOST Model: EZBOOST Page 3 of 5 Internal Photos Cellphone Mate, LLC FCC ID: RSNEZBOOST Model: EZBOOST Page 4 of 5 Internal Photos Cellphone Mate, LLC FCC ID: RSNEZBOOST Model: EZBOOST Page 5 of 5

EIRP Calculations EZboost 1 Antenna kits Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM303 8 5 Outdoor Cable：N o outdoor cable Indoor Antenna Indoor Antenna Indoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM302W 5 3 Indoor Cable Indoor Cable Indoor Cable Loss At 1900MHz(dB) At 800MHz(dB) CM240-50NN 50Feet 8 4.83 2 EIRP Pulse GSM Frequency Output Power(dBm) Outdoor Antenna Gain(dBi) Outdoor Cable Loss(dB) EIRP(dBm) Limit(dBm) UL 1850-1910 20.2 8 0 28.2 30 UL 824-849 19.0 5 0 24.0 30 Frequency Output Power(dBm) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) EIRP(dBm) Limit(dBm) DL 1930-1990 0.6 5 8 -2.4 17 DL 869-894 0.0 3 4.83 -1.9 17 4.1MHz AWGN Frequency Output Power(dBm) Outdoor Antenna Gain(dBi) Outdoor Cable Loss(dB) EIRP(dBm) Limit(dBm) UL 1850-1910 18.3 8 0 26.3 30 UL 824-849 18.3 5 0 23.3 30 Frequency Output Power(dBm) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) EIRP(dBm) Limit(dBm) DL 1930-1990 -5.0 5 8 -8.0 17 DL 869-894 -1.1 3 4.83 -2.9 17

1 FCC§1.1307（b）(1)&§2.1091-RF EXPOSURE 1.1 Applicable Standard According to§1.1310 and §2.1091(Mobile Devices)RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Power Density (mW/cm²) Limits for General Population/Uncontrolled Exposure 0.3-1.34 *(100) 1.34-30 *(180/f²) 30-300 0.2 300–1,500 f/1500 1,500–100,000 1 Note: f= frequency in MHz *=Plane-wave equivalent power density 1.2 MPE Prediction 1.2.1 Calculation of MPE at 20 cm distance, Equation from OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G= maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is in numeric form) R=distance to the center of radiation of the antenna (20cm in the following calculation) 1.2.2 Calculation formula of G（numeric ) Where: G（numeric）= Maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is converted from decibel into numeric form with above equation) 1.3 Test Result Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM303 8 5 Outdoor Cable: No outdoor cable Indoor Antenna Indoor Antenna Indoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM302W 5 3 Indoor Cable Indoor Cable Indoor Cable Loss At 1900MHz(dB) At 800MHz(dB) CM240-50NN 50Feet 8 4.83 Cellular Band UL: Maximum peak output power at antenna input terminal(dBm): 19.02 Maximum peak output power at antenna input terminal(mW): 79.80 Prediction distance(cm): 20 Prediction frequency(MHz): 838.40 Maximum Antenna Gain (dBi): 5 Cable Loss(dB): 0 G（numeric）: 3.16 Power density at predication frequency and distance(mW/cm²): 0.0502 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5589 Cellular Band DL: Maximum peak output power at antenna input terminal(dBm): -0.02 Maximum peak output power at antenna input terminal(mW): 1.00 Prediction distance(cm): 20 Prediction frequency(MHz): 879.00 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 4.83 G（numeric）: 0.66 Power density at predication frequency and distance(mW/cm²): 0.0001 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5860 PCS Band UL: Maximum peak output power at antenna input terminal(dBm): 20.16 Maximum peak output power at antenna input terminal(mW): 103.75 Prediction distance(cm): 20 Prediction frequency(MHz): 1867.30 Maximum Antenna Gain (dBi): 8 Cable Loss(dB): 0 G（numeric）: 6.31 Power density at predication frequency and distance(mW/cm²): 0.1303 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1.0000 PCS Band DL: Maximum peak output power at antenna input terminal(dBm): 0.62 Maximum peak output power at antenna input terminal(mW): 1.15 Prediction distance(cm): 20 Prediction frequency(MHz): 1959.70 Maximum Antenna Gain (dBi): 5 Cable Loss(dB): 8 G（numeric）: 0. 50 Power density at predication frequency and distance(mW/cm²): 0.0001 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1.0000

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1 Explanation of MSCL Figure 1 MSCL= Path loss + Indoor Cable Loss - Mobile Antenna Gain- Indoor Antenna Gain......① 1.1 Decibel version of free-space propagation loss equation Path loss (dB) =20Lgf+20Lgd+32.45 ......② or Path loss (dB) =20Lgf+20LgD-27.55 ......③ f ( MHz), d (km), D(m) , d=1000D 1.1.1 Operation Frequency At PCS (1850-1910MHz) f =1850MHz At Cellular (824-849MHz) f =824 MHz 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1.1.2 Minimum Separation Distances for MSCL base on FCC new rule D (m) Minimum Separation Distances for MSCL Calculation or Measurements D(m) Indoor server antenna types Minimum separation distances D (m) Ceiling Mounted (i.e., Dome-type) Antennas 2.0 Wall Mounted (i.e., Panel or other type) Antennas 1.0 or 2.0* Table Top Antennas 1.0 * Note: Wall Mounted (i.e., Panel or other type) Antennas: Alternatively, if a manufacturer clearly specifies a minimum separation distance to consumer devices in the installation manual or other user documentation provided with the booster, a reasonable minimum separation distance could be up to 6 feet (or 2 meters) horizontally removed from the antenna. In this case, the user would be required to ensure this minimum separation distance for all CMRS devices authorized for use with this booster. 1.2 Mobile Antenna Gain Mobile Antenna Gain=0dBi 1.3 Indoor Cable Loss And Indoor Antenna Gain Indoor Cable Loss and Indoor Antenna Gain are listed in the separate submitted file of EZboost Antenna Kitting . 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 2 MSCL Calculations Booster EZboost Indoor Antenna Indoor Antenna Indoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM302W 5 3 Indoor Cable Indoor Cable Indoor Cable Loss At 1900MHz(dB) At 800MHz(dB) CM240-50NN 50Feet 8 4.83 Path loss=20Lgf+20LgD-27.55 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) PCS(1850-1915) 1850 1 27.55 37.8 Cellular(824-849) 824 1 27.55 30.8 MSCL Calculations of booster EZboost MSCL Operation Frequency (MHz) Path loss(dB) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) Polarity Loss (dB) MSCL(dB) PCS(1850-1910) 37.8 4 8 3 43.8 Cellular(824-849) 30.8 3 4.83 3 35.6

p14a0024_FCC_Part 1.1310_Rev 1.0 Page 1 of 5 Test Report Prepared for: Cellphone Mate Inc Model: EZBOOST Description: Dual Band Signal Booster FCC ID: RSNEZBOOST To FCC Part 1.1310 Date of Issue: December 3, 2014 On the behalf of the applicant: Cellphone-Mate Inc. 48346 Milmont Drive Fremont, CA 94538 To the attention of: Hongtao Zhan, CEO Ph: (510) 770-0469 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0024 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p14a0024_FCC_Part 1.1310_Rev 1.0 Page 2 of 5 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 November 26, 2014 Mike Graffeo Original Document p14a0024_FCC_Part 1.1310_Rev 1.0 Page 3 of 5 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p14a0024_FCC_Part 1.1310_Rev 1.0 Page 4 of 5 836.5 MHz center band for Controlled use: MPE Evaluation This is a portable device used in Uncontrolled Exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 836.5 Power, Radiated, mW (P) 79.799 Antenna Gain Isotropic 5dBi Antenna Gain Numeric (G) 3.16 Antenna Type integral Distance (R) 20 cm 푆= 푃∗퐺 4휋푟 2 Power Density (S) mw/cm 2 Power mW (P) Numeric Gain (G) Distance (r) cm 0.0502 79.799 3.16 20 Power Density (S) =0.0502 Limit =(from above table) = 0.5577 p14a0024_FCC_Part 1.1310_Rev 1.0 Page 5 of 5 1880 MHz center band for Controlled use: MPE Evaluation This is a portable device used in Uncontrolled Exposure environment. Limits Uncontrolled Exposure 47 CFR 1.1310 Table 1, (B) 0.3-1.234 MHz: Limit [mW/cm²] = 100 1.34-30 MHz: Limit [mW/cm²] = (180/f²) 30-300 MHz: Limit [mW/cm²] = 0.2 300-1500 MHz: Limit [mW/cm²] = f/1500 1500-100,000 MHz Limit [mW/cm²] = 1.0 Test Data Test Frequency, MHz 1880 Power, Radiated, mW (P) 103.753 Antenna Gain Isotropic 8dBi Antenna Gain Numeric (G) 6.31 Antenna Type integral Distance (R) 20 cm 푆= 푃∗퐺 4휋푟 2 Power Density (S) mw/cm 2 Power mW (P) Numeric Gain (G) Distance (r) cm 0.1303 103.753 6.31 20 Power Density (S) 0.1303 Limit =(from above table) = 1.0 END OF TEST REPORT

p14a0024_FCC_Part 20_Rev 2.0 Page 1 of 73 Test Report Prepared for: Cellphone Mate Inc Model: EZBOOST Description: Dual Band Signal Booster FCC ID: RSNEZBOOST To FCC Part 20 Date of Issue: November 21, 2014 On the behalf of the applicant: Cellphone-Mate Inc. 48346 Milmont Drive Fremont, CA 94538 To the attention of: Hongtao Zhan, CEO Ph: (510) 770-0469 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p14a0024 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p14a0024_FCC_Part 20_Rev 2.0 Page 2 of 73 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 October 23, 2014 Mike Graffeo Original Document 2.0 November 20, 2014 Mike Graffeo Corrected typo on page 16 p14a0024_FCC_Part 20_Rev 2.0 Page 3 of 73 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 10 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 29 Noise Limits 38 Uplink Inactivity 44 Variable Gain 46 Occupied Bandwidth 49 Oscillation Detection 62 Radiated Spurious 70 Test Equipment Utilized 73 p14a0024_FCC_Part 20_Rev 2.0 Page 4 of 73 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to the joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p14a0024_FCC_Part 20_Rev 2.0 Page 5 of 73 Test and Measurement Data Sub-part 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specified testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 28.7 37.9 – 51.3 963.9 – 971.3 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: EZBOOST Description: Dual Band Signal Booster Accessories: Power adaptor supplied from customer, model GFP451DA-0945-1 Additional Information: The EUT is a fixed install, bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 824 - 849 1850 - 1910 Downlink 869 - 894 1930 - 1990 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p14a0024_FCC_Part 20_Rev 2.0 Page 6 of 73 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity Pass 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(H) 20.21(e)(8)(i)(C)(2)(i) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p14a0024_FCC_Part 20_Rev 2.0 Page 7 of 73 Authorized Frequency Band Engineer: Mike Graffeo Test Date: 10/21/2014 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The RF input level was increased to a point just prior to the AGC being in control of the power, then reduced 3 dB. The Signal generator was set to sweep across 2X the operational band of the EUT while the spectrum analyzer was set to MAX HOLD. Two markers were placed at the edges of the operational band and a third marker was placed at the highest point within the band no closer than 2.5 MHz from the band edge. Test Setup Signal Generator EUT Attenuator Spectrum Analyzer p14a0024_FCC_Part 20_Rev 2.0 Page 8 of 73 Uplink Test Results 824 - 849 MHz Band 1850 - 1910 MHz Band p14a0024_FCC_Part 2…
