RSNFUSION-5Five Band In Building Signal Booster

Cellphone-Mate Inc. dba SureCall

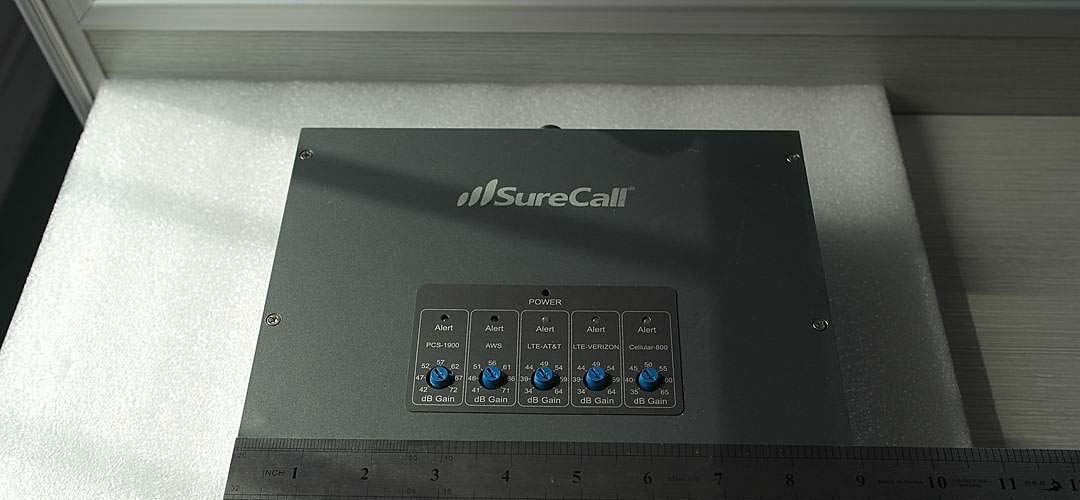

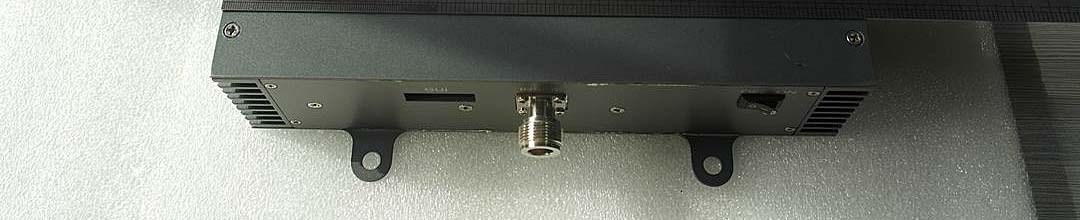

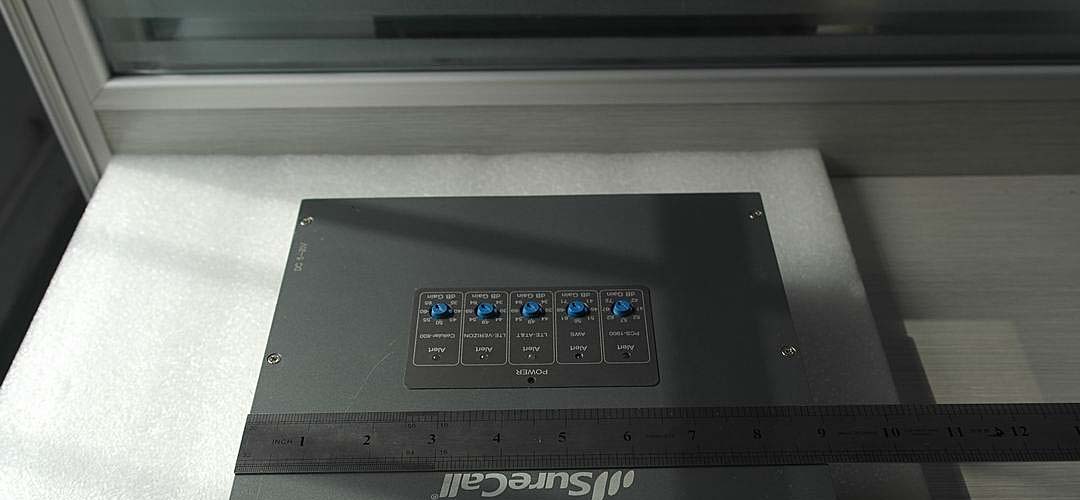

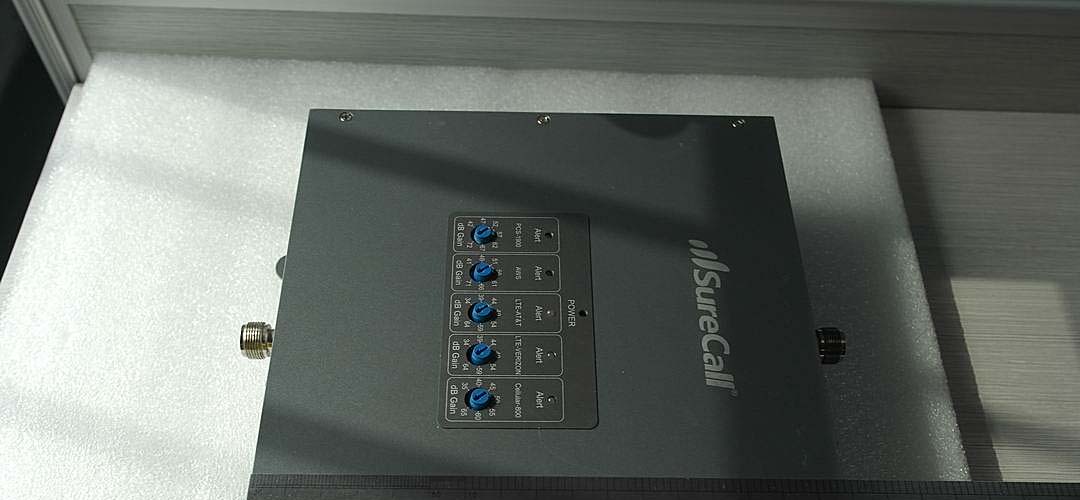

Click to zoom

Application Details

Equipment Class: B2W - Part 20 Wideband Consumer Booster (CMRS)
Date of Grant: Apr 06, 2014
Application Purpose: Original Equipment
Date of Application: Mar 10, 2014
Equipment Note: Five Band In Building Signal Booster
Frequency Range: 1930.00000000 - 1995.00000000
Company: Cellphone-Mate Inc. dba SureCall
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Five-Band Wireless Adjustable Signal Booster / Kit Fusion-5™ Booster, Fusion-5 Omni Kit, Fusion-5 Panel Kit (F USION-5) User Guide INTRODUCTION 2 THEORY OF OPERATION 2 SURECALL FUSION-5 PACKAGES 3 FUSION-5 BOOSTER HARDWARE 4 INSTALLATION 5 SITE SELECTION 5 INSTALLATION INSTRUCTIONS 6 LEDS 10 AUTOMATIC SHUTDOWN 11 TROUBLESHOOTING 12 FREQUENTLY ASKED QUESTIONS 14 OBTAINING TECHNICAL SUPPORT 14 WARRANTY 15 SPECIFICATIONS 17 SAFETY INFORMATION 18 INTRODUCTION SureCall Fusion-5 Cellphone-Mate, Inc. Page 2 All rights reserved. Introduction Congratulations on purchasing the SureCall Fusion-5, the finest cellular signal booster available! SureCall adjustable cellular signal boosters and kits from Cellphone-Mate remove frustrations over dropped calls, limited range, and slow data rates by amplifying incoming and outgoing cellular signals in buildings, offices, and homes. The Fusion-5 is designed with leading-edge technologies to detect and amplify weak incoming signals your cellular device would otherwise miss and to broadcast a significantly stronger signal back to the cell tower. This guide contains all the information you need to get your SureCall Fusion-5 booster system up and running. Theory of Operation The SureCall Fusion-5 is a high-quality bidirectional signal booster that boosts cellular signals for areas prone to weak or shadowed cellular coverage. The Fusion-5 works with two antennas : x An i nside antenna that communicates with your cell phone. x An outside antenna that communicates with the cell tower. Signals sent from a cell tower are received by the outside antenna, amplified by the booster and then sent to your phone via t he inside antenna. When your phone transmits, the signal is sent to the inside antenna, and t hen sent to the cell tower via t he outside antenna. Some cell signal is required for the Fusion-5 to enhance cellular signal coverage. The weakest cell signal for the Fusion-5 to work is low -100dBm to high -90dBm. dBm is an abbreviation for the power ratio in decibels of the radio power per one milliwatt. To measure your existing cell signal on an Apple iPhone, dial *3001#12345#*and press Call. In the top-left corner, a number appears instead of bars. For Android devices, you can download several apps to measure exact signal st rength. Look up check real signal strength to find a cell signal measurement app. INTRODUCTION SureCall Fusion-5 Cellphone-Mate, Inc. Page 3 All rights reserved. SureCall Fusion-5 Packages Fusion-5 - Antenna Kitting Information Component Product Number (Description) Gain/Loss LTE-A LTE-V 800 MHz 1900 MHz 1700 MHz\ 2100 MHz Outdoor Ant enna* CM28 8W 3 dBi 3 dBi 3 dBi 4 dBi 4 dBi \4 dBi CM23 0W 10 dBi 10 dBi 10 dBi 10 dBi 10 dBi\10 dBi Outdoor Cab le* CM240- 40FN (40 feet) 3. 52 dB 3. 52 dB 3. 98 dB 6. 52 dB 6. 12 dB\6.92 dB CM400- 75NN (75 feet) 4. 22 dB 4. 22 dB 4. 41 dB 6. 17 dB 5.8 dB\6.54 dB Indoor Cable* CM240- 20FN (20 feet) 2. 06 dB 2. 06 dB 2. 29 dB 3. 56 dB 3. 36 dB\ 3.76 dB CM400- 30NN (30 feet) 2. 05 dB 2. 05 dB 2. 12 dB 2. 83 dB 2. 68 dB\2.98 dB Indoor Antenna* CM24 8W 7 dBi 7 dBi 7 dBi 10 dBi 10 dBi\10 dBi CM222W 3 dBi 3 dBi 3 dBi 6 dBi 6 dBi\6 dBi * All equivalent antennas and cables are suitable for use with the Fusi on-5 booster. Note: For the signal booster to work, the following items are required: x Outside antenna x Cable for connecting the outside antenna to the booster x Signal booster x Inside antenna x Cable for connecting the inside antenna to the booster x Power supply Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by Cellphone-Mate could void the user’s authority to operate the equipment. INTRODUCTION SureCall Fusion-5 Cellphone-Mate, Inc. Page 4 All rights reserved. Fusion-5 Booster Hardware The following figure shows the key hardware components on the SureCall Fusion-5 cellular signal booster. Refer to this figure as you install your SureCall Fusion-5 components. Five Warning LEDs Outside Antenna Connector (not shown) Inside Antenna Connector Five Gain Dials (left to right): •PCS -1900 •AWS •LTE -AT&T •LTE -Verizon •Cellular-800 Power LED ON/OFF Switch INSTALLATION SureCall Fusion-5 Cellphone-Mate, Inc. Page 5 All rights reserved. Installation Unpack all package contents and check for damage. For missing or damaged items, contact your reseller. Keep the carton and packing material to store the product or if you need to return it. Site Selection For optimum performance, select a location for your booster that : x Provides th e best si gnal strength possible. To measure your existing cell signal on an Apple iPhone, dial *3001#12345#*and press Call. In the top- left corner, a number appears instead of bars. For Android devices, you can download several apps to measure exact signal strength. Look up “check real signal strength“ to find a cell signal measurement app. x Avoids areas where wireless signals can b e blocked or reflected by buildings, walls, trees, hil ls , and other terrain features. This can result i n low signal strength. x Is not close to energy-efficient windows, which can affect signal penetration into a home or off ice. Note: The cell phone tower s ite in relation to the location where you install your booster also d etermines signal strength. Although cell phone providers try to pla ce towers for maximum coverage, local ordinances and terrain features can restrict tower locations, which can limit signal strength at your location. INSTALLATION SureCall Fusion-5 Cellphone-Mate, Inc. Page 6 All rights reserved. Installation Instructions The Fusion-5 signal booster is suited for installation in a building or home. Step 1. Connect the Outside Antenna 1. When mounting the outside antenna: x Find the wall or roof with the strongest signal, using a signal meter or any other cellular-frequency detector. x Mount an omnidirectional antenna mounted vertically or a dire…

Text truncated - open the document above for the full version.

Users Manual

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information Fusion-5 Component Prod No. Description Gain/Loss Notes LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz Outdoor Antenna* CM288W 3dBi 3dBi 3dBi 4dBi 4dBi\4dBi CM230W 10dBi 10dBi 10dBi 10dBi 10dBi\10dBi Outdoor Cable* CM240-40FN 40Feet 3.52dB 3.52dB 3.98dB 6.52dB 6.12dB\6.92dB CM400-75NN 75Feet 4.22dB 4.22dB 4.41dB 6.17dB 5.8dB\6.54dB Indoor Cable* CM240-20FN 20Feet 2.06dB 2.06dB 2.29dB 3.56dB 3.36dB\ 3.76dB CM400-30NN 30Feet 2.05dB 2.05dB 2.12dB 2.83dB 2.68dB\2.98dB Indoor Antenna* CM248W 7dBi 7dBi 7dBi 10dBi 10dBi\10dBi CM222W 3dBi 3dBi 3dBi 6dBi 6dBi\6dBi *All equivalent antennas and cables are suitable for use with the Force-5 booster. 2

Cover Letter(s)

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Authorization 24 th January, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate, the undersigned, hereby authorize CKC Certification Services, LLC to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by CKC Certification Services, LLC on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com

Cover Letter(s)

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 20th January, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNFUSION-5 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

RF Exposure Info

1 FCC§1.1307（b）(1)&§2.1091-RF EXPOSURE 1.1 Applicable Standard According to§1.1310 and §2.1091(Mobile Devices)RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Power Density (mW/cm²) Limits for General Population/Uncontrolled Exposure 0.3-1.34 *(100) 1.34-30 *(180/f²) 30-300 0.2 300–1,500 f/1500 1,500–100,000 1 Note: f= frequency in MHz *=Plane-wave equivalent power density 1.2 MPE Prediction 1.2.1 Calculation of MPE at 20cm distance, Equation from OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G= maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is in numeric form) R=distance to the center of radiation of the antenna (20cm in the following calculation) 1.2.2 Calculation formula of G（numeric ) G (numeric)=10 {Maximum Antenna Gain dBi () -Cable LossdB () } 1 10 Where: G（numeric）= Maximumpower gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is converted from decibel into numeric form with above equation) 1.3 Test Result Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) At 1700MHz(dBi) At 700MHz(dBi) CM288W 4 3 4 3 CM230W 10 10 10 10 MAX GAIN 10 10 10 10 Outdoor Cable Outdoor Cable Outdoor Cable Loss At 1900MHz(dB) At 800MHz(dB) At 1700MHz(dB) At 700MHz(dBi) CM240-40FN 40Feet 6.52 3.98 6.12 3.52 CM400-75NN 65Feet 6.17 4.41 5.8 4.22 MIN LOSS 6.17 3.98 5.8 3.52 Indoor Antenna Indoor Antenna Indoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) At 2100MHz(dBi) At 700MHz(dBi) CM222W 6 3 6 3 CM248W 10 7 10 7 MAX GAIN 10 7 10 7 Indoor Cable Indoor Cable Indoor Cable Loss At 1900MHz(dB) At 800MHz(dB) At 2100MHz(dB) At 700MHz(dBi) CM240-20FN 20Feet 3.56 2.29 3.76 2.06 CM400-30NN 2.83 2.12 2.98 2.05 MIN LOSS 2.83 2.12 2.98 2.05 LTE Band UL 698-716MHz: Maximum peak output power at antenna input terminal(dBm): 19.5 Maximum peak output power at antenna input terminal(mW): 89.13 Prediction distance(cm): 20 Prediction frequency(MHz): 705.86 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 3.52 G( numeric）: 4.45 Power density at predication frequency and distance(mW/cm²): 0.0789 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4706 LTE Band UL776-787MHz: Maximum peak output power at antenna input terminal(dBm): 18.6 Maximum peak output power at antenna input terminal(mW): 72.44 Prediction distance(cm): 20 Prediction frequency(MHz): 783.74 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 3.52 G( numeric）: 4.45 Power density at predication frequency and distance(mW/cm²): 0.0641 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5225 Cellular Band UL: Maximum peak output power at antenna input terminal(dBm): 18.6 Maximum peak output power at antenna input terminal(mW): 72.44 Prediction distance(cm): 20 Prediction frequency(MHz): 839 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 3.98 G( numeric）: 4 Power density at predication frequency and distance(mW/cm²): 0.0577 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5225 PCS Band UL: Maximum peak output power at antenna input terminal(dBm): 19.1 Maximum peak output power at antenna input terminal(mW): 81.28 Prediction distance(cm): 20 Prediction frequency(MHz): 1876.0 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 6.17 G( numeric）: 2.42 Power density at predication frequency and distance(mW/cm²): 0.0361 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1 AWS Band UL: Maximum peak output power at antenna input terminal(dBm): 18.6 Maximum peak output power at antenna input terminal(mW): Prediction distance(cm): 20 Prediction frequency(MHz): 1745.1 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 5.8 G( numeric）: 2.63 Power density at predication frequency and distance(mW/cm²): 0.0379 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1 LTE Band DL 728-757 MHz: Maximum peak output power at antenna input terminal(dBm): -0.2 Maximum peak output power at antenna input terminal(mW): 0.95 Prediction distance(cm): 20 Prediction frequency(MHz): 742.83 Maximum Antenna Gain (dBi): 7 Cable Loss(dB): 2.05 G( numeric）: 3.13 Power density at predication frequency and distance(mW/cm²): 0.0006 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4952 Cellular Band DL: Maximum peak output power at antenna input terminal(dBm): 2.8 Maximum peak output power at antenna input terminal(mW): 1.91 Prediction distance(cm): 20 Prediction frequency(MHz): 876.08 Maximum Antenna Gain (dBi): 7 Cable Loss(dB): 2.12 G( numeric）: 3.08 Power density at predication frequency and distance(mW/cm²): 0.0012 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5841 PCS Band DL: Maximum peak output power at antenna input terminal(dBm): 4.7 Maximum peak output power at antenna input terminal(mW): 2.95 Prediction distance(cm): 20 Prediction frequency(MHz): 1962.2 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 2.83 G( numeric）: 5.21 Power density at predication frequency and distance(mW/cm²): 0.0031 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1 AWS Band DL: Maximum peak output power at antenna input terminal(dBm): 2.7 Maximum peak output power at antenna input terminal(mW): 1.86 Prediction distance(cm): 20 Prediction frequency(MHz): 2127.85 Maximum Antenna Gain (dBi): 10 Cable Loss(dB): 2.98 G( numeric）: 5.04 Power density at predication frequency and distance(mW/cm²): 0.0019 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1

Test Report

This report contains a total of 45 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Cellphone-Mate, Inc. ADDENDUM TO TEST REPORT 95308-8 Fixed Wideband Consumer Signal Booster Model: Fusion-5 Tested To The Following Standards: FCC Part 27C Report No.: 95308-8A Date of issue: February 11, 2014 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 45 Report No.: 95308-8A TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 27C .................................................................................................................................................................. 7 2.1046 RF Power Output ........................................................................................................................................... 7 2.1047 Modulation Characteristics ............................................................................................................................ 7 2.1049 Occupied Bandwidth...................................................................................................................................... 8 2.1051 / 27(c)(e)(f)(g) Spurious Emissions at Antenna Terminals ........................................................................... 28 2.1053 / 27(c)(f)(g) Field Strength of Spurious Radiation ........................................................................................ 37 2.1055 Frequency Stability ...................................................................................................................................... 43 Supplemental Information .......................................................................................................................................... 44 Measurement Uncertainty ...................................................................................................................................... 44 Emissions Test Details .............................................................................................................................................. 44 Page 3 of 45 Report No.: 95308-8A ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Cellphone-Mate, Inc. 48346 Milmont Drive Fremont, CA 94538 Dianne Dudley CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Hongtao Zhan Project Number: 95308 Customer Reference Number: CKC20140113 DATE OF EQUIPMENT RECEIPT: January 14, 2014 DATE(S) OF TESTING: January 14-25, 2014 Revision History Original: Testing of the Fixed Wideband Consumer Signal Booster, Force-5 to FCC Part 27C. Addendum A: To add 27.53(e) test data to report. Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 45 Report No.: 95308-8A Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Software Versions CKC Laboratories Proprietary Software…

Text truncated - open the document above for the full version.

Test Report

This report contains a total of 26 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Cellphone-Mate, Inc. TEST REPORT FOR Fixed Wideband Consumer Signal Booster Model: Fusion-5 Tested To The Following Standards: FCC Part Sections 24E Report No.: 95308-9 Date of issue: January 28, 2014 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 26 Report No.: 95308-9 TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 24E .................................................................................................................................................. 7 2.1046 RF Power Output ........................................................................................................................................... 7 2.1047 Modulation Characteristics ............................................................................................................................ 7 2.1049 Occupied Bandwidth...................................................................................................................................... 8 2.1051 / 24.238(a) Spurious Emissions at Antenna Terminals ................................................................................ 16 2.1053 / 24.238(a) Field Strength of Spurious Radiation ........................................................................................ 20 2.1055 Frequency Stability ...................................................................................................................................... 24 Supplemental Information .......................................................................................................................... 25 Measurement Uncertainty ...................................................................................................................................... 25 Emissions Test Details .............................................................................................................................................. 25 Page 3 of 26 Report No.: 95308-9 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Cellphone-Mate, Inc. 48346 Milmont Drive Fremont, CA 94538 Morgan Tramontin CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 REPRESENTATIVE: Hongtao Zhan Project Number: 95308 Customer Reference Number: CKC20140113 DATE OF EQUIPMENT RECEIPT: January 14, 2014 DATE(S) OF TESTING: January 14-25, 2014 Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 26 Report No.: 95308-9 Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accurate, repeatable and affordable test results. TEST LOCATION(S): CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 Software Versions CKC Laboratories Proprietary Software Version EMITest Emissions 5.00.14 Site Registration & Accreditation Information Location CB # TAIWAN CANADA FCC JAPAN Brea D US0060 SL2-IN-E-1146R 3082D-2 100638 A-0147 Page 5 of 26 Report No.: 95308-9 SUMMARY OF RESULTS Standard / Specification: FCC Part 2 / 24E Test Procedure/Method Description Results 2.1046 RF Power Output NA 2.1047 Modulation Characteristics NA 2.1049 Occupied Ban…

Text truncated - open the document above for the full version.

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Dennis Findley(Director of Operations)

[email protected]510-770-0469Fax: 510-996-7250

Technical Contact

Cellphone-Mate, Inc.Hongtao Zhan

[email protected]510-770-0469

43116 Christy Street · Fremont · United States

Test Firm

CKC Laboratories, Inc.Steve Behm

[email protected]2099665240Fax: 2097426133

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
3	24E	1.93 GHz - 2.00 GHz	16.00 mW	GXW	Amp

Confidentiality

Long Term

Grant Notes

Power listed is conducted at antenna terminals. The inside and outside antennas used with this signal booster must be installed to provide a separation distance of at least 20 cm from all persons. Users and installers must be provided with the antenna kitting and installation instructions and operating conditions for satisfying RF exposure compliance. This device is a Wideband Fixed Consumer Signal Booster approved for operating with the coverage/server antenna installed at a fixed location inside a building. For AWS band operations, the installation height of the outside antenna is limited to 10 meters above ground. This Consumer Signal Booster is authorized only for operation by and marketing to members of the general public for their personal use in accordance with the requirements of 47 CFR 20.21(a) and 20.21(g).
