RSNM2MDual Band Cellphone Signal Booster

® User Manual Package Contents: ▪ M2M signal booster ▪ Magnetic mount antenna ▪ RG58 extension cable ▪ AC power supply ▪ Velcro and screw mounting kit ▪ User manual(this document) FCC Information SureCall M2M Signal Booster Upl i nk Fre q. Ra nge (MHz)1850-1910824-849 Downl i nk Fre q. Ra nge1930-1990869-894 Supporte d s ta nda rds I nput/Output i mpe da nce Max ga i n Noi s e figure VSWR AC powe r tra ns forme r Ma x output powe r Ca bl e RF conne ctors Powe r cons umption Di me ns i ons We i ght FCC I D (USA) 0.57 l b (260g) RSNM2M 110VAC,60Hz I N / 5-12V DC OUT 1W EIRP RG58 SMA Fema l e (both e nds ) 4.72”x2.72”x0.98” (120mm x 69mm x 25mm) M2M Signal Booster Specifications CDMA, GSM, EDVO,EDGE, HSPA,LTE 50Ω 15dB 5dB ≤2.0 4. Products sold by Cellphone-Mate, Inc. shall not be considered defective or non-conforming to the Buyers’ order if they satisfactorily fulfill the performance requirements that were published in the product specification literature, or in accordance with samples provided by Cellphone-Mate, Inc. This warranty shall not apply to any products or parts thereof which have been subject to accident, negligence, alteration, abuse, or misuse. Cellphone-Mate, Inc. makes no warranty whatsoever in respect to accessories or parts not supplied by it. 5. EXCEPT AS EXPRESSLY SET FORTH HEREIN, THERE ARE NO WARRANTIES, CONDITION GUARANTEES OR REPRESENTATIONS AS TO MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHER WARRANTIES, CONDITIONS, GUARANTEES OR REPRESENTATIONS, WHETHER EXPRESSED OR IMPLIED, IN LAW OR IN FACT, ORAL OR IN WRITING. CELLPHONE-MATE, INC.’S AGGREGATE LIABILITY IN DAMAGES OR OTHERWISE SHALL NOT EXCEED THE PAYMENT, IF ANY, RECEIVED BY CELLPHONE-MATE, INC. FOR THE UNIT OF PRODUCT OR SERVICE FURNISHED OR TO BE FURNISHED, AS THE CASE MAY BE, WHICH IS THE SUBJECT OF CLAIM OR DISPUTE. IN NO EVENT SHALL CELLPHONE-MATE, INC. BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES, HOWSOEVER CAUSED. 6. All matters regarding this warranty shall be interpreted in accordance with the laws of the State of California and any controversy that cannot be settled directly shall be settled by arbitration in California in accordance with the rules then prevailing of the American Arbitration Association, and judgment upon the award rendered may be entered in any court having jurisdiction thereof. 7. If one or more provisions provided herein are held to be invalid or unenforceable under applicable law, then such provision shall be ineffective and excluded to the extent of such invalidity or unenforceability without affecting in any way the remaining provisions hereof. CM-M2M 201401 v1.1 888.365.MATE (6283) phone - (510)996-7250 fax www.surecall.com | Fremont, CA 94538 (USA) <10W This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 Inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device. * Not intended for Mobile Applications * The CM-M2M Booster by Cellphone-Mate, Inc. provides significantly increased cellular signal strength and quality. You will see the difference in the number of bars on your display and hear the difference during your conversations. Mounting & Connecting the Booster Connecting the Booster: The signal is received by the antenna from the cell tower, then AMPLIFIED and transmitted directly to your wireless modem (in the ATM, lotto machine or other machine-to-machine application) through the cable to the booster. When the modem transmits, the signal is received by the booster, then AMPLIFIED and transmitted to the cell tower through the outside antenna. Connect the Antenna: Attach the magnetic mount antenna to any metallic surface. The best location will be clear of obstacles. Make sure the area under the magnet is clean. Connect the magnetic antenna cable to the “OUTSIDE” connector of the booster and tighten it. WARNING: The antenna must not be co-located or operating in conjunction with any other antenna or booster. Connect the Modem (inside ATM, lotto machine or other modem applications): Connect one end of the RG58 extension cable to the booster marked “INSIDE”and the other end to the modem and tighten both connections. Connect the Power Cord: To prevent damage to the booster, before plugging in the booster to an AC power outlet, make sure the booster’s power switch is in the OFF position. Then connect the AC power cord to the booster. Then connect the free plug to the outlet. Make sure that all of the connections to the booster are tight and secure, then turn on the booster’s power switch. The LED light will glow indicating that the booster is ready to use. (Optional) Mounting the Booster with Velcro: You can leave the booster on top of a flat surface or use the enclosed Velcro straps to mount it. There are two 6cm x 2.5cm Velcro strips (hook-and-loop pairs) in the box for mounting the booster. Using the Booster The booster is ready for use as soon as all connections are made and the unit powers up without the red light coming on. You may now place and receive cellular phone calls with powerful signal amplification. Note: The booster case may become warm during operation. This is normal. Press any key on your cell phone to refresh communication with the base station. Troubleshooting If the booster interferes with your radio or other electronic receivers, move the booster further away from those devices. For a list of Frequently Asked Questions and a complete, up-to-date…

Text truncated - open the document above for the full version.

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Authorization 12 th December, 2013 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Compliance Testing, LLC on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 20th January, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNM2M In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

Tune up procedure: There is no need for tune up for this product when in production.

Page 1 of 1 FCC ID: RSNM2M IC ID: ---- CT Project: TCB-p1370003 From: John Erhard Date: 1/10/14 1. The modulation types in the user’s manual and test reports do not match. Please review these documents and correct the one in error. Cellphone-Mate – Please refer to User Manual Rev 1 exhibit. 2. The block diagram lists the quiescent current but should list the maximum amplified current. Please correct as necessary. Cellphone-Mate – Block Diagram has been updated 3. The label contains the FCC logo and the device must comply with the FCC Declaration of Conformity requirements to contain the logo. Please remove. Cellphone-Mate – Label has been updated Based upon recent communications with the FCC it is highly recommended that the warning label be an exact copy with the same including all font, capitalization, punctuation, and bold characters as the label example from KDB 935210 D02 Signal Boosters Certification v01. It is difficult to tell if this is an exact duplication from the drawing supplied. (Note* this item is still pending a final decision from the FCC) Cellphone-Mate - Label has been updated 4. Please correct the internal and external photo exhibits. The material is correct but the internal and external photos are in the same document for both exhibits. Please separate as this will be required for the final upload. Cellphone-Mate – The Internal & External exhibits are under 2 separate documents 5. The MSCL document is a set of EIRP calculations. While the device must comply with the EIRP limits and is information which must be supplied this is not a set of MSCL calculations which must match the MSCL used for testing the variable gain. Even though this is a direct connect device with a MSCL of 0 dB this must be stated. Cellphone-Mate – MSCL doc has been updated Response by: Cellphone Mate Submitted by: Compliance Testing LLC Date: 1/28/14

Page 1 of 1 FCC ID: RSNM2M PBA#: 753008 CT Project: TCB-p1370003 From: FCC Date: 3/7/2014 Equipment authorization is valid only for representations and test data EXPLICIT in a filing. Therefore user manual and test report have to agree and explicitly spell out limits applicable (mobile and/or fixed) and how it complies for each. 1) Part 20 test report does not address compliance with applicable mobile gain and noise limits. CT – The EUT is only for fixed locations, therefore mobile limits do not apply. Please see user manual. 2) Antenna kitting needs to explicitly spell out allowed options for EACH of fixed and mobile application. Cellphone-Mate – Please refer to updated Antenna Kitting exhibit. Response by: Compliance Testing LLC & Cellphone-Mate Submitted by: Compliance Testing Date: 3/10/14

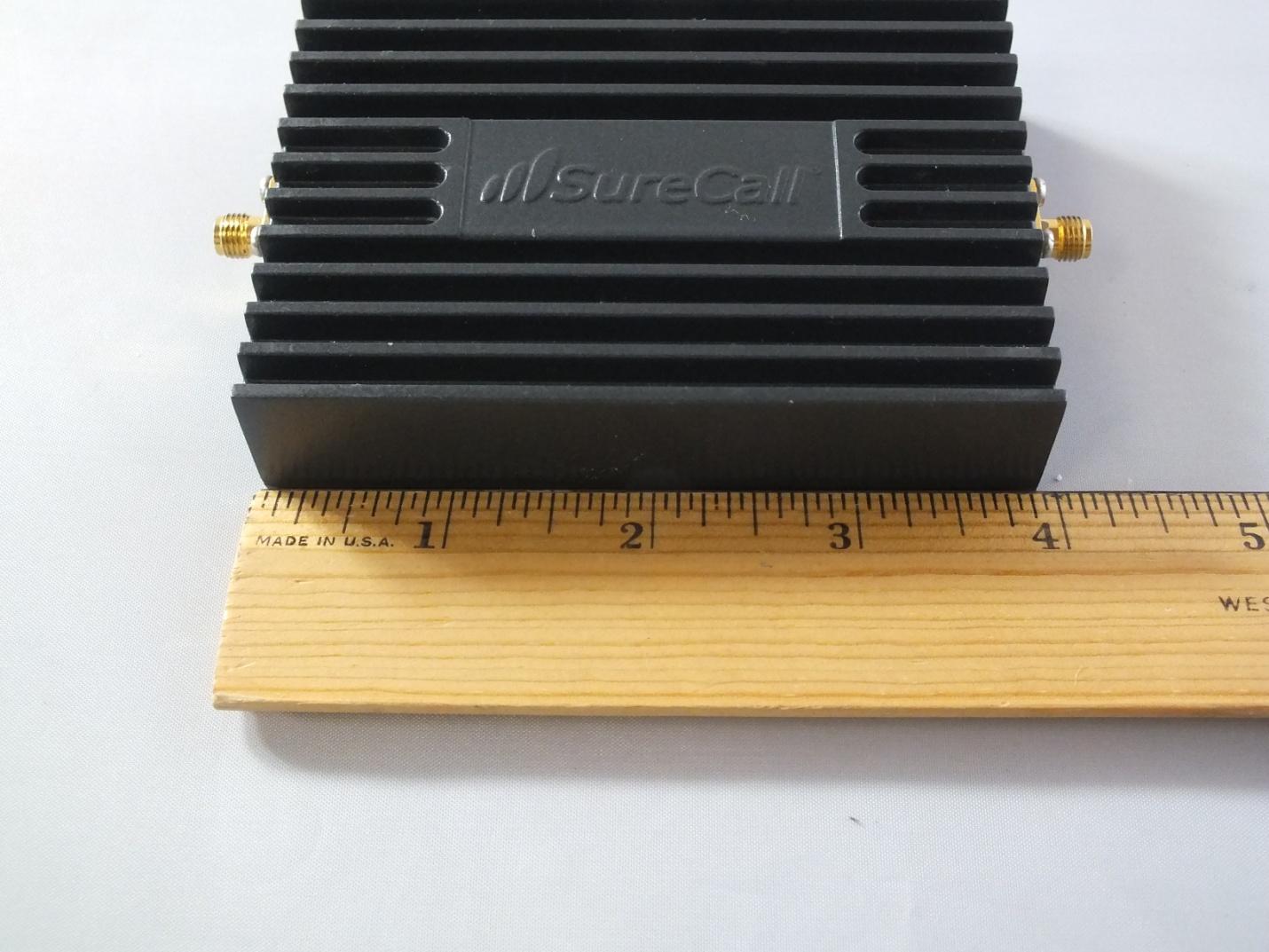

External Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 1 of 2 External Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 2 of 2

Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 1 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 2 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 3 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 4 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 5 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 6 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 7 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 8 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 9 of 10 Internal Photos Cellphone Mate, LLC FCC ID: RSNM2M Model: CM M2M Page 10 of 10

1. FCC§1.1307（b）(1)&§2.1091-RF EXPOSURE 1.1 Applicable Standard According to§1.1310 and §2.1091(Mobile Devices)RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Power Density (mW/cm²) Limits for General Population/Uncontrolled Exposure 0.3-1.34 *(100) 1.34-30 *(180/f²) 30-300 0.2 300–1,500 f/1500 1,500–100,000 1 Note: f= frequency in MHz *=Plane-wave equivalent power density 1.2 MPE Prediction 1.2.1 Calculation of MPE at 20 cm distance, Equation from OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G= maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is in numeric form) R=distance to the center of radiation of the antenna (20cm in the following calculation) 1.2.2 Calculation formula of G（numeric ) G (numeric)=10 {Maximum Antenna Gain dBi () -Cable LossdB () } 1 10 Where: G（numeric）= Maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is converted from decibel into numeric form with above equation) 1.3 Test Result For all antenna kits, the following tables find worst case value for each component : Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain At 1900MHz(dBi) At 800MHz(dBi) CM200-S-S 3 1.5 CM288W 4 3 MAX GAIN 4 3 Outdoor Cable Outdoor Cable Outdoor Cable Loss At 1900MHz(dB) At 800MHz(dB) CM174-10FT 10Feet 8.8 4.3 CM240-40FN 40Feet 6.52 3.98 MIN LOSS 6.52 3.98 Cellular Band UL: Maximum peak output power at antenna input terminal(dBm): 27.70 Maximum peak output power at antenna input terminal(mW): 588.84 Prediction distance(cm): 20 Prediction frequency(MHz): 829.94 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 3.98 G( numeric）: 0.80 Power density at predication frequency and distance(mW/cm²): 0.0935 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5533 PCS Band UL: Maximum peak output power at antenna input terminal(dBm): 28.50 Maximum peak output power at antenna input terminal(mW): 707.95 Prediction distance(cm): 20 Prediction frequency(MHz): 1870.25 Maximum Antenna Gain (dBi): 4 Cable Loss(dB): 6.52 G( numeric）: 0.56 Power density at predication frequency and distance(mW/cm²): 0.0789 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1.0000

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information Kit #1: Component Prod No. Descritpion Gain/Loss Notes 800MHz 1900MHz Outdoor Antenna CM200-S-S 1.5 dBi 3dBi Outdoor Cable CM174-10FT 10Feet 4.3 dB 8.8 dB Kit #2: Component Prod No. Descritpion Gain/Loss Notes 800MHz 1900MHz Outdoor Antenna CM288W 3dBi 4dBi Outdoor Cable CM240-40FN 40Feet 3.98 dB 6.52 dB

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com The SureCall M2M Signal Booster is designed for use in machine-to-machine (M2M) applications. This is a direct connect device with a MSCL of 0 dB.

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information Kit #1: Component Prod No. Descritpion Gain/Loss Notes 800MHz 1900MHz Outdoor Antennas CM200-S-S 1.5 dBi 3dBi Outdoor Cable CM174-10FT 10Feet 4.3 dB 8.8 dB Not intended for Mobile Applications. Kit #2: Component Prod No. Descritpion Gain/Loss Notes 800MHz 1900MHz Outdoor Antennas CM288W 3dBi 4dBi Outdoor Cable CM240-40FN 40Feet 3.98 dB 6.52 dB Not intended for Mobile Applications.

p1370003_FCC_Part 20_Rev 2.0 Page 1 of 69 Test Report Prepared for: Cellphone-Mate Inc. Model: CM M2M Description: Dual-Band Cellphone Signal Booster FCC ID: RSNM2M To FCC Part 20 Date of Issue: December 2, 2013 On the behalf of the applicant: Cellphone-Mate Inc. 48346 Milmont Drive Fremont, CA 94538 To the attention of: Hongtao Zhan, CEO Ph: (510) 770-0469 Email: [email protected] Prepared By Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1370003 Greg Corbin Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing All results contained herein relate only to the sample tested p1370003_FCC_Part 20_Rev 2.0 Page 2 of 69 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 December 2, 2013 Greg Corbin Original Document 2.0 January 28, 2014 Greg Corbin Corrected rule sections in the test summary table for conducted spurious, Noise Limits, and Uplink Inactivity on page 7. p1370003_FCC_Part 20_Rev 2.0 Page 3 of 69 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 7 Authorized Frequency Band 8 Maximum Power and Gain 11 Intermodulation 12 Out-of-Band Emissions 15 Conducted Spurious Emissions 30 Noise Limits 36 Uplink Inactivity 43 Variable Gain 44 Occupied Bandwidth 46 Oscillation Detection 59 Radiated Spurious 67 Test Equipment Utilized 69 p1370003_FCC_Part 20_Rev 2.0 Page 4 of 69 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1370003_FCC_Part 20_Rev 2.0 Page 5 of 69 Test and Measurement Data Subpart 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210 D03 Wideband Consumer Signal Booster Measurement Guidance DR04-41516. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 25.5 – 29.4 38.2 – 63.9 958.1 – 970.7 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: CM M2M Description: Dual-Band Cell-Phone Signal Booster Firmware: N/A Software: Version 1.1 Additional Information: The EUT is a Direct Connect bi-directional amplifier for the boosting of cellular phone signals and data communication devices. The following frequency bands are used by the EUT: Uplink 824 - 849 1850 - 1910 Downlink 869 - 894 1930 - 1990 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSK, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. The EUT is powered by an 120 vac to +12 vdc wall adapter. p1370003_FCC_Part 20_Rev 2.0 Page 6 of 69 Accessories: Qty Description Mfg Model S/N 1 I.T.E. Power Supply Surecall G101U-120100-B1 N/A p1370003_FCC_Part 20_Rev 2.0 Page 7 of 69 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) Noise Limits Pass 20.21(e)(8)(i)(I) Uplink Inactivity N/A The uplink and downlink noise power is less than -70 dBm/MHz and the uplink gain is less than 23 dB, therefor the signal booster meets the requirements for section 20.21H (Transmit Power Off Mode) and the Uplink Inactivity test is not required. 21(e)(8)(i)(C) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p1370003_FCC_Part 20_Rev 2.0 Page 8 of 69 Authorized Frequency Band Name of Test: Authorized Frequency Band Engineer: Greg Corbin Test Equipment Utilized: i00424, SMU 200A - S/N:101369 Test Date: 11/19/2013 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as necessary to ensure accurate readings were obtained. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operati…
