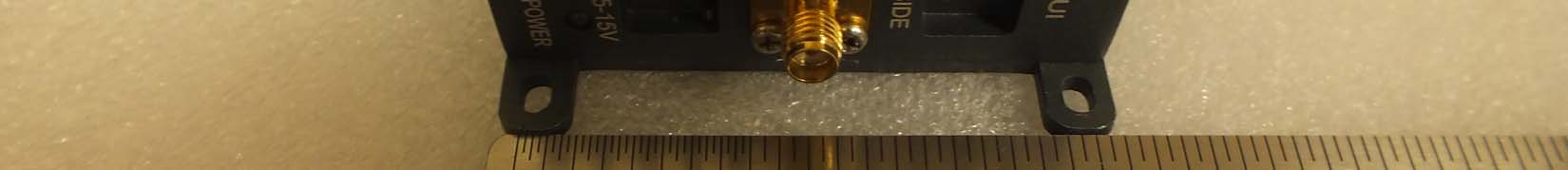

RSNM2M-AConsumer Booster

User Guide ™ Direct Connect Signal Booster Kit for Home Computers and Laptops 4G LTE SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] How It Works Pg. 3 Package Contents Pg. 4 Installing Your Hardware Finding the Strongest Signal Pg. 5 Installing the Outside Anntenna Pg. 6-7 Installing Signal Booster Pg. 7-8 Troubleshooting Pg. 8 Specification/ Kitting Pg. 9 Warranty Pg. 10 Safety Information Pg. 11 Table of Contents 2 The 4G LTE Signal Booster by SureCall provides noticeably enhanced 4G reception for Verizon or AT&T LTE. You will see the difference in the number of bars your computer displays and you’ll notice the dramatic increase in the speed of data uploads and downloads. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 3 How It Works The cellular signal is received by the antenna from the cell tower, it is then amplified and transmitted through the outdoor SC-240 cable to the 4G LTE booster, which sends it through the RG-58 cable which connects to the computer’s data cable (not included) to your computer’s data card, sending the improved signal to your computer through the data card. When the data card transmits, the signal goes through the data cable, it is then sent through the RG-58 cable and amplified by the booster and broadcast back to the cell tower through the antenna. Data Cable RG-58 Booster 240 cable SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 4 Package Contents Package Contents: • Your 4G LTE signal booster package includes: • One SureCall carrier specific 4G LTE signal booster • One SC-288W antenna • One SC-240 40’ foot outdoor cable • One RG-58 6’ foot cable 1. Measure the strength of the existing cellular signal in various locations. • Apple iPhones: Dial *3001#12345#* and press Call. In the top-left corner, a dB number appears instead of bars. • Android devices: download apps such as “Network Signal Info” in the Google Play store to measure signal strength. Search check real signal strength to find other cell signal measurement apps. • Internet: go to www.speedtest.net to test 3G and 4G data rates. Step 1. Find the area with the Strongest Signal The signal booster requires a minimum cellular signal of low –100 dBm. Signal reaings usually appear as a negative number (for example, -85). The more bars you get, the closer the dB gets to zero. Aim for a signal close to -50dB. Signals stronger than -50dB may cause the booster to shut down. (see the graph below). Before installing the outside antenna, find the area with the strongest cellular signal source from your service provider by following the directions below. You can also go to www.antennasearch.com to find the general location of carrier towers. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 5 Finding the Strongest Signal Cell Tower Outside Antenna Signal Strength -50dB-60dB-70dB-80dB-90dB-100dB-110dB ExcellentGoodPoor 2. Select a location away from buildings, walls, trees, hills, and other terrain features that can block or reflect wireless signals (12-inch clear radius is recommended). Connect the Outdoor Antenna: SureCall’s omni antenna comes with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position.The antenna should be placed near the location you identified in the previous step for the best possible reception. The best location will be clear of obstacles. Connect the antenna cable to the “OUTSIDE” connector of the booster and tighten it. If using another antenna other than a SureCall antenna, use the included adapter to connect the cable leading from OUTSIDE connection to antenna. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 6 Connect the Oudoor Antenna Mounting the Antenna: Step 1: Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed. Step 2: Using vertical plate of bracket, mark position of desired placement with pencil or marker. Step 3: Unscrew nut on end of stucco screw and remove it along with lock washer and regular washer. Step 4: Place vertical plate into desired location and tap the screws, head first, along with sleeve into stucco 1⁄2” to 5/8” deep into place. Step 5: In this order, place washer, lock washer and nut on each screw and tighten until secure. When tightening screw, sleeve will expand to secure plate. Screw antenna securely back onto horizontal plate. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 7 Installing Your Hardware Installing your Hardware: 1. Connect one end of the SC-240 cable to the outside antenna. Connect the other end to the 4G LTE booster connector marked OUTSIDE. Hand-tighten the connection. 2. Connect the RG58 cable to the 4G LTE booster connector marked INSIDE. 3. Connect your computer’s data card to the RG58 cable on one end and your computer’s data card on the other end. 4. To prevent damage to the booster, before plugging in the booster to an AC power outlet, make sure the booster’s power switch is in the OFF position. Then connect the AC power cord to the booster using the USB connector end. Then connect the free plug to the outlet. Make sure all of the connections to the booster are tight and secure. The LED light will turn green indicating that the booster is ready to use. Using the Booster The booster is ready for use as soon as all connections are made and the unit powers up without the red light coming on. You may now enjoy enhanced cellular reception through your laptop or computer. Note: The booster case may become warm during operation. This is normal. Press any key on your cell phone to refresh communication with the base station. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | [email protected] 8 Optional 1- Outside Omni 4G LTE Data Cable SC-240 Cable Data Card RG58 Note: Due to the recent change of our…

Text truncated - open the document above for the full version.

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 7 th June, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNM2M-A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

Page 1 of 2 FCC ID: RSNM2M-A IC ID: CT Project: P1440007 From: Shawn McMillen Date: 6/26/14 Please check your MPE exposure limit for 703MHz. I believe you have the limit set to 1.0 whereas the limit is f/1500. Customer-- See attachment for MPE. User's manual is missing the information that it does not cause harmful interference and if it was tested as a class B device. Customer— Please read page 12. The user's manual identifies two different FCC IDs, Does this manual cover more than one FCC ID? Customer— Page 9. See page 9 of the user's manual. The impedance and downlink information are in the wrong columns. Customer— Page 9. The 731 form does not contain any emission designators. Please include a list to be used with this product. MG—Form 731 was updated. Also the same conditions occur with this application as several others. The placement of a signal generator on the table when performing radiated emissions. MG— Several projects were completed during this same time frame before this was discussed. Going forward all future projects (tested June and beyond) will have this resolved. The setting on the spectrum analyzer should be set to 100KHz for emissions < 1000Mhz and to 1MHz for emissions > 1000MHz. MG— Several projects were completed during this same time frame before this was discussed. Going forward all future projects (tested June and beyond) will have this resolved. The limits lines in the EMC report should be set to -19dBm rather than -13dBm. MG— Limit of-13dBm will be used for conducted emissions, but we use -19dBm limit for OOBE testing (300kHz or 3MHz outside of allowable band). The output power listed in the user's manual exceeds that of which the product was tested. EUTs should be tested at or near the highest power level for production units Customer-- Page 9. Page 2 of 2 CT - Response by: Submitted by: Date:

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Authorization 7 th June, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Compliance Testing, LLC on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

1 FCC§1.1307（b）(1)&§2.1091-RF EXPOSURE 1.1 Applicable Standard According to§1.1310 and §2.1091(Mobile Devices)RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Power Density (mW/cm²) Limits for General Population/Uncontrolled Exposure 0.3-1.34 *(100) 1.34-30 *(180/f²) 30-300 0.2 300–1,500 f/1500 1,500–100,000 1 Note: f= frequency in MHz *=Plane-wave equivalent power density 1.2 MPE Prediction 1.2.1 Calculation of MPE at 20 cm distance, Equation from OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G= maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is in numeric form) R=distance to the center of radiation of the antenna (20cm in the following calculation) 1.2.2 Calculation formula of G（numeric ) G (numeric)=10 {Maximum Antenna Gain dBi () -Cable LossdB () } 1 10 Where: G（numeric）= Maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is converted from decibel into numeric form with above equation) 1.3 Test Result M2M-A Outdoor Antenna Outdoor Antenna Outdoor Antenna Gain At 700MHz(dBi) SC-110W 1.1 SC-288W 3 SC-200W 3 MAX GAIN 3 Outdoor Cable Outdoor Cable Outdoor Cable Loss At 700MHz(dB) SC-174-10FT 10Feet 3.8 SC-174-10FT 5Feet 2.1 SC-240-40FN 40Feet 3.52 MIN LOSS 2.1 LTE-A Band UL: Maximum peak output power at antenna input terminal(dBm): 18.54 Maximum peak output power at antenna input terminal(mW): 71.45 Prediction distance(cm): 20 Prediction frequency(MHz): 703.00 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 2.1 G（numeric）: 1.23 Power density at predication frequency and distance(mW/cm²): 0.0175 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4687

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com The SureCall M2M-A Signal Booster is designed for use in machine-to-machine (M2M) applications. This is a direct connect device with a MSCL of 0 dB.

p1440007_FCC_Part 20_Rev 3.0 Page 1 of 45 Test Report Prepared for: Cellphone Mate Inc Model: M2M-A Description: Single Band Direct Connect FCC ID: RSNM2M-A To FCC Part 20 Date of Issue: June 27, 2014 On the behalf of the applicant: Cellphone-Mate Inc. 48346 Milmont Drive Fremont, CA 94538 To the attention of: Hongtao Zhan, CEO Ph: (510) 770-0469 Email: [email protected] Prepared By Compliance Testing, LLC 1724 S. Nevada Way Mesa, AZ 85204 (480) 926-3100 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1440007 Mike Graffeo Project Test Engineer This report may not be reproduced, except in full, without written permission from Compliance Testing. All results contained herein relate only to the sample tested. p1440007_FCC_Part 20_Rev 3.0 Page 2 of 45 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 5/9/14 Mike Graffeo Original Document 2.0 6/6/14 Mike Graffeo Updated Variable Gain test data page 29 3.0 6/27/14 Mike Graffeo Updated test result summary table to show compliance to part 20 rules for noise limit, variable noise limit, and gain limit. p1440007_FCC_Part 20_Rev 3.0 Page 3 of 45 Table of Contents Description Page Standard Test Conditions and Engineering Practices 5 Test Result Summary 6 Authorized Frequency Band 7 Maximum Power and Gain 9 Intermodulation 11 Out-of-Band Emissions 13 Conducted Spurious Emissions 22 Noise Limits 25 Variable Gain 28 Occupied Bandwidth 31 Oscillation Detection 38 Radiated Spurious 43 Test Equipment Utilized 45 p1440007_FCC_Part 20_Rev 3.0 Page 4 of 45 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009). The tests results contained within this test report all fall within our scope of accreditation, unless noted below. Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC Site Reg. #349717 IC Site Reg. #2044A-2 Non-accredited tests contained in this report: N/A p1440007_FCC_Part 20_Rev 3.0 Page 5 of 45 Test and Measurement Data Subpart 2.1033(c)(14): All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Part 2, Subpart J and the following individual Parts: 20.21 in conjunction with latest version of KDB 935210. Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F), unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temp (ºC) Humidity (%) Pressure (mbar) 24.9 – 31.0 33.5 – 63.0 943.0 – 985.5 Measurement results, unless otherwise noted, are worst-case measurements. EUT Description Model: M2M-A Description: Single Band Direct Connect Firmware: N/A Software: N/A Additional Information: The EUT is a mobile bi-directional amplifier (direct connect) for the boosting of cellular phone signals and data communication devices. The following frequency bands and emission types are utilized. Frequency Band (MHz) Uplink 698 - 716 Downlink 728 - 746 Modulation Type GSM, CDMA, EDGE, HSPA. EVDO, LTE Emission Designators CDMA HSPA LTE EVDO EDGE GSM F9W F9W G7D F9W G7W GXW The modulation types and emission designators listed in the tables represent the modulations that the cell phone providers use for each frequency band. GSM, CDMA, and WCDMA represent all the modulation types (phase and amplitude or a combination thereof) utilized within the industry. EDGE, HSPA, LTE etc. are all protocols or multiplexing techniques using the base modulations. EUT Operation during Tests The EUT was in a normal operating condition. p1440007_FCC_Part 20_Rev 3.0 Page 6 of 45 Test Result Summary Specification Test Name Pass, Fail, N/A Comments 20.21(e)(3) Authorized Frequency Band Pass 20.21(e)(8)(i)(B) 20.21(e)(8)(i)(C) 20.21(e)(8)(i)(D) Maximum Power and Gain Pass 20.21(e)(8)(i)(F) Intermodulation Pass 20.21(e)(8)(i)(E) Out-of-Band Emissions Pass 2.1051 22.917(a) 24.238(a) 27.53(c) 27.53(e) 27.53(f) 27.53(g) Conducted Spurious Emissions Pass 20.21(e)(8)(i)(A) 20.21(e)(8)(I) Noise Limits N/A Per the test data on page 32, the noise is below -70dBm/MHz (“Transmit Power OFF Mode”), therefore is by default compliant to the Variable Uplink Noise Power Tests, Variable Downlink Noise Power Tests, and Noise timing tests. These tests are not applicable. 20.21(e)(8)(i)(I) Uplink Inactivity N/A per rule 20.21e... if noise is less than - 70dBm/MHz (“Transmit Power OFF Mode”) then EUT will not shut off, therefore this test will not be performed 20.21(e)(8)(i)(C)(1) 20.21(e)(8)(i)(C)(H) 20.21(e)(8)(i)(C)(2)(iii)(mobile) Variable Gain Pass 2.1049 Occupied Bandwidth Pass 20.21(e)(8)(ii)(A) Oscillation Detection Pass 2.1053 Radiated Spurious Pass 20.21(e)(8)(i)(B) Spectrum Block Filtering N/A This only applies to devices utilizing spectrum block filtering p1440007_FCC_Part 20_Rev 3.0 Page 7 of 45 Authorized Frequency Band Name of Test: Authorized Frequency Band Engineer: Mike Graffeo Test Equipment Utilized: i00379 and i00405 Test Date: 5/8/14 Test Procedure The EUT was connected to a spectrum analyzer through an attenuator with the losses being input into the spectrum analyzer as a combination of reference level offset and correction factor as needed to ensure accurate readings. A signal generator was utilized to produce a CW input signal tuned to the center channel of the operational band. The…

Text truncated - open the document above for the full version.

Test Setup Photos FCC ID: RSNM2M-A RF Conducted RF Radiated (EUT at 3 meters)
