SureCall ® CM-MINI 30dB Direct Connect Booster User Manual Model: CM-MINI FCC ID: RSNMINI ‐ 40UNDER Canada IC: 7784A ‐ M40UNDER CONTENTS OF THE PACKAGE fdgbsddg 1. 30dB signal booster 2. Patch antenna with FME female connector 3. 12V car charger straight cord (12’ or 3.6m) 4. User manual (this document) 5. Velcro and screw mounting kits SPECIFICATIONS fdgbsddg 1. Nominal pass band gain: 30dB 2. Nominal band width: 42 MHz （ Cellular ） , and 81.3 MHz (PCS) the nominal bandwidths of bands are not consistent and it cannot have sharp band edge 3. Rated Mean output power: 2watts 4. Input and output impedances: 50ohms 5. Max EIRP of the transmission system 2watts( 33dBm) The Manufacturer's rated output power of this equipment is for single carrier operation. For situat ions when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device. SAFETY NOTES fdgbsddg The Federal Communications Co mmission (FCC) has tested this product and found it to comply with their RF Exposure Requirements, Pursuant to FCC Part 22 and 24, In order to comply with the FCC RF exposure requirements, the human user’s body should always be separated from the indoor antenna of the Amplifier by at least 8” (20cm). Don't expose this product to extreme low or high temperature (-4° F or -20° C and 150° F or 70° C). There are no consumer serviceable or modifiable parts inside this Amplifier product. Alteration or abuse of the Amplifier or other components will void this product’s warranty, and could be dangerous to the user. CONNECTING THE AMPLIFIER sddg The signal is received by the outside antenna from the cell tower, then AMPLIFIED and transmitted to your phone through the inside antenna. When the phone transmits, the signal is received by the inside antenna, then AMPLIFIED and transmitted to the cell tower through the outside antenna. Connect the Inside Antenna: The patch antenna is intended for indoor use only. Do not mount on a surface within 4” (10 cm) of metal. Screw the patch antenna to the amplifier connector that’s marked “ INDOOR ” and tighten it. Connect the Outside Antenna: The magnetic antenna (purchased separately) is for outdoor use only. Select an outside mounting location. For best performance, keep the antenna on top of the vehicle. The outside antenna should be located in an area with at least a 12” (30cm) radius clear of obstructions, and other radiating elements. Screw in the outside antenna to the “ OUTDOOR” connector of the amplifier and tighten it. NOTE: Keep the separation distance between the inside and outside antennas at least 6’ (2m) apart if possible. WARNING: The outside antenna must not be co-located or operating in conjunction with any other antenna or amplifier. Connect the Power cord: Set the power switch on the amplifier to the OFF position prior to plugging it into the vehicle’s DC power source to prevent damaging the amplifier. Connect the DC power cord to the amplifier then connect the cigarette lighter adapter. Make sure that all of the connections to the amplifier are tight and secure, then turn on the amplifier’s power switch. The LED light will glow, indicating that the amplifier is ready to use. Optional AC power supply can be pur chased separately to use the amplifier as a desktop system. Warning light: If the red light turns on, the indoor and outdoor antennas are too close together. Turn off the amplifier immediately, move the two antennas further apart, and then turn the power on again. Warning : NEVER operate the amplifier when the red light is on. Safety Warning: The input voltage for the amplifier is 5-12V. DO NOT use this amplifier with a higher voltage power supply, which could damage the amplifier and the user may also be injured. USING THE AMPLIFIER Now you are ready to make and receive cellphone calls with powerful signal amplification! Note that It is normal for the amplifier’s case to be warm during operation. Press any cell phone key to refresh its communication with the base station. If your signal is weak, hav ing this amplifier installed and operating properly will give you a large increase in the signal strength and quality. The change in the signal strength can be seen on the visual display of your cell phone, and heard on your receiver or headset. To see the difference, try operating your phone in an area that is known to have weak ce llphone signals. You will be amazed at the dramatic difference the Cellphone-Mate Signal Amplifier provides! (Optional) Mounting the Amplifier: It is acceptable to place the Amplifier on top of a flat surface or use the enclosed mounting screws or Velcro straps to mount the Amplifier. There are two 2.4” or 6cm x 1” or 2.5cm Velcro strips ( hook-and-loop pairs) in the box for mounting the amplifier. Determine the location where your Amplifier will be placed. Clean the intended surface and allow it to dry. Peel the protective paper from the back of the hook sides of the Velcro. Press the adhesive side of the Velcro strips into place on the bottom of the Amplifier, one strip on each end. Wait 5 minutes for the adhesive to set before attaching the loop side of the Velcro to the hook side. The adhesive bond will reach its maximum strength after 24 hours. With both of the Velcro loop and hook pieces attached to the back of the Amplifier, peel the protective paper off of the back of the loop strips. Press the entire Amplifier into its mounting place. Wait 5 minutes for the adhesive to set. Make sure the Amplifier is firmly seated. To remove the Amplifier, rotate it across the Velcro – do not pull the Amplifier or cables. TROUBLESHOOTING GUIDE During operation, if the Amplifier interferes with your radio or other electronic receivers, move the Amplifier further away from those devices. For a …

Text truncated - open the document above for the full version.

FCC Confidential Authorization February 3 rd , 2012 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNMINI-40UNDER In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone- Mate Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description • Part list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Hongtao Zhan CEO Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Cellphone-Mate Inc. 48820 Kato Rd. Suite 300B, Fremont, CA 94538 Tel: 1 888 365 MATE (6283) Fax: 510 996 7250 http://www.cellphone-mate.com

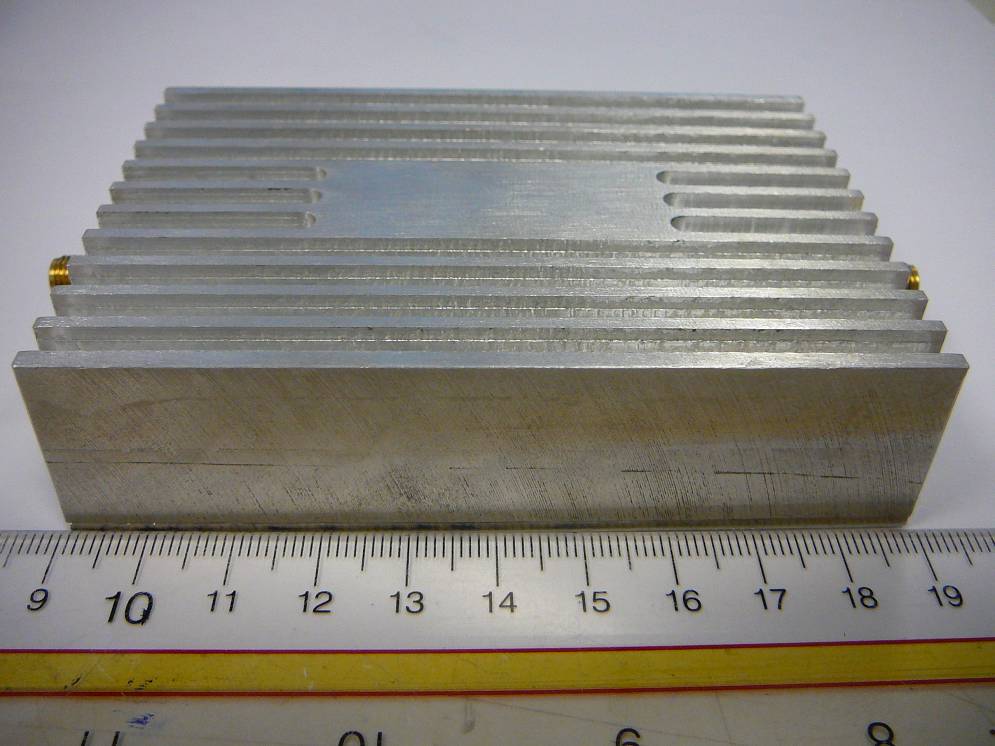

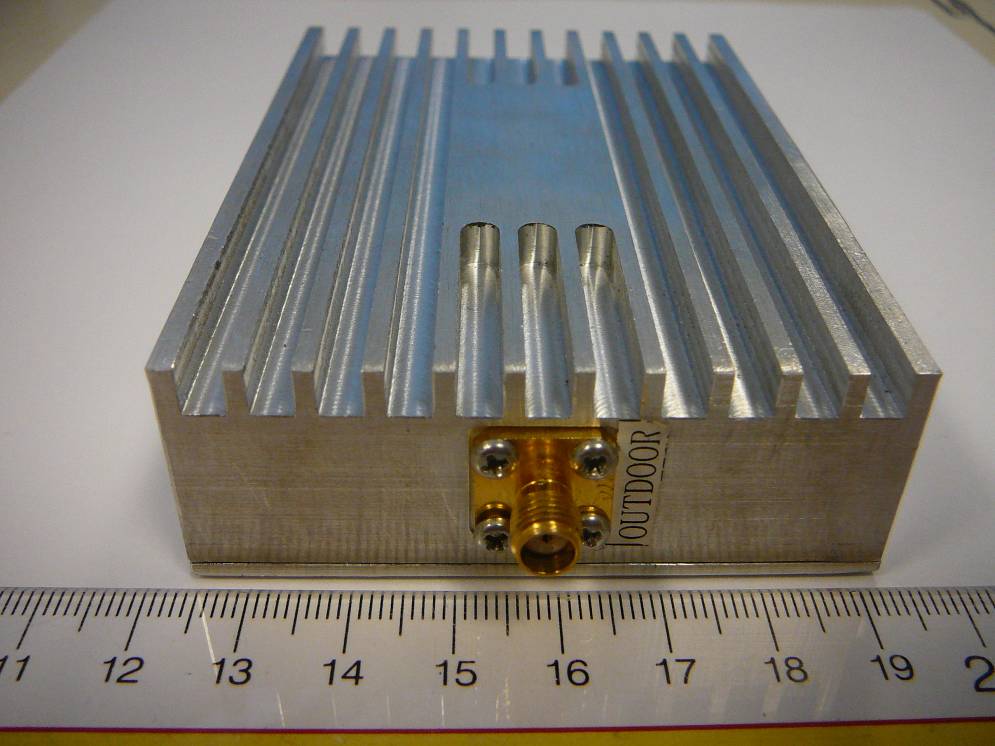

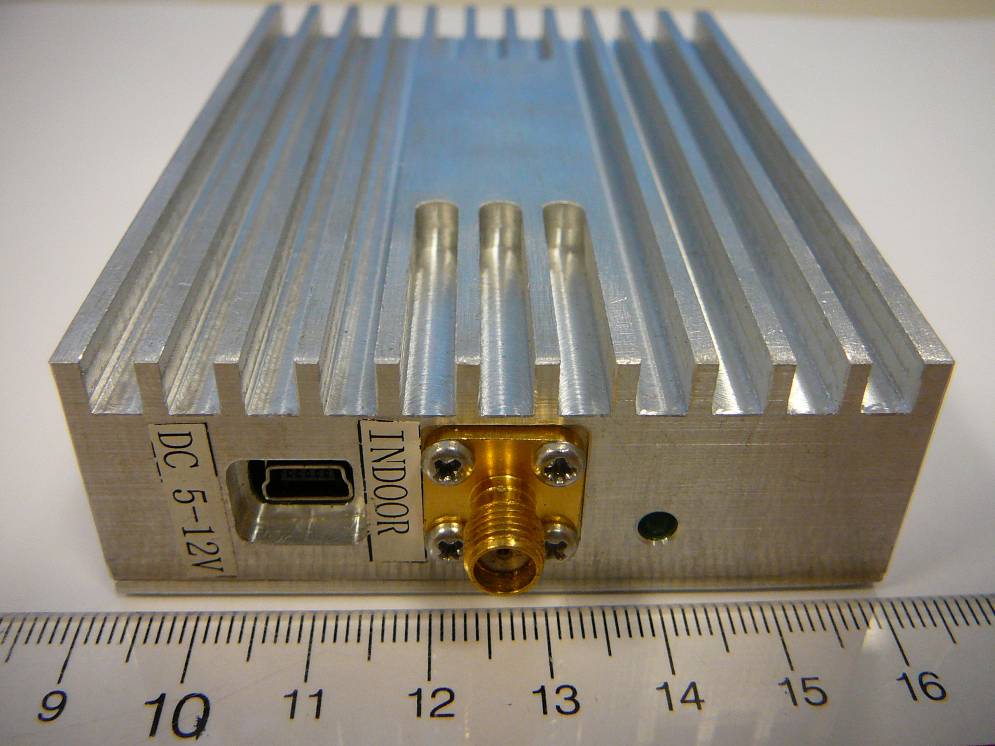

Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 74 of 78 FCC Part 22H/24E Test Report 14 EXHIBIT C - EUT PHOTOGRAPHS 14.1 EUT Top View 14.2 EUT - Bottom View Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 75 of 78 FCC Part 22H/24E Test Report 14.3 EUT – Side View 1 14.4 EUT – Side View 2 Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 76 of 78 FCC Part 22H/24E Test Report 14.5 EUT – Antenna Port View 1 14.6 EUT – Antenna Port View 2

CM-MINI FCC ID Label Location

Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 77 of 78 FCC Part 22H/24E Test Report 14.7 EUT – Cover off View 14.8 EUT – PCB Top View Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 78 of 78 FCC Part 22H/24E Test Report 14.9 EUT – PCB Bottom View 14.10 EUT – Power Cable View --- END OF REPORT ---

Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 69 of 78 FCC Part 22H/24E Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 11.3 Test Result Cellular Band UL: Maximum peak output power at antenna input terminal (dBm): 30.56 Maximum peak output power at antenna input terminal (mW): 1137.63 Prediction distance (cm): 20.00 Prediction frequency (MHz): 824.20 Antenna Gain, typical (dBi): 5.00 Cable Loss (dB) 2.00 Maximum Antenna Gain+ Cable Loss (numeric): 2.00 Power density at predication frequency and distance (mW/cm 2 ): 0.4516 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5495 Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 70 of 78 FCC Part 22H/24E Test Report Cellular Band DL: Maximum peak output power at antenna input terminal (dBm): 9.51 Maximum peak output power at antenna input terminal (mW): 8.93 Prediction distance (cm): 20.00 Prediction frequency (MHz): 869.20 Antenna Gain, typical (dBi): 5.00 Cable Loss (dB) 2.00 Maximum Antenna Gain+ Cable Loss (numeric): 2.00 Power density at predication frequency and distance (mW/cm 2 ): 0.0035 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5795 PCS Band UL: Maximum peak output power at antenna input terminal (dBm): 29.96 Maximum peak output power at antenna input terminal (mW): 990.83 Prediction distance (cm): 20.00 Prediction frequency (MHz): 1850.20 Antenna Gain, typical (dBi): 5.00 Cable Loss (dB) 2.00 Maximum Antenna Gain+ Cable Loss (numeric): 2.00 Power density at predication frequency and distance (mW/cm 2 ): 0.3933 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 PCS Band DL: Maximum peak output power at antenna input terminal (dBm): 11.34 Maximum peak output power at antenna input terminal (mW): 13.61 Prediction distance (cm): 20.00 Prediction frequency (MHz): 1930.20 Antenna Gain, typical (dBi): 5.00 Cable Loss (dB) 2.00 Maximum Antenna Gain+ Cable Loss (numeric): 2.00 Power density at predication frequency and distance (mW/cm 2 ): 0.0054 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 1.0 (Note: The MPE was calculated with the cable loss between EUT and the antenna was 2 dB.)

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H, 24E TEST AND MEASUREMENT REPORT For Cellphone-Mate, Inc 48820 Kato Rd. Suite 300B, Fremont, CA 94538, USA FCC ID: RSNMINI-40UNDER Report Type: Original Report Product Type: Bi-Directional Amplifier Test Engineer: Lionel Lara Report Number: R1202064-2224 Report Date: 2012-03-08 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Cellphone-Mate, Inc. FCC ID: RSNMINI-40UNDER Report Number: R1202064-2224 Page 2 of 78 FCC Part 22H/24E Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 EUT INTERNAL CONFIGURATION...................................................................................................................... 7 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 7 2.6 INTERFACE PORTS AND CABLING...................................................................................................................... 7 3 SUMMARY OF TEST RESULTS........................................................................................................................ 8 4 FCC §2.1046, §22.913 & §24.232 – RF OUTPUT POWER................................................................................9 4.1 APPLICABLE STANDARD.................................................................................................................................... 9 4.2 TEST PROCEDURE.............................................................................................................................................. 9 4.3 TEST ENVIRONMENTAL CONDITIONS................................................................................................................. 9 4.4 TEST EQUIPMENT LIST AND DETAILS................................................................................................................ 9 4.5 TEST RESULTS................................................................................................................................................. 10 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049, §22.917 & §24.238 - OCCUPIED BANDWIDTH...................................................................... 13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 6.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 6.5 TEST RESULTS................................................................................................................................................. 14 7 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS.................................................... 31 7.1 APPLICABLE STANDARD......................…
