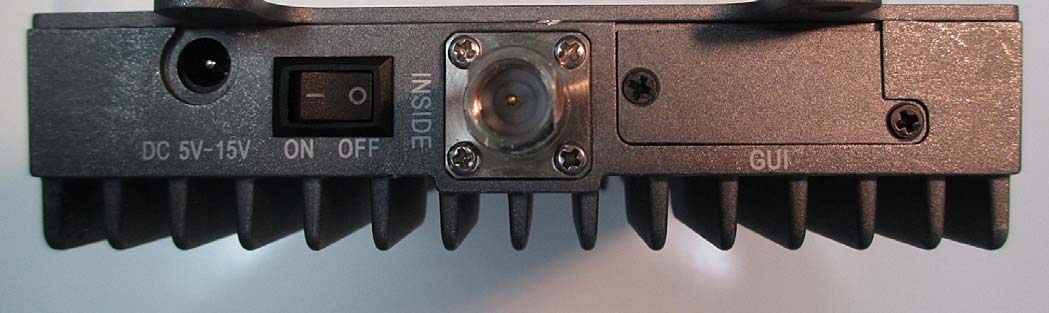

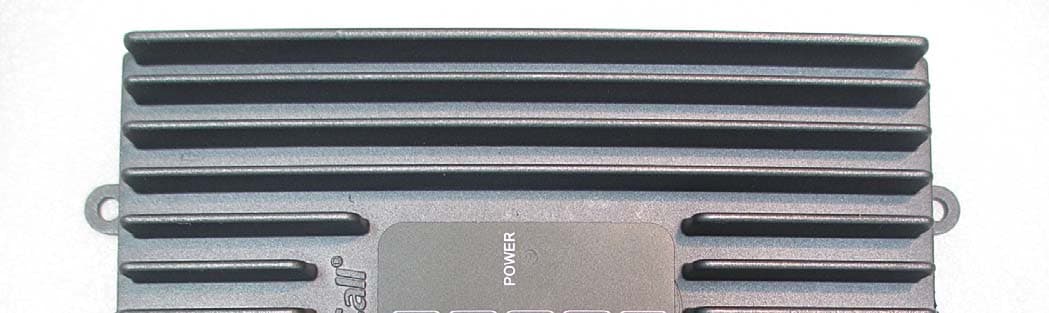

Fusion2Go Adjustable 2G, 3G, 4G Vehicle Signal Booster Kit ™ User Guide SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] How It Works Pg. 3 Package Contents Pg. 4 Installation: Step1: Connect outside antenna Pg.5 Step 2: Connect inside antenna Pg.6 Step 3: Install the signal booster Pg.6 Step 4: Configure Gain Setting Pg. 7 Troubleshooting Pg. 8 Specification Pg. 9 Kitting Information Pg. 9 Warranty Pg. 10-11 Safety Information Pg. 11 Table of Contents 2 Thank you for purchasing SureCall’s Fusion2Go cell phone signal booster kit. Fusion2Go provides enhanced 2G and 3G voice and 4G data reception and is configurable for any size vehicle. If you need any assistance during product installation please contact tech support at 1-888-365-6283 or email us at [email protected]. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 3 The SureCall Fusion2Go is a high-quality bidirectional booster that enhances cellular signals for cars, motor homes, and other vehicles. The Fusion2Go works with two antennas: • An inside antenna that communicates with your cell phone. • An outside antenna that communicates with the cell tower. Signals sent from a cell tower are received by the outside antenna, amplified by the booster and then sent to your cell phone via the inside antenna. When your phone transmits, the signal is sent to the inside antenna, and then sent to the cell tower via the outside antenna. A minimum amount of cellular reception is required for the Fusion2Go to work properly. Cellular signal strength is measured in dBm, an abbreviation of the radio power per milliwatt. A minimum of -100 dBm is required. Signal readings usually appear as a negative number (for example, -85). The stronger the signal, the closer it gets to zero. See graph below. How it works Cell Tower Outside Antenna Signal Strength -50dB-60dB-70dB-80dB-90dB-100dB-110dB ExcellentGoodPoor SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 4 Package Contents 1. Unpack all package contents. For missing or damaged items, contact your reseller. 2. Turn over the signal booster and record the model and serial number for reference: Serial #: Purchase Date: 3. Keep the carton and packing material to store the product in case you need to return it. Your Fusion2Go signal booster package includes the following items: • One SureCall Fusion2Go signal booster • One magnetic-mount outside antenna with attached cable • One inside antenna with attached cable • One DC car charger for vehicle • Velcro ® and screw-mounting kit Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. Fusion2GoOutside Magnetic Mount Antenna Inside Patch Antenna Power Adapter SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 5 Installation Installation Steps: Step 1. Installing your Hardware Connect the Outside Antenna 1. Connect the magnetic outside antenna to the roof of the car in a location that: • Is on top of the vehicle • Has at least a 12-inch radius clear of obstructions and other radiating elements, such as a radio antenna. • Is at least 4-6 feet from the inside antenna. 2. Using the supplied cable, connect the outside antenna to the booster connector marked OUTSIDE. 3. Run the outside antenna cord across the car’s roof and under the front door insulation lining to hide and protect the antenna cable. Wrap up any loose cable 4. Hand tighten the connection Note: The outside antenna must not be collocated or operating with any other antenna or booster. FCC 27.5 (d)(4) Statement: Fixed, mobile, and portable (hand-held) stations operating in the 1710-1755 MHz band as well as mobile and portable stations operat- ing in the 1695-1710 MHz and 1755-1780 MHz bands are limited to 1 watt EIRP. Fixed stations operating in the 1710-1755 MHz band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable stations operating in these bands must employ a means for limiting power to the minimum neces- sary for successful communications. Pursuant to the latest certification requirement you will need to register your booster. Please go to the link below for your cellular service carrier’s registra- tion site. AT&T: https://securec45.securewebsession.com/attsignalbooster.com/ Verizon: http://www.verizonwireless.com/wcms/consumer/register-signal-booster.html Sprint: http://www.sprint.com/legal/fcc_boosters.html T-Mobile: http://support.t-mobile.com/docs/DOC-9827 Click on the “Signal Booster Registration Tool” US Cellular: http://www.uscellular.com/uscellular/support/fcc-booster-registration.jsp?_requestid=38383 Fusion2Go Magnetic Antenna Power Adapter Inside Patch Antenna SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | [email protected] 6 Note: Laboratory tests show that patch antennas can work from as close as 2 ft. from the outside antenna if the patch antenna is facing away from the outside antenna. If the alert lights blink red, showing oscillation, turn the dial of the oscillating band down 3 dBs. Installation Step 2. Connect the Inside Antenna 1. Mount the inside antenna so it is: • Within 2-3 feet of the cell phone • Mounted on a surface that is at least 4” (10cm) away from metal. 2. Using the supplied cable, connect the antenna to the booster connector marked INSIDE 3. Hand tighten the connection Step 3. Install the Signal Booster 1. Mount the booster under the seat of the vehicle, or on the front or middle console of the vehicle. The location you select should: • Be away from excessive heat, direct sunlight, or moisture. • Provide proper ventilation. Refer to the illustration on page 7 for the following steps: 2. Connect the outside antenna cable to the signal booster connector m…

Text truncated - open the document above for the full version.

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information Vehicle Kit Component Prod No. Description Gain/Loss Notes LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz Outdoor Antenna CM200 3dBi 3dBi 3dBi 5dBi 5dBi\5dBi Outdoor Cable CM174-10FT 10Feet 3.8dB 3.8dB 4.3dB 8.8dB 6.98dB\8.96dB Indoor Antenna CM110W 1.1dBi 1.1dBi 1.1dBi 3dBi 3dBi\3dBi Table Top Antenna Indoor Cable CM174-10FT 10Feet 3.8dB 3.8dB 4.3dB 8.8dB 6.98dB\8.96dB Marine Kit Component Prod No. Description Gain/Loss Notes LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz Outdoor Antenna CM288W or Galaxy 5412-P 3dBi 3dBi 3dBi 4dBi 4dBi\4dBi Outdoor Cable CM240-40FN 40Feet 3.52dB 3.52dB 3.98dB 6.52dB 6.12dB\6.92dB Indoor Antenna CM248W 7dBi 7dBi 7dBi 10dBi 10dBi\10dBi Wall Mounted Antenna Indoor Cable CM240-20FN 20Feet 2.06dB 2.06dB 2.29dB 3.56dB 3.36dB\ 3.76dB Desk top/RV Kit 2 Component Prod No. Description Gain/Loss Notes LTE-A LTE-V 800MHz 1900MHz 1700MHz\2100MHz Outdoor Antenna CM288W 3dBi 3dBi 3dBi 4dBi 4dBi\4dBi Outdoor Cable CM240-40FN 40Feet 3.52dB 3.52dB 3.98dB 6.52dB 6.12dB\6.92dB Indoor Antenna CM120W 1.2dBi 1.2dBi 1.2dBi 3dBi 3dBi\3dBi Table Top Antenna

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1 Explanation of MSCL Mobile antenna Booster server antenna Mobile Booster MSCL Indoor Cable Loss Path loss Mobile Antenna Gain Indoor Antenna Gain spatial distance=d Figure 1 MSCL= Path loss + Indoor Cable Loss - Mobile Antenna Gain- Indoor Antenna Gain......① 1.1 Decibel version of free-space propagation loss equation Path loss (dB) =20Lgf+20Lgd+32.45 ......② or Path loss (dB) =20Lgf+20LgD-27.55 ......③ f (MHz), d (km), D(m) , d=1000D 1.1.1 Operation Frequency At PCS (1850-1915MHz) f =1850MHz At Cellular (824-849MHz) f =824 MHz At AWS (1710-1755MHz) f =1710 MHz At LTE(698-716MHz) f =698 MHz At LTE(776-787MHz) f =776 MHz 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 1.1.2 Minimum Separation Distances for MSCL base on FCC new rule D (m) Minimum Separation Distances for MSCL Calculation or Measurements D(m) Indoor server antenna types Minimum separation distances D (m) Ceiling Mounted (i.e., Dome-type) Antennas 2.0 Wall Mounted (i.e., Panel or other type) Antennas 1.0 or 2.0* Table Top Antennas 1.0 * Note: Wall Mounted (i.e., Panel or other type) Antennas: Alternatively, if a manufacturer clearly specifies a minimum separation distance to consumer devices in the installation manual or other user documentation provided with the booster, a reasonable minimum separation distance could be up to 6 feet (or 2 meters) horizontally removed from the antenna. In this case, the user would be required to ensure this minimum separation distance for all CMRS devices authorized for use with this booster. 1.2 Mobile Antenna Gain Mobile Antenna Gain=0dBi 1.3 Indoor Cable Loss And Indoor Antenna Gain Indoor Cable Loss and Indoor Antenna Gain are listed in the separate submitted file of Fusion 5C-2Go Antenna Kitting . 1.4 Polarity Loss Polarity Loss dB = 10Log (E1/E2)2 dB = PL dB PL dB= 10Log (E12/ (E1Sin (45deg)) 2) dB = 20Log (1/Sin (45deg)) dB = 3.01dB Where: E1 = Maximum Possible Magnitude of the Electric Field from the Mobile Device. E2 = Magnitude of the electric field from the Mobile device with a 45deg polarity mismatch = E1Sin (г). г =45deg E1 E2 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com 2 MSCL Calculations Vehicle Kit Fusion 5C-2Go Vehicle Kit Indoor Antenna Indoor Antenna Indoor Antenna Gain At LTE-A and LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) CM110W 1.1 1.1 3 3 3 Indoor Cable Indoor Cable Indoor Cable Loss At LTE-A and LTE-V (698-787MHz)(dB) At 800MHz(dB) At 1900MHz(dB) At 1700MHz(dB) At 2100MHz(dB) CM174- 10FT 10Feet 3.8 4.3 8.8 6.98 8.96 Path loss=20Lgf+20LgD-27.55 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) PCS(1850-1915) 1850 0.4 27.55 29.8 Cellular(824-849) 824 0.4 27.55 22.8 LTE(698-716) 698 0.4 27.55 21.4 LTE(776-787) 776 0.4 27.55 22.3 AWS(1710-1755) 1710 0.4 27.55 29.1 MSCL Calculations of Fusion 5C-2Go MSCL Band (MHz) Path loss （dB） Indoor Antenna Gain （dBi） Indoor Cable Loss（dB） Polarity Loss(dB) MSCL(dB) PCS(1850-1915) 29.8 3 8.8 3 38.6 Cellular(824-849) 22.8 1.1 4.3 3 29.0 LTE(698-716) 21.4 1.1 3.8 3 27.1 LTE(776-787) 22.3 1.1 3.8 3 28.0 AWS(1710-1755) 29.1 3 6.98 3 36.1 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Marine-1 Kit Fusion 5C-2Go Marine-1 Kit Indoor Antenna Indoor Antenna Indoor Antenna Gain At LTE-A and LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) CM248W 7 7 10 10 10 Indoor Cable Indoor Cable Indoor Cable Loss At LTE-A and LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) CM240- 20FN 20Feet 2.06 2.29 3.56 3.36 3.76 Path loss=20Lgf+20LgD-27.55 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) PCS(1850-1915) 1850 0.9 27.55 36.9 Cellular(824-849) 824 0.9 27.55 29.8 LTE(698-716) 698 0.9 27.55 28.4 LTE(776-787) 776 0.9 27.55 29.3 AWS(1710-1755) 1710 0.9 27.55 36.2 MSCL Calculations of Fusion 5C-2Go MSCL Band (MHz) Path loss （dB） Indoor Antenna Gain （dBi） Indoor Cable Loss（dB） Polarity Loss(dB) MSCL(dB) PCS(1850-1915) 36.9 10 3.56 3 33.4 Cellular(824-849) 29.8 7 2.29 3 28.1 LTE(698-716) 28.4 7 2.06 3 26.5 LTE(776-787) 29.3 7 2.06 3 27.4 AWS(1710-1755) 36.2 10 3.36 3 32.5 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Marine-2 Kit Fusion 5C-2Go Marine-2 Kit Indoor Antenna Indoor Antenna Indoor Antenna Gain At LTE-A and LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) CM302W 2.5 3 4 5 5 Indoor Cable Indoor Cable Indoor Cable Loss At LTE-A and LTE-V (698-787MHz)(dB) At 800MHz(dB) At 1900MHz(dB) At 1700MHz(dB) At 2100MHz(dB) CM240- 20FN 20Feet 2.06 2.29 3.56 3.36 3.76 Path loss=20Lgf+20LgD-27.56 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) PCS(1850-1915) 1850 0.9 27.56 36.9 Cellular(824-849) 824 0.9 27.56 29.8 LTE(698-716) 698 0.9 27.56 28.4 LTE(776-787) 776 0.9 27.56 29.3 AWS(1710-1755) 1710 0.9 27.56 36.2 MSCL Calculations of Fusion 5C-2Go MSCL Operation Frequency (MHz) Path loss (dB) Indoor Antenna Gain(dBi) Indoor Cable Loss(dB) Polarity Loss(dB) MSCL(dB) PCS(1850-1915) 33.3 4 3.56 3 39.4 Cellular(824-849) 26.3 3 2.29 3 32.1 LTE(698-716) 24.9 2.5 2.06 3 31.0 LTE(776-787) 25.8 2.5 2.06 3 31.9 AWS(1710-1755) 32.7 5 3.36 3 37.5 48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Desk top RV-1 Kit Fusion 5C-2Go Desk top RV-1 Kit Indoor Antenna Indoor Antenna Indoor Antenna Gain At LTE-A and LTE-V (698-787MHz)(dBi) At 800MHz(dBi) At 1900MHz(dBi) At 1700MHz(dBi) At 2100MHz(dBi) CM120W 1.2 1.2 3 3 3 Indoor Cable Indoor Cable Indoor Cable Loss At LTE-A and LTE-V (698-787MHz)(dB) At 800MHz(dB) At 1900MHz(dB) At 1700MHz(dB) At 2100MHz(dB) 0.3 0.3 0.3 0.3 0.3 Path loss=20Lgf+20LgD-27.55 Operation Frequency (MHz) f(MHz) D(m) Constant(dB) Path loss(dB) …
