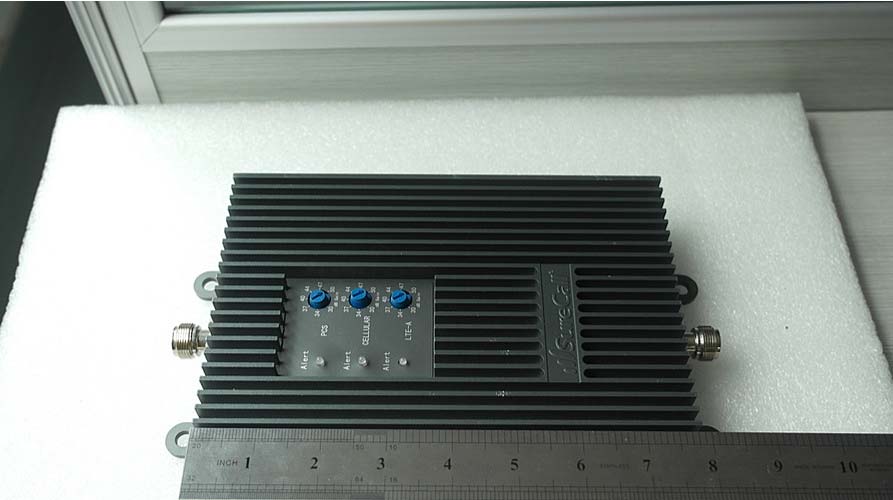

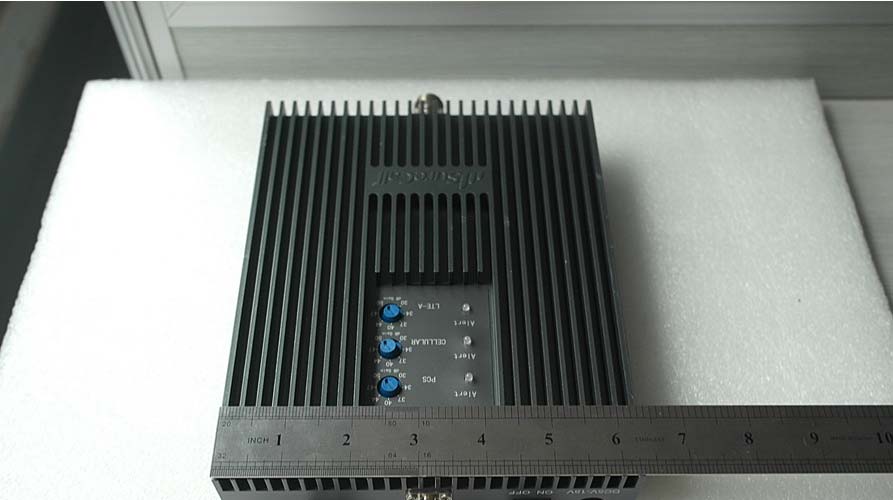

RSNTRIFLEX-2GO-ATri-Band Mobile Signal Booster

Tri-Band Wireless Adjustable Signal Booster 3G – 4G Multi-use Signal Booster Kit TRIFLEX-2GO-A for AT&T 2G thru 4G (TRIFLEX-2GO-A) User Guide TRIFLEX-2GO-A MULTI-USE KITS MN-AMP-01 INTRODUCTION 2 PRINCIPLES OF OPERATION 2 SURECALL TRIFLEX-2GO-A PACKAGES3 TRIFLEX-2GO-A BOOSTER HARDWARE 5 INSTALLATION 6 PACKAGE CONTENTS 6 SITE SELECTION 6 INSTALLATION INSTRUCTIONS 7 TROUBLESHOOTING 11 FREQUENTLY ASKED QUESTIONS 13 OBTAINING TECHNICAL SUPPORT 13 WARRANTY 14 SPECIFICATIONS 16 SAFETY INFORMATION 17 INTRODUCTION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 2 All rights reserved. Introduction Congratulations on purchasing the SureCall TriFlex-2Go-A kit for 2G-3G, all carriers, and 4G LTE for AT&T, the finest cellular signal booster available! SureCall adjustable cellular boosters and kits from Cellphone-Mate remove the frustration over dropped calls, limited range, and slow data rates by amplifying incoming and outgoing cellular signals in buildings, offices, and homes. The TriFlex-2Go-A is designed with leading-edge technologies to detect and amplify weak incoming signals your cellular device would otherwise miss and to broadcast a significantly stronger signal back to the cell tower. This guide contains all the information you need to get your SureCall TriFlex-2Go-A booster system up and running. Principles of Operation The SureCall TriFlex-2Go-A is a high-quality bidirectional signal booster that boosts cellular signals for cars, watercraft, motorhomes (RVs), and desktop use. The TriFlex- 2Go-A works with two antennas : x An i nside antenna that communicates with your cell phone. x An outside antenna that communicates with the cell tower. Signals sent from a cell tower are received by the outside antenna, amplified by the booster and then sent to your phone via t he inside antenna. When your phone transmits, the signal is sent to the inside antenna, and t hen sent to the cell tower via the outside antenna. Some cell signal is required for the TriFlex-2Go-A to enhance cellular signal coverage. The weakest cell signal for the TriFlex-2Go-A to work is low -100dBm to high -90dBm. dBm is an abbreviation for the power ratio in decibels of the radio power per one milliwatt. To measure your existing cell signal on an Apple iPhone, dial *3001#12345#*and press Call. In the top-left corner, a number appears instead of bars. For Android devices, you can download several apps to measure exact signal strength. Look up check real signal strength to find a cell signal measurement app. INTRODUCTION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 3 All rights reserved. SureCall TriFlex-2Go-A Packages TriFlex-2Go-A Antenna Kitting Information Vehicle Kit Component Product Number (Descri ption) Gain/Loss Notes LTE-V 800 MHz 1900 MHz Outdoor Antenna* CM200 3 dBi 3 dBi 5 dBi Outdoor Cable* CM174-10FT (10 feet) 3.8 dB 4.3 dB 8.8 dB Indoor Antenna* CM110W 1.1 dBi 1.1 dBi 3 dBi Table-top antenna Indoor Cable* CM174-10FT (10 feet) 3.8 dB 4.3 dB 8.8 dB Marine Kit Component Product Number (Description) Gain/Loss Notes LTE-V 800 MHz 1900 MHz Outdoor Antenna* CM288W or Galaxy 5412-P 3 dBi 3 dBi 4 dBi Outdoor Cable* CM240-40FN ( 40 feet) 3.52 dB 3.98 dB 6.52 dB Indoor Antenna* CM248W 7 dBi 7 dBi 10 dBi Wall-mounted antenna Indoor Cable* CM240-20FN (20 feet) 2.06 dB 2.29 dB 3.56 dB Desktop/RV Kit Component Product Number (Descri ption) Gain/Loss Notes LTE-V 800 MHz 1900 MHz Outdoor Antenna* CM288W 3 dBi 3 dBi 4 dBi Outdoor Cable* CM240-40FN (40 feet) 3.52 dB 3.98 dB 6.52 dB Indoor Antenna* CM120W 1.2 dBi 1.2 dBi 3 dBi Table-top antenna * All equivalent antennas and cables are suitable for use with the TriFlex-2Go -A booster. INTRODUCTION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 4 All rights reserved. Note: For the signal booster to work, the following items are required: x Outside antenna x Cable for connecting the outside antenna to the booster x Signal booster x Inside antenna x Cable for connecting the inside antenna to the booster x Power supply x DC car charger and 18-foot cord x Velcro® and screw-mounting kit x Optional: AC power supply to use booster as an indoor desktop system Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact FCC for details: 1-888-CALL-FCC. Changes or modifications not expressly approved by Cellphone-Mate could void the user’s authority to operate the equipment. INTRODUCTION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 5 All rights reserved. TriFlex-2Go-A Booster Hardware The following figure shows the key hardware components on the TriFlex-2Go-A signal booster. Refer to this figure as you install your SureCall TriFlex-2Go-A components. PCS Dial Outdoor Antenna Connector Indoor Antenna Connector Power Connector (not shown) Power LED (not shown) Alert LEDs Cellular Dial LTE/AWS Dial INSTALLATION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 6 All rights reserved. Installation Package Contents Unpack all package contents and check for damage. For missing or damaged items, contact your reseller. Keep the carton and packing material to store the product or if you need to return it. Site Selection For optimum performance, select a location for your outside antenna th at : x Is under the seat of the vehicle, for example. x Is away from excessive heat, direct sunlight or moisture. x Has proper ventilation. INSTALLATION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 7 All rights reserved. Installation Instructions The TriFlex-2Go-A booster kit is suited for installation in a vehicle, such as a car, boat, motorhome or for desktop applications. Refer to the figure below when performing the following procedures. Figure 1. Example of Car Installation Figure 2. Example of Marine Installation INSTALLATION SureCall TriFlex-2Go-A Multi-Use Kit Cellphone-Mate, Inc. Page 8 All rights reserved. Step 1. Connect the Outside Antenna 1. Mount the magnetic…

Text truncated - open the document above for the full version.

1 48346 Milmont Dr., Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.surecall.com Antenna Kitting Information TriFlex-2Go-A Vehicle Kit Component Prod No. Description Gain/Loss Notes LTE-A 800MHz 1900MHz Outdoor Antenna* CM200 3dBi 3dBi 5dBi Outdoor Cable* CM174-10FT 10Feet 3.8dB 4.3dB 8.8dB Indoor Antenna* CM110W 1.1dBi 1.1dBi 3dBi Table Top Antenna Indoor Cable* CM174-10FT 10Feet 3.8dB 4.3dB 8.8dB *All equivalent antennas and cables are suitable for use with the TriFlex-2Go-A booster. Marine Kit Component Prod No. Description Gain/Loss Notes LTE-A 800MHz 1900MHz Outdoor Antenna* CM288W or Galaxy 5412-P 3dBi 3dBi 4dBi Outdoor Cable* CM240-40FN 40Feet 3.52dB 3.98dB 6.52dB Indoor Antenna* CM248W 7dBi 7dBi 10dBi Wall Mounted Antenna Indoor Cable* CM240-20FN 20Feet 2.06dB 2.29dB 3.56dB *All equivalent antennas and cables are suitable for use with the TriFlex-2Go-A booster. Desk top/RV Kit Component Prod No. Description Gain/Loss Notes LTE-A 800MHz 1900MHz Outdoor Antenna* CM288W 3dBi 3dBi 4dBi Outdoor Cable* CM240-40FN 40Feet 3.52dB 3.98dB 6.52dB Indoor Antenna* CM120W 1.2dBi 1.2dBi 3dBi Table Top Antenna *All equivalent antennas and cables are suitable for use with the TriFlex-2Go-A booster. 2

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Authorization 20 th March, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To Whom It May Concern: We, Cellphone-mate, the undersigned, hereby authorize CKC Laboratories, Inc. to act on our behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by CKC Laboratories, Inc. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

48346 Milmont Drive Fremont, CA 94538 Phone: 510-770-0469 Fax: 510-996-7250 www.cellphone-mate.com FCC Confidential Authorization 20 th March, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: RSNTRIFLEX-2GO-A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Cellphone-mate hereby requests long- term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description  Parts list The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Sincerely Yours, Hongtao Zhan, CEO Cellphone-Mate Inc. 1888 365 6283 ext. 301

1 FCC§1.1307（b）(1)&§2.1091-RF EXPOSURE 1.1 Applicable Standard According to§1.1310 and §2.1091(Mobile Devices)RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Power Density (mW/cm²) Limits for General Population/Uncontrolled Exposure 0.3-1.34 *(100) 1.34-30 *(180/f²) 30-300 0.2 300–1,500 f/1500 1,500–100,000 1 Note: f= frequency in MHz *=Plane-wave equivalent power density 1.2 MPE Prediction 1.2.1 Calculation of MPE at 20 cm distance, Equation from OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G= maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is in numeric form) R=distance to the center of radiation of the antenna (20cm in the following calculation) 1.2.2 Calculation formula of G（numeric ) G (numeric)=10 {Maximum Antenna Gain dBi () -Cable LossdB () } 1 10 Where: G（numeric）= Maximum power gain of the antenna in the direction of interest relative to an isotropic radiator, subtract antenna’s cable loss, (result is converted from decibel into numeric form with above equation) 1.3 Test Result 1.3.1 Under the conditions of Vehicle Kit Component(Antenna KIT) Vehicle Kit Component Outdoor Antenna KIT Antenna:CM200 Cable:CM174 -10FT 10Feet Outdoor Antenna Gain Outdoor Cable Loss At 1900MHz(dBi) At 800MHz(dBi) At 700MHz(dBi) At 1900MHz(dB) At 800MHz(dB) At 700MHz(dBi) 5 3 3 8.8 4.3 3.8 Indoor Patch Antenna KIT Antenna:CM110W Cable: CM174 -10FT 10Feet Indoor Antenna Gain Indoor Cable Loss At 1900MHz(dBi) At 800MHz(dBi) At 700MHz(dBi) At 1900MHz(dB) At 800MHz(dB) At 700MHz(dBi) 3 1.1 1.1 8.8 4.3 3.8 LTE-A Band UL: Maximum peak output power at antenna input terminal(dBm): 19.30 Maximum peak output power at antenna input terminal(mW): 85.11 Prediction distance(cm): 20 Prediction frequency(MHz): 705.20 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 3.8 G（numeric）: 0.83 Power density at predication frequency and distance(mW/cm²): 0.0141 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4701 LTE-A Band DL: Maximum peak output power at antenna input terminal(dBm): -5.60 Maximum peak output power at antenna input terminal(mW): 0.28 Prediction distance(cm): 20 Prediction frequency(MHz): 735.92 Maximum Antenna Gain (dBi): 1.1 Cable Loss(dB): 3.8 G（numeric）: 0.54 Power density at predication frequency and distance(mW/cm²): 0.00003 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4906 Cellular Band UL: Maximum peak output power at antenna input terminal(dBm): 20.90 Maximum peak output power at antenna input terminal(mW): 123.03 Prediction distance(cm): 20 Prediction frequency(MHz): 845.67 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 4.3 G（numeric）: 0.74 Power density at predication frequency and distance(mW/cm²): 0.0182 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5638 Cellular Band DL: Maximum peak output power at antenna input terminal(dBm): -5.50 Maximum peak output power at antenna input terminal(mW): 0.28 Prediction distance(cm): 20 Prediction frequency(MHz): 881.58 Maximum Antenna Gain (dBi): 1.1 Cable Loss(dB): 4.3 G（numeric）: 0.48 Power density at predication frequency and distance(mW/cm²): 0.00003 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5877 PCS Band UL: Maximum peak output power at antenna input terminal(dBm): 19.40 Maximum peak output power at antenna input terminal(mW): 87.10 Prediction distance(cm): 20 Prediction frequency(MHz): 1872.40 Maximum Antenna Gain (dBi): 5 Cable Loss(dB): 8.8 G（numeric）: 0.42 Power density at predication frequency and distance(mW/cm²): 0.0072 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1.0000 PCS Band DL: Maximum peak output power at antenna input terminal(dBm): -8.00 Maximum peak output power at antenna input terminal(mW): 0.16 Prediction distance(cm): 20 Prediction frequency(MHz): 1952.20 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 8.8 G（numeric）: 0.26 Power density at predication frequency and distance(mW/cm²): 0.00001 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 1.0000 1.3.2 Under the conditions of Marine Kit Component Component (Antenna KIT) Marine Kit Component Outdoor Antenna KIT Antenna:CM288W or Galaxy 5412-P Cable:CM240 -40FN 40Feet Outdoor Antenna Gain Outdoor Cable Loss At 1900MHz(dBi) At 800MHz(dBi) At 700MHz(dBi) At 1900MHz(dB) At 800MHz(dB) At 700MHz(dBi) 4 3 3 6.52 3.98 3.52 Indoor Panel Antenna KIT Antenna:CM248W Cable:CM240 -20FN 20Feet Indoor Antenna Gain Indoor Cable Loss At 1900MHz(dBi) At 800MHz(dBi) At 700MHz(dBi) At 1900MHz(dB) At 800MHz(dB) At 700MHz(dBi) 10 7 7 3.56 2.29 2.06 LTE-A Band UL: Maximum peak output power at antenna input terminal(dBm): 19.30 Maximum peak output power at antenna input terminal(mW): 85.11 Prediction distance(cm): 20 Prediction frequency(MHz): 705.20 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 3.52 G（numeric）: 0.89 Power density at predication frequency and distance(mW/cm²): 0.0150 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4701 LTE-A Band DL: Maximum peak output power at antenna input terminal(dBm): -5.60 Maximum peak output power at antenna input terminal(mW): 0.28 Prediction distance(cm): 20 Prediction frequency(MHz): 735.92 Maximum Antenna Gain (dBi): 7 Cable Loss(dB): 2.06 G（numeric）: 3.12 Power density at predication frequency and distance(mW/cm²): 0.00017 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.4906 Cellular Band UL: Maximum peak output power at antenna input terminal(dBm): 20.90 Maximum peak output power at antenna input terminal(mW): 123.03 Prediction distance(cm): 20 Prediction frequency(MHz): 845.67 Maximum Antenna Gain (dBi): 3 Cable Loss(dB): 3.98 G（numeric）: 0.80 Power density at predication frequency and distance(mW/cm²): 0.0195 MPE limit for uncontrolled exposure at predication frequency(mW/cm²): 0.5638 Ce…

Text truncated - open the document above for the full version.

This report contains a total of 108 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Cellphone-Mate, Inc. ADDENDUM TO TEST REPORT 95252-12 Mobile Wideband Consumer Signal Booster Model: TriFlex-2Go-A Tested To The Following Standards: FCC Part 20.21 Report No.: 95252-12A Date of issue: April 4, 2014 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 108 Report No.: 95252-12A TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 20.21 ............................................................................................................................................................... 7 Clause 7.1 Authorized Frequency Band Verification ................................................................................................. 7 Summary of Results ............................................................................................................................................... 7 Clause 7.2 Maximum Power .................................................................................................................................... 12 Summary of Results ............................................................................................................................................. 13 Clause 7.3 Maximum Gain ....................................................................................................................................... 22 Summary of Results ............................................................................................................................................. 23 Clause 7.4 Intermodulation Product ........................................................................................................................ 24 Summary of Results ............................................................................................................................................. 24 Clause 7.5 Out of Band Emissions ............................................................................................................................ 29 Summary of Results ............................................................................................................................................. 29 Clause 7.7 Noise limit .............................................................................................................................................. 79 Summary of Results ............................................................................................................................................. 81 Clause 7.8 Uplink Inactivity ...................................................................................................................................... 89 Summary of Results ............................................................................................................................................. 89 Clause 7.9 Booster Gain Limit .................................................................................................................................. 93 Summary of Results ............................................................................................................................................. 95 Clause 7.11 Oscillation Detection ............................................................................................................................ 99 Summary of Results ........................................................................................................................................... 100 Clause 7.13 Spectrum Block Filter ..........................................................................................…

Text truncated - open the document above for the full version.

Page 61 of 108 Report No.: 95252-12A UL 1850-1910MHz_Hi CH_CDMA_10dbm UL 1850-1910MHz_Hi CH_CDMA_pre AGC Page 62 of 108 Report No.: 95252-12A UL_698-716_Low CH_GSM_10dbm UL_698-716_Low CH_GSM_10dbm_100kHz band Page 63 of 108 Report No.: 95252-12A UL_698-716_Low CH_GSM_pre AGC UL_698-716_Low CH_GSM_pre AGC_100kHz band Page 64 of 108 Report No.: 95252-12A UL_698-716_Hi CH_GSM_10dbm UL_698-716_Hi CH_GSM_10dbm_100kHz band Page 65 of 108 Report No.: 95252-12A UL_698-716_Hi CH_GSM_pre AGC UL_698-716_Hi CH_GSM_pre AGC_100kHz band Page 66 of 108 Report No.: 95252-12A UL_824-849_Low CH_GSM_10dbm UL_824-849_Low CH_GSM_pre AGC Page 67 of 108 Report No.: 95252-12A UL_824-849_Hi CH_GSM_10dbm UL_824-849_Hi CH_GSM_pre AGC Page 68 of 108 Report No.: 95252-12A UL_1850-1910MHz_Low CH_GSM_10dbm UL_1850-1910MHz_Low CH_GSM_pre AGC Page 69 of 108 Report No.: 95252-12A UL_1850-1910MHz_Hi CH_GSM_10dbm UL_1850-1910MHz_Hi CH_GSM_pre AGC Page 70 of 108 Report No.: 95252-12A UL_698-716MHz_Low CH_LTE_10dbm UL_698-716MHz_Low CH_LTE_10dbm_100kHz band Page 71 of 108 Report No.: 95252-12A UL_698-716MHz_Low CH_LTE_pre AGC UL_698-716MHz_Low CH_LTE_pre AGC_100kHz band Page 72 of 108 Report No.: 95252-12A UL_698-716MHz_Hi CH_LTE_10dbm UL_698-716MHz_Hi CH_LTE_10dbm_100kHz band Page 73 of 108 Report No.: 95252-12A UL_698-716MHz_Hi CH_LTE_pre AGC UL_698-716MHz_Hi CH_LTE_pre AGC_100kHz band Page 74 of 108 Report No.: 95252-12A UL_824-849MHz_Low CH_LTE_10 dbm UL_824-849MHz_Low CH_LTE_pre AGC Page 75 of 108 Report No.: 95252-12A UL_824-849MHz_Hi CH_LTE_10 dbm UL_824-849MHz_Hi CH_LTE_pre AGC Page 76 of 108 Report No.: 95252-12A UL_1930-1990MHz_Low CH_LTE_10 dbm UL_1930-1990MHz_Low CH_LTE_pre AGC Page 77 of 108 Report No.: 95252-12A UL_1930-1990MHz_Hi CH_LTE_10dbm UL_1930-1990MHz_Hi CH_LTE_pre AGC Page 78 of 108 Report No.: 95252-12A Test Setup Photo(s) Page 79 of 108 Report No.: 95252-12A Clause 7.7 Noise limit Test Location: CKC Laboratories • 110 Olinda Place • Brea, CA 92823 • 714-993-6112 Customer: Cellphone-Mate, Inc. Specification: 7.7 Noise Limits Work Order #: 95252 Date: 01/23/2014 Test Type: Conducted Emissions Equipment: Mobile Wideband Consumer Signal Booster Manufacturer: Cellphone-Mate, Inc. Tested By: Don Nguyen Model: TriFlex-2Go-A 110V 60Hz S/N: (none) Test Equipment: Asset # Description Model Calibration Date Cal Due Date 02672 Spectrum Analyzer E4446A 8/14/2013 8/14/2015 02945 Cable 32022-2-2909K-36TC 10/30/2013 10/30/2015 C00082 Coupler MECA Electronics, Inc. 8/21/2013 8/21/2015 03412 Filter PE8705 8/26/2013 8/26/2015 03413 Filter PE8706 8/26/2013 8/26/2015 03414 Filter PE8707 8/26/2013 8/26/2015 03415 Filter PE8708 8/26/2013 8/26/2015 03447 Filter PE8710 9/20/2013 9/20/2015 03448 Filter PE8711 9/20/2013 9/20/2015 03446 Filter 4FV50-707/H18-O/O 1/6/2014 1/6/2016 03467 Filter 4FV50-731/H30-O/O 1/6/2014 1/6/2016 03468 Filter 4CS10-781.5/E12.2-O/O 1/6/2014 1/6/2016 03469 Filter 4CS10-751.5/E12-O/O 1/6/2014 1/6/2016 Equipment Under Test (* = EUT): Function Manufacturer Model # S/N Mobile Wideband Consumer Signal Booster * Cellphone-Mate, Inc. TriFlex-2Go-A (none) Support Devices: Function Manufacturer Model # S/N Signal Generator Agilent E4433B US40052164 AC to 9Vdc Power Adapter SureCall GFP451DA-0945-1 (none) Test Conditions / Notes: The EUT is placed on the test bench. Gain is set to the maximum gain for all bands. Evaluation performed at the Outside (Donor) and Inside (Server) antenna port. Test performed at for each of the following bands: UL 698-716MHz, UL 824-849MHz, UL 1850-1910MHz, DL 728-746MHz, DL 869-894MHz, DL 1930-1990MHz Maximum Power Test procedure: The test was performed in accordance with section 7.7 of the FCC Publication: 935210 D03 Signal Booster Measurements v01r01: January 21, 2014. Site D. Test environment conditions: 21°C, 35%, 100kPa Page 80 of 108 Report No.: 95252-12A Page 81 of 108 Report No.: 95252-12A Summary of Results Pass: All measured noise level is under the limit. All measured variable uplink noise timings are within 1 second limit. Part 27 Lower 700MHz Cellular Broadband PCS UL DL UL DL UL DL Fl 698.0 728.0 824.0 869.0 1850.0 1930.0 Fh 716.0 746.0 849.0 894.0 1910.0 1990.0 Fmid 707.0 737.0 836.5 881.5 1880.0 1960.0 Span 2xCMRS 36 36 50 50 120 120 7.7 Noise Limits Summary Table / Six Values Closest To Limit RSSI Level (dBm) Measured Noise Power Level (dBm/MHz) Limit Region Limit Line (dBm/MHz) Margin (dB) Frequency Band (MHz) -90 -61.8 Frequency Dependent -59 -2.8 698-716 MHz UL -80 -61.8 Frequency Dependent -59 -2.8 698-716 MHz UL -70 -61.8 Frequency Dependent -59 -2.8 698-716 MHz UL -69 -61.8 Frequency Dependent -59 -2.8 698-716 MHz UL -36 -78.7 RSSI Dependent -70 -8.7 698-716 MHz UL -34 -78.7 RSSI Dependent -69 -9.7 698-716 MHz UL -90 -63.6 Frequency Dependent -59 -4.6 728-746 MHz DL -80 -63.6 Frequency Dependent -59 -4.6 728-746 MHz DL -70 -63.6 Frequency Dependent -59 -4.6 728-746 MHz DL -69 -64.0 Frequency Dependent -59 -5.0 728-746 MHz DL -36 -82.1 RSSI Dependent -70 -12.1 728-746 MHz DL -34 -82.1 RSSI Dependent -69 -13.1 728-746 MHz DL -90 -61.1 Frequency Dependent -59 -2.1 824-849 MHz UL -80 -61.1 Frequency Dependent -59 -2.1 824-849 MHz UL -70 -61.1 Frequency Dependent -59 -2.1 824-849 MHz UL -69 -61.1 Frequency Dependent -59 -2.1 824-849 MHz UL -36 -78.7 RSSI Dependent -70 -8.7 824-849 MHz UL -34 -78.7 RSSI Dependent -69 -9.7 824-849 MHz UL -90 -62.6 Frequency Dependent -59 -3.6 869-894 MHz DL -80 -62.6 Frequency Dependent -59 -3.6 869-894 MHz DL -70 -62.6 Frequency Dependent -59 -3.6 869-894 MHz DL -69 -62.6 Frequency Dependent -59 -3.6 869-894 MHz DL -36 -82.1 RSSI Dependent -70 -12.1 869-894 MHz DL -34 -82.1 RSSI Dependent -69 -13.1 869-894 MHz DL -90 -62.3 Frequency Dependent -59 -3.3 1850-1910 MHz UL -80 -62.3 Frequency Dependent -59 -3.3 1850-1910 MHz UL -70 -62.3 Frequency Dependent -59 -3.3 1850-1910 MHz UL Page 82 of 108 Report No.: 95252-12A -69 -62.3 Frequency Dependent -59 -3.3 1850-1910 MHz UL -36 -78.7 RSSI Dependent -70 -8.7 1850-1910 MHz UL -34 -78.7 R…

Text truncated - open the document above for the full version.

This report contains a total of 30 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Cellphone-Mate, Inc. TEST REPORT FOR Mobile Wideband Consumer Signal Booster Model: TriFlex-2Go-A Tested To The Following Standards: FCC Part 22H Report No.: 95252-13 Date of issue: February 19, 2014 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 30 Report No.: 95252-13 TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 22H .................................................................................................................................................................. 7 2.1049(I) Occupied Bandwidth .......................................................................…

Text truncated - open the document above for the full version.
