RSQ-BH-005Bluetooth Car Kit

BH-005 Bluetooth Car Kit User’s Manual I BH-005 BLUETOOTH CAR KIT Function : 1. Bluetooth v1.1 compliance 2. Output level, 0dBm, class 2 3. 10 meters working range 4. Voice dialing out function by push button on the car kit (subject to mobile phone support) 5. Noise suppression microphone with flexible tube wire to fit user’s requirement 6. Automatic reconnection if Bluetooth link is disrupted 7. Speaker volume is adjustable 8. Two colour LED for standby or talking indication. 9. Echo cancellation by high performance ASIC DSP. 10. Charging the BH005 unit, there 2 ways to charge the 3 AA recharable batteries either by the car cigar lighter or by the mains travel charger 11. Suitable for all Bluetooth mobile phones, Nokia, Sony/Ericsson Seimens , Motorola, Panasonic, Etc ... Installation 1. Open the battery door and insert 3 AA batteries.(notice the direction of the battery) 2. Slide the on/off button to the position “BAT “. 3. The “LED” will start to blink (green), and BH005 unit is ready for working. 4. Following the pairing procedures below to pair the BH005 unit with your mobile phone. 5. Put in “ Clip” into the hole on the back of the BH005 unit 6. The BH005 unit can be now slide on to the sun visor 7. Adjust the “Volume Control” see note under hands free profile . 8. Adjust the “Boom Microphone” to the best position. For you to talk 9. Plug the “Power lead” into the cigar lighter socket of your car, and move the “on/off switch” to the “CAR” position, this is now using the car battery . Pairing procedure Once the BH-005 unit has been paired with the mobile phone you can leave this function switched on in your mobile phone, so when you return to your vehicle you can turn your BH005 unit on and the pairing procedure will automatically be activated Mobile PHONE WITH HEADSET PROFILE 1. Move the on/off switch of BH-005 to right position “CAR” or “BAT” according to the applied power “car cigarette” or “ 3 AA Batteries” to it respectively. 2. Push and hold the “push button” of slide switch of BH-005 until you hear Hi-Low tones coming out from the speaker, and the LED light will be turned off. 3. Push and hold the “ push button” of slide switch of BH-005 until you hear three tones coming out from the speaker, and the LED turns on with green & red light. 4. Then you can start the pairing procedure with your cell phone. Mobile PHONE WITH HANDSFREE PROFILE 1. Move the on/off switch of BH-005 to “CAR” or “BAT” according to the applied power “cigar lighter lead” or “3 AA batteries” . 2. Push & hold the “on/off button of the BH-005 unit until you hear Hi-Low tones from the speaker, and the LED light will go out 3. Push & hold the “on/off button” to turn the BH-005 unit on, until you hear three tones coming out from the speaker, and the LED turns green & red light, and then push on/off button once more and you will hear short beep from the speaker. 4. Now you can start the pairing procedure with your Mobile Phone. Note : 1. Adjust the “volume of the BH005 unit to suit your hearing, but you may need to adjust your mobile phone volume, so the caller does not hear there own voice (feed back) 2. The pass code of BH-005 unit for pairing is 1234. 3. After completing pairing procedure, BH-005 unit is back to the stand-by mode and ready to use with the paired mobile phone 5. Only 1mobile phone can be used with the BH005 unit at one time VOICE DIALING FUNCTION Making sure that your mobile phone supports voice dialing function. Please record your voice dialing message into your mobile phone first. The voice dialing is simple - just press the on/off button of BH-005 unit, you will hear a beep tone now say the desired name the mobile will start dialing now A. P800 (SONY – ERICSSON) 1. Press “control panel” 2. Press “connections” 3. Press “Bluetooth” 4. Press “Add “ to starting searching BH-005 device 5. Press BH-005 6. Enter “1,2,3 4” for pass code, and then press “Done” 7. Press “ “ , Allowed to connect without confirmation, then press “ Done” 8. Press “ Done” to finish pairing procedure and then you can use the Car kit with your P800 mobile phone now. B. 8910 (NOKIA) 1. Select “Menu” 2. Select “Bluetooth” 3. Select “Search for audio accessories” to starting searching BH-005 4. Select “BH-005” 5. Enter “1,2,3 4” for pass code, then press “OK” 6. Press “OK” 7. Select “View paired device” 8. Select “BH-005” , and select “Options” 9. Select “Request conn. Authorization”, and select “No” 10. Select “Back” and “Exit” to finish pairing procedure and then you can use the BH-005 with your 8910 phone now. Note: Please turn on the automatic answer function of Headset and hands-free of you 8910 phone, then BH-005 can answer calls automatically, otherwise you may have to push the “push button” on the BH-005 to answer the incoming calls. C. 3650 (NOKIA) 1. Press “Menu” 2. Select “Connection” and press “Open” 3. Select “Bluetooth” and press “Open” 4. Shift to left for pairing device and select “new device” to start searching 5. Select “BH-005” 6. Enter “1,2,3 4” for pass code 7. Select “BH-005”, and select “connection” 8. Select “BH-005” and select “authorized for connection” 9. Select “Back” and “Exit” to finish the pairing procedure, and you can use the Car kit with you 3650 phone now. Note: Please turn on the automatic answer function of Headset and hands-free of your mobile phone, then BH-005 can answer calls automatically, otherwise you may have to push the “push button” on the BH-005 to answer the incoming calls. CAUTION : DO NOT USE NORMAL BATTERIES, OR MIX WITH USED OR OTHER BATTERY TYPES, MAY EXPLORED OR LEAK AND CAUSE PERSONAL INJURY PLEASE NOTE: "The driver is ultimately responsible for the safe operation and control of their vehicle at all times. You should never use a hand held phone, including sending or reading text or picture messages, while driving . Research indicates that there is a risk to safety when the driver of a motor vehicle is distracted and using a mobile phone while driving can be a distraction.…

Text truncated - open the document above for the full version.

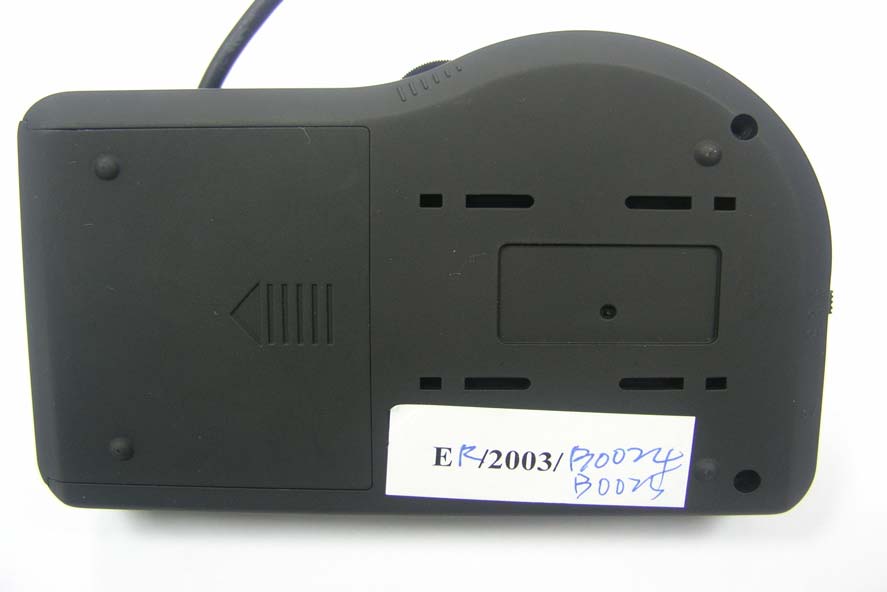

REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Site View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: ARCHER WIRELESS CO., LTD FCC ID: RSQ-BH-005 FCC ID: RSQ-BH-005 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT -1 REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT -2

REPORT NO: ER/2003/B0025 ID: RSQ-BH-005 DATE: Jan. 21, 2004 Page: 1 of 47 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product name: Bluetooth Car Kit Model Name: BH-005 FCC ID: RSQ-BH-005 REPORT NO: ER/2003/B0025 ISSUE DATE: Jan. 21, 2004 FCC Rule Part: §15.247 Prepared for ARCHER WIRELESS CO., LTD 8F, No. 442, Sec. 2,Chung Shun Road, Chung Ho City, Taipei Hsien, Taiwan Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2003/B0025 ID: RSQ-BH-005 DATE: Jan. 21, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: ARCHER WIRELESS CO., LTD 8F, No. 442, Sec. 2, Chung Shun Road, Chung Ho City, Taipei Hsien, Taiwan Equipment Under Test: Bluetooth Car Kit Brand Name: N/A FCC ID Number: RSQ-BH-005 Model No.: BH-005 Model Difference: N/A File Number: ER/2003/B0025 Date of test: Jan. 05, 2004 ~ Jan. 21, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Jan. 21, 2004 Alex Hsien Approved By Date Jan. 21, 2004 Vincent Su REPORT NO: ER/2003/B0025 ID: RSQ-BH-005 DATE: Jan. 21, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................8 5. CONDUCTED EMISSION TEST..................................................................................................9 5.1 Standard Applicable ............................................................................................................................9 5.2 EUT Setup...........................................................................................................................................9 5.3 Measurement Procedure......................................................................................................................9 5.4 Measurement Equipment Used: ........................................................................................................10 5.5 Measurement Result..........................................................................................................................10 6. PEAK OUTPUT POWER MEASUREMENT............................................................................11 6.1 Standard Applicable ...................................…

Text truncated - open the document above for the full version.

REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP REPORT NO: ER/2003/C0014 ID: RSQ-BH-005 DATE: Jan. 21, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos
