RSQ-BH300BLUETOOTH LCD PLUG-IN CARKIT

FCC ID: RSQ-BH300 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. BH-300 BLUETOOTH WIRELESS CAR HANDS-FREE KIT Features : 1. Bluetooth v1.2 complaint CSR BC03 Chip 2. Output level, 1mW, 0dBm, class 2 3. 10 meters working range 4. Voice dialing out function by push Ending-button on the car kit (subject to mobile phone support) 5. Last number re-dial function by push Answer-button on the car kit 6. Caller ID displayed by 14 digits LCD on the car kit 7. Noise suppression microphone with flexible tube wire to fit user’s requirement 8. Automatic reconnection if Bluetooth link is disrupted 9. 2 watts speaker and Speaker’s volume is adjustable 10. Two colors LED for standby or talking indication. 11. Echo cancellation by high performance DSP. 12. Plug-in the car cigarette power 12/24 V. 13. External microphone with 4 meters wire. 14. Provide 2 profiles, Hands-free profile and Head-set profile, so Suitable with any Bluetooth enable phones. 15. Up and Down, Left and Right positions adjustable to fit into any kinds of car. Operation Manual 1. Turn the BH-300 on Plug in the BH-300 to cigar port to turn it on, and LCD will display ------ON------, and then LCD display ------------. 2. Turn the BH-300 off Press Ending key to turn off BH-300, and LCD will display -------OFF------ first, and then nothing display on the LCD. 3. Pairing procedure: 1. Plug BH-300 into the cigar power port of the car. 2. Press Ending key to turn the BH-300 off first. 3. Press and hold Ending key again, until you can hear the tones come from the speaker. And LCD display -------P-------- 4. BH-300 is under the pairing mode now, then you can start to pair the BH-300 with your mobile phone now, and the pairing device name is BH-300, and password is 1234. 4. Answer the call: Press the Answer key to answer the incoming phone call, and the LCD will display the caller’s ID. Note : Some of the mobile phones don’t support this function. 5. Reject the call : Press the Ending key to reject or end a call. 6. Voice Dialing: Press the Ending key to get into the voice dialing function. Note : Some of the mobile phones don’t support this function. 7. Volume control of speaker: Use the volume control knob to adjust the volume of the speaker. 8. Transfer Function: Press the Answer key to transfer the call back to the mobile phone while talking the phone. Note : Some of the mobile phones don’t support this function. 9. Last number re-dial Press Answer key to re-dial the last number. And the LCD will display ----- L -----, Note : Some of the mobile phones don’t support this function. 10. Microphone: Place the external microphone to the right place in the car. (There are two holders in the package, so you can put the microphone on the Sun Visor, or other place in the car) General Spec. Standard Bluetooth V1.2 Link Mode ACL, eSCO (Extended Synchronous Connection-Oriented) Data Rate : Asynchronous:723.2kbps/57.6kbps Synchronous:433.9kbps/433.9kbps Frequency Band ISM 2.4GHz PAN, DUN, SPP, LAN, FTP, Synchronization, OBEX, HCRP, HID, FAX, BIP, AV, HS Receiver Signal Range Better than –76dBm @0.1%BER RF Output Power -6~+4dBm (Max +6 dBm) Operating Distance Up to 10 meters Operation Temperature -40~+85 Degree C Storage Temperature -40 to +105 Degree C Modulation GFSK(Gaussian Frequency Shift Keying) Spectrum AFH (Adaptive Frequency Hopping) Security Provided Pairing, Encryption, Authentication Bluetooth Profile: Both Hands-free and Headset profile. Power : Input DC10~24V. Talking -100mA, Standby –20mA Size : 120mm x 70mm x 60mm Weight : 150g

BH300 BLOCK DIAGRAM Antenna BLUETOOTH MCU 14 Digits Module LCD Driver LCD Display 12/24 V. Microphone Buttons Audio Amp. 2 W. Power control Control Speaker

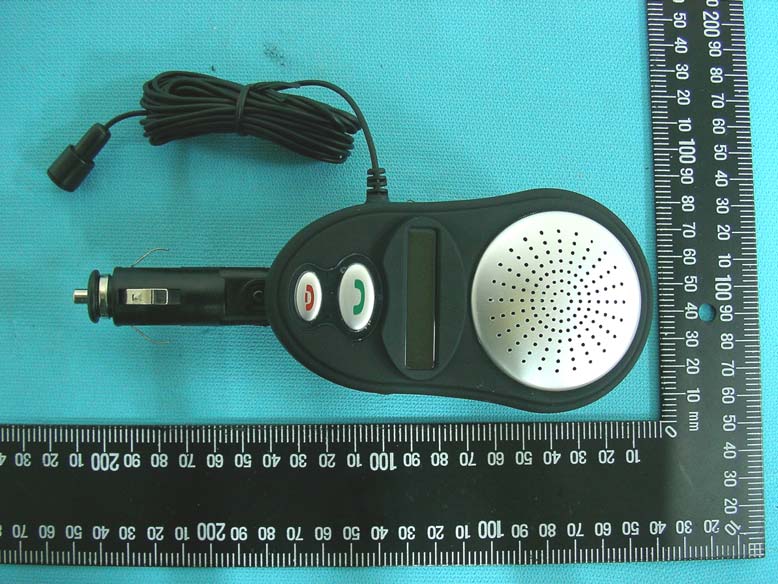

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 5 PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :RSQ-BH300

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 5 PHOTOS OF EUT-Inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 5 PHOTOS OF EUT-PCB&Main Body PHOTOS OF EUT-PCB&LED Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 5 PHOTOS OF EUT-PCB

FCC ID: RSQ-BH300 Operational Description of the equipment 1. Turn the BH-300 on Plug in the BH-300 to cigar port to turn it on, and LCD will display ------ON------, and then LCD display ------------. 2. Turn the BH-300 off Press Ending key to turn off BH-300, and LCD will display -------OFF------ first, and then nothing display on the LCD. 3. Pairing procedure: 1. Plug BH-300 into the cigar power port of the car. 2. Press Ending key to turn the BH-300 off first. 3. Press and hold Ending key again, until you can hear the tones come from the speaker. And LCD display -------P-------- 4. BH-300 is under the pairing mode now, then you can start to pair the BH-300 with your mobile phone now, and the pairing device name is BH-300, and password is 1234. 4. Answer the call: Press the Answer key to answer the incoming phone call, and the LCD will display the caller’s ID. Note : Some of the mobile phones don’t support this function. PRODUCT Bluetooth LCD Plug-in Carkit MODEL NO. BH-300 POWER SUPPLY DC 10~24 V, 1 A FREQUENCY BAND ISM 2.4GHz CARRIER FREQUENCY 2.4GHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER -6~+4 dBm=1 m MODULATION TYPE GFSK MODE OF OPERATION duplex BIT RATE OF TRANSMISSION 700K ANTENNA TYPE PCB pattern ANTENNA GAIN -3 dBi OPERATING TEMPERATURE -5~80°C CHANNEL BANDWIDTH 1MHz

RF產品之技術規格表 1. 產品名稱 Bluetooth LCD Plug-in Carkit 型號： BH300 2. 電源輸入額定值： ▇DC 10~24 V, 1 A; □AC V, A 3. Frequency Band： ISM2.4GHz Carrier Frequency： 2.4G 4. Number of Channel： 79 5. Channel Spacing： 1MHz 6. RF Output Power (ERP or EIRP) ： -6+4(MAX+6dBm) dBm= 1m 7. I.F.： X MHz; L.O.： X MHz 8. Modulation Type： GFSK(Gaussian Frequency Shift Keying) 9. Duty Cycle： X % 10. Mode of operation (duplex, simplex) ： duplex 11. Bit Rate of Transmission： 700K 12. Antenna Type： PCB pattern 13. Antenna gain： -3 dBi 14. Operating Temperature Range： -5~80 °C 15. Channel bandwidth ： 1 MHZ 16. 預定銷售國家： 歐洲、美國、亞洲

55 44 33 22 11 D D C C B B A A <Doc> BH-330B 11 Friday, January 19, 2007 TitleSize Document Number Rev Date: Sheet of 12V V+ MIC-RP MIC-RN RP PIO11 PIO2PIO3PIO5PIO6PIO7PIO10PIO11 V+ PIO2PIO3 SEG10SEG27SEG17 SEG18 SEG4SEG6PIO6 SEG22 SEG0 SEG27SEG0 SEG9 SEG15 SEG26SEG8 PIO5 SEG14 SEG11SEG7 SEG7 SEG17SEG14 SEG21 SEG22SEG26SEG9SEG6 COM3 SEG16 3.3V SEG16SEG13 SEG[0..27] SEG20 COM2 SEG10 SEG1 SEG25SEG13 COM[0..3] SEG25 SEG8SEG4SEG2 SEG12 COM3SEG5SEG12 SEG19 SEG21SEG3 SEG2 SEG1SEG24 SEG24 SEG20 COM1 SEG15SEG11 COM2 SEG18 SEG3SEG5 SEG23 SEG23 SEG19 COM0 COM1 PIO7 COM0 RN PIO10 RP PIO4 RN UART_RX PIO4 MIC-RNMIC-RP UART_RX 3.3V BAT+ 3.3V 3.3V 3.3V 3.3V + C1910UF D31N5819 U4 GS34063 1234 5678 S-C S-E TIMING GND INV-INVCCSENSEDRIVE S2 SW C2015PF JP1 DC PLUG 123 R5 10K VR1V100K JP3SPEAKER12 R11 10 C12473 R131 R9 2.2K C24104 Q22N3904 L1 100UH U6 HT1621 123456789 101112131415161718192021222324 252627282930313233343536373839404142434445464748 SEG7SEG6SEG5SEG4SEG3SEG2SEG1SEG0CS RDWRDATAVSSOSC0NCOSC1VDD/VLCDIRQBZBZCOM0COM1COM2COM3 SEG31 SEG30SEG29SEG28SEG27SEG26SEG25SEG24SEG23SEG22SEG21SEG20SEG19SEG18SEG17SEG16SEG15SEG14SEG13SEG12SEG11SEG10 SEG9SEG8 R36 22K JP4 LCD32P 123456789 1011121314151617181920212223242526272829303132 1F1A2F2A3F3A4F4A5F5A6F6A7F7A8F8A9F9A10F10A11F11A12F12A13F13A14F14ACOM1COM2COM3COM4 R37130K J3GPS CONNECTOR123 R38 100K Q42N3904 R6 330 C21 1UF C35104 C13473 U2 AME8500AEETCA 1 2 3 GND RESET VDD U3 LM4871 1234 5678 ShutdownBypass+IN-IN VO1 VDD GND VO2 Q52N3904 U1BC352M 123456789 10111213141516171819 20212223242526272829303132333435363738 GNDSPK_RPSPK_RNSPK_LPSPK_LNAIO(0)AIO(1)AIO[3]MIC_LNMIC_LPMIC_RNMIC_RPUART_CTSUART_RTSUART_RXUART_TXRESET1V83V3 PIO7 PIO6PIO5PIO4 SPI_MISOSPI_MOSI SPI_CLK SPI_CSB PIO11PIO10 PIO9PIO8PIO3PIO2PIO1PIO0 GND ANT GND JP2MIC12 + C7220UF/16V ANT1ANTENNA R18130K Q3 2N3904 C3104 R7 330 R41 10K R10 10K C14473 + C1710UF C6470PF J2 CON4P\50 1234 C18104 + C5 100UF/35V + C2310UF U5G911T24U 2 3 1 VI VO VSS R17 22K C16104 D4 LED R8100K R121 S1 ON/OFF L4 15NH R4 10K J1CON6P\50 123456 LP1LAMP C11473 R141.2K C28 1UF C221UF R154.3K D5 LED Q12N3904 + C3447UF

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07031601 Report No.: FCCA07031601 FCCID: RSQ-BH300 Page:2 of 46 Date: Apr. 16, 2007 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT....................................................... 4 1.1 DOCUMENT POLICY ............................................................................................. 4 1.2 TEST STATEMENT ................................................................................................ 4 1.3 EUT MODIFICATION.............................................................................................. 4 2. DESCRIPTION OF EUT AND TEST MODE..................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ....................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT...................................................................... 5 2.3 DESCRIPTION OF TEST MODE ........................................................................... 6 3. DESCRIPTION OF APPLIED STANDARDS.................................................... 6 4. TECHNICAL CHARACTERISTICS TEST........................................................... 7 4.1 CHANNEL SEPARATION TEST ............................................................................. 7 4.1.1 LIMIT ...................................................................................................................... 7 4.1.2 TEST EQUIPMENT ............................................................................................. 7 4.1.3 TEST SET-UP...................................................................................................... 7 4.1.4 TEST PROCEDURE............................................................................................ 7 4.1.5 EUT OPERATING CONDITION........................................................................... 8 4.1.6 TEST RESULT..................................................................................................... 8 4.2 20DB BANDWIDTH .............................................................................................. 12 4.2.2 LIMIT ................................................................................................................. 12 4.2.2 TEST EQUIPMENT ........................................................................................... 12 4.2.3 TEST SET-UP.................................................................................................... 12 4.2.4 TEST PROCEDURE.......................................................................................... 12 4.2.5 TEST RESULT................................................................................................... 13 4.3 QUANTITY OF HOPPING CHANNEL TEST........................................................ 16 4.3.1 LIMIT ....................................................................................................................16 4.3.2 TEST EQUIPMENT ........................................................................................... 16 4.3.3 TEST SET-UP.................................................................................................... 16 4.3.4 TEST PROCEDURE.......................................................................................... 16 4.3.5 EUT OPERATING CONDITION......................................................................... 16 4.3.6 TEST RESULT................................................................................................... 17 4.4 TIME OF OCCUPANCY (DWELL TIME)............................................................... 18 4.4.1 LIMIT ....................................................................................................................18 4.4.2 TEST EQUIPMENT ........................................................................................... 18 4.4.3 TEST SET-UP.................................................................................................... 18 4.4.4 TEST PROCEDURE.......................................................................................... 18 4.4.5 EUT OPERATING CONDITION......................................................................... 18 4.4.6 TEST RESULT................................................................................................... 19 4.5 PEAK POWER TEST ........................................................................................... 23 4.5.1 LIMIT ....................................................................................................................23 4.5.2 TEST EQUIPMENT ........................................................................................... 23 4.5.3 TEST SET-UP.................................................................................................... 24 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07031601 Report No.: FCCA07031601 FCCID: RSQ-BH300 Page:3 of 46 Date: Apr. 16, 2007 4.5.4 TEST PROCEDURE.......................................................................................... 24 4.5.5 EUT OPERATING CONDITION......................................................................... 24 4.5.6 TEST RESULT................................................................................................... 24 4.6 BAND EDGE TEST .............................................................................................. 28 4.6.1 LIMIT ....................................................................................................................28 4.6.2 TEST EQUIPMENT ........................................................................................... 28 4.6.3 TEST SET-UP.................................................................................................... 29 4.6.4 TEST PROCEDURE...............................…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07031601 Report No.: FCCA07031601 FCCID: RSQ-BH300 Page:44 of 46 Date: Apr. 16, 2007 6. PHOTOS OF TESTING - Radiated test (1G) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07031601 Report No.: FCCA07031601 FCCID: RSQ-BH300 Page:45 of 46 Date: Apr. 16, 2007 - Radiated test (2G)
