RTF-DDM6Radio remote control transceiver

Transmitter units: • T 3,5,7 move • BRICK move • PAIL move • GENESIS move Receiver units: • RUBYBOX move • ECOBOX move • DIN move USER MANUAL move SERIES RADIOCONTROLS E N User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 2 REM device ® - ITALY contents  Description ....................................... ............................................ 3 use  How to use the device correctly and safely ........ ......................... 4  Switching on, Activation, Use, Automatic shutdown . .................. 7  Layout and description of controls ................ .............................. 7 service functions  Electronic key (LOCK/UNLOCK) ...................... .............................. 8  TWIN auxiliary transmitter unit (FREE) ............ ............................ 9  CHANGING transmitter FREQUENCY .................... ..................... 10  Signalling the signal level received .............. .............................. 13  Wired control option .............................. ................................... 14 maintenance  Transmitter supply ................................ ..................................... 16  Recharging the induction accumulators ............. ....................... 17  GENESIS transmitter with removable battery ........ ................... 18  T transmitter: replacing the lithium battery ...... ........................ 19  Keeping the RC system in proper working order ..... .................. 21 technical specifications  Conformity ........................................ ......................................... 22  Serial Number ..................................... ....................................... 24  Technical specifications .......................... ................................... 25  Notes and Annexes ................................. ................................... 27  Warranty terms .................................... ...................................... 28 WARNING! The remote control is to be installed , and subsequently used , by suitably authorized and qualified personnel only; incorrect installation or use can result in serious injury or damage to pr operty. Before using the REMdevice move series radiocontrols, read carefully this instruction manual and comply with the instructions herein. User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 REM device ® - ITALY 3 DESCRIPTION The move radio control system consists of one or more trans mitter units: GENESIS move BRICK move PAIL move T 3,5,7 move and of one or more receiver units: RUBYBOX move ECOBOX move DIN move User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 4 REM device ® - ITALY How TO USE the DEVICE CORRECTLY and SAFELY The remote control has been designed strictly for use by qualified operators only, who are required to first read the instructions on how to use the device and comply with the safety standards prescribed by the law in the area where work is carried out. REMdevice shall not be liable for any bodily injury or damag e to property resulting from: • misuse or inexpert use of the device • incorrect wiring or electrical connections • tampering • changes to the radiocontrol's design features • replacement of parts with non-original spare parts • failure to perform maintenance • failure to replace worn, faulty or defective parts • the device being used with its intrinsic safety fea tures disabled or its original features altered in any way. Warning: This device works using radio signals; it can oper ate the machinery it is connected to even if barriers are b locking its line of sight, such as brick walls, metal or wooden panels, other machinery, equipment, buildings, vehicles; it is important operators exer cise the utmost care when activating the controls in order to avoid uncontrol led movements. Activating the radiocontrol • Stand with the transmitter unit so that there is a perfectly clear full line of sight between it and the machinery • do not linger under overhead loads • do not operate from an unstable position • take proper note of the control's identification pl ates located next to each button or actuator • do not press any button or actuator if you do not k now exactly what it does Transmitter units Transmitter units are made so as to comply with the control functions of the machine they control. The figures shown are gen eric. For your model, please refer to the datasheet attac hed to this manual. User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 REM device ® - ITALY 5 GENESIS move transmitter unit PAIL move transmitter unit –– GREEN LED (ON) RED LED (BATT) EMERGENCY STOP BUTTON START LEVER LED F1 LED F2 RED LED (BATT) GREEN LED (ON) START LEVER LED F2 LED F1 EMERGENCY STOP BUTTON Figure 1 – GENESIS Figure 1 – PAIL User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 6 REM device ® - ITALY BRICK move transmitter unit T move transmitter unit Figure 1 – BRICK Figure 1 – T START BUTTON RED LED (BATT) GREEN LED (ON) EMERGENCY STOP BUTTON LED F1 START BUTTON GREEN LED (ON) RED LED (BATT) EMERGENCY STOP BUTTON User Manual version 3.4 Move series radiocontrols mod. GENESIS, PAIL, BRICK and T Mar 2022 REM device ® - ITALY 7 Switching on, Activation, Use, Automatic shutdown Switching on If not otherwise stated in the datasheet, the mush room EMERGENCY STOP BUTTON is used to switch the transmitter on and off . To switch on, rotate and disconnect the mushroom EMERGENCY STOP BUTTON Check that the GREEN LED (ON) flashes (just once), indicating that the unit is switched on (see Figure 1, corresponding model). Activation Press the START BUTTON or activate the START LEVER or turn the key to START , depending on the model. The GREEN LED (ON) flashe s quickly to indicate that the unit has been activated. If, on the other hand, the transmitter …

Text truncated - open the document above for the full version.

=ri:lildevi-- Radio Control Equipment Date: 16/02/2023 DEKRA Testing and Certification, SAU. Parque Tecnol6gico de Andalucfa Cl Severo Ochoa 2 & 6 29590 Campanillas Malaga, Espana Certification designating a U.S. agent for service of process. As required by section 2.911 (d)(7), FCC ID: RTF-DDM6 We, REMdevice srl. via Alf redo Munari, 72 - 36055 Nave (VI) - ITALY, FRN: 0022365803; certify that: Packaging Solutions 4500 Shepard St. Suite A6 - Bakersfield, CA 93313-2327 Ms Andrea K Andrade [email protected] FRN: 0033925504 Is our designated U.S. agent for service of process and we acknowledge: our consent to accept service of process in the United States for matters related to the applicable equipment at the physical U.S. address and email address of the designated U.S. agent the acceptance to maintain an U.S. agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. A licant Sincerely, =ti:mdevice s.r.1. 36 � v M �1 7 �t,a1 ¥ _ J ., � / od. Fisc. , •1 19Q}VCJ03L' .C::::.V\V'-._.,_, By: Title: Company: Telephone: e-mail: Enrico Falconelli Technical Diretor REMdevice srl +39 0424 500 262 fnfo remdevice.com Desi nated U.S. A ent We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address 7!�� 1/nifav & By: Andrea K Andrade Title: President Company: Packaging Solutions Telephone: (661) 374-3700 e-mail: k machine att.net FCB046_00 //OEKRA Testing and Certification, S.A.U. // w ww. dekra-oroduct-safety.com/\vire less

DEKRA Testing and Certification S.r.l. Sede Operativa: Via della Fisica 20, 36016 Thiene (VI), Tel./Fax +39 0445 367702 - [email protected] DEKRA Testing and Certification S.r.l. Sede Legale: Via Fratelli Gracchi 27 Torre Sud, 20092 Cinisello Balsamo (MI) – ITALY Capitale Sociale 101.490,00 euro - C.F. e P.IVA: 02894270962 - CCIAA MI n. 2033243 To: DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Thiene, date 28.11.2022 Object: Notice of merger by incorporation of CMC Centro Misure Compatibilità S.r.l. (merged company), in DEKRA TESTING AND CERTIFICATION S.r.l. (incorporating company) Dear, We hereby inform you that the company CMC Centro Misure Compatibilità S.r.l. by notarial deed of the Notary Lucia Campanile, dated 27 September 2022, Repertory number 5487, Collection number 5203, registered at the Chamber of Commerce of Milan on that date, has been merged by incorporation into DEKRA TESTING AND CERTIFICATION S.r.l., Therefore, as of that date, DEKRA TESTING AND CERTIFICATION S.r.l., as the universal successor of the incorporated company, takes over all the active and passive relationships in the name of or entertained by the latter, assuming all rights and obligations arising therefrom. Sincerely, Best regards Franco Vasta Country Operations mgr

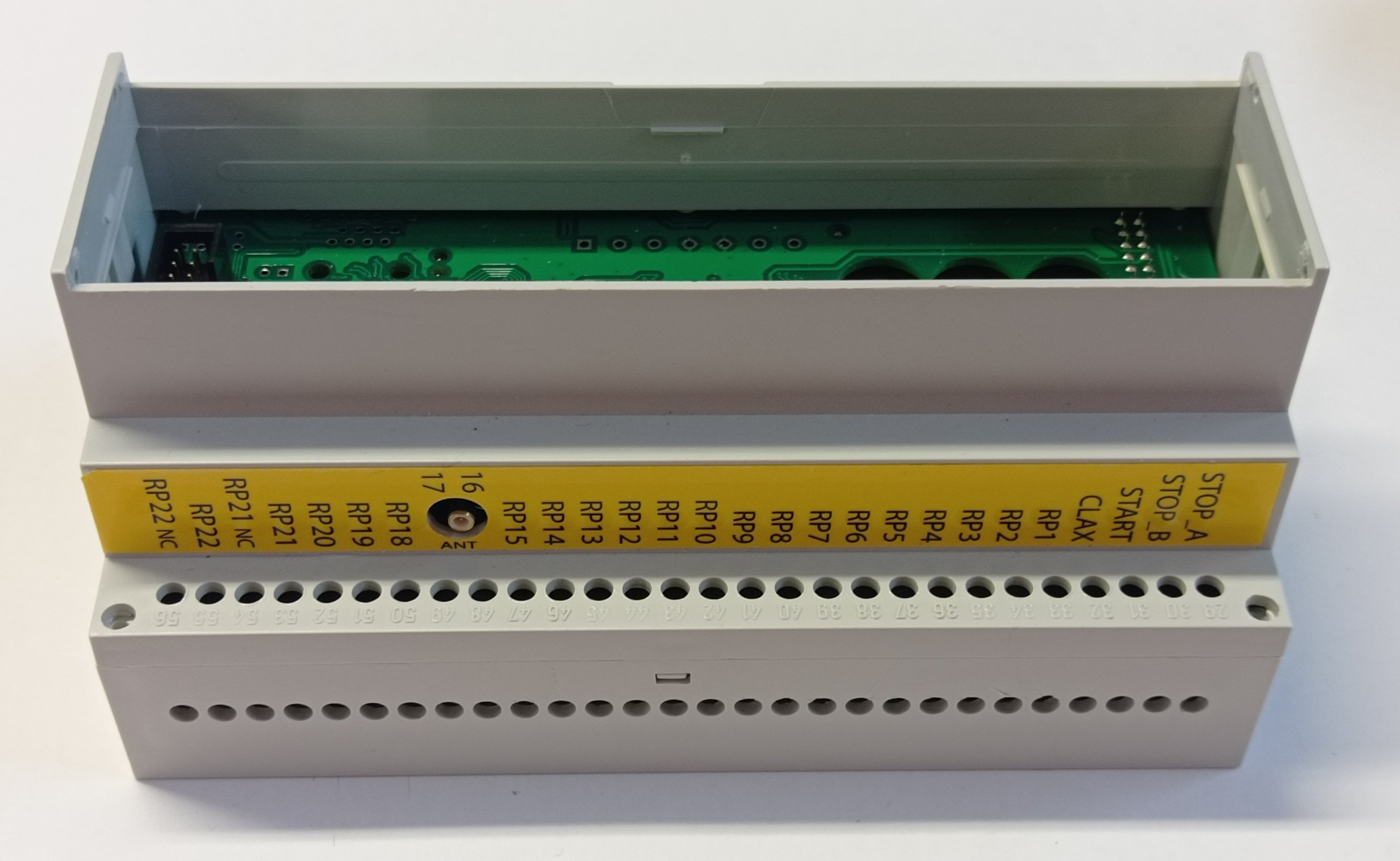

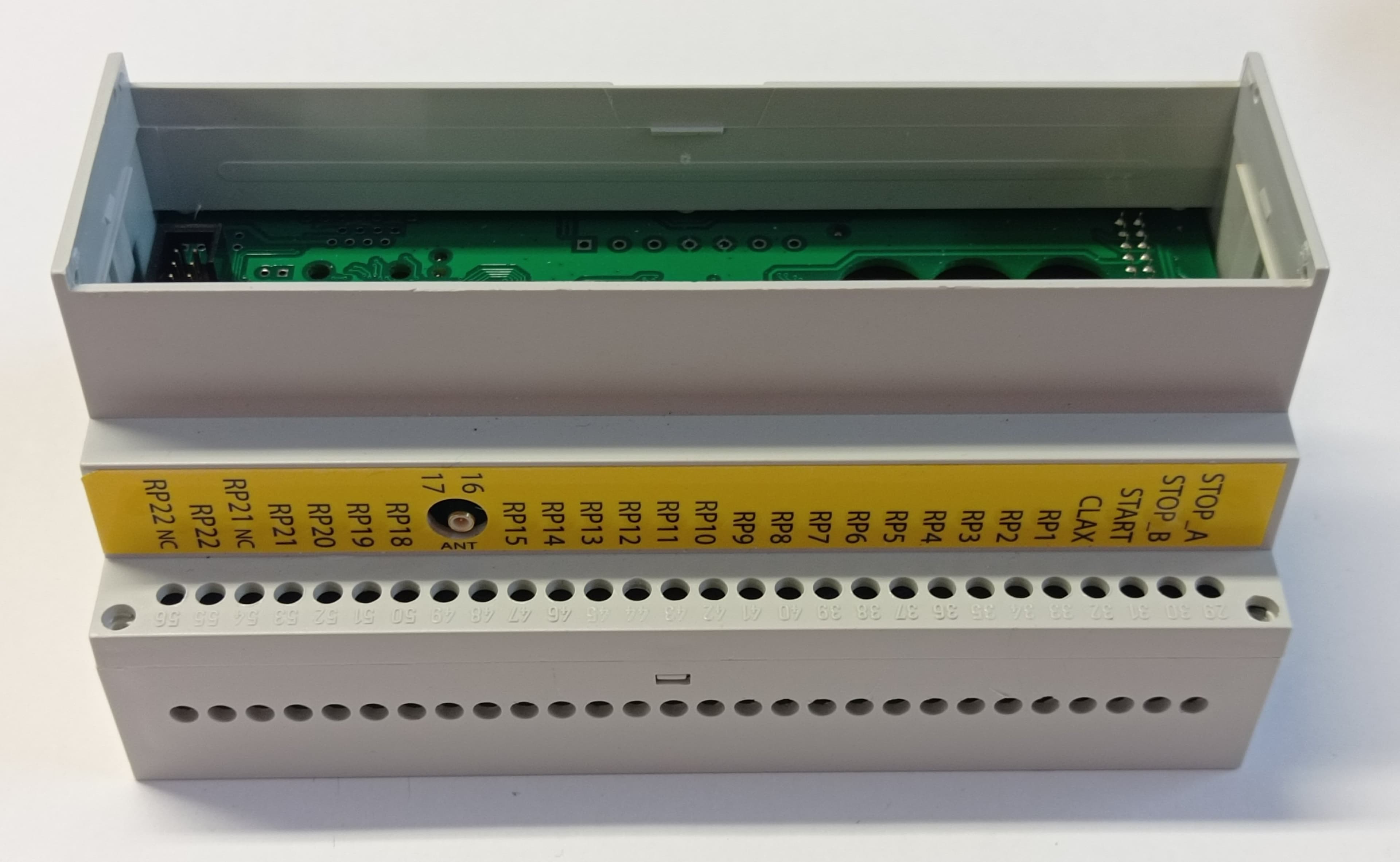

DDM6-External-Photos Page 1 of 6 EXTERNAL PHOTOS DDM6-External-Photos Page 2 of 6 DDM6-External-Photos Page 3 of 6 DDM6-External-Photos Page 4 of 6 DDM6-External-Photos Page 5 of 6 EXTERNAL ANTENNA DDM6-External-Photos Page 6 of 6

via Alfredo Munari n. 72 – 36055 Nove (VI) – ITALY DDM6 label position 60mm 35mm

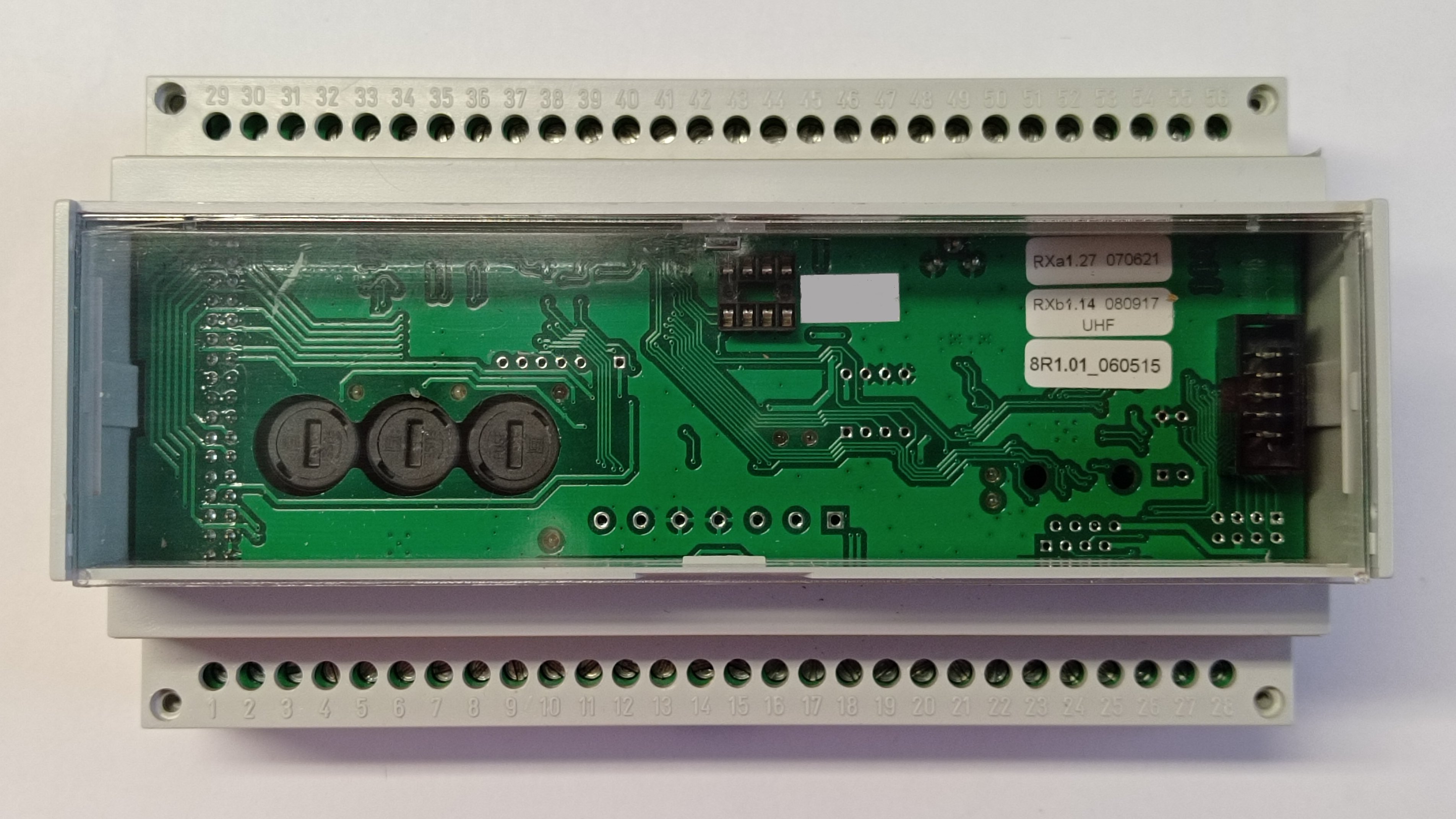

DDM6-Internal-Photos Page 1 of 7 INTERNAL PHOTOS DDM6-Internal-Photos Page 2 of 7 DDM6-Internal-Photos Page 3 of 7 DDM6-Internal-Photos Page 4 of 7 DDM6-Internal-Photos Page 5 of 7 DDM6-Internal-Photos Page 6 of 7 EXTERNAL ANTENNA DDM6-Internal-Photos Page 7 of 7

CMC Centro Misure Compatibilità S.r.l. Via della Fisica 20, 36016 Thiene (VI), Tel./Fax +39 0445 367702 - www.cmclab.it - [email protected] Independent Testing Laboratory TRF No. 15-247_HoppingCMC Page 1 of 15 Test Report No. R22144901 rev.1.0 TEST REPORT Nr. R22144901 Federal Communication Commission (FCC) Report Reference No. ............... : R22144901 Date of issue: .............................. : 12.07.2022 Total number pages: ................... : 15 Customer name ......................... : REMdevice S.r.l. Address ....................................... : Via Munari, 72 – 36055 Nove (VI) – Italy Test specification: Standards ................................... : KDB 447498 D01 General RF Exposure Guidance v06 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-247_HoppingCMC Test Report Form(s) Originator .. : CMC Centro Misure Compatibilità S.r.l. Master TRF ................................. : 2022-06 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of CMC Centro Misure Compatibilità S.r.l. (*) Test item description ........... : Radio remote control transceiver (*) Trademark .............................. : REMdevice (*) Manufacturer .......................... : REMdevice S.r.l. (*) Model / Type reference .......... : DDM6 (*) FCC ID ................................... : RTF-DDM6 (*) Rating(s) ................................ : 24-120 V ~ 60 Hz single-phase Report Tested by (name + signature) ..... : M. Segalla .............................................................. Approved by (name + signature) .................................... : F. Marenda .............................................................. (*) information provided by the customer TRF No. 15-247_HoppingCMC Page 2 of 15 Test Report No. R22144901 rev.1.0 1 Summary 1 Summary ........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of tested item and testing condition(s) ............................................................. 5 6.1 Photos of the test item ................................................................................................................. 6 7 Verdict summary section .................................................................................................................. 8 8 Test conditions ................................................................................................................................10 8.1 General ......................................................................................................................................10 9 Test results .....................................................................................................................................11 9.1 RF Exposure Analysis ...............................................................................................................11 TRF No. 15-247_HoppingCMC Page 3 of 15 Test Report No. R22144901 rev.1.0 2 Reference standard KDB 447498 D01 General RF Exposure Guidance v06 RF exposure procedures and equipment authorization policies for mobile and portable devices 3 List of attachments Attachment 1: Instruments list, measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 12.07.2022 -- TRF No. 15-247_HoppingCMC Page 4 of 15 Test Report No. R22144901 rev.1.0 Testing and sampling: Date of receipt of test item ....................................................... : 29.06.2022 Testing start date ..................................................................... : 12.07.2022 Testing end date ...................................................................... : 12.07.2022 Sampling procedure ................................................................. : Equipment used for testing was picked up by the customer Internal identification ................................................................ : Adhesive label with the product number P220689 General remarks: This report shall not be reproduced, except in full, without the written approval of CMC. The test results presented in this report relate only to the object tested. “(see appended table)": refers to a table appended to the report. Throughout this report a comma is used as the decimal separator. Possible test case verdicts: Test case does not apply to the test object: N/A (Not Applicable) Test object does meet the requirement: P (Pass) Test object does not meet the requirement: F (Fail) Test object does not performed: N/E (Not Executed) Definition of symbols used in this test report: ☒ Indicates that the listed condition, standard or equipment is applicable for this report. ☐ Indicates that the listed condition, standard or equipment is not applicable for this report. TRF No. 15-247_HoppingCMC Page 5 of 15 Test Report No. R22144901 rev.1.0 6 General description of tested item and testing condition(s) Description ................................. : Radio remote control transceiver Model Numbe…

Text truncated - open the document above for the full version.

CMC Centro Misure Compatibilità S.r.l. Via della Fisica 20, 36016 Thiene (VI), Tel./Fax +39 0445 367702 - www.cmclab.it - [email protected] Accredited by ACCREDIA according to UNI CEI EN ISO/IEC 17025 accreditation n. 0168 L Independent Testing Laboratory TRF No. 15-247_DTSCMC Page 1 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TEST REPORT Nr. R22136301 Federal Communication Commission (FCC) Report Reference No. ............... : R22136301 Date of issue: .............................. : 12.07.2022 Total number pages: ................... : 56 Customer name ......................... : REMdevice S.r.l. Address ....................................... : Via Munari, 72 – 36055 Nove (VI) – Italy Test specification: Standards .................................... : FCC Rules & Regulations, Title 47:2020 Part 15 paragraph(s): 203, 204, 205, 207, 209, 215 and 247 Non-standard test method .......... : N/A Test Report Form No. ............... : 15-247_DTSCMC Test Report Form(s) Originator ... : CMC Centro Misure Compatibilità S.r.l. Master TRF ................................. : 2022-06 General disclaimer: The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of CMC Centro Misure Compatibilità S.r.l. (*) Test item description ........... : Radio remote control transceiver (*) Trademark .............................. : REMdevice (*) Manufacturer .......................... : REMdevice S.r.l. (*) Model / Type reference .......... : DDM6 (*) FCC ID ................................... : RTF-DDM6 (*) Rating(s) ................................. : 24-120 V ~ 60 Hz single-phase Report Tested by (name + signature) ..... : M. Segalla ............................................................. Approved by (name + signature) .................................... : F. Marenda ............................................................. (*) information provided by the customer TRF No. 15-247_DTSCMC Page 2 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 1 Summary 1 Summary........................................................................................................................................... 2 2 Reference standard .......................................................................................................................... 3 3 List of attachments ............................................................................................................................ 3 4 Deviation(s) from test specification ................................................................................................... 3 5 Testing location ................................................................................................................................. 3 6 General description of tested item and testing condition(s) ............................................................. 5 6.1 Photos of the test item ................................................................................................................. 6 7 Verdict summary section .................................................................................................................. 8 8 Test conditions ................................................................................................................................ 10 8.1 General ...................................................................................................................................... 10 9 Test results ..................................................................................................................................... 11 9.1 Antenna requirements ............................................................................................................... 11 9.2 Conducted emission .................................................................................................................. 12 9.3 Emissions in restricted frequency bands and in unrestricted frequency bands ........................ 18 9.4 DTS bandwidth .......................................................................................................................... 38 9.5 20 dB bandwidth ........................................................................................................................ 41 9.6 Band edge ................................................................................................................................. 44 9.7 Fundamental emission output power ........................................................................................ 47 9.8 Maximum power spectral density level in the fundamental emission........................................ 50 TRF No. 15-247_DTSCMC Page 3 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 2 Reference standard FCC Rules and Regulation Title 47 part 15:2020 -- 3 List of attachments Attachment 1: Instruments list, measurement uncertainty, judgement of compliance and quality manual references 4 Deviation(s) from test specification None 5 Testing location CMC Centro Misure Compatibilità S.r.l. Via della Fisica, 20 – 36016 Thiene (VI) – Italy Test site facility’s FCC registration number: 182474 Revision index Date Change history 1.0 12.07.2022 -- TRF No. 15-247_DTSCMC Page 4 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L Testing and sampling: Date of receipt of test item .......................................... : 29.06.2022 Testing start date ........................................................ : 29.06.2022 Testing end date ......................................................... : 11.07.2022 Sampling procedure .................................................... : Equipment used for testing was picked up by the customer Internal identification ................................................... : Adhesive label with the product number P220689 General remarks: This report shall not be reproduced, except in full, without…

Text truncated - open the document above for the full version.

TRF No. 15-247_DTSCMC Page 29 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 30 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 31 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 32 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 33 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 34 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 35 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 36 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 37 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 38 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 9.4 DTS bandwidth Tested by .................................... : M. Segalla Test date ..................................... : 01.07.2022 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part 15.247 (a) (2) ANSI C63.10 cl. 11.8 KDB 558074 D01 DTS Meas Guidance v05r02 cl. 8.2 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Acceptance limits Systems using digital modulation techniques may operate in the 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Description 2 CMC S295 Rohde & Schwarz FSW43 Spectrum Analyzer 43GHz 1 -- -- -- Cable + attenuator (calibrated before the test) Result Transmission channel (MHz) Graphs 6 dB bandwidth (kHz) Minimum 6 dB bandwidth allowed (kHz) Verdict 902,50 G22136316 573,50 500 P 915,00 G22136322 567,50 500 P 927,50 G22136327 565,50 500 P TRF No. 15-247_DTSCMC Page 39 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L Graphs TRF No. 15-247_DTSCMC Page 40 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 41 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 9.5 20 dB bandwidth Tested by .................................... : M. Segalla Test date ..................................... : 01.07.2022 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part. 15.215 (c) ANSI C63.10 cl. 7.8.7 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Acceptance limits Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§ 15.217 through 15.257 and in subpart E of this part, must be designed to ensure that the 20 dB bandwidth of the emission, or whatever bandwidth may otherwise be specified in the specific rule section under which the equipment operates, is contained within the frequency band designated in the rule section under which the equipment is operated Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Description 2 CMC S295 Rohde & Schwarz FSW43 Spectrum Analyzer 43GHz 1 -- -- -- Cable + attenuator (calibrated before the test) Result Transmission channel (MHz) Graphs 20 dB bandwidth (kHz) Verdict 902,50 G22136318 547,50 P 915,00 G22136324 543,50 P 927,50 G22136329 537,50 P TRF No. 15-247_DTSCMC Page 42 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L Graphs TRF No. 15-247_DTSCMC Page 43 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L TRF No. 15-247_DTSCMC Page 44 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 9.6 Band edge Tested by .................................... : M. Segalla Test date ..................................... : 01.07.2022 Test location (stand) ................... : Laboratory Reference standards ................... : FCC Rules and Regulation; Titles 47 Part 15.205, 15.209, 15.247 (d) ANSI C63.10 cl. 11.11.1 and 11.12.1 KDB 558074 D01 DTS Meas Guidance v05r02 cl. 8.7 Supplementary test set-up description ................................... : -- Supplementary information ......... : -- Acceptance limits In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in § 15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in § 15.209(a) (see § 15.205(c)). Operation within the band 902 – 928 MHz Test setup Test setup PR002_01 Nr. Id. Number Manufacturer Model Description 2 CMC S295 Rohde & Schwarz FSW43 Spectrum Analyzer 43GHz 1 -- -- -- Cable + attenuator (calibrated before the test) TRF No. 15-247_DTSCMC Page 45 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L Result Transmission channel (MHz) Bandwidth Graph(s) Results Verdict 902,50 100 kHz G22136319 F L = 902,0750 MHz P 927,50 100 kHz G22136330 F H = 927,9221 MHz P TRF No. 15-247_DTSCMC Page 46 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L Graphs TRF No. 15-247_DTSCMC Page 47 of 56 Test Report No. R22136301 rev.1.0 LAB N° 0168 L 9.7 Fundamental emission output power Tested by .................................... : M. Segalla Test date ..................................... : 01.0…

Text truncated - open the document above for the full version.

Page 1 of 2 Proprietary UHF band Antenna FCC ID: RTF-DDM6 IC: 11555A-DDM6 Brief description of the antenna This antenna operates in the 902-928 MHz frequency spectrum. Other antenna brands are not compatible with the product and will not work. Only the REMdevice proprietary antenna is allowed. RF Exposure: fixed installation device the distance of use is not relevant as the operator with the transmitter (mobile device) is at least a few meters away from the receiver (this fixed device) furthermore the radiated power in the case of operating mode as a radio transceiver is very low. Model: UHF band antenna ANTENNA TECHNICAL SPECIFICATIONS Working frequency: 902-928 MHz Antenna Gain = 2,5 dBi Housing protection rating: IP 65, material: PA6 FV Dimensions: 128 × 72 × 50 mm (W×H×D) Weight: 140 g EXTERNAL proprietary ANTENNA label CABLE to the DIN move receiver Page 2 of 2 The comparison between the value of the radiated power measured in an anechoic chamber and the value of the radiated power analytically calculated starting from the measured conducted power confirms the antenna gain calculated 2.36 instead of the nominal 2.5 declared above in the antenna specifications. E = (√(30xPxG))/d E [dBuV/m] calculated E [V/m] P [W] G numerico d [m] 102,23 0,129271 0,0029107 1,7223 3 E [dBuV/m] measured P [dBm] G [dBi] 102,23 4,64 2,36 Vertical polarization 0 ,, ., 342 346 34g 35335 � 60 331 33? °° 328 ·1,0 324 31 � 20 ·2,0 313 310 ·3,0 306 302 299 295 292 288 284 281 277 274 270 266 263 259 256 252 248 245 241 238 234 230 227 223 220 216 212 209 4 7 l 1 14 18 22 25 29 32 36 40 43 47 50 54 58 61 65 68 72 76 79 83 86 90 94 97 101 104 108 112 115 119 122 126 130 133 1 37 140 144 148 15 5 1 51 205 202 ! 9 8i9 4i9 1 187 184 162 158" 180 176 173 159 166
