RTF-TX2G4T7Remote Control

REMdevice s.r.l.
Remote Control - FCC ID RTF-TX2G4T7 - REMdevice s.r.l.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Mar 10, 2014
Application Purpose
Original Equipment
Date of Application
Mar 10, 2014
Equipment Note
Remote Control
Frequency Range
2410.75000000 - 2478.75000000
Company
REMdevice s.r.l.
Country
Italy

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

t3 t5 t7 REMdevice Radio Control Equipment Via Andrea Mantegna, 12/1436061 Bassano del Grappa (VI)Italy REMdevice S.r.l. Tel. +39 0424 500 262Fax +39 0424 508 631www.remdevice.comE-mail: [email protected] REMsys CODE NEW!   INSTRUCTION MANUAL RADIO CONTROL DEVICES @ 2G4 REMdevice S.r.l. Via Alfredo Munari, 72 36055 Nove (VI) ITALY Tel. +39 0424 500 262 Fax +39 0424 508 631 www.remdevice.com E-Mail: [email protected] Instruction Manual Radio control devices T3, T5 and T7 @ 2G4 version 1.3 January 14 page 2 of 28 REM device ® - ITALY SUMMARY • Instructions for correct and safe use of the radio control device ............................................. ................................4 • Installation of the radio control device .......... ....................8 • Arrangement and description of controls ........... .............10 • Inspection of the radio control device............. .................15 • Keeping the radio control device in good working or der ..16 • Changing the battery ............................... ......................17 • Changing the transmitter........................... .....................18 • Programming the radio control device .............. ..............19 • Conformity ......................................... ...........................20 • Diagnostics........................................ ............................23 • Operating principle ............................... .........................24 • Identification of the fuses ....................... .......................26 • Technical Characteristics ......................... ......................27 • Guarantee conditions .............................. ......................28 ATTENTION! Before installing and/or using the radio control de vice, CAREFULLY READ this instructions manual and follow the advice it contains. Use of the radio control de vice by non qualified personnel and/or incorrect installation may cause severe harm to persons and things. Instruction Manual Radio control devices T3, T5 and T7 @ 2G4 version 1.3 January 14 REM device ® - ITALY page 3 of 28 General Information The remote control of the T7 2G4 series is designed to meet specific user requirements, first among them the ability to work on lifting machines, such as cranes, defining the operational area. For this function Remdevice filed Utility Patent . The use of radio frequencies in the 2.4 GHz band wi th high directivity and the special panel antenna, appropriately instal led in the overhead crane above the work area, allows to limit the operating distance where the operator can move safely and pre venting, therefore, its use over this distance. This system, besides the advantage of ensuring that the operator is located in the immediate vicinity of the machine fo r its use, has the additional advantage of being immune to interferenc e from other transmitters installed on machines in the vicinity, avoiding the very common problems in industrials sites where the ins taller has increasing difficulty in arrange the coexistence of the many existing radio equipment. Working Area Not Working Area antenna model Rx2G4 receiving direction white plastic cover metal plate IMPORTANT the antenna model Rx2G4 it’s a directional antenna • it must be positioned oriented to the operator (Working Area) • avoid metal objects between the Rx2G4 antenna and the operator (Working Area) Instruction Manual Radio control devices T3, T5 and T7 @ 2G4 version 1.3 January 14 page 4 of 28 REM device ® - ITALY INSTRUCTIONS FOR CORRECT AND SAFE USE OF THE RADIO CONTROL DEVICE The use of the radio control device is reserved to expert operators who have read the instructions on the conditions of use of the radio controlled machine and who respect the safety regul ations imposed by law in the work area. The manufacturer of the radio control device does n ot answer for damage to persons or things caused by: • clumsy and improper use of the radio control device ; • incorrect wiring or electrical connection; • tampering; • modification of the structural characteristics of t he radio control device; • replacement of parts with non original spare parts; • lack of maintenance; • failure to replace worn, broken or faulty parts; • use of the radio control device bypassing its intri nsic safety or in any way altering its original functionality. The radio control device operates with radio signal s, it is able to operate the machine to which it is connected even i n the presence of barriers that prevent visibility, such as: masonry walls, metal or wooden panels, machines, equipment, buildings, vehi cles, etc. Use of the radio control device • Place the transmitter in conditions of perfect and complete visibility of the radio-controlled machine; • do not stand under hanging weights; • do not operate in a position of unsafe equilibrium; • pay attention to the identification symbols of the control device located next to each button; • avoid pressing the buttons if you do not know exact ly what their function is. Instruction Manual Radio control devices T3, T5 and T7 @ 2G4 version 1.3 January 14 REM device ® - ITALY page 5 of 28 Transmitter T3 - Transmitter T5 Transmitter T7 GREEN LED (ON) RED LED BATTERY STOP/EMERGENCY BUTTON START BUTTON GREEN LED AUX FUNCTION AUX BUTTON Figure 1 CONTROL BUTTONS CONTROL BUTTONS Instruction Manual Radio control devices T3, T5 and T7 @ 2G4 version 1.3 January 14 page 6 of 28 REM device ® - ITALY Activation 1- Turn and release the Stop/Emergency button (Figu re 1): power is supplied to the transmitter. 2- Press the START button. Activation is indicated by the blinking of the green led (ON) at intervals of about 1 second. If the transmitter gives a Beep accompanied by the lighting of the red led, check to make sure that other buttons have not been pressed. If the receiver is ready too, you should hear the sound of the obli gatory acoustic warning installed on the operating machine. Use of the radio control device Press the control button…

Text truncated - open the document above for the full version.

Cover Letter(s)

via Alfredo Munari n. 72 – 36055 Nove (VI) – ITALY TEL +39 0424 500 262 – FAX +39 0424 508 631 C.F. / P.I. IT01907770034 www.remdevice.com – E-Mail: [email protected] Nove, 14/01/2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. REMdevice Srl would like the following documents regarding this submission for FCC ID: RTF-TX2G4T7 to be kept confidential. 1. Block Diagram – “TX2G4T7-Block-Diagram.pdf” 2. Operational Description – “TX2G4T7-Operational-Description.pdf” 3. Schematics – “TX2G4T7-Schematics.pdf” The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Ing. Enrico Falconelli Product Development Manager

External Photos

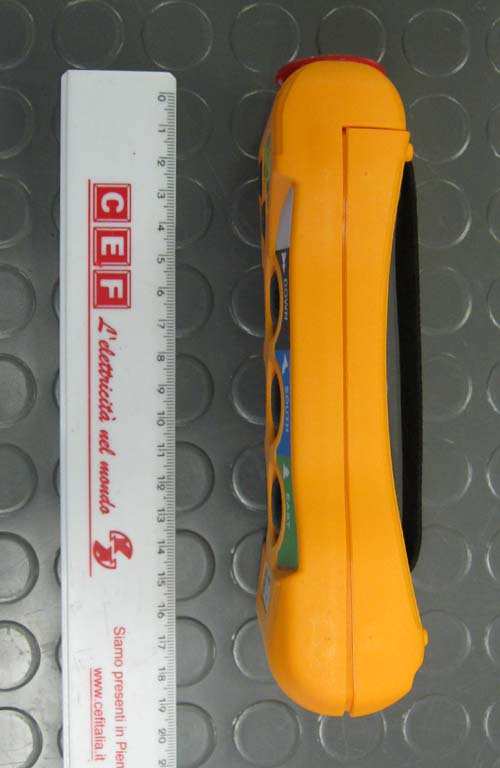

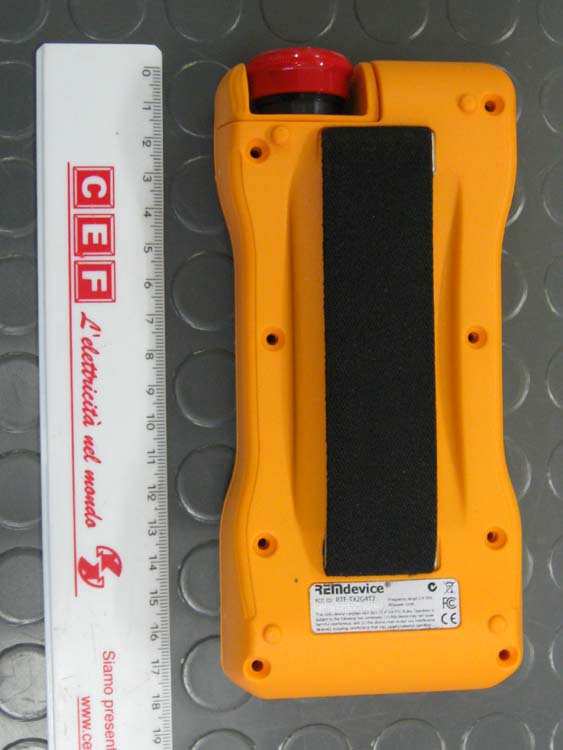

TX2G4T7-External-Photos Page 1 of 3 EXTERNAL PHOTOS TX2G4T7-External-Photos Page 2 of 3 TX2G4T7-External-Photos Page 3 of 3
