RTMSV-03-CAM2400-24183.5MHz WIRELESS CAMERA-TX

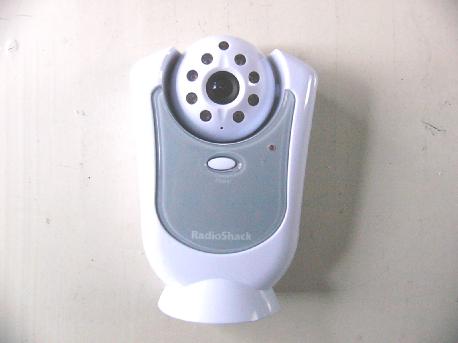

ACCESSORY 2.4 GHz 4 CHANNEL COLOR WIRELESS CAMERA SYSTEM QUICK SET UP GUIDE •Wireless Color Camera •Power Adapter •Metal Mounting Bracket and Screws 1. UNPACK SYSTEM CONTENTS FROM THE GIFTBOX 2. CAMERA CONTROLS & FUNCTIONS 1. Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling joist and secure bracket using the three supplied screws. 2. Attach the camera to the stand and firmly tighten the swivel.. 3. Attach the camera with the stand to the stand base and firmlytighten the joint knob on the stand base. 4. Connect the supplied 9V 300mA DC adapter to the DC IN jack atthe rear of the camera and plug it into the electrical outlet. Your wireless camera has both AC or battery option. When using the AC option with rechargeable batteries, your camera will automatically switch to back up battery feature during a power outage providing you with uninterrupted power to the camera. The battery option also provides you the flexibility to move thecamera from room to room. WIRELESS CAMERA -AC OPTION ONLY 1. Ensure the power switch on the camera is turned OFF. 2. Connect one end of the power supply to the DC IN jack locatedat the back of the camera. Plug the other end into an electrical outlet WIRELESS CAMERA -USING RECHARGEABLE BATTERIES 1. Insert 8 rechargeable ‘AA’batteries (not included) into the camera battery compartment. WARNING: TO PREVENT INJURY AND/OR DAMAGE TO THE UNIT, ENSURE THE BATTERIES ARE ALIGNED PROPERLY AND BATTERY TYPES ARE NOT MIXED. 2. Ensure the slide switch labeled Recharge/Alkaline is set to the ‘Rechargeable’setting. 3. Carefully slide the batter compartment into the camera 4. Ensure the power switch on the camera is turned OFF. 5. Connect one end of the power supply to the DC IN Jack locatedat the back of the camera. Plug the other end into an electrical outlet. BATTERY COMPARTMENT POWER ADAPTER WIRELESS COLOR CAMERA SLIDE IN 1. LENS 2. MICROPHONE Built-in condenser microphone provides audio capability from camera to monitor television 3. 2.4 GHz ANTENNA High gain directional dipole antenna sends Audio and Video signals to the monitor. 5. STAND MOUNTING SOCKET Reinforcement lock for camera stand. 6. CHANNEL SELECTOR SWITCH Slide switch for the channel 1-4 selection. 7. ON/OFF POWER SWITCH Controls power to the camera. Note: Please ensure you set the switch to the OFF position before plugging the AC adapter into the unit. 8. DC IN JACK Plug the 9V(300mA) AC Adapter in here. WIRELESS CAMERA –BATTERY OPTION 3. WIRELESS CAMERA –INSTALLATION FCC NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Image sensor Lens Picture element Scanning system Battery Life (assume 1300mAH) Current Consumption Scanning frequency Sync. system Resolution Min. illuminations Video Output Gamma characteristics Auto Iris Microphone Transmitting frequency Modulation RF out level Video Input level Audio input level Antenna Oper. temperature Power source Dimensions Weight Color CMOS F2.0/f 3.7mm, 92wide-angle lens 510 x 492 (Color) 2:1 interlace 3 Hours (Color) 300mA typ. (color) 15.734 KHz(H) 59.9Hz(V) ,EIA Internal Synchronization 380 Lines (Color) 2Lux(Color) 1.0Vp-p/75 Ohm r=0.45 Electrical Auto Iris Shutter sensitivity :1/60-1/100,000 Condenser 2.4 GHz-2.4835 GHz FM 90dBu/V, 3m 1.0Vp-p/75 Ohm 2.0Vp-p/600 Ohm Directional high dipole antenna -14ºto + 122ºF or (-10ºC to + 50 ºC) DC12V 500mA DC Adapter 7.3 (W) x4.7 (H) x 11(D) cm or 2.8’(W) x 1.85’(H) x 4.3’(D) 118 grams or 3.79 Oz ACCESSORY 2.4 GHz 4 CHANNEL COLOR WIRELESS CAMERA SYSTEM QUICK SET UP GUIDE Because our product is subject to continuous improvement, SVC reserves the right to modify product designs and specifications without notice and without incurring any obligation. E&OE 4. WIRELESS CAMERA -SPECIFICATIONS

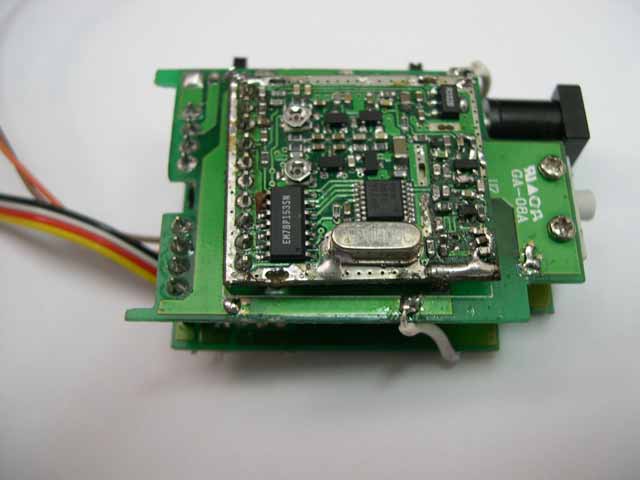

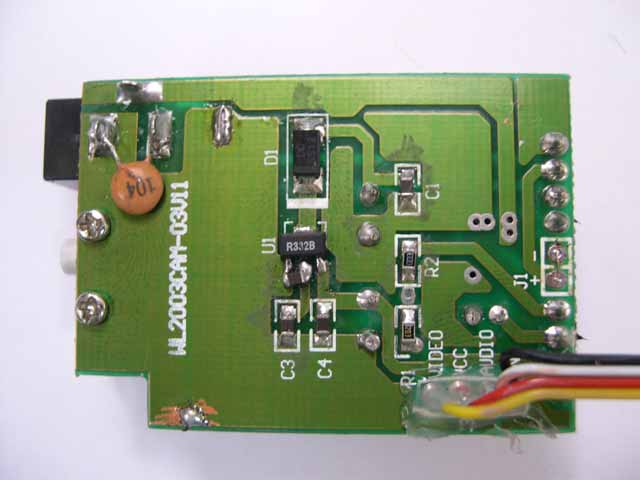

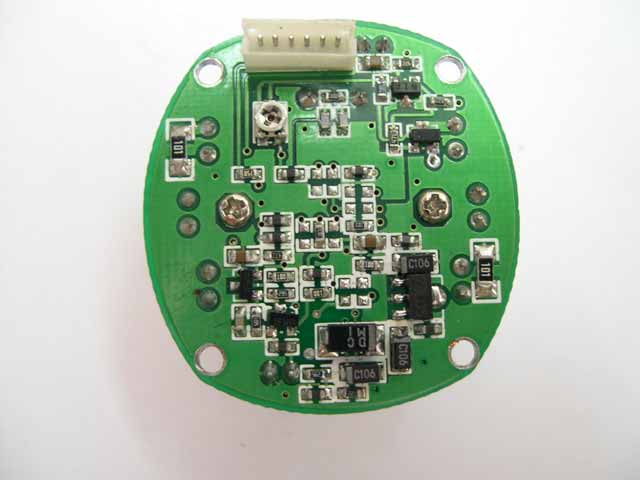

Antenna 2.4GHz RF TRANSMITTER MODULE IC1 PLL frequency synthesizer controller Vcc Q6, Q7RF Mixer, amp U1 Color CMOS sensorCAM MODULE Q1, Q2 Q3, Q4 IC2 MCU controller Audio out Video out VIDEO path 6 Mhz Audio sub- 6.5 Mhz Audio sub- carrier carrier VA1A2 CH1CH2CH3CH4Channel selecto r CONTROL BOARD AC/DC IN U1 REGULATOR * Optional 2.4GHz SV-03-CAM Wireless Camera

FCC ID Label for MODEL: SV-03-CAM SV-03-CAM 2.4GHz Wireless B/W Camera FCC ID: RTMSV-03-CAM IC: XXXXXXXX THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. CANADA 210 MADE IN CHINA

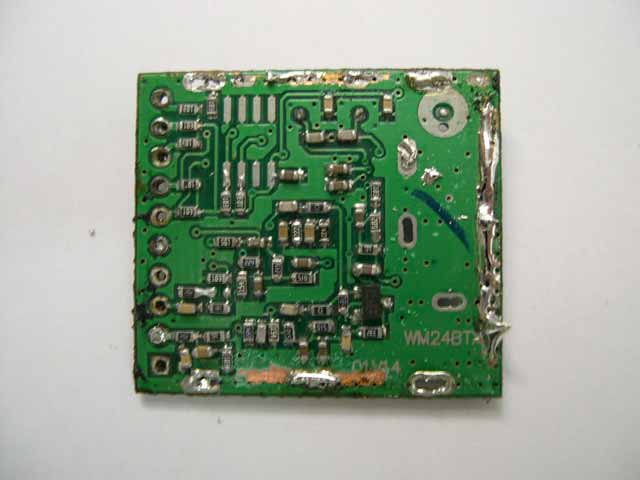

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 20-Jul-2004 Sheet of File: G:\module\small-m\Fcc\WM24Tv14Fcc.DDBDrawn By: C1102 C2 2200P C72200P C43 3.3uF R1 2K Q1LG R2 100K R3 10K R4 2K +3.3V R36 75R C42 47P R37 10K R6150K C3104 DV1 MA2S0400L C26 1P2 C12 2P R11 47K R12 1K2 Q2LG R10 51R C9220P C10 104 C6104 R28 1K R39 10K R32 6K8 R33 10K C33 10uF L21.8nH L1 22nH C35 0.5P Q6N43 R29 20K R30 10R C27 10P R31 100K C30 10P C32 104 R15 0R R48 0R R93K3 R75K1 R8 560R R5220K C4104 CY1 8MH C13 2P C8 150P R38 680R Audio-L Video C15 102 C16 2200P C20 2200P R16 2K Q3LG R17 100K R18 10K R19 2K +3.3V R21 150K C17 104 R26 47K R27 1K2 Q4LG R25 51R C23 220P C24 104 C21 104 R24 3K3 R22 5K1 R23 560R R20 220K C18 104 C22 150P Audio-R +3.3V OSCin 1 OSCout 2 Vp 3 Vcc 4 DO 5 GND 6 Xfin 7 fin 8 OR 16 OP 15 LD/fout 14 ZC 13 PS 12 LE 11 DATA 10 CLK 9 IC1E07SL C44 15P C45 47P C34 6P2 C47 104 C46 104 P50 1 P67 2 P66 3 Vdd 4 P65/os1 5 P64/os0 6 P63/rst 7 P51 14 P52 13 P53 12 Vss 11 P60/int 10 P61 9 P62/tcc 8 IC2EM78P153 +3.3V +3.3V +3.3V R41 10K R42 10K R43 10K C49 104 CH1(LED1)CH2(LED2)CH3(LED3)CH4(LED4) SW Q5LG R13 3K3 R14 180K C11 104 C14 4P C25 104 C19 56P C556P C31 6P2 R40 10K C40 6P2 C38 6P2 C28 1P2 AN1 C29 1P2 C39 0.75P L3 +3.3V Q7P5 L4 R35 150R R34 3K3 R47 10K R44 10K VR1 2K VR2 2K C35A 6P2 PIN 1 PIN 2 PIN 3 C50 104 +3.3V C51 105 C52 104 C53 103 R49 0R C55 104 C56 102 C57 102 C58 104 C59 102 R49 47R L50.5P C35 10nH C36 10nH Vin 1 GND 2 Vout 3 U2ML6232 C52 105 C59 104 C60 103 C61 102 C41 103 C53 104 C54 105 +5V +3.3V 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 20-Jul-2004 Sheet of File: P:\PROJECT\2.4G series\WM24BRX\Approval Info\FCC June 10\FCC\WL2003CAM\WL2003CAM.DDB Drawn By: C4 104 R2 0R R1 20K C6 100UF/16V R AUDIO L AUDIO ANT1 in VIDEO 2.4G TRANSMITTER SW1 ON/OFF C5220UF/16V C3104 C2470UF/16V 12 J1 C1104 to camera 1234 J3 VIDEO +6V AUDIO GND +3.3V SV-03-CAM 12 3 45 6 789 10 SW2 6V Battery sw 11 CH1 CH2 CH3 CH4 GND 1 Vout 3 Vin 2 U1 R332B D1 IN5817 DC 9V J2DCJACK

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408002 COVER SHEET Test Report Product Name: 2400-2483.5 MHz Wireless Camera - TX FCC ID: RTMSV-03-CAM Applicant: STRATEGIC VISTA TECHNOLOGIES INC. 300 Alden Road, Markham Ontario, L3R 4C1 Canada Date Receipt: 07/14/2004 Date Tested: 07/30/2004 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408002 COVER SHEET TABLE OF CONTENTS APPLICANT: Strategic Vista Technologies Inc. FCC ID: RTMSV-03-CAM TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE CONTD. PAGE 3-5.........RADIATION INTERFERENCE TEST DATA PAGE 6...........OCCUPIED BANDWIDTH PAGE 7-8.........OCCUPIED BANDWIDTH PLOTS PAGE 9...........POWERLINE CONDUCTED PAGE 10-11.......POWERLINE CONDUCTED PLOTS EXHIBIT ATTACHMENTS: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3.........BLOCK DIAGRAM EXHIBIT 4A..................SCHEMATIC EXHIBIT 5.........INSTRUCTION MANUAL EXHIBIT 6.........FRONT VIEW EXTERNAL PHOTO EXHIBIT 7.........REAR VIEW EXTERNAL PHOTO EXHIBIT 8.........COMPONENT SIDE INTERNAL PHOTOS EXHIBIT 9.........COPPER SIDE INTERNAL PHOTOS THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408002 1 of 11 TEST EQUIPMENT LIST DEVICE MODEL MFGR SERNO DUE.CAL EMI Test Receiver ESVS 10 Rohde & Schwarz 830489/001 2005.04.07. Spectrum Analyzer 8566B Hewlett Packard 2311A02394 2005.04.07. Spectrum Display 85662A Hewlett Packard 2542A12429 2005.04.07. Quasi-Peak Adapter 85650A Hewlett Packard 2521A00887 2005.04.07. RF Preselector 85685A Hewlett Packard 2648A00504 2005.04.07. Pre-Amplifier 8449B Hewlett Packard 3008A00375 2005.04.07. Pre-Amplifier 8447F Hewlett Packard 3113A05367 2005.04.07. Spectrum Monitor EZM Rohde & Schwarz 862304/007 2005.04.07. Bico-Antenna 94455-1 Eaton 977 2005.03.17. Log-Periodic Antenna 3146 EMCO 2051 2005.03.17. Dipole Antenna TDA25/1/2 Electro Metrics 176/200/200 2005.03.17. Horn Antenna SAS-571 A.H Systems 414 2005.03.17. Spectrum Analyzer R3261C Advantest 71720189 2005.04.07. LISN KNW-242 Kyoritsu 8-923-2 2004.07.17. LISN 8012-50-R- 24 Solar 8379121 2004.07.17. Loop Ant 6507 EMCO 1435 2004.10.06. Signal Generator SMS Rohde & Schwarz 872165/100 2005.04.07. Modulation Analyzer 8901B Hewlett Packard 3438A05094 2005.04.07. Frequency Counter CMC251 Tektronic CMC-251TW52489 2005.04.07. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408002 2 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of ThruLab & Engineering. The UUT was transmitting a test signal during the testing. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a preselector. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz up to 1.0GHz and 1.0MHz with a video BW of 3.0MHz above 1.0GHz. The ambient temperature of the UUT was 34°C with a humidity of 45%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STANDARD C63.4- 1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appropriate sweep speed. The ambient temperature of the UUT was 28°C with a humidity of 48%. ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408002 3 of 11 APPLICANT: Strategic Vista Technologies Inc. FCC ID: RTMSV-03-CAM NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.249, 15.209 REQUIREMENTS: FIELD STRENGTH FIELD STRENGTH S15.209 of Fundamental: of Harmonics 30 - 88 MHz 40 dBuV/m @3M 902-928 MHZ 88 -216 MHz 43.5 2.4-2.4835 GHz 216 -960 MHz 46 94 dBuV/m @3m 54 dBuV/m @3m ABOVE 960 MHz 54dBuV/m EMISSIONS RADIATED OUTSIDE OF THE SPECIFIED FREQUENCY BANDS, EXCEPT FOR HARMONICS, SHALL BE ATTENUATED BY AT LEAST 50 dB BELOW THE LEVEL OF THE FUNDAMENTAL OR TO THE GENERAL RADIATED EMISSION LIMITS IN 15.209, WHICHEVER IS THE LESSER ATTENUATION. TEST DATA: Horizantal 1CH No E…

Text truncated - open the document above for the full version.

THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408008 THRU Lab & Engineering. RM1105,11FL, ACE TECHNO TOWER 197-22,GURO-DONG GURO-GU, SEOUL KOREA 81221095059F81221095056 email [email protected] APPLICANT: STRATEGIC VISTA TECHNOLOGIES INC.. FCC ID: RTMSV-03-CAM REPORT :THRU-408008
