RTTABDB-SEDPAirborne Direct

AirborneDirect™ Ethernet Client Kit User Guide COPYRIGHTS & TRADEMARKS DPAC Technologies ® is a registered trademark of DPAC Technologies Corp. AirborneDirect™ is a trademark of DPAC Technologies Corp. All other trademarks used in this document are the property of their respective owners. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for assistance. FCC RF EXPOSURE STATEMENT To satisfy RF expose requirements, this device and its antenna must operate with a separation distance of a least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Package Contents The AirborneDirect™ Ethernet Client Kit includes the following items for the AirborneDirect™ Ethernet Client: • One AirborneDirect™ Ethernet Client Module with an attached cable and an RJ-45 interface connector • One AC power adapter • One NETGEAR Access Point Getting Started Quickly The AirborneDirect Ethernet Client is shipped ready to use. The following steps lead to rapid evaluation of the AirborneDirect Ethernet Client Module (hereafter referred to as “Module”) using the supplied Access Point (AP). Unpack the Kit Unpack the AirborneDirect Ethernet Client Kit and compare the package contents with the items listed on the front of this Guide. If any item is missing or damaged, contact DPAC Technologies immediately. What Else You Need To complete your installation, you need: • An Ethernet client  a device or computer that contains a network- interface card (NIC) with an RJ-45 jack. • A LAN host  another device or computer with a NIC. • Access to a 110 VAC power supply. Make the Access Point Connections Unpack the supplied NETGEAR MR814v2 Cable/DSL Wireless Router AP, connect it to the LAN host, and place it in close proximity to the Module. Follow the directions in the NETGEAR Installation Guide to install and configure the AP. Remove the NETGEAR CD when finished. , Note: Other APs in the area may interfere with the Module’s ability to associate with the Netgear AP. Either remove power from these APs or perform the setup shown in the figure below in a remote location. 1 2 3 Connect Your AirborneDirect Client Module Connect the cable on the Module to the RJ-45 jack on the Ethernet client NIC. Use the supplied power adapter to connect the Module to a power outlet. 4 Observe the Module LEDs When the Module powers-up, the Module LEDs behave in the following sequence: „ Power: red → amber → green „ Link: amber → red → green/amber flicker → green „ Comm: either red → green or red → amber If the LEDs do not behave in this manner, remove the power source from the Module, wait a few seconds, and reapply power. If the LEDs still do not behave in this sequence, contact DPAC Technologies. View the SSID On the LAN host, use your Web browser to log into the NETGEAR configuration utility at IP address 192.168.0.1. From the Basic Settings screen, click Wireless Settings in the left pane (second option below Setup). Record the AP name (SSID) (first field on the page) below, as you will need to reference it in the following steps. AP SSID: ________________________ View the IP Addresses of the LAN Host and Module Click Attached Devices in the left pane (second option below Maintenance). A read-only page shows the IP address, device name, and Media Access Control (MAC) address for each device attached to the AP. The order in which your attached devices are shown may vary from the order in the Attached Devices page below. The row with the device name Airborne shows the Module’s IP address, device name, and MAC address (the MAC address follows the word Airborne and appears on the back of the Module enclosure). Record this IP address below, as you will need to reference it later. Module’s IP Address:___ . ___ . ___ . ___ The other row shows the LAN host’s IP address, device name, and MAC address. , Note: If only the LAN host information is shown, click the Refresh button in the Attached Devices screen to update the displayed information. If it still does not appear, check your physical connections (see Step 4). Then remove the power source from the Module, wait a few seconds, reapply power, and verify that the LED sequences in Step 5 occur. 5 6 7 Log into the Module Web Interface On the LAN host, launch a second Web browser. In the address line, type http://n.n.n.n where n.n.n.n are numbers that represent the Module’s IP address you obtained in the previous step. When the Module prompts you to login, enter dpac for the user name and dpac for the password. Then click the OK button to log in. The Home page appears, showing the manufacturer’s settings. Change the Module SSID and DHCP Client Name In the Module Web interface, click the Network link at the top of the page. The Wireless Network Configuration page appears. Change the Module SSID (first field on the page) to that of the AP that you recorded in Step 6. For DHCP Client Name, type DPAC WLN. Click the Save button to save your ch…

Text truncated - open the document above for the full version.

AirborneDirect™ Serial Client Kit User Guide COPYRIGHTS & TRADEMARKS DPAC Technologies ® is a registered trademark of DPAC Technologies Corp. AirborneDirect™ is a trademark of DPAC Technologies Corp. All other trademarks used in this document are the property of their respective owners. FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for assistance. FCC RF EXPOSURE STATEMENT To satisfy RF expose requirements, this device and its antenna must operate with a separation distance of a least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Package Contents The AirborneDirect™ Serial Client Kit includes the following items for the AirborneDirect™ Serial Client: • One AirborneDirect™ Serial Client Module with an attached cable and a male DB9 DTE interface connector • One AC power adapter • One NETGEAR Access Point • A CD containing VCOM drivers, a Microsoft Windows XP-compatible API DLL, the Airborne™ Dynamic Link Library Programmer’s Guide, the Airborne™ VCOM Quick Start Guide, and Adobe® Reader® for viewing the documents Getting Started Quickly The AirborneDirect Serial Client is shipped ready to use. The following steps lead to rapid evaluation of the AirborneDirect Serial Client Module (hereafter referred to as “Module”) using the supplied Access Point (AP). Unpack the Kit Unpack the AirborneDirect Serial Client Kit and compare the package contents with the items listed on the front of this Guide. If any item is missing or damaged, contact DPAC Technologies immediately. What Else You Need To complete your installation, you need: • A serial client  a device or a computer with a DB9, female serial connector configured as Data Communications Equipment (DCE). If your device or computer has a male serial connector configured as Data Terminal Equipment (DTE), obtain a male-to-female converter from an electronics or computer store. • A LAN host  a device or computer with a network-interface card (NIC). • Access to a 110 VAC power supply. Make the Access Point Connections Unpack the supplied NETGEAR MR814v2 Cable/DSL Wireless Router AP, connect it to the LAN host, and place it in close proximity to the Module. Follow the directions in the NETGEAR Installation Guide to install and configure the AP. Remove the NETGEAR CD when finished. , Note: Other APs in the area may interfere with the Module’s ability to associate with the Netgear AP. Either remove power from these APs or perform the setup shown in the figure below in a remote location. 1 2 3 Connect Your AirborneDirect Client Module Connect the cable on the Module to a female DB9 serial connector configured as DCE on your device or computer. (If your device or computer has a male DTE serial connector, use a male-to-female converter to make this connection.) Use the supplied power adapter to connect the Module to a power outlet. 4 Observe the Module LEDs When the Module powers-up, the Module LEDs behave in the following sequence: „ Power: red → amber → green „ Link: amber → red → green/amber flicker → green „ Comm: either red → green or red → amber If the LEDs do not behave in this manner, remove the power source from the Module, wait a few seconds, and reapply power. If the LEDs still do not behave in this sequence, contact DPAC Technologies. View the SSID On the LAN host, use your Web browser to log into the NETGEAR configuration utility at IP address 192.168.0.1. From the Basic Settings screen, click Wireless Settings in the left pane (second option below Setup). Record the AP name (SSID) (first field on the page) below, as you will need to reference it in the following steps. AP SSID: ________________________ View the IP Addresses of the Module and LAN Host Click Attached Devices in the left pane (second option below Maintenance). A read-only page shows the IP address, device name, and Media Access Control (MAC) address for each device attached to the AP. The order in which your attached devices are shown may vary from the order in the Attached Devices page below. The row with the device name Airborne shows the Module’s IP address, device name, and MAC address (the MAC address follows the word Airborne and appears on the back of the Module enclosure). Record this IP address below, as you will need to reference it later. Module’s IP Address:___ . ___ . ___ . ___ The other row shows the LAN host’s IP address, device name, and MAC address. , Note: If only the LAN host information is shown, click the Refresh button in the Attached Devices screen to update the displayed information. If it still does not appear, check your physical connections (see Step 4). Then remove the power source from the Module, wait a few seconds, reapply power, and verify that the LED sequences in Step 5 occur. Log into the Module Web Interface On the LAN host, launch a second Web browser. In the address line, type http://n.n.n.n where n.n.n.n are numbers that represent the Module’s IP address yo…

Text truncated - open the document above for the full version.

0.40" 0.39" 3.76" 1.10" 4.47" 0.21" ZONEREVDESCRIPTIONDATE APPROVED LINX TECHNOLOGIES 575 S.E. Ashley, Pl. Grants Pass, OR 97526 PHONE: 541-471-6256 FAX: 541-471-6251 www.linxtechnologies.com SIZE A FSCM NO.DWG NO. DESIGN: DRAWING: APPROVED: SERIES NUMBER STATUS: DRAFT/APPROVED DATE: ___/___/_____ PAT H PARTNUMBER SHEET SCALE TITLE BND CG pending 4 24 02 RCT ANT-2.4-RCT RCT-Series Right Angle Antenna Hi Kyle, Here is the information from the antenna manufacturer. Thanks for the help! Regards, Paul -----Original Message----- From: Paul True [mailto:[email protected] ] Sent: Thursday, July 10, 2003 6:02 PM To: Paul Shklanko Subject: RE: Antenna Specifications Importance: High Since most of the specifications are common to any monopole design and widely referenced in text we publish such info only for uncharacterized antenna styles. For example dBd (gain reparative to a dipole) is considered to be 2.2 dB above dBi. So to your specific questions - Gain (dBi) 2.2-2.7 approx. - Efficiency Layout and plane dependent - VSWR better than 1:1.9 - Polarization (Linear, etc.) LINEAR - Technology (IMD, MLA, etc.) ??? Overmolded monopole or dipole This is a real basic antenna. Don't overcomplicate unless you are looking at a very unconventional design or a requirement specialized to your product. Hope this helps, Support Linx Technologies 575 SE Ashley Place From: "Paul Shklanko" <[email protected]> To: "Kyle Fujimoto (E-mail)" <[email protected]> Date: 02/06/2004 10:33 AM Subject: FW: Antenna Specifications Page 1 of 2 2/11/2004http://www.celectronics.com:3000/WorldClient.dll?Session=FKRPHZV&View=Message... Grants Pass, OR 97526 USA [email protected] www.linxtechnologies.com 541-471-6256 Fax: 541-471-6251 Page 2 of 2 2/11/2004http://www.celectronics.com:3000/WorldClient.dll?Session=FKRPHZV&View=Message...

1 Scott McCutchan From:Scott McCutchan [[email protected]] Sent:Friday, February 13, 2004 3:10 PM To:Kyle Fujimoto Subject:FCC ID: RTTABDB-SEDP Mr. Fujimoto, In order for processing of this application (FCC ID: RTTABDB-SEDP) to continue, the following issue(s) will have to be addressed: 1) Please indicate compliance with the voltage variation requirements contained in 15.31(e). 2) The block diagrams submitted do not show clock oscillator speeds. 3) The schematics submitted seem to be incomplete. I do not see any clock oscillators. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload your response to our electronic filing website using a correspondance number of "RTTABDB-SEDP-1". If you have any questions, feel free to contact me. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB (714) 579-1489 fax (714) 579-1850 http://www.celectronics.com Correspondence by Project Project Number: -1337577586 Correspondence Number Memo RTTABDB-SEDP-1 1) Please indicate compliance with the voltage variation requirements contained in 15.31(e). Response: See the Attachment for "Requirements to FCC 15.31 (e)" 2) The block diagrams submitted do not show clock oscillator speeds. Response: See the revised block diagrams uploaded 3) The schematics submitted seem to be incomplete. I do not see any clock oscillators. Response: Uploaded will be two additional schematic files which will show where they are located. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload your response to our electronic filing website using a correspondance number of "RTTABDB-SEDP-1".

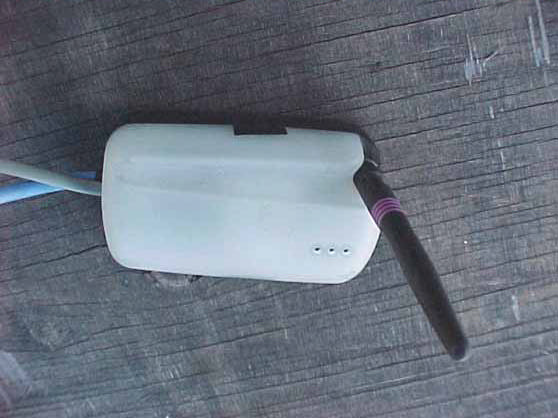

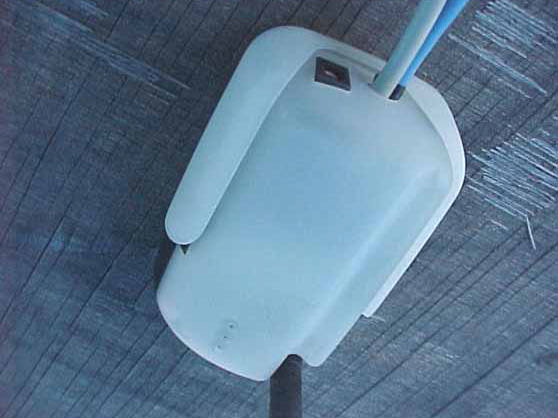

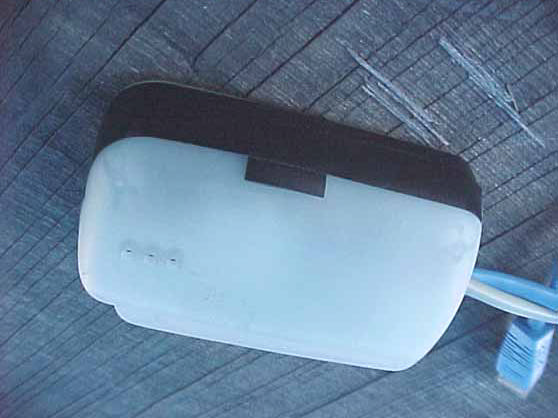

Size of the EUT and Label Location – View #1 Size of the EUT and Label Location – View #2 Size of the EUT and Label Location – View #3

Report Number: B31211D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 20 FCC PART 15, SUBPART B and C TEST REPORT for AIRBORNE DIRECT MODELS: ABDB-ET-DP101 and ABDB-SE-DP101 Prepared for DPAC TECHNOLOGIES 7321 LINCOLN WAY GARDEN GROVE, CALIFORNIA 92841 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JANUARY 21, 2004 REPORT APPENDICES TOTAL BODY A B C D E PAGES 20 2 2 2 17 56 99 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B31211D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 20 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration - EMI 9 4.1.1 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment for Brea Facility 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Antenna Gain 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.2 6 dB Bandwidth 18 8.3 Peak Output Power 18 8.4 RF Antenna Conducted Test 18 8.5 Spectral Density Output 19 8.6 RF Band Edges 19 9. CONCLUSIONS 20 Report Number: B31211D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 20 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map and Layout of 3 Meter Radiated Site Report Number: B31211D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 20 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST, or any other agency of the U.S. Government. Device Tested: Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 S/N: Prototype Product Description: See Expository Statement. Modifications: The EUT was not modified during the testing. Manufacturer: DPAC Technologies 7321 Lincoln Way Garden Grove, California 92841 Test Dates: December 9 and 11, 2003. Test Specifications : EMI requirements Limits: CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.207, 15.209, and 15.247 Test Procedure: ANSI C63.4: 2001 Test Deviations: The test procedure was not deviated from during the testing. Report Number: B31211D3 FCC Part 15 Subpart B and FCC Section 15.247 Test Report Airborne Direct Models: ABDB-ET-DP101 and ABDB-SE-DP101 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 20 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz – 30 MHz Complies with the Class B limits of CFR Title 47, Part 15 Subpart B; and Subpart C, section 15.207 2 Spurious Radiated RF Emissions, 10 kHz - 25000 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and CFR Title 47, Part 15, Subpart C, section 15.247(c) 3 Fundamental and Emissions produced by the intentional radiator in non-restricted bands, 10 kHz – 40 GHz Complies with the relevant requirements of CFR Title 47, Part 15, Subpart C, section 15.247(c) 4 Emissions produced by the intenti…

Text truncated - open the document above for the full version.

HOW THE EUT MEETS THE REQUIREMENTS OF 15.31 (e) FOR THE DPAC TECHNOLOGES. AIRBORNE DIRECT FCC-ID: RTTABDB-SEDP The fundamental was maximized on the Lab B test site using a normal test setup with the EUT’s AC Adapter connected directly to the AC public mains (115 Vac). Next, the EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The Variable Auto Transformer allows the Vac input to be varied. The EUT’s AC Adapter was then connected to the Staco Energy Products Variable Auto Transformer Model: 3PN1010. The AC input was then dropped to 85% (97.75 Vac) and raised to 115% (132.25 Vac). The actual AC input was measured using a calibrated Fluke Multimeter Model: 87, Serial Number: 51350019, Calibration Due Date: July 11, 2004. The fundamental was then verified again to see that the amplitude did not change. Test Result: The EUT does NOT change amplitude at the fundamental when the AC input voltage is varied between 85% and 115% of the input nominal rated supply voltage.
