RU4-SLE111-MLZigBee Gateway

i SLE111GW Application Gateway User Manual Dec. 2013 ii Table of Contents 1 INTRODUCTION .......................................................................................................... 1 F EATURES .......................................................................................................................... 1 PACKAGE CONTENTS .......................................................................................................... 1 2 HARDWARE ................................................................................................................ 2 FRONT PANEL ..................................................................................................................... 2 REAR PANEL ...................................................................................................................... 3 3 CONNECTION.............................................................................................................. 4 H ARD CONNECTION ............................................................................................................ 4 SYSTEM LOGIN ................................................................................................................... 4 APPENDIX A. HARDWARE SPECIFICATIONS ................................................................. 5 APPENDIX B. COMPLIANCES .......................................................................................... 6 1 1 Introduction The SLE111 is an integrated gateway for power and sensors data collection and transmission. Features
Offering the total visibility and detail analysis data on the energy consumption status with clear and intuitive reports
Offering automatic control on office equipments, appliances and devices by both user remote control and automatic scheduler settings
Offering monitoring policy to manage equipments, appliances, and devices more efficiently, while providing electrical usage safety Package Contents The Gateway package includes:
Gateway x 1

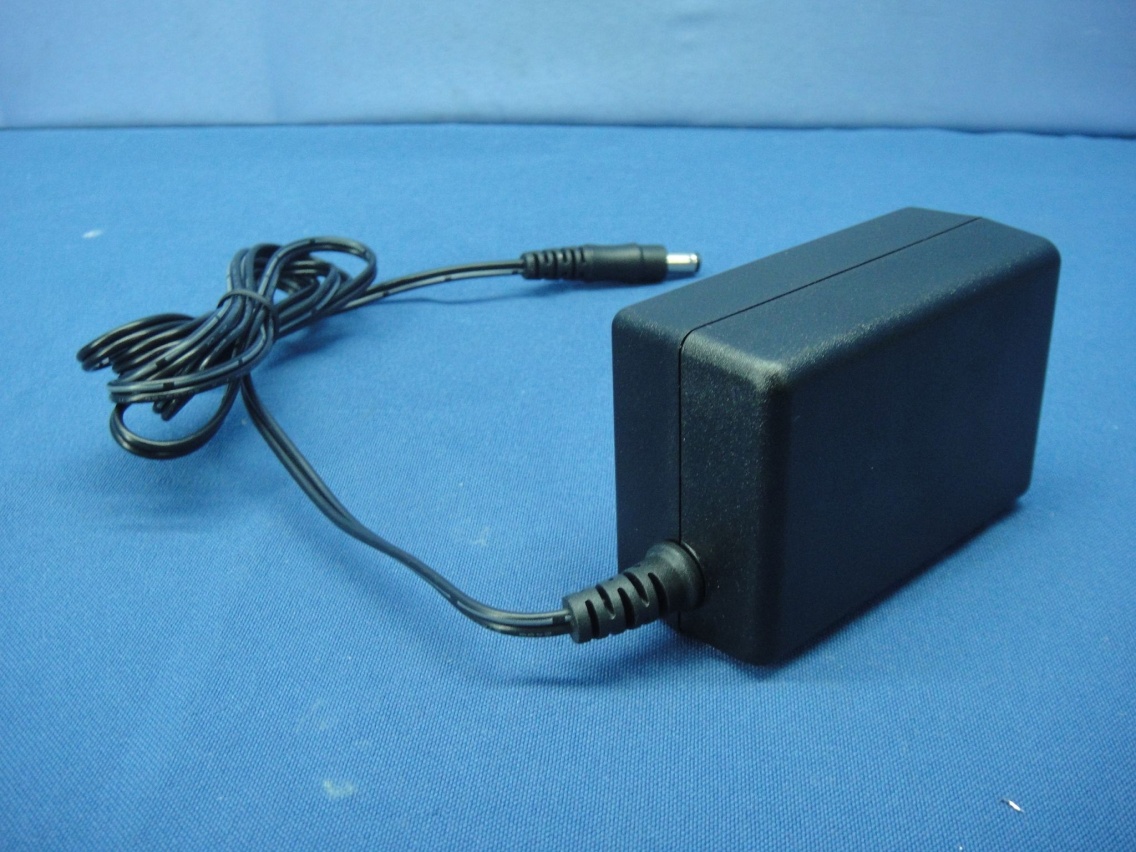

AC Adapter x 1

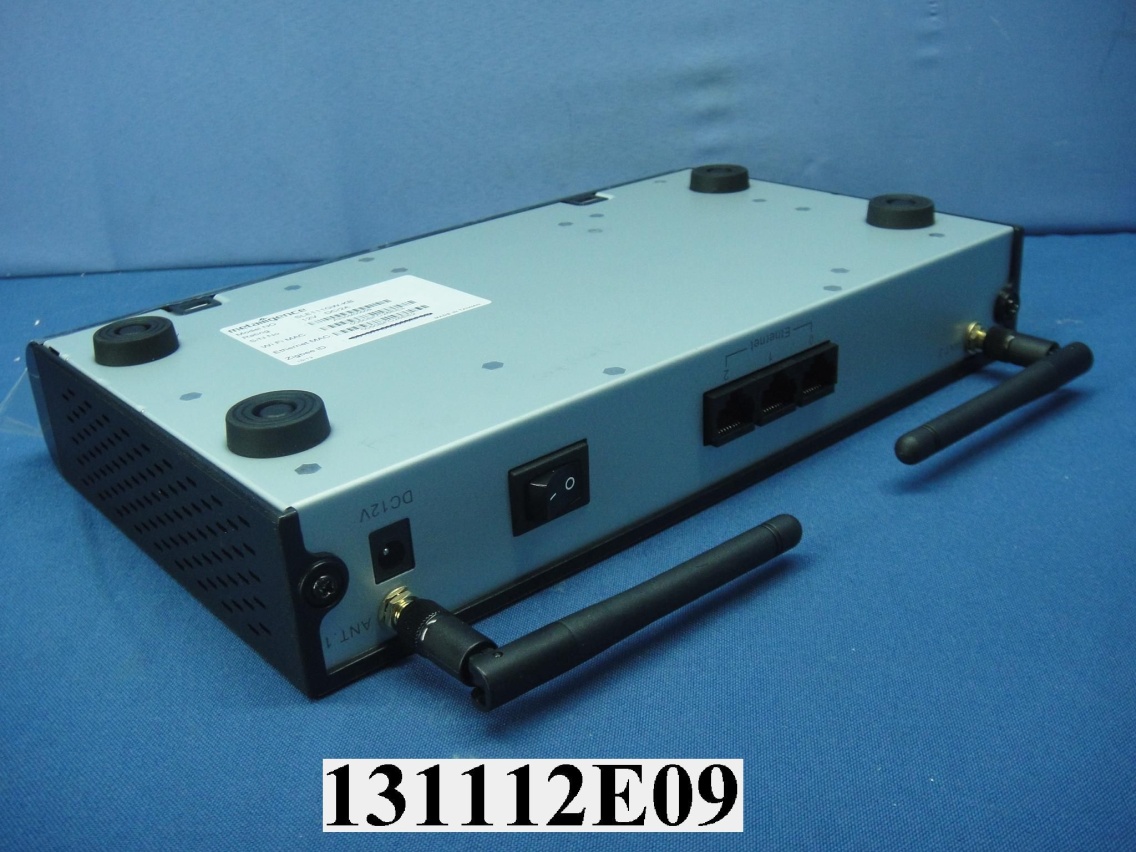

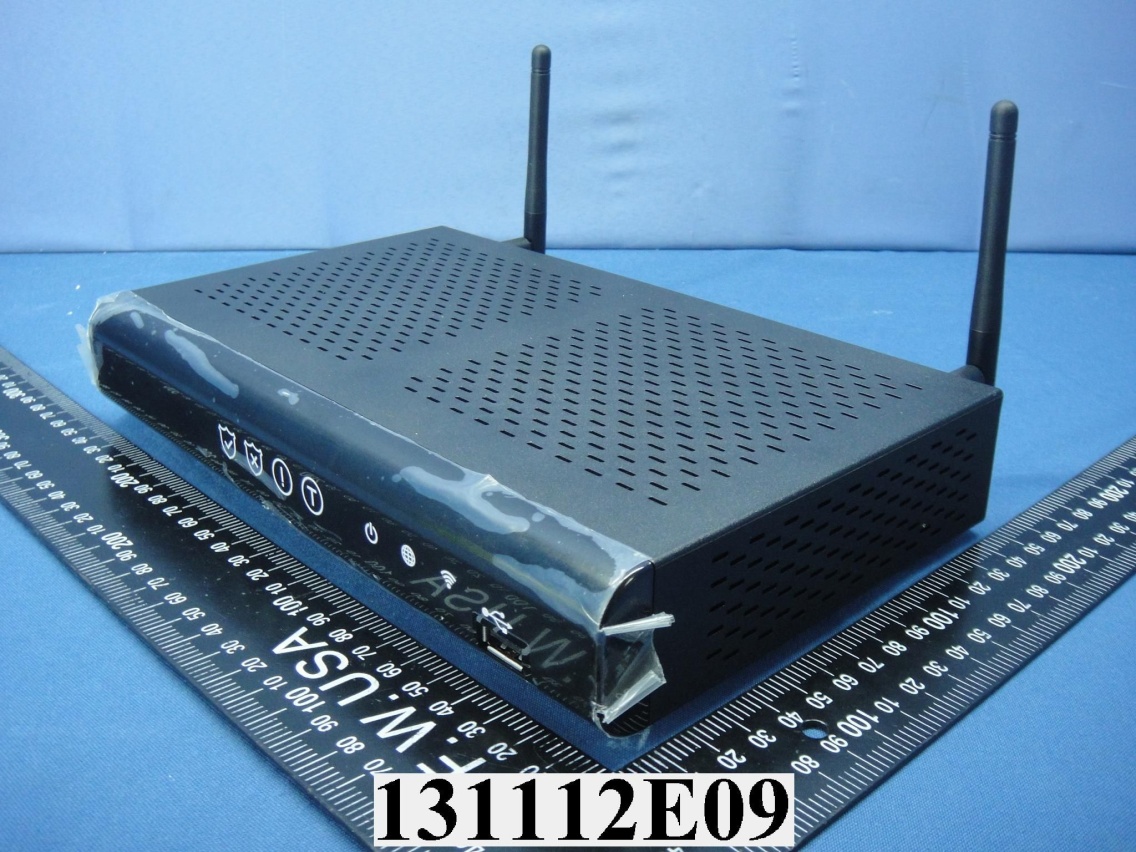

User Manual x １ Inform your dealer if there are any incorrect, missing or damaged parts. If possible, retain the carton, including the original packing materials. Use them again to repack the product in case there is a need to return it. 2 2 Hardware The Gateway connects to the broadband modem (Cable/DSL) using its RJ-45 WAN port. It connects directly to your PC or to a local area network using its RJ-45 Fast Ethernet LAN ports. The Gateway includes an LED display on the front panel for system information display, and LEDs for system status and touch buttons for system modes changing. It simplifies installation and system troubleshooting. Front Panel USB Port LED Display Panel Alarm Button Panic Button Disalarm Button Reserved Power LED Wireless LED Internet LED 3 Rear Panel Name Description DC 12V Connecter for a power adapter. This Gateway requires a adapter of 12VDC/ 1.5A~2A. Power Switch Switch to power on/off the Gateway. Ethernet Port 0 For engineer troubleshooting purpose only. Port 1and 2 For connect to a broadband router to build Internet connection. or For connect to Ethernet network devices, such as a PC, hub, switch or router for local access. DC Jack Power Switch Ethernet Port 0-2 Antennas 4 3 Connection The Gateway offers a user-friendly web-based management interface for the configuration of all the unit’s features. Any PC directly attached to the unit can access the management interface using a web browser, such as Internet Explorer, Firefox, Chrome, and etc. Hard Connection 1. Connect your broadband modem (Cable/DSL) to Ethernet port 1 on the Gateway. 2. Connect the Ethernet port of your PC to Ethernet port 2 on the Gateway. 3. Connect the power supply to the Gateway and power on it. System Login You can access the Web Application from any computer connected to the Gateway via the Ethernet port. 1. Open your web browser. Type the default IP address of the Gateway http://10.10.10.10 and press Enter. 2. A login screen displays. Enter user name as mtladmin and password as @mtladmin@ (case sensitive). Click OK. 5 Appendix A. Hardware Specifications
ZigBee Pro standard IEEE 802.15.4 compliant, 2.4GHz
Ethernet: RJ-45 10BaseT/100BaseTX x 3
USB 2.0 x 2, 1 @internal & 1 @front
Antenna x 2
LED Panel
LED Indicator x 3
Function Touch Button x4
Power Switch Button

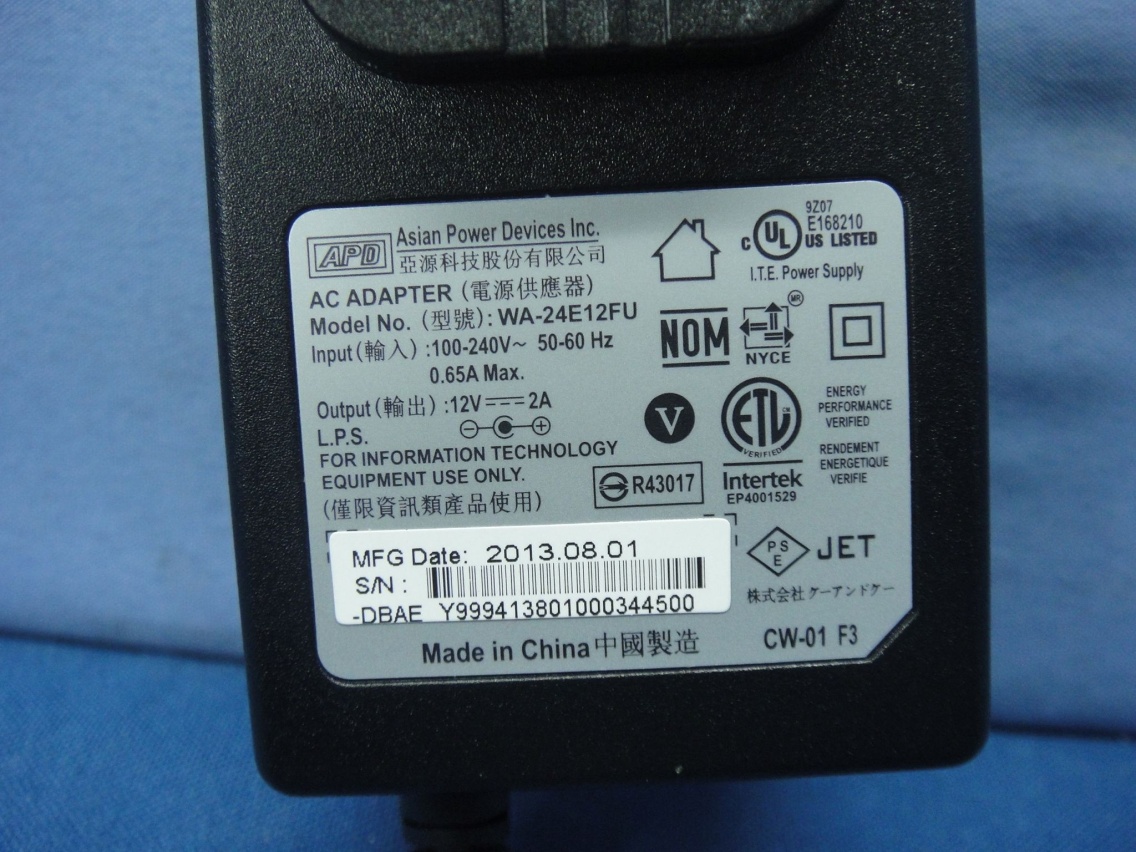

Power Supply: 12V DC external power adapter
Input: 100 ~ 240VAC
Output: 12V DC, 1.5 ~ 2A
Transmission Range: 50 m (line of sight)
Dimension: 250(L) x 156(W) x 40(H) mm (not include antennas)
Weight: 700 g
Operating Temperature: -10 ~ 50°C
Operating Humidity: 95 % RH 6 Appendix B. Compliances FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against radio interference in a commercial environment. This equipment can generate, use and radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user, at his own expense, will be required to take whatever measures are necessary to correct the interference. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: …

Text truncated - open the document above for the full version.

Report No.: 131112E09 1 of 19 CONSTRUCTION PHOTOS OF EUT Report No.: 131112E09 18 of 19 Report No.: 131112E09 19 of 19

Report No.: 131112E09 2 of 19 Report No.: 131112E09 3 of 19 Report No.: 131112E09 4 of 19 Report No.: 131112E09 5 of 19 Report No.: 131112E09 6 of 19 Report No.: 131112E09 7 of 19 Report No.: 131112E09 8 of 19 Report No.: 131112E09 9 of 19 Report No.: 131112E09 10 of 19 Report No.: 131112E09 11 of 19 Report No.: 131112E09 12 of 19 Report No.: 131112E09 13 of 19 Report No.: 131112E09 14 of 19 Report No.: 131112E09 15 of 19 Report No.: 131112E09 16 of 19 Report No.: 131112E09 17 of 19

Report No.: SA131112E09 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA131112E09 MODEL NO.: SLE111GW FCC ID: RU4-SLE111-ML RECEIVED: Nov. 12, 2013 TESTED: Dec. 06, 2013 ISSUED: Dec. 16, 2013 APPLICANT: Metalligence Technology Corp. ADDRESS: 2F, No. 1, Creation 3rd Rd., Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA131112E09 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ..................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT ............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER .......................... 6 Report No.: SA131112E09 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA131112E09 Original release Dec. 16, 2013 Report No.: SA131112E09 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Zigbee Gateway BRAND NAME: Metalligence Technology Corporation MODEL NO.: SLE111GW TEST SAMPLE: MASS-PRODUCTION APPLICANT: Metalligence Technology Corp. TESTED DATE: Dec. 06, 2013 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: SLE111GW) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Nov. 19, 2013 ( Lori Chung, Specialist ) APPROVED BY : , DATE:Nov. 19, 2013 ( May Chen, Manager ) Report No.: SA131112E09 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA131112E09 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 179.473 1.53 20 0.05078 1 For Zigbee FREQUENCY BAND (MHz) CONDUCTED POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2405 - 2480 4.977 1.93 20 0.00154 1.00 CONCLUSION: Both of the WLAN and Zigbee can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.05078 / 1 + 0.00154 / 1= 0.052, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF131112E09 1 of 59 Report Format Version 5.2.0 FCC TEST REPORT (WLAN) REPORT NO.: RF131112E09 MODEL NO.: SLE111GW FCC ID: RU4-SLE111-ML RECEIVED: Nov. 12, 2013 TESTED: Nov. 27 to Dec. 09, 2013 ISSUED: Dec. 16, 2013 APPLICANT: Metalligence Technology Corp. ADDRESS: 2F, No. 1, Creation 3rd Rd., Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131112E09 2 of 59 Report Format Version 5.2.0 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT (WLAN) ........................................................... 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.4 Duty cycle of test signal .......................................................................................... 15 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 16 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 17 4. TEST TYPES AND RESULTS ................................................................................ 19 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 19 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 19 4.1.2 TEST INSTRUMENTS ........................................................................................... 19 4.1.3 TEST PROCEDURES ............................................................................................ 20 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 20 4.1.5 TEST SETUP ......................................................................................................... 20 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 21 4.1.7 TEST RESULTS ..................................................................................................... 22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 24 4.2.2 TEST INSTRUMENTS ........................................................................................... 25 4.2.3 TEST PROCEDURES ............................................................................................ 26 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 26 4.2.5 TEST SETUP ......................................................................................................... 27 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 27 4.2.7 TEST RESULTS ..................................................................................................... 28 4.3 6dB BANDWIDTH MEASUREMENT ..................................................................... 41 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................... 41 4.3.2 TEST INSTRUMENTS ........................................................................................... 41 4.3.3 TEST PROCEDURE .............................................................................................. 41 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 41 4.3.5 TEST SETUP ..........…

Text truncated - open the document above for the full version.

Report No.: RF131112E09-1 1 of 44 Report Format Version 5.2.0 Reference No.: 131011E10 FCC TEST REPORT (Zigbee) REPORT NO.: RF131112E09-1 MODEL NO.: SLE111GW FCC ID: RU4-SLE111-ML RECEIVED: Nov. 12, 2013 TESTED: Nov. 27 to Dec 09, 2013 ISSUED: Dec. 16, 2013 APPLICANT: Metalligence Technology Corp. ADDRESS: 2F, No. 1, Creation 3rd Rd., Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF131112E09-1 2 of 44 Report Format Version 5.2.0 Reference No.: 131011E10 Table of Contents RELEASE CONTROL RECORD .......................................................................................... 4 1. CERTIFICATION ...................................................................................................... 5 2. SUMMARY OF TEST RESULTS .............................................................................. 6 2.1 MEASUREMENT UNCERTAINTY ........................................................................... 7 3. GENERAL INFORMATION ....................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT (ZIGBEE) ........................................................ 8 3.2 DESCRIPTION OF TEST MODES ......................................................................... 10 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 13 3.4 DUTY CYCLE OF TEST SIGNAL ........................................................................... 13 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 14 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 15 4. TEST TYPES AND RESULTS ................................................................................ 17 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT....................................... 17 4.1.2 TEST INSTRUMENTS ........................................................................................... 17 4.1.3 TEST PROCEDURES ............................................................................................ 18 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 18 4.1.5 TEST SETUP ......................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ........................................................................... 19 4.1.7 TEST RESULTS ..................................................................................................... 20 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 22 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT .............. 22 4.2.2 TEST INSTRUMENTS ........................................................................................... 23 4.2.3 TEST PROCEDURES ............................................................................................ 25 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 25 4.2.5 TEST SETUP ......................................................................................................... 26 4.2.6 EUT OPERATING CONDITIONS ........................................................................... 26 4.2.7 TEST RESULTS ..................................................................................................... 27 4.3 6DB BANDWIDTH MEASUREMENT ..................................................................... 31 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT .................................................. 31 4.3.2 TEST INSTRUMENTS ........................................................................................... 31 4.3.3 TEST PROCEDURE .............................................................................................. 31 4.3.4 DEVIATION FROM TEST STANDARD .........................................................…

Text truncated - open the document above for the full version.

Report No.: 120702E04 1 of 3 PYHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120702E04 2 of 3 RADIATED EMISSION TEST (Below 1GHz) Report No.: 120702E04 3 of 3 RADIATED EMISSION TEST (Above 1GHz)
