RU5AWBC1EBluetooth V.1.2 Class 1 USB Dongle

Quick Installation Guide Bluetooth 2.0+EDR Class 2/Class 1 USB 2.0 Dongle Thank you for purchasing the Bluetooth v2.0 +EDR Dongle. We hope you will enjoy the most advanced Bluetooth technology with it. The package includes a Bluetooth V2.0+EDR Dongle, which provides users a full range of Bluetooth features with computer devices. Please read the user manual to make the best use of Bluetooth v2.0 +EDR Dongle and its many features. Package Contents Bluetooth 2.0+EDR USB 2.0 Dongle Quick Installation Guide CD-ROM (User Manual/Driver/Utility) Note • Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Software Installation Note: Make sure the Bluetooth USB Adapter is unplugged. To install the software, please follow the instruction below. 1. Insert the Toshiba Bluetooth driver installation CD into the CD-ROM. The “InstallShield Wizard” should start automatically. If it does not load, please run the “Setup.exe” file from the CD drive. 2. A setup window will pop up. Please choice language to start installation process. Note: The initial window varies depending on the version of driver you are installing. 3. The Welcome window should now appear, Click “Next”. 4. Accept the terms in the license agreement thend click “Next”. 5. Click “Install” to begin the installation. 6. Installation is in process. 7. Wait for the setup. 8. Plug in the EDR USB adapter and click “OK” to continue the installation. 9. Click “Finish” when the installation is completed. 10. Users will be asked to restart the system. Click “Yes” to restart the computer immediately.

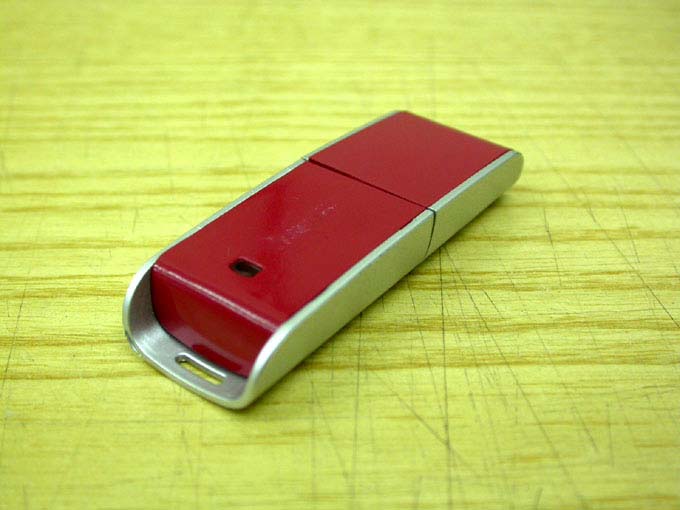

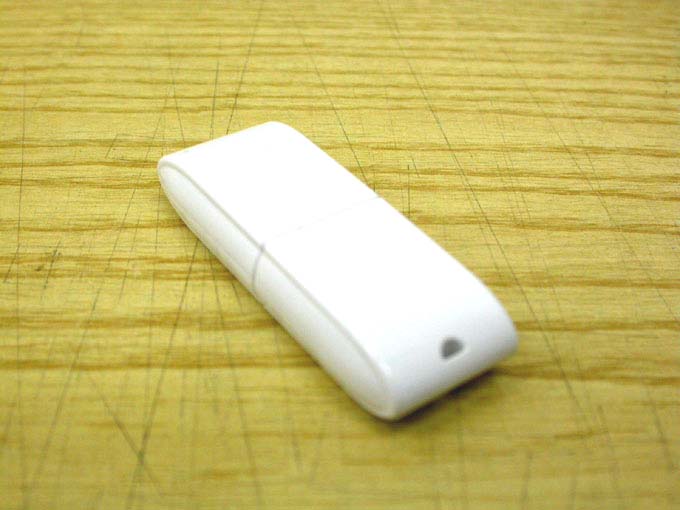

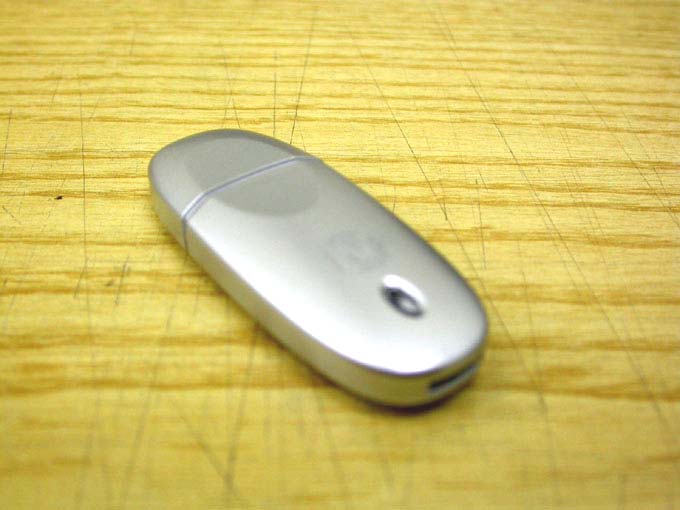

Photo 1: External photo of EUT AW B C 1 E Photo 2: External photo of EUT AW B C 1 E Photo 3: External photo of EUT AW B C 1 E Photo 4: External photo of EUT AW B C 1 E Photo 5: External photo of EUT AW B C 1 E Photo 6: External photo of EUT AW B C 1 E Photo 7: External photo of EUT AW B C 1 E Photo 8: External photo of EUT AW B C 1 E Photo 9: External photo of EUT AW B C 1 E Photo 10: External photo of EUT AW B C 1 E

FCC ID Label Location 8mm 11mm

Photo 1: Internal photo of EUT AW B C 1 E Photo 1: Internal photo of EUT AW B C 1 E Photo 3: Internal photo of EUT 111 AW B C 1 E 1

FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 1 of 5 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-060124 Model No. : AWBC1E Issued Date : May 4, 2006 Applicant : Asia Pacific Microsystems, Inc. No. 2, R&D Road 6, Science-Based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 5 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Marx Yan Project Engineer Reviewed By Jerry Liu FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 2 of 5 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4. Test results .................................................................................................................... 5 FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 3 of 5 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Bluetooth V.1.2 Class1 USB Dongle-Model: AWBC1E FCC ID: RU5AWBC1E Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Pass FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 4 of 5 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is near by the human body (assume 0.1cm), the EUT was defined as a Portable Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited distance from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 5 of 5 3. RF Exposure calculations From FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a portable device operates at 2412MHz and its maximum output power is 20mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (20 * 1)/4*π*(0.1) 2 = (mW/cm 2 ) 4. Test results Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2402 1.67 19.9 0.00660 1.0 40 2442 1.67 20.4 0.00677 1.0 79 2480 1.67 21.3 0.00706 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 1 of 34 EMC TEST REPORT Report No. : EME-060124 Model No. : AWBC1E Issued Date : May 4, 2006 Applicant : Asia Pacific Microsystems, Inc. No. 2, R&D Road 6, Science-Based Industrial Park, Hsinchu, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 34 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). Jerry Liu Project Engineer Reviewed By Marx Yan FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 2 of 34 Table of Contents Summary of Tests ..............................................................................................................4 1. General information ......................................................................................................5 1.1 Identification of the EUT........................................................................................5 1.2 Additional information about the EUT...................................................................5 1.3 Antenna description ................................................................................................6 1.4 Peripherals equipment ............................................................................................6 2. Test specifications .........................................................................................................7 2.1 Test standard ...........................................................................................................7 2.2 Operation mode ......................................................................................................7 2.3 Test equipment........................................................................................................8 3. 20dB Bandwidth test .....................................................................................................9 3.1 Operating environment ...........................................................................................9 3.2 Test setup & procedure ...........................................................................................9 3.3 Measured data of modulated bandwidth test results...............................................9 4. Carrier Frequency Separation test ...............................................................................11 4.1 Operating environment .........................................................................................11 4.2 Test setup & procedure .........................................................................................11 4.3 Measured data of Carrier Frequency Separation test result..................................11 5. Number of hopping frequencies test ...........................................................................13 5.1 Operating environment .........................................................................................13 5.2 Test setup & procedure .........................................................................................13 5.3 Measured data of number of hopping frequencies test result...............................13 6. Time of Occupancy (dwell time) test ..........................................................................15 6.1 Operating environment .........................................................................................15 6.2 Test setup & procedure .........................................................................................15 7. Maximum Output Power test ......................................................................................19 7.1 Operating environment .........................................................................................19 7.2 Test setup & procedure .........................................................................................19 7.3 Measured data of Maximum Output Power test results .......................................19 8. Radiated Emission test ................................................................................................20 8.1 Operating environment .........................................................................................20 8.2 Test setup & procedure .........................................................................................20 8.3 Emission limits .....................................................................................................21 8.4 Radiated spurious emission test data ....................................................................22 8.4.1 Measurement results: frequencies equal to or less than 1 GHz .........................22 8.4.2 Measurement results: frequency above 1GHz...................................................23 9. Emission on the band edge §FCC 15.247(C) ..............................................................24 9.1 Band-edge (Conducted method) ...........................................................................25 9.2 Band-edge (Radiated method) ..............................................................................27 FCC ID. : RU5AWBC1E Report No.: EME-060124 Page 3 of 34 10. Power Line Conducted Emission test §FCC 15.207 .................................................31 10.1 Operating environment .......................................................................................31 10.2 Test setup & procedure .......................................................................................31 10.3 Emission limit.....................................................................................................32 10.4 Uncertainty of Conducted Emission...................................................................32 10.5 Power Line Conducted Emiss…
