RUQ2579RFID TRANSMITTER

Page 1 of 9 RFID TagAA User Manual for Security & Tracking Date: 01/Feb/2006 Prepared by: Scanpak Inc. 2250 Place Transcanadienne Dorval, Quebec Canada H9P 2X5 Tel: 1-514-685-3505 Fax: 1-514-685-5484 www.scanpak.com Page 2 of 9 TABLE OF CONTENTS 1. INTRODUCTION....................................................................................................... 3 2. DESCRIPTION.......................................................................................................... 4 3. PREPARING FOR INSTALLATION..................................................................... 5 INSTALLATION CHECKLIST................................................................................................ 6 I NSTALLATION GUIDELINES............................................................................................... 7 4. PREPARATION OF GALLEY EQUIPMENT....................................................... 8 GALLEY EQUIPMENT CLEANING AND PREPARATION....................................................... 8 INSTALLATION OF THE TAG............................................................................................... 9 Page 3 of 9 1. Introduction These installation procedures describe how to properly install an RFID tagAA in conformity with Scanpak’s standards. First and foremost, this document presumes that you are familiar with Galley Equipment or other metal bins equipments. If you feel uncomfortable with any of the above tasks, immediately contact your supervisor and discuss that matter with him or her. This document will firstly present to you an installation checklist to make sure you have all the equipments and tools required to a successful installation. Then, it will guide you to make decisions regarding the positioning of the tag onto the Galley Equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may caused undesired operation. Changes or modifications not expressly approved by Scanpak Inc. could void the user's authority to operate the equipment. Page 4 of 9 2. Description The developed system consisting of Scanpak reader devices and tagAA devices is ideal for realtime security, tracking, location and identification of assets, providing means for a remote upload of tag data to a central server through the Internet. The system utilizes miniature battery-operated radio tags (tagAA) attached to assets and a cellular network of Scanpak reader devices to detect the presence and location of the tags. The locating system is deployed as a modular matrix of readers installed at strategic locations and provides full coverage of the surveyed area. The system is modular and permits addition of new surveyed areas by just plugging in additional readers to the network. Each of the readers has its own memory block to temporarily store the data received from the tags. This data is automatically transferred to a server. The system continually updates the server with current tag data. The update may be as frequent as every few seconds. In typical applications system can simultaneously track very large amounts of tags. The system takes a full advantage of communication means provided by the LAN and access to the Internet. It makes possible to streamline large amount of captured data both within the LAN and to an outside location accessible through the Internet. Page 5 of 9 3. Tag Images Figure 1. TagAA circuit top view Figure 2. TagAA circuit bottom view Figure 3. TagAA with black plastic top view Page 6 of 9 Figure 4. TagAA with black plastic bottom view Figure 5. TagAA with black plastic back view Figure 6. TagAA with black plastic side view. 4. Preparing for Installation Installation Checklist The following installation checklist is intended to help you prepare the installation of tag. When performing the installation, you should bring with you the following tools: Page 7 of 9 † Acetone † Rag cloth † TagAA Installation Guidelines Your installation company will create a special help-desk for all installation questions. If the installation company help-desk cannot answer a question, it will immediately establish a phone conference with Scanpak’s help-desk to answer the question. Page 8 of 9 5. Preparation of Galley Equipment Galley Equipment Cleaning and Preparation 1. The location of the tag will determine the type of galley equipment. See images below. Full size atlasHalf size atlasCustom 2. Empty all remaining items and trays inside the galley equipment. 3. Close equipment door and lock if needed. 4. Flip the equipment upside down as shown by the above pictures. 5. Clean the outside surface of the galley equipment where the tag will be installed with a rag cloth with acetone. This is done to remove any grease, paint etc. that will interfere with adhesion. (You should wear rubber or latex gloves and perform this task in a well-ventilated area) Page 9 of 9 Installation of the Tag 1. Peel off the adhesive protector at the bottom of the tag to expose the adhesive side of the tag. See figure below. Bonding Pressure 27 kg Bonding Period 10 to 12 sec Bonding Temperature High, Medium, Low temperature Bonding Solvency Solvent resistance Bonding Thickness 2.0 mil 2. Position the Tag horizontally to the location where you have cleaned with the acetone. 3. Carefully press the Tag down and hold for about 10 seconds. 4. The installation of the tag onto the galley equipment is now complete.

Shock sensor (optional) microprocessorRF Transmitter Battery 32.768kHz crystal13.56MHz crystal Antenna Figure 1: Tag_AA block diagram

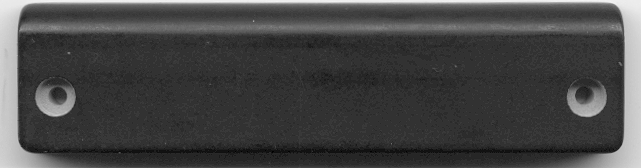

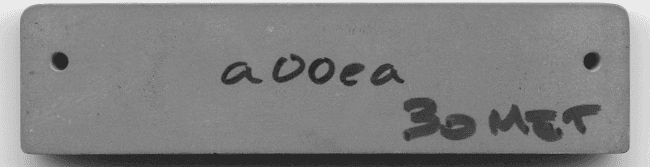

SCANPAK FCC ID: RUQ2579 EXTERNAL PHOTOS TOP VIEW BOTTOM VIEW REAR VIEW

FCC ID: RUQ2579 IC: 5353A-2579 Company: Scanpak Inc. Page 1 of 1 1 IC Label 2 cm 0.5cm Proposed FCC ID/IC Label Location Rear View of Product FCC ID: RUQ2579 IC: 5353A-2579

SCANPAK FCC ID: RUQ2579 INTERNAL PHOTOS

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SCANPAK FCC ID: RUQ2579 Test Report Product Name: 433.92MHz RFID TRANSMITTER FCC ID: RUQ2579 Applicant: SCANPAK 2250 PLACE TRANSCANADIENNE DORVAL QUEBEC H9P 2X5 CANADA Date Receipt: 1/25/2006 Date Tested: 1/26/2006 REPORT #: S\SCANPAK\2534AUT5\2534AUT5TestReport.doc COVER SHEET TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SCANPAK FCC ID: RUQ2579 TABLE OF CONTENTS APPLICANT: SCANPAK FCC ID: RUQ2579 TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURE PAGE 3-5...........RADIATION INTERFERENCE TEST DATA PAGE 6.............CALCULATION OF DUTY CYCLE PAGE 7-9...........DUTY CYCLE PLOTS PAGE 10............OCCUPIED BANDWIDTH EXHIBIT INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST INSTRUCTION MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH REPORT #: S\SCANPAK\2534AUT5\2534AUT5TestReport.doc TABLE OF CONTENTS TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SCANPAK FCC ID: RUQ2579 EMC Equipment List Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter OATS TEI N/A N/A Listed 1/13/03 1/12/06 3/10-Meter OATS TEI N/A N/A Listed 3/27/04 3/26/07 Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/05 12/7/07 Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/05 12/7/07 Tan Tower Quasi-Peak Adapter HP 85650A 3303A01690 CAL 12/8/05 12/8/07 Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/05 12/8/07 Blue Tower Spectrum Analyzer HP 8568B 2928A04729 2848A18049 CAL 4/13/05 4/13/07 Blue Tower RF Preselector HP 85685A 2926A00983 CAL 9/5/05 9/5/07 Blue Tower Quasi-Peak Adapter HP 85650A 2811A01279 CAL 4/13/05 4/13/07 Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 12/8/04 12/8/06 Silver Tower RF Preselector HP 85685A 2620A00294 CAL 4/27/04 4/27/06 Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 12/8/04 12/8/06 Open-Frame Tower Preamplifier HP 8449B 3008A01075 CAL 8/8/05 8/8/07 Biconnical Antenna Electro- Metrics BIA-25 1171 CAL 4/29/05 4/29/07 Biconnical Antenna Eaton 94455-1 1096 CAL 8/17/04 8/17/06 Log-Periodic Antenna Electro- Metrics LPA-25 1122 CAL 8/26/04 8/26/06 REPORT #: S\SCANPAK\2534AUT5\2534AUT5TestReport.doc Page 1 of 10 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SCANPAK FCC ID: RUQ2579 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-2003 using a HEWLETT PACKARD spectrum analyzer with a preselector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz. The ambient temperature of the UUT was 78.3ºF with a humidity of 40%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. REPORT #: S\SCANPAK\2534AUT5\2534AUT5TestReport.doc Page 2 of 10 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: SCANPAK FCC ID: RUQ2579 APPLICANT: SCANPAK FCC ID: RUQ2579 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY = 80.83 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 60.83 dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54 dBuV/m OR 15.209. TEST DATA: Tuned Frequency MHz Emission Frequency MHz * Meter Reading dBuV Ant. Pol. Coax Loss dB ACF dB Duty Cycle Factor dB Field Strength dBuV/m Margin dB 433.9 433.92 63.2 V 3.2416.40 11.30 71.54 9.29 433.9 433.92 69.2 H 3.2416.76 11.30 77.90 2.93 433.9 867.84 29.3 V 4.8722.48 11.30 45.35 15.48 433.9 867.84 32.7 H 4.…
