RUQTTB-434-01Scanpak Quantum TTAGB - RFID Class IV Active Tag

Tag’s User Guides Page 1 of 7 Tag User Manual Date: 13-Jul-04 Prepared by: Scanpak Inc. 2250 Place Transcanadienne Dorval, Quebec Canada H9P 2X5 Tel: 1-514-685-3505 Fax: 1-514-685-5484 www.scanpak.com Tag’s User Guides Page 2 of 7 TABLE OF CONTENTS 1. INTRODUCTION 3 2. PREPARING FOR INSTALLATION 4 INSTALLATION CHECKLIST 4 I NSTALLATION GUIDELINES 4 3. PREPARATION OF GALLEY EQUIPMENT 5 G ALLEY EQUIPMENT CLEANING AND PREPARATION 5 I NSTALLATION OF THE TAG 6 Tag’s User Guides Page 3 of 7 1. Introduction These installation procedures describe how to properly install a tag in conformity with Scanpak’s standards. First and foremost, this document presumes that you are familiar with Galley Equipment. If you feel uncomfortable with any of the above tasks, immediately contact your supervisor and discuss that matter with him or her. This document will firstly present to you an installation checklist to make sure you have all the equipments and tools required to a successful installation. Then, it will guide you to make decisions regarding the positioning of the tag onto the Galley Equipment. Tag’s User Guides Page 4 of 7 2. Preparing for Installation Installation Checklist The following installation checklist is intended to help you prepare the installation of tag. When performing the installation, you should bring with you the following tools: † Acetone † Rag cloth † Tag Installation Guidelines Your installation company will create a special help-desk for all installation questions. If the installation company help-desk cannot answer a question, it will immediately establish a phone conference with Scanpak’s help-desk to answer the question. Tag’s User Guides Page 5 of 7 3. Preparation of Galley Equipment Galley Equipment Cleaning and Preparation 1. The location of the tag will determine the type of galley equipment. See images below. Full size atlasHalf size atlasCustom 2. Empty all remaining items and trays inside the galley equipment. 3. Close equipment door and lock if needed. 4. Flip the equipment upside down as shown by the above pictures. 5. Clean the outside surface of the galley equipment where the tag will be installed with a rag cloth with acetone. This is done to remove any grease, paint etc. that will interfere with adhesion. (You should wear rubber or latex gloves and perform this task in a well-ventilated area) Tag’s User Guides Page 6 of 7 Installation of the Tag 1. Peel off the adhesive protector at the bottom of the tag to expose the adhesive side of the tag. See figure below. Bonding Pressure 27 kg Bonding Period 10 to 12 sec Bonding Temperature High, Medium, Low temperature Bonding Solvency Solvent resistance Bonding Thickness 2.0 mil 2. Position the Tag horizontally to the location where you have cleaned with the acetone. 3. Carefully press the Tag down and hold for about 10 seconds. 4. The installation of the tag onto the galley equipment is now complete. Tag’s User Guides Page 7 of 7 Warning: Changes or modifications not expressly approved by Scanpak Inc. could void the user’s authority to operate the equipment Model: TTAGB model TTB-434-01 FCC ID: RUQTTB-434-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THE DEVICE MAY NOT CAUSE HARMEFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Scanpak INC. 2250 Pl. Transcanada Dorval, Quebec H9P 2X5 Canada Tél.: (514) 685-3505 Fax : (514) 685-5484 25 août 2004 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant: Scanpak Inc. Product: TTagB Transceiver Tag Model: TTB-434-01 FCC ID: RUQTTB-434-01 Dear Sir/Madam, In accordance with 0.459 of CFR 47, Scanpak Inc. herby requests confidentiality of all Block Diagrams, Schematic Diagrams and Operational Description attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which Scanpak Inc. considers to be proprietary, confidential and a custom design and otherwise would not release to general public. Since the design is a basis from which future technological products will evolve, Scanpak Inc considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. If you have any queries, please do not hesitate to contact us by toll free number 1-877-977-7007. Sincerely, Signature: Name: Ewa Sokolowska Title: VP Company: Pultronics Inc. For: Scanpak Inc.

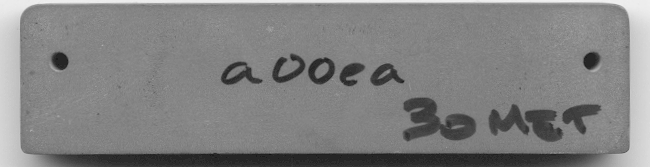

External Photos Product: TTagB Transceiver Tag Model: TTB-434-01 FCC ID: RUQTTB-434-01 Top view FCC ID: RUQTTB-434-01

FCC ID Label Product: TTagB Transceiver Tag Model: TTB-434-01 FCC ID: RUQTTB-434-01 Figure 1. Placement of the FCC ID label on the side of the device plastic enclosure. The following statement will be printed in User Manual. FCC ID: RUQTTB-434-01 Warning: Changes or modifications not expressly approved by Scanpak Inc. could void the user’s authority to operate the equipment Model: TTagB Transceiver Tag TTB-434-01 FCC ID: RUQTTB-434-01 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THE DEVICE MAY NOT CAUSE HARMEFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Internal Photos Product: TTagB Transceiver Tag Model: TTB-434-01 FCC ID: RUQTTB-434-01 Top view Bottom view FCC ID: RUQTTB-434-01

Test Setup Photos Product: TTagB Transceiver Tag Model: TTB-434-01 FCC ID: RUQTTB-434-01 Test setup as depicted in Test Report page 10. FCC ID: RUQTTB-434-01
