RUSHPS-1102.4GHz Transceiver Module

HPS-110 HandyPort-Serial Wireless Solutions in your Hand User’s Manual Version 2.0 2 Table of Contents 1. INTRODUCTION....................................................................................................................3 1.1. F EATURES........................................................................................................................ 3 1.2. P ACKAGE.......................................................................................................................... 3 2. SPECIFICATIONS .................................................................................................................4 2.1. G ENERAL.......................................................................................................................... 4 2.2. I NTERFACE........................................................................................................................ 5 2.2.1. Notation .......................................................................................................................5 2.2.2. RS-232 Signals ........................................................................................................... 5 2.3. F ACTORY SETTINGS.......................................................................................................... 6 2.4. S TATUS LED ..................................................................................................................... 6 2.5. R ESET BUTTON................................................................................................................. 6 2.5.1. Entering the Configuration Mode ................................................................................ 6 2.5.2. Exiting the Configuration Mode ................................................................................... 6 2.5.3. Re-connection ............................................................................................................. 6 3. USAGE................................................................................................................................... 7 3.1. H ARDWARE INSTALLATION.................................................................................................. 7 3.2. H YPER TERMINAL SETTINGS.............................................................................................. 7 3.3. C ONFIGURATION................................................................................................................ 7 3.3.1. Starting Configuration.................................................................................................. 7 3.3.2. Usage Printing ............................................................................................................. 7 3.3.3. After Configuration ...................................................................................................... 7 3.4. C OMMAND SET................................................................................................................. 8 3 1. Introduction Thank you for purchasing a HandyPort-Serial. The HandyPort-Serial can be used as a component in many types of systems allowing them to communicate wirelessly with other Bluetooth products such as PC-cards, laptops, handheld computers, mobile phones and other HandyPort-Serial. The HandyPort-Serial is a suitable component in new products as well as in existing products. 1.1. Features z Supports Bluetooth Serial Port Profile and Generic Access Profile z No need of external host and software z Easy of installation and use z Supports configuration of the local device z Supports configuration of the remote device via Over-the-Air z Easy of maintenance z Supports up to 100 meter (Line of Sight) 1.2. Package z HPS-110 2 EA z Antenna 2 EA z A soft copy of this manual 1 1 This manual is required the software version 2.0 or above. If you have any questions, please contact us. HandyWave Co., Ltd. 202-4 yatap-dong, Bundang-gu, Seongnam City, Gyunggi Province 463-070, Republic of Korea Tel: 82-31-709-8900, Fax: 82-31-708-9455 http://www.handywave.com/index3.htm 4 2. Specifications 2.1. General Baud Rate z Up to 115.2kbps (Recommend above 2.4kbps) z Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2kbps Coverage Up to 100 M Connection Point-to-Point Signal TxD, RxD, GND RS-232 Interface 2.5mm Wire to Board Connector Angle Type 4 Pin Male 1 Standard Bluetooth Specification Version 1.1 Frequency 2.400 ~ 2.4835GHz Hopping 1,600/Sec, 1MHz Channel Space Modulation GFSK, 1Mbps, 0.5BT Gaussian Tx. Power Max 20 / Typical 16dBm (Class 1) Rx. Sensitivity -84dBm Antenna Interface SMA Female Antenna Gain Max. 2dBi Power Supply +5VDC Current Consumption Max. 110Ma Operation Temperature -10 ~ 55 °C Size 36.5mm (W) x 69mm (D) x 12mm (H) 1 Part number: 22-05-7045 (Old Part Number: 5268-04A) from Molex. Other side part number: 50-37-5043 (Old Part Number: 5264-04) from Molex. 5 2.2. Interface 2.2.1. Notation z PWR: Power LED z OPR: Link LED z ANT: Antenna Connector (SMA Female) z RST: Reset Button z GND: Signal Ground z RXD: RS-232 Received Data z TXD: RS-232 Transmitted Data z VCC: System Power 2.2.2. RS-232 Signals Pin Number Notation Direction Description 1 VCC Input Vcc +5V 2 TxD Output RS-232 Transmitted Data 3 RxD Input RS-232 Received Data 4 GND N/A Signal Ground 6 2.3. Factory Settings The following are the factory settings of COM port. You can change the factory settings of COM port with commands. In this case, you have to remember the changed factory settings. z Baud rate: 9600 bps z Data Bit: 8 bit z Parity Bit: No parity z Stop Bit: 1 stop bit z Flow control: None 2.4. Status LED There are two LED on HPS-110. z PWR (Green): It is an indication of power on/off status. z LNK (Green): When a wireless link is on, it is turned on. If HPS-110 is in the configuration mode, it will be flashing every second. 2.5. Reset Button The RST button has the following functions. z Enter / Exit the configuration mode z Restore the factory setti…

Text truncated - open the document above for the full version.

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ________________________________________________________________________________ Declaration concerning Antenna Specification It’s hereby declared that the product: ............ HPS-110.................... fulfills the requirement in FCC test relating to the antenna type. The ............HPS-110.............confirm to FCC recommendation with integral antenna type: (model if applicable) HPS-110 built into the housing and has a unique connector gain of the antenna ..2.0... dBi frequency range ... 2400~2483.5......MHz. : please refer to the below The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company: HandyWave Co., Ltd. Address: 202-4 Yatap-dong, Bundang-gu, City: Seongnam City, Kyunggi Province, ZIP / Postal code: 463-070 Country: Korea Place: KOREA Date: Mar. 22, 2004 Signature:

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ______________________________________________________________________ Date : 2005. 03. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality HandyWave Co., Ltd. FCC ID: RUSHPS-110 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, HandyWave Co., Ltd. hereby requests confidentiality of all Block Diagram, Schematics, Parts List, attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which HandyWave Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, HandyWave Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Name: Jong Jin Chli Title: Chief Engineer Company: HandyWave Co., Ltd.

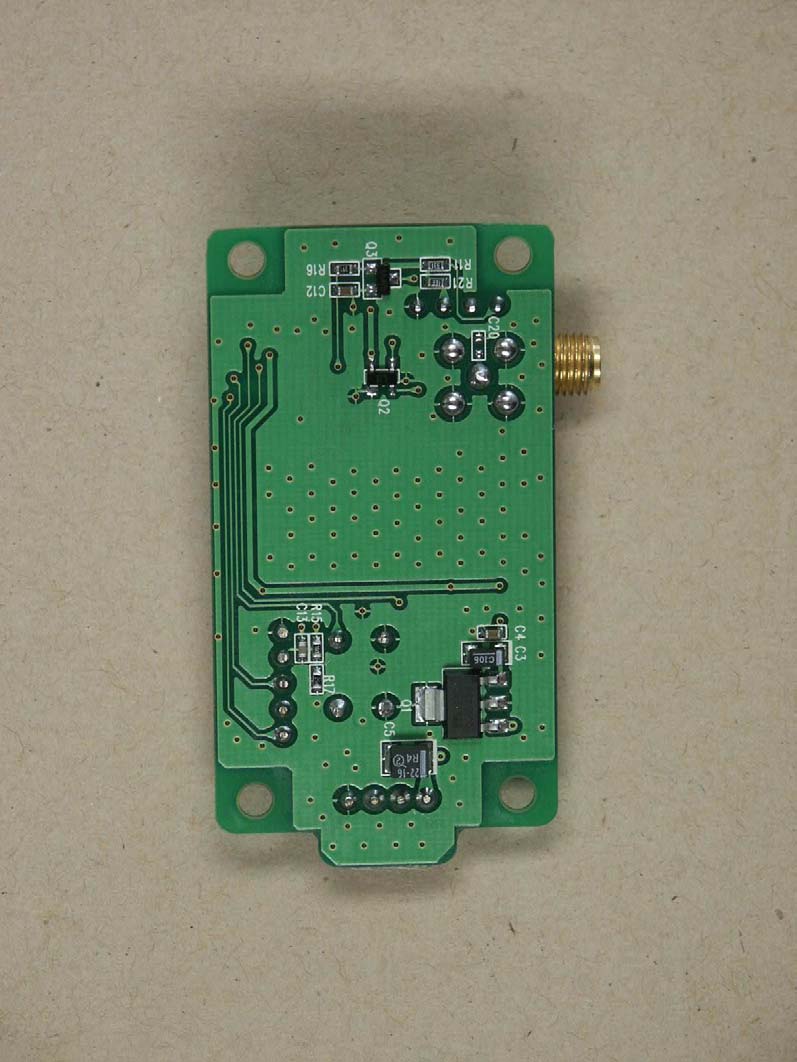

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 1 of 8 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 2 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 4 of 8

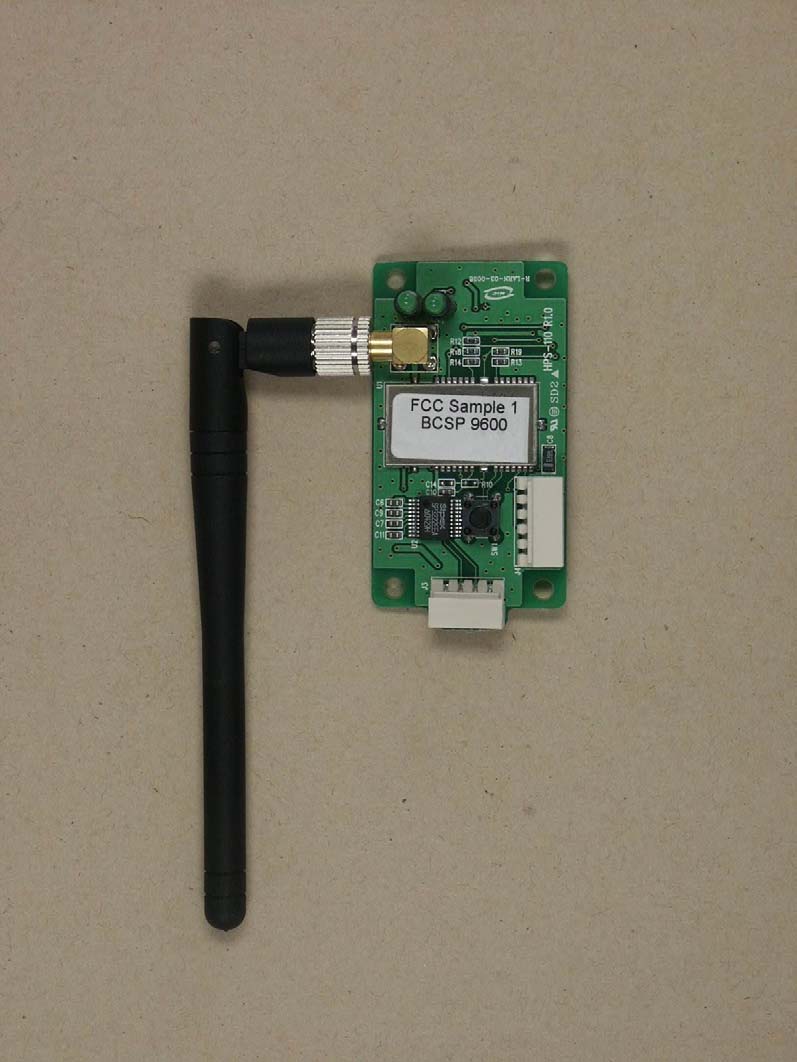

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ______________________________________________________________________ [Label Location] Description: 2.4GHz Transceiver Module FCC ID: RUSHPS-110

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ______________________________________________________________________ [FCC ID Label sample] Description: 2.4GHz Transceiver Module FCC ID: RUSHPS-110

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 2 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 3 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 4 of 8

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ______________________________________________________________________________ KRD01-00A10-01IR Specification Sheet Object Dipol Antenna REV.IR Page 1 of 6 Model name KBE-2400TO Date 2003-03-12 System B/T Band Written by SOCK HYUN BACK Electric Specification Frequency 2400 – 2483.5 MHz Radiation Pattern Omni Directional V.S.W.R 1.9 : 1 (Max) Gain (max) 2 dBi ± 0.5 dBi Input Impedance 50 (Ω) Polarization Vertical Power Handling Max. 3 Watts Mechanical Specification Dimensions 124.0 mm ± 2.0 mm Weight 12 g ± 1g Radiator Material Copper Operation Temperature -30 ~ 90 °C Operation Humidity 0 - 95 % Option SMA Male Type, 0 ~ 90 ° Tilt Antenna The rest

HandyWave Co., Ltd 202-4 Yatap-dong, Bundang-gu,Seongnam City, Kyunggi Province, 463-070, Korea Tel.: + 82-31-709-8900 Fax: + 82-31-708-9455 ______________________________________________________________________ HPS-110 Operational Description RF Transmitter The transmitter features a direct IQ modulator to minimise the frequency drift during a transmit timeslot which results in a controlled modulation index. A digital baseband transmit filter provides the required spectral shaping. The output power is typically +16dBm. RF Receiver The receiver features a near-zero Intermediate Frequency architecture that allows the channel filters to be integrated on to the die. Sufficient out-of-band blocking specification at the Low Noise Amplifier input allows the radio the be used in close proximity to GSM and W-CDMA cellular phone transmitters without being desensitised. The use of a digital FSK discriminator means that no discriminator tank is needed and its excellent performance in the presence of noise allows HPS-110 to exceed the Bluetooth requirements for co-channel and adjacent channel rejection. RF Synthesiser The radio synthesiser is fully integrated onto the die with no requirement for an external Voltage Controlled Oscillator (VCO) screening can, varactor tuning diodes or LC resonators. Baseband and Logic The microcontroller, interrupt controller and event timer run the Bluetooth software stack and control the radio and host interfaces. A 16-bit RISC microcontroller is used for low power consumption and efficient use of memory. The MMU provides a number of dynamically allocated ring buffers that hold the data which is in transit between the host and the air or vice versa. The dynamic allocation of memory ensures efficient use of the available RAM and is performed by a hardware MMU to minimize the overheads on the processor during data transfers. During radio transmission the BMC constructs a packet from header information previously loaded into memory-mapped registers by the software and payload data taken from the appropriate ring buffer in the RAM. During radio reception, the BMC stores the packet header in memory-mapped registers and the payload data in the appropriate ring buffer in RAM. Physical Layer Hardware Engine DSP is used to perform Forward error correction, Header error control, Cyclic redundancy check, Encryption, Data whitening, and Access code correlation.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: RUSHPS-110 Test report no.: G5M205030017-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 1 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 2 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 30.03.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 30.03.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 3 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : HandyWave Co., Ltd Street : 202-4 Yatap-dong, Bundang-gu Town : Seongnam City, Kyunggi Province Country : 463-070, Korea Telephone : +82-31-709-8900 Fax : +82-31-708-9455 Contact : Mr. J.J. Choi E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 4 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 09.03.2005 Date of receipt of test item : 09.03.2005 Date of test : 09.03.2005 – 04.04.2005 1.5 Test item Description of test item : 2.4 GHz Transceiver Module Type identification : HPS-110 Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: 8.01 dBm Conducted: 7.94 dBm Conducted: 8.05 dBm Power (ch B) : Conducted: 8.48 dBm Conducted: 8.46 dBm Conducted: 8.41 dBm Power (ch C) : Conducted: 8.16 dBm Conducted: 8.04 dBm Conducted: 8.01 dBm Vnom Power (chA) : Radiated: 8.90 dBm Power (ch B) : Radiated: 9.97 dBm Power (ch C) : Radiated: 11.21 dBm Power supply : 5.0 V DC (powered by USB port) (120 V AC/DC Adapter) Operating mode : duplex Type of modulation : FHSS Antenna type : internal antenna Antenna gain : 2.0 dBi ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 5 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device: For testing, the 2.4 GHz Transceiver Module HPS-110 was tested in the laptop CF 27 from Panasonic as test environment. The host device (laptop) has a supply of 120 V AC and provides around 5 V DC to the HPS-110 Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 6 of 34 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 5.0 V DC (powered by USB port) (120 V AC/D…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 5 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 6 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 7 of 8 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G5M205030017-P-15 Page 8 of 8
