RVBXPR200Xpointer mobile Receiver

XPR200 User Manual v1.2 (Bluetooth4.0 BLE USB Dongle) ChoisTechnology Co., Ltd. 1. Product Features ※ In order to use this product, smart device has to support the latest Bluetooth 4.0 BLE. X-pointer SMART(XPR200) is wireless PC remote control which we are able to use with smart phone supported Bluetooth 4.0. If you use the product with X-pointer Mobile(XPS130, XPS200), it can be used as wireless laser presenter. X-pointer SMART supports Plug and play.(It is available without installing program.) This is the first mobile phone remote control in the world free from inconvenience such as network set-up. -Turns your smart device into wireless keyboard, mouse and touch pad of PC -PC remote control by using smart device -Full supported presentation function with X-pointer app -Laser pointing function as it is used with X-pointer Mobile(XPS130, XPS200) -Supported various function through update for X-pointer app 2. Product Composition No. Item Q’ty ① XPR200 1EA ② User manual 1EA 3. Product Instructions <Preparation before use> First, download X-pointer app(X-pointer SMART) from APP store. (You could search for app as keyword “X-pointer”) ※ App will be supported in Play store later. <How to use> 1.Insert X-pointer SMART(XPR200) into USB port of PC. 2.LED in dongle lights up after X-pointer SMART is recognized in PC. 3.Turn on Bluetooth from set-up of smart equipment. 4.Practice X-pointer app. 5.Achieve equipment registration once you finish the user’s process. 6.After registration, if you select “X-pointer SMART”, smart device is connected with product. 7. LED in dongle lights out after connecting X-pointer app and Bluetooth. 8. Ready to use various function for X-pointer SMART 9. PC control using smart device app is possible. <LED per dongle condition> Situation LED Recognized USB device Light up (LED color is green) Connected USB device Light out Received date Light up and out <Construction for use> 4. Cautions Accidents caused by user negligence is not covered by warranty. Please note the below contents. 1)Do not apply excessive shock, reorganize at your option or use the device for purpose other than its intended use. 2)Do not expose the device for a long time in direct rays of the sun caused discoloration. 3)Be careful so that liquid such as water, beverage does not enter the device. 4)Keep the device stored between -10~50°C, operating temperature is 10~40°C. 5)Operation will not be able to smooth where many wireless instruments are used. 5. Product Specifications Division Contents CLASS Bluetooth 4.0 BLE USB HID dongle Wireless use distance(m) Max 30 m (Open Field) Wireless transmission device Bluetooth 4.0 BLE Frequency 2,402~2,480Mhz Channels 40CH Output Power less than 4mW GFSK Interface (PC) USB 1.1/2.0 Operating system Windows 2000, XP, Vista, 7, 8, Mac OS X Power supply Use for USB power supply( 5 VDC ) Current consumption Less then 25mA Weight 10g Dimension 12 mm X 26 mm Operating range Temperature : between 10～50°C, humidity : less than 75% Storage range Temperature : between -10～+50°C, humidity : less than 75% Compatible app App store : X-pointer SMART (Supported in play store) 6-1. Certification The product received certification in accordance with Korea Communications Commission, KCC Regulation. “This wireless equipment does not service relative to life security since it has possibility for electric wave confusion.“ 1) Product name(Model no.) – X-pointer SMART (XPR200) 2) Certification no. FCC ID : RVBXPR200 3) Company name : Chois Technology Co., Ltd. 4) Manufacturer / Country of origin : Chois Technology Co., Ltd. / The republic of Korea 5) Production date : Marked on box 6-2. Certification This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. “Note : The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.” 7. Customer Support We will kindly help you in case you have problems or there is something to improve on the product or its use. Please refer to our contact information as below. E-mail : [email protected] TEL : +82-2-6445-8205 Homepage : www.X-pointer.com FAX : +82-2-6455-3406 8. Warranty Product name Model number Serial number Purchase date Purchasing office Customer name Contact number E-mail Address Consumer injury type Compensation detail Within warranty period After warranty period Normal use state In case defect is occurred Repair for free Repair for value In case same defect is occurred two times Repair for free Repair for value In case same defect is occurred more than three times Exchange Repair for value Consumer’s negligence and mistake Breakdown by user’s mistake Repair for value Repair for value Breakdown by product’s optional disassembly, reorganization of structure, capacity or function Repair for value Repair for value ▣ Consumer injury compensation standard (※ After you buy the product, please register a member and p…

Text truncated - open the document above for the full version.

Date: February 21, 2013 Federal Communications Commission 7435Oakland Mills Road Columbia MD 21046 c.c. Compliance CertificationServices CertificationDivision 47173 Benicia Street Fremont, CA94538,USA To whomit may concern: I, the undersigned, herebyauthorize Lab Manager Charles. Kim(orFeel. Jeong)ofSGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act onourbehalf in all manners relatingto application forequipment authorization, includingsigningofall documents relating to these matters. Anyand all acts carried outby Lab Manager Charles. Kim(orFeel. Jeong) of SGS Korea Co., Ltd on ourbehalf shall havethe same effect as acts ofourown. I, theundersigned, hereby certify that we are notsubject to a denial offederal benefits, that includes FCC benefits, pursuantto Section 5301 of theAnti-Drug Abuse Act of 1988,21U.S.C. 853(a). In authorizing SGS Korea as ouragent, we still recognize that we areresponsible to: a)comply with therelevantprovisionsofthecertificationprogram; b)makeall necessary arrangements fortheconduct oftheevaluation,includingprovisionfor examiningdocumentationandaccess to all areas, records(includinginternalaudit reports) andpersonnel forthepurposes ofevaluation(e.g.testing,inspection,assessment, surveillance, reassessment) andresolutionofcomplaints; c)makeclaims regardingcertificationonly in respect ofthescopeforwhich certificationhas been granted; d)donotuse ourproduct certificationin such a manner as to bringtheCertificationDivision into disrepute andnotmakeanystatement regardingourproduct certificationwhich the CertificationDivisionmay consider misleadingorunauthorized; Chois Technology Co., Ltd. 1104, Incheon, IT Tower, 592­5, Dowha 1 dong, Namgu, Incheon, Korea ` e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang­Hwan Nam / Manager Chois Technology Co., Ltd.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Chois Technology Co., Ltd.,would likethefollowingdocuments regardingthis submissionforFCC ID: RVBXPR200 to bekeptconfidential. We are also hereby request Short­Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04­1705. This provision will give Chois Technology Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: Theabovematerialcontainstradesecrets ortechnical data, whichwould customarily beguarded from competitors.We donotwantthese documents to beaccessible to thegeneral public. Sincerely Yours, Sang­Hwan Nam / Manager Chois Technology Co., Ltd. Chois Technology Co., Ltd. 1104, Incheon, IT Tower, 592­5, Dowha 1 dong, Namgu, Incheon, Korea

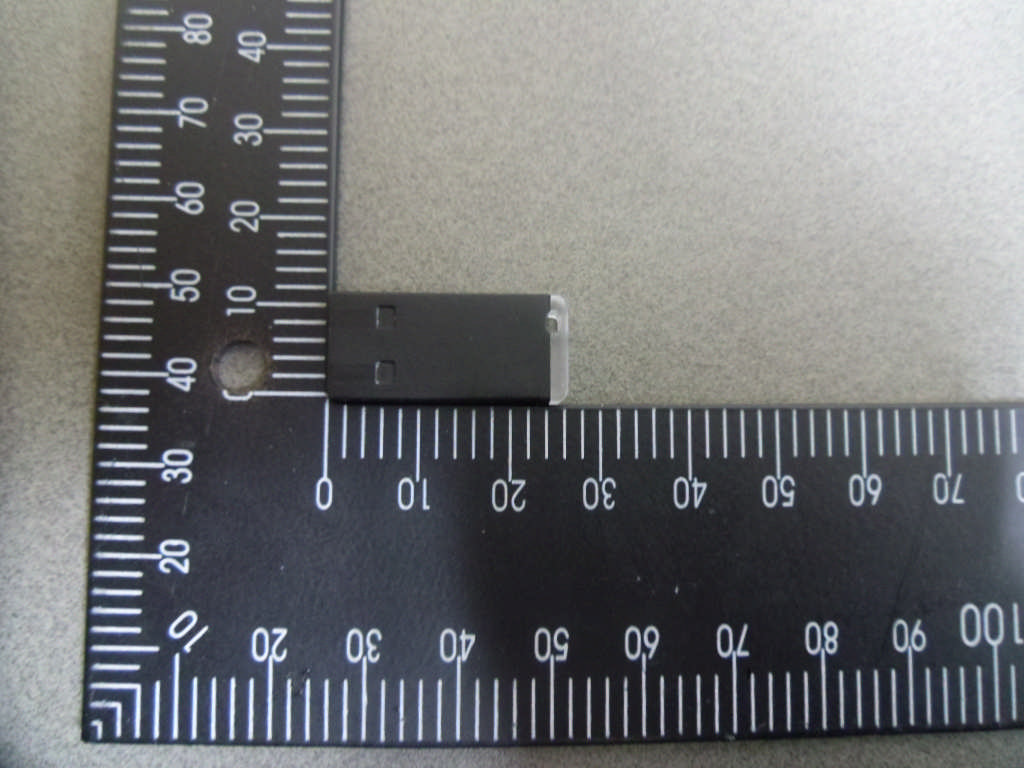

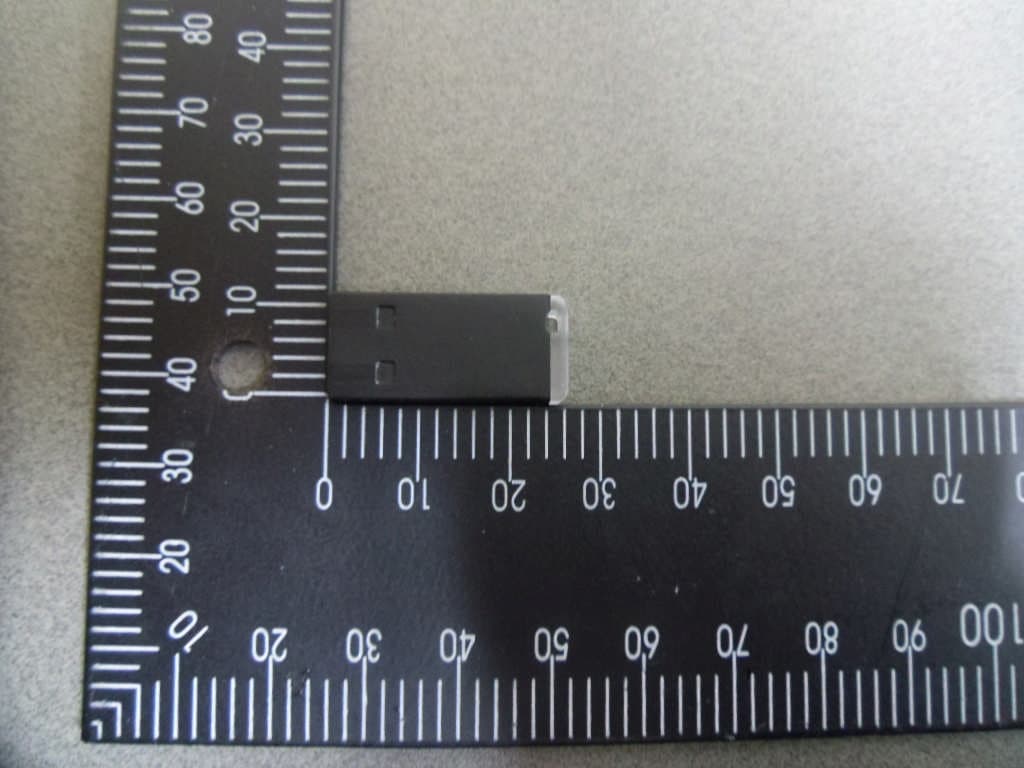

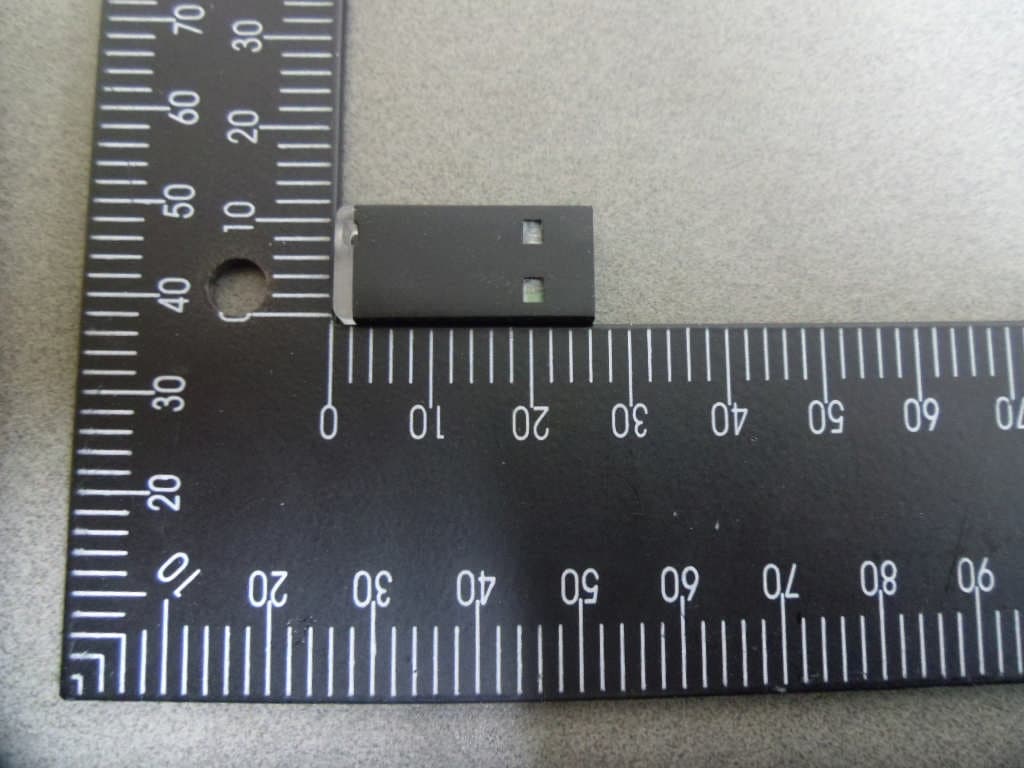

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC Label 1. FCC Label Drawing＆Location

Internal photos of EUT Inner of EUT Top view of PCB Bottom view of PCB Chip Antenna

FCC ID : RVBXPR200 According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100㎒to 6㎓and fortest separation distances≤50 mm, the SAR test exclusion threshold is determined according to the following; a) [(max. power of channel, including tune-up tolerance,㎽) / (min. test separation distance, mm)] x [√f (GHz) ]≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √2.480 = 9.53 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 1.289.53 2. Conclusion : No SAR is required.

Report Number : F690501/RF-RTL006285-1 Page: 2 of 35 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission------ 6 3. 6㏈ Bandwidth--------------------------------------------------------------------------------------- 18 4. Maximum Peak Conducted Output Power ---------------------------------------------------- 22 5. Power Spectral Density ---------------------------------------------------------------------------- 24 6. Transmitter AC Power Line Conducted Emission-------------------------------------------- 28 7. Duty Cycle Correction Factor---------------------------------------------------------------------- 33 8. Antenna Requirement ------------------------------------------------------------------------------ 35 Report Number : F690501/RF-RTL006285-1 Page: 3 of 35 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Giheung Laboratory) - 413-15, Gomae-Dong Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. - 400-2, Gomae-Dong Giheung-Gu, Yongin-Si, Gyeonggi-Do, South Korea. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 8007 5351 Fax No. : +82 31 8007 5369 1.2. Details of Applicant Applicant : Chois Technology Co., Ltd. Address : 1104, Incheon, IT Tower, 592-5, Dowha-1 dong, Namgu, Incheon, Korea Contact Person : Nam, Sang-Hwan Phone No. : +82 32 246 3404 Fax No. : +82 32 246 3406 1.3. Description of EUT Kind of Product Xpointer mobile Receiver Model Name XPR200 Serial Number N/A Power Supply DC 5 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK Number of Channels 40 Channel separation 2 ㎒ Antenna Type Chip antenna Antenna Gain 3.91 ㏈i 1.4. Declaration by the manufacturer - This product is applied for only Bluetooth LE Report Number : F690501/RF-RTL006285-1 Page: 4 of 35 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 05, 2013 Annual Jan. 05, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Attenuator Aeroflex / Weinschel 89-20-12 407 Aug. 07, 2012 Annual Aug. 07, 2013 Band Rejection Filter Wainwright WRCT2402/2480-2400/2 483.5-30/20SS 22 Jul. 12, 2012 Annual Jul. 12, 2013 High Pass Filter Wainwright WHK3.0/18G-10SS 4 Aug. 01, 2012 Annual Aug. 01, 2013 High Pass Filter Wainwright WHNX7.5/26.5G-6SS 15 Aug. 07, 2012 Annual Aug. 07, 2013 Low Pass Filter Mini-Circuits NLP-1200+ V9500401023-1 Aug. 01, 2012 Annual Aug. 01, 2013 Power Sensor R&S NRP-Z81 101341 Jul. 31, 2012 Annual Jul. 31, 2013 DC power Supply Agilent U8002A MY48490027 Jan. 03, 2013 Annual Jan. 03, 2014 Preamplifier H.P. 8447D 2727A05143 Jul. 18, 2012 Annual Jul. 18, 2013 Preamplifier R&S SCU 18 10070 Aug. 06, 2012 Annual Aug. 06, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Jul. 12, 2012 Annual Jul. 12, 2013 Test Receiver R&S ESU40 100075 Feb. 15, 2013 Annual Feb. 15, 2014 Trilog Antenna SCHWARZBECK VULB9163 9163-390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna SCHWARZBECK BBHA9170 BBHA9170431 May 15, 2012 Biennial May 15, 2014 Horn Antenna R&S HF 907 100208 Aug. 13, 2012 Biennial Aug. 13, 2014 Antenna Master INN-CO MA4000-EP N/A N.C.R. N.C.R. N.C.R. Turn Table INN-CO DT-3000S N/A N.C.R. N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N.C.R. N.C.R. N.C.R. Report Number : F690501/RF-RTL006285-1 Page: 5 of 35 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247 Section Test Item Result 15.205(a) 15.209 15.247(d) Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) 6 ㏈ Bandwidth Complied 15.247(b)(3) Maximum Peak Conducted Output Power Complied 15.247(e) Power Spectral Density Complied 15.207 Transmitter AC Power Line Conducted Emission Complied 1.7. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 ㎑ to 40 ㎓ (ANSI C63.4-2003) and the guidance provided in KDB 558074 were used in the measurement of the DUT. 1.8. Sample calculation Where relevant, the following sample calculation is provided: 1.8.1. Conducted test Offset value (㏈) …

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Photo of Radiated Spurious Emission Test B. Photos of conducted power line test for Bluetooth LE
