RVGSCM9-13WEnergy Saving Lamp

User Manual Input Electronic Energy Saving Lamp Input Volt: 120VAC, 60Hz Circuit Description The EMI of this Energy Saving Lamp is consist of L1 and C1. The volts D.C. supplies to circuit after filtered by C2. the output circuit which consists of power components Q1,Q2 and B1,L2,C6 makes the ballast to work at more than 40KHz. Warning Label WARNING Not for use with dimmers. FCC NOTE The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.150-30 MHz FCC Warning Statement for FCC ID Label/DoC Label Requirements This device complies with part 18 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interferenceand (2) This device must accept any interference receivedincluding interference that may cause undesired operation. FCC Product Label Proposed FCC Label Format FCC ID RVGSCM-XXW-120V Proposed Label Location on EUT

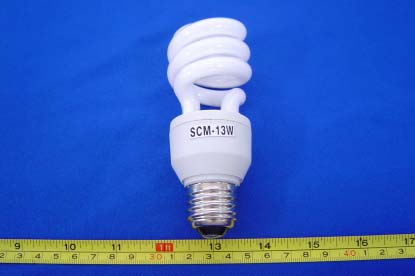

External Photos 9W_External Photos 11W_External Photos 13W_External Photos

FCC ID Label/Location Info Proposed FCC Label Format FCC ID: RVGSCM9-13W Proposed Label Location on EUT For Home or Office Use

Internal Photos 9-13W_Internal Photos For Component View 9-13W_Internal Photos For Solder View

SHENZHEN FEELING ELECTRONICS CO.,LTD BILL OF MATERIAL MODEL:SCM-9W~13W/120V Item Name Part Type LocationDosage Unit Technical data 1 Creosote Resistance 470K 1/4W R1 R2 2 PCS 2 Creosote Resistance 10Ω 1/4W R3 R4 2 PCS Metallized Polyester 3 Film Capacitors CL21 473/400V C1 C5 2 PCS 4 Electrolyte Capacitor 10uF/200V C2 1 PCS 105 9W 5 Electrolyte Capacitor 15uF/200V C2 1 PCS 105 11W 6 Electrolyte Capacitor 15uF/200V C2 1 PCS 105 13W Polyester-polypropylene 7 Film Capacitors CL11 102/1000V C3 1 PCS 8 Ceramic Capacitance CT1 223/100V C4 1 PCS Polyester-polypropylene 9 Film Capacitors CL11 472/1000V C6 1 PCS Polyester-polypropylene 10 Film Capacitors CL11 222/1000V C7 1 PCS 11 Rectifier Diode 1N4007 D1-D5 5 PCS 12 Recover Diode FR107 D6 D7 2 PCS 14 Spring Diode DB3 D8 1 PCS 14 Transistor BJT100S Q1 Q22 PCS TO-126 15 Toroid-type cores 85×3 T 1 PCS 464 16 Inductorium I 6×8 L1 1 PCS T=175, Φ0.15mmQA 17 Inductorium EE16 L2 1 PCS T=225, Φ0.27mmQA 18 Bobbin EE16 L2 1 PCS 19 Fuse 1A/250V non-time delay FU 1 PCS 20 PCB Φ38mm 1 PCS 21 Enclosure Φ42mm 22 Insulating Tape W=8mm, W=5mm L2 23 Tube spiral Φ10mm 9W 24 Base E26 25 Varnish L2 26 Heat-shrinkable Tube 8 L1 27 Fiberglass Sleeving, 1 28 Glue 29 Wire Red 1015 24AWG P1 1 PCS 30 Wire Black 1015 24AWG P2 1 PCS 31 Lamp Tube 9W 32 Lamp Tube 11W 33 Lamp Tube 13W









FCC TEST REPORT FCC ID : RVG SCM9-13W Applicant : Shenzhen Feeling Electronics Co.,Ltd. Building L, Jingtie Industry Park, Heao, Henggang, Longgang, Shenzhen, China Equipment Under Test (EUT) : Product description : Energy Saving Lamp Model No. : SCM-9W,SCM-11W,SCM-13W Standards : FCC Part18 Date of Test : June 05, 2004 Test Engineer : Jimmy Lee Reviewed By : PERPARED BY: Shenzhen Huatongwei International Inspection Co., Ltd Keji S,12th,Road, Hi-tech Industrial Park, Shenzhen, Guangdong, China FCC Registration Number: 662850 Page 1 of 18 Shenzhen Feeling Electronics Co., Ltd. FCC ID:RVGSCM9-13W 2 Contents Page 1 COVER PAGE..........................................................................................................................................................1 2 CONTENTS..............................................................................................................................................................2 3 TEST SUMMARY....................................................................................................................................................3 4 GENERAL INFORMATION..................................................................................................................................4 4.1 CLIENT INFORMATION............................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................4 4.3 DETAILS OF E.U.T..................................................................................................................................................4 4.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................4 4.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................4 4.6 TEST METHODOLOGY.............................................................................................................................................4 4.7 TEST FACILITY........................................................................................................................................................5 4.8 TEST LOCATION......................................................................................................................................................5 5 EQUIPMENT USED DURING TEST...................................................................................................................6 6 CONDUCTED EMISSION TEST..........................................................................................................................7 6.1 TEST EQUIPMENT....................................................................................................................................................7 6.2 TEST PROCEDURE...................................................................................................................................................7 6.3 CONDUCTED TEST SETUP.......................................................................................................................................8 6.4 EUT OPERATING CONDITION.................................................................................................................................8 6.5 CONDUCTED EMISSION LIMITS...............................................................................................................................9 6.6 SPECTRUM ANALYZER............................................................................................................................................9 6.7 FREQUENCY RANGE OF MEASUREMENTS.............................................................................................................10 6.8 CONDUCTED EMISSION TEST RESULT...................................................................................................................10 6.8.1 Measurement Data.....................................................................................................................................10 6.8.2 Conducted Emissions Test Data for SCM-9W...........................................................................................14 6.8.3 Conducted Emissions Test Data for SCM-11W.........................................................................................14 6.8.4 Conducted Emissions Test Data for SCM-13W.........................................................................................15 7 PHOTOGRAPHS OF TESTING..........................................................................................................................16 7.1 CONDUCTED EMISSION TEST VIEW FOR SCM-9W...............................................................................................16 7.2 CONDUCTED EMISSION TEST VIEW FOR SCM-11W.............................................................................................16 7.3 CONDUCTED EMISSION TEST VIEW FOR SCM-13W.............................................................................................17 8 FCC ID LABEL......................................................................................................................................................18 Page 2 of 18 Shenzhen Feeling Electronics Co., Ltd. FCC ID:RVGSCM9-13W 3 Test Summary Test Test RequirementTest Method Class / SeverityResult Radiated Emission (30MHz to 1GHz) FCC PART 18: 2003ANSI C63.4:1992 Class B N/A Conducted Emission (150KHz to 30MHz) FCC PART 18: 2003ANSI C63.4:1992 Class B PASS Page 3 of 18 Shenzhen Feeling Electronics Co., Ltd. FCC ID:RVGSCM9-13W 4 General Information 4.1 Client Information Applicant: Shenzhen Feeling Electronics Co.,Ltd. Address of Applicant: Building L, Jingtie Industry Park, Heao, Henggang, Lon…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Emission Test Setup View for SCM-9W Conducted Emission Test Setup View for SCM-11W Conducted Emission Test Setup View for SCM-13W
