RWPVR-1Remote Control Transmitter

1 MODEL# VR-1 BASIC VARIABLE REMOTE SYSTEM RECEIVER & TRANSMITTER KIT . VR-1 SET COMPRISES OF THE FOLLOWING PARTS: No. L-A2-16904Rev 1 031004 RECEIVER INSTALLATION STEPS Step 1. Attach the supplied wires with female connectors to their proper mating terminals on the valve (See Figure 1). Step 2. Attach the open wire ends to the terminal block on the receiver by connecting the marked wire to the positive (+) terminal and the unmarked wire to the negative (-) terminal. Tighten down the retaining screws (See Figure 2). Step 3. To install batteries into the receiver, squeeze together the tabs on the battery compartment and lift out (See Figure 3). Insert the four (4) AA batteries (supplied with your kit) into the compartment, ensuring they are correctly aligned by referring to the markings in the compartment. Replace compartment. NOTE: It is recommended that you replace the batteriesannually with fresh batteries. Always replace the four batteries at same time. Step 4. IMPORTANT: ACTIVATE YOUR RECEIVER BY PRESSING THE RESET (LOCATED ABOVE THE SWITCH, SEE FIGURE 3) WITH A FINE OBJECT SUCH AS A PAPERCLIP. Place the receiver not closer than 18" to the log set. An optional receiver cover (PCDC-1 or WCDC-1) is available from your Peterson dealer. Step 5. To activate the handset, remove the white tag from rear of handset. TO OPERATE REMOTE SEE PAGE 2 ROBERT H. PETERSON CO. NOTICE TO INSTALLER: Please leave these instructions with the consumer INSTALLATION AND OPERATING INSTRUCTIONS NOTICE TO CONSUMER: Please retain for future reference Item No.Part No.Description 1.10282Transmitter 2.10310Receiver 3.Valve Connection wiring 4.4x AA Batteries Figure 3 1 2 4 3 REMOVE THIS TAG (PULL OUT)




       Figure 1 ATTACH FEMALE CONNECTORS TO CORRECT MALE SPADES ON VALVE INSERT WIRING INTO RECEIVER & TIGHTEN DOWN SCREWS AT BACK Figure 2 2 ROBERT H. PETERSON COMPANY VALVES and SAFETY PILOT ASSEMBLIES LIMITED WARRANTY All Peterson Valves and Safety Pilot Assemblies are covered by a one (1) year limited warranty. Defective or broken parts for replacement must be returned to your dealer or to the factory, freight prepaid. Item will be repaired or replaced at factory option, and returned to purchaser, freight collect. This warranty does not cover parts becoming defective by misuse, accidental damage, improper handling and/or installation nor does it cover labor or labor related charges. Valves and pilot assemblies must be installed in accordance with local code and as outlined in the enclosed instructions. This warranty specifically excludes liability for indirect, incidental or consequential damage to property. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives you specified legal rights and you may also have other rights which vary from state to state. Robert H. Peterson Co. 14724 East Proctor Avenue, City of Industry, California 91746 Increasing flame height using the VR-1 Transmitter and Receiver: A. Set the receiver switch to the center (REMOTE) position. B. With the gas supply turned on and the gas log set lit, point the handset towards the receiver and press the "UP" Button (the red indicator light on both handset and receiver should show). Flame height will increase until the maximum is reached. Decreasing flame height using the VR-1 Transmitter and Receiver: C. Set the receiver switch to the center (REMOTE) position. D. While the main burner is lit, point the handset towards the receiver and press the "DOWN" Button (the red indicator light on both handset and receiver should show). Flame height will decrease. VR-1 TRANSMITTER/RECEIVER OPERATION


 TO INCREASE FLAME TO DECREASE FLAME


 USING THE RECEIVER TO CONTROL LOG SET To turn off the Remote option and control the log set manually, set the receiver switch to "OFF" ( top or bottom position) To set the switch for Remote use, set the receiver switch to "REMOTE"(center position) TOP FCC ID: RWPVR-1 This device complies with part 15 of the FCC rules. Operation of this device is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ETC Report No.: ET93S-03-081-01 Page A1 of A1 FCC ID: RWPVR-1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

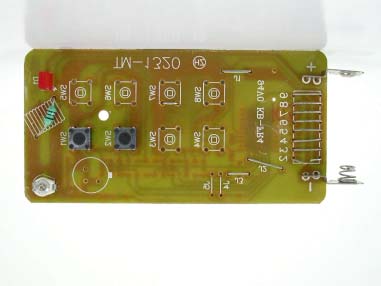

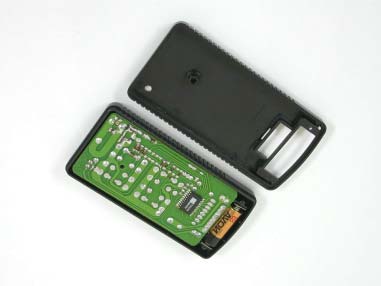

ETC Report No.: ET93S-03-081-01 Page B1 of B2 FCC ID: RWPVR-1 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Inside 2 of EUT ETC Report No.: ET93S-03-081-01 Page B2 of B2 FCC ID: RWPVR-1 3. Front view of PCB1 4. Rear view of PCB1

VR-1 ------------Operational Descriptions------------- Using Password to make the IC, for fix the codes,. And by ASK high frequency transmission to transfer different function codes to receiver for different control.

FCC ID:RWPVR-1 Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : REMOTE CONTROL TRANSMITTER FCC ID. : RWPVR-1 MODEL : VR-1 Working Frequency: 303.875MHz for APPLICANT : R.H. PETERSON CO. ADDRESS : 14724 E. PROCTOR AVE. CITY OF INDUSTRY, CA 91746 U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET93S-03-081-01 ETC Report No.: ET93S-03-081-01 FCC ID: RWPVR-1 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : R.H. PETERSON CO. 14724 E. PROCTOR AVE. CITY OF INDUSTRY, CA 91746 U.S.A. Manufacturer : WIN HOME ELECTRONIC FACTORY SHENZHEN, LUNG KANG DISTRICT, HENG KANG AREA, HUR OU CHUN, CHANG CHIANG PU INDUSTRY AREA, CHINA 518115 Description of EUT : a) Type of EUT : REMOTE CONTROL TRANSMITTER b) Trade Name : ---- c) Model No. : VR-1 d) FCC ID : RWPVR-1 e) Working Frequency : 303.875MHz f) Power Supply : DC 12V g) Serial No. : 2004040001 Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2003) Comment Issues : The data also apply to the remote control transmitter for Model No.: RR-1 I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date: Mar. 15, 2004 Test Engineer: Approve & Authorized Signer: Andy Kuo Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET93S-03-081-01 FCC ID: RWPVR-1 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 1 1.1 P RODUCT D ESCRIPTION ................................................................................................................................................. 1 1.2 C HARACTERISTICS OF D EVICE : ...................................................................................................................................... 1 1.3 T EST M ETHODOLOGY .................................................................................................................................................... 1 1.4 T EST F ACILITY ............................................................................................................................................................... 1 2. DEFINITION AND LIMITS ....................................................................................................................................... 2 2.1 D EFINITION .................................................................................................................................................................... 2 2.2 R ESTRICTED B ANDS OF O PERATION .............................................................................................................................. 2 2.3 L IMITATION ................................................................................................................................................................... 2 2.4 L ABELING R EQUIREMENT .............................................................................................................................................. 4 2.5 U SER I NFORMATION ...................................................................................................................................................... 4 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 5 3.1 A PPLICABLE S TANDARD ................................................................................................................................................ 5 3.2 M EASUREMENT P ROCEDURE .......................................................................................................................................... 5 3.3 T EST D ATA .................................................................................................................................................................... 7 3.4 F IELD S TRENGTH C ALCULATION ................................................................................................................................. 13 3.5 R ADIATED T EST E QUIPMENT ....................................................................................................................................... 14 3.6 M EASURING I NSTRUMENT S ETUP ................................................................................................................................19 3.7 R ADIATED M EASUREMENT P HOTOS ............................................................................................................................. 20 4. BANDWIDTH OF EMISSION.................................................................................................................................. 22 4.1 A PPLICABLE S TANDARD P LOT G RAPHIC OF B ANDWIDTH ............................................................................................ 22 4.2 B ANDWIDTH T EST E QUIPMENT .................................................................................................................................... 22 4.3 T EST R ESULT ............................................................................................................................................................... 22 5. CONDUCTED EMISSION MEASUREMENT ........................................................................................................ 25 5.1 A PPLICABLE S TANDARD ..........................................................…
