RWPVR-2Remote Control Transmitter

1 4 6 2 1 5 MODEL# VR-2 DELUXE VARIABLE REMOTE SYSTEM RECEIVER & TRANSMITTER KIT . VR-2 SET COMPRISES OF THE FOLLOWING PARTS: No. L-A2-17004 Rev 1 031004 ROBERT H. PETERSON CO. Item No.Part No.Description 1.10281Transmitter 2.10277Receiver 3.Valve Connection wiring 4.4x AA Batteries 5.Remote holder 6.Wall Switch 7.Mounting screws Figure 1 INSERT WIRING INTO RECEIVER & TIGHTEN DOWN SCREWS AT BACK Figure 2 ATTACH FEMALE CONNECTORS TO CORRECT MALE SPADES ON VALVE RECEIVER INSTALLATION STEPS Step 1. Attach the supplied wires with female connectors to the proper mating terminals on the valve (See Figure 1). Step 2. Attach the open wire ends to terminal block marked "M" on the receiver by connecting the marked wire to the positive (+) terminal and the unmarked wire to the negative (-) terminal. Tighten down the retaining screws (See Figure 2). Step 3. To install batteries into the receiver, squeeze together the tabs on the battery compartment and lift out (See Figure 3). Insert the four (4) AA batteries (supplied with your kit) into the compartment, ensuring they are correctly aligned by referring to the markings in the compartment.Replace compartment. NOTE: It is recommended that you replace the batteriesannually with fresh batteries. Always replace the four batteries at same time. Step 4. IMPORTANT: ACTIVATE YOUR RECEIVER BY PRESSING THE RESET (LOCATED ABOVE THE SWITCH, SEE FIGURE 3) WITH A FINE OBJECT SUCH AS A PAPERCLIP. Place the receiver not closer than 18" to the log set. An optional receiver cover (PCDC-1 or WCDC-1) is available from your Peterson dealer. Step 5. To activate the handset, open the battery compartment at rear, and remove the white tag. To set up handset functions, follow instructions on page 2, or the label on inside of handset cover. Remote Functions available are: Gas Log Set ON/OFF, Thermostatic control, Timer control, Room Thermometer, Flame Height control, and Sound control (when optional sound device is connected) An optional wall switch is supplied. See page 2 for installation instructions TO OPERATE REMOTE SEE PAGE 2 Figure 3 NOTICE TO INSTALLER: Please leave these instructions with the consumer INSTALLATION AND OPERATING INSTRUCTIONS NOTICE TO CONSUMER: Please retain for future reference 3 7




       2 Robert H. Peterson Co. 14724 East Proctor Avenue, City of Industry, California 91746 VR-2 TRANSMITTER/RECEIVER OPERATION




           !
 "      "
  "  #$  "  NOTTUBNOITCATLUSERNOITPONOITCATESGOLSAG EDOM ECNOSSERP SNRUT NOTESDNAH NOTESGOLSNRUT SSERP ECIWT NOSNRUT TATSOMREHT LORTNOC NWOD&PUESU TESOTSNOTTUB TATSOMREHT ERUTAREPMET NOTESGOLSNRUT SSELSIPMETMOORFI .PMETTATSOMREHTNAHT FFOSNRUTTESGOL SIPMETMOORFI NAHTRETAERG .PMETTATSOMREHT SSERP NEHW(ECNO )NO"OMREHT" SNRUT FFOTESDNAH FFOTESGOLSNRUT REMIT SSERP SPOTS/STRATS NOITPOREMIT NWOD&PUESU OTSNOTTUB EMITSESAERCNI ETUNIM51NI OTPUSLAVRETNI SRUOH9 FFOTESGOLSNRUT SEHSINIFREMITNEHW DNUOS SSERP SEHCTIWS DNUOSLANOITPO YROSSECCA FFO/NO NRUTYLLAUNAM:ETON NEHWFFODNUOS TESGOLFFOGNINRUT EMALF SSERP SWOLLA FOLORTNOC THGIEHEMALF OTNWOD/PUESU ROESAERCNI ESAERCED EMALF YAWEHTLLADENRUTFI NRUTLLIW,NWOD FFOTESGOL EMIT SSERP ECNO KCOLCSWOLLA EBOT)RUOH( DEGNAHC OTNWOD/PUESU GNITTESEGNAHC SSERP ECIWT KCOLCSWOLLA EBOT)SETUNIM( DEGNAHC OTNWOD/PUESU GNITTESEGNAHC TES SSERP ATADSPEEK ROFGNITTES ,REMIT &TATSOMREHT KCOLC USING THE REMOTE TO CONTROL LOG SET


 USING THE RECEIVER TO CONTROL LOG SET To turn off the Remote option and control the log set manually, set the receiver switch to "OFF" ( top or bottom position) To set the switch for Remote use, set the receiver switch to "REMOTE"(center position) TOP





       USING THE WALL SWITCH To turn off remote option, set wall switch to "OFF" (top or bottom position) To set for remote use, set wall switch to "REMOTE" (center position) When operating remote, point handset towards wall switch NOTE: For quick ON/OFF and/or 15 minuteTIMER, press the MODE and/or TIMER buttons on handset outer cover. FCC ID: RWPRR-2 This device complies with part 15 of the FCC rules. Operation of this device is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate this equipment. WALL SWITCH MOUNT 1. Select a location for the Wall Switch near the fireplace, up to 10 feet maximum from the fireplace for the length of wiring supplied. 2. Cut out a clearance hole for direct wall or switch box mounting. NOTE: Allow 3” deep (or greater) space for the battery holder. 3. Tie 6" of chain (or a small weight) to a cord creating a plumb line. Hang line from the location to the top of wall baseboard. At this point (indicated by the plumb line) drill a 1/2" to 3/4" hole. 4. Lower the line through the upper hole, within the stud space, down to baseboard level. Pull weight out of the lower hole using a stiff hooked wire (a bent wire coat hanger works well) and remove weight from the plumb line. Tie one end of the Wire Cable to the plumb line and pull the line back up through the Wall Switch location to expose several inches of wire. 5. Connect the lower portion of wiring to the connectors on the toggle switch on the valve, or pine cone switch (see figure 1a and 1b). 6. Connect the other end of the wiring to receiver terminals as shown in Figure 2. Insert 4 AA batteries in the battery…

Text truncated - open the document above for the full version.

ETC Report No.: ET93S-03-082-01 Page A1 of A1 FCC ID: RWPVR-2 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

148mm 54mm COMPANY: ROBERT H. PETERSON CO., OBJECT: RWPVR-2 1. ID LABEL 35mm 42mm

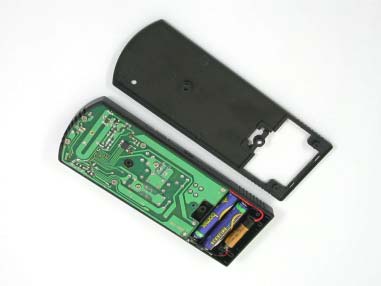

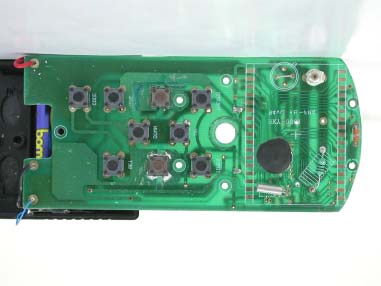

ETC Report No.: ET93S-03-082-01 Page B1 of B3 FCC ID: RWPVR-2 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Inside 2 of EUT ETC Report No.: ET93S-03-082-01 Page B2 of B3 FCC ID: RWPVR-2 3. Inside 3 of EUT 4. Front view of PCB1 ETC Report No.: ET93S-03-082-01 Page B3 of B3 FCC ID: RWPVR-2 5. Rear view of PCB1

VR-2 ------------Operational Descriptions--------- By Password, Temperature Sensor, Timer and LCD display of Micro Controller and CUP to setting and control the main program. And by the ASK high frequency transmission way to transfer the different password with multi-functions to receiver for different control.

FCC ID:RWPVR-2 Rev. No 1.0 FCC Part 15 Subpart C TEST REPORT of E.U.T. : REMOTE CONTROL TRANSMITTER FCC ID. : RWPVR-2 MODEL : VR-2 Working Frequency: 303.875MHz for APPLICANT : R.H. PETERSON CO. ADDRESS : 14724 E. PROCTOR AVE. CITY OF INDUSTRY, CA 91746 U.S.A. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8, LANE 29, WEN-MING RD., LO-SHAN TSUN, KUI-SHAN HSIANG, TAOYUAN HSIEN 333, TAIWAN, R.O.C. Tel: (03) 3276170-3276174 Fax: (03) 3276188 Report Number: ET93S-03-082-01 ETC Report No.: ET93S-03-082-01 FCC ID: RWPVR-2 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : R.H. PETERSON CO. 14724 E. PROCTOR AVE. CITY OF INDUSTRY, CA 91746 U.S.A. Manufacturer : WIN HOME ELECTRONIC FACTORY SHENZHEN, LUNG KANG DISTRICT, HENG KANG AREA, HUR OU CHUN, CHANG CHIANG PU INDUSTRY AREA, CHINA 518115 Description of EUT : a) Type of EUT : REMOTE CONTROL TRANSMITTER b) Trade Name : ---- c) Model No. : VR-2 d) FCC ID : RWPVR-2 e) Working Frequency : 303.875MHz f) Power Supply : DC 3V and DC 12V g) Serial No. : 2004040001D Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2003) Comment Issues : The data also apply to the remote control transmitter for Model No.: RR-2 I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date: Mar. 15, 2004 Test Engineer: Approve & Authorized Signer: Andy Kuo Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.: ET93S-03-082-01 FCC ID: RWPVR-2 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ...................................................................................................................................... 1 1.1 P RODUCT D ESCRIPTION ................................................................................................................................................. 1 1.2 C HARACTERISTICS OF D EVICE : ...................................................................................................................................... 1 1.3 T EST M ETHODOLOGY .................................................................................................................................................... 1 1.4 T EST F ACILITY ............................................................................................................................................................... 1 2. DEFINITION AND LIMITS ....................................................................................................................................... 2 2.1 D EFINITION .................................................................................................................................................................... 2 2.2 R ESTRICTED B ANDS OF O PERATION .............................................................................................................................. 2 2.3 L IMITATION ................................................................................................................................................................... 2 2.4 L ABELING R EQUIREMENT .............................................................................................................................................. 4 2.5 U SER I NFORMATION ...................................................................................................................................................... 4 3. RADIATED EMISSION MEASUREMENT ............................................................................................................. 5 3.1 A PPLICABLE S TANDARD ................................................................................................................................................ 5 3.2 M EASUREMENT P ROCEDURE .......................................................................................................................................... 5 3.3 T EST D ATA .................................................................................................................................................................... 7 3.4 F IELD S TRENGTH C ALCULATION ................................................................................................................................. 13 3.5 R ADIATED T EST E QUIPMENT ....................................................................................................................................... 14 3.6 M EASURING I NSTRUMENT S ETUP ................................................................................................................................19 3.7 R ADIATED M EASUREMENT P HOTOS ............................................................................................................................. 20 4. BANDWIDTH OF EMISSION.................................................................................................................................. 22 4.1 A PPLICABLE S TANDARD P LOT G RAPHIC OF B ANDWIDTH ............................................................................................ 22 4.2 B ANDWIDTH T EST E QUIPMENT .................................................................................................................................... 22 4.3 T EST R ESULT ............................................................................................................................................................... 22 5. CONDUCTED EMISSION MEASUREMENT ........................................................................................................ 25 5.1 A PPLICABLE S TANDARD ...............................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET93S-03-082-01 Sheet 1 of 2 Sheets FCC ID.: RWPVR-2 3.7 Radiated Measurement Photos x axis y axis ETC Report No.:ET93S-03-082-01 Sheet 2 of 2 Sheets FCC ID.: RWPVR-2 z axis
