RX2GRG2501MY23Giorgio 2.5

Marelli Europe S.p.A. - Electronics a socio unico Direzione e Stabilimento: Viale Aldo Borletti 61/63 20011 Corbetta (MI), Italy Tel. +39 02 97227111 Fax +39 02 97227862 Sede Legale: Viale Aldo Borletti 61/63 20011 Corbetta (MI), Italy [email protected] Cap. Soc. Euro 254.325.965 i.v. Reg. Imp. Milano, Cod. Fisc. e P. IVA 08082990014 REA di Milano n. 1657773 Direzione e coordinamento ex art. 2497 c.c. Marelli Holdings Co., Ltd. Compliance Statements The following text (in blue) shall be placed in the owner’s manual for vehicles referred to GRG2501 sold in the United States of America, Canada and Mexico. USA FCC ID: RX2GRG2501MY23 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Requirements To comply with FCC RF exposure compliance requirements, the device must be installed to provide a separation distance of at least 20 cm from all persons. CANADA IC: 4983A-GRG2501MY23 This device complies with the Innovation, Science and Economic Development license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2 Le présent appareil est conforme aux CNR d`Innovation, Science and Economic Development applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF Exposure Requirements This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Déclaration d’exposition aux radiations Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps The FCC ID (RX2GRG2501MY23) and IC ID (4983A-GRG2501MY23) shall be on the label and in the owner’s manual. This declaration is based on the following Grant of Equipment Authorizations: FCC Grant No. xxxxxxxx FCC Grant No. xxxxxxxxx ISED Grant No. xxxxxxxxxx

CONTENTS INTRODUCTION . . . . . . . . . . . . . . . 3 TIPS, CONTROLS AND GENERAL INFORMA TION . . . . . . . . . . . . . . . . 4 TIPS . . . . . . . . . . . . . . . . . . . . . . . 4 MULTIMEDIADEVICES:SUPPORTED AUDIOFILESANDFORMATS . . . . . 4 NOTESONTRADEMARKS . . . . . . . 5 EXTERNALAUDIOSOURCES . . . . . 5 ANTITHEFTPROTECTION . . . . . . . 5 SOFTWAREUPDATES . . . . . . . . . . 5 MAPUPDATE . . . . . . . . . . . . . . . . 5 ASSISTANCEFORUSINGTHE NAVIGATIONSYSTEM . . . . . . . . . . 5 AUDIOSYSTEM . . . . . . . . . . . . . . 5 DISPLAY . . . . . . . . . . . . . . . . . . . . 6 GPSRECEPTION(GlobalPositioning System) . . . . . . . . . . . . . . . . . . . . 6 IMPORTANTINFORMATIONON COPYRIGHTS . . . . . . . . . . . . . . . . 7 CONTROLS . . . . . . . . . . . . . . . . . . . 8 CONTROLSONTUNNEL . . . . . . . . 8 T unnelcontrolsummarytable . . . . . 8 CONTROLS ON STEERING WHEEL. . . . . . . . . . . . . . . . . . . . . 11 DESCRIPTION . . . . . . . . . . . . . . . 11 CONTROLSONSTEERINGWHEEL SUMMARYTABLE . . . . . . . . . . . . 11 SWITCHINGTHE SYSTEM ON AND OFF. . . . . . . . . . . . . . . . . . . . . . . . 13 RADIO(TUNER)MODE . . . . . . . . 13 RADIOMODESELECTION . . . . . . 13 SELECTINGAFREQUENCY BAND . . . . . . . . . . . . . . . . . . . . . 14 DISPLAYEDINFORMATION . . . . . 14 RADIOSTATIONSELECTION . . . . 14 PREVIOUS/NEXTRADIOSTATION FASTSEARCH . . . . . . . . . . . . . . 15 PREVIOUS/NEXTRADIOSTATION SEARCH . . . . . . . . . . . . . . . . . . 15 AM/FMRADIOSTATIONTUNING . . . . . . . . . . . . . . . . . . . . . . . . . . 15 DABRADIO . . . . . . . . . . . . . . . . . 15 SiriusXM™RADIO . . . . . . . . . . . . 17 HDRadio™TECHNOLOGY . . . . . . 17 SETTINGTHEPRESELECTIONS . . 17 AUDIO . . . . . . . . . . . . . . . . . . . . 17 MEDIA MODE . . . . . . . . . . . . . . . . 20 AUDIOSOURCESELECTION . . . . 20 REST ARTORPAUSEATRACK(Play/ Pause) . . . . . . . . . . . . . . . . . . . . 20 TRACKCHANGE(previous/next) . 20 TRACKFASTFORWARD/REWIND . . . . . . . . . . . . . . . . . . . . . . . . . . 21 TRACKSELECTION(Library) . . . . 21 TRACKINFORMATIONDISPLAY . 21 RANDOMTRACK REPRODUCTION . . . . . . . . . . . . . 21 Bluetooth ® SOURCE . . . . . . . . . . . 21 PAIRINGABluetooth ® AUDIO DEVICE . . . . . . . . . . . . . . . . . . . . 22 USB/iPod SUPPORT . . . . . . . . . . 22 USB/iPodMODE . . . . . . . . . . . . . 22 AUX SOURCE . . . . . . . . . . . . . . . . 23 PHONE MODE . . . . . . . . . . . . . . . . 24 PHONEMODEACTIVATION . . . . . 24 MAINFUNCTIONS . . . . . . . . . . . . 24 DISPLAYEDINFORMATION . . . . . 25 PAIRINGAMOBILEPHONE . . . . . 26 TRANSMISSIONOFPHONEDATA (PHONEBOOKANDRECENT CALLS) . . . . . . . . . . . . . . . . . . . . 26 CONNECTION/DISCONNECTIONOFA MOBILEPHONEORABluetooth ® AUDIODEVICE . . . . . . . . . . . . . . 27 DELETIONOFAMOBILEPHONEORA Bluetooth ® AUDIODEVICE . . . . . . 27 SETTINGAMOBILEPHONEORA Bluetooth ® AUDIODEVICEAS FAVOURITE . . . . . . . . . . . . . . . . . 28 DELETIONOFPHONEDATA (PHONEBOOKANDRECENT CALLS) . . . . . . . . . . . . . . . . . . . . 28 MAKINGAPHONECALL . . . . . . . 28 MANAGINGANINCOMINGCALL . 29 MAKINGASECONDPHONE CALL . . . . . . . . . . . . . . . . . . . . . . 29 MANAGINGTWOPHONECALLS . 29 ENDINGACALL . . . . . . . . . . . . . . 29 CONTINUINGAPHONECALL . . . . 29 ACTIVATION/DEACTIVATIONOFTHE MICROPHONE . . . . . . . . . . . . . . 30 NAVIGATION MODE . . . . . . . . . . . 30 SAFETY/LEGALNOTICE . . . . . . . 30 A CTIVATENAVIGATION . . . . . . . . 30 SETDESTINATION . . . . . . . . . . . . 31 RECENTDESTINATIONS . . . . . . . 32 FAVOURITEDESTINATIONS . . . . 32 POIDESTINATIONS . . . . . . . . . . . 32 ZOOMMAP . . . . . . . . . . . . . . . . . 32 1 Connect EXPLOREMAP . . . . . . . . . . . . . . 32 LAUNCHNAVIGATION . . . . . . . . . 32 INTERRUPTNAVIGATION . . . . . . 33 VOLUME . . . . . . . . . . . . . . . . . . . 33 ROUTEMANAGEMENT . . . . . . . . 33 ROUTEPREVIEW . . . . . . . . . . . . 33 DRIVING VIEW . . . . . . . . . . . . . . . 34 ABOUTDRIVINGVIEW . . . . . . . . 34 DRIVING VIEW . . . . . . . . . . . . . . 34 2D/3D/AERIALVIEWMAPDISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . 34 LANEGUIDANCE . . . . . . . . . . . . . 35 DISPLAYEDSYMBOLS . . . . . . . . 35 SETTINGS . . . . . . . . . . . . . . . . . . . 37 VOICE COMMANDS . . . . . . . . . . . 49 INTRODUCTION . . . . . . . . . . . . . 49 OPENING ANDCLOSINGVOICE SESSIONS . . . . . . . . . . . . . . . . . 49 VOICESESSIONSTATUS . . . . . . . 50 MULTIPLECHOICELIST . . . . . . . 50 VOICECOMMANDS-PRACTICAL USE . . . . . . . . . . . . . . . . . . . . . . 51 RADIOAM/FM/DABVOICE COMMANDS . . . . . . . . . . . . . . . 52 MEDIAVOICECOMMANDS . . . . . 53 NAVIGATIONVOICE COMMANDS . . . . . . . . . . . . . . . . 54 PHONEVOICECOMMANDS . . . . . 55 CUSTOMER SERVICE NUMBER LIS T . . . . . . . . . . . . . . . . . . . . . . . 56 2 Connect INTRODUCTION ThevehicleisequippedwithaConnectsystemdesignedaccordingtothespecificfeaturesofthepassengercompartmentwitha customiseddesignwhichmatchesthestyleofthedashboardandthecentraltunnel. Thesystemisinstalledinanergonomicpositionforthedriverandpassenger,andcontrolscanbequicklylocatedfromthegraphical displayonthefront,makingthedeviceeasytouse. Toincreaseprotectionagainsttheft,thesystemhasaprotectionsystemwhichonlyallowsittobeusedonthevehicleinwhichitwas originallyfitted. Theinstructionsforusearegivenbelowandwerecommendyoureadthemcarefullyandalwayskeepthemtohand(forexample,in theglovecompartment). Enjoyreading.Happymotoring! 3 Connect TIPS, CONTROLS AND GENERAL INFORMATION TIPS Road safety Learnhowtousethevarioussystem functions beforesettingoff. Readtheinstructionsforthesystem carefullybeforesettingoff. 1)2) Reception conditions Receptionconditionschangeconstantly whiledriving.Receptionmaybe interferedwithbythepresenceof mountains,buildingsorbridges, especiallywhenyouarefarawayfrom thebroadcaster. IMPORTANTThevolumemaybe adjustedwhenreceivingtraffic informationandnews. Care and maintenance Observethefollowingprecautionsto ensure thesystemisfullyoperational: 1)2) avoidhittingthedisplaylenswith pointe…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Marelli Europe S.p.A Address : Viale A. Borletti 61/63 City: Corbetta (MI) 20011 Country: Italy To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: RX2GRG2501MY23 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification appli cation: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: To avoid premature releasee of sensitive information prior to marketing or release of the product to the public. Date: 21-12-2022 Name and signature of applicant: Abdellah Ahakki Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

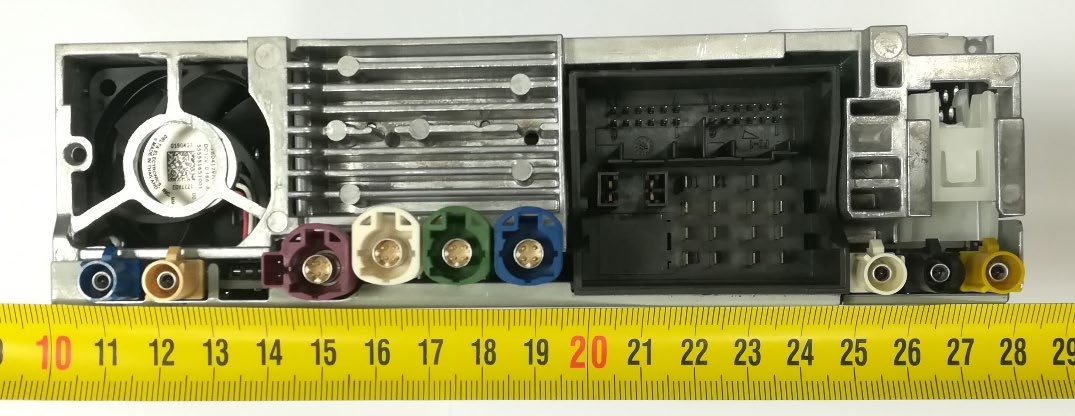

GIORGIO MY2023 Pictures 1. External View

Label location

GRG2501 Internal View 3.PCB View Mo therboard Top Motherboard Bottom Powerboard Top P owerboard Bottom Daughterboard Top Daughterboard Bottom

MDE_MARELLI_220 6_MPEa_rev01 Page 1 of 4 Maximum Permissible Exposure Report Reference: MDE_MARELLI_2206_MPEa_rev.01 on Giorgio 2.5 GRG2501 FCC ID: RX2GRG2501MY23 IC: 4983A-GRG2501MY23 To whom it may concern, please find our Maximum Permissible Exposure calculations for GRG2501 Best Regards i.A. Abdellah Ahakki MDE_MARELLI_220 6_MPEa_rev01 Page 2 of 4 Administrative Data: Testing Laboratory Company Name: 7layers GmbH Address: Borsigstr. 11 40880 Ratingen Germany Project Data Responsible for report: Mr. Abdellah Ahakki Date of Report: 2022-12-30 Testing Period: 2022-08-16 to 2022-08-26 Applicant Data Company Name: Marelli Europe S.p.A. Address: V.le A. Borletti 61/63 20011 Corbetta (MI) Italy Contact Person: Gianluca Capuzzo Manufacturer Data Company Name: please see Applicant data Address: - - - Contact Person: - MDE_MARELLI_220 6_MPEa_rev01 Page 3 of 4 Test object Data General Description of Radio Device Kind of Device product description Head unit with Bluetooth Product name Giorgio 2.5 Type GRG2501 Declared EUT data by the supplier Voltage Type DC (vehicular battery) Voltage Level 13.5 V Antenna / Gain External / -2 dBi Tested Modulation Type GFSK Modulation, 1-DHx packets n/4 DQPSK Modulation, 2-DHx packets 8-DPSK Modulation, 3-DHx packets Specific product description for the EUT The EUT supports Bluetooth. MDE_MARELLI_220 6_MPEa_rev01 Page 4 of 4 RF Exposure evaluation RF Exposure Evaluation Standards OET Bulletin 65 Edition 97-01 August 1997 FCC 47 CFR §1.1307 FCC 47 CFR §1.1310 Test limits As specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure. Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Equation for calculation S = P*G / (4πR²) Where: S – Power density P – Power input to antenna G – Antenna gain relative to isotropic radiator R – Distance to antenna Maximum peak output power at antenna terminal: +1.4 dBm (1.38 mW) Antenna gain: -2 dBi Prediction distance: 20cm MPE limit for General Population/Uncontrolled Exposure: 1 mW/cm² Calculation’s results: Power density at 20cm distance: 0.0002 mW/cm²

Alfa Romeo 952/949 Bluetooth Antenna Released on Sep 09 2022 Ver. 1.0 Issued by P. Facchini Revised by F. Casoli Approved by A. Notari Confidentiality Confidential Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 1 of 14 Version History Version Revision date Changes 1.0 September 09 2022 First Release date Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 2 of 14 Index 1 Introduction .................................................................................................................................. 3 2 Requirements ................................................................................................................................ 4 3 Antenna Block Diagram............................................................................................................... 5 4 Laboratory Measurements ........................................................................................................... 6 4.1 Diagnostic Resistance ............................................................................................................. 6 4.2 VSWR ...................................................................................................................................... 6 5 Radiation Measurements.............................................................................................................. 7 5.1 Bluetooth Antenna – Efficiency .............................................................................................. 7 5.2 Bluetooth Antenna – Peak Gain ............................................................................................. 7 6 Conclusions................................................................................................................................... 8 Appendix A – Measurements Setup .................................................................................................... 9 A1 Laboratory ............................................................................................................................ 10 A2 Anechoic Chamber ................................................................................................................ 12 Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 3 of 14 1 Introduction In this report measurements of Alfa Romeo 952/949 Bluetooth Antenna will be presented. The following partnumbers are involved: Item Customer P/N (ASK P/N) Sample Status (ASK) Instrument Panel BT Antenna for 952 00505348590 (83850100) Standard Production Instrument Panel BT Antenna for 949 00505477120 (83853900) Standard Production The two partnumbers share the same parts, the difference consist just in the presence of a Raymond Clip on the Fakra connector of the 949 version. For this reason only one partnumber (00505348590 - 83850100) was characterized. Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 4 of 14 2 Requirements Requirements in accordance with: - CTS_BT-WiFi Antennas_20140506_ASK-20140909.docx - pf13010 Rev A BT-WiFi.pdf Bluethoot Requirements Item Ref § Min. Typ. Max. Unit Remarks / Notes Sample Status Frequency Band 2.4 2.5 GHz Ok Output Diagnostic Impedance 41 51 61 kOhm Ok Antenna Impedance 50 Ohm Ok VSWR 3:1 Ok Polarization Linear Ok Azimuth Coverage 0 360 Deg Ok Elevation Coverage 0 90 Deg Ok Antenna Efficiency 50 % Defined for WiFi-BT partnumber. Antenna mounted on dielectric surface Ok -3 dB WiFi-BT Decoupling 30 dB Isolation defined for WiFi- BT partnumber NA -30 dB S21 parameter defined for WiFi-BT partnumber Note: the antenna has been designed in order to satisfy VSWR and Isolation when installed on dielectric (Plastic) or conductive (Metal) surfaces. Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 5 of 14 3 Antenna Block Diagram BT IN/OUT Diag IN Matching Network R Diag BT Antenna Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 6 of 14 4 Laboratory Measurements 4.1 Diagnostic Resistance The measured values are as follow Item Resistance [kOhm] BT Antenna 50.8 4.2 VSWR The antenna VSWR is as follow Antenna on Plastic Antenna on Metal 0 1 2 3 4 5 6 7 8 9 10 220022252250227523002325235023752400242524502475250025252550257526002625265026752700 MHz Antenna VSWR -On Plastic Bluetooth 0 1 2 3 4 5 6 7 8 9 10 220022252250227523002325235023752400242524502475250025252550257526002625265026752700 MHz Antenna VSWR -On Metal Bluetooth Alfa Romeo 952/949 Bluetooth Antenna Date: Sep 09 2022 Author: P. Facchini Reviser: F. Casoli Approver: A. Notari Version: 1.0 Confidential All rights reserved | ASK Industries S.p.A. | a JVCKENWOOD Company Page 7 of 14 5 Radiation Measurements 5.1 Bluetooth Antenna – Efficiency 0 10 20 30 40 50 60 70 80 90 100 2350 2360 2370 2380 2390 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 2510 2520 2530 2540 2550 Perc. (%) MHz Antenna Efficiency Bluetooth Antenna Limit 5.2 Bluetooth Antenna – Peak Gain -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 235023602370238023902400241024202430244024502460247024802490250025102520253025402550 dBi MHz Antenna Max Gain Bluetooth Antenn…

Text truncated - open the document above for the full version.

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Frank Spiller Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Alexandre Norré-Oudard Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC Measurement/Technical Report on Giorgio 2.5 GRG2501 FCC ID: RX2GRG2501 IC: 4983A-GRG2501 Test Report Reference: MDE_MARELLI_2206_FCC_01_rev01 TEST REPORT REFERENCE: MDE_MARELLI_2206_FCC_01_rev01 Page 2 of 76 Table of Contents 1 Applied Standards and Test Summary 3 1.1 Applied Standards 3 1.2 FCC-IC Correlation Table 4 1.3 Measurement Summary 5 2 Revision History / Signatures 9 3 Administrative Data 10 3.1 Testing Laboratory 10 3.2 Project Data 10 3.3 Applicant Data 10 3.4 Manufacturer Data 11 4 Test object Data 12 4.1 General EUT Description 12 4.2 EUT Main components 12 4.3 Ancillary Equipment 13 4.4 Auxiliary Equipment 13 4.5 EUT Setups 13 4.6 Operating Modes / Test Channels 14 4.7 Product labelling 15 5 Test Results 16 5.1 Occupied Bandwidth (20 dB) 16 5.2 Occupied Bandwidth (99%) 21 5.3 Peak Power Output 25 5.4 Spurious RF Conducted Emissions 30 5.5 Transmitter Spurious Radiated Emissions 35 5.6 Band Edge Compliance Conducted 43 5.7 Band Edge Compliance Radiated 51 5.8 Dwell Time 57 5.9 Channel Separation 61 5.10 Number of Hopping Frequencies 63 6 Test Equipment 66 7 Antenna Factors, Cable Loss and Sample Calculations 69 7.1 LISN R&S ESH3-Z5 (150 kHz – 30 MHz) 69 7.2 Antenna R&S HFH2-Z2 (9 kHz – 30 MHz) 70 7.3 Antenna R&S HL562 (30 MHz – 1 GHz) 71 7.4 Antenna R&S HF907 (1 GHz – 18 GHz) 72 7.5 Antenna EMCO 3160-09 (18 GHz – 26.5 GHz) 73 7.6 Antenna EMCO 3160-10 (26.5 GHz – 40 GHz) 74 8 Measurement Uncertainties 75 9 Photo Report 76 TEST REPORT REFERENCE: MDE_MARELLI_2206_FCC_01_rev01 Page 3 of 76 1 APPLIED STANDARDS AND TEST SUMMARY 1.1 APPLIED STANDARDS Type of Authorization Certification for an Intentional Radiator. Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 2 and 15 (10-1-20 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Part 15, Subpart C – Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483.5 MHz Note: The tests were selected and performed with reference to the FCC Public Notice “Guidance for Compliance Measurements on Digital Transmission System, Frequency Hopping Spread Spectrum System, and Hybrid System Devices Operating under Section 15.247 of the FCC Rules, 558074 D01 15.247 Meas Guidance v05r02, 2019-04-02”. ANSI C63.10–2013 is applied. TEST REPORT REFERENCE: MDE_MARELLI_2206_FCC_01_rev01 Page 4 of 76 1.2 FCC-IC CORRELATION TABLE Correlation of measurement requirements for FHSS (e.g. Bluetooth ® ) equipment from FCC and IC FHSS equipment Measurement FCC reference IC reference Conducted emissions on AC Mains § 15.207 RSS-Gen Issue 5: 8.8 Occupied bandwidth § 15.247 (a) (1) RSS-247 Issue 2: 5.1 (b) Peak conducted output power § 15.247 (b) (1), (4) RSS-247 Issue 2: 5.4 (b) Transmitter spurious RF conducted emissions § 15.247 (d) RSS-Gen Issue 5: 6.13/8.9/8.10; RSS-247 Issue 2: 5.5 Transmitter spurious radiated emissions § 15.247 (d); § 15.209 (a) RSS-Gen Issue 5: 6.13 / 8.9/8.10; RSS-247 Issue 2: 5.5 Band edge compliance § 15.247 (d) RSS-247 Issue 2: 5.5 Dwell time § 15.247 (a) (1) (iii) RSS-247 Issue 2: 5.1 (d) Channel separation § 15.247 (a) (1) RSS-247 Issue 2: 5.1 (b) No. of hopping frequencies § 15.247 (a) (1) (iii) RSS-247 Issue 2: 5.1 (d) Hybrid systems (only) § 15.247 (f); § 15.247 (e) RSS-247 Issue 2: 5.3 Antenna requirement § 15.203 / 15.204 RSS-Gen Issue 5: 8.3 Receiver spurious emissions – - TEST REPORT REFERENCE: MDE_MARELLI_2206_FCC_01_rev01 Page 5 of 76 1.3 MEASUREMENT SUMMARY 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 § 15.247 (a) (1) Occupied Bandwidth (20 dB) The measurement was performed according to ANSI C63.10, chapter 6.9.2 Final Result OP-Mode Radio Technology, Operating Frequency Setup Date FCC IC Bluetooth BDR, high S01_AA01 2022-08-18 Passed Passed Bluetooth BDR, low S01_AA01 2022-08-18 Passed Passed Bluetooth BDR, mid S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 2, high S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 2, low S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 2, mid S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 3, high S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 3, low S01_AA01 2022-08-18 Passed Passed Bluetooth EDR 3, mid S01_AA01 2022-08-18 Passed Passed 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 IC RSS-Gen & IC TRC-43; Ch. 6.7 & Ch. 8 Occupied Bandwidth (99%) The measurement was performed according to ANSI C63.10, chapter 6.9.3 Final Result OP-Mode Radio Technology, Operating Frequency Setup Date FCC IC Bluetooth BDR, high S01_AA01 2022-08-18 N/A Performed Bluetooth BDR, low S01_AA01 2022-08-18 N/A Performed Bluetooth BDR, mid S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 2, high S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 2, low S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 2, mid S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 3, high S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 3, low S01_AA01 2022-08-18 N/A Performed Bluetooth EDR 3, mid S01_AA01 2022-08-18 N/A Performed 47 CFR CHAPTER I FCC PART 15 Subpart C §15.247 § 15.247 (b) (1) (2) Peak Power Output The…

Text truncated - open the document above for the full version.

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Sebastian Doose Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Stefan Kischka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Bernhard Retka Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF Photo Report on Giorgio 2.5 GRG2501 Report Reference: MDE_MARELLI_2206_FCC_Photo_Setups Test report Reference: MDE_MARELLI_2206_FCC_Photo_Setups Page 2 of 5 Photo 1: Test setup for radiated measurements (stand alone setup, 9 kHz - 30 MHz; FCC 15c247) Test report Reference: MDE_MARELLI_2206_FCC_Photo_Setups Page 3 of 5 Photo 2: Test setup for radiated measurements (stand alone setup, 30 MHz - 1 GHz; FCC 15c247) Test report Reference: MDE_MARELLI_2206_FCC_Photo_Setups Page 4 of 5 Photo 3: Test setup for radiated measurements (stand alone setup, 1 GHz – 24 GHz; FCC 15c247) Test report Reference: MDE_MARELLI_2206_FCC_Photo_Setups Page 5 of 5 Photo 4: Test setup for radiated measurements, detailed view (stand alone setup, 1 GHz – 24 GHz; FCC 15c247)
