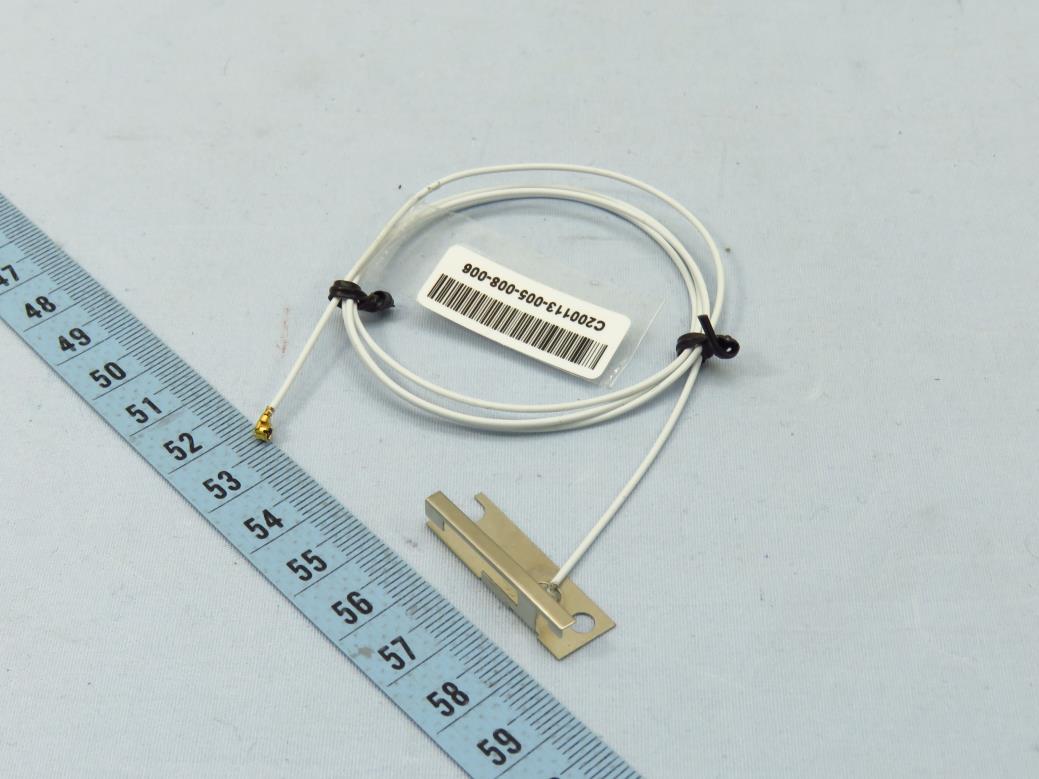

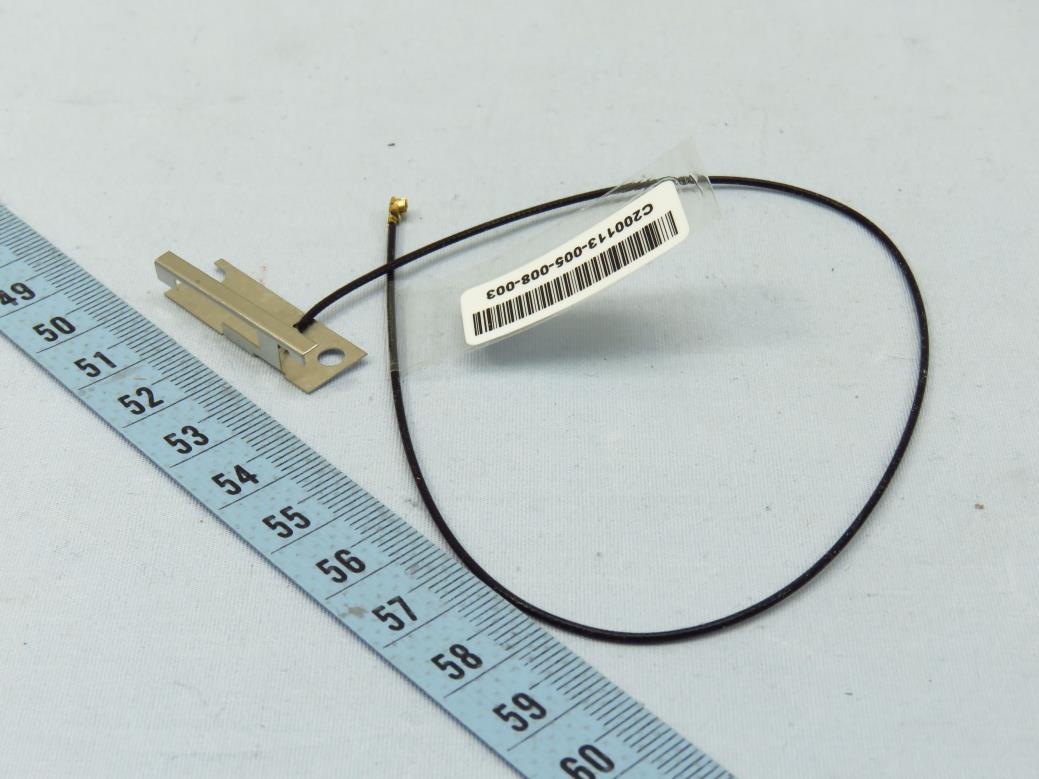

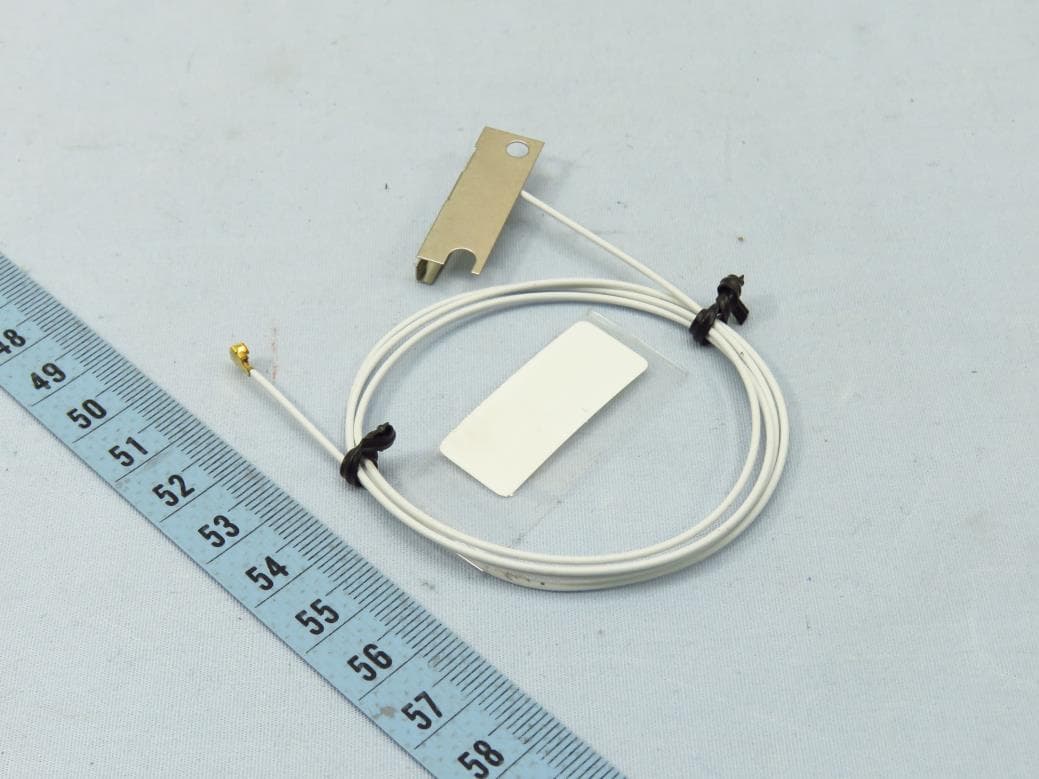

RX3-WBU053LGAWireless Module

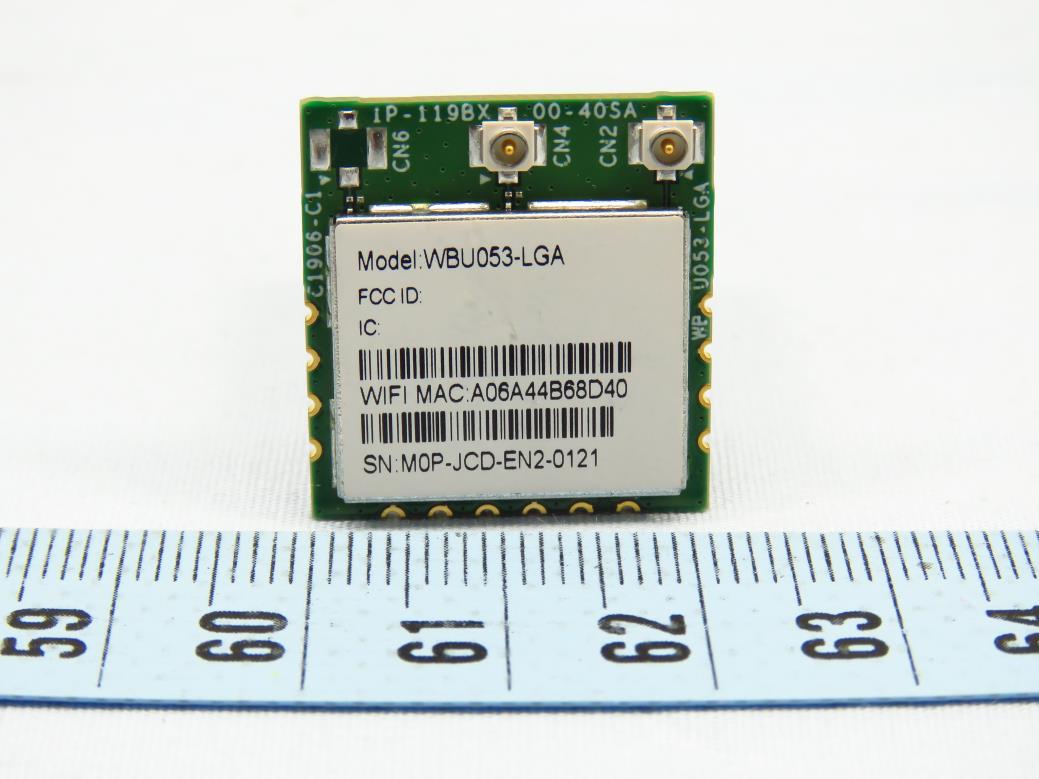

IEEE 802.11 a/b/g/n 2x2 Project Name Wireless Module Customer Hon Hai Precision Industry Co., Ltd. Customer Part No. Model # WBU053-LGA Approved: Approved: Prepared by: ________________________ _________________________ _________________________ Zeke Wu Ben Ho Kevin Manager Supervisor Engineer Product Specification f 1 Revision History Date Number Approver Comments 2020/01/08 1.0 Kevin Yao Initial Draft 2020/02/21 1.1 Cathy Kuo Updated TX Typical Power on page 7, 8 2020/02/26 1.2 Cathy Kuo Updated FCC and IC warning statement page 13,14,15 RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT All information contained in this document is the exclusive property of Foxconn Technology Inc. and its development partners. Any reproduction or disclosure of all or part of this document without the expressed written consent of Foxconn Technology Inc. is strictly prohibited. 2 CHAPTER 1. MODULE OVERVIEW The Foxconn WBU053-LGA is a highly integrated module which features a low power 2x2 dual-band Wi-Fi subsystem. The Wi-Fi subsystem contains the 802.11a/b/g/n radio, baseband, and MAC that are designed to meet both the low power and high throughput application. WBU053-LGA has a 32-bit RISC MCU that handles Wi-Fi, and an ARM Cortex-R4 MCU that could offload data frame processing in Wi-Fi host driver. 1-1 Key Characteristic  32-bits RISC MCU for Wi-Fi protocols  IEEE 802.11 a/b/g/n compliant  Support 20MHz, 40MHz in 2.4GHz band 5GHz band  Dual-band 2T2R mode with data rate up to 240Mbps  Integrated LNA, PA, and T/R switch  Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI  Integrated BALUN and PA  USB device fully compliant to USB v3.0 specification 3 1-2 Pin Definition Figure 1 Pin Definitions (Module Top View) 1 2 3 4 5 6 7 8 10 9 11 12 14 13 4 Table 1 Pin Definitions Pin number Symbol name Type Pin description 1 VBUS Power DC 3.3V 2 VBUS Power DC 3.3V 3 U2D- I/O USB data - 4 U2D+ I/O USB data + 5 GND GND Ground 6 PMU_EN I/O reset 7 WIFI_INT_B I/O Wi-Fi_wake on 8 GND GND Ground 9 BGF_INT_B I/O BT_wake on 10-14 GND GND Ground 5 CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON 2-1 Recommended Operation Rating Table 2 Operation Rating Table 2 Operation Rating Condition Min Typ. Max. Unit VDD 3 3.3 3 3.6 V RF Interface Zo 50 Ohm 2-2 Power Consumption Table 3 Power Consumption Description Typical Unit IDLE 65 mA 2G/2T- N mode HT 40MHz MCS 7 128 mA 2G/2T- N mode HT 20MHz MCS 7 147 mA 2G/2T- G mode OFDM54M 158 mA 2G/2T- B mode CCK11M 237 mA 5G/2T- N mode HT 40MHz MCS 7 160 mA 5G/2T- N mode HT 20MHz MCS 7 180 mA 5G/2T- A mode OFDM54M 205 mA 2G/2R- N mode HT 40MHz MCS 7 78 mA 2G/2R- N mode HT 20MHz MCS 7 75 mA 2G/2R- G mode OFDM54M 76 mA 2G/2R- B mode CCK11M 75 mA 5G/2R- N mode HT 40MHz MCS 7 83 mA 5G/2R- N mode HT 20MHz MCS 7 79 mA 5G/2R- A mode OFDM54M 79 mA 6 2-3 WiFi RF Specification – TX Table 4 IEEE 802.11 b/g/n TX Average Output Power (WLAN0 / WLAN1) Data Rate (Mbps) Modulation Tx Typical Power (dBm) Data Rate (Mbps) Modulation Tx Typical Power (dBm) 1 DBPSK 12.5 HT20-MCS0 BPSK 11 2 DQPSK 12.5 HT20-MCS1 BPSK 11 5.5 CCK 12.5 HT20-MCS2 QPSK 11 11 CCK 12.5 HT20-MCS3 QPSK 11 6 OFDM 11.5 HT20-MCS4 16-QAM 11 9 OFDM 11.5 HT20-MCS5 16-QAM 11 12 OFDM 11.5 HT20-MCS6 64-QAM 11 18 OFDM 11.5 HT20-MCS7 64-QAM 11 24 OFDM 11.5 HT40-MCS0 BPSK 8 36 OFDM 11.5 HT40-MCS1 QPSK 8 48 OFDM 11.5 HT40-MCS2 QPSK 8 54 OFDM 11.5 HT40-MCS3 16-QAM 8 HT40-MCS4 16-QAM 8 HT40-MCS5 64-QAM 8 HT40-MCS6 64-QAM 8 HT40-MCS7 64-QAM 8 Tolerance: +/-2dBm ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm 7 Table 5 IEEE 802.11 a/n TX Average Output Power (WLAN0 / WLAN1) Data Rate (Mbps) Modulation Tx Typical Power (dBm) Data Rate (Mbps) Modulation Tx Typical Power (dBm) 6 OFDM 8 HT20-MCS0 BPSK 8 9 OFDM 8 HT20-MCS1 BPSK 8 12 OFDM 8 HT20-MCS2 QPSK 8 18 OFDM 8 HT20-MCS3 QPSK 8 24 OFDM 8 HT20-MCS4 16-QAM 8 36 OFDM 8 HT20-MCS5 16-QAM 8 48 OFDM 8 HT20-MCS6 64-QAM 8 54 OFDM 8 HT20-MCS7 64-QAM 8 HT40-MCS0 BPSK 10 HT40-MCS1 QPSK 10 HT40-MCS2 QPSK 10 HT40-MCS3 16-QAM 10 HT40-MCS4 16-QAM 10 HT40-MCS5 64-QAM 10 HT40-MCS6 64-QAM 10 HT40-MCS7 64-QAM 10 Tolerance: +/-2dBm ※Total Max. Power = WLAN0 Max. Power + WLAN1 Max. Power + 3dBm 8 2-4 WiFi RF Specification – RX Table 6 IEEE 802.11 b/g/n RX Sensitivity (WLAN0&WLAN1) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Max. Typ. Max. Typ. 1 DBPSK -83 -92 HT20-MCS0 BPSK -82 -89 2 DQPSK -80 -89 HT20-MCS1 QPSK -79 -86 5.5 CCK -79 -87 HT20-MCS2 QPSK -77 -83 11 CCK -76 -84 HT20-MCS3 16-QAM -74 -80 6 OFDM -85 -89 HT20-MCS4 16-QAM -70 -77 9 OFDM -84 -87 HT20-MCS5 64-QAM -66 -72 12 OFDM -82 -86 HT20-MCS6 64-QAM -65 -71 18 OFDM -80 -84 HT20-MCS7 64-QAM -64 -70 24 OFDM -77 -80 HT40-MCS0 BPSK -79 -86 36 OFDM -73 -77 HT40-MCS1 QPSK -76 -82 48 OFDM -69 -73 HT40-MCS2 QPSK -74 -80 54 OFDM -68 -71 HT40-MCS3 16-QAM -71 -77 HT40-MCS4 16-QAM -67 -73 HT40-MCS5 64-QAM -63 -69 HT40-MCS6 64-QAM -62 -68 HT40-MCS7 64-QAM -61 -67 9 Table 7 IEEE 802.11 a/n RX Sensitivity (WLAN0&WLAN1)) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Max. Typ. Max. Typ. 6 OFDM -85 -90 HT20-MCS0 BPSK -82 -90 9 OFDM -84 -88 HT20-MCS1 QPSK -79 -87 12 OFDM -82 -87 HT20-MCS2 QPSK -77 -85 18 OFDM -80 -85 HT20-MCS3 16-QAM -74 -81 24 OFDM -77 -82 HT20-MCS4 16-QAM -70 -78 36 OFDM -73 -78 HT20-MCS5 64-QAM -66 -74 48 OFDM -69 -74 HT20-MCS6 64-QAM -65 -72 54 OFDM -68 -73 HT20-MCS7 64-QAM -64 -71 HT40-MCS0 BPSK -79 -87 HT40-MCS1 QPSK -76 -84 HT40-MCS2 QPSK -74 -82 HT40-MCS3 16-QAM -71 -79 HT40-MCS4 16-QAM -67 -75 HT40-MCS5 64-QAM -63 -71 HT40-MCS6 64-QAM -62 -70 HT40-MCS7 64-QAM -61 -68 2-5 Environment Specifications Operating Conditions (preliminary) Operation Temperature : 0 ~ 60°C Storage Conditions (preliminary) Non-Operation Temperature : -10 ~ 60°C (Typ. 25°C) 10 CHAPTER 3. MECHANICAL SPECIFICATION 3-1 Module Assembly Dimension Figure 2 Mechanical Drawing 3-2 Module Photo Figure 3 Top Side Photo Figure 4 Bottom Side Photo 11 3-3 Label Drawing and l…
