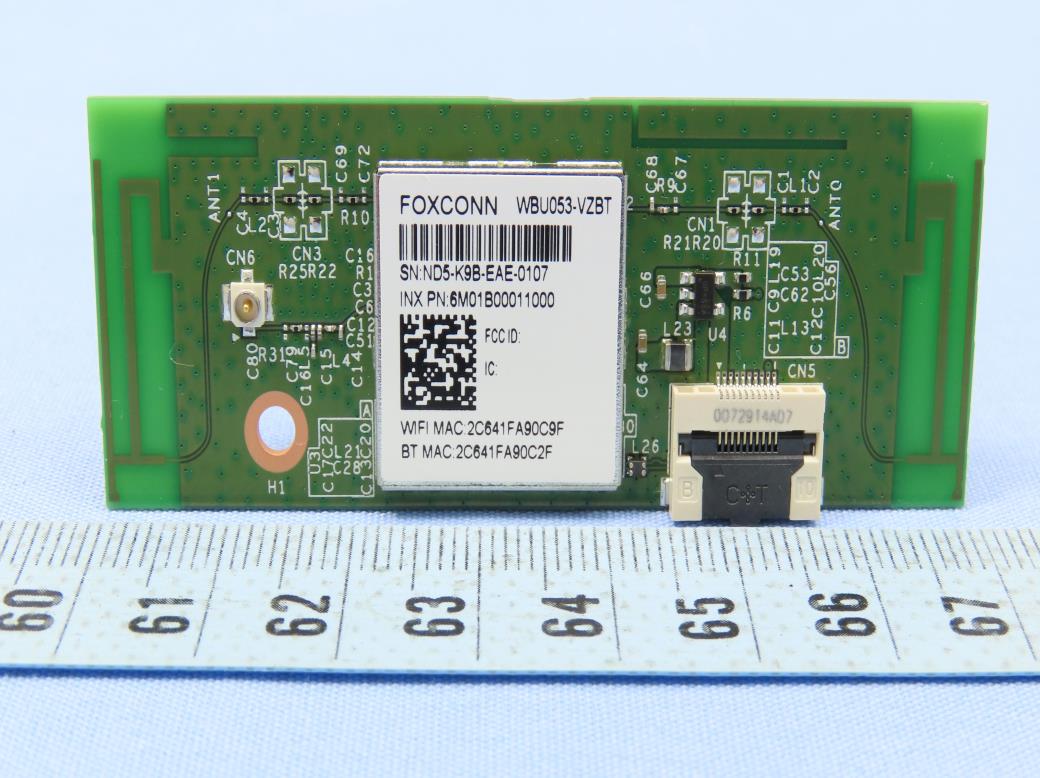

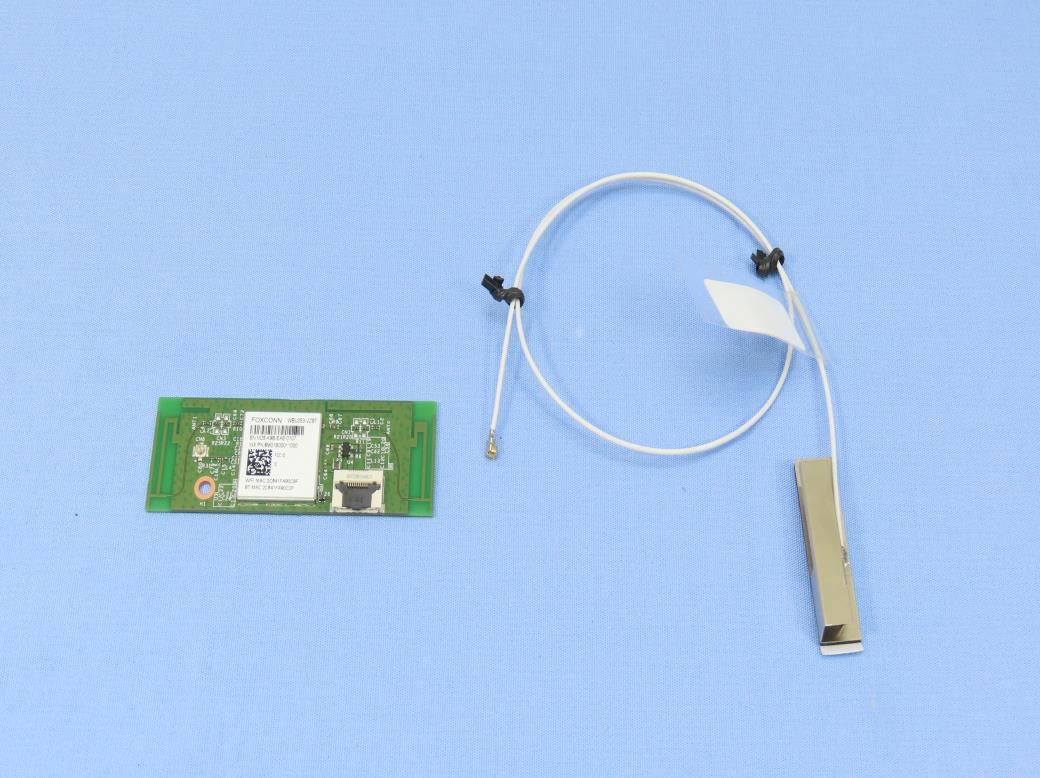

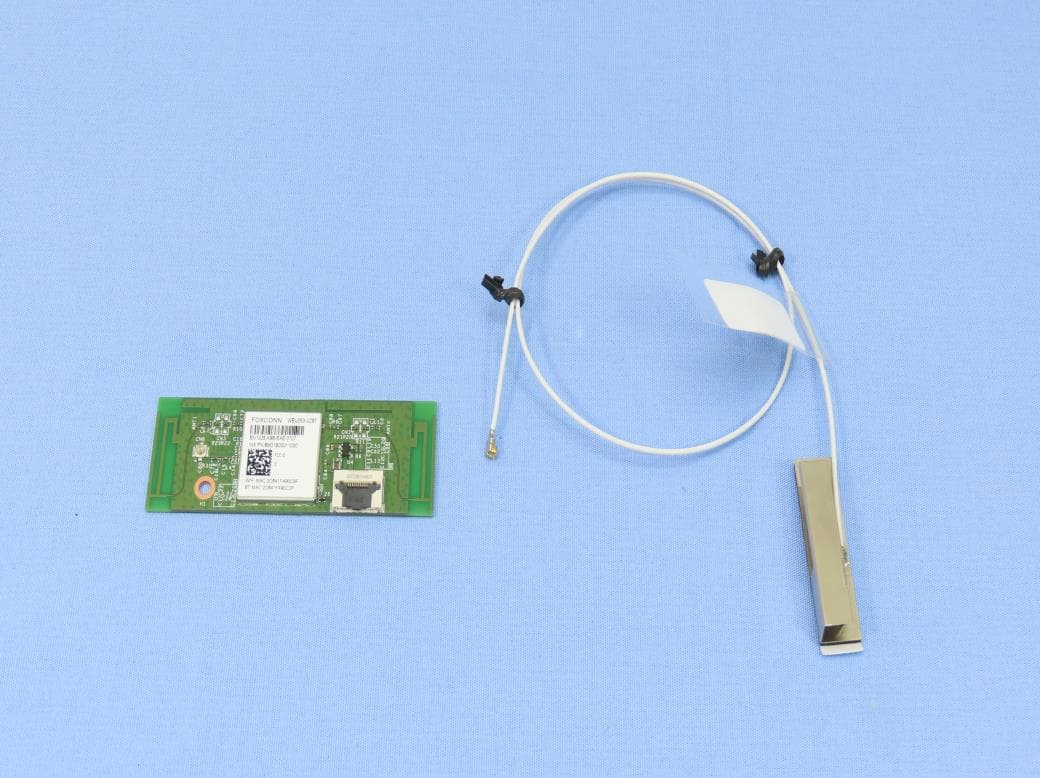

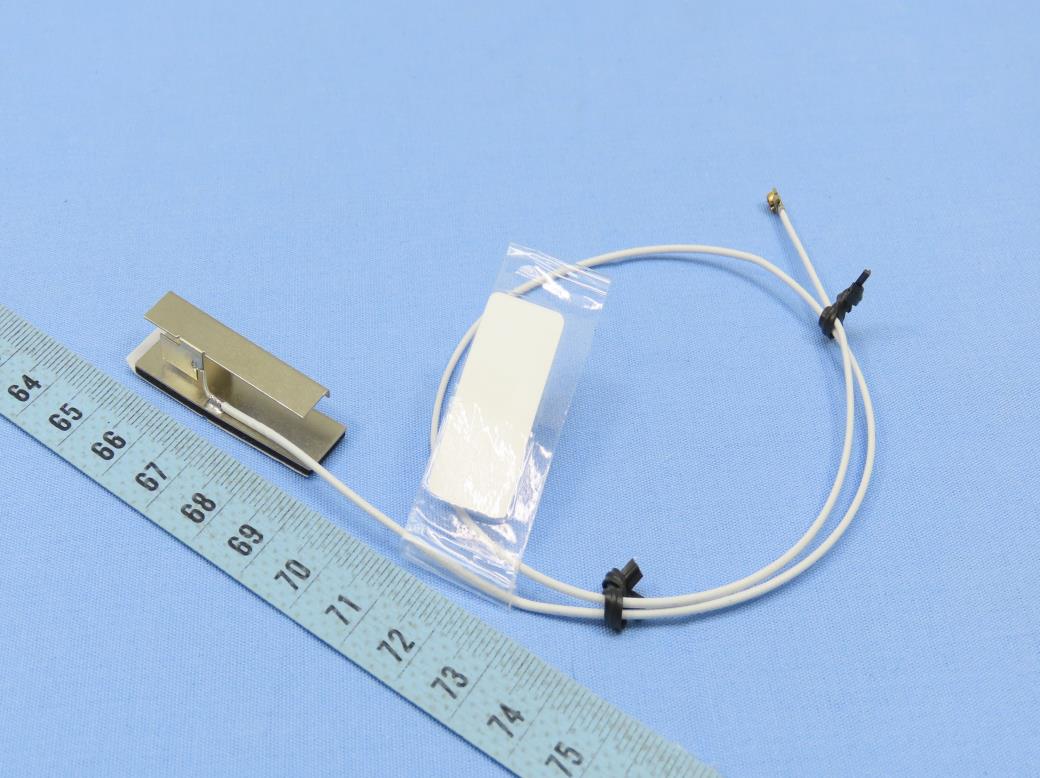

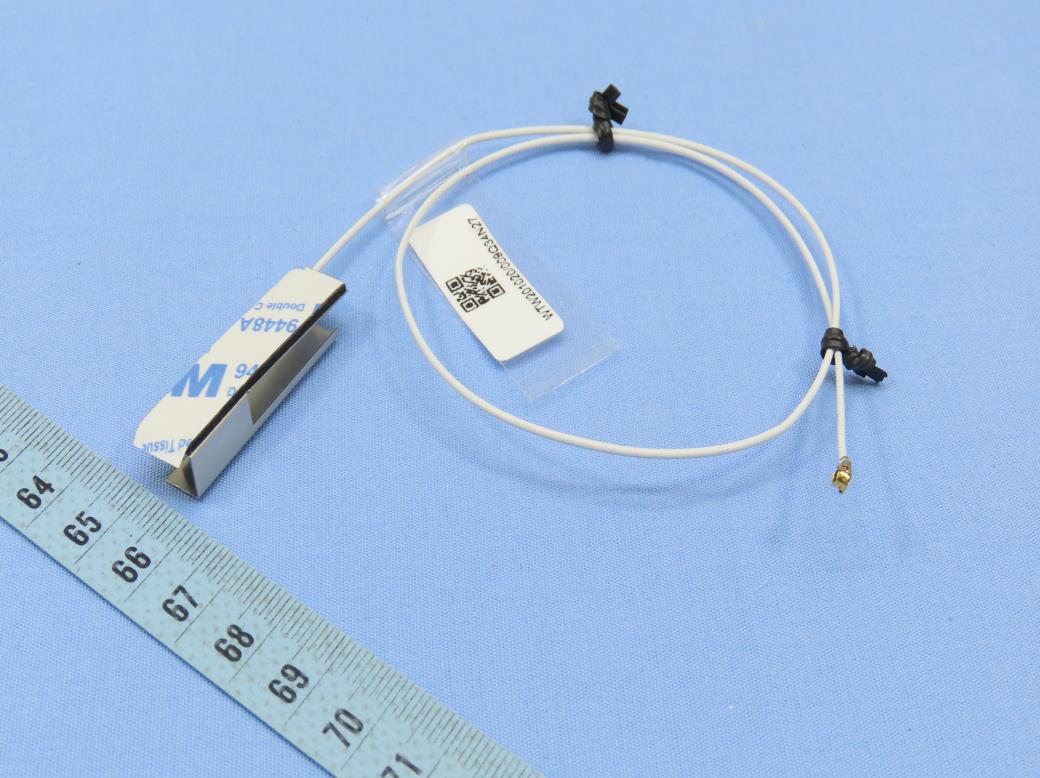

RX3-WBU053VZBT802.11a/b/g/n/ 2T2R with Bluetooth combo wireless module

November 18, 2020 802.11a/b/g/n 2T2R with Bluetooth combo wireless module Approved: Approved: Prepared by: Zeke Wu Ben Ho Kevin Yao Senior Director Supervisor Engineer WBU053-VZBT Product Specification November 18, 2020 1 Revision History Date Version Approver Comments October 7, 2020 1.0 Kevin Yao Initial Released October 23, 2020 2.0 Cathy Kuo Updated Page 7 WLAN Typical TX power October 23, 2020 2.1 Cathy Kuo Updated Page 11, 12, 14 BT Max. average power November 18, 2020 2.2 Cathy Kuo Revised 5500-5720MHz WLAN 1 Antenna Max. Peak Gain RESTRICTED AND CONFIDENTIAL INFORMATION STATEMENT All information contained in this document is the exclusive property of Foxconn Technology Inc. and its development partners. Any reproduction or disclosure of all or part of this document without the expressed written consent of Foxconn Technology Inc. is strictly prohibited. November 18, 2020 2 CHAPTER 1. MODULE OVERVIEW WBU053-VZBT is highly integrated module which features a low power 2x2 11 a/b/g/n dual- band Wi-Fi subsystem and a Bluetooth subsystem. The Wi-Fi subsystem contains the 802.11 a/b/g/n radio, baseband, and MAC that are designed to meet both the low power and high throughput application. WBU053-VZBT has a 32-bit RISC MCU that handles Wi-Fi and Bluetooth tasks, and an ARM Cortex-R4 MCU that could offload data frame processing in Wi-Fi host driver. The Bluetooth subsystem contains the Bluetooth radio, baseband, link controller. It also uses the 32-bit RISC MCU for the Bluetooth protocols. 1-1 Key Characteristic  32-bits RISC MCU for Wi-Fi protocols  IEEE 802.11 a/b/g/n compliant  Support 20MHz, 40MHz in 2.4GHz band 5GHz band  Dual-band 2T2R mode with data rate up to 240 Mbps  Integrated LNA, PA, and T/R switch  Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI  Integrated BALUN and PA  USB device fully compliant to USB v3.0 specification  Bluetooth specification 2.1+EDR  Bluetooth 4.2 Low Energy (LE)  Bluetooth 5.0 November 18, 2020 3 1-2 Pin Definition Figure 1 Pin Definitions (Module Top View) Pin numberSymbol nameTypePin description 1VBUSPowerDC 5V 2VBUSPowerDC 5V 3BGF_INT_BI/OBT_wake on 4GNDGNDGround 5GNDGNDGround 6U2D-I/OUSB data - 7U2D+I/OUSB data + 8GNDGNDGround 9WIFI_INT_BI/OWi-Fi_wake on 10PMU_ENI/Oreset Table 1 Pin Definitions 1 2 10 November 18, 2020 4 1-3 Power Sequence Figure 2 Power Sequence November 18, 2020 5 1-4 Soldering Specification Temperature Figure 3 Soldering Specification November 18, 2020 6 CHAPTER 2. ELECTRICAL AND RF SPECIFICAITON 2-1 Recommended Operation Rating Condition Min Typ. Max. Unit VDD 5 4.5 5 5.5 V RF Interface Zo 50 Ohm Table 2 Operation Rating 2-2 Power Consumption Description Typical Unit IDLE 65 mA 2G/2T- N mode HT 40MHz MCS 7 128 mA 2G/2T- N mode HT 20MHz MCS 7 147 mA 2G/2T- G mode OFDM54M 158 mA 2G/2T- B mode CCK11M 237 mA 5G/2T- N mode HT 40MHz MCS 7 160 mA 5G/2T- N mode HT 20MHz MCS 7 180 mA 5G/2T- A mode OFDM54M 205 mA 2G/2R- N mode HT 40MHz MCS 7 78 mA 2G/2R- N mode HT 20MHz MCS 7 75 mA 2G/2R- G mode OFDM54M 76 mA 2G/2R- B mode CCK11M 75 mA 5G/2R- N mode HT 40MHz MCS 7 83 mA 5G/2R- N mode HT 20MHz MCS 7 79 mA 5G/2R- A mode OFDM54M 79 mA Table 3 Power Consumption November 18, 2020 7 2-3 WiFi RF Specification – TX Table 4 IEEE 802.11 b/g/n TX Output Power (WLAN0&WLAN1) Data Rate (Mbps) Modulation Tx Typical Power (dBm) Data Rate (Mbps) Modulation Tx Typical Power (dBm) 1 DBPSK 13 HT20-MCS0 BPSK 10.5 2 DQPSK 13 HT20-MCS1 BPSK 10.5 5.5 CCK 13 HT20-MCS2 QPSK 10.5 11 CCK 13 HT20-MCS3 QPSK 10.5 6 OFDM 12 HT20-MCS4 16-QAM 10.5 9 OFDM 12 HT20-MCS5 16-QAM 10.5 12 OFDM 12 HT20-MCS6 64-QAM 10.5 18 OFDM 12 HT20-MCS7 64-QAM 10.5 24 OFDM 12 HT40-MCS0 BPSK 6.5 36 OFDM 12 HT40-MCS1 QPSK 6.5 48 OFDM 12 HT40-MCS2 QPSK 6.5 54 OFDM 12 HT40-MCS3 16-QAM 6.5 HT40-MCS4 16-QAM 6.5 HT40-MCS5 64-QAM 6.5 HT40-MCS6 64-QAM 6.5 HT40-MCS7 64-QAM 6.5 Tolerance: +/-2dBm ※Total Max. Power = WLAN0 /1 SISO Max. Power + 3dBm November 18, 2020 8 Table 5 IEEE 802.11 a/n TX Output Power (WLAN0&WLAN1) Data Rate (Mbps) Modulation Tx Typical Power (dBm) Data Rate (Mbps) Modulation Tx Typical Power (dBm) 6 OFDM 12 HT20-MCS0 BPSK 11 9 OFDM 12 HT20-MCS1 BPSK 11 12 OFDM 12 HT20-MCS2 QPSK 11 18 OFDM 12 HT20-MCS3 QPSK 11 24 OFDM 12 HT20-MCS4 16-QAM 11 36 OFDM 12 HT20-MCS5 16-QAM 11 48 OFDM 12 HT20-MCS6 64-QAM 11 54 OFDM 12 HT20-MCS7 64-QAM 11 HT40-MCS0 BPSK 9 HT40-MCS1 QPSK 9 HT40-MCS2 QPSK 9 HT40-MCS3 16-QAM 9 HT40-MCS4 16-QAM 9 HT40-MCS5 64-QAM 9 HT40-MCS6 64-QAM 9 HT40-MCS7 64-QAM 9 Tolerance: +/-2dBm ※Total Max. Power = WLAN0 /1 SISO Max. Power + 3dBm November 18, 2020 9 2-4 WiFi RF Specification – RX Table 6 IEEE 802.11 b/g/n RX Sensitivity (WLAN0&WLAN1) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Max. Typ. Max. Typ. 1 DBPSK -83 -91 HT20-MCS0 BPSK -82 -87 2 DQPSK -80 -88 HT20-MCS1 QPSK -79 -84 5.5 CCK -79 -85 HT20-MCS2 QPSK -77 -82 11 CCK -76 -82 HT20-MCS3 16-QAM -74 -79 6 OFDM -85 -87 HT20-MCS4 16-QAM -70 -75 9 OFDM -84 -85 HT20-MCS5 64-QAM -66 -71 12 OFDM -82 -85 HT20-MCS6 64-QAM -65 -69 18 OFDM -80 -83 HT20-MCS7 64-QAM -64 -68 24 OFDM -77 -79 HT40-MCS0 BPSK -79 -83 36 OFDM -73 -76 HT40-MCS1 QPSK -76 -81 48 OFDM -69 -71 HT40-MCS2 QPSK -74 -79 54 OFDM -68 -70 HT40-MCS3 16-QAM -71 -75 HT40-MCS4 16-QAM -67 -72 HT40-MCS5 64-QAM -63 -68 HT40-MCS6 64-QAM -62 -66 HT40-MCS7 64-QAM -61 -65 November 18, 2020 10 Table 7 IEEE 802.11 a/n RX Sensitivity (WLAN0&WLAN1) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Data Rate (Mbps) Modulation Rx Sensitivity (dBm) Max. Typ. Max. Typ. 6 OFDM -85 -87 HT20-MCS0 BPSK -82 -87 9 OFDM -84 -85 HT20-MCS1 QPSK -79 -84 12 OFDM -82 -84 HT20-MCS2 QPSK -77 -81 18 OFDM -80 -82 HT20-MCS3 16-QAM -74 -78 24 OFDM -77 -79 HT20-MCS4 16-QAM -70 -75 36 OFDM -73 -75 HT20-MCS5 64-QAM -66 -71 48 OFDM -69 -71 HT20-MCS6 64-QAM -65 -69 54 OFDM -68 -70 HT20-MCS7 64-QAM -64 -68 HT40-MCS0 BPSK -79 -85 HT40-MCS1 QPSK -76 -81 HT40-MCS2 QPSK -74 -79 HT40-MCS3 16-QAM -71 -76 HT40-MCS4 16-QAM -67 -72 HT40-MCS5 64-Q…
