RX4MC-111F-UFM Transmitter

Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division;

Helen Zhao Subject: FW: RE: Action Star Enterprise Co., Ltd., FCC ID: RX4MC-111F-U, Assessment NO.: AN07T6425, Notice#1 1/25/2007 Dear Helen, Sorry to trouble you and please erase all previous reply. Instead, please refer to below for the answer for addressing 5Qs. Question # 1 : Please indicate antenna type in "The answer to 7 questions". Ans.: Antenna type is integral loop antenna and has been added in "The anser to 7questions", Q2. and revised test report page4 as well Question # 2 : The test report shows 26dB bandwidth test was done at 88.3MHz only. Please provide the plots at 98MHz and 107.7 MHz. Ans. please refer to report page 9 and 10 for details. Question # 3 : The test configuration shown in section 7.1 of the test report is not a correct setup. The EUT can not be tested as stand alone in bandwidth test. FCC permit-but-ask procedure specifies "Was the bandwidth properly tested with maximum audio input? Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator." Please redo bandwidth test with correct setting and with maximum audio input. Ans. please refer to report page 9 and 10 for details. Question # 4 : FCC permit-but-ask procedure specifies "Was the tuning range properly verified? The test lab shouldindicate in the report that the tuning controls were manually adjusted to verify maximum tuning range." Please manually verify the tuning range and put a statement into the test report. Ans.: Please see the statement under section 2. EUT DESCRIPTION. Question # 5 : Since the digital portion of this device is authorized through DoC, please add 15.105(b) statement into the manual. Ans.: 15.105(b) was added in last page of user manual, please refer to attached for details. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

Helen Zhao Subject: FW: Response to Inquiry to FCC (Tracking Number 480244) 1/25/2007 Inquiry: New Application Grantee: Action Star Enterprise Co., Ltd FCC ID: RX4AT-111F-U EUT Description: FM Transmitter Equipment Class: DXX Rule Part: 15.239 Below is the answer to the following FCC questions: 1. How does this device operate? <Answer> The device is D! C powered through Vehicle lighter socket . And it is mostly operated in a car. 2. Provide information on the device and its antenna <Answer> The device is a FM transmitter and is designed to work seamlessly with iPod or any other portable audio device such as MP3 player. The device has a built ̈Cin internal antenna to transmit the signal. With the on-screen display and buttons, user can play / hear the playlist song of iPod or any suitable portable audio device like MP3 player from car''s FM stereo. 3. How is it installed? <Answer> Step 1. Turn on the device by plugging into the vehicle lighter socket. Step 2 .To connect this device with iPod or any suitable portable audio device like MP3. Step 3. To set the frequency ranging (FM transmitter) bet! ween 88.3 MHz to 107.7 MHz. Step 4. To set the frequency ranging of Car''s FM stereo (receiver) between 88.3 MHz to 107.7MHz. 4. What test procedure was used? <Answer> ANSI C 63.4. 5. If tested in a car, how was it configured/tested? <Answer> It was not tested in a car, it was tested in a open area test site and chamber, because the device does not use external antenna. Please refer to the test report for more details. 6. Was the tuning range properly verified? <Answer> Yes, the lowest channel is 88.3MHz, and the highest channel is 107.7MHz. The tuning controls were manually adjusted to verify maximum tuning range. Please also refer to test report page 4. 7. Was the bandwidth properly tested with maximum audio input? <Answer> Yes, The EUT has an audio input port, so the input port was connected to an iPod which was playing a MP3 song. The volume control of the iPod and the EUT were set to maximum f! or the testing. 8. Provide a test report. The report is attached. Please advise if it is OK to file 731. Thank you, Helen Zhao Compliance Certification Services. Response: Go ahead and file. Submit a copy of this inquiry into the filing. Ensure that all exhibits comply with FCC rules and policies. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

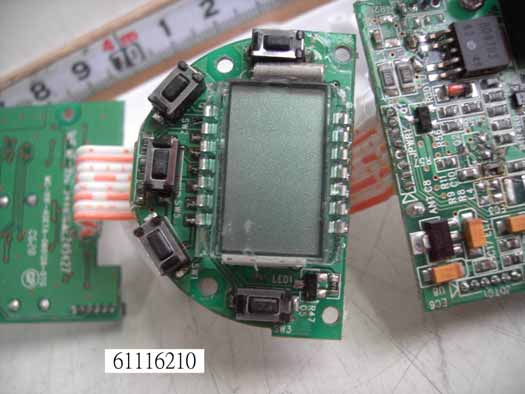

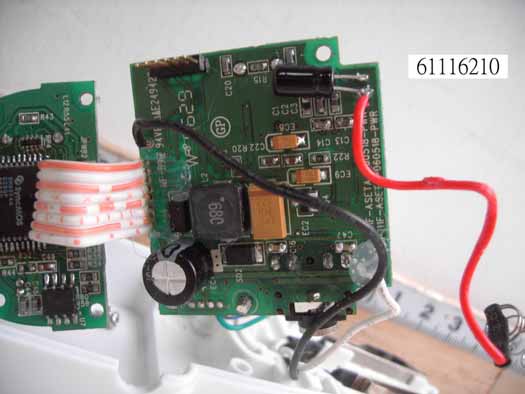

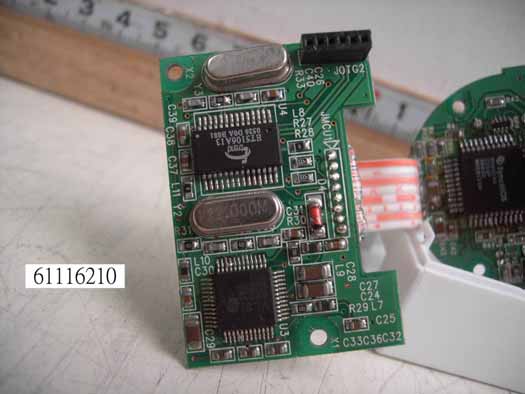

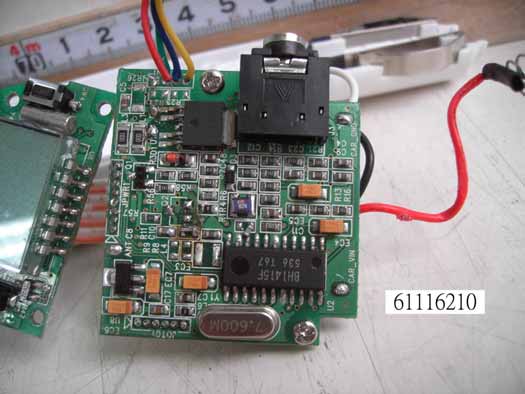

Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page

FCC ID LABEL FORMAT AND LOCATION Action Star Enterprise Co., Ltd. FCC ID: RX4MC-111F-U FCC ID: RX4MC-111F-U This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page Compliance Certification Services Inc. Report No.: 61116210 Date of Issue: January 05, 2007 Page

Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 1 Total Page: 19 Rev. 00 FCC CFR 47 PART 15 SUBPART C TEST REPORT For FM Transmitter Model: MC-111F Tra d e Na me: Action Star Enterprise Co., Ltd. Issued to Action Star Enterprise Co., Ltd. 10F, No. 159, Ta-Tung Rd., Sec. 2, Hsichih City, Taipei Hsien, Taiwan R.O.C. 221 Issued by Compliance Certification Services Inc. Hsintien Lab. No. 163-1, Chunghsen Road, Hsintien City Taipei Hsien, Taiwan TEL: (02) 2217-0894 FAX: (02) 2217-1029 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................. 3 2. EUT DESCRIPTION ..................................................................................................................... 4 3. TEST METHODOLOGY.............................................................................................................. 5 3.1 EUT CONFIGURATION .................................................................................................... 5 3.2 EUT EXERCISE .................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES..................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS..................................... 6 3.5 DESCRIPTION OF TEST MODES ................................................................................... 6 4. INSTRUMENT CALIBRATION ................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS.................................................................................... 7 5.1 FACILITIES ......................................................................................................................... 7 5.2 EQUIPMENT ....................................................................................................................... 7 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ................................................ 7 5.4 TABLE PF ACCREDITATIONS AND LISTINGS.......................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST................................................................................... 9 6.1 SETUP CONFIGURATION OF EUT................................................................................ 9 6.2 SUPPORT EQUIPMENT .................................................................................................... 9 7. FCC PART 15.239 REQUIREMENTS ...................................................................................... 10 7.1 26 DB BANDWIDTH ......................................................................................................... 10 7.2 RADIATED EMISSIONS.................................................................................................. 13 7.3 POWERLINE CONDUCTED EMISSIONS ................................................................... 18 APPENDIX I - PHOTOGRAPHS OF TEST SETUP ..................................................................... 19 Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Action Star Enterprise Co., Ltd. 10F, No. 159, Ta-Tung Rd., Sec.2, Hsichih City, Taipei Hsien, Taiwan, R.O.C. 221 Equipment Under Test: FM Transmitter Tr a d e Na m e : Action Star Enterprise Co., Ltd. Model: MC-111F Model Difference N/A Report Number: 61116210-RP1 Date of Test: December 20, 2006 & December 25, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.239. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product FM Transmitter Trade Name Action Star Enterprise Co., Ltd. Model MC-111F Power Supply From 12VDC / 24 VDC Operate Frequency 88.3MHz~107.7MHz Modulation Technique FM Number of Channels 194Channel Operating Mode Point-to-Point Antenna Designation Fixed Antenna, which is built in EUT Antenna Type Integral Loop Antenna Note: 1. The product is a Transmitter. This submittal(s) (test report) is intended for FCC ID: RX4MC-111F-U filing to comply with Section 15.239 of the FCC Part 15 Subpart C Rules. 2. The composite system (digital device) is compliance with subpart B is authorized under a DOC procedure. 3. The lowest channel is 88.3MHz and the highest channel is 107.7MHz. The tuning controls were manually adjusted to verify maximum tuning range. Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 Part 15 Subpart C. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength me…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 61116210-RP1 FCC ID: RX4MC-111F-U Date of Issue: January 05, 2007 Page 18 Rev. 00 APPENDIX I - PHOTOGRAPHS OF TEST SETUP
