RX9-T122-916mn100 NMEA Interface/Hull Transmitter

Installation Method For optimum performance and long term operation it is advisable to connect to the vessels 12/24Vdc supply rather than relying on small power cells. Connect the cable ends from the transducers and power supply to the supplied connectors using the supplied screwdriver taking care to ensure that all core colours are positioned correctly. It is advisable to sheath the screens to prevent short circuit problems once the cover is in place. Insert the connectors into the appropriate sockets on the Hull Transmitter and loop the single cores to allow the outer cable sheath to be secured in the clamp when the cover is fitted. Secure the cables close to the Hull Transmitter to reduce the possibility of the connections becoming loose later. NMEA Sentences (0183 V2.30) Received Sentences: DPT, HDG, MWV, RMB, RMC, VHW Transmitted Sentences: DPT, GLL, HDG, MTW, MWV, RMC, VHW, VLW NOTE: Only information available will be transmitted. NMEA Interface Tacktick Limited 22 North Street, Emsworth, Hampshire, PO10 7DG, England Tel. +44 (0)1243 379331 Fax. +44 (0) 1243 379199 www.tacktick.com Tools Required Parts List 1. 2mm or 5mm Drill Bit 2. Power Drill 3. Cross Head Screwdriver 1. Mounting Template 2. Mounting Bracket 3. Mounting Screws (3 off) 4. Mounting Bolts (3 off) 5. M4 Studs & Thumbnuts (3 off) 6. Double Sided Tape Precautions The NMEA Interface should be mounted in a dry area of the boat to protect the cables and connectors from corrosion. Cables should be supported close to the Hull Transmitter box to prevent possible strain on the internal connectors. All cables should be supported by clamps and ties close to the unit. Positioning Advise The NMEA Interface should be mounted such that the cables from the transducers can be routed to it easily through the boat. Mounting the Hull Transmitter close to the transducers will allow easy cable routing. Avoid mounting on metallic surfaces or where there are metallic objects between the Interface Box and other Micronet instruments. Avoid bilge areas if possible to protect the equipment and connections For optimum signal avoid mounting the transmitter on a longitudinal surface uu046 rev. 7 Cover Cable Loop Cable Clamp Cable Clamps Bracket Mounting This method allows for the easy removal of a NMEA Interface as and when required for either se curity reasons or to prevent damage whilst not in use. 1. Using the three supplied M4 bolts a ttach the back plate to the rear of the NMEA Interface. (Fig. 1) 2. Drill three 3mm holes marked “BRACKET” on the Template and using the supplied screws attach the clip bracket to the mounting surface. (Fig. 2) 3. Place the NMEA Interface flat against the bracket slightly higher than the final position and slide gently do wn into position. There will be a small click as the bracket secures the Interface in position. (Fig. 3) 4. Connect and secure the cables leaving a loop of single core cable inside the casing before fitting the cover such that the outer sheath is secured beneath the rubber clamp. Once the Interface is secured in position it is advisable to clamp the cables to the mounting surface close to the Interface. 5. To release the NMEA Interface press lightly on the bracket tab and slide the Transmitter up until it can be pulled away from the surface. (Fig. 4) Note : Take care to disconnect cables carefully before removing the unit and ensure that the cables and connectors left behind are protected from both water and physical damage. Surface Mounting With Rear Access Position the supplied Template carefully before starting. 1. Drill three 5mm holes marked “B” on the Template. 2. Screw the four M4 brass studs into the rear of the Interface. 3. Place the Interface in position pushing the three studs through the newly drilled holes. 4. Using the 3 supplied Thumb Nuts secure the Interface to the surface making sure it is level before fully tightening. 5. Connect and secure the cables leaving a loop of single core cable inside the casing before fitting the cover such that the outer sheath is secured beneath the rubber clamp. Once the Interface is secured in position it is advisable to clamp the cables to the mounting surface close to the Interface. Without Rear Access Position the supplied Template carefully before starting. 1. Drill three 2mm holes marked “SURFACE” on the Template 2. Remove the cover of the Interface from the main body. 4. A the Interface to the mounting surface using the three self tapping screws provided. Take care not to over tighten the screws as this may cause the moulding to crack. 5. Connect and secure the cables as shown overleaf. 6. Carefully fit the cover securing the cables with the clamp bar.

Tacktick Limited T122 NMEA Block Diagram Microprocessor, circuit inc programming port, supervisor and voltage reference devices NMEA I/O circuits Internal batteries and recharging circuit (External voltage source) Radio transceiver circuit PWM Drive to charger circuit Digital power rail Data and control sentences PCB Antenna RF Data on radio network NMEA output data NMEA input data NMEA out voltage rail generator circuit Power rail PWM control NMEA out power rail Power rail level sense

Tacktick Limited Registered 3171270 England & Wales. 22 North Street Emsworth Hampshire P010 7DG England VAT: GB 640 8465 34 Directors: Clive Johnson, Mark Johnson BA MIEE CEng MBA T T a a c c k k t t i i c c k k L L i i m m i i t t e e d d 2 2 2 2 N N o o r r t t h h S S t t r r e e e e t t , , E E m m s s w w o o r r t t h h H H a a m m p p s s h h i i r r e e , , P P O O 1 1 0 0 7 7 D D G G . . E E n n g g l l a a n n d d T T e e l l : : + + 4 4 4 4 ( ( 0 0 ) ) 1 1 2 2 4 4 3 3 3 3 7 7 9 9 3 3 3 3 1 1 F F a a x x : : + + 4 4 4 4 ( ( 0 0 ) ) 1 1 2 2 4 4 3 3 3 3 7 7 9 9 1 1 9 9 9 9 E E - - m m a a i i l l : : s s a a l l e e s s @ @ t t a a c c k k t t i i c c k k . . c c o o . . u u k k W W e e b b : : w w w w w w . . t t a a c c k k t t i i c c k k . . c c o o . . u u k k 2 2 0 0 0 0 3 3 D D A A M M E E A A w w a a r r d d ( ( O O v v e e r r a a l l l l W W i i n n n n e e r r ) ) 2 2 0 0 0 0 3 3 C C o o n n c c o o u u r r s s I I n n n n o o v v a a t t i i o o n n A A w w a a r r d d 2 2 0 0 0 0 1 1 D D A A M M E E A A w w a a r r d d ( ( W W i i n n n n e e r r E E l l e e c c t t r r o o n n i i c c c c a a t t e e g g o o r r y y ) ) 1 1 9 9 9 9 9 9 D D A A M M E E A A w w a a r r d d ( ( W W i i n n n n e e r r E E l l e e c c t t r r o o n n i i c c c c a a t t e e g g o o r r y y ) ) 1 1 9 9 9 9 9 9 M M i i l l l l e e n n n n i i u u m m P P r r o o d d u u c c t t ( ( R R a a c c e e M M a a s s t t e e r r ) ) 1 1 9 9 9 9 8 8 M M i i l l l l e e n n n n i i u u m m P P r r o o d d u u c c t t ( ( R R a a c c e e C C o o m m p p a a s s s s ) ) 1 1 9 9 9 9 7 7 H H a a m m p p s s h h i i r r e e B B u u s s i i n n e e s s s s I I n n n n o o v v a a t t i i o o n n A A w w a a r r d d 28 th April 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: RX9-T122-916 It is requested that the following information is to be held confidential on behalf of Tacktick Ltd. FCC Rules Part 0.459 refers. Tacktick Limited T122 Circuit Diagram.doc Tacktick Limited T122 BOM.xls Tacktick Limited T122 Radio Circuit Diagram.doc With regard to the above, the listed information discloses design details that are commercial in confidence to Tacktick Ltd. Tacktick Ltd are currently the only manufacturers of solar-powered, radio-networked marine electronics. By virtue of Tacktick ‘s combined technical knowledge and experience of solar cell performance and low-power design techniques, it is estimated that current competitors in the leisure marine market may take up to 18 months to reach the same level of knowledge. This is a significant commercial advantage, maintained by the non-disclosure of current design methodologies. To this end, Tacktick does not release the above documentation for public scrutiny either as part of the product documentation or to its supplier/dealer network. Yours Sincerely, Paul Jennings Design Consultant.

Tacktick Limited Registered 3171270 England & Wales. 22 North Street Emsworth Hampshire P010 7DG England VAT: GB 640 8465 34 Directors: Clive Johnson, Mark Johnson BA MIEE CEng MBA T T a a c c k k t t i i c c k k L L i i m m i i t t e e d d 2 2 2 2 N N o o r r t t h h S S t t r r e e e e t t , , E E m m s s w w o o r r t t h h H H a a m m p p s s h h i i r r e e , , P P O O 1 1 0 0 7 7 D D G G . . E E n n g g l l a a n n d d T T e e l l : : + + 4 4 4 4 ( ( 0 0 ) ) 1 1 2 2 4 4 3 3 3 3 7 7 9 9 3 3 3 3 1 1 F F a a x x : : + + 4 4 4 4 ( ( 0 0 ) ) 1 1 2 2 4 4 3 3 3 3 7 7 9 9 1 1 9 9 9 9 E E - - m m a a i i l l : : s s a a l l e e s s @ @ t t a a c c k k t t i i c c k k . . c c o o . . u u k k W W e e b b : : w w w w w w . . t t a a c c k k t t i i c c k k . . c c o o . . u u k k 2 2 0 0 0 0 3 3 D D A A M M E E A A w w a a r r d d ( ( O O v v e e r r a a l l l l W W i i n n n n e e r r ) ) 2 2 0 0 0 0 3 3 C C o o n n c c o o u u r r s s I I n n n n o o v v a a t t i i o o n n A A w w a a r r d d 2 2 0 0 0 0 1 1 D D A A M M E E A A w w a a r r d d ( ( W W i i n n n n e e r r E E l l e e c c t t r r o o n n i i c c c c a a t t e e g g o o r r y y ) ) 1 1 9 9 9 9 9 9 D D A A M M E E A A w w a a r r d d ( ( W W i i n n n n e e r r E E l l e e c c t t r r o o n n i i c c c c a a t t e e g g o o r r y y ) ) 1 1 9 9 9 9 9 9 M M i i l l l l e e n n n n i i u u m m P P r r o o d d u u c c t t ( ( R R a a c c e e M M a a s s t t e e r r ) ) 1 1 9 9 9 9 8 8 M M i i l l l l e e n n n n i i u u m m P P r r o o d d u u c c t t ( ( R R a a c c e e C C o o m m p p a a s s s s ) ) 1 1 9 9 9 9 7 7 H H a a m m p p s s h h i i r r e e B B u u s s i i n n e e s s s s I I n n n n o o v v a a t t i i o o n n A A w w a a r r d d 28 th April 2004 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Applications FCC IDs: RX9-T110-916, RX9-T120-916, RX9-T122-916 Dear Nick, With regards to the above applications, Tacktick Ltd wish to declare the following, in line with the testing regime followed for these applications: RX9-T110-916 covers the individual products: T110 mn100 Digital display, T111 mn100 Dual Digital Display, and T112 mn100 Analogue Display – all being identical apart from the LCD layout. RX9-T122-916 covers both the T122 mn100 NMEA Interface and T121 mn100 Hull Transmitter – both being identical apart from PCB orientation and connector fit/labelling. RX9-T120-916 covers the single unique product T120 mn100 Wind Transmitter only. Yours Sincerely, Paul Jennings. Design Consultant.

External Photographs Rear Hull Front NMEA Front Cover

Tacktick Limited T122 NMEA Block Diagram Microprocessor, circuit inc programming port, supervisor and voltage reference devices NMEA I/O circuits Internal batteries and recharging circuit (External voltage source) Radio transceiver circuit PWM Drive to charger circuit Digital power rail Data and control sentences PCB Antenna RF Data on radio network NMEA output data NMEA input data NMEA out voltage rail generator circuit Power rail PWM control NMEA out power rail Power rail level sense

Internal Photographs Top Bottom

Tacktick Limited T122 NMEA Operational Description Introduction This document is to be read in conjunction with the ‘Tacktick Limited T122 NMEA Block Diagram’. The functionality of each block shown on the diagram is expanded in this document. Microprocessor This device stores the operating software in its on board flash and system data in its on board RAM. The software controls the operation of the T122 NMEA interface. The microprocessor translates information between the NMEA protocol and the proprietary radio protocol used for the MicroNet network, i.e. information received on NMEA is transmitted on the radio network and information received over the radio network is transmitted onto NMEA. The software can be upgraded in circuit by connecting the programming port to a PC running the appropriate development environment. The microprocessor uses a precision voltage reference against which to measure inputs through its built in 8 channel ADC. An external supervisor chip is used to ensure that the microprocessor is reset if it fails to produce a periodic strobe signal. Batteries and Recharging Circuit The unit runs from two internal, rechargeable lithium coin cells. These cells can be recharged by applying an external voltage to connectors on the front of the unit. Recharging from an external supply is performed under software control. NMEA Out Voltage Rail Generator A closed loop controller run by the microprocessor regulates the NMEA out voltage rail. NMEA I/O Circuits This circuit block sends and receives data to / from external devices using the NMEA 0183 protocol. Data received on the two NMEA input ports is sent to the processor. Data sent from the processor is output to the NMEA out port. Radio Transceiver Circuit and PCB Antenna The unit communicates with other units in the network across a wireless data link. The microprocessor sends configuration sentences to the radio transceiver chip. The data link between the microprocessor and the radio chip is half duplex. The RF signals are transmitted / received using a PCB track antenna.

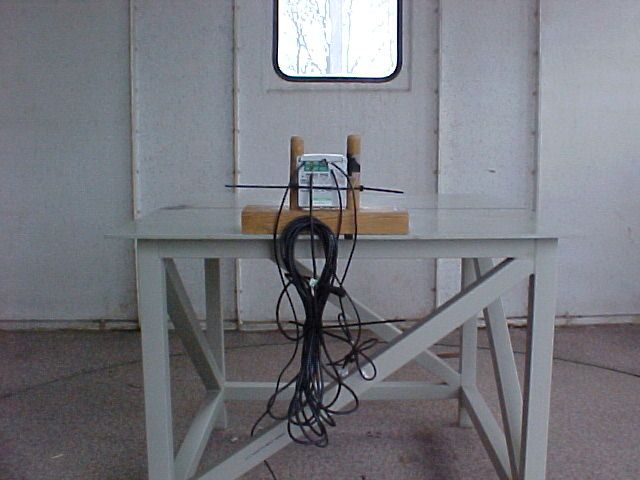

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 Test Report Serial No: RFI/MPTB1/RP44514JD21A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tony Henriques Tested By: Elin Danielson Release Version No: PDF01 Issue Date: 15 March 200415 March 2004 Test Dates: 22 January 2004 to 06 February 2004 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 2 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 3 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Methods And Procedures.............................................................................................7 4. Deviations From The Test Specification .....................................................................8 5. Operation Of The EUT During Testing ........................................................................9 6. Summary Of Test Results...........................................................................................10 7. Measurements, Examinations And Derived Results................................................11 8. Test Results .................................................................................................................12 9. Measurement Methods ...............................................................................................24 10. Measurement Uncertainty ........................................................................................27 Appendix 1. Test Equipment Used ................................................................................28 Appendix 2. Test Configuration Drawings....................................................................29 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 4 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 1. Client Information Company Name: Tacktick Ltd. Address: 22 North Street Emsworth Hampshire PO10 7DG Contact Name: Mr M. Johnson RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 5 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Micronet mn100 Model Name or Number: T122 NMEA Interface Serial Number: 0312/00542 (for sample used to perform transmit measurements) 0401/00835 (for sample used to perform receive measurements) FCC ID RX9-T122-916 Country of Manufacture: UK Date of Receipt: 29 January 2004 2.2. Description Of EUT The equipment under test is a low power radio networked leisure marine instrumentation NMEA to Micronet interface. 2.3. Modifications Incorporated In EUT For the purposes of testing only (i.e. to allow testing of transmitter parameters to be performed), a sample of the EUT was software modified to increase the ‘transmit on’ time to 250 mS every second from the normal (and very low) operating mode duty cycle ‘transmit on’ time. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 6 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 2.4.Additional Information Related To Testing Power Supply Requirement: External DC supply of 12V Intended Operating Environment: Marine Equipment Category: Mobile (in a boat) Type of Unit: Transceiver Interface Ports: NMEA serial comms 1 in (configured with 10m terminated GPS cable) NMEA serial comms 2 in (configured with 1m terminated transducer cable) NMEA serial comms out (configured with 1m terminated transducer cable) Transmit & Receive Frequency Range Fixed, Single frequency Channel ID Channel Number Channel Frequency (MHz) Transmit & Receive Channels Tested N/A N/A 916.0 MHz Occupied Bandwidth 200 kHz Highest Unintentionally Generated Frequency 916.07 MHz Maximum Fieldstrength @ 3 metres 89.7 dBμV/m 2.5. Support Equipment No support equipment was used to exercise the EUT during testing. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44514JD21A Operations Department Page 7 of 30 Issue Date: 15 March 2004 Test Of: Tacktick Ltd. Micronet mn100 T122 NMEA Interface To: FCC Part 15.249 3. Methods And Procedures Reference: FCC Part 15 Subpart C: 2002 (Section 15.249) Title: Code of Federal Regulations, Part 15 (47CFR15) Radio Frequency Devices. Comments: A description of the test facility used fo…
