RXEWT30BWireless SS Terminal

Omron Corporation Okayama factory

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Mar 05, 2007
Application Purpose: Original Equipment
Date of Application: Mar 04, 2007
Equipment Note: Wireless SS Terminal
Frequency Range: 2402.20000000 - 2480.20000000
Company: Omron Corporation Okayama factory
Country: Japan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Cat. No. N138-E1-01 WT30 FA Wireless SS Terminal Notice (1) This manual may not be copied, reproduced, or reprinted, in whole or in part, without permission from OMRON. (2) The specifications listed within this manual may be revised without prior notice. (3) The information in this manual was compiled with the utmost care. However, if you should find any errors or inconsistencies, please contact the OMRON business office. Be sure to tell us the revi- sion number of the manual in which you found the error. i Introduction OMRON products are manufactured for use according to proper procedures by a qualified operator and only for the purposes described in this manual. Thank you for purchasing this WT30 FA Wireless SS Terminal (also referred to as WT30 or WT30 Ter- minal in this manual). The WT30 System consists of a Serial Master Station and I/O Slave Stations. The Serial Master Sta- tion is a wireless terminal that collects ON/OFF data using wireless communications and is connected to a device with an RS-232C interface (e.g., a personal computer or PLC). I/O Slave Stations with I/O terminals can also be connected to a DeviceNet-compatible WD30 Master. Intended Audience This manual is intended for the following readers. • Persons in charge of introducing FA devices • Persons who design FA systems • Persons who install or connect FA devices • Persons who manage working FA installations Persons who use this product must have sufficient knowledge of electrical systems (i.e., an electrical engineer or the equivalent). ii READ AND UNDERSTAND THIS DOCUMENT Please read and understand this document before using the product. Please consult your OMRON representative if you have any questions or comments. WARRANTY OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON- INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. LIMITATIONS OF LIABILITY OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted. IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR. SUITABILITY FOR USE THE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer to separate catalogs for OMRON's safety rated products. OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product. At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use. The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products: • Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document. • Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations. • Systems, machines, and equipment that could present a risk to life or property. Please know and observe all prohibitions of use applicable to the products. iii NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM. PERFORMANCE DATA Performance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability. CHANGE IN SPECIFICATIONS Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the product may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products. DIMENSIONS AND WEIGHTS Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are s…

Text truncated - open the document above for the full version.

External Photos

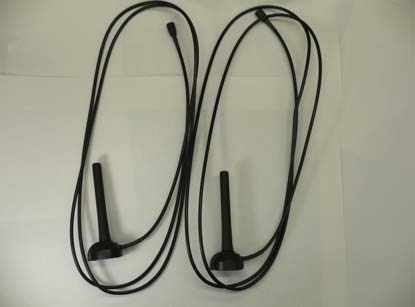

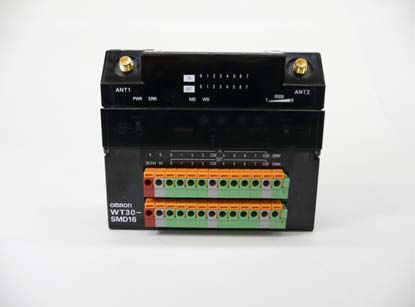

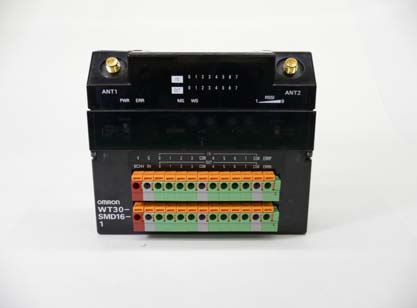

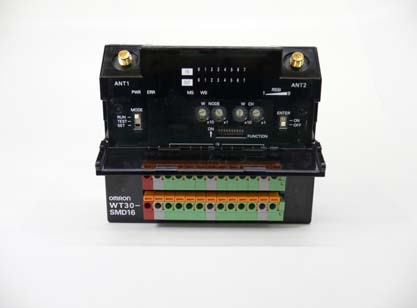

Externals photograph WT30 WT30-AT001WT30-AT002 WT30-AT003 Externals photograph WT30-M01-FLK Front_CoverShutsFront_CoverIsOpened Rear LeftRight TopBottom Externals photograph WT30-SID16 Front_CoverShutsFront_CoverIsOpened Rear LeftRight TopBottom Externals photograph WT30-SMD16 Front_CoverShutsFront_CoverIsOpened Rear LeftRight TopBottom Externals photograph WT30-SMD16-1 Front_CoverShutsFront_CoverIsOpened Rear LeftRight TopBottom

Internal Photos

Internals photograph WT30-M01-FLK Internal structure 1Internal structure 2 Internal structure 3 PWB(1) Side APWB(1) Side B PWB(2) Side APWB(2) Side B Daido Steel DPR Internals photograph WT30-SID16 Internal structure 1Internal structure 2 Internal structure 3 PWB(1) Side APWB(1) Side B PWB(2) Side APWB(2) Side B Internals photograph WT30-SMD16 Internal structure 1Internal structure 2 Internal structure 3 PWB(1) Side APWB(1) Side B PWB(2) Side APWB(2) Side B Internals photograph WT30-SMD16-1 Internal structure 1Internal structure 2 Internal structure 3 PWB(1) Side APWB(1) Side B PWB(2) Side APWB(2) Side B Internals photograph WT30-M01-FLK/WT30-SID16/WT30-SMD16/WT30-SMD16-1 RF Module side A RF Module side B

RF Exposure Info

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Applicant: Omron Corporation Okayama Factory Type of Equipment : FA Wireless SS Terminals Model No. : WT30-M01-FLK (Serial master) FCC ID: RXEWT30B Omron Corporation Okayama Factory declares that Model : WT30-M01-FLK (Serial master) ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “WT30-M01-FLK (Serial master)“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 5.92 mW (Maximum peak output power) G = 1.64 Numerical Antenna gain; equal 2.14 dBi r =20.0 cm For: WT30-M01-FLK (Serial master)S = 0.00193 mW/cm 2 No. : 27EE0053-HO-C-2 RF Exposure / SAR Statement

RF Exposure Info

UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(01.06.05) Applicant: Omron Corporation Okayama Factory Type of Equipment : FA Wireless SS Terminals Model No. : WT30-SMD16-1 (I/O slave) FCC ID: RXEWT30B Omron Corporation Okayama Factory declares that Model : WT30-SMD16-1 (I/O slave) ⇒ complies with FCC radiation exposure requirement specified in the FCC Rules 2.1093(for portable)/2.1091 (for mobile). RF Exposure Calculations: ← The following information provides the minimum separation distance for the highest gain antenna provided with the “WT30-SMD16-1 (I/O slave)“ as calculate d from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4* π * r 2 ) Where P = 6.05 mW (Maximum peak output power) G = 1.64 Numerical Antenna gain; equal t2.14dBi r =20.0 c m For: WT30-SMD16-1 (I/O slave)S = 0.00197 mW/cm 2 No. : 27EE0053-HO-C-2 RF Exposure / SAR Statement

Test Report

Test report No. : 27EE0053-HO-C-2 Page : 2 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) CONTENTS PAGE SECTION 1: Client information ................................................................................................................4 SECTION 2: Equipment under test (E.U.T.)............................................................................................4 SECTION 3: Test specification, procedures & results.............................................................................6 SECTION 4: Operation of E.U.T. during testing .....................................................................................9 SECTION 5: Conducted Emission...........................................................................................................11 SECTION 6: Spurious Emission..............................................................................................................12 SECTION 7: Bandwidth ...........................................................................................................................13 SECTION 8: Maximum Peak Output Power .........................................................................................13 SECTION 9: Peak Power Density............................................................................................................13 APPENDIX 1: Photographs of test setup for WT30-M01-FLK (Serial master) .................................14 Conducted Emission ....................................................................................................................................14 Spurious Emission (Radiated) ....................................................................................................................15 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis)......................................................................16 APPENDIX 2: Photographs of test setup for WT30-SMD16-1 (I/O slave) ..........................................19 Conducted Emission ....................................................................................................................................19 Spurious Emission (Radiated) ....................................................................................................................20 Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis)......................................................................21 APPENDIX 3: EMI test data for WT30-M01-FLK (Serial master) ......................................................24 Conducted Emission ....................................................................................................................................24 6dB Bandwidth ............................................................................................................................................39 Maximum Peak Output Power...................................................................................................................41 Radiated Spurious Emission (below 1GHz) ..............................................................................................42 Magnet-base Antenna....................................................................................................................... 42 Flat Diversity Antenna ..................................................................................................................... 46 Pencil Antenna ................................................................................................................................. 47 Radiated Spurious Emission (above 1GHz) ..............................................................................................48 Magnet-base Antenna....................................................................................................................... 48 Flat Diversity Antenna ..................................................................................................................... 53 Pencil Antenna ................................................................................................................................. 56 Conducted Spurious Emission....................................................................................................................59 Conducted emission Band Edge compliance .............................................................................................63 Power Density ..............................................................................................................................................64 99%Occupied Bandwidth ...........................................................................................................................66 APPENDIX 4: EMI test data for WT30-SMD16-1 (I/O slave)...............................................................67 Conducted Emission ....................................................................................................................................67 6dB Bandwidth ............................................................................................................................................82 Maximum Peak Output Power...................................................................................................................84 Radiated Spurious Emission (below 1GHz) ..............................................................................................85 Magnet-base Antenna....................................................................................................................... 85 Flat Diversity Antenna ..................................................................................................................... 89 Pencil Antenna .............................................................…

Text truncated - open the document above for the full version.

Test Report

Test report No. : 27EE0053-HO-C-2 Page : 14 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 1: Photographs of test setup for WT30-M01-FLK (Serial master) Conducted Emission Magnet-base Antenna Front Rear Test report No. : 27EE0053-HO-C-2 Page : 15 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Magnet-base Antenna Front Rear Test report No. : 27EE0053-HO-C-2 Page : 16 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Magnet-base Antenna X-axis Y-axis Z-axis Test report No. : 27EE0053-HO-C-2 Page : 17 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Flat Diversity Antenna X-axis Y-axis Z-axis Test report No. : 27EE0053-HO-C-2 Page : 18 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Pencil Antenna X-axis Y-axis Z-axis Test report No. : 27EE0053-HO-C-2 Page : 19 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 2: Photographs of test setup for WT30-SMD16-1 (I/O slave) Conducted Emission Magnet-base Antenna Front Rear Test report No. : 27EE0053-HO-C-2 Page : 20 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Spurious Emission (Radiated) Magnet-base Antenna Front Rear Test report No. : 27EE0053-HO-C-2 Page : 21 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Magnet-base Antenna X-axis Y-axis Z-axis Test report No. : 27EE0053-HO-C-2 Page : 22 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Flat Diversity Antenna X-axis Y-axis Z-axis Test report No. : 27EE0053-HO-C-2 Page : 23 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Worst Case Position (Horizontal: Y-axis/ Vertical:X-axis) Pencil Antenna X-axis Y-axis Z-axis

Test Report

Test report No. : 27EE0053-HO-C-2 Page : 24 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) APPENDIX 3: EMI test data for WT30-M01-FLK (Serial master) Conducted Emission (Tx, Low, Magnet-base Antenna) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2007/03/01 Company : OMRON Corporation Okayama Factory Report No. : 27EE0053-HO Kind of EUT : FA Wireless SS Terminals Power : DC 24V Model No. : WT30-M01-FLK (Serial master) Temp./Humi. : 25deg.C / 30% Serial No. : M01-4 Operator : Kenichi Adachi Mode / Remarks : Tx mode, ch:L 2402.2MHz, ANT1, Magnet-base Antenna LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27EE0053-HO-C-2 Page : 25 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission (Tx, Mid, Magnet-base Antenna) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2007/03/01 Company : OMRON Corporation Okayama Factory Report No. : 27EE0053-HO Kind of EUT : FA Wireless SS Terminals Power : DC 24V Model No. : WT30-M01-FLK (Serial master) Temp./Humi. : 25deg.C / 30% Serial No. : M01-4 Operator : Kenichi Adachi Mode / Remarks : Tx mode, ch:M 2441.8MHz, ANT1, Magnet-base Antenna LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27EE0053-HO-C-2 Page : 26 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission (Tx, Mid, Magnet-base Antenna) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2007/03/01 Company : OMRON Corporation Okayama Factory Report No. : 27EE0053-HO Kind of EUT : FA Wireless SS Terminals Power : DC 24V Model No. : WT30-M01-FLK (Serial master) Temp./Humi. : 25deg.C / 30% Serial No. : M01-4 Operator : Kenichi Adachi Mode / Remarks : Tx mode, ch:M 2441.8MHz, ANT1, Magnet-base Antenna LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin Phase Frequency QPAVFactorQPAVQPAVQPAVPhase [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] Phase 0.1500020.97.50.321.27.866.056.044.848.2N 0.2786022.5----0.322.8----60.9----38.1----N 11.9494517.416.91.619.018.560.050.041.031.5N 16.5000033.833.71.935.735.660.050.024.314.4N 23.1000428.628.52.330.930.860.050.029.119.2N 29.6998724.724.62.527.227.160.050.032.822.9N 0.1500021.47.50.321.77.866.056.044.348.2L 0.2780220.0----0.320.3----60.9----40.6----L 11.9494518.318.11.619.919.760.050.040.130.3L 16.5000033.833.71.935.735.660.050.024.314.4L 23.1000428.728.62.331.030.960.050.029.019.1L 29.6998724.424.32.526.926.860.050.033.123.2L Test report No. : 27EE0053-HO-C-2 Page : 27 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission (Tx, High, Magnet-base Antenna) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2007/03/01 Company : OMRON Corporation Okayama Factory Report No. : 27EE0053-HO Kind of EUT : FA Wireless SS Terminals Power : DC 24V Model No. : WT30-M01-FLK (Serial master) Temp./Humi. : 25deg.C / 30% Serial No. : M01-4 Operator : Kenichi Adachi Mode / Remarks : Tx mode, ch:H 2480.2MHz, ANT1, Magnet-base Antenna LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data.Data is uncorrected. CALCURATION:RESULT=READING+C.F(LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< PEAK DATA >> N:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Frequency[Hz] [dBuV]<< PEAK DATA >> L:PEAK .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 Test report No. : 27EE0053-HO-C-2 Page : 28 of 111 Issued date : January 22, 2007 Revised date : March 1, 2007 FCC ID : RXEWT30B UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 MF060b(14.06.06) Conducted Emission (Rx, Mid, Magnet-base Antenna) DATA OF CONDUCTED EMISSION TEST UL Apex Co., Ltd. Head Office EMC Lab. No.2 Semi Anechoic Chamber Date : 2007/03/01 Company : OMRON Corporation Okayama Factory Report No. : 27EE0053-HO Kind of EUT : FA Wireless SS Terminals P…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Shinji Ueno(Supervisor)

[email protected]81 86 276 1797Fax: 81 86 276 1520

Technical Contact

UL ApexTakumi Shimada

[email protected]81-596-24-8116

4383-326 Asama-cho · Ise-shi, Mie-ken · Japan

Non-Technical Contact

UL ApexYoshinubo Asai

[email protected]81-596-24-8116

Test Firm

UL Japan, Inc.Mitsuru Fujimura

[email protected]81-596-24-8116Fax: 81-596-24-8124

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	6.05 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. When used in mobile applications the antennas shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons. Compliance of this device in all configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance. The antenna of this device must not be co-located or used in conjunction with any other antenna or transmitter.
