RXF103MYSPOT REMOTE CONTROLLED PARKING BARRIER-TX

Designated Parking Corp V17 page 24 www.dp-corp.com FCC THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUB-JECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RE-CEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. CE Hereby, Designated Parking Corp., declares that MySpot 202 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC . A copy of the Statement of Confor-mity can be found on the Company’s web site. Rudor M. Teich, President Express Installation Instructions 1. Clear area where unit is to be installed 2. Assemble barrier to the stubs of the 2 pods using security bolts 3. Position plates using template 4. Apply adhesive to the bottoms of the mounting plates and press them into place 5. Attach pods to plates 6. Wait for adhesive to cure before driving or stepping over barrier. 10 Ridge Road West Orange, NJ 07052-4018 USA www.dp-corp.com Email [email protected] Tel +1.973 669-8214 Fax +1.973 669-5161 Manual P/N : 92-1002 Revised 26APR2007 Copyright and Patents MySpot 200 is covered by design and utility patent applications and issued patents. MySpot is a trademark of Designated Parking Corp. Designated Parking Corp V17 page 1 www.dp-corp.com Installation Manual MySpot ™ 200 V4 Remote Controlled Parking Barrier Congratulations! MySpot 200 rugged construction, careful design and attention to detail will provide you with years of service and enjoyment. How-ever, like all things mechanical and electronic, proper and careful installation is essential in order for the product to perform as de-signed. We suggest that you keep this manual in the car’s glove com-partment, along with the Emer-gency Key/Security Wrench. The key allows you to manually lower the barrier. The wrench allows access to the Key. The User manual will refresh your memory how to do it, as well as show you how to recognize when the radio batteries need replacing and how to go about it. A summary installation proce-dure is available at the back of this manual. A pictorial man-ual is available separately. If external damage to the packing is evident, notify the carrier immediately. Shipping damage is not covered by the manufacturer’s warranty. WARNING ! Barrier may cause pedes- trian or users to trip over it. Please install and provide warning signs accordingly. Note that Public Liability should be in place. This manual applies to MySpot 200 version 4 (shipments after JUL 2006). MySpot 200 is installed as shown to block ac-cess to a parking space. On com-mand, the barrier falls forward to allow ac-cess. A video showing the installation is avail-able on www.dp-corp.com/downloads/videos Designated Parking Corp V17 page 2 www.dp-corp.com Kit Contents Below is a list of the main assemblies and parts in the carton. Please note the “Ref: des-ignator on the leftmost column. This ref will be used throughout the manual to identify parts and assemblies. Anchors and their bolts are not included in the kits and should be ordered separately. NOTE ( 4) K5 bolts, (2) K11 bolts and (6) K7 washers are used to fasten the PowerPod and the Idle- Pod, respectively, to the mounting plates during shi pping. These 6 bolts are not in the parts bag “kit” detailed below, and are listed in the part list above. Designated Parking Corp V17 page 23 www.dp-corp.com Can not Reboot Step Test YES NO 1 Is barrier in the UP position when trying to boot or change sensor setting? go to step 2 Configuration (“Boot”) Switch is ignored except when barrier is in the Locked Up position 2 Disconnect battery cable for 15 seconds, reconnect. Problem still exists? go to step 3 3 Replace batteries in PowerPod. Problem still exists? Replace elec- tronic module Designated Parking Corp V17 page 22 www.dp-corp.com Troubleshooting No response to Remote control Step Test YES NO 1 Is the correct button pushed and does indica- tor on remote control light up when button is pushed? go to step 2 Replace battery in remote control 2 Has this remote control worked before? go to step 2a Add remote control to memory of MySpot 200 3 Is barrier locked in Locked Up position? go to step 4 go to step 5 4 Use Emergency key to release barrier, then raise barrier manually slowly and retest. Is unit now working properly? Jam cleared go to step 6 5 Is barrier locked in Locked Down position? go to step 8 Bring barrier to locked up position and go to step 1 6 Is there another remote control that does control the unit? go to step 7 Replace batteries in the PowerPod . If this does not help, erase memory of MySpot (see manual) 7 Add remote control to memory of MySpot. Does it work? Done Replace remote control 8 With the barrier down, step on it a couple of times to simulate a car passing over the barrier with both wheels. Is the barrier responding the remote control? Done go to step 4 2a Has the barrier been slow to respond recently Replace PowerPod batteries go to step 3 Motor responds but no motion of barrier Step Test YES NO 1 Is barrier locked in Up position? go to step 2 Go to step 4 2 While motor sounds, push barrier down. Did it move? go to step 3 Open PowerPod cover and check operation 3 Check alignment of pods or a bent barrier Done 4 Is it locked in Down position? Step on the barrier and retest Step on barrier and compress spring, twice and re-test Step Test YES NO 2 Check wires from the optical sensors to the electronic module. Are cables dam- aged? Move wires away from edge Make sure opto is not subject to bright light during test Barrier goes up and then drops 1 “arm” the barrier by stepping on it and repeat the test. Problem exists? Go to step 2 It was due to barrier being manually manipu- lated and going out of synch. Desi…

Text truncated - open the document above for the full version.

River Display Limited C O N F I D E N T I A L Title: HT433SizeA3 Date of Revision: Sep 13, 2007Document Number: HT433.SCH Sheet of 1 1 Printed on: 13-Sep-2007 REV A MCU LED DISPLAY POWER CIRCUIT TRANSMI TTER CI RCUIT 433.92MHZ ANTENNA SWITCH DC IN INTERNAL RC(4M)

River Display Limited C O N F I D E N T I A L Title: HT433SizeA3 Date of Revision: Sep 13, 2007Document Number: HT433.SCH Sheet of 1 1 Printed on: 13-Sep-2007 REV A MCU LED DISPLAY POWER CIRCUIT TRANSMI TTER CI RCUIT 433.92MHZ ANTENNA SWITCH DC IN INTERNAL RC(4M)

FCC ID: RXF10 3 Figure 1 Transmitter of the EUT-Front View Figure 2 Transmitter of the EUT-Back View

FCC ID: RXF10 3 Figure 1 Transmitter of the EUT-Front View Figure 2 Transmitter of the EUT-Back View

FCC ID Label Sample for FCC ID: RXF103 FCC ID: RXF103 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T FCC ID Label Location The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location

FCC ID Label Sample for FCC ID: RXF103 FCC ID: RXF103 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T FCC ID Label Location The Label must not be a stick-on paper label. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Label Location

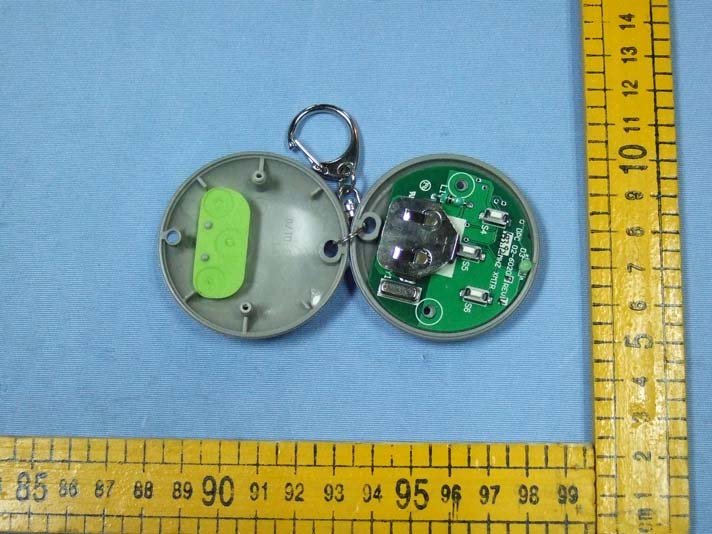

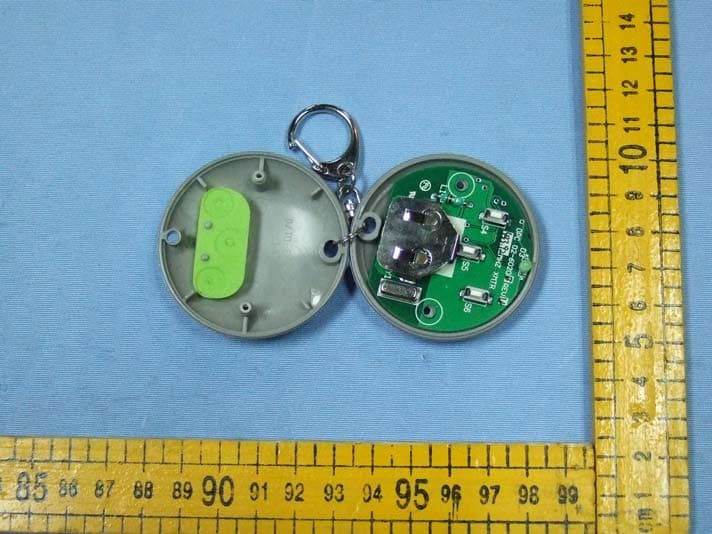

Anbotek Compliance Laboratory Limited Report No.199/16/2007708704T Figure 1 Transmitter of the EUT-Inside View Figure 2 Transmitter of the EUT-Inside View

Anbotek Compliance Laboratory Limited Report No.199/16/2007708704T Figure 1 Transmitter of the EUT-Inside View Figure 2 Transmitter of the EUT-Inside View

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 1-Nov-2005 Sheet of File: E:\product\Maxlion\CP-RX\HTB3~11.DDBDrawn By: TP1 BT33V Lithium Battery S5 D3 LED GREEN S4 C2 .01uF Vdd 1 GP5 2 GP4 3 GP3 4 Vss 8 dat 7 clk 6 GP2 5 U1 PIC12F629 I SN BT43V Lithium Battery D2DL4148 433.92/390 MHz XMTR L3 PCB TRACE R9 5.6K L218nH R8 6.8K R11 27 Q1 MMBR911LT1 C7 100pF/NPO C103.9pF/NPO C8 1pF/NPO C91pF R10 220 C11 6pF/NPO C3 100nF Y1 433.92/390MHz Right VccgndVppclkdat C124.7uF D1DL4148 L11uH VCC BAT+ BAT+ Jumper J1 R6 1K WENSEN1OF1 R110K 02-6020 HT Transmitter 433.92/390 MHz B-4 02-6020B.sch 1-9-2004 ECO1005: Changed ICP Pin Vpp now connected to GP3 S6 Left R2 100K

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 1-Nov-2005 Sheet of File: E:\product\Maxlion\CP-RX\HTB3~11.DDBDrawn By: TP1 BT33V Lithium Battery S5 D3 LED GREEN S4 C2 .01uF Vdd 1 GP5 2 GP4 3 GP3 4 Vss 8 dat 7 clk 6 GP2 5 U1 PIC12F629 I SN BT43V Lithium Battery D2DL4148 433.92/390 MHz XMTR L3 PCB TRACE R9 5.6K L218nH R8 6.8K R11 27 Q1 MMBR911LT1 C7 100pF/NPO C103.9pF/NPO C8 1pF/NPO C91pF R10 220 C11 6pF/NPO C3 100nF Y1 433.92/390MHz Right VccgndVppclkdat C124.7uF D1DL4148 L11uH VCC BAT+ BAT+ Jumper J1 R6 1K WENSEN1OF1 R110K 02-6020 HT Transmitter 433.92/390 MHz B-4 02-6020B.sch 1-9-2004 ECO1005: Changed ICP Pin Vpp now connected to GP3 S6 Left R2 100K

Page 1 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T FCC TEST REPORT for Designated Parking Corp. FCC ID: RXF103 Myspot Remote Controlled Parking Barrier(Tx) Model No.: HT-433 Report Number : 200708704T Date of Test : Sep.04~11, 2007 Date of Report : Sep.12, 2007 Prepared for : Designated Parking Corp. Address : 10 Ridge Road West Orange, NJ 07052 Prepared By : Anbotek Compliance Laboratory Limited Address : 2/F, Langfeng Building, Kefa Road North, Hi-tech Industrial Park, Nanshan District, Shenzhen 518057, China Tel: (86) 755-26014771 Fax: (86) 755-26014720 Page 2 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. CONDUCTED POWER LINE TEST............................................................................................ 8 4.1 Test Equipment..........................................................................................................................................8 4.2 Test Procedure ...........................................................................................................................................8 4.3 Test Setup ..................................................................................................................................................8 4.4 Configuration of the EUT..........................................................................................................................9 4.5 EUT Operating Condition .........................................................................................................................9 4.6 Conducted Power Line Emission Limits ...................................................................................................9 4.7 Conducted Power Line Test Result ...........................................................................................................9 5. RADIATION INTERFERENCE.................................................................................................. 10 5.1 Test Equipment........................................................................................................................................10 5.2 Requirements ...........................................................................................................................................10 5.3 Test Data..................................................................................................................................................10 6. CALCULATION OF DUTY CYCLE.......................................................................................... 11 7. OCCUPIED BANDWIDTH..........................................................................................................12 7.1 Test Equipment........................................................................................................................................12 7.2 Requirements ...........................................................................................................................................12 7.3 Method of Measurement..........................................................................................................................12 7.4 Test Result ...............................................................................................................................................12 8. TRANSMIT TIME ........................................................................................................................ 13 8.1 Test Equipment........................................................................................................................................13 8.2 Requirements ...........................................................................................................................................13 8.3 Test Result ...............................................................................................................................................13 9. FCC ID LABEL ............................................................................................................................. 14 10. PHOTOGRAPH........................................................................................................................... 16 10.1. Photo of Radiation Emission Test ........................................................................................................16 APPENDIX I (Photos of EUT) (5 Pages) Page 3 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T Page 4 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Myspot Remote Controlled Parking Barrier(Tx) Model Number : HT-433 Test Power Supply : DC 6V Frequency : 433.92MHz Applicant : Designated Parking Corp. Address : 10 Ridge Road West Orange, NJ 07052 Manufacturer : River Display Electronics (Songgang) Mfg. C Address : Shapu Industry Zone, No. 3, Baoan District, Songgang, Shenzhen Date of receiver : Aug.29, 2007 Date of Test Sep.04~11, 2007 Page 5 …

Text truncated - open the document above for the full version.

Page 1 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T FCC TEST REPORT for Designated Parking Corp. FCC ID: RXF103 Myspot Remote Controlled Parking Barrier(Tx) Model No.: HT-433 Report Number : 200708704T Date of Test : Sep.04~11, 2007 Date of Report : Sep.12, 2007 Prepared for : Designated Parking Corp. Address : 10 Ridge Road West Orange, NJ 07052 Prepared By : Anbotek Compliance Laboratory Limited Address : 2/F, Langfeng Building, Kefa Road North, Hi-tech Industrial Park, Nanshan District, Shenzhen 518057, China Tel: (86) 755-26014771 Fax: (86) 755-26014720 Page 2 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T TABLE OF CONTENT Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................5 1.3. Measurement Uncertainty.........................................................................................................................5 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 6 3. TEST PROCEDURE ....................................................................................................................... 7 4. CONDUCTED POWER LINE TEST............................................................................................ 8 4.1 Test Equipment..........................................................................................................................................8 4.2 Test Procedure ...........................................................................................................................................8 4.3 Test Setup ..................................................................................................................................................8 4.4 Configuration of the EUT..........................................................................................................................9 4.5 EUT Operating Condition .........................................................................................................................9 4.6 Conducted Power Line Emission Limits ...................................................................................................9 4.7 Conducted Power Line Test Result ...........................................................................................................9 5. RADIATION INTERFERENCE.................................................................................................. 10 5.1 Test Equipment........................................................................................................................................10 5.2 Requirements ...........................................................................................................................................10 5.3 Test Data..................................................................................................................................................10 6. CALCULATION OF DUTY CYCLE.......................................................................................... 11 7. OCCUPIED BANDWIDTH..........................................................................................................12 7.1 Test Equipment........................................................................................................................................12 7.2 Requirements ...........................................................................................................................................12 7.3 Method of Measurement..........................................................................................................................12 7.4 Test Result ...............................................................................................................................................12 8. TRANSMIT TIME ........................................................................................................................ 13 8.1 Test Equipment........................................................................................................................................13 8.2 Requirements ...........................................................................................................................................13 8.3 Test Result ...............................................................................................................................................13 9. FCC ID LABEL ............................................................................................................................. 14 10. PHOTOGRAPH........................................................................................................................... 16 10.1. Photo of Radiation Emission Test ........................................................................................................16 APPENDIX I (Photos of EUT) (5 Pages) Page 3 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T Page 4 of 19 FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T 1. GENERAL INFORMATION 1.1. Description of Device (EUT) EUT : Myspot Remote Controlled Parking Barrier(Tx) Model Number : HT-433 Test Power Supply : DC 6V Frequency : 433.92MHz Applicant : Designated Parking Corp. Address : 10 Ridge Road West Orange, NJ 07052 Manufacturer : River Display Electronics (Songgang) Mfg. C Address : Shapu Industry Zone, No. 3, Baoan District, Songgang, Shenzhen Date of receiver : Aug.29, 2007 Date of Test Sep.04~11, 2007 Page 5 …

Text truncated - open the document above for the full version.

FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T TEST SETUP PHOTOGRAPH 10.1. Photo of Radiation Emission Test

FCC ID: RXF103 Anbotek Compliance Laboratory Limited Report No.229/18/2007708704T TEST SETUP PHOTOGRAPH 10.1. Photo of Radiation Emission Test
