RXV-STL-4TE1SafeTLink

LPN Wireless, Inc. • 561 Sky Ranch • Petaluma, California 94954 U.S.A. Tel: 707-781-9210 • Fax: 707-781-9209 • E-mail: [email protected] 1 of 76 User Manual SafeTLink 4.9 GHz Public Safety Band Point-to-Point Microwave Radio System Ethernet plus T1 or 1, 2, 4 x T1 Document Number: 800-00020-01 Revision: Draft 10 Revision Date: August 13, 2004 User Manual SafeTLink Point-to-Point Microwave Radio System LPN Wireless, Inc. • 561 Sky Ranch • Petaluma, California 94954 U.S.A. • www.lpnwireless.com Tel: 707-781-9210 • Fax: 707-781-9209 • E-mail: [email protected] 2 of 76 Table of Contents 1 INTRODUCTION........................................................................................5 1.1 General Overview of Point to Point Wireless Links ....................................6 1.2 User Manual Conventions ..........................................................................7 2 LICENSE REQUIREMENTS AND REGULATORY COMPLIANCE ..........7 2.1 FCC Compliance Statement.......................................................................7 2.2 Modifications Prohibited .............................................................................8 2.3 International Operation...............................................................................8 2.4 Safety Considerations ................................................................................8 2.4.1 RF Energy Precautions.................................................................8 2.4.2 Tower Safety Precautions.............................................................9 2.4.3 Grounding.....................................................................................9 3 SYSTEM DESCRIPTION .........................................................................10 3.1 System Configurations .............................................................................10 3.1.1 Ethernet plus T1 .........................................................................10 3.1.2 1, 2, 4 x T1..................................................................................10 3.1.3 1, 2, 4 x E1..................................................................................10 3.2 System Components................................................................................11 3.2.1 ODU Description .........................................................................11 3.2.2 IDU Description...........................................................................11 3.3 Specifications ...........................................................................................13 3.3.1 Specifications for the Ethernet + T1 SafeTLink...........................13 3.3.2 Specifications for the 4 x T1 SafeTLink ......................................14 4 ENGINEERING AND PLANNING............................................................16 4.1 System Configuration ...............................................................................16 4.1.1 General .......................................................................................16 4.1.2 SafeTLink with both ODU and IDU .............................................18 4.1.3 SafeTLink with ODU only............................................................20 4.2 Powering ..................................................................................................21 4.2.1 System Requirements ................................................................21 4.2.2 IDU Powering and Fusing ...........................................................21 4.2.3 Power Failure Recovery .............................................................21 4.3 Grounding................................................................................................21 4.4 Mechanical ...............................................................................................22 4.4.1 ODU............................................................................................22 4.4.2 IDU .............................................................................................23 4.5 Frequency Selection ................................................................................23 4.5.1 1 MHz Operation Channel Plan ..................................................24 4.5.2 2 MHz Operation Channel Plan ..................................................25 4.5.3 5 MHz Operation Channel Plan ..................................................25 4.6 Pre-Installation Considerations ................................................................26 4.7 Antenna Path Guidelines..........................................................................26 4.8 Path Planning, Analysis and Measurement, Link Budget .........................26 User Manual SafeTLink Point-to-Point Microwave Radio System LPN Wireless, Inc. • 561 Sky Ranch • Petaluma, California 94954 U.S.A. • www.lpnwireless.com Tel: 707-781-9210 • Fax: 707-781-9209 • E-mail: [email protected] 3 of 76 4.8.1 Receive Signal Level Calculation................................................26 4.8.2 Fade margin calculations ............................................................27 4.8.3 Sample Link Budget Calculation .................................................27 4.9 Achievable Distances ...............................................................................28 4.9.1 1 MHz RF Channels...................................................................28 4.9.2 2 MHz RF Channels...................................................................29 4.9.3 5 MHz RF Channels...................................................................29 4.10 Antenna Selection ....................................................................................29 4.11 Approved Antennas..................................................................................30 4.12 Integrated Antenna Polarization ...............................................................30 5 INSTALLATION.............................................…

Text truncated - open the document above for the full version.

August 2, 2004 attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Jerrold T. Hinshaw President, LPN Wireless, Inc.

23 July 2004 attn: Reviewing Engineer Federal Communnications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: C ONFIDENTIALITY REQUEST FOR LPN Wireless SafeTLink RXV-STL-4TE1 To Whom It May Concern: This letter serves as an offical request for confidentiality under FCC Rule Section 0.459. We request that the schematic diagrams required to be submitted with this application be witheld from public review. These documents contain company intellectual property and trade secrets that we do not wish revealed to foreign or domestic competition of our company. Please contact me if you require additional information or clarification. Sincerely, Raleigh Bettiga Engineering Representative LPN Wireless, Inc.

DOC-FCC007-4C 2/19/04 Page 1 of 1 FCC GRANT OF EQUIPMENT AUTHORIZATION APPLICATION ALL RULE PARTS OTHER THAN 11, 15, AND 18 (PLEASE COMPLETE QUESTIONAIRE) LPN Wireless SafeTLink FCC ID RXV-STL-4TE1 1. Type or types of emissions. Digitally modulated 16QAM (quadrature amplitude modulation) 2. Frequency Range 4940 to 4990 MHz 3. Range of operating power values or specific operating power levels, and description of any means provided for variation of operating power . Transmitter power level adjustable from 0 dBm to +20 dBm via software command only. Transmitter power controlled via active feedback control loop within unit to maintain the commanded level. 4. Maximum power rating as defined in the applicable rule part(s) + 20 dBm 5. DC voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range . The TX stages are all solid state. The penultimate transmitter stage is a MMIC (microwave monolithic integrated circuit) biased at 5.0 V and 300 milliamperes total device current. The final transmitter stage is a MMIC biased at 7 V and 400 milliamperes total device current. These values can not be adjusted by the user.

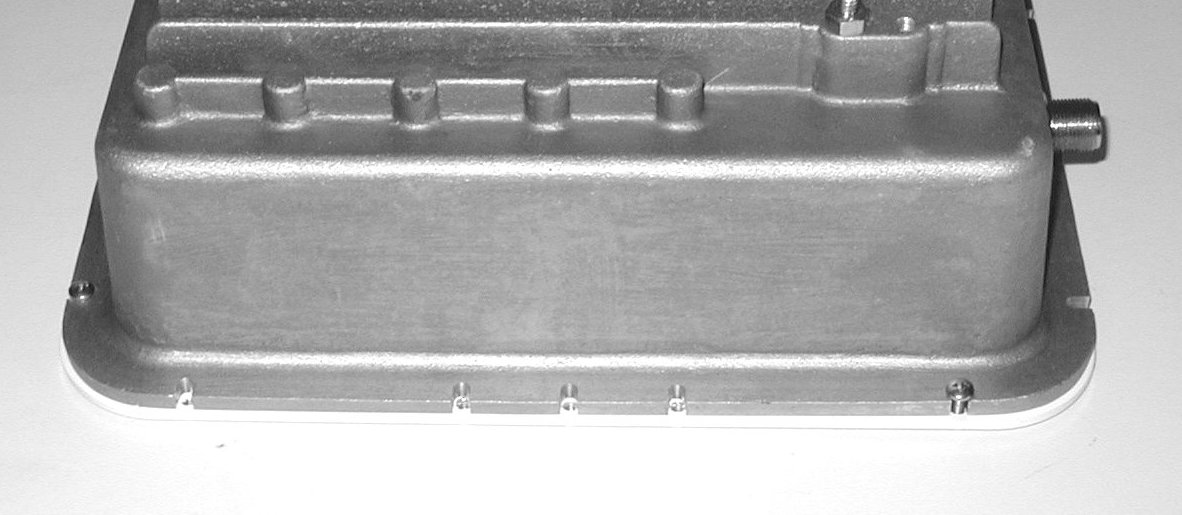

SafeTLink -- Rear Oblique View -- External Antenna Configuration JTH3 August 2004 SafeTLink -- Rear Direct View JTH3 August 2004 SafeTLink -- Front View -- External Antenna Configuration JTH3 August 2004 SafeTLink -- FCC Label Location JTH3 August 2004 LABEL LOCATION

SafeTLink -- FCC Label Location JTH3 August 2004 LABEL LOCATION

FCC ID #: RXV-STL-4TE1 This device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept anyinterference received, including interference that may causeundesired operation. Approx 2 Inches Label For LPN Wireless SafeTLink Product Identification JTH3 August 2004REV B Material: Anodized AluminumAdhesive: Permanent Type

LPN Wireless, Inc. SafeTLink Interior View -- Overall LPN Wireless, Inc. SafeTLink RF PWBA Circuit Board View LPN Wireless, Inc. SafeTLink Digital PWBA Circuit Board View

Page 1 of 4 Operational Description SafeTLink, FCC Number RXV-STL-4TE1 The SafeTLink is a point-to-point radio. The SafeTLink 4xT1 version transports 1, 2 or 4 T1 channels between the two endpoints. A link always consists of two ends, each end with an Outdoor Unit (ODU). Any link requires an “A” Outdoor Unit (A ODU) at one end and a “B” Outdoor Unit (B ODU) at the other end. Each ODU contains the radio and multiplexer equipment and may be equipped with an optional integrated antenna. Either or both ODUs may connect to an Indoor Unit (IDU) which contains indicator lights, alarm inputs and alarm relays as well as convenient places to terminate all cabling. Each ODU must either be equipped with an integrated antenna or be connected to an external antenna. The “A” ODU transmit channel is selectable within the frequency band 4980-4990 MHz, its receive channel is within 4940-4950 MHz. The “B” ODU is opposite with it’s transmit channel selectable within the frequency band 4940-4950 MHz, its receive channel is within 4980-4990 MHz. FCC regulations have divided the 4.9 GHz Public Safety Band into channels as shown in Figure 1, below: Center Channel Channel FrequencyBandwidth Number (MHz) (MHz) 1 4940.5 1 2 4941.5 1 3 4942.5 1 4 4943.5 1 5 4944.5 1 6 4947.5 5 7 4952.5 5 8 4957.5 5 9 4962.5 5 10 4967.5 5 11 4972.5 5 12 4977.5 5 13 4982.5 5 14 4985.5 1 15 4986.5 1 16 4987.5 1 17 4988.5 1 18 4989.5 1 Page 2 of 4 Figure 2 shows the overall band plan for the SafeTLink. There are two distinct passbands. Each end of a link transmits in one passband while simultaneously receiving in the other passband. 49404990 Frequency, MHz Lower Passband A ODU receive B ODU transmit Upper Passband A ODU transmit B ODU receive 4950496049704980 Figure 2 SafeTLink Frequency Plan Channel assignment is an end-user configurable option and is dependent on the RF bandwidth desired for the link. Specific channel assignments are detailed in the following paragraphs. Note that with SafeTLink all channels are non- overlapping. 1 MHz Operation Channel Plan The B ODU may be configured to transmit on any one of channels 1 through 5, or on channel 6. The A ODU may be configured to transmit on any one of channels 14 though 18, or on channel 13. 2 MHz Operation Channel Plan The B ODU may be configured to transmit on any adjacent pair of channels 1 through 5. The choices are (1,2), (2,3), (3,4) or (4,5). The A ODU may be configured to transmit on any adjacent pair of channels 14 though 18. The choices are (14,15), (15,16), (16,17) or (17,18). 5 MHz Operation Channel Plan The B ODU may be configured to transmit on combined channels 1-5 or channel 6. The A ODU may be configured to transmit on combined channels 14-18 or channel 13. Page 3 of 4 The 4xT1 SafeTLink system is a point-to-point radio link which can transport 1, 2 or 4 synchronous industry standard 1.544 Mbps T1 signals. The SafeTLink system uses frequency division duplex and requires two RF channels, one for each direction of transmission. The SafeTLink can be configured by the user to transmit a single T1 in a pair of 1 MHz RF channels, two T1s in a pair of 2 MHz RF channels or four T1s in a pair of 5 MHz RF channels. The number of T1 interfaces available in each bandwidth is shown in Figure 3, below: RF Channel Width Number of Available DS1 / T1 User Channels. Full Duplex: 1 MHz 1 2 MHz 2 5 MHz 4 1, 2, 4 x E1 The SafeTLink system can transport 1, 2 or 4 synchronous E1 (2048 kbps) framed user interfaces. This feature is not supported in standard US SafeTLink products. System Components The SafeTLink system consists of two ends. Each end requires an Outdoor Unit (ODU) which contains the radio and multiplexer equipment. Either or both ends may connect to an Indoor Unit (IDU) which contains indicator lights, alarm inputs and alarm relays as well as convenient places to terminate all cabling. The ODU comes either with an integrated antenna or with capability to connect to an external antenna. ODU Description The ODU is a weather-resistant housing containing all Radio Frequency (RF) and digital electronics. The ODU is connected to a directional antenna that communicates to a second ODU/antenna using RF energy. The SafeTLink ODU is available either with an integrated directional antenna or with capability to connect to an external antenna. In the transmit direction, the ODU receives the T1 and Ethernet inputs (either from the IDU, if provided, or from the communications network if an IDU is not used), and multiplexes these signals into a single digital data stream. It then modulates the data onto a baseband carrier signal using 16 QAM digital modulation to achieve spectral efficiency and robust link performance. This baseband signal is upconverted, filtered and amplified for transmission to the antenna and the distant ODU. Page 4 of 4 Before transmission, the data stream is buffered, block-interleave coded, then Reed-Solomon forward error correction (FEC) coding bits are added. The entire data stream is modulated onto the RF carrier using 16 QAM mapping. In the receive direction, the ODU receives the weak RF signals from the distant end equipment. First, the ODU amplifies and filters the faint signals. Then the ODU hardware demodulates the signal and demultiplexes the data stream into T1 and Ethernet signals. Interfering signals are rejected both in the RF and modem sections of the ODU. Transmission and reception are independent, and full duplex. The air interface is frequency division multiplex (FDM). The T1 and Ethernet interfaces provide industry standard signal levels and formats. Both the T1 and Ethernet interfaces are protected against line surges or short circuits. LPN Wireless 2 August 2004

PCBA, MERLOT II, 4XT1/E1 DIGITAL BOARD Revised: Dec. 18th, 2003450-00001-02 Revision: F LPN WIRELESS -- CONFIDENTIAL Bill Of Materials LI QTY REF VALUE LPN # DESCRIPTION MFG MFG # 1 21 C1,C24,C25,C33,C34,C45, 33uF 110-00001-01 CAP,33uF,10V,TANT,EIA "B" Panasonic ECS-T1AX336R C46,C56,C63,C72,C89,C97,C106,C107,C108,C109,C110,C167,C169,C171,C173 2 62 C2,C3,C4,C6,C9,C10,C12, 0.1uF 110-00002-01 CAP,0.1uF,16V,X7R,0603 Panasonic ECJ-1VB1C104K C14,C15,C16,C17,C18,C19,C20,C22,C23,C26,C27,C28,C29,C30,C31,C32,C35,C36,C37,C38,C39,C40,C41,C42,C43,C44,C55,C59,C62,C66,C102,C104,C105,C111,C112,C113,C114,C115,C116,C117,C123,C124,C125,C132,C133,C134,C135,C136,C141,C142,C146,C149,C159,C168,C183 3 8 C5,C13,C47,C75,C150,C170, 0.01uF 110-00023-01 CAP,0.01uF,50V,X7R,10%,0603 NIC NMC0603X7R103K50TRP C174,C184 4 2 C7,C8 15pF 110-00003-01 CAP,15pF,100V,NPO,0603 Panasonic ECJ-1VC2A150J 6 14 C48,C49,C50,C51,C52,C53, 1000 pF 110-00004-01 CAP,1000pF,50V,X7R,0603 Panasonic ECJ-1VB1H102K C54,C83,C84,C85,C86,C176,C181,C182 7 8 C57,C60,C64,C67,C70,C71, 0.1uF 110-00005-01 CAP,0.1uF,25V,X7R,0805 Panasonic ECJ-2VB1E104K C73,C74 8 4 C58,C61,C65,C68 0.47uF 110-00006-01 CAP,0.47uF,16V,X7R,0805 Panasonic ECJ-2YB1C474K 9 2 C87,C88 0.27uF 110-00015-01 CAP,0.27uF,25V,X7R,1206 Panasonic ECJ-3VB1E274K 10 3 C90,C93,C175 100uF 110-00016-01 CAP,100uF,16V,<ESR TANT,EIA "D" AVX TPSD107M016R0200 11 12 C91,C143,C144,C145,C147, 1uF 110-00010-01 CAP,1uF,25V,X7R,1206 Panasonic ECJ-3YB1E105K C148,C151,C152,C158,C163,C165,C166 12 3 C92,C94,C164 22uF 110-00011-01 CAP,22uF,25V,<ESR TANT,EIA "D" AVX TPSD226M025R0200 13 2 C95,C96 1500pF 110-00017-01 CAP,1500pF,50V,X7R,0805 Panasonic ECJ-2VB1H152K 17 1 C172 100pF 110-00008-01 CAP,100pF,100V,NPO,0805 Panasonic ECJ-2VC2A101J 18 13 D1,D2,D3,D4,D5,D6,D49, Green 120-00001-01 LED,GREEN,1206 Chicago Miniture Lamp CMD15-21VGC/TR8 LPN Wireless Proprietary Information LI QTY REF VALUE LPN # DESCRIPTION MFG MFG # D50,D51,D52,D53,D54,D57 19 5 D7,D14,D21,D28,D48 3.3V 120-00002-01 DIODE,TVS ARRAY,SRDA3.3-4 Semtech SRDA3.3-4 20 24 D8,D9,D10,D11,D12,D13, 64 V 120-00003-01 DIODE,SIDACTOR,64V,P0640S_C Teccor P0640S_C D15,D16,D17,D18,D19,D20,D22,D23,D24,D25,D26,D27,D29,D30,D31,D32,D33,D34 21 4 D36,D37,D38,D39 3A 200 V 120-00007-01 DIODE,200V,3A,S3DB-13,SMB Diodes, Inc. S3DB-13 22 1 D41 LCDA15C-1 120-00016-01 DIODE,TVS,LCDA15C-1, SOT-143 SEMTECH LCDA15C-1 23 2 D45,D44 1N4148W 120-00009-01 DIODE,75V,350mW,1N4148,SOD-123 Diodes Inc. 1N4148W 24 2 D47,D46 MBRS330T3 120-00010-01 DIODE,30V,3A,MBR330,SMC ON Semi MBRS330T3 25 2 D55,D58 SMAZ9V1 120-00018-01 DIODE,ZENER,9.1V,SMAZ9V1,SMA Diodes Inc. SMAZ9V1 26 1 D56 SMAZ5V1 120-00012-01 DIODE,ZENER,5.1V,SMAZ5V1,SMA Diodes Inc. SMAZ5V1 27 1 D59 B140 120-00014-01 DIODE,SCHOTTKY,B140,SMA Diodes, Inc B140-13 28 16 F1,F2,F3,F4,F5,F6,F7,F8, 2.0 A 150-00004-01 FUSE,2A,250V,461 SERIES Littlefuse 461002 F9,F10,F11,F12,F13,F14,F15,F16 29 1 F17 3A 125 V 150-00005-01 FUSE,3A,125V,7343 Littlefuse R460003 30 1 JH1 DB25 310-00020-01 CONN,DB25,VERTICAL,MALE AMP 2-747704-0 31 1 JH2 2 PIN 310-00023-01 Header,2X0.1",STRAIGHT,KK,MOLEX MOLEX 22-23-2021 32 2 JP9,JP1 HEADER 5X 2 310-00002-01 CONN,HEADER,5X2,KEYED_SHROUD AMP 103308-1 34 1 JP4 Conn 1X7 310-00004-01 CONN,HEADER,1X7,VERTICAL,TH AMP 640452-6 36 1 JR1 30X2 RECEPTACL E 310-00022-01 CONN,30X2,2MM,RECEPTACLE Sullins PPWN302AFCN 37 1 J5 RJ45 310-00007-01 CONN,MODULAR JACK,RJ45,VERTICA L MOLEX 85508-0001 38 2 L1,L2 CTX8- 4 140-00001-01 IND,8UH,3.5A,TOROID,SMT Cooper Electronics CTX8-4 39 3 L3,R6,R10 0 ohm 100-00004-01 RES,0 OHM,1/4W,1206 NIC NRC12ZOTR 40 2 L4,L19 10UH 140-00022-01 IND,10UH,POWER,PM54 JW Miller PM54-100M 42 11 M1,M3,M4,M5,M6,M7,M9,M10, IND,FERRITE BEA D 140-00004-01 IND,FERRITE BEAD,0603 Murata BLM11A121S M11,M12,M13 43 2 R7,R1 30 100-00001-01 RES,30 OHM,1/16W,5%,0603 Panasonic ERJ-3GSYJ30 44 6 R2,R3,R9,R11,R130,R171 15 100-00002-01 RPAK,4-ISO,15 OHM,1/10W,5%,SMT Panasonic EXB-V8V150JV 45 26 R4,R5,R8,R39,R45,R51,R57, 4.7 K 100-00003-01 RES,4.7K,1/16W,5%,0603 Panasonic ERJ-3GSYJ4.7K R73,R76,R82,R93,R94,R103,R104,R105,R106,R107,R111,R112,R116,R117,R124,R126,R154,R174,R177 46 11 R12,R13,R14,R15,R16,R17, 130 100-00007-01 RES,130 OHM,1/10W,5%,0805 Panasonic ERJ-6GEY130 R132,R133,R134,R135,R156 47 3 R18,R19,R21 4.7 K 100-00008-01 RPAK,4-ISO,4.7K,1/10W,5%,SMT Panasonic EXB-V8V4.7KJV 48 22 R20,R25,R26,R27,R28,R36, 0 ohm 100-00009-01 RES,0 OHM,1/10W,0603 NIC NRC06ZOTR R38,R43,R44,R49,R50,R55,R56,R90,R91,R127,R158, LPN Wireless Proprietary Information LI QTY REF VALUE LPN # DESCRIPTION MFG MFG # R160,R165,R167,R169,R184 49 10 R23,R70,R75,R78,R79,R80, 10 K 100-00010-01 RES,10K,1/10W,1%,0603 NIC NRC06F1002TR R81,R122,R123,R170 51 8 R34,R35,R41,R42,R47,R48, 60.4 100-00012-01 RES,60.4 OHM,1/10W,1%,0805 Panasonic ERJ-3EKF60.4 R53,R54 53 1 R69 37.4K 100-00023-01 RES,37.4K,1/16W,1%,0603 Panasonic ERJ-3EKF37.4K 54 1 R71 56.4 K 100-00024-01 RES,56.4K,1/16W,1%,0603 Panasonic ERJ-3EKF3.16K 55 2 R72,R141 20.5 K 100-00025-01 RES,20.5K,1/16W,1%,0603 Panasonic ERJ-3EKF20.5K 56 7 R74,R77,R125,R128,R172, 100 100-00005-01 RES,100 OHM,1/10W,1%,0603 NIC NRC06F1000TR R175,R179 58 1 R85 6.2K 100-00028-01 RES,6.2K,1/10W,5%,0805 Panasonic ERJ-6GEY6.2K 59 1 R86 1.82 K 100-00030-01 RES,1.82K,1/10W,1%,0805 Panasonic ERJ-6ENF1.82K 60 3 R87,R88,R89 4.99 K 100-00031-01 RES,4.99K,1/10W,1%,0805 Panasonic ERJ-6ENF4.99K 61 6 R92,R95,R98,R100,R162, 75 100-00032-01 RES,75 OHM,1/16W,1%,0603 Panasonic ERJ-3EKF75 R163 62 5 R96,R97,R99,R101,R139 2.00 K 100-00033-01 RES,2.00K,1/16W,1%,0603 Panasonic ERJ-3EKF2.00K 64 8 R109,R110,R157,R159,R161, 0 ohm 100-00068-01 RES,0 OHM,1/8W,0805 NIC NRC10ZOTR R164,R166,R168 65 4 R113,R136,R152,R178 15 100-00006-01 RES,15 OHM,1/10W,1%,0603 NIC NRC06F15R0TR 66 2 R142,R137 820 K 100-00014-01 RES,820K,1/10W,5%,0805 Panasonic ERJ-6GEY820K 67 2 R138,R140 270 K 100-00071-01 RES,270K,1/16W,1%,0603 Panasonic ERJ-3EKF270K 73 2 R153,R155 475 100-00043-01 RES,475 OHM,1/10W,1%,0603 NIC NRC06F4750TR 74 1 R181 1 K 100-00040-01 RES,1K,1/10W,1%,0603 NIC NRC06F1…

Text truncated - open the document above for the full version.

August 2, 2004 attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Tune Up Procedure To Whom It May Concern: We, the undersigned, hereby state that the equipment known as the LPN Wireless “SafeTLink” with FCC type certification registration number RXV-STL-4TE1, has no field hardware adjustment points. All configuration changes possible are made via software, and are as described in the User Manual for this equipment. Therefore, we are not submitting a tune up procedure for the equipment. Sincerely, Jerrold T. Hinshaw President, LPN Wireless, Inc.

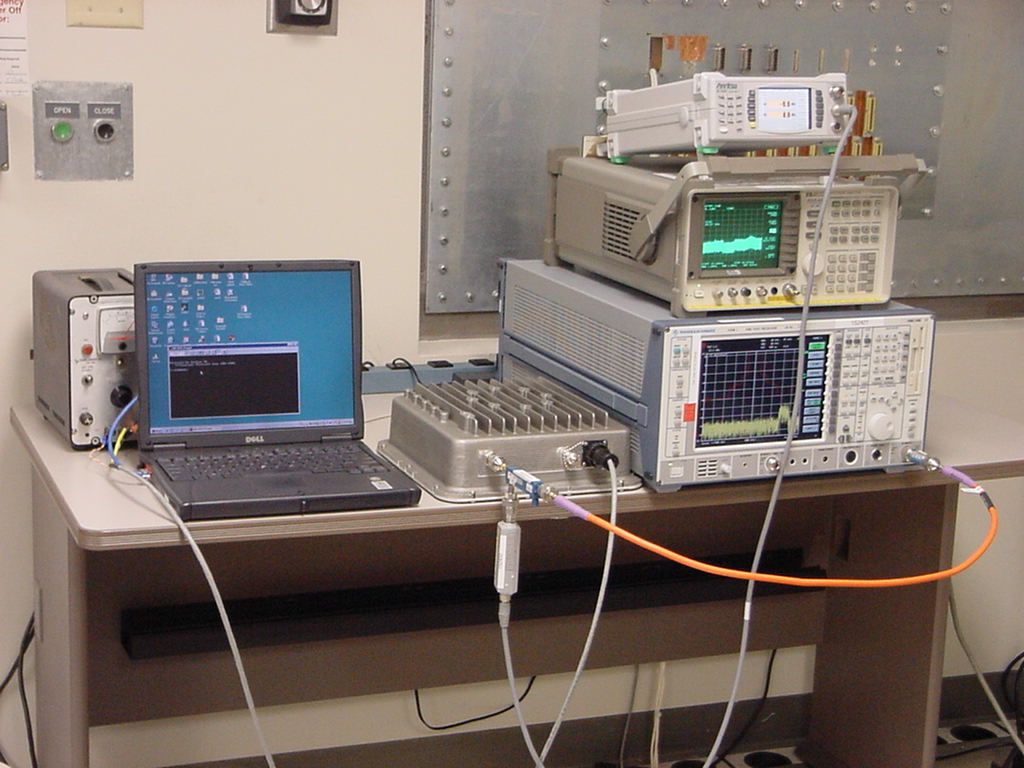

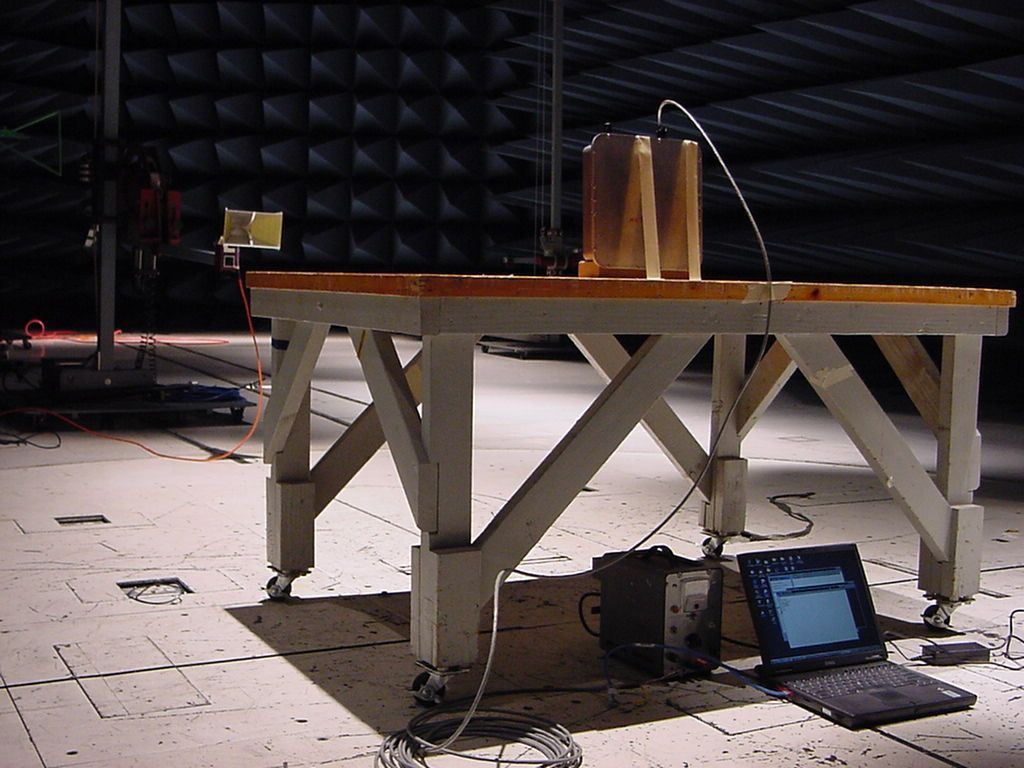

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory July 26, 2004 LPN Wireless, Inc. 561 Sky Ranch Petaluma, CA 94954 Dear Mr. Doug Kerr, Enclosed is the EMC test report for compliance testing of the LPN Wireless, Inc., SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU), tested to the requirements of FCC Rules and Regulations, Part 90, Subpart Y of Title 47 of the CFR, for Private Land Mobile Radio Services. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Cheryl Anicete Documentation Department Reference: (\LPN Wireless, Inc.\EMCS15733-FCC90) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. DOC-EMC700 7/9/04 MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the LPN Wireless, Inc. SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU) Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS15733-FCC90 July 26, 2004 Prepared For: LPN Wireless, Inc. 561 Sky Ranch Petaluma, CA 94954 Prepared By: MET Laboratories, Inc. 33439 Western Ave. Union City, California 94587 LPN Wireless, Inc. Electromagnetic Compatibility SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU) CFR Title 47, Part 90, Subpart Y MET Report: EMCS15733-FCC90 © 2004, MET Laboratories, Inc. Page ii of vi DOC-EMC700 7/9/04 Electromagnetic Compatibility Criteria Test Report For the LPN Wireless, Inc. SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU) Tested under The FCC Verification Rules Contained in Title 47 of the CFR, Part 90, Subpart Y for Private Land Mobile Radio Services MET Report: EMCS15733-FCC90 Alvin Ilarina, Manager Cheryl Anicete Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is / is not capable of operation in accordance with the requirements of Part 90, Subpart Y of the FCC Rules under normal use and maintenance. Kerwinn Corpuz Electromagnetic Compatibility Lab Electromagnetic Compatibility LPN Wireless, Inc. Report Status Sheet SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU) CFR Title 47, Part 90, Subpart Y MET Report: EMCS15733-FCC90 © 2004, MET Laboratories, Inc. Page iii of vi DOC-EMC700 7/9/04 Report Status Sheet Revision Report Date Reason for Revision ∅ July 26, 2004 Initial Issue. Electromagnetic Compatibility LPN Wireless, Inc. Table of Contents SafeTLink 4.9 GHz Point-to-point radio system (ODU & IDU) CFR Title 47, Part 90, Subpart Y MET Report: EMCS15733-FCC90 © 2004, MET Laboratories, Inc. Page iv of vi DOC-EMC700 7/9/04 Table of Contents 1. Testing Summary ........................................................................................................................................................ 1 2. Equipment Configuration........................................................................................................................................... 2 2.1. Overview................................................................................................................................................................ 2 2.2. Test Site ................................................................................................................................................................. 3 2.3. Description of Test Sample .................................................................................................................................... 3 2.4. Equipment Configuration....................................................................................................................................... 4 2.5. Support Equipment ................................................................................................................................................ 4 2.6. Ports and Cabling Information ............................................................................................................................... 5 2.7. Mode of Operation ................................................................................................................................................. 8 2.8. Method of Monitoring EUT Operation .................................................................................................................. 8 2.9. Modifications ......................................................................................................................................................... 8 2.9.1. Modifications to EUT .....................................................................…

Text truncated - open the document above for the full version.

Chris Harvey From: Chris Harvey [[email protected]] Sent: Thursday, August 05, 2004 11:51 AM To: '[email protected]' Cc: '[email protected]'; '[email protected]' Subject: RE: unofficial RT on the MT#15733 LPN Wireless application Pt. 90 4940-4990MHz Page 1 of 2 8/12/2004 Kerwin, I think that the manufacturer needs to be able to restrict operation in the wider channel bandwidth channels in accordance with the FCC 90.1213 channel plan. They should be able to provide documentation of compliance with this provision: § 90.1213 Band plan. The following channel center frequencies are permitted to be aggregated for channel bandwidths of 5, 10, 15 or 20 MHz. Channel numbers 1 through 5 and 15 through 18 are 1 MHz channels and channels numbers 6 through 14 are 5 MHz channels. Center frequency Channel (MHz) Nos. 4940.5 .................................................................... 1 4941.5 .................................................................... 2 4942.5 .................................................................... 3 4943.5 .................................................................... 4 4944.5 .................................................................... 5 4947.5 .................................................................... 6 4952.5 .................................................................... 7 4957.5 .................................................................... 8 4962.5 .................................................................... 9 4967.5 .................................................................... 10 4972.5 .................................................................... 11 4977.5 .................................................................... 12 4982.5 .................................................................... 13 4985.5 .................................................................... 14 4986.5 .................................................................... 15 4987.5 .................................................................... 16 4988.5 .....…

Text truncated - open the document above for the full version.
