RXV-STL-ETHPOINT TO POINT RADIO

1 of 81 User Manual SafeTLink 4.9 GHz Public Safety Band Point-to-Point Microwave Radio System Ethernet + FT1 Version Document Number: 800-00023-01 Revision: Draft 1 Revision Date: September 28, 2005 User Manual SafeTLink Ethernet + FT1 Point-to-Point Microwave Radio System LPN Wireless, Inc. • 1301C Rand Street • Petaluma, California 94954 U.S.A. • www.lpnwireless.com Tel: 707-781-9210 • Fax: 707-781-9209 • E-mail: [email protected] 2 of 81 Table of Contents 1 INTRODUCTION.......................................................................................5 1.1 Applicable Model Numbers for this User Manual 5 1.2 Applicable Serial Numbers 5 1.3 General Overview of Point to Point Wireless Links 5 1.4 User Manual Conventions 5 2 LICENSE REQUIREMENTS & REGULATORY COMPLIANCE...............5 2.1 FCC Compliance Statement 5 2.2 Modifications Prohibited 5 2.3 International Operation 5 2.4 Safety Considerations 5 2.4.1 RF Energy Precautions................................................................5 2.4.2 Tower Safety Precautions............................................................5 2.4.3 Grounding.....................................................................................5 3 SYSTEM DESCRIPTION...........................................................................5 3.1 System Configurations 5 3.1.1 Bandwidth.....................................Error! Bookmark not defined. 3.1.2 1, 2, 4 x E1 Note...........................................................................5 3.2 System Components 5 3.2.1 ODU Description...........................................................................5 3.2.2 Rack – Mounted IDU Description.................................................5 3.2.3 Mini- IDU Description....................................................................5 3.3 Detailed Specifications 5 4 ENGINEERING AND PLANNING.............................................................5 4.1 System Configuration 5 4.1.1 General.........................................................................................5 4.1.2 SafeTLink with both ODU and IDU...............................................5 4.1.3 SafeTLink with ODU only.............................................................5 4.2 Powering 5 4.2.1 System Requirements..................................................................5 4.2.2 IDU Powering and Fusing.............................................................5 4.2.3 Power Failure Recovery...............................................................5 4.3 Grounding 5 4.4 Mechanical 5 4.4.1 ODU.............................................................................................5 4.4.2 Rack-Mount IDU...........................................................................5 4.4.3 Mini IDU........................................................................................5 4.5 Frequency Selection 5 4.5.1 1 MHz Operation Channel Plan....................................................5 4.5.2 2 MHz Operation Channel Plan....................................................5 4.5.3 5 MHz Operation Channel Plan....................................................5 User Manual SafeTLink Ethernet + FT1 Point-to-Point Microwave Radio System LPN Wireless, Inc. • 1301C Rand Street • Petaluma, California 94954 U.S.A. • www.lpnwireless.com Tel: 707-781-9210 • Fax: 707-781-9209 • E-mail: [email protected] 3 of 81 4.6 Pre-Installation Considerations 5 4.7 Antenna Path Guidelines 5 4.8 Path Planning, Analysis and Measurement, Link Budget 5 4.8.1 Receive Signal Level Calculation..................................................5 4.8.2 Fade margin calculations..............................................................5 4.8.3 Sample Link Budget Calculation...................................................5 4.9 Achievable Distances 5 4.9.1 1 MHz RF Channels.....................................................................5 4.9.2 2 MHz RF Channels.....................................................................5 4.9.3 5 MHz RF Channels.....................................................................5 4.10 Antenna Selection 5 4.11 Integrated Antenna Polarization 5 5 INSTALLATION.........................................................................................5 5.1 Tools and Test Equipment 5 5.2 Site Preparation 5 5.3 Outdoor Installation Procedures 5 5.3.1 Antenna Installation......................................................................5 5.3.2 ODU Mechanical Installation.........................................................5 5.3.3 Rack-Mounted IDU Mechanical Installation..................................5 5.4 Electrical Connections 5 5.4.1 With Ethernet IDU.........................................................................5 5.4.2 Without IDU..................................................................................5 5.5 Grounding 5 5.5.1 ODU..............................................................................................5 5.5.2 IDU...............................................................................................5 5.6 RF Connections 5 5.7 Changing Integrated Antenna Polarization 5 5.8 Antenna Alignment 5 5.8.1 Optical Alignment..........................................................................5 5.8.2 Maximizing the Received Signal Level.........................................5 5.9 Initial System Tests 5 6 CONFIGURATION AND MONITORING....................................................5 6.1 Introduction to What Can be Configured and Monitored 5 6.1.1 Local.............................................................................................5 6.1.2 Remote.........................................................................................5 6.2 Using the Command Language Interface 5 6.2.1 Command Line Interface Introduction...........................................5 6.2.2 Configuration via direct connection to the ODU............................5 6.2.3 Configura…

Text truncated - open the document above for the full version.

September 28, 2005 attn: Reviewing Engineer Federal Communnications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: C ONFIDENTIALITY REQUEST FOR SafeTLink RXV-STL-ETH To Whom It May Concern: This letter serves as an offical request for confidentiality under FCC Rule Section 0.459. We request that the following documents required to be submitted with this application be witheld from public review: Operational Description Parts Lists Schematics Diagrams These documents contain company intellectual property and trade secrets that we do not wish revealed to foreign or domestic competition of our company. Please contact me if you require additional information or clarification. Sincerely, Raleigh Bettiga Engineering Representative LPN Wireless, Inc.

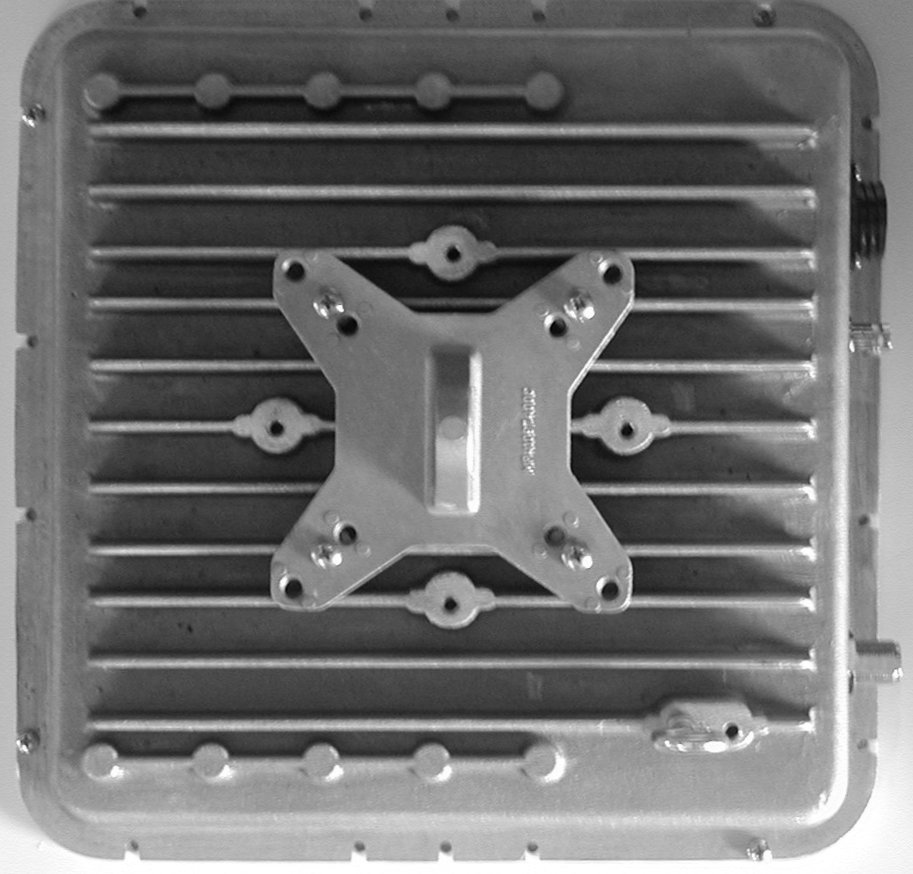

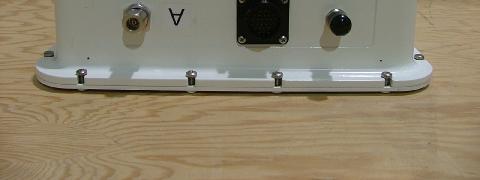

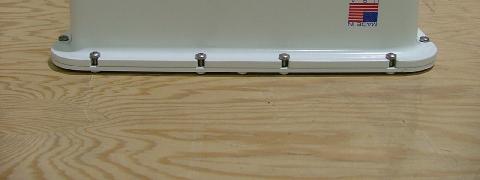

External Photos Bottom Top Front Back Left Right

ID Label/Location Info Label Location Label Sample

Internal Photos Internal with filter Internal without filter Inside Chassis Filter Main Board Top Main Board Bottom Top Heat Sink Bottom Heat Sink

RF Exposure Requirements Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s Guidelines. Limits: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact to human exposure to radiofrequency (RF) radiation as specified in Sec 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this Chapter. Limit for Uncontrolled exposure (1,500 – 100,000 MHz): 1 mW/cm 2 or 10 W/m 2 EUT’s highest output power: 23.3 dBm (conducted measurement) Highest antenna gain: 26 dBi Minimum Separation Distance Calculation: Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √(PG/(4πS)) where, S = Power Density P = Power Input to antenna G = Antenna Gain R = distance to the center of radiation of the antenna R = √(0.2137*398/(4π10) = 0.823 0.823 meter is the minimum separation distance.

TEST REPORT FROM d For SafeTLink Ethernet + FT1 To 47 CFR 90 Subpart Y Test Report Serial No.: SL05091301-LPN-001 This report supersedes none Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: .......................................................................................................... Tested by: Kerwinn Corpuz, Test Enginner .......................................................................................................... Reviewed by: Alvin Ilarina, Lab Manager Issue date: 3 November 2005 Equipment Details: Manufacturer: LPN Wireless, Inc. This test report may be reproduced in full only. Registration No. 783147 Registration No. 2195 Registration No. 4842 RTA No. D23/16V Lab Code: KR0032 Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 2 of 37 www.siemic.com This page has been left blank intentionally. Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 3 of 37 www.siemic.com CONTENTS EXECUTIVE SUMMARY..............................................................................................................................................5 1 TECHNICAL DETAILS..........................................................................................................................................6 2 TESTS REQUIRED..................................................................................................................................................7 3 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.................................................................8 4 TEST INSTRUMENTATION................................................................................................................................30 APPENDIX A: EUT TEST CONDITIONS.................................................................................................................31 APPENDIX B: EXTERNAL PHOTOS........................................................................................................................32 APPENDIX C: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................33 APPENDIX D: INTERNAL PHOTOS.........................................................................................................................34 APPENDIX F: PRODUCT DESCRIPTION...............................................................................................................35 APPENDIX H: FCC LABEL LOCATION..................................................................................................................36 APPENDIX I: USER MANUAL...................................................................................................................................37 Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 4 of 37 www.siemic.com This page has been left blank intentionally. Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 5 of 37 www.siemic.com Executive Summary The purpose of this test programme was to demonstrate compliance of the LPN Wireless, Inc., SafeTLink Ethernet + FT1 against the current 47 CFR 90 Subpart Y. The SafeTLink Ethernet + FT1 demonstrated compliance with the 47 CFR 90 Subpart Y. LPN Wireless, Inc. is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the SafeTLink Ethernet + FT1 User Manual. The test has demonstrated that this unit complies with stipulated standards. Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 6 of 37 www.siemic.com 1 Technical Details Purpose Compliance testing of SafeTLink Ethernet + FT1 with 47 CFR 90 Subpart Y Applicant / Client LPN Wireless, Inc. 1301 Rand Street, Suite C Petaluma, CA 94954 Manufacturer LPN Wireless, Inc. Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL05091301-LPN-001 Date EUT received 25 October 2005 Standard applied 47 CFR 90 Subpart Y Dates of test (from – to) 25 October 2005 to 27 October 2005 No of Units: 1 Equipment Category: TNB Trade/Product Name: SafeTLink Ethernet + FT1 Type/Model Name/No: SafeTLink Ethernet + FT1 Technical Variants: none FCC ID No. RXV-STL-ETH Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 7 of 37 www.siemic.com 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the tested sample(s). Test Standard Description Pass / Fail 47 CFR Part 90, Subpart Y 2.1046; 90.1215(a) Peak Output Power Pass 2.1046; 90.1215(a) Peak Power Spectral Density Pass 2.1049; 90.210(m) Occupied Bandwidth; Emissions Mask Pass 2.1051; 90.210(m) Spurious Emissions at Antenna Terminals Pass 2.1053; 90.210(m) Radiated Spurious Emissions Pass 2.1055(a)(1); 90.213 Frequency Stability; Temperature Variations Pass 2.1055(d)(1); 90.213 Frequency Stability; Voltage Variations Pass TIA/EIA-603-A-2001 ANSI C63.4: 2003 Notes: Deviations to above standards are outlined in specific test sections if applicable. Cable loss and external attenuation are compensated for in the measurement system when applicable. Title: LPN Wireless, Inc. SafeTLink Ethernet + FT1 To: 47 CFR 90 Subpart Y Serial# SL05091301-LPN-001 Issue Date 3 November 2005 Page 8 of 37 www.siemic.com 3 Measurements, Examinations and Derived Results 3.1 General…

Text truncated - open the document above for the full version.
