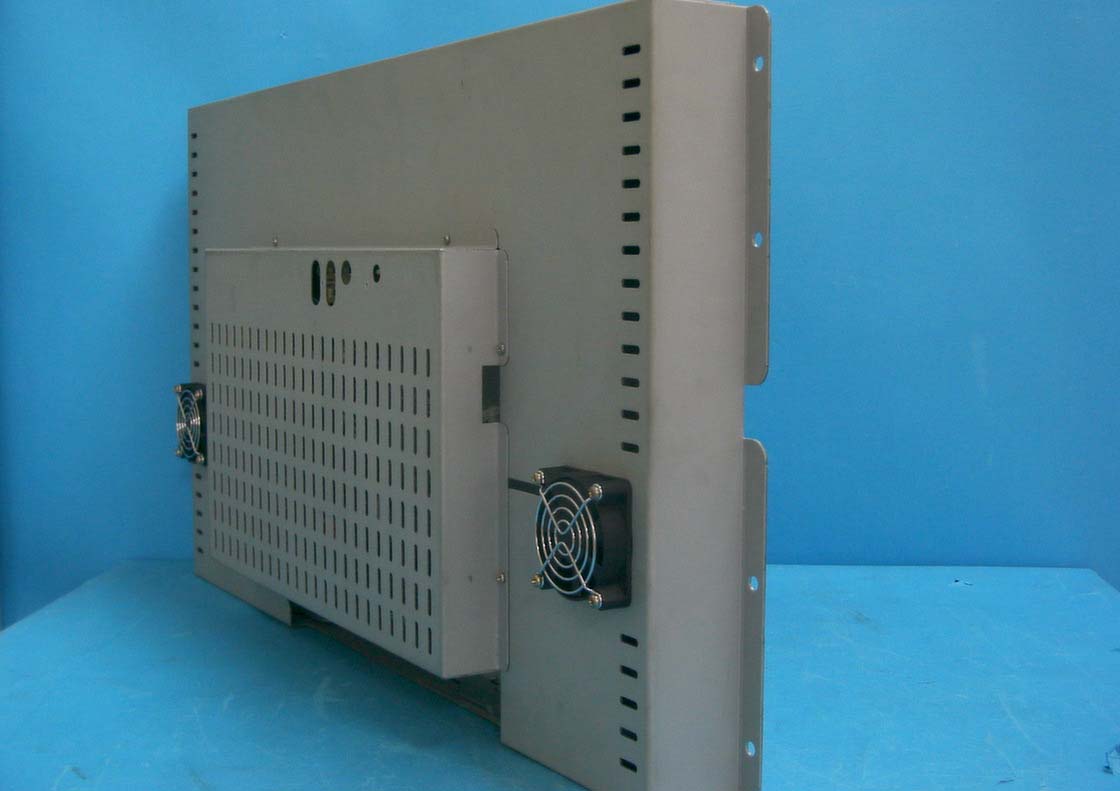

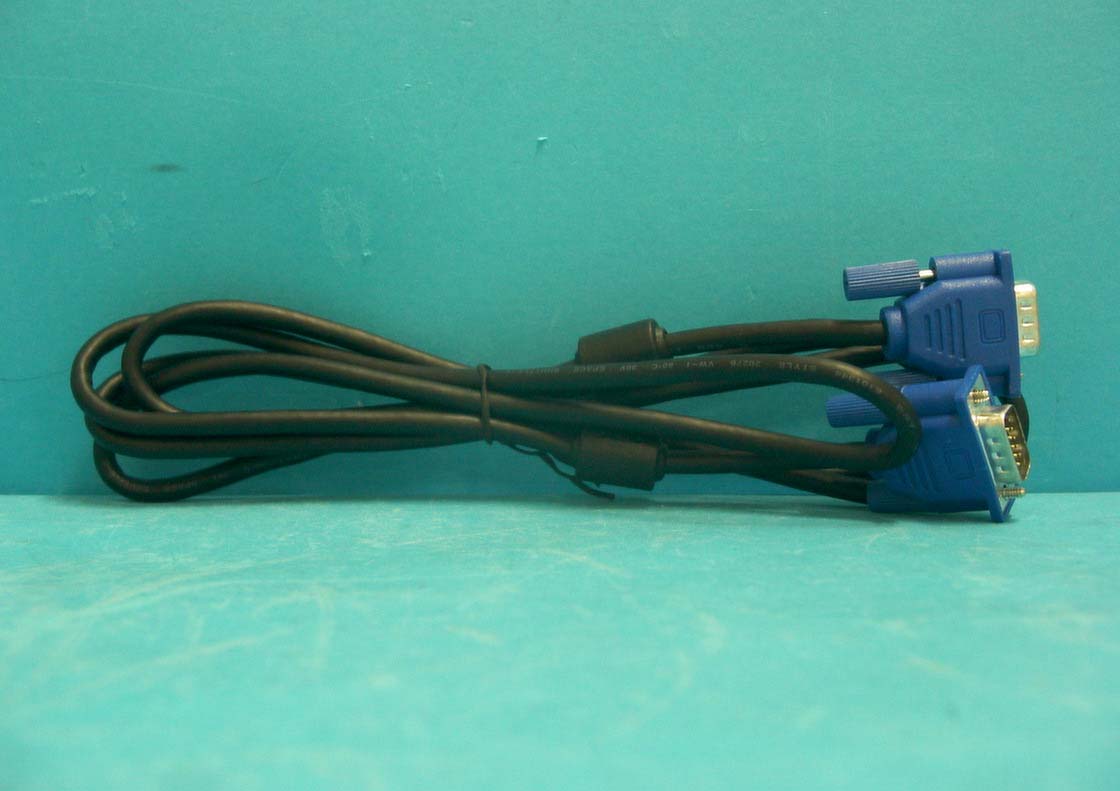

RY8EFL2602WLLCD Monitor

Model No. : EFL-2602WL Engineering Specification Page : 1 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 Engineering Specification Model No. EFL-2602WL 26inches wide LCD Monitor - LG-Philips TFT LCD Panel - High performance up-Scaling characteristic - Automatic Scanning - Wide Viewing Angle, High Speed Response - Enhanced Video Quality - Power Supply with enhanced Design Margin - Test Pattern for Burn-in & Self Check - Option z 3 Input (RGB, AV, SVHS) z DVI Input z Stereo Audio Amplifier Customer’s logo display on Booting is available Model No. : EFL-2602WL Engineering Specification Page : 2 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 Table of Contents 1. GENERAL DESCRIPTION............................................................ 3 1-1. Overview..................................................................................................................................... 3 1-2. FCC RF INTERFERENCE STATEMENT............................................................................ 3 1-3. Quick reference table of Characteristics........................................................................................ 4 2. USER CONTROL & OSD .............................................................. 6 2-1. Key Control Board ........................................................................................................................ 6 2-2. OSD Menu Screen......................................................................................................................... 7 2-3. OSD Control Functions ................................................................................................................. 8 3. CONNECTOR PIN DESCRIPTIONS ............................................ 9 3-1. 15 Pin D-SUB Connector .............................................................................................................. 9 4. STANDARD DISPLAY MODE ..................................................... 9 5. MECHANICAL STRUCTURE .................................................... 10 Model No. : EFL-2602WL Engineering Specification Page : 3 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 1. GENERAL DESCRIPTION 1-1. Overview Effinet open frame LCD Monitor EFL-2602WL is a high performance TFT LCD monitor providing high quality image from the analog RGB / DVI / CVBS / S-VHS input. This monitor supports wide range signal input from VGA to WXGA resolution at vertical refresh rate of 60Hz. It includes integrated signal processing unit, named LSP (LCD Signal Processor), which had all electronic function for user application. It is designed for industrial use with up scaling performance adequate for low-resolution application and enhanced design margin for reliability. It also gives versatile optional features like, DVI input, Video input, Stereo Audio amplifier, Boot up custom logo and custom designed frame. 1-2. FCC RF INTERFERENCE STATEMENT NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. Model No. : EFL-2602WL Engineering Specification Page : 4 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 1-3. Quick reference table of Characteristics Size 26” Diagonal Active Display Area 575.77 x 323.71 mm Type No. LG-Philips, LC260WX2 Number of Pixels 1366 (H) x 768 (V) Pixel Arrangement RGB Vertical Stripe Pixel Pitch 0.4215mm x 0.4215 mm Color Depth 16.7M True Color Surface Treatments Hard Coating (3H), Anti-Glare Treatment Viewing Angle (CR≥10) Horizontal : θL 85 degrees θR 85 degrees Vertical : Φ H 85 degrees Φ L 85 degrees Contrast Ratio Typ. 600 : 1 Response Time Rise time(tr) : 8ms(Typ.) Fall time(tf) : 9ms(Typ.) Average Brightness Typ. 500 cd/ m 2 Frame Rate Typ. 60Hz Panel Dimension (WHD) 626.0 x 373.0 x 51mm Panel CCFT 18 Lamps Horizontal 45 ~ 50KHz Scanning Frequency Vertical 47 ~ 63Hz Prime 1280 x 768 @ 60 Hz Resolution Standard 720x400 @70 Hz 640x480 @60 Hz 800x600 @60 Hz 1024x768 @60 Hz 1280x768 @60 Hz RGB (Video / Sync) RGB Analog (0.7Vp-p, 75ohms) / H/V Separate (TTL) Input Signal CVBS Composite Video 1Vp-p, 75ohms Type Separate H/V sync, Composite, SOG (Sync-On-Green) Level TTL level (V high ≥ 2.0V, V low ≤ 0.8V) Sync Polarity Positive or Negative RGB 15pin D-Sub Input Signal Interface Video RCA Jack - 1 ea. Model No. : EFL-2602WL Engineering Specification Page : 5 of 11 Approval No.: 26-LG -STD Revision No.: 1.0 Issue Date: Jul. 22. 2005 S-Video SVHS Jack - 1 ea. Compatible Color System NTSC / PAL / SECAM AC Input AC 90 ~ 265V @60/50Hz, Universal Power Power Max. Power dissipation 110 Watts Regulation (Safety, Ergonomics, EMC) CUL (UL+CSA), CE, FCC Operating Temperature: 0 to 50ºC / Humidity: 8 to 80% Environmental Condi…

Text truncated - open the document above for the full version.

EFFINET SYSTEMS, INC. September 21, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 #801, KICOX Venture Centre, 188-5, Guro-dong, Guro-gu, Seoul, Korea 152-759 Tel +82-2-845-7062 Fax +82-2-846-5638 http://www.effinet.co.kr To whom it may concern: We, the undersigned, hereby authorize IST Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by IST Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing IST Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; EFFINET SYSTEMS, INC.

ID Label Sample & Location Information

IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0336 1 of 19 Certification of Compliance CFR 47 Part 15 Subpart B Test Report File No. : 05-IST-0336 Date of Issue : November 7, 2005 Model(s) : EFL-2602WL (Basic Model) Kind of Product : Gaming LCD Monitor FCC ID : RY8EFL2602WL Applicant : Effinet Systems, Inc. Address : #801 KICOX Venture Center, 188-5, Guro-dong Guro-gu, Seoul, Korea Manufacturer : Effinet Systems, Inc. Address : 92, Chogok-ri, Nam-myun, Kimcheon City, Kyungbuk, Korea Test Result ■ Positive □ Negative Reviewed By Approved By S.J.CHO / EMC Group Manager J.H.LEE / Chief Comment(s) - Investigations requested : Measurement to the relevant clauses of FCC rules and regulations Part 15 Subpart B – Unintentional Radiators, Class B. - The test report with appendix consists of 19 pages. - The test result only responds to the tested sample. - It is not allowed to copy this report even partly without the allowance of IST EMC Laboratory. - This equipment as for has been shown to be capable of continued compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4 2003. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0336 2 of 19 TABLE OF CONTENTS Table of contents 2 Information of test laboratory, Environmental conditions, Power used, Product information 3 Descriptions of test Conducted Emission 4 Radiated Emission 5 Measurement Uncertainty Calculations 6 Equipment Under Test 7 Test Set-Up (Figure) 8 Summary 9 ■ Test Conditions and Data - Emissions ◆ Conducted Emissions 0.15MHz - 30MHz Applicable Test Conditions / Data and Plots 10-12 ◆ Radiated Emissions 30MHz - 1GHz Applicable Test Conditions / Data and Plots 13-15 Appendix A. The Photos of Test Setup 16-17 B. The Photos of Equipment Under Test 18-19 Note: IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0336 3 of 19 INFORMATIONS OF TEST LABORATORY EMC LABORATORY of IST Co., Ltd. (FCC Filing Lab.) San 21-8, Goan-Ri, Baekam-Myun, Yongin-City Kyonggi-Do, 449-860, Korea TEL : +82 31 333 4093 FAX : +82 31 333 4094 ENVIRONMENTAL CONDITIONS Temperature 22.5 °C Humidity 48.6 % Atmospheric pressure 1015 mbar POWER SUPPLY SYSTEM USED Power supply system AC 120Vac, 60Hz(PC Power) (Refer to the product information) PRODUCT INFORMATION The Equipment Under Test(EUT) is Gaming LCD Monitor of Effinet Systems, Inc. (FCC ID : RY8EFL2602WL) Model Name : EFL-2602WL Size – 26” Diagonal Active Display Area – 575.77 x 323.71 mm Type. No – LG-Philips, LC260WX2 Number of Pixels – 1366(H) x 768(V) Pixel Arrangement – RGB Vertical Stripe Pixel Pitch – 0.4215mm x 0.4215 mm Color Depth – 16.7M Ture Color Surface Treatments – Hard Coating(3H), Anti-Glare Treatment View Angle – Horizontal : θL 85Degrees ΘR 85Degrees Vertical : ФH 85Degrees ФL 85Degrees Contrast Ratio – Typ. 600 : 1 Panel : Panel Demension - (WHD)626.0 x 373.0 x 51mm Horizontal – 45 ~ 50KHz Scanning Frequency : Vertical –47 ~ 63Hz Resolution : Prime – 1280 x 768 @60Hz Standard – 720x400 @70Hz / 640x480 @60Hz / 800x600 @60Hz 1024x768 @60Hz / 1280x768 @60Hz - EMC suppression device is not used during the test . - Please refer to user’s manual. IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0336 4 of 19 < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains networ k Screened room Non-metallic support 80 DESCRIPTIONS OF TEST Conducted Emissions: The measurement were performed over the frequency range of 0.15MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10KHz or for "quasi-peak" & “Average” within a bandwidth of 9KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1m X 1.5m wooden table 80cm height is placed 40cm away from the vertical wall and 1.5m away from the other wall of the shielded room. The R/S 3725/2 and Hyup-Rip KNW-407 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80cm from the LISN and powered from the LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m were shortened by non-inductive bundling to a 1m length. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating conditions. The RF output of the LISN was connected to the R/S receiver to determine the frequency producing the maximum emission from the EUT. The frequency producing the maximum level was reexamined using Quasi-Peak mode by manual measurement, after scanned by automatic Peak mode for frequency range from 0.15 to 30MHz. The bandwidth of the receiver was set to 10kHz. The EUT, peripheral equipment, and interconnecting cables were arranged and manipulated to maximize each EME emission. < Side View > IST Co., Ltd EMC LABORATORY TEST REPORT NO. : 05-IST-0336 5 of 19 DESCRIPTION OF TEST Radiated Emissions: The measurement was performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurement was made with the detector set for "quasi-peak" within a bandwidth of 120KHz. - Procedure of Test Preliminary measurements were made at 3 meter using bi-conical and log-periodic antennas, and spectrum analyzer to determine the frequency producing the max. emission in anechoic chamber. Appropriate p…
