RYLH3PS5P10USB27MHz MOUSE

Use manual 1. Inject AAA 2 battery into the battery box ,and then turn up the power switch at the bottom of mouse, this time the LED at the bottom would brilliant. 2, The receiver will be inserted into a available USB port of your PC，now the receiver and mouse would complete to connect automatically. 3. After the success of mouse connected at the bottom of the LED light into the work state, now you can use it normally. 4. The mouse will enter into sleeping mode under the condition that no any operation in the 10 minutes and can be waked up by press any key. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.

Block Diagram Ant. 27.045MHz MCU CS4521-Q17K 27.042MHz LED SENSOR ATA2380 Key Battery 3V 76.8kHz

DynaPoint (Dong Guan) INC. FCC ID: RYLH3PS5P10USB POWER OF ATTORNEY Date: August 30, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Compliance Service Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, DynaPoint (Dong Guan) INC., are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, DynaPoint (Dong Guan) INC. Kouni Chang Manager

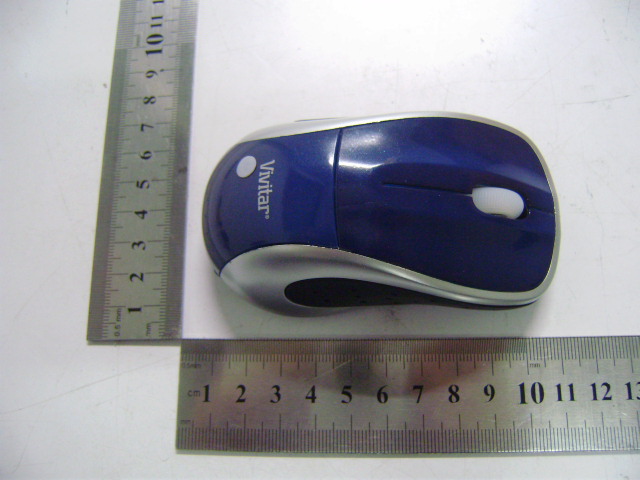

DynaPoint (Dong Guan) INC. Model: H3PS5P10USB REPORT NO.: STR10078130I FCC PART 15.227 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

DynaPoint (Dong Guan) INC. Model: H3PS5P10USB REPORT NO.: STR10078130I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH3PS5P10USB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H3PS5P10USB REPORT NO.: STR10078130I FCC PART 15.227 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: RYLH3PS5P10USB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

DynaPoint (Dong Guan) INC. Model: H3PS5P10USB REPORT NO.: STR10078130I FCC PART 15.227 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 DynaPoint (Dong Guan) INC. Model: H3PS5P10USB REPORT NO.: STR10078130I FCC PART 15.227 Solder Board-Component View 2

Wireless Mouse Transmitter Circuit Description a. IC-ATA2380 is the integration of wireless controlling IC and optical IC. The optical part of ATA2380 transforms the image of the mouse movement to the electronic signal, and then send to the controlling IC. b. IC-CS4521 is control and RF chip with a oscillator of 27.042MHz frequency, the signal transmits by the antenna after modulated to a frequency of 27.045 MHz. c. The operating voltage is 3.0V by 2×AAA battery



  ! "  #$
