RZ6SW-1900NLCD Monitor

USER’S MANUAL TFT LCD Monitor ‘cozy’and ‘eye’LCD Monitor This user’s manual has been provided for your safety. You can prevent serious electrical shock and hazards by keeping in mind the following : Safety instructions 1. Before connecting the AC power cord to the DC adapter outlet,make sure the voltage designation of the DC adapter corresponds to the local electrical supply. 2. Never insert anything metallic into the cabinet openings of the Liquid Crystal Display (LCD) monitor; doing so may create the danger of electric shock. 3. To avoid electric shock, never touch the inside of the LCD monitor. Only a qualified technician should open the case of the LCD monitor. TFT LCD MONITOR 4. Never use your LCD monitor if the power cord has been damaged. Do not allow anything to rest on the power cord, and keep thecord away from areas where people can trip over it. 5. Be sure to hold the plug, not the cord, when disconnecting the LCD monitor from an electric socket. 6. Openings in the LCD monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blockedor covered. Also, avoid using the LCD monitor on a bed, sofa, rug or other soft surface. Doing so may block the ventilation openings in the bottom ofthe cabinet. If you put the LCD monitor in a bookcase or some other enclosed space, be sure to provide adequate ventilation. WARNING Safety instructions 1. Put your LCD monitor in a location with low humidity and a minimum amount of dust. 2. Do not expose the LCD monitor to rain or use it near water. (in kitchens, near swimming pools, etc.) If the LCD monitoraccidentally gets wet, unplug it and contact an authorized dealer immediately. You can clean the LCD monitor with a damp cloth when necessary, but be sure to unplug the LCD monitor first. 3. Place the LCD monitor on a solid surface and treat it carefully. The screen is made of thin glass with a plastic front surface and can be damaged if dropped, hit or scratched. Do not clean the front panelwithketone-type materials (e.g., acetone), Ethyl alcohol, toluene, Ethyl acid, Methyl or Chloride –these may damage the panel. 4. Position your LCD monitor near an easily accessible AC outlet. 5. If your monitor does not operate normally –in particular, if there are any unusual sounds or smells coming from it –unplug it immediately and contact an authorized dealer or service center. 6. High temperature can cause problems. Don’t use your LCD monitor in direct sunlight and keep it away from fireplaces, and other sources of heat. 7. Unplug the LCD monitor when it is going to be left unused foran extended period of time. 8. Unplug your LCD monitor from the AC outlet before any service. TFT LCD MONITOR This user’s manual has been provided for your safety. You can prevent serious electrical shock and hazards by keeping in mind thefollowing: CAUTION Contents TFT LCD MONITOR Safety instructions Warning Caution Before installation Characteristics Contents Connecting a PC Assembling Monitor Pin Assignment Operation Control for the OSD (On Screen Display) Picture Setting Image Setting OSD settings Color Setting Resolution & Frequency Troubleshooting Attention Regarding panel display Instructions for safety Specification Specification 1 1 1 4 5 6 7 11 11 12 10 8 Troubleshooting 2 3 9 TFT LCD MONITOR 1 Characteristics •Automatically adjusts settings for optical viewing during setup. •Including power saving mode -VESA DPMS •HALF TONE OSD (On Screen Display) function Connecting a PC Warning When connecting the monitor to a PC, be certain the power switch is in the “off”position. This minimizes the risk of electric shock or malfunction. Caution Improperly connecting the video cable with the monitor may result in a malfunction. Please verify the method prior to connecting. For setting up the monitor Turn off your computer and monitor. Connect a PC D-Sub (VGA) Cable between your PC and VGA of the monitor. And then fasten the screws on both sides of the cable. Connect a DC Power cable to the power input jack of the monitor. Before installation Contents TFT LCD MONITOR 2 Assembling Monitor •First, properly align the hinge and the hinge hole which is located on the lower back side of the monitor. •Second, once the hinge and hinge hole are properly aligned, gently push the hinge into the hinge hole by pressing down from the top of the monitor, making certain that the hinge and stand are firm in their positions. •Third, continue to push on the top of the monitor until the hinge locks into the monitor. Warning When assembling and disassembling the monitor, take all precautions to avert physical injury. Pressing too hard on the monitor can also damage the unit. Caution When assembling the monitor, avoid pressing too hard on the monitor as it can damage the unit. •Avoid disassembling the monitor and monitor stand once they have been connected Before installation 3 •GND•Shell •DDC-SCL•15 •V-Sync•14 •H-Sync•13 •DDC-SDA•12 •GND•11 •Sync GND•10 •No Connection•9 •Blue GND•8 •Green GND•7 •Red GND•6 •DDC GND•5 •GND•4 •Blue•3 •Green•2 •Red•1 •Name•Pin TFT LCD MONITOR Pin Assignment of 15 Pin D-sub Connector Before installation Pin Assignment TFT LCD MONITOR 4 Operation OSD control buttons UP button Move to increaseitem and decrease the value of the selected item. Hot Key : Without pressing the menu button, you can control “Brightness”with the “UP”button. Control for the OSD (On Screen Display) MENU button OSD Menu on/off SEL(Select) button Select a command function and return to menu Hot Key : Without pressing the menu button, you can operate “Auto setup”with the “SEL”button DOWN button Move to previous item and decrease the value of the selected item. Hot Key : Without pressing the menu button, you can control “Contrast”with the “DOWN”button. Power LED When power is on, the light is working Green : Monitor Power ON OFF : Monitor Power OFF Orange : power Save Mode Power switch LCD monitor power on/off TFT LCD MONITOR 5 Operation PictureSettings Brightnes…

Text truncated - open the document above for the full version.

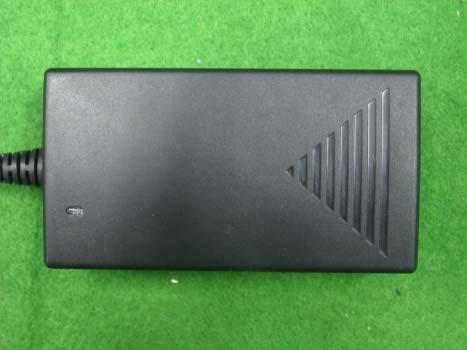

KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 1 of 4 External photo (front) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 2 of 4 External photo (Rear) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 3 of 4 External photo (Adaptor) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 4 of 4 External photo (Adaptor)

KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: SW-1900N FCC ID: RZ6SW-1900N S/N: SKD LCD Co., Ltd. Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 1 of 6 Internal photo (Front) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 2 of 6 Internal photo (Rear) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 3 of 6 Internal photo (Front) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 4 of 6 Internal photo (Rear) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 5 of 6 Internal photo (Front) KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 6 of 6 Internal photo (Rear)

KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI04EF04005 FCC ID: RZ6SW-1900N Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
