RZYTAS6XX-ATRANSPONDER

TAS600 Series TRAFFIC ADVISORY SYSTEM PILOT’S OPERATING HANDBOOK P/N 600-00145-000 (32-2352) Rev 7, 11 Mar 2011 600-00145-000 Rev 7 - i - Avidyne Traffic Advisory System PREFACE Thank you for becoming an owner of an Avidyne TAS600 series Traffic Advisory System. You have demonstrated a concern for yourself, for those who depend on you for flying safely, and for those who share the airspace around you. Now you can fly with greater confidence and greater peace of mind knowing that your aircraft is equipped with the latest technology available for traffic alerting. This Operation and Performance Handbook is intended as a guide to the capabilities and operation of the TAS600 Series System. By carefully reading this manual, you can become familiar with the TAS600 Series System and how to get the best performance from your investment. Warning: The TAS600 Series System does not detect all aircraft. It is designed as a backup to the See and Avoid concept and the ATC Radar environment. See Limits, Appendix 1. Refer to this handbook for the TAS600 Series System limits. Caution: This handbook and the Avidyne TAS600 systems are advisory only. Any action recommended in this manual or made as a result of data supplied by the TAS600 Series System must be in accordance with applicable Aviation Regulations and common sense. The pilot in command is the final authority as to the operation of the aircraft. TSO INFORMATION The Avidyne TAS600, TAS605, TAS610, TAS615, TAS620, and the 9900BX, collectively known as the TAS600 Series, comply with the requirements of TSO-C147 Class B. The TAS600 Series System is considered a Class A system when installed with a compatible Class A approved display. Avidyne Traffic Advisory System - ii - 600-00145-000 Rev 7 AVIDYNE EXCLUSIVE LIMITED WARRANTY/LIMITATIONS ON LIABILITY Avidyne warrants the Product manufactured by it against defects in material and workmanship for a period of twenty-four (24) months from delivery. If Avidyne's Product fails to conform to this warranty, Avidyne, in its sole discretion, will either repair or replace the Product or provide a refund of the purchase price paid for the Product. This warranty is made upon the express conditions that: (a) Avidyne is given prompt written notice of any claimed non-conformity in the Product, with a reasonable explanation thereof; (b) The Product is returned to Avidyne or to an Avidyne authorized service facility; (c) The Product has not been altered in any manner other than as previously authorized by Avidyne in writing; and (d) Repairs to the Product have not been made by anyone other than Avidyne or an Avidyne authorized service facility. This warranty does not apply to any Product which is not installed, maintained and operated in accordance with Avidyne's written instructions or which is otherwise misused, including, without limitation, to any Product which is damaged due to improper installation, maintenance or operation, tampering, alteration of serial numbers or other manufacturers data, lightning or other electrical source, or otherwise. If warranty protection is applicable to the Product, Avidyne will use reasonable efforts to repair or replace Product within ten (10) business days of its receipt of the Product. Any Product that has been repaired by Avidyne or replaced by Avidyne under this warranty will be subject to remainder of the original warranty term applicable to the repaired or replaced Product or will be warranted under the warranty terms above for ninety days from the date of repair or replacement, whichever period is longer. THIS EXCLUSIVE LIMITED WARRANTY APPLIES IN LIEU OF AND EXPRESSLY SUPERCEDES AND EXCLUDES ALL OTHER REPRESENTATIONS, AFFIRMATIONS AND/OR WARRANTIES, WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, OF FITNESS FOR A PARTICULAR PURPOSE, OF TITLE AND/OR OF NON-INFRINGEMENT. PURCHASER EXPRESSLY AND KNOWINGLY AGREES THAT NO OTHER REPRESENTATIONS, AFFIRMATIONS OR WARRANTIES, WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, FORM PART OF ANY PURCHASE AND SALE TRANSACTION RELATED TO THE PRODUCT. AVIDYNE'S (AND ITS AFFILIATES') AND ANY PRODUCT COMPONENT SUPPLIER'S SOLE RESPONSIBILITY AND LIABILITY RELATED TO THE PRODUCT OR ARISING OUT OF OR RELATED TO ITS PURCHASE, SALE, PERFORMANCE, RELIABILITY OR USE ARE LIMITED TO ITS REPAIR OR REPLACEMENT, OR TO A REFUND OF THE PURCHASE PRICE, IN AVIDYNE'S SOLE DISCRETION. IN NO EVENT WILL AVIDYNE (OR ITS AFFILIATES) OR ANY SUPPLIERS OF PRODUCT COMPONENTS BE RESPONSIBLE OR LIABLE FOR ANY OTHER DAMAGE OF ANY NATURE WHATSOEVER, INCLUDING DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL, LOSS OF USE, LOSS OF REVENUE OR PROFIT, PROPERTY DAMAGE, PERSONAL INJURY, WRONGFUL DEATH, OR OTHER DAMAGE (WHETHER OR NOT AVIDYNE (OR ITS AFFILIATES) WERE NOTIFIED OF THE POSSIBILITY THAT ANY DAMAGE MIGHT BE INCURRED), ARISING OUT OF OR RELATED TO THE PRODUCT, ITS PURCHASE OR SALE, ITS PERFORMANCE OR RELIABILITY, OR THE USE OR INABILITY TO USE THE PRODUCT, FOR ANY REASON, INCLUDING DUE TO ANY 600-00145-000 Rev 7 - iii - Avidyne Traffic Advisory System PRODUCT DEFECT OR DEFECTS OR ANY ACTION OR INACTION OF ANY NATURE (INCLUDING CLAIMED OR ACTUAL NEGLIGENCE OR GROSS NEGLIGENCE) BY AVIDYNE OR ANY SUPPLIERS OF PRODUCT COMPONENTS. NEITHER THIS EXCLUSIVE LIMITED WARRANTY NOR AVIDYNE'S OR ANY PRODUCT COMPONENT SUPPLIER'S RESPONSIBILITY OR LIABILITY WILL IN ANY WAY BE ENLARGED OR OTHERWISE ALTERED DUE TO AVIDYNE'S PROVISION OF TECHNICAL SUPPORT OR TRAINING RELATED TO THE PRODUCT. WITHOUT LIMITING THE FOREGOING, NEITHER AVIDYNE (NOR ITS AFFILIATES) MAKE ANY REPRESENTATIONS, AFFIRMATIONS OR WARRANTIES REGARDING OR RELATED TO PRODUCTS NOT MANUFACTURED BY AVIDYNE OR REGARDING OR RELATED TO THE PERFORMANCE OR RELIABILITY OF ANY SUCH PRODUCT, EITHER ALONE OR WHEN USED WITH ANY PRODUCT MANUFACTURED BY AVIDYNE, OR THE SUITABILITY OF ANY SUCH PRODUCT FOR USE WITH ANY PRODUCT MANUFACTURED BY AVIDYNE. AVIDYNE (AND ITS AFFILIA…

Text truncated - open the document above for the full version.

55 Old Bedford Road Page 1 of 1 Lincoln, MA 01773 June 21, 2013 Federal Aviation Administration Office of Spectrum Policy and Management, ASR-1 800 Independence Ave, SW Washington DC, 20591 Subject: 700-00185-() Traffic Advisory System FCC Testing Authorization per 47 CFR 87.147 It is our intention to seek Authrorization to conduct FCC testing for an upgrade to our traffic advisory (TAS) systems, to be designated model TAS6XX-A. These systems are functionally compatible with our existing TAS6xx systems and are being introduced primarily to update the hardware and provide for enhanced functionality in the future. • Antenna Characteristics: The TAS6XX-A is approved for use with twin and single blade L-Band directional antennas, conforming to TAS-C74c (P/N: S72-1750-31L and S72-1750-32L). • Power Output: The power delivered to the antenna connector from the TAS6XX-A is around 40W. The Peak Radiated Power relative to a ¼ wave stub antenna = 20.73W. • Transmission Characteristics: The TAS6XX-A meets the specification in DO-197A section 2.2.3.5 • Operating Frequency: The TAS6XX-A receives aircraft replies on 1090 MHz, and transmits interrogations at 1030 MHz. Pending the approval of this Test Authorization, please mail the determeination to: Office of Engineering and technology Laboratory Authorization and Evaluation Devision 7435 Oakland Mills Rd Columbia, MD 21046 Best regards, Trevor Steffensen Systems Engineer [email protected]

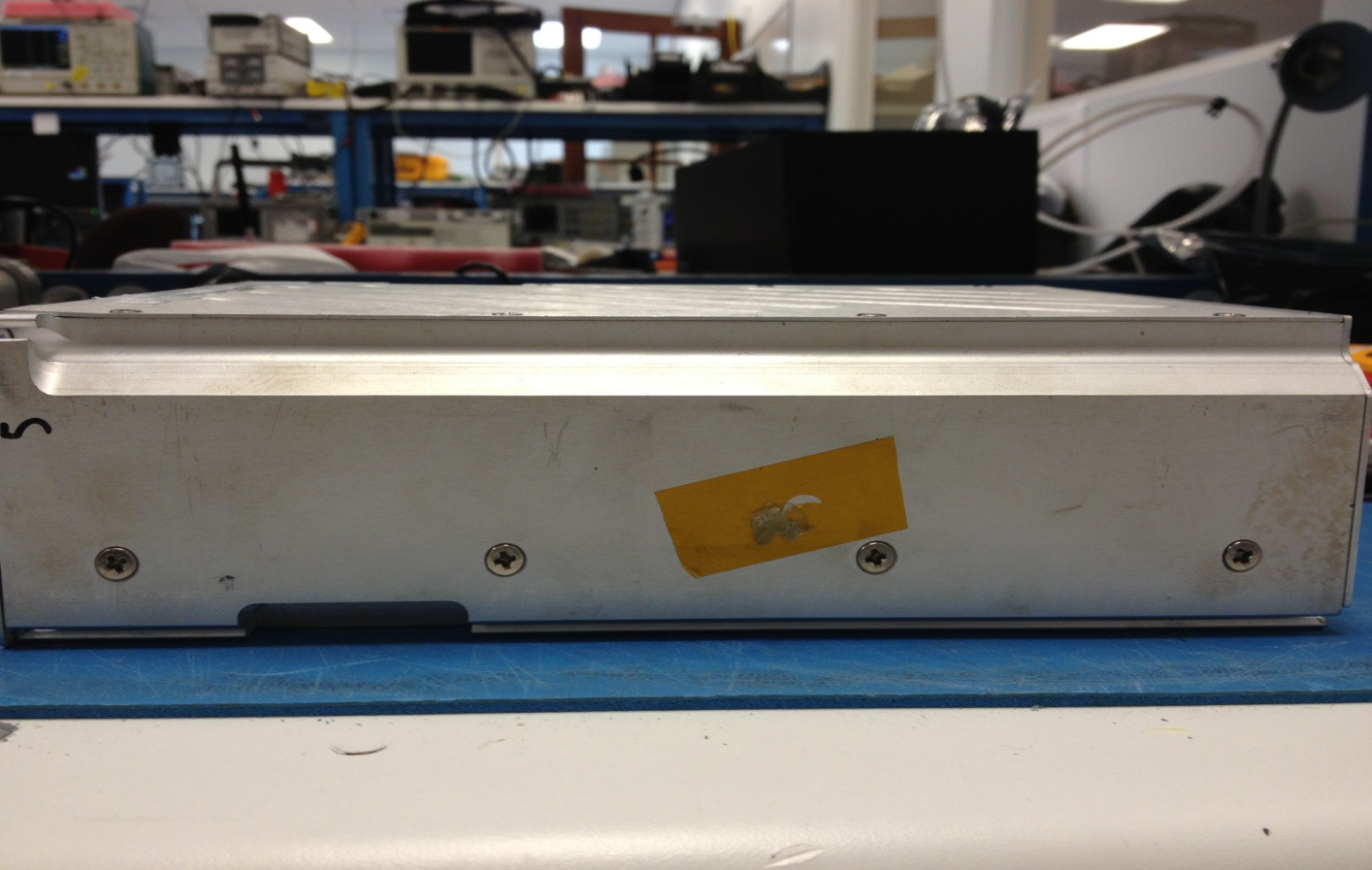

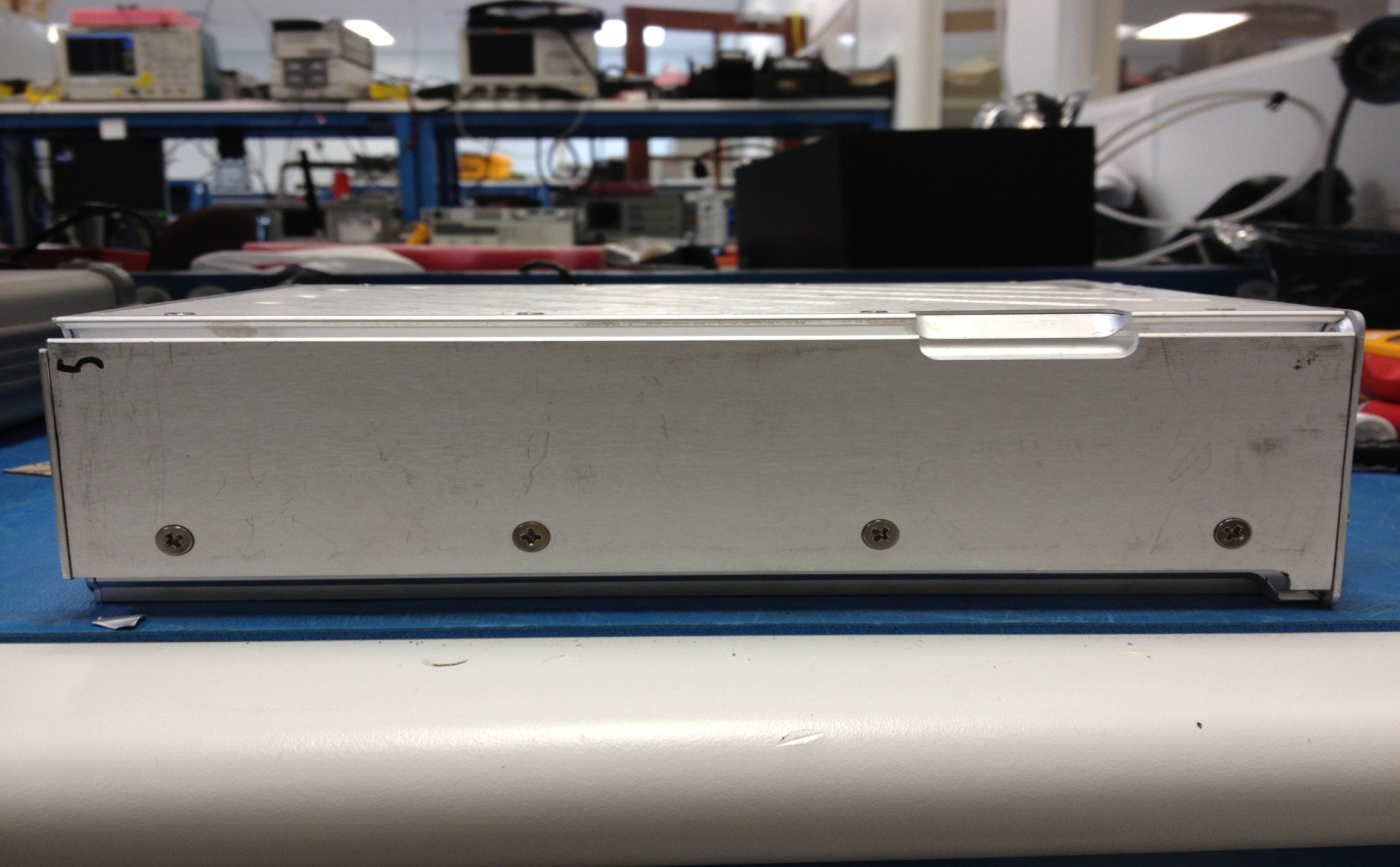

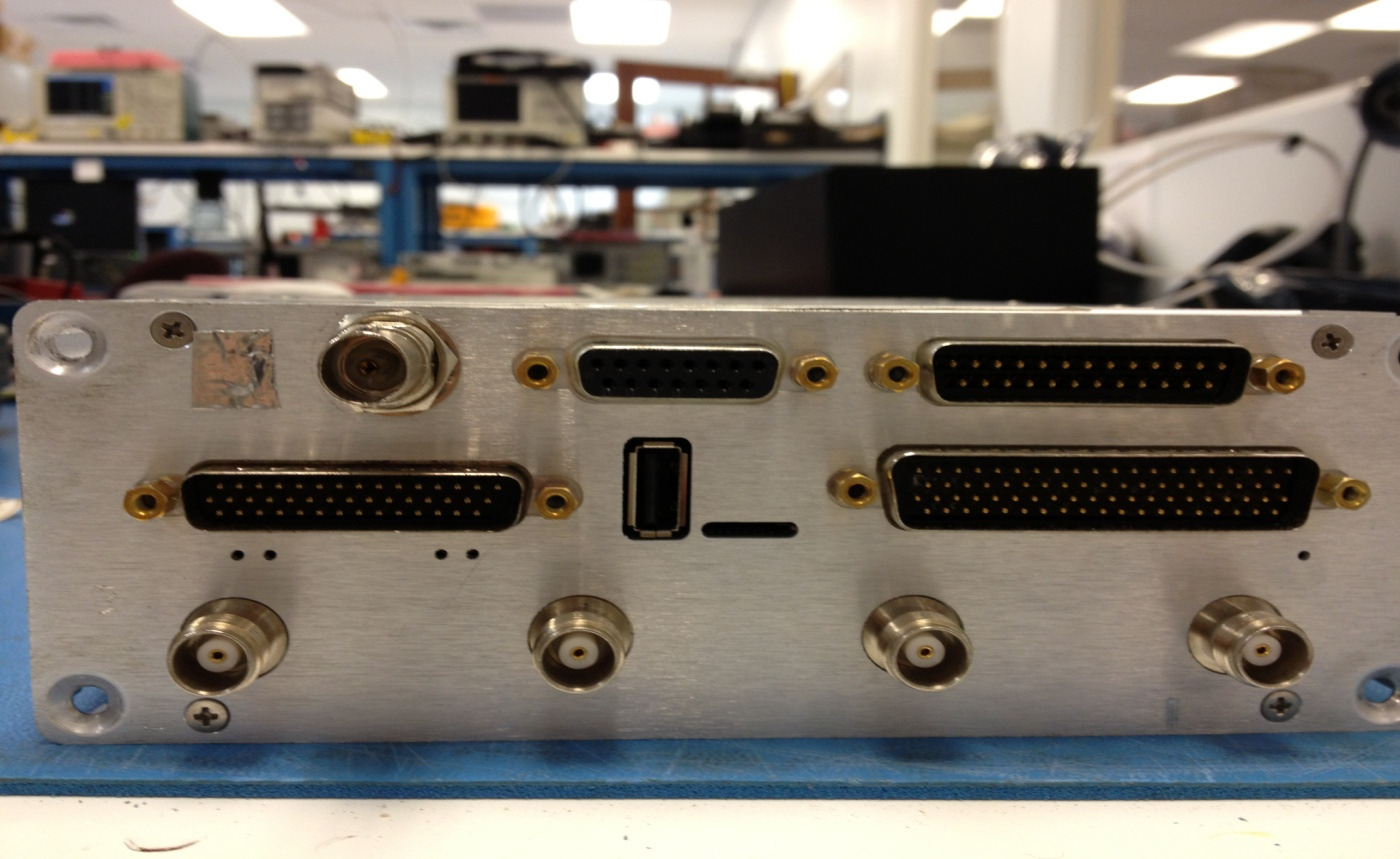

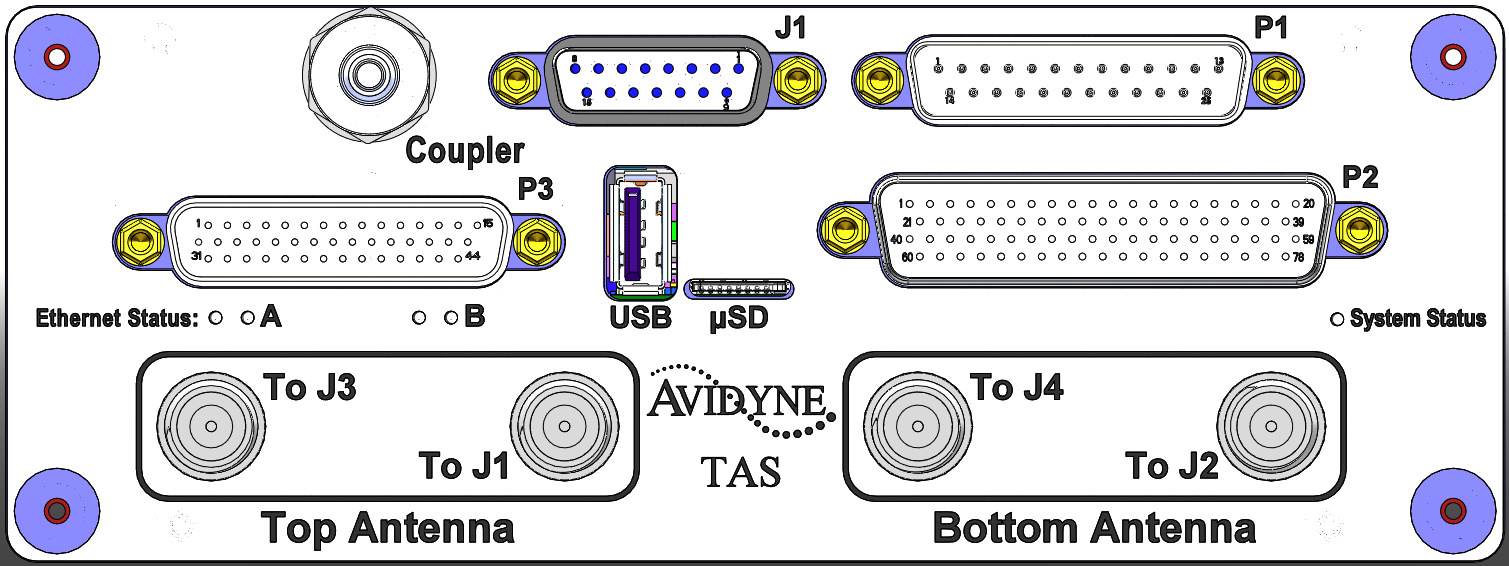

TAS6XX-A Front View TAS6XX-A Rear View TAS6XX-A Right Side View TAS6XX-A Left Side View TAS6XX-A Top View TAS6XX-A Bottom View

ITEM # QTY 1.50±.03 4.00±.03 AVIDYNE CORPORATION 55 Old Bedford Road Lincoln, MA 01773 USA WEIGHT: 5.5 lbs (2.5kg) DO-254 LEVEL D DO-178B LEVEL D TSO-C147 CLASS A & B FCC ID: RZYTAS6XX-A INPUT VOLTS: 14V or 28V CURRENT: 2.1A at 14V or 1.0A at 28V DO-160G ENVIRONMENTAL CATEGORIES: [F2]BAE[(SBM)(UG)]EXXXXXZBAB[AC][TT]M[B2K2XX]XXAX MFG: WW/YY Manufactured in Melbourne, FL MOD: 1[ ] 2[ ] 3[ ] 4[ ] 5[ ] 6[ ] 7[ ] 8[ ] 9[ ] 10[ ] 11[ ] 12[ ] 13[ ] 14[ ] 15[ ] 16[ ] 17[ ] 18[ ] 19[ ] 20[ ] 21[ ] TAS -A SERIAL NUMBER: XXXXXXXXXXXXXXXXX P/N: 700-00185-CCC REV: [ HH ] NOTES: 1. LABEL MATERIAL: EXV 344 SILVER MYLAR OR POLYTRANS 3000 SILVER OR EQUIVALENT PER ENGINEERING APPROVAL. 2. COMPLETE DATE CODE "WW/YY" WITH CURRENT MANUFACTURING WEEK AND YEAR. 3. SHARP CORNERS SHOWN MAY BE .250 RADIUS MAX. 4. COMPLETE SERIAL NUMBER, MACHINE READABLE BAR CODE, HARDWARE PART NUMBER "CCC", REVISION "HH", AND MODEL NUMBER "KK" FROM TRAVELER, PER AVIDYNE PROCEDURE 610-XXXXX-000. MODEL: TAS6KK-A REVISIONS REV.DESCRIPTIONDATEAPPROVED 00INITIAL RELEASE PER ECO-13-???6-28-2013LLL SCALE SIZEDWG NO. SHEET UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES [mm] DIMENSIONING AND TOLERANCING INTERPRETED PER ANSI Y14.5M-1982 CONFIDENTIAL PROPERTY OF AVIDYNE CORPORATION NOT TO BE DISCLOSED WITHOUT PERMISSION. D PREP CHK NONE 55 OLD BEDFORD ROAD, LINCOLN, MA 01773 PARENTHETICAL INFORMATION IS FOR REFERENCE ONLY. EXAMPLE ( REF ) TOLERANCES: LINEAR DIMENSIONS: SEE APPLICABLE NOTES ANGLES ± 2° CONCENTRICITY BETWEEN DIA ON A COMMON AXIS TO BE WITHIN .010 HOLE DIAMETERS: .XXX UNDER - .251 = ±.005 .251 - .500 = +.006 -.005 OVER .500 = +.008 - .005 ALL SHEETS ARE THE SAME REVISION STATUS DENOTES: SEE APPLICABLE NOTE SYMBOL IDENTIFICATION INTERPRETATION: OR REV 00 AVIDYNE CORPORATION 3RD ANGLE PROJECTION SOFTWARE: CAUTION Solid Works THIS DRAWING WAS CREATED BY COMPUTER INPUT. DO NOT REVISE MANUALLY DATA EXISTS AT AVIDYNE CORPORATION C B A 1 234567 D 8 A D C B 110-00279-000 L. Ludwig III 6-28-2013 7-1-2013 S. Sinor OF 11 8 1 234567 TAS-A TSO, TOP LEVEL & FCC LABEL DRAFT B ITEM # UNC SIZE IN-LBS #2-56 2.5 TO 3.5 #4-40 4.5 TO 5.5 #6-32 6.5 TO 7.5 #8-32 14 TO 16 #10-24 23 TO 25 UNLESS OTHERWISE SPECIFIED ALL UNC HARDWARE IS TO BE TORQUED AS PER THE FOLLOWING:

Processor Board Top Processor Board Bottom

Power Supply Board Top Power Supply Board Bottom

Legacy Receiver Interconnect Board Top Legacy receiver Interconnect Board Bottom

Receiver Board Top Receiver Board Bottom

Digital Control Board Top Digital Control Board Bottom Interrogator RF Board Top Interrogator RF Board Bottom Antenna Selector Board Top Antenna Selector Board Bottom

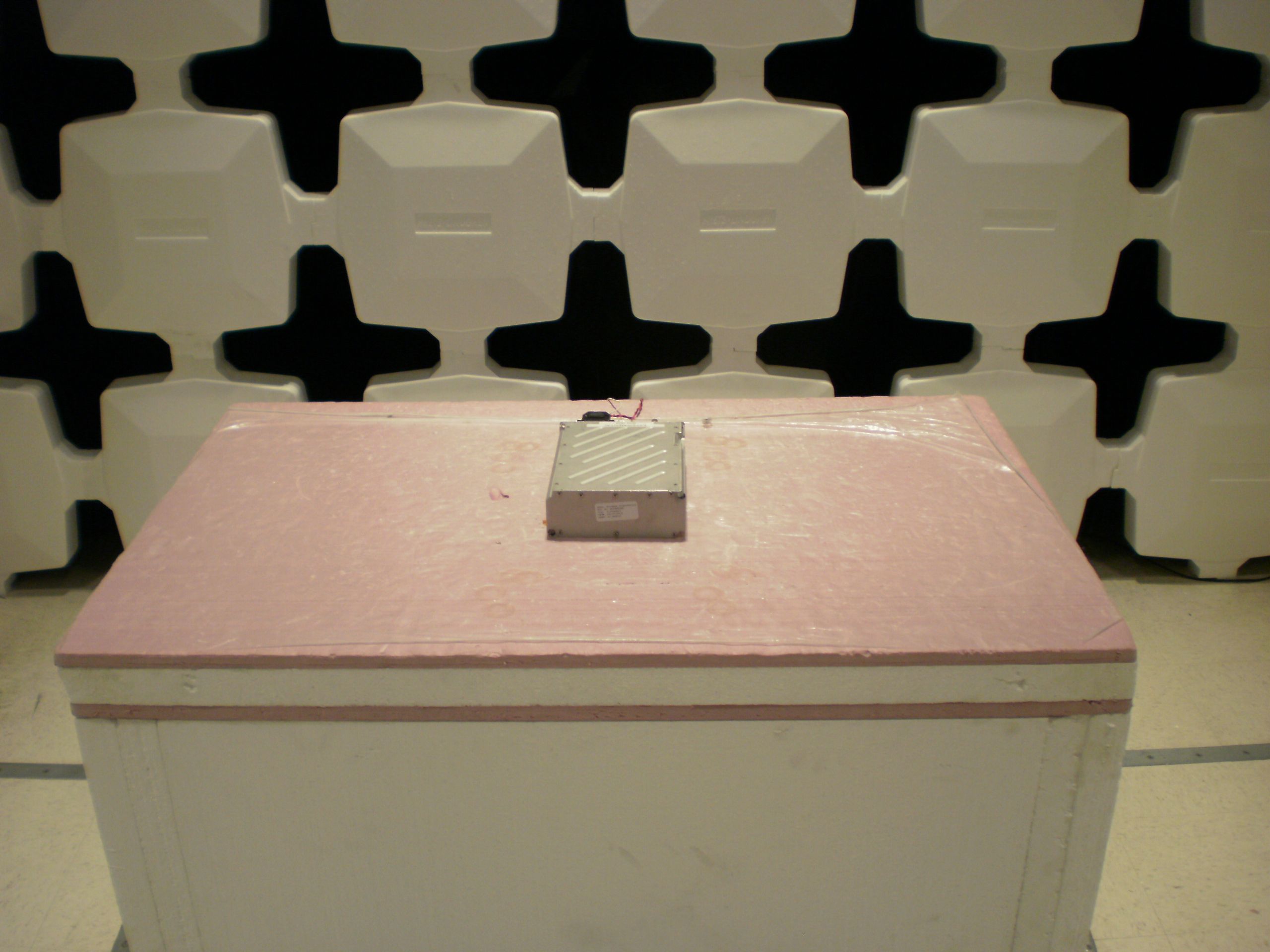

FCC PART 87 TEST REPORT APPLICANT Avidyne Corporation 55 OLD BEDFORD ROAD LINCOLN MASSACHUSETTS 01773-1125 USA FCC ID RZYTAS6XX-A MODEL NUMBER TAS6XX-A PROCESSOR PRODUCT DESCRIPTION TRANSPONDER DATE SAMPLE RECEIVED 6/27/2013 DATE TESTED 7/17/2013 TESTED BY JOHN A. DAY APPROVED BY JOHN A. DAY TIMCO REPORT NO. 1131AUT13TestReport.docx TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 2 of 16 TABLE OF CONTENTS STATEMENT OF COMPLIANCE ............................................................................................. 3 GENERAL INFORMATION ..................................................................................................... 4 EMC EQUIPMENT LIST......................................................................................................... 6 TEST PROCEDURE ............................................................................................................... 7 RF POWER OUTPUT ............................................................................................................. 8 MODULATION CHARACTERISTICS ....................................................................................... 9 VOICE MODULATED COMMUNICATION EQUIPMENT ....................................................... 10 FIELD STRENGTH OF SPURIOUS EMISSIONS ................................................................... 14 POWER LINE CONDUCTED INTERFERENCE ..................................................................... 16 Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 3 of 16 STATEMENT OF COMPLIANCE This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. No modifications were made to the equipment during testing in order to demonstrate compliance with these standards. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. Authorized by: John A. Day Signature: Function: Engineering Project Manager Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 4 of 16 GENERAL INFORMATION DUT Specification The test results relate only to the items tested. DUT Description TRANSPONDER FCC ID RZYTAS6XX-A Model Number TAS6XX-A PROCESSOR Operating Frequency 1030 MHz No. of Channels 1 Type of Emission 6M80K2D DUT Power Source 110–120Vac/50– 60Hz DC Power 14 Vdc and 28 Vdc Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna External Antenna Connector 4 TNCs Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 5 of 16 Test Facility: The test sites used by Timco Engineering Inc. for collecting radiated and conducted emission data are located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition: The DUT was tested in the laboratory in an environment with normal temperature and humidity. The temperature was 26ºC with a relative humidity of 50%. Modification to the DUT: No modification was made to the DUT during testing. Test Exercise (e.g software description, test signal, etc.): The DUT was placed in continuous transmit mode of operation. Applicable Standards: TIA 603 FCC CFR 47 Part 87 Part 2.1033(c) (4) Type of Emission: 6M80K2D Aircraft Transponder using Pulsed AM signal Part 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY INPUT POWER – HIGH: (14 Vdc) (1.86A) = 26 Watts (28 Vdc) (0.92A) =26 Watts Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 6 of 16 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 10/28/11 10/28/13 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 10/28/11 10/28/13 Antenna: Biconnical Electro- Metrics BIA-25 1171 06/13/12 06/13/14 Antenna: Biconnical Eaton 94455-1 1096 05/10/13 05/10/15 Antenna: Log-Periodic Electro- Metrics LPA-25 1122 05/09/13 05/09/15 Frequency Counter HP 5385A 2730A03025 08/17/11 08/17/13 Signal Generator HP 8640B 2308A21464 02/23/12 02/23/14 Hygro- Thermometer Extech 445703 0602 06/15/13 06/15/15 Digital Multimeter Fluke 77 35053830 09/09/11 09/09/13 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 10/28/11 10/28/13 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 06/14/12 06/14/14 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 10/28/11 10/28/13 Temperature Chamber Tenney Engineering TTRC 11717-7 07/03/12 07/03/14 Frequency Counter HP 5385A 3242A07460 06/16/13 06/16/15 3/10-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter OATS TEI N/A N/A 12/31/11 12/31/13 3-Meter Semi- Anechoic Chamber Panashield N/A N/A 12/31/11 12/31/13 Antenna: Double- Ridged Horn/ETS Horn 1 ETS- Lindgren 3117 00035923 12/07/2011 12/07/2013 Certificate # 0955-01 Applicant: Avidyne Corporation FCC ID: RZYTAS6XX-A Report: A\AVIDYNE\1131AUT13\1131AUT13TestReport.docx Page 7 of 16 TEST PROCEDURE Power Line Conducted Interference: The procedure used was TIA 603 using a 50uH LISN. Both lines were observed with the UUT transmitting. The bandwidth of the spec…

Text truncated - open the document above for the full version.
