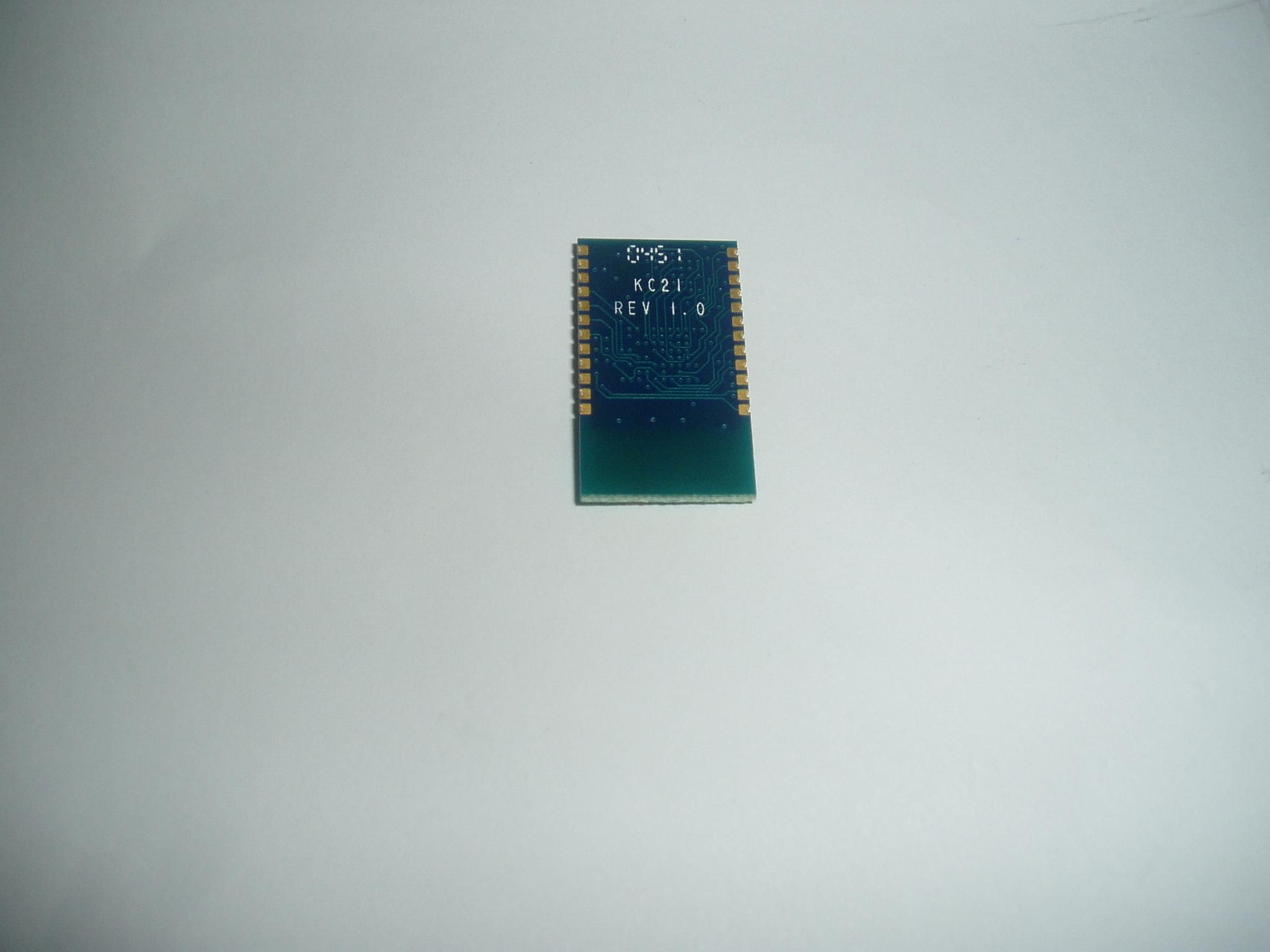

Bluetooth Wireless Engineering & Design Phone (623) 581-0700 Fax (623) 581-9192 KC Wirefree • 11811 North Tatum Boulevard • Suite 3031 • Phoenix, Arizona 85028 Rev: 1.0 4/10/2005 KC21 Bluetooth Module OEM General User and Installation Guide I. OEM Usage Intructions Installation The KC-21 is a Class-2 Bluetooth Module supplied on a 24 pin surface mount, 6- layer PCB, 26.9mm x 15.2mm footprint. For non Pb-free applications, Sn63Pb37 solder is recommended. The maximum reflow temperature must be below 220C. Layout The area around the KC21 module should be free of any ground planes, trace routings, or metal for at least 250 mil (6.4 mm) from the antenna in all directions. Traces should not be routed underneath the module. Crystal Tuning and Power Calibration These steps are performed by KC Wirefree, and must NOT be modified from the settings applied during manufacturing. Any changes to these settings may void the user’s authority to operate this equipment. Operating Conditions The permitted operating and storage temperatures, power supply requirements, and I/O tolerances are specified in the KC21 Datasheet. II. Notice of FCC Regulatory Compliance This module has been tested and found to comply with the FCC Part15 Rules. These limits are designed to provide reasonable protection against harmful interference in approved installations. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications or changes to this equipment not expressly approved by KC Wirefree may void the user’s authority to operate this equipment. Bluetooth Wireless Engineering & Design Phone (623) 581-0700 Fax (623) 581-9192 KC Wirefree • 11811 North Tatum Boulevard • Suite 3031 • Phoenix, Arizona 85028 Rev: 1.0 4/10/2005 III. Limited Modular Approval FCC ID: S22BTMODULE-CL2 In accordance with FCC Part 15, the KC21 is listed above as a Limited Modular Transmitter device. In support of the Modular Transmitter Approval, the following is stated: 1. The module does have buffered modulation / data inputs. 2. The module does regulate its own power supply. 3. The module does have a permanently attached antenna. 4. The module can be tested as a stand-alone device. 5. The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6. The module does have instruction for proper use. 7. The module does meet the FCC RF regulations. Limited Modular Transmitter Approval, is granted, instead of Modular Transmitter Approval, because the following condition is not met: 8. The module does not have its own RF shielding. In accordance with FCC document, DA 00-1407, all final usage by OEMs of this device, (1) Must be approved by the module’s manufacturer, KC Wirefree, (2) final installation must follow the instructions in this user’s manual, (3) a written agreement with the OEM will detail which products are approved for this module’s final installation to control its end usage and ensure FCC Part 15 compliance. IV. FCC Label Instructions The outside of final products that contain a KC21 device must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: S22BTMODULE-CL2” or “Contains FCC ID: S22BTMODULE-CL2.” Any similar wording that expresses the same meaning may be used. An example of this label is figure 1 below: Bluetooth Wireless Engineering & Design Phone (623) 581-0700 Fax (623) 581-9192 KC Wirefree • 11811 North Tatum Boulevard • Suite 3031 • Phoenix, Arizona 85028 Rev: 1.0 4/10/2005 Model: KC21 Contains Transmitter Module FCC ID: S22BTMODULE-CL2 This product complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Input: 3.3VDC 120MA Made in China KC Wirefree Figure 1: External Device FCC Label Sample
FCC ID: S22BTMODULE-CL2 Request for Confidentiality In accordance with 47 C.F.R. Section 0.459, we, KC Wirefree, hereby request confidentiality for the block diagram, schematic and product description presented for certification. In support of the Request for Confidentiality, the following is stated: Enclosed within this application is technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to our disadvantage. To assist in assuring that we receive the full value of our product and protect its competitive posture, we respectfully request this grant of confidentiality. Kelly Simonelic KC Wirefree
Bluetooth Wireless Engineering & Design Phone (623) 581-0700 Fax (623) 581-9192 KC Wirefree • 11811 North Tatum Boulevard • Suite 3031 • Phoenix, Arizona 85028 FCC ID: S22BTMODULE-CL2 Request for Limited Modular Approval In accordance with FCC Part 15, we, KC Wirefree, hereby request a limited modular level approval as outlined in FCC document DA 00 – 1407, for the device listed above. In support of the Modular Transmitter Approval, the following is stated: 1) The module does have buffered modulation / data inputs. 2) The module does regulate its own power supply. 3) The module does have a permanently attached antenna. 4) The module can be tested as a stand-alone device. 5) The module is labeled with the proper FCC ID, and labeling instructions are provided to OEM end users for external product labels. 6) The module does have instruction for proper use. 7) The module does meet the FCC RF regulations. Limited Modular Transmitter Approval, is requested, instead of Modular Transmitter Approval, because the following condition is not met: 8) The module does not have its own RF shielding. In accordance with FCC document, DA 00-1407, all final usage by OEMs of this device, (1) Must be approved by the module’s manufacturer, KC Wirefree, (2) final installation must follow the instructions in this user’s manual, (3) a written agreement with the OEM will detail which products are approved for this module’s final installation to control its end usage and ensure FCC Part 15 compliance.
Page 1 of 41 Engineering Test Report No. 34526-01 Measurement of RF Interference from a Model KC21 Bluetooth Module Transmitter For : KC Wire Free Date Received : January 3, 2005 Date Tested : January 3 through January 10, 2005 Test Personnel : Daniel E. Crowder Specification : FCC "Code of Federal Regulations" Title 47, Part 15, Subpart C, Section 15.247 for Frequency Hopping Spread Spectrum Intentional Radiators Operating within the 2400-2483.5MHz band. Test Report By : Daniel E. Crowder NARTE® Certified EMC Engineer ATL-0152-E Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 34526-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 41 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION ................................................................................................................................................ 3 1.1 Description of Test Item.................................................................................................................................... 3 1.2 Purpose ............................................................................................................................................................. 3 1.3 Deviations, Additions and Exclusions ............................................................................................................... 3 1.4 Applicable Documents ...................................................................................................................................... 3 1.5 Subcontractor Identification .............................................................................................................................. 3 1.6 Laboratory Conditions..................................................................................................................................... 3 2.0 TEST ITEM SETUP AND OPERATION............................................................................................................. 4 2.1 Power Input...................................................................................................................................................... 4 2.2 Grounding......................................................................................................................................................... 4 2.3 Peripheral Equipment........................................................................................................................................ 4 2.4 Interconnect Cables........................................................................................................................................... 4 2.5 Operational Mode ............................................................................................................................................. 4 3.0 TEST EQUIPMENT............................................................................................................................................. 4 3.1 Test Equipment List .......................................................................................................................................... 4 3.2 Calibration Traceability ................................................................................................................................... 4 4.0 REQUIREMENTS, PROCEDURES AND RESULTS.......................................................................................... 4 4.1 Powerline Conducted Emissions ..................................................................................................................... 4 4.2 Carrier Frequency Separation ......................................................................................................................... 5 4.3 Number of Hopping Frequencies..................................................................................................................... 6 4.4 Time of Occupancy ........................................................................................................................................ 6 4.5 20dB Bandwidth .............................................................................................................................................. 7 4.6 Peak Output Power .......................................................................................................................................... 7 4.7 Bandedge Compliance ..................................................................................................................................... 8 4.8 Spurious Emissions.......................................................................................................................................... 9 4.9 Spectral Density............................................................................................................................................... 9 5.0 CONCLUSIONS................................................................................................................................................. 10 6.0 CERTIFICATION .............................................................................................................................................. 10 7.0 ENDORSEMENT DISCLAIMER...................................................................................................................... 10 TABLE I - EQUIPMENT LIST.............................................................................................................................. 11 Engineering Test Report No. 34526-01 Page 3 of 41 Measurement of RF Interference from a Model KC21 Bluetooth Module Transmitter 1.0 INTRODUCTION: 1.1 Description of Test Item - This document repre…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 2.50 mW |

BTAUDIO
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Bluetooth Class I Module
Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
