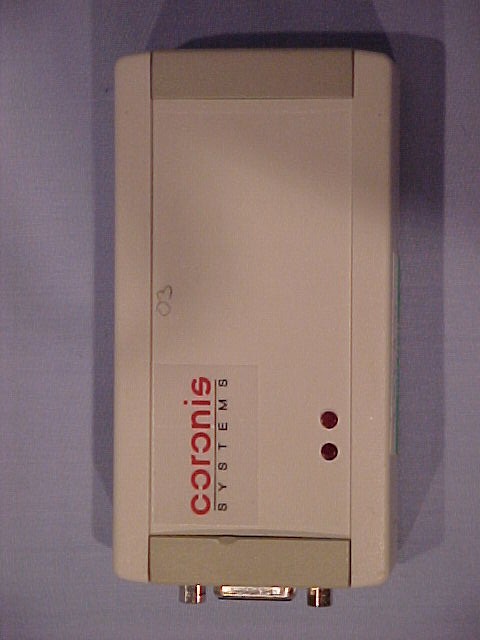

S28WPORadio Modem

Document : CS-SUP-MUTI-WPORTAPP-E02.sxw WaveCard user handbookpage 1 of 67 Document : CS-SUP-MUTI-WPORTAPP-E02.sxw REVISIONS HISTORY Rev. #DescriptionAuteurDateCommentaires 1Original documentRCS19/01/05Version 1 2Addon Text FCCRCS17/02/05Version 2 ➢FIRMWARE VERSIONS OF SUPPORTED WAVECARD AND WAVEPORT WaveCard 25mW :Compatible with the version v2.01, and later WaveCard 500mW :Compatible with the version v4.01, and later This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions : this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation. Caution : any changes or modifications not expressly approved by Coronis- Systems could void the user's authority to operate the equipment. WaveCard user handbookpage 2 of 67 Document : CS-SUP-MUTI-WPORTAPP-E02.sxw TABLE OF CONTENTS 1. INTRODUCTION.............................................................................................................................................5 2. RS232 SERIAL PROTOCOL PRESENTATION.............................................................................................6 2.1- Exchanges principle.............................................................................................................................6 2.1.1 - Low level acknowledge..................................................................................................................6 2.1.2 - Request/ Response principle.........................................................................................................7 2.2- Exchanged frames format....................................................................................................................8 2.2.1 - Wake Up and synchronization mechanism....................................................................................8 2.2.2 - Frame description..........................................................................................................................8 2.3- Commands description......................................................................................................................10 2.3.1 - Control type commands...............................................................................................................10 2.3.2 - Applicative type commands.........................................................................................................10 2.3.3 - Service type commands...............................................................................................................12 3. SETTING THE INTERNAL PARAMETERS OF THE WAVECARD..............................................................13 3.1- Configuration of the functional parameters....................................................................................13 3.1.1 - Format of the internal parameters access...................................................................................14 3.1.2 - Wake Up and synchronization mechanism.................................................................................17 a) Principle when transmitting, or receiving a frame.........................................................................................17 b) Example describing a point-to-point exchange of the type Request / Response.........................................19 3.2- Configuration of the control parameters.........................................................................................20 3.2.1 - selection of the radio operating channel when FHSS is deselected............................................20 a) reading commands format of the channel used............................................................................................20 b) Writing commands format of the channel to use...........................................................................................21 3.2.2 - Selection of the RF medium physical mode...............................................................................22 a) reading commands format of the physical layer mode..................................................................................22 b) selection commands format of the physical layer mode to use....................................................................23 c) Automatic selection of Radio physical mode to use......................................................................................23 3.2.3 - Selection of the radio board emission power...............................................................................24 a) selection commands format of the emission power......................................................................................24 b) reading commands format of the emission power........................................................................................25 3.2.4 - Activation of the Wavenis RF Asic RSSI threshold autocorrection..............................................26 a) Modification commands format of the RSSI threshold autocorrection state ................................................26 b) Reading commands format of the RSSI threshold autocorrection state ......................................................27 3.2.5 - Selection de la vitesse de transmission série..............................................................................28 a) Selection commands format of the baudrate................................................................................................28 3.2.6 - Reading the firmware version of the WaveCard..........................................................................29 a) Commands format.........................................................................................................................................29 3.2.7 - Reading the RSSI level (Received Signal Strengh Indicator)....................................................30 a) Commands..........…

Text truncated - open the document above for the full version.

March 8 th 2005 Telecommunication Certification Body RFI Global Services Ltd. Pavilion A Ashwood Park Basingstoke Hampshire RG23 8BG United Kingdom Subject: Certification Application FCC ID: S28 It is requested that the following information is to be held confidential on behalf of CORONIS- SYSTEMS. FCC Rules Part 0.459 refers. Schematics 16 files of 1 page FileFileFileFile CS-SCH-044-US-Fsp.pdfCS-SCH-051-US-Hsp.pdfCS-SCH-086-US-B2sp.pdfCS-SCH-087-US-Dsp.pdf CS-SCH-044-US-Fsp-DATA PROCESSING.pdf CS-SCH-051-US-Hsp-DATA PROCESSING.pdf CS-SCH-086-US-B2sp-DATA PROCESSING.pdf CS-SCH-087-US-Dsp-DATA PROCESSING.pdf CS-SCH-044-US-Fsp-POWER SUPPLY.pdf CS-SCH-051-US-Hsp-POWER SUPPLY.pdf CS-SCH-086-US-B2sp-POWER SUPPLY.pdf CS-SCH-087-US-Dsp-POWER SUPPLY.pdf CS-SCH-044-US-Fsp-RF.pdfCS-SCH-051-US-Hsp-RF.pdfCS-SCH-086-US-B2sp-RF.pdfCS-SCH-087-US-Dsp-RF.pdf Block diagram 2 files : Filenumber of pages block diagram_Watherm.pdf 1 block diagram_Watport.pd 1 Operational description 2 files : Filenumber of pages Operational description_Wavetherm.pdf 1 Operational description_Waveport.pdf 1 Page 1 / 2 Part list : 4 files Filenumber of pages CS-NOM-091-US-B2sp.pdf 6 CS-NOM-092-US-Dsp.pdf 6 CS-NOM-055-US-Hsp.pdf 4 CS-NOM-046-US-Fsp.pdf 6 This information have to be held confidential to our competitor. They are part of industrial secret. Yours sincerely Page 2 / 2

Client: Projet: FCC Document: FCC LABEL LAYOUT Date: 03/02/05 Version: Ref: Waveport Label 1 Label 2 Labguard Label :Bar code Serial number FCC ID : S28 WFL Highly ConfidentialThis document is the property of CoronisPage 2 / 2 L A B GU A R D 2 Label label 1 label 2 (behind) Product name Part number FFC ID Serial number Bar code S28 WPO

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 Test Report Serial No: RFI/MPTE3/RP46762JD06B Supersedes Test Report Serial No: RFI/MPTE2/RP46762JD06B This Test Report Is Issued Under The Authority Of Andrew Brown, Operations Manager: Tested By: Steve Wong pp Checked By: Nigel Davison Report Copy No: PDF01 Issue Date: 14 March 2005 Test Dates: 08 February 2005 to 11 February 2005 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 2 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 This page has been left intentionally blank. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 3 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 Table of Contents 1. Client Information ............................................................................................................................4 2. Equipment Under Test (EUT) ..........................................................................................................5 3. Test Specification, Methods and Procedures ...............................................................................8 4. Deviations from the Test Specification..........................................................................................9 5. Operation of the EUT During Testing...........................................................................................10 6. Summary of Test Results ..............................................................................................................11 7. Measurements, Examinations and Derived Results ...................................................................12 8. Measurement Uncertainty .............................................................................................................33 9. Measurement Methods ..................................................................................................................34 Appendix 1. Test Equipment Used ...................................................................................................42 Appendix 2. Test Configuration Drawings.......................................................................................44 Test Report Serial No: RFI/MPTE3/RP46762JD06B Supersedes Test Report Serial No: RFI/MPTE2/RP46762JD06B RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 4 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 1. Client Information Company Name: Coronis Systems. Address: 290 rue Alfred Nobel 3400 Montpellier France Contact Name: Fabien Bonjour RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 5 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification of Equipment Under Test (EUT) Brand Name: Coronis Systems Model Name or Number: Waveport Unique Type Identification: US Serial Number: 012E604600003 FCC ID Number: S28 WPO Country of Manufacture: China and France Date of Receipt: 10 November 2004 2.2. Description of EUT The equipment under test is a Radio modem to communicate with the Coronis products: Wavetherm, Waveflow, and Wavesense. 2.3. Modifications Incorporated in the EUT During the course of testing the EUT was not modified. RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 6 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 2.4. Additional Information Related to Testing Power Supply Requirement: DC supply of 6 V Intended Operating Environment: Residential, Commercial and Light Industry Equipment Category: Short Range (Low Power) Type of Unit: Base Station (Fixed Use) Interface Ports: Enclosure RS232 Serial Interface DC supply Transmit Frequency Range: 907.0272 MHz to 921.4848 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 01 907.0272 Middle 79 913.9392 Transmit Channels Tested: Top FA 921.3696 Highest Unintentionally Generated Frequency: 1842.9696 MHz Receive Frequency Range: 907.0272 MHz to 921.4848 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 01 907.0272 Middle 79 913.9392 Receive Channels Tested: Top FA 921.3696 Highest Unintentionally Generated Frequency: 1842.9696 MHz Highest Fundamental Frequency: 921.3696 MHz Occupied Bandwidth: 40 kHz RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 7 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 2.5. Support Equipment The following support equipment was used to exercise the EUT during testing: Description: AC Adaptor Brand Name: FRIWO Model Name or Number: FW7600/05 Serial Number: Not Supplied Cable Length and Type: Not Supplied Connected to Port: Charge Port Description: Serial Cable Brand Name: None Stated Model Name or Number: None Stated Serial Number: None Stated Cable Length and Type: 9 Pin Serial, 1.5m Connected to Port: Serial Port of Waveport RFI GLOBAL SERVICES LTD TEST REPORT S.No. RFI/MPTE3/RP46762JD06B Page 8 of 46 Issue Date: 14 March 2005 Test of: Coronis Systems. Waveport Modem. To: FCC Part 15.247 3. Test Specification, Methods and Procedures 3.1. Test Specifications Reference: FCC Part 15 Subpart C: 2004 (Sections 15.247). Title: Code of Federal Regulations, Part 15 (47CFR215) Ra…
