S2O-AEONDigital Dual Band Repeater

AEON-9030 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. Proprietary Document Page 1 of 51 AEON-9030 USER MANUAL Version 1.0 2607 Colorado Blvd. Los Angeles, CA 90041 USA Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com AEON-9030 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. Proprietary Document Page 2 of 51 Glossary The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control AROMS ADRF’s Repeater Operation and Management System BTS Base Transceiver Station CDMA Code Division Multiple Access CW Continuous Wave (un-modulated signal) DAS Distributed Antenna System DL Downlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscribers service area via the repeater HPA High Power Amplifier HW Hardware iDEN Integrated Digital Enhanced Network IF Intermediate Frequency LNA Low Noise Amplifier MS Mobile Station PLL Phased Locked Loop PSU Power Supply Unit RF Radio Frequency SW Software UL Uplink Uplink The path covered from the subscribers service area to the Base Transceiver Station(BTS) via the repeater VSWR Voltage Standing Wave Ratio AEON-9030 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. Proprietary Document Page 3 of 51 Version 1.0 (July 1, 2009) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2009 All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (323) 254-8131 Fax: (323) 254-4928 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 2607 Colorado Blvd., 1 st floor Los Angeles, CA 90041 USA www.adrftech.com AEON-9030 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. Proprietary Document Page 4 of 51 Revision History for Manual Version Author Description Date 1.0 K.Y.LEE First Generation. July 1, 2009 Revision History for Hardware Version Author Description Date 1.0 Digital Part First Generation. July 1, 2009 RF Hardware First Generation. Revision History for Firmware Version Author Description Date 1.0 Anthony Jang First Generation July 1, 2009 AEON-9030 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. Proprietary Document Page 5 of 51 Table of Contents 1. Introduction of AEON-9030 ................................................................................... 7 1.1 Introduction ....................................................................................................... 7 1.1.1 Highlights .............................................................................................. 7 1.1.2 Parts List ............................................................................................... 8 1.1.3 Repeater Quick View ............................................................................ 9 1.2 Warnings and Hazards .................................................................................... 11 2. AEON-9030 Overview ......................................................................................... 13 2.1 Switches & Indicators ..................................................................................... 13 2.1.1 LEDs ................................................................................................... 13 2.1.2 AC Power Switch ................................................................................ 15 2.1.3 Back Up Battery Switch & Battery Port ............................................. 15 2.1.4 Ethernet Port ....................................................................................... 16 2.1.5 Modem Module ................................................................................... 16 2.1.6 Other Ports .......................................................................................... 16 2.2 Installation....................................................................................................... 17 2.2.1 Tools ................................................................................................... 17 2.2.2 Procedure ............................................................................................ 17 2.2.3 Grounding ........................................................................................... 19 2.3 Antenna Separation/Isolation .......................................................................... 20 2.4 Line of Sight ................................................................................................... 21 3. AEON-9030 AROMS Setup ................................................................................. 22 3.1 Repeater/PC Connection Using AROMS ....................................................... 22 3.2 Repeater Status ................................................................................................ 24 3.3 Repeater Control ............................................................................................. 28 3.4 Repeater Install ............................................................................................... 31 3.5 Repeater System.............................................................................................. 35 4. Maintenance Guide for AEON-9030 .................................................................... 37 4.1 Periodic Inspection Checklist ......................................................................... 37 4.2 Preventive Measures for Optimal Operation .................................................. 37 5. AEON-9030 Troubleshooting Guide .................................................................... 38 5.1 Connectivity Guide for LAN .......................................................................... 38 5.2 Troubleshooting Guide for Repeater ............................................................... 41 6. Warranty and Repair Policy .................................................................................. 44 6.1 General…

Text truncated - open the document above for the full version.

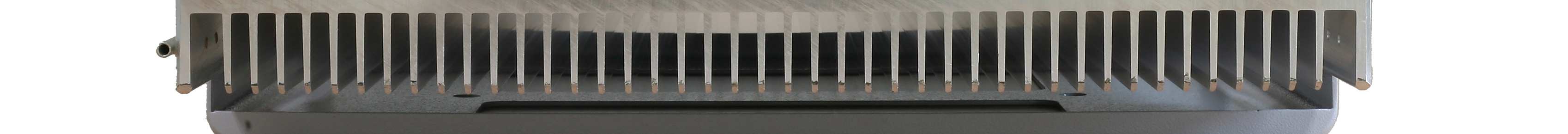

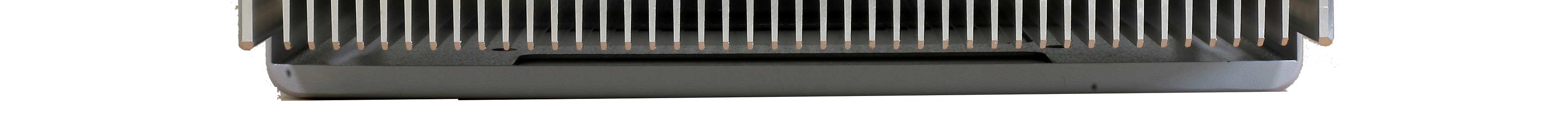

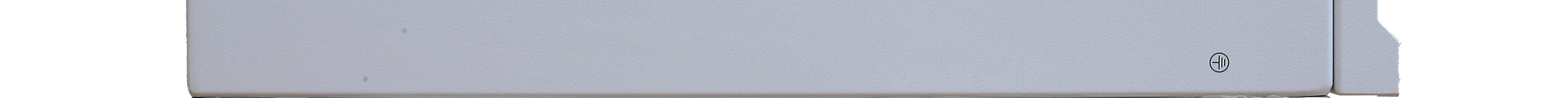

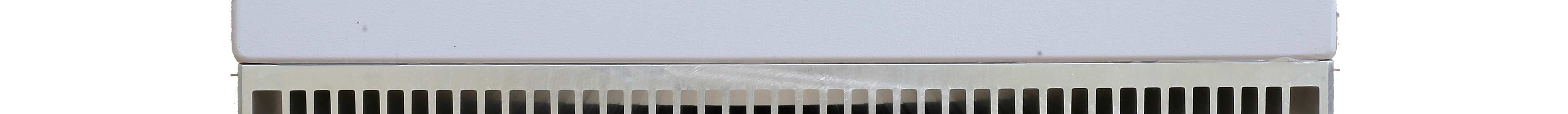

External Photographs FCC ID: S2O-AEON IC ID: 6416A-AEON

Internal Photographs FCC ID: S2O-AEON IC ID: 6416A-AEON

EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 1 of 93 Test Report Report Number: 3186504MPK-003 Project Number: 3186504 Report Date: August 31, 2009 Testing performed on the Cellular Repeater Model Number: AEON FCC ID: S2O-AEON IC ID: 6416A-AEON to FCC Part 22 Subpart H FCC Part 24 Subpart E RSS-131 for Advanced RF Technologies Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Advanced RF Technologies 2607 Colorado Boulevard Los Angeles, CA 90041 USA Prepared by: Date: August 31, 2009 Bruce Gordon, EMC Engineer Reviewed by: Date: August 31, 2009 Krishna Vemuri, Senior EMC Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 2 of 93 TABLE OF CONTENTS 1.0 Introduction 4 1.1 Product Description.......................................................................................................... 4 1.2 Summary of Test Results ................................................................................................. 5 1.3 Test Configuration ........................................................................................................... 6 1.3.1 Support Equipment ................................................................................... 6 1.3.2 Block diagram of Test Setup.....................................................................6 1.4 Mode of Operation ........................................................................................................... 8 2.0 RF Power Output ............................................................................................................ 9 2.1 Test Procedure.................................................................................................................. 9 2.2 Test Equipment ................................................................................................................ 9 2.3 Test Results ...................................................................................................................... 9 3.0 Occupied Bandwidth, Input/Output Comparison....................................................... 12 3.1 Test Procedure................................................................................................................ 12 3.2 Test Equipment .............................................................................................................. 12 3.3 Test Results ..................................................................................................................... 12 4.0 Out-of-Band Emissions at antenna terminal ................................................................ 25 4.1 Requirement ................................................................................................................... 25 4.2 Test Procedure................................................................................................................ 25 4.3 Test Equipment .............................................................................................................. 25 4.4 Test Results .................................................................................................................... 25 5.0 Transmitter Spurious Radiation ................................................................................. 73 5.1 Requirement ................................................................................................................... 73 5.2 Test Procedure................................................................................................................ 73 5.3 Test Equipment .............................................................................................................. 73 5.4 Configuration Photographs ............................................................................................ 74 5.5 Test Results .................................................................................................................... 75 6.0 Radiated Emissions ....................................................................................................... 77 6.1 Radiated Emission Limits .............................................................................................. 77 6.2 Field Strength Calculation.............................................................................................. 78 6.3 Configuration Photographs ............................................................................................ 79 6.4 Test Results .................................................................................................................... 80 7.0 AC Line Conducted Emissions .................................................................................... 83 7.1 Conducted Emission Limits ........................................................................................... 83 7.2 Test Procedure.......................................................…

Text truncated - open the document above for the full version.

EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 25 of 93 4.0 Out-of-Band Emissions at antenna terminal FCC 2.1051 4.1 Requirement The power of any emissions outside of the authorized operating frequency ranges must be attenuated below the transmitting power (P) by a factor of at least (43 + 10 log P) dB. Note: That corresponds to the level of -13 dBm for any out-of-band and spurious emissions. 4.2 Test Procedure The EUT RF output was connected as shown on the diagram in sec.1.3.2. The EUT was setup to transmit the maximum power. The spectrum analyzer resolution bandwidth (RBW) was set to 1 MHz in the PCS band and 100 kHz in the Cell band. For measurements at the band edges, the resolution bandwidth (RBW) was set to 100 kHz. Measurements were performed at three frequencies at the low, middle, and high channels for all modulations types. Intermodulation was performed by injecting two modulated signals into the EUT. One signal was set at the bandedge of either the Up Link or Down Link band and the other signal was set 6 MHz away. 4.3 Test Equipment Rohde & Schwarz FSU26 Spectrum Analyzer 4.4 Test Results Refer to the following Graphs. Result Complies EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 26 of 93 Graph 4.1 & 4.2 Antenna Terminal Spurious Emissions, GSM 850, Down Link 869.2 MHz Intermodulation, GSM 850, Down Link 869.2 MHz Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 27 of 93 Graph 4.3 & 4.4 Antenna Terminal Spurious Emissions, GSM 850, Down Link 881.6 MHz Intermodulation, GSM 850, Down Link 881.6 MHz Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 28 of 93 Graph 4.5 & 4.6 Antenna Terminal Spurious Emissions, GSM 850, Down Link 893.8 MHz Intermodulation, GSM 850, Down Link 893.8 MHz Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 29 of 93 Graph 4.7 & 4.8 Antenna Terminal Spurious Emissions, GSM 850, Up Link 824.2 MHz Intermodulation, GSM 850, Up Link 824.2 MHz Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 30 of 93 Graph 4.9 & 4.10 Antenna Terminal Spurious Emissions, GSM 850, Up Link 836.6 MHz Intermodulation, GSM 850, Up Link 836.6 MHz Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 31 of 93 Graph 4.11 & 4.12 Antenna Terminal Spurious Emissions, GSM 850, Up Link 848.8 MHz Intermodulation, GSM 850, Up Link 848.8 MHz Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 800.0M810.0M820.0M830.0M840.0M850.0M860.0M870.0M880.0M890.0M900.0M Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 32 of 93 Graph 4.13 & 4.14 Antenna Terminal Spurious Emissions, GSM 1900, Up Link 1851.25 MHz Intermodulation, GSM 1900, Up Link 1851.25 MHz Intertek Antenna Conducted Spur ious Em issions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p lit…

Text truncated - open the document above for the full version.

EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 43 of 93 Graph 4.35 & 4.36 Antenna Terminal Spurious Emissions, CDMA PCS, Up Link 1851.25 MHz Intermodulation, CDMA PCS, Up Link 1851.25 MHz Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 44 of 93 Graph 4.37 & 4.38 Antenna Terminal Spurious Emissions, CDMA PCS, Up Link 1880 MHz Intermodulation, CDMA PCS, Up Link 1880 MHz Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 45 of 93 Graph 4.39 & 4.40 Antenna Terminal Spurious Emissions, CDMA PCS, Up Link 1908.75 MHz Intermodulation, CDMA PCS, Up Link 1908.75 MHz Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 46 of 93 Graph 4.41 & 4.42 Antenna Terminal Spurious Emissions, CDMA PCS, Down Link 1931.25 MHz Intermodulation, CDMA PCS, Down Link 1931.25 MHz Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 47 of 93 Graph 4.43 & 4.44 Antenna Terminal Spurious Emissions, CDMA PCS, Down Link 1960 MHz Intermodulation, CDMA PCS, Down Link 1960 MHz Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 48 of 93 Graph 4.45 & 4.46 Antenna Terminal Spurious Emissions, CDMA PCS, Down Link 1988.75 MHz Intermodulation, CDMA PCS, Down Link 1988.75 MHz Intertek Antenna Conducted Spurious Emissions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan Intertek Antenna Conducted Spurious Emissions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Frequency (Hz ) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am plitude (dBm ) Lim it Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 49 of 93 Graph 4.47 & 4.48 Antenna Terminal Spurious Emissions, TDMA PCS, Up Link 1851.3 MHz Intermodulation, TDMA PCS, Up Link 1851.3 MHz Intertek Antenna Conducted Spur ious Em issions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 50 of 93 Graph 4.49 & 4.50 Antenna Terminal Spurious Emissions, TDMA PCS, Up Link 1880 MHz Intermodulation, TDMA PCS, Up Link 1880 MHz Intertek Antenna Conducted Spur ious Em issions 30.0M1.0G2.0G3.0G4.0G5.0G6.0G7.0G8.0G9.0G10.0G11.0G12.0G13.0G14.0G15.0G16.0G17.0G18.0G19.0G20.0G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan Intertek Antenna Conducted Spur ious Em issions 1.80G1.81G1.82G1.84G1.85G1.86G1.87G1.88G1.90G1.91G1.92G1.93G1.94G1.96G1.97G1.98G1.99G2.00G2.02G2.03G2.04G Fr equency (Hz) -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 Am p litu d e (d Bm ) Limit Scan EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 51 of 93 Graph 4.51 & 4.52 Antenna Terminal Spurious Emissions, TDMA PCS, Up Link 1908.8 MHz Intermodulation, TDMA PCS, Up Link 1908.8 MHz Intertek Antenna Conducted S…

Text truncated - open the document above for the full version.

EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 61 of 93 Graph 4.71 Band Edge Emissions, CDMA Cell Channel 1013, Down Link A Offset 20.5 dB LVL 1 PK MAXH * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 msRef 40 dBmAtt 45 dB Center 869 MHzSpan 5 MHz500 kHz/ -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -20.50 dBm 869.000000000 MHz F1 D1 -13 dBm Date: 11.AUG.2009 19:12:08 Graph 4.72 Band Edge Emissions, CDMA Cell Channel 777, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 894 MHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -21.35 dBm 894.006250000 MHz F1 D1 -13 dBm Date: 11.AUG.2009 19:14:58 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 62 of 93 Graph 4.73 Band Edge Emissions, CDMA Cell Channel 1013, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 824 MHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -22.16 dBm 824.000000000 MHz D1 -13 dBm F1 Date: 11.AUG.2009 19:18:08 Graph 4.74 Band Edge Emissions, CDMA Cell Channel 777, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 849 MHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -21.70 dBm 849.038750000 MHz D1 -13 dBm F1 Date: 11.AUG.2009 19:20:43 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 63 of 93 Graph 4.75 Band Edge Emissions, CDMA PCS Channel 25, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB 1 PK MAXH Center 1.85 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -19.31 dBm 1.850000000 GHz F1 D1 -13 dBm Date: 11.AUG.2009 19:28:25 Graph 4.76 Band Edge Emissions, CDMA PCS Channel 1175, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.91 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -14.53 dBm 1.910000000 GHz D1 -13 dBm F1 Date: 11.AUG.2009 19:30:45 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 64 of 93 Graph 4.77 Band Edge Emissions, CDMA PCS Channel 25, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.93 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -19.96 dBm 1.930000000 GHz D1 -13 dBm F1 Date: 11.AUG.2009 19:35:09 Graph 4.78 Band Edge Emissions, CDMA PCS Channel 1175, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.99 GHzSpan 10 MHz1 MHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -18.46 dBm 1.990000000 GHz D1 -13 dBm F1 Date: 11.AUG.2009 19:37:11 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 65 of 93 Graph 4.79 Band Edge Emissions, GSM 850 Channel 128, Down Link A Offset 20.5 dB LVL * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 msRef 40 dBmAtt 45 dB Center 869 MHzSpan 2 MHz200 kHz/ 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -20.24 dBm 869.000000000 MHz F1 D1 -13 dBm Date: 11.AUG.2009 19:47:21 Graph 4.80 Band Edge Emissions, GSM 850 Channel 251, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 894 MHzSpan 2 MHz200 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -21.52 dBm 894.000000000 MHz D1 -13 dBm F1 Date: 11.AUG.2009 19:49:20 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 66 of 93 Graph 4.81 Band Edge Emissions, GSM 850 Channel 128, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 824 MHzSpan 2 MHz200 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -20.35 dBm 824.000000000 MHz D1 -13 dBm F1 Date: 11.AUG.2009 19:51:36 Graph 4.82 Band Edge Emissions, GSM 850 Channel 251, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 849 MHzSpan 2 MHz200 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -19.09 dBm 849.000000000 MHz D1 -13 dBm F1 Date: 11.AUG.2009 19:53:07 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 67 of 93 Graph 4.83 Band Edge Emissions, GSM 1900 Channel 517, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.85 GHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -24.16 dBm 1.850000000 GHz F1 D1 -13 dBm Date: 11.AUG.2009 20:10:14 Graph 4.84 Band Edge Emissions, GSM 1900 Channel 805, Up Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.91 GHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -23.54 dBm 1.910000000 GHz D1 -13 dBm F1 Date: 11.AUG.2009 20:12:42 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 68 of 93 Graph 4.85 Band Edge Emissions, GSM 1900 Channel 517, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.93 GHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -25.63 dBm 1.930000000 GHz F1 D1 -13 dBm Date: 11.AUG.2009 20:21:14 Graph 4.86 Band Edge Emissions, GSM 1900 Channel 805, Down Link A Offset 20.5 dB LVL Ref 40 dBmAtt 45 dB Center 1.99 GHzSpan 5 MHz500 kHz/ * * 3DB RBW 100 kHz VBW 300 kHz SWT 35 ms 1 PK MAXH -60 -50 -40 -30 -20 -10 0 10 20 30 40 1 Marker 1 [T1 ] -24.89 dBm 1.990000000 GHz D1 -13 dBm F1 Date: 11.AUG.2009 20:18:27 EMC Report for Advanced RF Technologies on the model: AEON File: 3186504MPK-003 Page 69 of 93 Graph 4.87 Band Edge Emissions, …

Text truncated - open the document above for the full version.
