S2O-DELOS201Delos201 and Delos201 with 5, 10 and 15 MHz filter

Advanced RF Technologies, Inc.
Delos201 and Delos201 with 5, 10 and 15 MHz filter - FCC ID S2O-DELOS201 - Advanced RF Technologies, Inc.
Click to zoom

Application Details

Equipment Class
AMP - Amplifier
Date of Grant
Apr 01, 2008
Application Purpose
Original Equipment
Date of Application
Apr 01, 2008
Equipment Note
Delos201 and Delos201 with 5, 10 and 15 MHz filter
Frequency Range
1930.00000000 - 1975.00000000
Company
Advanced RF Technologies, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗

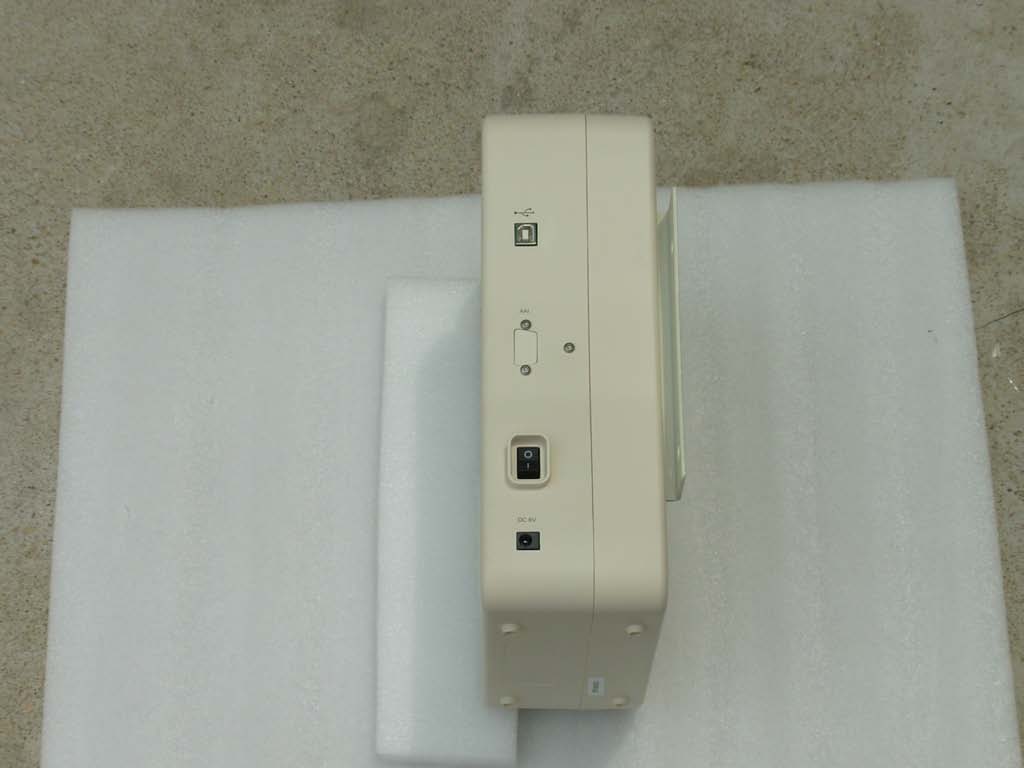

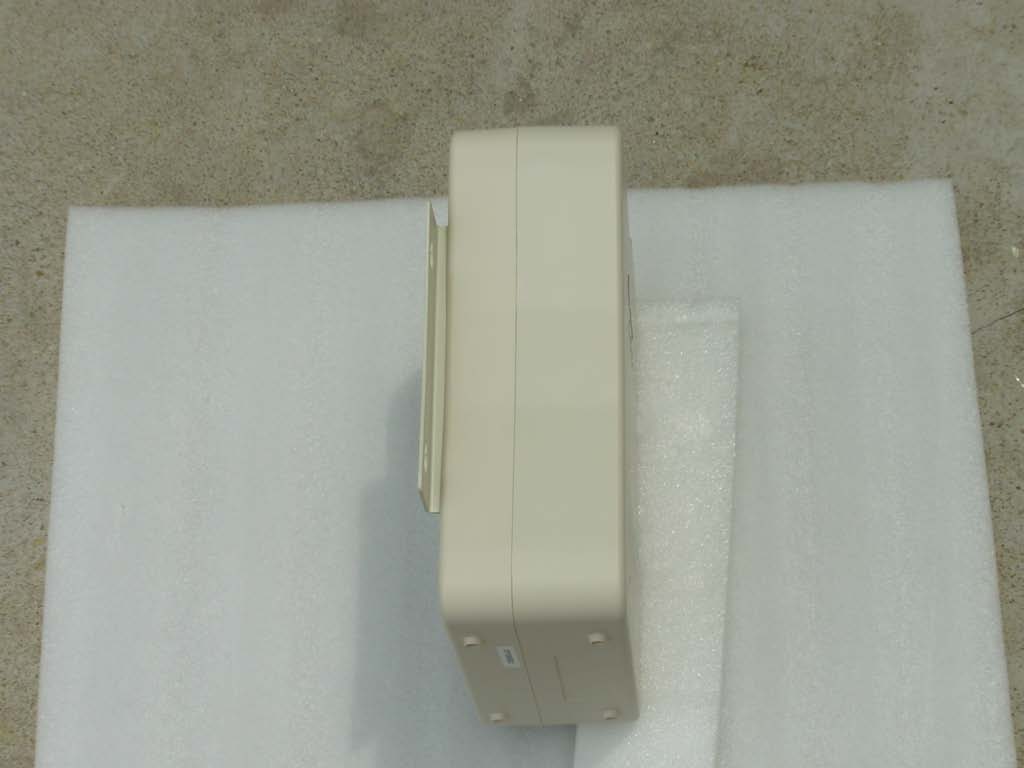

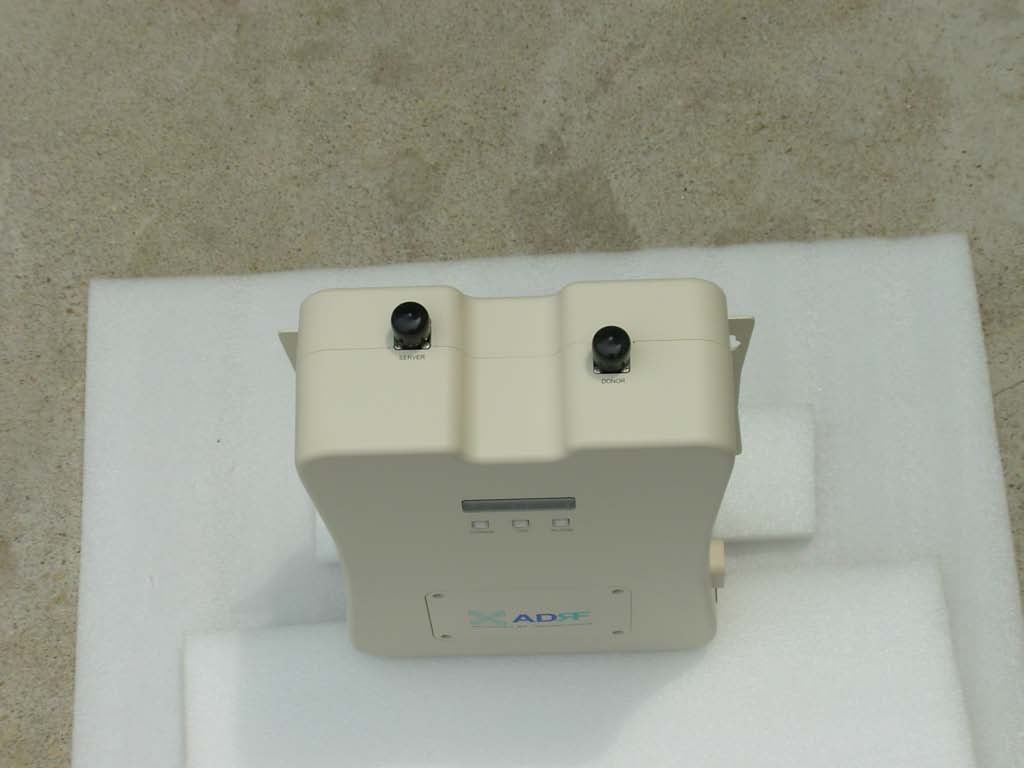

External Photos

↗

ID Label/Location Info

↗
↗

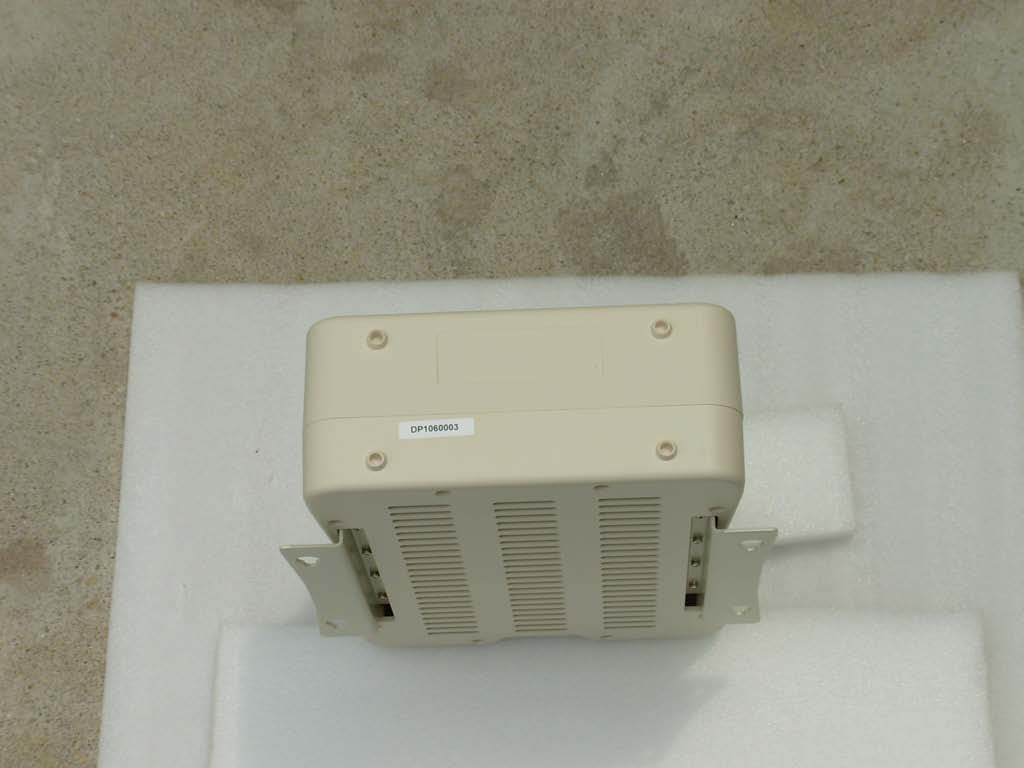

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

DELOS200 USER MANUAL Version 1.1 2607 Colorado Blvd. Los Angeles, CA 90041 USA Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com Delos200 RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 2 of 30 Version 1.1 (Released March 25, 2008) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2008. All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (323) 254-8131 (800) 313-9345 Fax: (323) 254-4928 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 2607 Colorado Blvd., 1 st Floor Los Angeles, CA 90041 USA www.adrftech.com Revision History Version Author Description Date 1.0 Peter Son June 24, 2006 1.1 Namchul Lee March 25, 2008 Delos200 RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 3 of 30 TABLE OF CONTENTS 1. Introduction of Delos200....................................................................................5 1.1 Overview ......................................................................................................5 1.1.1 Highlights ......................................................................................5 1.1.2 Special Features..............................................................................5 1.1.3 Available Models ............................................................................7 1.2 Warnings and Hazards ..................................................................................8 1.3 Delos200 Parts List .....................................................................................10 1.4 Delos200 Software Installation and Requirements .......................................10 1.4.1 Minimum PCS Requirements ....................................................................10 1.4.2 Delos200 Software Installation ................................................................10 ** Refer to the Software & USB Driver Setup Guide............................................10 ** Refer to the Software & USB Driver Setup Guide............................................10 1.5 Pre-Installation using Delos200 Software....................................................11 1.6 Step by Step Instructions for Installation .....................................................11 1.6.1 Repeater Setup .............................................................................11 2 User Manual V1.0 using Delos200 Software ..................................................15 2.1 Menu Structure ...........................................................................................15 2.1.1 Window Overview .........................................................................15 2.1.2 Status Menu .................................................................................16 2.1.3 Control Menu ...............................................................................17 ** You will lose your current saved settings once you click on Factory Setting. ............................................................................18 2.1.4 System Menu ................................................................................19 2.1.4.1 Info. Window ..................................................................19 2.1.4.2 Upgrade Window ............................................................20 2.2 Default Control Settings..............................................................................20 3 Maintenance Guide for Delos200 ..................................................................21 3.1 Periodic Inspection Checklist ......................................................................21 3.2 Preventive Measures for Optimal Operation.................................................21 3.2.1 Recommendations ........................................................................21 • Perform the Periodic Inspection Checklist quarterly or semiannually. ...............................................................................21 3.2.2 Precautions ..................................................................................21 4 Troubleshooting ...........................................................................................22 4.1 Tx & Rx LEDs ..............................................................................................22 4.2 Common Installation Problems ...................................................................23 5 Warranty and Repair Policy............................................................................23 5.1 General Warranty ........................................................................................23 5.2 Limitations of Warranty...............................................................................23 Appendix A: Specifications ..........................................................................................25 Delos200 RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 4 of 30 Appendix B: Button Operation......................................................................................27 Delos200 RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 5 of 30 1. Introduction of Delos200 1.1 Overview Delos200 series repeaters enhance in-building wireless coverage in the most effective and cost efficient way. For its intelligent design and versatility, Delos200 series repeaters are the ideal choice for wireless coverage problems indoors. Delos200 series repeaters can be used as a stand-alone repeater with passive antennas connected to it or it can also be used as a feeder repeater to a DAS (Distributed Antenna System). 1.1.1 Highlights • 23 dBm Composite Output Power • 80 dB gain • 25 dB AGC Range @ 0.5 dB Step • Can Set AGC Output Power Level • Auto Level Control Feature • Band/Channel Selectable via Software/Button • Three Sliding Filters Built-In (5, 10 & 15 MHz) 1.1.2 Special …

Text truncated - open the document above for the full version.

Users Manual

CHECK SIGNAL LEVELS 8 5 HOLD VFD FOR 5 SECONDS TO ENTER BAND MODE 4 CONNECT POWER CABLES, AND POWER ON 6 SELECT BANDWIDTH & BAND 7 CHECK UL/DL NUMBERS 1 3 CONNECT ANTENNAS/CABLES DONOR SERVER 2 REPEATER PLACEMENT SERVER DONOR Delos200 Quick Start Guide Quick Install Guide FRONT VIEW TOP VIEW Bandwidth Selection Band Selection Display Screen (Cycles Information) Documentation and Software can be found on the CD-ROMincluded in the Delos box. Technical SupportContact ADRF’s Technical Support Team for assistance with:-Software Questions-Setting up the Delos-Delos Operation-Troubleshooting Questions 1-323-254-81311-800-313-9345www.adrftech.com 7 8 After 5 seconds the Delos will exit from BandSelection Mode. At this time the Delos willcycle information regarding the downlink anduplink signals.Make sure these numbers are accurate andstable. 5 4 6 Plug in the power converter.Turn on the Delos.The Delos will start extending RF coverageas soon as you power it on. (110VAC Adapter) Press and hold the VFD button as shown infigure 5 to enter “Band Mode.” By pressing the Power button you willchange the bandwidth to either 5, 10, or15MHz.By pressing the Alarm button you willincrement the band accordingly. POWER BAND SELECTION MODE SELECT BAND/CHANNEL DOWNLINK/UPLINK POST SURVEY Congratulations! The Delos has beensuccessfully installed and is ready for use.It is recommended to do a walk-throughinside of the building and make live phonecalls to verify RF coverage. 13 2 The box should contain:1 - Delos Series Repeater1 - CD (Software and User Guide)1 - USB Cable1 - AC/DC Power Adapter1 - Quick Install Guide Sheet Locate the place where you will put theDelos. You can hang the Delos or put it onanything. In any case, make sure the Delosis securely fastened to a wall or anystructure so that it won’t move. Connect the donor/server antenna cables tothe Delos’s antenna ports on top as shown infigure 3.Adjust antenna positioning to assuremaximum coverage. REPEATER PLACEMENT ANTENNA CONNECTION OPEN THE BOX Documentation and Software can be found on the CD-ROMincluded in the Delos box. Technical SupportContact ADRF’s Technical Support Team for assistance with:-Software Questions-Setting up the Delos-Delos Operation-Troubleshooting Questions Delos200 Quick Start Guide www.adrftech.com1-323-254-81311-800-313-9345

Cover Letter(s)

________________________________________________________________________ ________________________________________________________________________ 2607 Colorado Blvd. Los Angeles, CA 90041 TEL: (323) 254-8131 FAX: (323) 254-4928 www.adrftech.com March 12, 2008 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Delos201 and Delos202 with 5, 10, and 15MHz filters (1900MHz band), FCC ID: S2O-DELOS201 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the Schematics, Block Diagrams, Mechanical Drawings, Parts Lists & Operational Description required to be submitted with this application be withheld from public review. The documents are Advanced RF Technologies, Inc. company proprietary information that can not get into possession of the competition. Please contact me if there is any information you may need. Sincerely, Julie Song Manager, Business Development

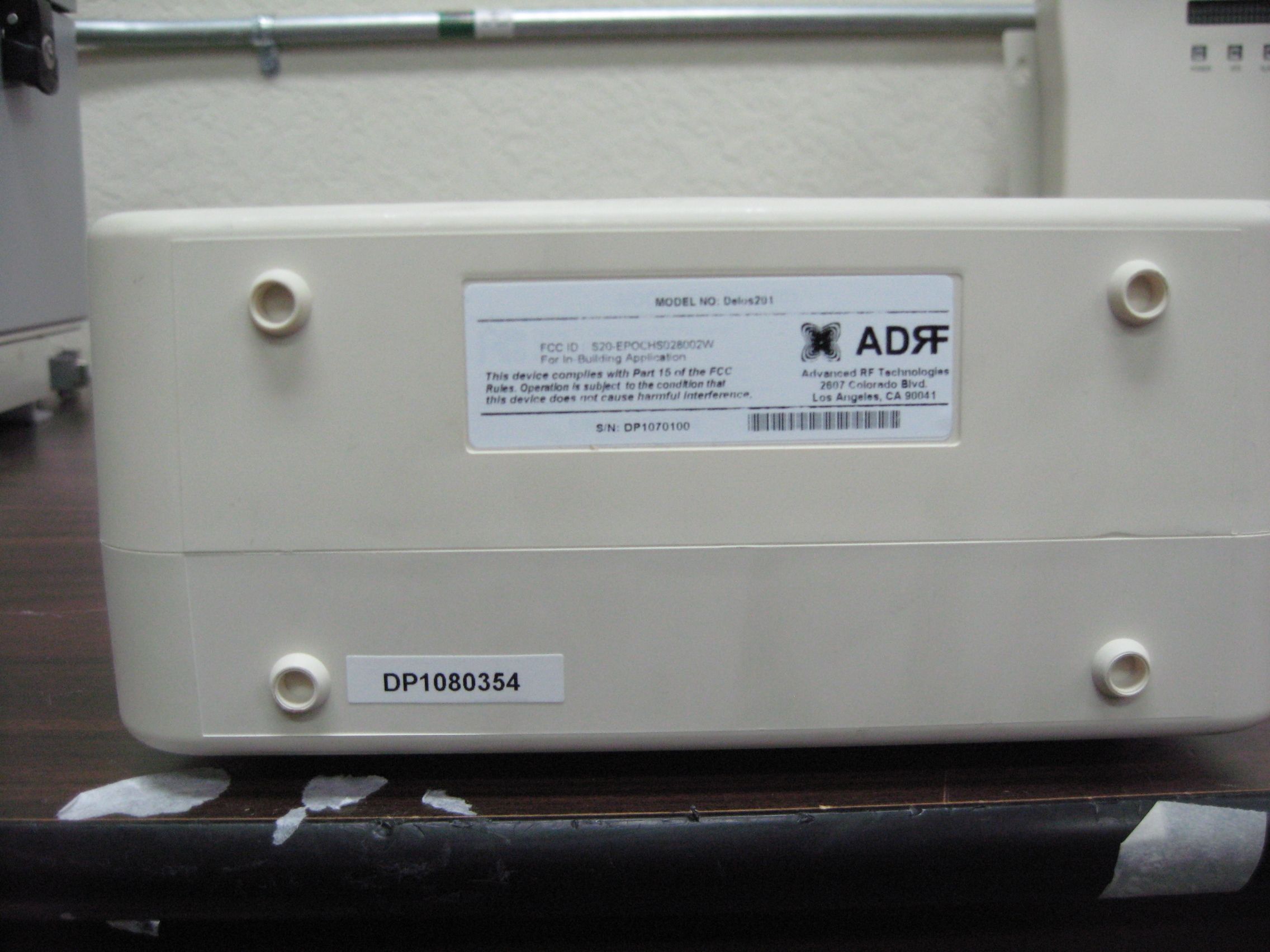

ID Label/Location Info

Los Angeles, CA 90041 S/N: DP1070100 For In-Building Application FCC ID : S2O-DELOS201 MODEL NO: Delos201 2607 Colorado Blvd. Advanced RF Technologies This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference

Test Report

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 DOC-EMC704 4/5/2005 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Criteria Test Report For the Advanced RF Technologies Model Delos201 and Delos202 Tested under FCC Certification Rules Title 47 of the CFR, Part 24 Subpart E for Broadband PCS Devices and Part 15 Subpart B for Class A Digital Devices MET Report: EMCS80243A-FCC24 July 31, 2007 Prepared For: Advanced RF Technologies 2607 Colorado Blvd. Los Angeles, CA 90041 Electromagnetic Compatibility Advanced RF Technologies Cover Page Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24E © 2008, MET Laboratories, Inc. Page ii of vi DOC-EMC704 4/5/2005 Electromagnetic Compatibility Criteria Test Report For the Advanced RF Technologies Model Delos201 and Delos202 Tested Under FCC Certification Rules Title 47 of the CFR, Part 24 Subpart E for Broadband PCS Devices and Part 15 Subpart B for Class A Digital Devices Shawn McMillen Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 24 Subpart E and Part 15 Subpart B of the FCC Rules under normal use and maintenance. Tony Permsombut Electromagnetic Compatibility Lab Electromagnetic Compatibility Advanced RF Technologies Report Status Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24E © 2008, MET Laboratories, Inc. Page iii of vi DOC-EMC704 4/5/2005 Report Status Sheet Revision Report Date Reason for Revision Ø July 31, 2007 Initial Issue. Electromagnetic Compatibility Advanced RF Technologies Table of Contents Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24E © 2008, MET Laboratories, Inc. Page iv of vi DOC-EMC704 4/5/2005 Table of Contents 1. Executive Summary ........................................................................................................................................................1 1.1. Requirements Summary .............................................................................................................................................2 1.2. Purpose of Test...........................................................................................................................................................2 1.3. Executive Summary ...................................................................................................................................................2 2. Equipment Configuration...............................................................................................................................................3 2.1. Overview....................................................................................................................................................................4 2.2. References ..................................................................................................................................................................5 2.3. Test Site .....................................................................................................................................................................6 2.4. Description of Test Sample ........................................................................................................................................6 2.5. Equipment Configuration.........................................................................................................................................13 2.6. Support Equipment ..................................................................................................................................................13 2.7. Ports and Cabling Information .................................................................................................................................14 2.8. Mode of Operation ...................................................................................................................................................15 2.9. Method of Monitoring EUT Operation ....................................................................................................................15 2.10. Modifications .........................................................................................................................................................15 2.10.1. Modifications to EUT .........................................................................................................................15 2.10.2. Modifications to Test Standard ...........................................................................................................15 2.11. Disposition of EUT ................................................................................................................................................15 3. Electromagnetic Compatibility Criteria for Unintentional Radiators .....................................................................16 § 15.107(a) Conducted Emissions Limits.............................................................................................................. 17 § 15.109 Radiated Emissions Limits ....................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Electromagnetic Compatibility Advanced RF Technologies Unintentional Radiators Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24 © 2008, MET Laboratories, Inc. DOC-EMC704 4/5/2005 Conducted Emission Limits Test Setup Conducted Emissions Test Setup Electromagnetic Compatibility Advanced RF Technologies Unintentional Radiators Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24 © 2008, MET Laboratories, Inc. DOC-EMC704 4/5/2005 Radiated Emission Limits Test Setup Radiated Emission Limits, Test Setup Electromagnetic Compatibility Advanced RF Technologies Intentional Radiators Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24 © 2008, MET Laboratories, Inc. DOC-EMC704 4/5/2005 Radiated Spurious Emissions Test Results Radiated Spurious Emissions, Test Setup, Downlink Electromagnetic Compatibility Advanced RF Technologies Intentional Radiators Delos201 and Delos202 CFR Title 47 Part 24 Subpart E & Part 15 Subpart B MET Report: EMCS80243A-FCC24 © 2008, MET Laboratories, Inc. DOC-EMC704 4/5/2005 Radiated Spurious Emissions Radiated Spurious Emissions, Test Setup, Uplink

Contact Information

Applicant

Julie Song(C.E.O)
[email protected]800-313-9345Fax: 323-254-4928

Technical Contact

MET Laboratories, Inc.Shawn McMillen
[email protected]410-949-1914

Maryland · United States

Non-Technical Contact

MET Laboratories, Inc.Jennifer Sanchez
[email protected]408-207-4785

Test Firm

MET Laboratories, Inc.Robert Frier
[email protected]4087483585Fax: 5104896372

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
524E1.93 GHz - 1.98 GHz118.00 mWGXW1 ppm
Confidentiality
Long Term
Grant Notes
Power Output is conducted. The antennas should be installed to provide at least 20 cm from all persons to satisfy MPE requirements of FCC Part 2, 2.1091. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of �1.1307(b)(3), for satisfying RF exposure compliance. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of �1.1307(b)(3).
