S2O-EPOCHIIICCellular Band Repeater

Advanced RF Technologies, Inc.
Cellular Band Repeater - FCC ID S2O-EPOCHIIIC - Advanced RF Technologies, Inc.
Click to zoom

Application Details

Equipment Class
AMP - Amplifier
Date of Grant
Jan 18, 2010
Application Purpose
Original Equipment
Date of Application
Jan 18, 2010
Equipment Note
Cellular Band Repeater
Frequency Range
869.00000000 - 894.00000000
Company
Advanced RF Technologies, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Epoch-III-C9024/9030/9533 User Manual V0.1 Advanced RF Technologies, Inc. Proprietary Document Page 1 of 36 Epoch-III-C9024/9030/9533 USER MANUAL Version 0.2 2607 Colorado Blvd. Los Angeles, CA 90041 USA Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com Epoch-III-C9024/9030/9533 User Manual V0.1 Advanced RF Technologies, Inc. Proprietary Document Page 2 of 36 Glossary The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition AGC Automatic Gain Control ALC Automatic Level Control AROMS ADRF’ Repeater Operation and Management System BTS Base Transceiver Station CDMA Code Division Multiple Access CW Continuous Wave (unmodulated signal) DAS Distributed Antenna System DL Downlink Downlink The path covered from the Base Transceiver Station (BTS) to the subscriber’s service area via the Repeater HPA High Power Amplifier HW Hardware IF Intermediate Frequency LNA Low Noise Amplifier MS Mobile Station PLL Phased Locked Loop PS Power Supply RF Radio Frequency SQE Signal Quality Estimate SW Software UL Uplink Uplink The path covered from the subscriber’s service area to the Base Transceiver Station(BTS) via the Repeater VSWR Voltage Standing Wave Ratio Epoch-III-C9024/9030/9533 User Manual V0.1 Advanced RF Technologies, Inc. Proprietary Document Page 3 of 36 Version 0.1 (Released March 4, 2009) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2009. All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (323) 254-8131 (800) 313-9345 Fax: (323) 254-4928 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 2607 Colorado Blvd., 1 st Floor Los Angeles, CA 90041 USA www.adrftech.com Revision History Version Author Description Date 0.1 B.Y.Park First March 4, 2009 0.2 B.Y.Park Update for FCC August 3, 2009 Epoch-III-C9024/9030/9533 User Manual V0.1 Advanced RF Technologies, Inc. Proprietary Document Page 4 of 36 TABLE OF CONTENTS 1. EPOCH-III-C9024/9030/9533 ................................................................................... 6 1.1 Introduction ........................................................................................................ 6 1.1.1 Highlights ..................................................................................................... 6 1.1.2 Parts List ....................................................................................................... 7 1.1.3 Repeater Quick View.................................................................................... 8 1.2 Warnings and Hazards ....................................................................................... 9 2. EPOCH-III-C9024/9030/9533 OVERVIEW......................................................... 11 2.1 Operation Modes .................................................................................................. 11 2.1.1 Local Web GUI .......................................................................................... 11 2.1.1. Remote Web GUI ...................................................................................... 11 2.2 Switches & Indicators .......................................................................................... 12 2.2.1 LEDs ........................................................................................................... 12 2.2.2 AC Power Switch & Battery Port for Ethernet Port ................................... 13 2.2.3 Ethernet Port ............................................................................................... 13 Installation .................................................................................................................. 14 2.2.4 Tools ........................................................................................................... 14 2.2.5 Procedure .................................................................................................... 14 2.2.6 Grounding ................................................................................................... 16 2.2.7 Antenna Separation/Isolation ..................................................................... 17 2.2.8 Line of Sight ............................................................................................... 18 3. EPOCH-III-C9024/9030/9533 AROMS SETUP ................................................... 19 3.1 Repeater/PC Connection Using AROMS ............................................................ 19 3.2 Repeater Status ..................................................................................................... 21 3.3 Control.................................................................................................................. 23 3.3.1 General Setting ........................................................................................... 23 3.3.2 Manual Gain Control .................................................................................. 23 3.3.3 System ........................................................................................................ 24 3.3.4 Heartbeat Time ........................................................................................... 24 3.3.5 Alarm Setting.............................................................................................. 24 3.4 Install .................................................................................................................... 25 3.4.1 Band Selection ............................................................................................ 25 3.4.2 SNMP ......................................................................................................... 25 3.4.3 Location ...................................................................................................... 26 3.4.4 Repeater ...................................................................................................... 26 3.4.5 Repeater…

Text truncated - open the document above for the full version.

External Photos

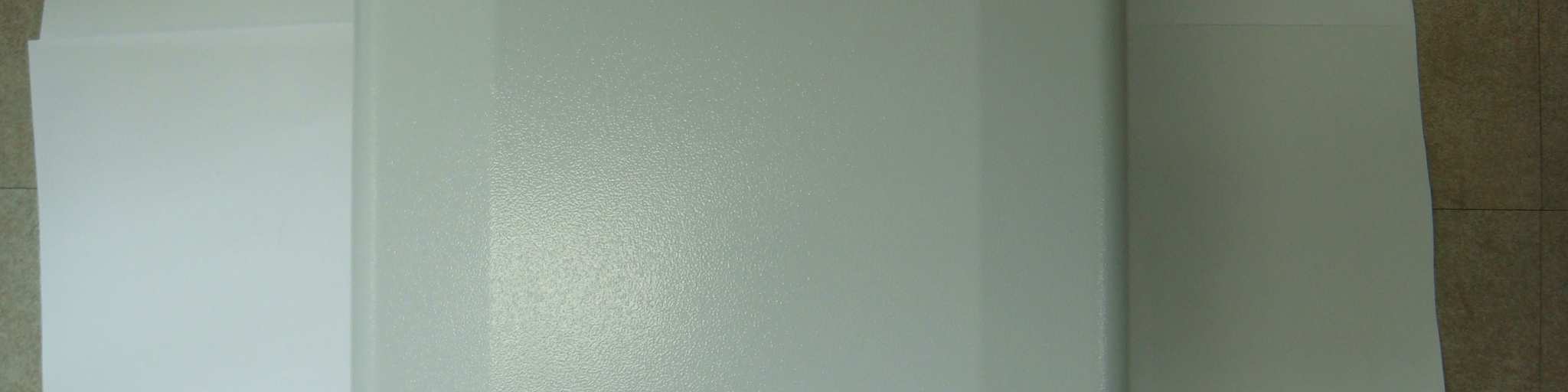

External Photographs FCC ID: S2O-EPOCHIIIC IC ID: 6416A-EPOCHIIIC

Internal Photos

Internal Photographs FCC ID: S2O-EPOCHIIIC IC ID: 6416A-EPOCHIIIC

Test Report

EMC Report for Advanced RF Technologies on the model: EPOCH-III-C File: 3186504MPK-002 Page 1 of 61 Test Report Report Number: 3186504MPK-002 Project Number: 3186504 Report Date: August 31, 2009 Testing performed on the Cellular Repeater Model Number: EPOCH-III-C FCC ID: S2O-EPOCHIIIC to FCC Part 22 Subpart H for Advanced RF Technologies Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA Advanced RF Technologies 2607 Colorado Boulevard Los Angeles, CA 90041 USA Prepared by: Date: August 31, 2009 Bruce Gordon, EMC Engineer Reviewed by: Date: August 31, 2009 Krishna Vemuri, Senior EMC Engineer This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for Advanced RF Technologies on the model: EPOCH-III-C File: 3186504MPK-002 Page 2 of 61 TABLE OF CONTENTS 1.0 Introduction ................................................................................................................... 4 1.1 Product Description.......................................................................................................... 4 1.2 Summary of Test Results ................................................................................................. 5 1.3 Test Configuration ........................................................................................................... 6 1.3.1 Support Equipment ................................................................................... 6 1.3.2 Block diagram of Test Setup.....................................................................6 1.4 Mode of Operation ........................................................................................................... 8 2.0 RF Power Output ............................................................................................................ 9 2.1 Test Procedure.................................................................................................................. 9 2.2 Test Equipment ................................................................................................................ 9 2.3 Test Results ...................................................................................................................... 9 3.0 Occupied Bandwidth, Input/Output Comparison....................................................... 11 3.1 Test Procedure................................................................................................................ 11 3.2 Test Equipment .............................................................................................................. 11 3.3 Test Results ..................................................................................................................... 11 4.0 Out-of-Band Emissions at Antenna Terminal.............................................................. 18 4.1 Requirement ................................................................................................................... 18 4.2 Test Procedure................................................................................................................ 18 4.3 Test Equipment .............................................................................................................. 18 4.4 Test Results .................................................................................................................... 18 5.0 Transmitter Spurious Radiation ................................................................................. 42 5.1 Requirement ................................................................................................................... 42 5.2 Test Procedure................................................................................................................ 42 5.3 Test Equipment .............................................................................................................. 42 5.4 Configuration Photographs ............................................................................................ 43 5.5 Test Results .................................................................................................................... 44 6.0 Radiated Emissions ....................................................................................................... 45 6.1 Radiated Emission Limits .............................................................................................. 45 6.2 Field Strength Calculation.............................................................................................. 46 6.3 Configuration Photographs ............................................................................................ 47 6.4 Test Results .................................................................................................................... 48 7.0 AC Line Conducted Emissions .................................................................................... 51 7.1 Conducted Emission Limits .............................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID: S2O-EPOCHIIIC IC ID: 6416A-EPOCHIIIC Radiated Emissions at 10 m Radiated Emissions at 10 m Radiated Emissions at 10 m Radiated Emissions at 3 m Conducted Emissions

Contact Information

Applicant

Julie Song(C.E.O)
[email protected]800-313-9345Fax: 323-254-4928

Technical Contact

Intertek Testing Services NA, Inc.Krishna Vemuri
[email protected]650-463-4644

1365 Adams Court · Menlo Park, California · United States

Non-Technical Contact

Intertek Testing Services NA, Inc.Krishna Vemuri
[email protected]650-463-4644

Test Firm

Intertek Testing Services NA Inc.John Quigley
[email protected]949-448-4100Fax: 650-463-2910

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
622H869 MHz - 894 MHz2 WDXWAmp
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 75 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements of �1.1307(b)(3), for satisfying RF exposure compliance. Approved for use with antenna(s) as listed in this filing.
