S2OADRFTECH004Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz

CHECK SIGNAL LEVELS 8 5 CHECK FOR PROPER COMMUNICATION 4 INSERT CD AND INSTALL SOFTWARE 6 SELECT OPERATING BAND(S) 7 MODEM SETUP Documentation and Software can be found on the CD-ROMincluded in the M1C box. Technical SupportContact ADRF’s Technical Support Team for assistance with:-Software Questions-Setting up the M1C-M1P Operation-Troubleshooting Questions 13 2 Epoch M1C Quick Start Guide www.adrftech.com CONNECT ANTENNAS/CABLES DONOR SERVER 1-323-254-81311-800-313-9345 ADRF CONNECT USB CABLE AND INSTALL DRIVERS RUN SOFTWARE AND POWER ON M1C STATUS WINDOW 7 8 *If the M1C does not have a modem inside, proceed to step 8.Verify that the box is checked. Enter the Site ID and Manager IP informationprovided by the carrier.Click the SET button, then the “INSTALL” button.When installation is complete go to STATUS menuand verify input/output power, gains, etc. AUTO CONNECTION 5 4 6 Now run the M1C software, and plug in thepower converter.Then turn on the M1C. (AC/DC Adapter) After opening the software verify that it iscommunicating with the M1C by checkingthat the status window has loaded properlyas shown in figure 5. Go to INSTALL menu on the top of theGUI.Click on the band you want selected. SOFTWARE/POWER SOFTWARE COMMUNICATION BAND SELECTION MODEM SETUP POST SURVEY Congratulations! The M1C has beensuccessfully installed and is ready for use.It is recommended to do a walk-throughinside of the building and make live phonecalls to verify RF coverage. 13 2 Connect the USB cable to your computer andthe M1C.When the Found New Hardware wizardcomes up, click next to automatically searchthe CD-ROM for drivers.*The installation CD must be in the CD-ROM. SOFTWARE INSTALL USB DRIVER INSTALLATION Documentation and Software can be found on the CD-ROMincluded in the M1C box. Technical SupportContact ADRF’s Technical Support Team for assistance with:-Software Questions-Setting up the M1C-M1C Operation-Troubleshooting Questions Epoch M1C Quick Start Guide www.adrftech.com1-323-254-81311-800-313-9345 Connect the donor/server antenna cables tothe M1C’s antenna ports on top as shown infigure 1.Adjust antenna positioning to assuremaximum RSSI and coverage. ANTENNA CONNECTION Place the installation CD into your CD-ROM.The setup will start automatically.Follow the InstallShield Wizard to completelyinstall the M1C software.When prompted, connect the USB cable andinstall the driver. (Step 3)

EPOCH-M1C USER MANUAL Version 1.1 2607 Colorado Blvd. Los Angeles, CA 90041 USA Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com Epoch-M1C RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 2 of 38 Version 1.1 (Released September 27, 2006) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 2002-2006. All rights reserved. Please send comments to: E-Mail: [email protected] Phone: (323) 254-8131 (800) 313-9345 Fax: (323) 254-4928 Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 2607 Colorado Blvd., Suite 100 Los Angeles, CA 90041 USA www.adrftech.com Epoch-M1C RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 3 of 38 TABLE OF CONTENTS 1. Introduction of Epoch-M1C ................................................................................5 1.1 Overview ......................................................................................................5 1.1.1 Highlights ......................................................................................5 1.1.2 Special Features..............................................................................5 1.1.3 Available Models ............................................................................7 1.2 Warnings and Hazards ..................................................................................8 1.3 Epoch-M1C Parts List .................................................................................10 1.4 Epoch-M1C Software Installation and Requirements...................................10 1.4.1 Minimum Requirements ..................................................................10 1.4.2 Epoch-M1C Software Installation....................................................10 1.4.3 Initial Startup of Epoch-M1C Software ............................................10 1.5 Pre-Installation using Epoch-M1C Software ...............................................11 1.6 Step by Step Instructions for Installation .....................................................12 1.6.1 Repeater Setup .............................................................................12 2 User Manual V1.0 using Epoch-M1C Software ...................................................16 2.1 Menu Structure ...........................................................................................16 2.1.1 Window Menu ...............................................................................16 2.1.2 Status Menu .................................................................................17 2.1.3 Control Menu ...............................................................................18 2.1.3.1 General Setting Window..................................................18 2.1.3.2 Alarm Setting Window ....................................................20 2.1.4 Install Menu..................................................................................22 2.1.5 System Menu ................................................................................23 2.1.5.1 Info. Window ..................................................................23 2.1.5.2 Upgrade Window ............................................................24 2.2 Using the Epoch-M1C Software ..................................................................25 2.2.1 Changing Parameters ...................................................................25 2.3 Alarms........................................................................................................26 2.3.1 General (Fixed Parameter) Alarms .................................................26 2.3.2 Downlink/Uplink Alarms...............................................................27 2.4 Default Control Settings..............................................................................27 2.4.1 Default General Setting.................................................................27 2.4.2 Default Alarm Setting ...................................................................28 3 Maintenance Guide for Epoch-M1C ....................................................................29 3.1 Periodic Inspection Checklist ......................................................................29 3.2 Preventive Measures for Optimal Operation.................................................29 3.2.1 Recommendations ........................................................................29 3.2.2 Precautions ..................................................................................29 4 Troubleshooting ................................................................................................30 4.1 Tx & Rx LEDs ..............................................................................................30 Epoch-M1C RF Repeater User Manual V1.1 Advanced RF Technologies, Inc. Proprietary Document Page 4 of 38 4.2 Common Installation Problems ...................................................................31 5 Warranty and Repair Policy.................................................................................32 5.1 General Warranty ........................................................................................32 5.2 Limitations of Warranty...............................................................................32 5.3 Limitation of Damages ...............................................................................32 5.4 No Consequential Damages........................................................................32 5.5 Additional Limitation on Warranty...............................................................32 5.6 Return Material Authorization (RMA)...........................................................33 Appendix A: Specifications ..........................................................................................34 Appendix B: Button Operation........................................................................…

Text truncated - open the document above for the full version.

Advanced RF Technologies, Inc. Proprietary Document 2607 Colorado Blvd. Los Angeles, CA 90041 TEL: (323) 254-8131 FAX: (323) 254-4928 www.adrftech.com ________________________________________________________________________ September 22, 2006 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 Confidentiality request regarding application for certification of FCC ID: S2OADRFTECH004 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment accompanying this application as outlined below: 1. Block Diagram 2. Schematic/Circuit Diagrams 3. Mechanical Drawing The above materials contain proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Director, Sales Engineering Advanced RF Technologies, Inc. 2607 Colorado Blvd., Suite 100 Los Angeles, CA 90041 www.adrftech.com Tel: (323) 254-8131 ext. 702 Fax: (323) 254-4928

External Photographs

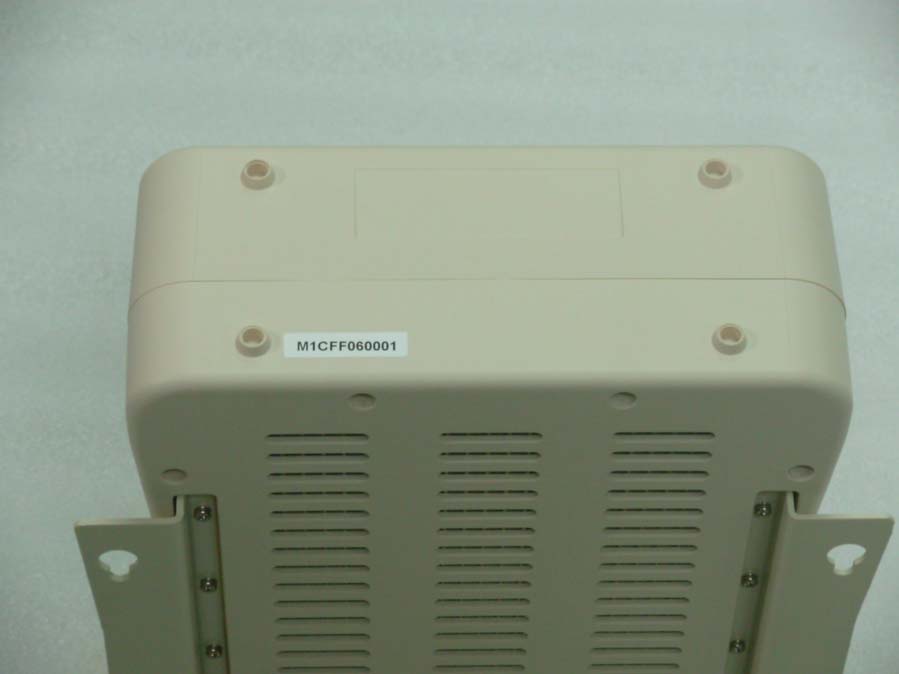

For In-Building Application 2607 Colorado Blvd. Los Angeles, CA 90041 to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject Advanced RF Technologies S/N: M1CAF060001 MODEL NO: EPOCH-M1C-AF FCC ID : S2OADRFTECH004 Tested To Comply with FCC Standards 2607 Colorado Blvd. Los Angeles, CA 90041 to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject Advanced RF Technologies S/N: M1CBF060001 MODEL NO: EPOCH-M1C-BF For In-Building Application FCC ID : S2OADRFTECH004 Tested To Comply with FCC Standards 2607 Colorado Blvd. Los Angeles, CA 90041 to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject Advanced RF Technologies MODEL NO: EPOCH-M1C-FF S/N: M1CFF060001 For In-Building Application FCC ID : S2OADRFTECH004 Tested To Comply with FCC Standards

Internal Photographs

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 33439 WESTERN AVENUE ! UNION CITY, CALIFORNIA 94587 ! PHONE (510) 489-6300 ! FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory October 10, 2006 Advanced RF Technologies 2607 Colorado Blvd. Los Angeles, CA 90041 Dear Sadat Chowdhury, Enclosed is the EMC test report for compliance testing of the Advanced RF Technologies, Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band as tested to the requirements of the FCC Certification rules under Title 47 of the CFR Part 22 Subpart H for Cellular Devices. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Sanchez Documentation Department Reference: (\Advanced RF Technologies\EMCS20735-FCC22) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. Electromagnetic Compatibility Advanced RF Technologies Cover Page Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page ii of vii Electromagnetic Compatibility Criteria Test Report for the Advanced RF Technologies Model Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band Verified under FCC Certification Rules Title 47 of the CFR, Part 22 Subpart H for Cellular Devices MET Report: EMCS20735-FCC22 October 10, 2006 Prepared For: Advanced RF Technologies 2607 Colorado Blvd. Los Angeles, CA 90041 Prepared By: MET Laboratories, Inc. 4855 Patrick Henry Dr., Building 6 Santa Clara, CA 95054 Electromagnetic Compatibility Advanced RF Technologies Cover Page Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page iii of vii Electromagnetic Compatibility Criteria Test Report for the Advanced RF Technologies Model Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band Tested Under FCC Certification Rules Title 47 of the CFR, Part 24 Subpart E for Cellular Devices Shawn McMillen, Project Engineer Jennifer Sanchez Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 22 Subpart H and Part 15 Subpart B of the FCC Rules under normal use and maintenance. Tony Permsombut, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Advanced RF Technologies Report Status Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page iv of vii Report Status Sheet Revision Report Date Reason for Revision ∅ October 10, 2006 Initial Issue. Electromagnetic Compatibility Advanced RF Technologies Table of Contents Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page v of vii Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................9 H. Mode of Operation..............................................................................................................................................9 I. Method of Monitoring EU…

Text truncated - open the document above for the full version.

Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 36 of 80 GSM Uplink Input (Low Channel) GSM Uplink Output (Low Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 37 of 80 GSM Uplink Input (Mid Channel) GSM Uplink Output (Mid Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 38 of 80 GSM Uplink Input (High Channel) GSM Uplink Output (High Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 39 of 80 TDMA Downlink Input (Low Channel) TDMA Downlink Output (Low Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 40 of 80 TDMA Downlink Input (Mid Channel) TDMA Downlink Output (Mid Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 41 of 80 TDMA Downlink Input (High Channel) TDMA Downlink Output (High Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 42 of 80 TDMA Uplink Input (Low Channel) TDMA Uplink Output (Low Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 43 of 80 TDMA Uplink Input (Mid Channel) TDMA Uplink Output (Mid Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 44 of 80 TDMA Uplink Input (High Channel) TDMA Uplink Output (High Channel) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 45 of 80 Downlink Low End Intermod (CDMA) Downlink High End Intermod (CDMA) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 46 of 80 Uplink Low End Intermod (CDMA) Uplink High End Intermod (CDMA) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 47 of 80 Downlink Low End Intermod (GSM) Downlink High End Intermod (GSM) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 48 of 80 Uplink Low End Intermod (GSM) Uplink High End Intermod (GSM) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 49 of 80 Downlink Low End Intermod (TDMA) Downlink High End Intermod (TDMA) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 50 of 80 Uplink Low End Intermod (TDMA) Uplink High End Intermod (TDMA) Advanced RF Technologies Intentional Radiators Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Page 51 of 80 Electromagnetic Compatibility Criteria for Intentional Radiators § 2.1053 Radiated Spurious Emissions Test Requirement(s): § 2.1053 Measurements required: Field strength of spurious radiation. § 2.1053 (a) Measurements shall be made to detect spurious emissions that may be radiated directly from the cabinet, control circuits, power leads, or intermediate circuit elements under normal conditions of installation and operation. Curves or equivalent data shall be supplied showing the magnitude of each harmonic and other spurious emission. For this test, single sideband, independent sideband, and controlled carrier transmitters shall be modulated under the conditions specified in paragraph (c) of § 2.1049, as appropriate. For equipment operating on frequencies below 890 MHz, an open field test is normally required with the measuring instrument antenna located in the far-field at all test frequencies. In the event it is either impractical or impossible to make open field measurements (e.g. a broadcast transmitter installed in a building) measurements will be accepted of the equipment as installed. Such measurements must be accompanied by a description of the site where the measurements were made showing the location of any possible source of reflections which might distort the field strength measurements. Information submitted shall include the relative radiated power of each spurious emission with reference to the rated power output of the transmitter, assuming all emissions are radiated from half-wave dipole antennas. § 2.1053 (b): The measurements specified in paragraph (a) of this section shall be made for the following equipment: (1) Those in which the spurious emissions are required to be 60 …

Text truncated - open the document above for the full version.

Advanced RF Technologies Epoch-M1C-AF, Epoch-M1C-BF & Epoch-M1C-FF 800 MHz band CFR Title 47 Part 22 Subpart H MET Report: EMCS20735-FCC22 © 2006, MET Laboratories, Inc. Electromagnetic Compatibility Criteria for Intentional Radiators Test Equipment and setup for various Radiated Measurements
